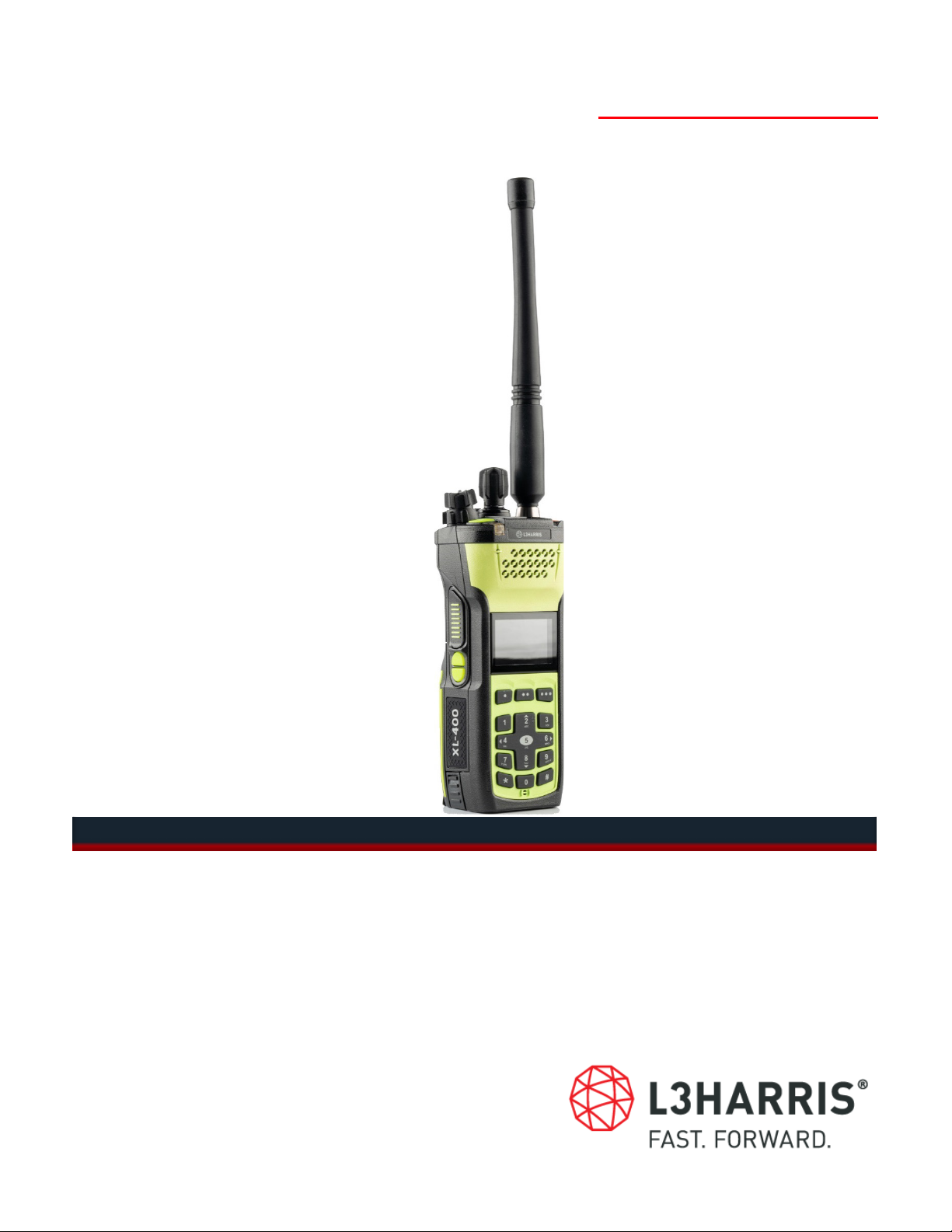

L3Harris XL Extreme Series User manual

Operator’s Manual
14221-1800-2050
Rev. G, November 2023
XL Extreme™ Series
Portable Radios

14221-1800-2050, Rev. G
2
MANUAL REVISION HISTORY
REV.
DATE
REASON FOR CHANGE
-
Dec/21
Initial release.
A
May/22
Added LTE (XL-400P-NA). Updated Table 4-1.
B
Jun/22
Minor updates throughout.
C
Aug/22
Added radio model numbers.
D
Jan/23
Updated to support NFPA certification.
E
Sep/23
Updated Table 5-2, Section 6.10.2, and Section 4.2. Added Appendix D.2.4.
F Nov/23
Updated battery part number in Section 3, updated Table 5-5, updated note in Section 6.10.2,
updated Table 5-4 and Table 5-5. Added option number to Table 4-1. Added Section 5.36.
G
Nov/23
Updated Section 3. Added Note about batteries shipped in shutdown mode.
L3Harris Technologies, Public Safety and Professional Communications (PSPC) Business continually evaluates its
technical publications for completeness, technical accuracy, and organization. You can assist in this process by
submitting your comments and suggestions to the following:
L3Harris Technologies, Inc. fax your comments to: 1-434-455-6851
PSPC Business or
Technical Publications e-mail us at: [e-mail]
221 Jefferson Ridge Parkway
Lynchburg, VA 24501
CREDITS
L3Harris, Harris, Unity, VIDA, EDACS, NetworkFirst, and OpenSky are registered trademarks of L3Harris
Technologies.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Motorola is a registered trademark of Motorola, Inc.
AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc.
Wi-Fi is a registered trademark of Wi-Fi Alliance.
All brand and product names are trademarks, registered trademarks, or service marks of their respective holders.
NOTICE!
THIS DEVICE MEETS THE REQUIREMENTS OF NFPA 1802 STANDARD ON TWO-WAY PORTABLE RF VOICE
COMMUNICATIONS DEVICES FOR USE BY EMERGENCY SERVICES PERSONNEL IN THE HAZARD ZONE,
2021 EDITION.
THIS INFORMATION IS CONTROLLED BY THE U.S. DEPARTMENT OF COMMERCE EXPORT
ADMINISTRATION REGULATIONS 15 CFR 730-774, EAR99. (EAR99.10.2023)
Information and descriptions contained herein are the property of L3Harris Technologies. Such information and
descriptions may not be copied or reproduced by any means or disseminated or distributed without the express
prior written permission of L3Harris Technologies, PSPC Business, 221 Jefferson Ridge Parkway, Lynchburg, VA
24501.
Repairs to this equipment should be made only by an authorized service technician or facility designated by the
supplier. Any repairs, alterations or substitutions of recommended parts made by the user to this equipment not
approved by the manufacturer could void the user's authority to operate the equipment in addition to the
manufacturer's warranty.
This product conforms to the European Union WEEE Directive 2012/19/EU. Do not dispose of this product in a
public landfill. Take it to a recycling center at the end of its life.
L3Harris products comply with the Restriction of the Use of Certain Hazardous Substances in Electrical and
Electronic Equipment (RoHS) Directive.
This manual is published by L3Harris Technologies without any warranty. Improvements and changes to this manual necessitated by
typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by L3Harris
Technologies at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may
be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose,
without the express written permission of L3Harris Technologies.
Copyright © 2021 - 2023, L3Harris Technologies.

14221-1800-2050, Rev. G
3
TABLE OF CONTENTS
Section Page
1. REGULATORY AND SAFETY INFORMATION ..................................................................... 8
1.1 SAFETY CONVENTIONS ............................................................................................8
1.2 OVER-TEMPERATURE CONDITION..........................................................................8
1.3 RATED TRANSMITTER RF OUTPUT POWER ........................................................... 8
1.4 SAFETY TRAINING INFORMATION ...........................................................................9
1.4.1 RF Exposure Guidelines...................................................................................9
1.4.2 Electromagnetic Interference/Compatibility..................................................... 10
1.5 REGULATORY APPROVALS.................................................................................... 10
1.5.1 Part 15............................................................................................................ 11
1.5.2 Industry Canada ............................................................................................. 11
1.6 OPERATING TIPS..................................................................................................... 11
1.6.1 Efficient Radio Operation................................................................................ 11
1.6.2 Antenna Care and Replacement..................................................................... 12
1.6.3 Electronic Devices.......................................................................................... 12
1.6.4 Aircraft............................................................................................................12
1.6.5 Electric Blasting Caps..................................................................................... 12
1.6.6 Potentially Explosive Atmospheres................................................................. 12
2. RENSEIGNEMENTS SUR LA RÉGLEMENTATION ET SÉCURITÉ.................................... 13
2.1 CONVENTIONS SUR LES SYMBOLES DE SÉCURITÉ............................................ 13
2.2 RENSEIGNEMENTS SUR LA FORMATION SUR LA SÉCURITÉ ............................. 13
2.2.1 Directives sur l’exposition aux RF................................................................... 14
2.2.2 Interférence/Compatibilité Électromagnétique ................................................ 15
2.3 INTERFÉRENCE DES RADIOFRÉQUENCES .......................................................... 15
2.3.1 Partie 15 de la FCC........................................................................................ 15
2.3.2 Industrie Canada ............................................................................................ 15
2.4 CONSEILS D’UTILISATION....................................................................................... 16
2.5 UTILISATION EFFICACE DE LA RADIO ................................................................... 16
2.5.1 Entretien Et Remplacement De L’antenne...................................................... 16
2.5.2 Appareils Électroniques .................................................................................. 16
2.5.3 Avion ..............................................................................................................17
2.5.4 Détonateurs Électriques ................................................................................. 17
2.5.5 Atmosphère Potentiellement Explosive........................................................... 17
3. CLASS I, DIVISION 2 OPTION ............................................................................................ 18
3.1 CLASS I, DIVISION 2 ACCESSORIES ...................................................................... 19
3.2 INTRINSICALLY SAFE DEVICE ENTITY PARAMETERS ......................................... 20
4. INTRODUCTION .................................................................................................................. 22
4.1 DESCRIPTION .......................................................................................................... 22
4.2 RADIO MODELS........................................................................................................23
4.3 STORAGE GUIDELINES........................................................................................... 23
4.4 BASIC SETUP ........................................................................................................... 23
4.4.1 Assemble the Radio ....................................................................................... 23
4.4.2 Removing the Battery ..................................................................................... 25
4.4.3 Removing the Optional Belt Clip or D-Post ..................................................... 25
4.5 UNIVERSAL DEVICE CONNECTOR......................................................................... 25
4.6 CLEANING.................................................................................................................26
4.7 OPTIONS AND ACCESSORIES................................................................................ 26

14221-1800-2050, Rev. G
4
TABLE OF CONTENTS
Section Page
4.8 RELATED PUBLICATIONS ........................................................................................27
5. BASIC OPERATION.............................................................................................................29
5.1 RADIO CONTROLS ...................................................................................................29
5.2 BEFORE FIRST USE .................................................................................................32
5.3 POWER ON AND SET VOLUME ...............................................................................32
5.4 VIDA ID ......................................................................................................................32
5.4.1 User Login.......................................................................................................32
5.4.2 Provisioning ....................................................................................................33
5.5 RADIO DISPLAYS......................................................................................................33
5.5.1 Top Display.....................................................................................................33
5.5.2 Front Display...................................................................................................34
5.6 MANDOWN ................................................................................................................36
5.7 STATUS MESSSAGES ..............................................................................................36
5.8 PREDEFINED MENU LAYOUTS................................................................................37
5.9 MENU.........................................................................................................................39
5.10 ALERT TONES...........................................................................................................42
5.11 SELECT ZONE/SYSTEM ...........................................................................................43
5.12 SELECT GROUP/CHANNEL AND BANK...................................................................43
5.13 LOCK/UNLOCK KEYPAD...........................................................................................44
5.14 GROUP CALLS..........................................................................................................44
5.14.1 Transmit a Group Call .....................................................................................44
5.14.2 Receive a Group Call ......................................................................................45
5.15 INDIVIDUAL CALLS ...................................................................................................46
5.15.1 Add/Edit Contact from the Radio.....................................................................46
5.15.2 Transmit an Individual Call ..............................................................................46
5.15.3 Receiving an Individual Call ............................................................................47
5.16 USER PROFILES.......................................................................................................48
5.17 NOISE CANCELLATION ............................................................................................49
5.17.1 Enable Noise Cancellation ..............................................................................49
5.17.2 Using Noise Cancellation ................................................................................50
5.17.3 The Effect of Distance from the Microphone....................................................50
5.17.4 Primary versus Secondary Microphone...........................................................50
5.17.5 When using a Self-Contained Breathing Apparatus (SCBA) Mask ..................50
5.18 PTT OPTIONS............................................................................................................51
5.19 VOICE ANNUNCIATION ............................................................................................51
5.20 ENABLE/DISABLE ENCRYPTION .............................................................................52
5.21 TRANSMIT ENABLE/DISABLE ..................................................................................52
5.22 CHANNEL GUARD (ANALOG CONVENTIONAL ONLY) ...........................................53
5.23 USE TALKAROUND TO BYPASS REPEATER (ANALOG AND P25
CONVENTIONAL ONLY) ...........................................................................................54
5.24 TYPE 99 OPERATION ...............................................................................................55
5.24.1 Enable/Disable Type 99 ..................................................................................55
5.24.2 Disable After PTT............................................................................................56
5.24.3 Auto Reset ......................................................................................................56
5.25 CALL ALERT (PAGE).................................................................................................56
5.25.1 Send Alert .......................................................................................................56
5.25.2 Receive Alert...................................................................................................56
5.26 TELEPHONE INTERCONNECT.................................................................................57

14221-1800-2050, Rev. G
5
TABLE OF CONTENTS
Section Page
5.27 DTMF......................................................................................................................... 57
5.28 AUDIO PLAYBACK.................................................................................................... 58
5.29 START SCAN ............................................................................................................ 59
5.30 STOP SCAN ..............................................................................................................60
5.31 MONITOR AND SQUELCH TYPES (CONVENTIONAL ONLY) ................................. 61
5.32 NUISANCE DELETE.................................................................................................. 61
5.33 FAILSOFT..................................................................................................................63
5.33.1 Conventional Failsoft (EDACS Only) .............................................................. 63
5.33.2 Failsoft (P25 Trunked) .................................................................................... 63
5.34 EMERGENCY OPERATION ...................................................................................... 63
5.34.1 Declaring an Emergency Call ......................................................................... 63
5.34.2 Receiving an Emergency Call......................................................................... 64
5.34.3 Stealth Emergency ......................................................................................... 64
5.35 MDC-1200 (ANALOG CONVENTIONAL ONLY) ........................................................ 64
5.35.1 Normal PTT Operation.................................................................................... 64
5.35.2 MDC PTT ID Receive Handling ...................................................................... 65
5.35.3 Emergency Declaration .................................................................................. 65
5.36 MULTIGROUP (P25 TRUNKING ONLY) ................................................................... 65
5.37 BEON OPERATION...................................................................................................66
5.37.1 Overview ........................................................................................................ 66
5.37.2 Wi-Fi Client Selection ..................................................................................... 67
5.38 STEALTH MODE ....................................................................................................... 69
6. ADVANCED OPERATIONS................................................................................................. 70
6.1 VIEW/CHANGE PERSONALITIES ............................................................................ 70
6.1.1 View Personalities .......................................................................................... 70
6.1.2 Change Active Personality.............................................................................. 71
6.2 SITUATIONAL AWARENESS (SA) – P25 CONVENTIONAL ONLY .......................... 72
6.3 USER-DEFINED ZONES/SYSTEMS ......................................................................... 73
6.3.1 Command Tactical Zone................................................................................. 73
6.3.2 Mixed System Zone........................................................................................ 74
6.4 CH INFO MENU......................................................................................................... 75
6.5 AUDIO SETTINGS..................................................................................................... 75
6.6 DISPLAY SETTINGS ................................................................................................. 76
6.7 GPS SETTINGS.........................................................................................................77
6.8 POSITION INFO ........................................................................................................ 78
6.9 WI-FI..........................................................................................................................79
6.10 BLUETOOTH .............................................................................................................80
6.10.1 Enable Bluetooth ............................................................................................ 80
6.10.2 Pair Devices ................................................................................................... 81
6.10.3 Reconnecting to Covert Bluetooth Microphone 12082-0684-01...................... 82
6.10.4 Pair with the SCOTT EPIC 3 Radio Direct Interface (RDI) Voice Amplifier...... 82
6.11 CLOCK SETTINGS.................................................................................................... 83
6.12 BATTERY INFO......................................................................................................... 83
6.13 SELECT LANGUAGE ................................................................................................ 84
6.14 SET UP SCAN ...........................................................................................................84
6.14.1 Default, Priority 1, and Priority 2 Channels ..................................................... 85
6.14.2 Trunked/Conventional Scanning..................................................................... 85
6.14.3 Vote Scan (Analog and P25 Conventional Only)............................................. 86

14221-1800-2050, Rev. G
6
TABLE OF CONTENTS
Section Page
6.14.4 Edit Scan List ..................................................................................................86
6.14.5 Set or Remove Priority 1 and Priority 2 Channels............................................87
6.14.6 Custom Scan Lists ..........................................................................................88
6.14.7 Wide Area System Scan (P25 Trunked and EDACS)......................................89
6.14.8 Site Lock .........................................................................................................90
6.15 RADIO STATUS .........................................................................................................90
6.16 RADIO MESSAGE......................................................................................................91
6.17 RADIO TEXTLINK ......................................................................................................92
6.17.1 Radio TextLink Messages...............................................................................92
6.17.2 Radio TextLink Forms .....................................................................................93
6.17.3 View Received Messages ...............................................................................94
6.18 FAULTS/ALERTS.......................................................................................................94
6.19 TONE ENCODE .........................................................................................................95
6.20 ENCRYPTION............................................................................................................96
6.20.1 Zeroize Keys from Radio.................................................................................96
6.20.2 Protected Keys................................................................................................96
6.20.3 Global Encryption............................................................................................96
6.20.4 Select Keyset ..................................................................................................97
6.20.5 View Key List ..................................................................................................98
6.20.6 Delete Individual Keys.....................................................................................98
6.20.7 OTAR Configuration........................................................................................99
6.21 P25 CONVENTIONAL FALLBACK .............................................................................99
6.22 EMERGENCY CHECK-IN TIMER ............................................................................100
7. PROGRAMMING ................................................................................................................101
7.1 L3HARRIS DEVICE MANAGEMENT .......................................................................101
7.2 PROGRAMMING VIA RPM2 ....................................................................................102
7.3 EDIT CHANNEL (ANALOG AND P25 CONVENTIONAL ONLY) ..............................102
7.4 OTAP .......................................................................................................................104
7.5 PROGRAMMABLE BUTTONS AND SWITCHES .....................................................105
7.5.1 Programmable Buttons .................................................................................105
7.5.2 Programmable A/B (Ø/O) Switch...................................................................107
7.5.3 Programmable A/B/C/D Switch .....................................................................107
7.6 PROGRAMMABLE ICONS.......................................................................................109
7.6.1 Top Display...................................................................................................109
7.6.2 Front Display.................................................................................................109
8. REFERENCE ......................................................................................................................110
8.1 MARINE FREQUENCIES.........................................................................................110
8.2 NARROWBANDING .................................................................................................111
9. GLOSSARY........................................................................................................................112
10. BASIC TROUBLESHOOTING............................................................................................115
10.1 ERROR MESSAGES................................................................................................115
10.2 OTAR ERRORS/INFORMATION..............................................................................117
11. TECHNICAL ASSISTANCE................................................................................................118
12. WARRANTY .......................................................................................................................118
APPENDIX A PREVENTIVE MAINTENANCE.......................................................................119

14221-1800-2050, Rev. G
7
TABLE OF CONTENTS
Section Page
APPENDIX B WI-FI PROGRAMMING .................................................................................. 120
APPENDIX C SCBA BLUETOOTH CONFIGURATION........................................................ 126
APPENDIX D CONFIGURING ENCRYPTION ...................................................................... 128
LIST OF FIGURES
Figure 4-1: Radio Assembly ........................................................................................................ 24
Figure 4-2: Remove the Battery .................................................................................................. 25
Figure 4-3: Universal Device Connector...................................................................................... 25
Figure 5-1: Radio Controls ..........................................................................................................29
Figure 5-2: XL Extreme Speaker Microphone Controls................................................................ 30
Figure 5-3: Top Display............................................................................................................... 33
Figure 5-4: Sample Idle Front Display ......................................................................................... 34
Figure 5-5: Using Noise Cancellation .......................................................................................... 50
Figure 6-1: Enabling Wi-Fi...........................................................................................................79
Figure 6-2: Wi-Fi Install Active..................................................................................................... 79
Figure 12-1: Options Network Configuration ......................................................................... 121
Figure 12-2: Wi-Fi Configuration ............................................................................................... 121
Figure 12-3: Service Name ....................................................................................................... 121
Figure 12-4: Enable Wi-Fi in RPM2........................................................................................... 122
Figure 12-5: Enable Wi-Fi Programming Mode on Radio .......................................................... 123
LIST OF TABLES
Table 1-1: RF Exposure Compliance Tested Distances (Worst Case Scenario).......................... 10
Tableau 2-1 : Distances de test de conformité des expositions aux RF (pire des scénarios)....... 15
Table 3-1: I.S. Equipment and Associated Apparatus ................................................................. 20
Table 4-1: Options and Accessories............................................................................................ 27
Table 5-1: Radio Controls, Indicators, and Connectors ............................................................... 30
Table 5-2: Radio Icons ................................................................................................................ 34
Table 5-3: Status Messages........................................................................................................ 36
Table 5-4: Predefined Menu Layouts........................................................................................... 37
Table 5-5: Menu Navigation ........................................................................................................39
Table 5-6: Alert Tones................................................................................................................. 42
Table 5-7: P25 Feature Support versus BeOn Feature Support .................................................. 66
Table 5-8: Supported Programmable Buttons ............................................................................. 67
Table 7-1: Valid Frequency Ranges .......................................................................................... 104
Table 7-2: Programmable Button Options ................................................................................. 105
Table 7-3: Programmable Ø/O Switch Options.......................................................................... 107
Table 7-4: Single-Instance Features.......................................................................................... 107
Table 7-5: Indexed Features ..................................................................................................... 108
Table 8-1: Marine Frequencies.................................................................................................. 110
Table 10-1: Displayed Error Messages, Reasons, and Resolutions .......................................... 115
Table 12-1: Wi-Fi Feature Support ............................................................................................ 124

14221-1800-2050, Rev. G
8
1. REGULATORY AND SAFETY INFORMATION
1.1 SAFETY CONVENTIONS
The following conventions are used throughout this manual to alert the user to general safety
precautions that must be observed during all phases of operation, service, and repair of this
product. Failure to comply with these precautions or with specific warning elsewhere in this
manual violates safety standards of design, manufacture, and intended use of the product.
L3Harris assumes no liability for the customer’s failure to comply with these standards.
The WARNING symbol calls attention to a procedure, practice, or the like,
which, if not correctly performed or adhered to, could result in personal
injury. Do not proceed beyond a WARNING symbol until the conditions
identified are fully understood or met.
The CAUTION symbol calls attention to an operating procedure, practice, or the
like, which, if not performed correctly or adhered to, could result in damage to the
equipment or severely degrade the equipment performance.
The NOTE symbol calls attention to supplemental information, which may improve
system performance or clarify a process or procedure.
1.2 OVER-TEMPERATURE CONDITION
When the radio reaches an internal temperature of 102°C, the high temperature alarm sounds.
Alerts are indicated via the LED, an OVERTEMP alert on the display and voice announcements.
The radio must be removed from service after an over-temperature condition.
1.3 RATED TRANSMITTER RF OUTPUT POWER
FREQUENCY RATED RF POWER OUTPUT
VHF 6.0 W (5.0 W in Hazard Mode)
UHF 5.0 W
700 MHz 3.0 W
800 MHz 3.0 W
WARNING
CAUTION
NOTE

14221-1800-2050, Rev. G
9
1.4 SAFETY TRAINING INFORMATION
The L3Harris XL-400P/XL-400P-NA
portable radio generates RF
electromagnetic energy during transmit mode. This radio is designed for
and classified as “Occupational Use Only,” meaning it must be used only
during the course of employment by individuals aware of the hazards and
the ways to minimize such hazards. This radio is NOT intended for use by
the “General Population” in an uncontrolled environment.
The XL-400P/XL-400P-NA portable radio has been tested and complies with the FCC RF
exposure limits for “Occupational Use Only.” In addition, this L3Harris radio complies with the
following Standards and Guidelines regarding RF energy and electromagnetic energy levels and
evaluation of such levels for exposure to humans:
•FCC KDB Publication 447498 General RF Exposure Guidance
•American National Standards Institute (C95.1 – 19921), IEEE Standard for Safety Levels with
Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
•American National Standards Institute (C95.3 – 1992), IEEE Recommended Practice for the
Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave.
•IC Standard RSS-102. Radiofrequency Exposure Compliance of Radiocommunication
Apparatus (All Frequency Bands).
•European Council Directive 89/391/EEC.
1.4.1 RF Exposure Guidelines
To ensure that exposure to RF electromagnetic energy is within the
EU/AU/FCC/IC
allowable limits for occupational use, always adhere to the
following guidelines:
•DO NOT operate the radio without a proper antenna attached, as this may damage the radio
and may also cause the FCC RF exposure limits to be exceeded. A proper antenna is the
antenna supplied with this radio by L3Harris or an antenna specifically authorized by L3Harris
for use with this radio. (Refer to
•
Battery packs shipped in shutdown mode (i.e., 14100-4000-07, RevA)
require waking before use. To wake a battery pack, place it in the charger
(with or without radio attached; radio on or off) for less than one minute.
•Table 4-1.)
•DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting
more than 50% of the time can cause FCC RF exposure compliance requirements to be
exceeded. The radio is transmitting when the “TX” indicator appears in the display. The radio
will transmit by pressing the “PTT” (Push-To-Talk) button.
•ALWAYS transmit using low power when possible. In addition to conserving battery charge,
low power can reduce RF exposure.
1Tested to ANSI C95.1-1992 in compliance with 47 CFR 2.1093. Meets or exceeds safety requirements of ANSI C95.1-2005.
WARNING
CAUTION
NOTE

14221-1800-2050, Rev. G
10
•ALWAYS use L3Harris authorized accessories (antennas, batteries, belt clips, speaker/mics,
etc.). Use of unauthorized accessories may cause the FCC Occupational/Controlled Exposure
RF compliance requirements to be exceeded. (Refer to Table 1-1.)
•As noted in Table 1-1, ALWAYS keep the housing of the transmitter AT LEAST 0.47 inches
(1.2 cm) from the body and at least 0.98 in (2.5 cm) from the face when transmitting to ensure
EU/AU/FCC/IC RF exposure compliance requirements are not exceeded. However, to provide
the best sound quality to the recipients of your transmission, L3Harris recommends you hold
the microphone at least 2 in (5 cm) from mouth, and slightly off to one side.
•Refer to Standard EN 62311:2008.
Table 1-1: RF Exposure Compliance Tested Distances (Worst Case Scenario)
RADIO FREQUENCY
Body2
Face
VHF
(136 - 174 MHz)
0.47 in (1.2 cm) 0.98 in (2.5 cm)
UHF
(378 - 522 MHz)
0.47 in (1.2 cm) 0.98 in (2.5 cm)
700/800 MHz
(768 - 776 MHz)
(798 - 806 MHz)
(806 - 824 MHz)
(851 - 870 MHz)
0.47 in (1.2 cm) 0.98 in (2.5 cm)
900 MHz
(935-944 MHz)
(896-902 MHz)
0.47 in (1.2 cm) 0.98 in (2.5 cm)
2400 MHz
(2412 - 2472 MHz)
0.47 in (1.2 cm) 0.98 in (2.5 cm)
5 GHz
(5.18 - 5.825 GHz)
0.47 in (1.2 cm) 0.98 in (2.5 cm)
SAR Evaluation: 1g averaged, 50% PTT Duty Factor, Occupational/Controlled
Exposure.
The information in this section provides the information needed to make the user aware of RF
exposure, and what to do to assure that this radio operates within the FCC RF exposure limits.
1.4.2 Electromagnetic Interference/Compatibility
During transmissions, this L3Harris radio generates RF energy that can possibly cause
interference with other devices or systems. To avoid such interference, turn off the radio in areas
where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to
electromagnetic radiation such as hospitals, aircraft, and blasting sites.
1.5 REGULATORY APPROVALS
Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
2This is worst case based on the thinnest body mount accessory (belt clip).
NOTE

14221-1800-2050, Rev. G
11
1.5.1 Part 15
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
1.5.2 Industry Canada
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the
device.
1.6 OPERATING TIPS
Antenna location and condition are important when operating a portable radio. Operating the radio
in low-lying areas or terrain, under power lines or bridges, inside of a vehicle, or in a metal framed
building can severely reduce the range of the unit. Mountains can also reduce the range of the
unit.
In areas where transmission or reception is poor, some improvement may be obtained by
ensuring that the antenna is vertical. Moving a few yards in another direction or moving to a higher
elevation may also improve communications. Vehicular operation can be aided with the use of an
externally mounted antenna.
Battery condition is another important factor in the trouble-free operation of a portable radio.
Always properly charge the battery. Use of optional features, such as GPS, will impact operational
run time.
Do not cover the microphone, speaker, connectors, buttons, etc., with any labels
or other obstruction.
1.6.1 Efficient Radio Operation
Keep the antenna in a vertical position when receiving or transmitting a message.
Do NOT hold onto the antenna when the radio is powered on!
NEVER cover the air vent on the radio with any sticker or asset tag. Doing so could
result in 100% loss of receive audio, low receive audio, distorted receive audio, etc.
CAUTION
WARNING
CAUTION

14221-1800-2050, Rev. G
12
1.6.2 Antenna Care and Replacement
Do not use the portable radio with a damaged or missing antenna. A minor
burn may result if a damaged antenna comes into contact with the skin.
Replace a damaged antenna immediately. Operating a portable radio with the
antenna missing could cause personal injury, damage the radio, and may
violate FCC regulations.
Use only the supplied or approved antenna. Unauthorized antennas, modifications,
or attachments could cause damage to the radio unit and may violate FCC
regulations. (Refer to Table 4-1.)
1.6.3 Electronic Devices
RF energy from portable radios may affect some electronic equipment. Most
modern electronic equipment in cars, hospitals, homes, etc. is shielded from RF
energy. However, in areas in which you are instructed to turn off two-way radio
equipment, always observe the rules. If in doubt, turn it off!
1.6.4 Aircraft
•Always turn off a portable radio before boarding any aircraft!
•Use it on the ground only with crew permission.
•DO NOT use while in-flight!!
1.6.5 Electric Blasting Caps
To prevent accidental detonation of electric blasting caps, DO NOT use two-
way radios within 1000 feet of blasting operations. Always obey the "Turn Off
Two-Way Radios" signs posted where electric blasting caps are being used
(OSHA Standard: 1926.900).
1.6.6 Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often, but not always,
clearly marked. These may be fueling areas, such as gas stations, fuel or
chemical transfer or storage facilities, and areas where the air contains
chemicals or particles, such as grain, dust, or metal powders.
Sparks in such areas could cause an explosion or fire resulting in bodily
injury or even death.
Turn off two-
way radios when in any area with a potentially explosive
atmosphere. It is rare, but possible that a radio or its access
ories could
generate sparks.
WARNING
CAUTION
CAUTION
WARNING
WARNING
WARNING

14221-1800-2050, Rev. G
13
2. RENSEIGNEMENTS SUR LA RÉGLEMENTATION ET
SÉCURITÉ
2.1 CONVENTIONS SUR LES SYMBOLES DE SÉCURITÉ
Les conventions suivantes sont utilisées dans le présent manuel pour avertir l’utilisateur des
précautions générales de sécurité qui doivent être observées pendant toutes les phases
d’opération, d’entretien et de réparation de ce produit. Le non-respect de ces précautions ou
d’avertissements précisés ailleurs enfreint les normes de sécurité de la conception, de la
fabrication et de l’utilisation prévue du produit. L3Harris n’assume aucune responsabilité pour le
non-respect de ces normes par le client.
Le symbole MISE EN GARDE attire l’attention sur une procédure ou une
pratique qui, si elle n’est pas correctement effectuée ou observée, pourrait
entraîner une blessure personnelle. Ne pas poursuivre au-
delà d’un
symbole de MISE EN GARDE avant que les conditions identifiées soient
complètement comprises ou satisfaites.
Le symbole AVERTISSEMENT
attire l’attention sur une procédure ou une
pratique opérationnelle qui, si elle n’est pas correctement effectuée ou observée,
pourrait entraîner un bris d’équipement ou une importante baisse de rendement
de l’équipement.
Le symbole REMARQUE
attire l’attention sur des renseignements
supplémentaires qui peuvent améliorer le rendement du système ou clarifier un
processus ou une procédure.
2.2 RENSEIGNEMENTS SUR LA FORMATION SUR LA SÉCURITÉ
La radio portative L3Harris XL-400P/XL-400P-NA
produit de l’énergie
électromagnétique des RF lorsqu’en mode de transmission. Cette radio est
conçue et classée pour une « Utilisation professionnelle seulement », ce
qui signifie qu’elle ne doit être utilisée que dans le cadre d’un emploi par
des individus conscients des risques et des moyens de limiter ceux-ci.
Cette radio N’EST PAS conçue pour une utilisation par la « Population
générale » dans un environnement non contrôlé.
La radio portative XL-400P/XL-400P-NA a été testée et est conforme aux limites d’exposition aux
RF de la FCC pour une « Utilisation professionnelle seulement ». De plus, cette radio L3Harris
est conforme aux normes et directives suivantes quant à l’énergie des RF et aux niveaux
d’énergie électromagnétique, ainsi qu’à l’évaluation de ces niveaux pour l’exposition aux
humains :
•FCC KDB 447498
•American National Standards Institute (C95.1 – 1992), norme de l’IEEE sur les niveaux
sécuritaires d’exposition humaine aux champs électromagnétiques des radiofréquences,
3 kHz à 300 GHz.
MISE EN GARDE
AVERTISSEMENT
REMARQUE
MISE EN GARDE

14221-1800-2050, Rev. G
14
•American National Standards Institute (C95.3 – 1992), pratique recommandée par l’IEEE pour
la mesure des champs électromagnétiques potentiellement dangereux – RF et micro-ondes.
2.2.1 Directives sur l’exposition aux RF
Pour s’assurer que l’exposition à l’énergie électromagnétique des RF se situe
dans les limites acceptables de la FCC pour l’
utilisation professionnelle,
respectez toujours les directives suivantes :
•N’utilisez PAS la radio sans qu’une antenne appropriée y soit connectée, car ceci peut
endommager la radio et également causer un dépassement des limites d’exposition aux RF
de la FCC. Une antenne appropriée est celle fournie par L3Harris avec cette radio, ou une
antenne spécifiquement autorisée par L3Harris pour être utilisée avec cette radio. (Reportez-
vous à Tableau 2-1.)
•Ne transmettez PAS pendant plus de 50 % de la durée d’utilisation totale de la radio (« cycle
de service de 50 % »). La transmission pendant plus de 50 % du temps peut causer un
dépassement des exigences de conformité de la FCC en matière d’exposition aux RF. La
radio transmet lorsque l’indicateur « TX » apparaît sur l’affichage. La radio transmet lorsqu’on
appuie sur le bouton « PTT » (bouton de microphone).
•Transmettez TOUJOURS en basse puissance lorsque possible. En plus de préserver la
charge de la pile, une faible puissance réduit l’exposition aux RF.
Utilisez TOUJOURS des accessoires autorisés L3Harris (antennes, piles, pinces de ceinture,
haut-parleurs/micros, etc.). L’utilisation d’accessoires non autorisés peut entraîner un
dépassement des exigences de conformité pour une exposition aux RF professionnelle ou
contrôlée de la FCC. (Reportez-vous à
Battery packs shipped in shutdown mode (i.e., 14100-4000-07, RevA) require
waking before use. To wake a battery pack, place it in the charger (with or
without radio attached; radio on or off) for less than one minute.
•Table 4-1.)
•Tel qu’indiqué dans Tableau 2-1, conservez TOUJOURS l’appareil et son antenne à AU
MOINS 1,2 cm du corps, et à au moins 2,5 cm du visage pendant la transmission, pour vous
assurer de ne pas dépasser les exigences de conformité de la FCC en matière d’exposition
aux RF. Cependant, pour offrir la meilleure qualité sonore aux auditeurs de votre transmission,
L3Harris recommande de tenir le microphone à au moins 5 cm (2 po) de votre bouche et
légèrement déplacé sur un côté.
AVERTISSEMENT
NOTE

14221-1800-2050, Rev. G
15
Tableau 2-1 : Distances de test de conformité des expositions aux RF (pire des scénarios)
RADIOFRÉQUENCES
CORPS3
VISAGE
VHF
(136 - 174 MHz)
1,2 cm 2,5 cm
UHF
(378 - 522 MHz)
1,2 cm 2,5 cm
700/800 MHz
(768 - 776 MHz)
(798 - 806 MHz)
(806 - 824 MHz)
(851 - 870 MHz)
1,2 cm 2,5 cm
900 MHz
(935-944 MHz)
(896-902 MHz)
1,2 cm 2,5 cm
2400 MHz
(2412 - 2472 MHz)
1,2 cm 2,5 cm
5 GHz
(5.18 - 5.825 GHz)
1,2 cm 2,5 cm
Dans cette section figurent les renseignements nécessaires pour sensibiliser l’utilisateur à
l’exposition aux RF et sur ce qu’il faut faire pour s’assurer que cette radio fonctionne dans les
limites d’exposition aux RF de la FCC.
2.2.2 Interférence/Compatibilité Électromagnétique
Pendant les transmissions, cette radio L3Harris produit de l’énergie des RF qui peut causer de
l’interférence avec d’autres appareils ou systèmes. Pour éviter de telles interférences, fermez la
radio dans les zones où il est indiqué de le faire. N’utilisez PAS le transmetteur dans des zones
sensibles aux radiations électromagnétiques, comme les hôpitaux, les avions et les sites de
détonation.
2.3 INTERFÉRENCE DES RADIOFRÉQUENCES
2.3.1 Partie 15 de la FCC
Cet appareil est conforme à la Partie 15 de la réglementation de la FCC. Le fonctionnement est
soumis aux deux conditions suivantes :
1. Cet appareil ne doit pas causer une interférence nuisible; et
2. Cet appareil doit accepter toute interférence reçue, y compris une interférence qui peut causer
un fonctionnement non souhaité.
2.3.2 Industrie Canada
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
3Ce est le pire des cas basée sur le corps plus mince monter accessoire (clip ceinture).

14221-1800-2050, Rev. G
16
2.4 CONSEILS D’UTILISATION
L’emplacement et l’état de l’antenne sont importants pour l’utilisation d’une radio portative.
L’utilisation de la radio dans des zones de faible élévation, sous des lignes électriques ou des
ponts, à l’intérieur d’un véhicule ou dans un immeuble à ossature métallique, peut réduire la
portée de l’appareil de manière considérable. Les montagnes peuvent également réduire la
portée de l’unité.
Dans les zones où la transmission ou la réception est insatisfaisante, certaines améliorations
peuvent être obtenues en s’assurant que l’antenne est verticale. Se déplacer de quelques mètres
dans une autre direction ou à un emplacement plus élevé peut également améliorer les
communications. L’utilisation d’une antenne fixée à l’extérieur peut faciliter le fonctionnement
dans un véhicule.
L’état de la pile est un autre facteur important d’une utilisation sans tracas d’une radio portative.
Chargez toujours correctement la pile.
2.5 UTILISATION EFFICACE DE LA RADIO
Gardez l’antenne dans une position verticale pendant la réception ou la transmission d’un
message.
Ne tenez PAS l’antenne lorsque la radio est allumée !
2.5.1 Entretien Et Remplacement De L’antenne
N’utilisez pas la radio portative si son antenne est endommagée ou absente.
Une brûlure légère peut se produire au contact d’une antenne endommagée
avec la peau. Remplacez immédiatement une antenne endommagée.
L’utilisation d’une radio portative alors que l’antenne est abse
nte peut
causer des blessures, endommager la radio et pourrait enfreindre la
réglementation de la FCC.
Utilisez seulement l’antenne fournie ou une antenne approuvée. Des antennes
non autorisées, des modifications ou des ajouts à une antenne peuvent
endommager la radio et enfreindre la réglementation de la FCC. (Reportez-vous à
Table 4-1.)
2.5.2 Appareils Électroniques
L’énergie des RF provenant de radios portatives peut affecter certains appareils
électroniques. La majorité de l’équipement électronique moderne dans les voitures,
les hôpitaux, les maisons, etc. est blindé contre l’énergie des RF. Cependant, dans
les zones où l’on vous demande de fermer l’équipement de radio bidirectionnelle,
respectez toujours les règles. En cas de doute, éteignez-le !
MISE EN GARDE
MISE EN GARDE
AVERTISSEMENT
AVERTISSEMENT

14221-1800-2050, Rev. G
17
2.5.3 Avion
•
Éteignez toujours une radio portative avant d’embarquer à bord d’un
avion !
•Ne l’utilisez au sol qu’avec la permission de l’équipage.
•NE l’utilisez PAS durant le vol !
2.5.4 Détonateurs Électriques
Pour prévenir la détonation accidentelle des détonateurs électriques,
n’utilisez PAS de radios bidirectionnelles à moins de 305 m (1 000 pi) des
opérations de détonation. Respectez toujours les indications « Éteindre les
radios bidirectionnelles » situées
là où des détonateurs électriques sont
utilisés. (Norme OSHA : 1926.900)
2.5.5 Atmosphère Potentiellement Explosive
Les zones ayant une atmosphère potentiellement explosive sont souvent,
mais pas toujours, identifiées clairement comme telles. Il peut
s’agir de
zones d’alimentation en carburant, comme les postes d’essence, les
installations de stockage ou de transfert de carburant ou de produits
chimiques, ainsi que les zones dont l’air contient des produits chimiques ou
des particules, comme des grains
, de la poussière ou des poudres
métalliques.
Des étincelles dans de telles zones peuvent provoquer une explosion ou un
incendie, causant ainsi des blessures ou même la mort.
Éteignez les radios bidirectionnelles dans toute zone ayant une atmosphère
potentiellement explosive. Il est rare, mais pas impossible qu’une radio ou
ses accessoires produisent des étincelles.
MISE EN GARDE
MISE EN GARDE
MISE EN GARDE

14221-1800-2050, Rev. G
18
3. CLASS I, DIVISION 2 OPTION
Refer to Battery Guide 14221-1800-2030 for Accessory Kit 14035-9800 which communicates to
the end user which battery is required to maintain UL CID2.
Radios ordered with the Class I, Division 2 option are suitable for use in Class I, Division 2,
Groups A, B, C, and D or non-hazardous (unclassified) locations only.
Les radios commandées avec l’option Classe I, Division 2 sont adéquates pour utilisation en
Classe I, Division 2, Groupes A, B, C et D, ou en lieux non-hasardeux (non-classifiés) seulement
EXPLOSION HAZARD –
REPLACE BATTERY PACK ONLY IN AN AREA
KNOWN TO BE NON-HAZARDOUS, AND ONLY WITH THE L3HARRIS PART
NO. REFERENCED IN BATTERY GUIDE 14221-1800-2030.
AVERTISSEMENT – RISQUE D’EXPLOSION – LES BATTERIES NE DOIVENT
ÊTRE REMPLACÉES QUE DANS UNE ZONE NON DANGEREUSE
RECONNUE, ET UNIQUEMENT AVEC UNE BATTERIE L3HARRIS DONT LE
NUMÉRO DE PIÈCE EST RÉFÉRENCÉ DANS LE GUIDE DES BATTERIES,
14221-1800-2030.
EXPLOSION HAZARD – Substitution of any component may impair suitability
for Class I, Division 2.
AVERTISSEMENT – RISQUE D’EXPLOSION –
Une substitution de toute
composante pourrait compromettre la convenance pour la Classe I, Division
2.
EXPLOSION HAZARD – Do not exceed maximum battery charging current of
5.250 A or maximum charging voltage of 12.0 V DC at any time.
CAUTION -
The battery used in this device may present a risk of fire or
explosion when heated above 100°C (212°F) or incinerated4. Replace battery
with the L3Harris Part No. referenced in battery guide 14221-1800-2030 only.
Use of another battery may present a risk of fire or explosion.
Battery replacement instructions: Remove battery by 1) depressing battery latches then 2) remove
battery from radio chassis. Install replacement battery by inserting battery in radio chassis
opening and depressing battery into chassis until both battery latches are engaged. Dispose of
used battery promptly. Keep away from children. Do not disassemble and do not dispose of in
fire.
4Battery meets all temperature rating requirements of NFPA1802.
WARNING
WARNING
WARNING
WARNING

14221-1800-2050, Rev. G
19
EXPLOSION HAZARD – In addition to any simple single-ended coil antenna
and carrying case option, only the following L3Harris accessories may be
used with this radio:
3.1 CLASS I, DIVISION 2 ACCESSORIES
PART NUMBER
DESCRIPTION
NFPA
14100-4700-22 Speaker Microphone, Green, Straight Cable N/A
14100-4700-25 Speaker Microphone, XL, Black, Straight Cable N/A
14100-4700-71 Speaker Microphone, NFPA 1802, Green Cable and Dongle NFPA
14100-4700-72 Speaker Microphone, NFPA 1802, Black Cable and Dongle NFPA
14100-4700-73 Speaker Microphone, NFPA 1802, Yellow Cable and Dongle NFPA
14100-4700-81 Speaker Microphone, NFPA 1802, Green Straight Cable -16 NFPA
14100-4700-82 Speaker Microphone, NFPA 1802, Black Straight Cable -16 NFPA
14100-4700-83 Speaker Microphone, NFPA 1802,Yellow Straight Cable -16 NFPA
14100-4700-91 Speaker Microphone, Green Straight Cable -15 N/A
14100-4700-92 Speaker Microphone, Black Straight Cable -15 N/A
14035-4750-01 Speaker Microphone, 500F N/A
12082-0600-01 Speaker Microphone N/A
14035-4700-01 Speaker Microphone, REVO NC2, C1D2 N/A
12082-0600-02 Speaker Microphone, Emergency Button N/A
12082-0684-01 Bluetooth, Covert, Earpiece/Mic/PTT N/A
12082-0800-02 Speaker Microphone, Wireless, Bluetooth, Advanced N/A
12082-0800-03 Speaker Microphone, Wireless, Bluetooth, Advanced, ANZ N/A
12082-0650-01 Microphone,Palm,2 Wire, Black N/A
12082-0650-03 Microphone,Mini-Lapel,3 Wire, Black N/A
LS103239V1 Earphone, Lapel Microphone N/A
LS103239V2 Earphone, Speaker Microphone, Right Angle, 2.5 mm N/A
12082-0600-03 Microphone, Antenna Speaker,Emrg,18 In N/A
12082-0600-04 Microphone, Antenna Speaker,Emrg,25.6 In N/A
12082-0600-05 Microphone, Antenna Speaker,Emrg,30 In N/A
12082-0650-17 Skull Microphone, with Body PTT and Earcup N/A
12082-0650-18 Throat Microphone, with Acoustic Tube and Body PTT N/A
12082-0650-19 Throat Microphone, with Acoustic Tube, Body and Ring PTT N/A
12082-0650-13 Headset, Heavy Duty, Behind the Head, with PTT N/A
12082-0650-14 Headset, Heavy Duty, Over the Head, with PTT N/A
12082-0650-08 Headset, Light Weight, Over the Head ,Single Ear, In-Line PTT N/A
12082-0650-09 Headset, Light Weight, Behind the Head, Dual Ear, In-Line PTT N/A
12082-0650-10 Headset, Light Weight, Behind the Head, Dual Ear, Pigtail PTT N/A
WARNING

14221-1800-2050, Rev. G
20
PART NUMBER
DESCRIPTION
NFPA
12082-0650-11
Headset, Light Weight, Behind the Head, Dual In-Ear, In-Line
PTT
N/A
12082-0650-12
Headset, Light Weight, Behind the Head, Dual In-Ear, Pigtail
PTT
N/A
3.2 INTRINSICALLY SAFE DEVICE ENTITY PARAMETERS
•Intrinsically Safe Device Entity Parameters:
V max (or Ui) = 8 V dc
I max (or Ii) = 500 mA
P max (or Pi) = 4 W
Ci = 69 µF
Li = 320 µH
•Associated apparatus output current must be limited by a resistor such that the output voltage-
current plot is a straight line drawn between open-circuit voltage and short-circuit current.
•Associated apparatus may be in a Division 2 or Zone 2 location if so approved.
•Selected associated apparatus must be third-party listed as providing intrinsically safe circuits
for the application, and have Voc or Vt not exceeding Vmax (or Uo not exceeding Ui), Isc or
It not exceeding Imax (or Io not exceeding Ii), and the Po of the associated apparatus must
be less than or equal to the Pmax or Pi of the intrinsically safe equipment, as shown in Table
3-1.
•Capacitance and inductance of the field wiring from the intrinsically safe equipment to the
associated apparatus shall be calculated and must be included in the system calculations as
shown in Table 3-1. Cable capacitance, Ccable, plus intrinsically safe equipment
capacitance, Ci, must be less than the marked capacitance, Ca (or Co), shown on any
associated apparatus used. The same applies for inductance (Lcable, Li and La or Lo,
respectively). Where the cable capacitance and inductance per foot are not known, the
following values shall be used: Ccable = 60 pF/ft., Lcable = 0.2 µH/ft.
Table 3-1: I.S. Equipment and Associated Apparatus
I.S. EQUIPMENT ASSOCIATED APPARATUS
V max (or Ui) ≥Voc or Vt (or Uo)
I max (or Ii) ≥Isc or It (or Io)
P max (or Pi) ≥Po
Ci + Ccable ≤Ca (or Co)
Li + Lcable ≤La (or Lo)
If Po of the associated apparatus is not known, it can be calculated using the formula Po =
(Voc * Isc)/4 = (Uo * Io)/4.
•Associated apparatus must be installed in accordance with its manufacturer’s control drawing
and Article 504 of the National Electrical Code (ANSI/NFPA 70) for installation in the United
States, or Section 18 of the Canadian Electrical Code (C22.1) for installations in Canada.
