La Cornue SUPREME Manual

1
Installation, Operation
and Maintenance
INSTRUCTIONS
WARMING DRAWER SUPREME
WARMING DRAWER
« SUPREME »

2
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
DO NOT STORE ITEMS OF INTEREST TO CHILDREN IN CABINETS ABOVE A RANGE
OR ON THE BACKGUARD OF A RANGE - CHILDREN CLIMBING ON THE RANGE TO
REACH ITEMS COULD BE SERIOUSLY INJURED.
This book contains many important safety messages.
Always read and obey all safety messages.
Installer: Leave these instructions with the appliance
WARNING: NEVER use this appliance as a space heater to heat or warm the
room. Doing so may result in overheating of the oven.
WARNING: NEVER cover any slots, holes or passages in the oven bottom or cover
an entire rack with materials such as aluminum foil. Doing so may result in
overheating of the oven. Do not use aluminum foil to line surface unit drip bowls or
oven bottoms, except as suggested in the manual. Improper installation of these
liners may result in a risk of electric shock, or fire.
Care to be taken to prevent aluminum foil and meat probes from contacting the heater elements.
Proper Installation
Be sure your appliance is properly installed and grounded by a qualified technician.
The appliance must be electrically installed and grounded in accordance with local codes or in the
absence of such codes with the latest edition of the standard for household electric range UL858 in the
USA, and CSA C22.2 No.61 "Household cooking range” - in Canada.
Important - Save the installation instructions for the local electrical inspector’s use.

3
IMPORTANT SAFETY INSTRUCTIONS
In Case of Fire
Do not use water on grease fires. Never pick up a flaming pan. Turn the controls
off. Smother a flaming pan on a cooktop burner by covering the pan completely
with a well fitting lid or baking tray. If available use a multipurpose dry chemical
or foam-type fire extinguisher
If fire is in an oven pan, smother by closing oven door. Open doors and windows
or if a hood is fitted turn it on to remove smoke and odor.
To Prevent Fire or Smoke Damage
Before using the range make sure all the packing materials have been removed. Always keep
the area around the range free from combustible materials, gasoline, and other flammable
vapors and liquids.
If the range is installed near a window, proper precautions should be taken to prevent
curtains from blowing over the burners.
NEVER leave any items on the range cooktop. The hot air from an oven vent may ignite
flammable items and may increase pressure in closed containers, which may cause them to
burst. Many aerosol-type spray cans are EXPLOSIVE when exposed to heat and may be
highly flammable. Avoid their use or storage near an appliance.
Many plastics will burn and most are damaged by heat. Keep plastic items away from parts of
the range that may become warm or hot. Do not leave plastic items on the cooktop as they
may burn, melt or soften if left too close to a vent or a lighted burner.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
All our cooking appliances are intended for domestic use only; i.e., not professional. In the event
of non-domestic use, the manufacturer shall not incur any liability, and the warranty shall be
considered void.

4
IMPORTANT SAFETY INSTRUCTIONS
◆Keep appliance area free and clear from combustibles.
◆It is essential that the kitchen where your appliance will be installed has excellent ventilation to the
outside for steam and combustion gases removal.
◆VENTILATING HOODS:
- Clean Ventilating Hoods Frequently - Grease should not be allowed to accumulate on hood or
filter.
- When flaming foods under the hood, turn the fan on.
◆Do not use air recycling systems.
◆“La Cornue” can provide customers with hoods in materials matching the appliance. The hoods are
sold without blower systems since every installation is unique. The individual requirements are best
handled by a professional ventilation specialist.
◆Adequate clearance must be provided for air openings into the combustion chamber.
◆Minimum clearances to combustible construction see item 1.2.
◆Adequate clearance must be provided for proper operation and servicing of the appliance.
◆Keep this manual for future reference.
◆Do Not Leave Children Alone - Children should not be left alone or unattended in area where
appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
Do not allow children to climb or play around the range. The weight of a child on an open door may
cause the range to tip, resulting in serious burns or otherinjury. Teach them not to play with controls
or any other part of the range. Destroy the carton and plastic bags after unpacking the range. Never
allow children to play with packaging material.
◆Wear Proper Apparel - Loose-fitting or hanging garments should never be worn while using the
appliance.
◆User Servicing - Do not repair or replace any part of the appliance unless specifically recommended
in the manual. All other servicing should be referred to a qualified technician.
◆Use Proper Pan Size - This appliance is equipped with more surface units of different size. Select
utensils having flat bottoms large enough to cover the surface unit heating element. The use of
undersized utensils will expose a portion of the heating element to direct contact and may result in
ignition of clothing. Proper relationship of utensil to burner will also improve efficiency.

5
IMPORTANT SAFETY INSTRUCTIONS
◆GLASS/CERAMIC COOKING SURFACES:
oDo Not Cook on Broken Cook-Top - If cook-top should break, cleaning solutions and
spillovers may penetrate the broken cook top and create a risk of electric shock. Contact a
qualified technician immediately.
oClean Cook-Top With Caution - If a wet sponge or cloth is used to wipe spills on a hot
cooking area, be careful to avoid steam burn. Some cleansers can produce noxious fumes if
applied to a hot surface.
◆INDUCTION COOKTOP SURFACE UNITS:
o1) Do not place metallic objects such as knives, forks, spoons and lids on the cooktop
surface since they can get hot.
◆Use Only Dry Potholders or Oven Gloves - Moist or damp potholders on hot surfaces may result
in burns from steam. Never let a potholder touch hot heating elements.
Do not use a towel or other bulky cloth in place of a glove. They might catch fire if they touch a hot
surface. Use dry oven gloves when applicable - using damp gloves might result in steam burns when
you touch a hot surface. Never operate the range with wet hands.
◆Never Leave Surface Units Unattended at High Heat Settings - Boilover causes smoking and
greasy spillovers that may ignite.
◆Make Sure Reflector Pans or Drip Bowls Are in Place - Absence of these pans or bowls during
cooking may subject wiring or components underneath to damage.
◆Glazed Cooking Utensils - Only certain types of glass, glass/ceramic, ceramic, earthenware, or
other glazed utensils are suitable for range-top service without breaking due to the sudden change
in temperature.
◆Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units -
To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional
contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and
does not extend over adjacent surface units.
◆DEEP FAT FRYERS: Use extreme caution when moving the grease kettle or disposing of hot
grease.
◆Do Not Soak Removable Heating Elements - Heating elements should never be immersed in
water.
◆Use Care When Opening Oven Door - Let hot air or steam escape before removing or replacing
food.
◆Do Not Heat Unopened food Containers - Build-up of pressure may cause container to burst and
result in injury.

6
IMPORTANT SAFETY INSTRUCTIONS
◆Do not use the oven for storage - This instruction is based on safety considerations. Flammable
materials should not be stored in an oven, the range storage drawer or near the cooktop burners. This
includes paper, plastic and cloth items, such as cookbooks, plasticware and towels, as well as
flammable liquids. Do not store explosives, such as aerosol cans, on or near the appliance.
Flammable materials may explode and result in fire or property damage.
◆Keep oven vent ducts unobstructed.
◆Placement of Oven Racks - Always place oven racks in desired location while oven is cool. If rack
must be moved while oven is hot, do not let potholder contact hot heating element in oven.
◆To avoid personal injury, do not sit, stand or lean on oven doors or drawer. Leaning, sitting or
stepping on the doors or drawer of this range can result in serious injuries and also cause damage to
the range. Do not allow anyone to climb, stand or hang on any part of the range.
◆Wear Suitable Clothing - Never wear loose-fitting or hanging clothes while using the range. Be
careful when reaching for items stored in cabinets over the cooktop. Flammable material could be
ignited if brought in contact with a burner flame or hot surface and may cause severe burns.
◆Important Safety Notice and Warning - The California Safe Drinking Water and Toxic
Enforcement Act of 1986 (Proposition 65) requires the Governor of California to publish a list of
substances known to the State of California to cause cancer or reproductive harm, and requires
businesses to warn customers of potential exposures to such substances.
This appliance contains or produces a chemical or chemicals which can cause death or serious illness
and which are known to the state of California to cause cancer, birth defects or other reproductive
harm.
Users of this appliance are hereby warned that the burning of gas can result in low-level exposure
to some of the listed substances, including benzene, formaldehyde and soot, due primarily to the
incomplete combustion of natural gas or liquid petroleum (LP) fuels. Properly adjusted burners will
minimize incomplete combustion.

7
IMPORTANT SAFETY INSTRUCTIONS
DO NOT TOUCH SURFACE UNITS, AREAS NEAR UNITS, HEATING ELEMENTS OR
INTERIOR SURFACES OF OVEN - Surface units and heating elements may be hot even
though they are dark in color. Areas near surface units and interior surfaces of an oven may
become hot enough to cause burns.
During and after use, do not touch, or let clothing or other flammable materials contact
surface units, areas near units, heating elements or interior surfaces of oven until they have
had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause
burns - among these surfaces are oven vent openings and surface near these openings, oven
doors, etc.
IMPORTANT: Never keep pet birds in the kitchen or in rooms where the fumes from the
kitchen could reach. Birds have a very sensitive respiratory system. Fumes released due to
overheated cooking oil, fat, margarine and overheated non-stick cookware may be harmful.
You can find this manual on following web sites:
www.lacornueusa.com

8
Dear Customer,
Thank you for choosing the La Cornue cooking product. We hope that you will derive a lot of enjoyment
from cooking delicious meals with it.
The aim of this document is to make you familiar with the potential provided by a professional quality
product designed for discriminating individuals, and to facilitate its maintenance.
Above all, a La Cornue product is manufactured using noble and pure materials. The choices made for
some components, such as brass for the burners and cast-iron for the gas simmering plate, are the result
of criteria of technicality and professional performance, which are not attainable with other materials or
protective treatments. We are very much attached to the authenticity of our stoves and we are convinced
that you will appreciate them even more as you use them.
In order to make sure that you will be satisfied with your product for a long time, we recommend that
you follow the advice given in this manual.
Thank you for choosing us,
Kind regards,
La Cornue Team

9
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.....................................................................................2-7
CONTENTS........................................................................................................................................... 9

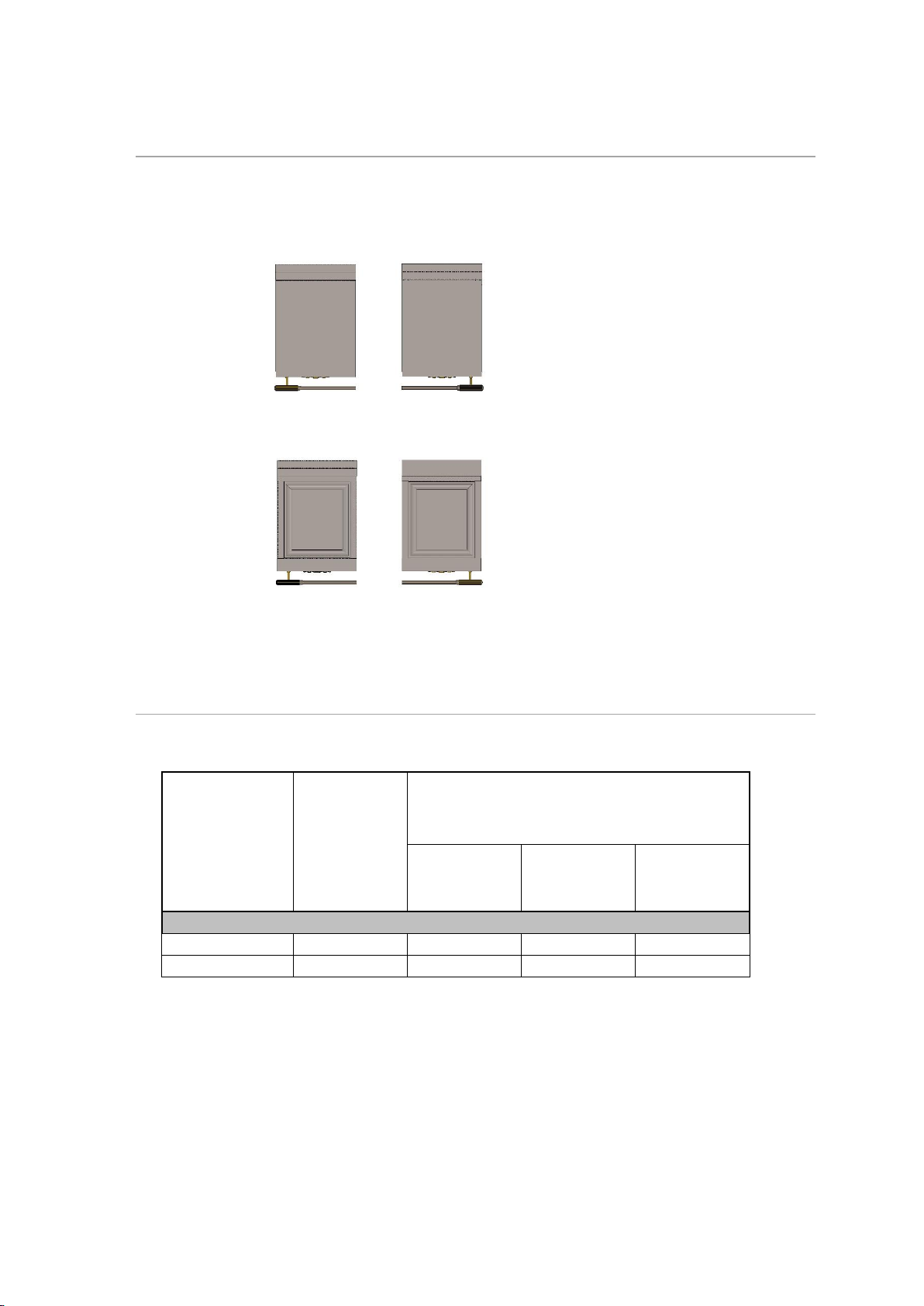

DESCRIPTION................................................................................................................................... 10
WARMING DRAWERS (ELECTRIC WARMING CUPBOARD)........................................... 11
INSTALLATION ................................................................................................................................ 13
BEFORE DELIVERY..................................................................................................................... 13
1. SAFETY REQUIREMENTS...................................................................................................... 13
2. ELECTRICAL SUPPLY ............................................................................................................ 14
3. INSTALLATION......................................................................................................................... 14
ASSEMBLY INSTRUCTIONS...................................................................................................... 15
1.HANDRAIL INSTALLATION................................................................................................... 15
2. RISER / BACKSPLASH INSTALLATION ............................................................................. 15
3. HEIGHT ADJUSTMENT........................................................................................................... 16
CONNECTIONS.............................................................................................................................. 17
1. NAMEPLATE LABEL ............................................................................................................... 18
2. ELECTRICAL CONNECTION ................................................................................................ 18
OPERATION....................................................................................................................................... 19
1. STARTING WITH THE warming drawers.............................................................................. 19
2.Electric Teppan-Yaki (Japanese grill)........................................................................................ 21
MAINTENANCE ................................................................................................................................ 22
ELECTRICAL DIAGRAMS ............................................................................................................. 23
1. ELECTRIC Warming drawers.................................................................................................. 23
2. ELECTRIC TEPPAN-YAKI BURNER.................................................................................... 24
WARRANTY (5 YEARS)................................................................................................................... 25

10
DESCRIPTION
The La Cornue “warming drawers” electric series “SUPREME”
Electrical power supplied by each heating element (W):
Electric Elements
Power
Warming drawers width 500 mm
1,300 W
Large electrical Teppan-Yaki
(419 x 478)
2,000 W

11
WARMING DRAWERS (ELECTRIC WARMING
CUPBOARD)
The warming drawers, the Ferris models consists of:
-Electric warming cupboard with 2 warming drawers
-One cooktop bounded at the rear by a stainless-steel backsplash creating a gap bet-ween the
range and the wall, thus ensuring the removal of smells.
1. DIMENSIONS
Warming drawers
—Appliance height:
” (920 mm +8/-6mm)
—Height with backsplash:
” (980 mm +8/-6mm)
—Width:
” (500 mm)
—Weight:
150 to 200 lbs,
(70 to 90 kg)
—Depth to the wall:
- Front:
26 1/8” (666 mm)
- Rail:
31” (786 mm)
- Hob edge:
27 1/2” (700 mm)
Thickness:
1 5/8” (40 mm)
Warming Drawers - model WD5 *
* Dimensions in mm

12
2. HOB CONFIGURATION
00
Neutral cooktop
0T
1 teppan-yaki hob
For each model, the tables below summarize the total electric power (W).
3. ELECTRIC SUPPLY INFORMATION
MODEL
TOTAL
POWER
Watt
120/240 V a.c.
Power supply
Intensity
Amps
Wire section
in mm2
Wire section
N° AWG
RANGES
E45XX0WU-00
1,300
6
2.1
14
E45XX0WU-0T
3,300
14
3.3
12

13
INSTALLATION
BEFORE DELIVERY
In order to be able to install your range as soon as it is delivered, you must ensure that in your kitchen,
the electrical supplies are ready for it.
1. SAFETY REQUIREMENTS
1.1. VENTILATION
The use of an electric cooking appliance results in the production of heat and moisture in the room in
which it is installed. It is essential that the kitchen where the ”La Cornue” warming drawers will be
installed has excellent ventilation to the outside, and a fresh air inlet.
Do not use air recycling systems.
Ventilation exhaust devices can be vapor aspirators or hoods.

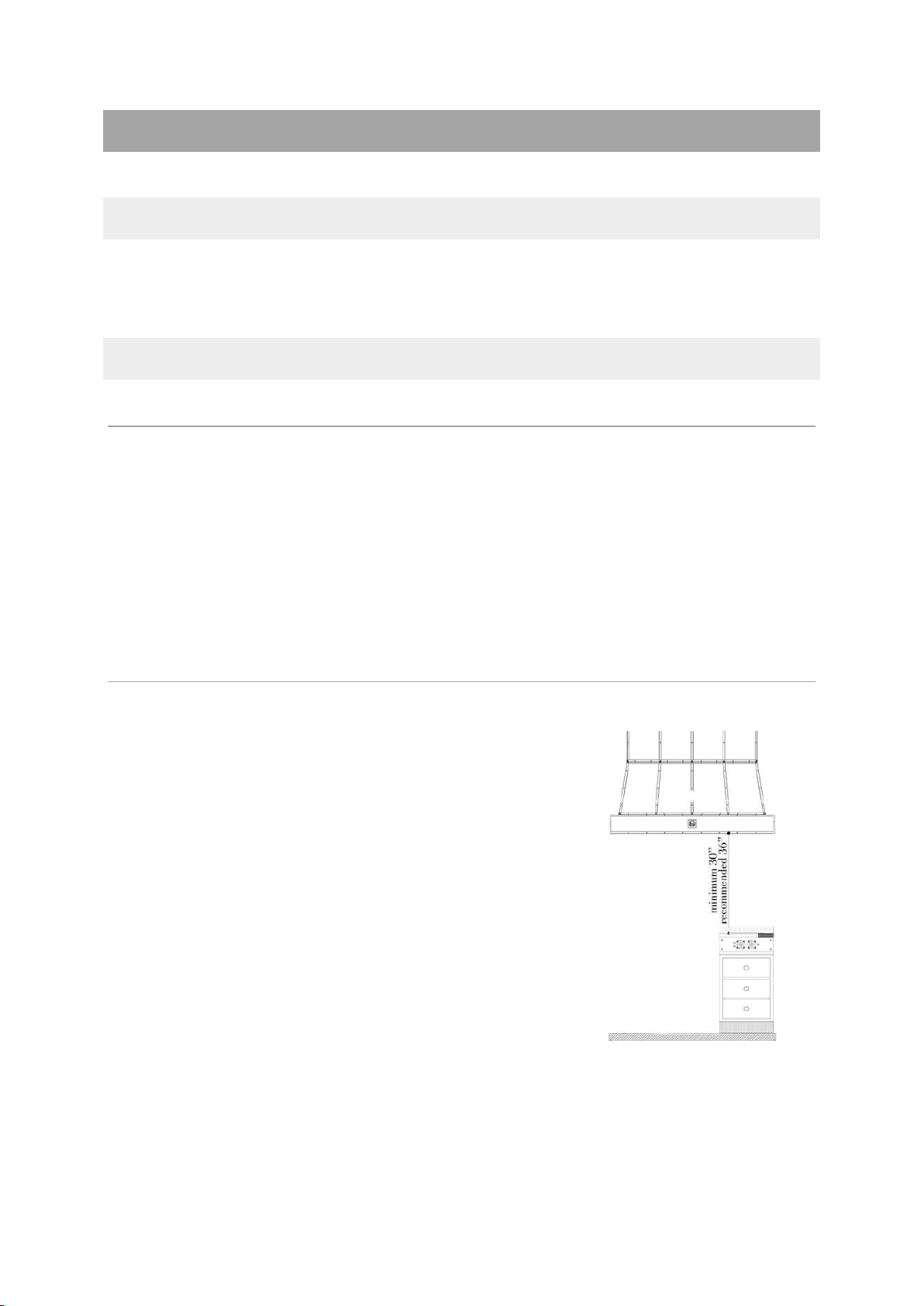

1.2. CLEARANCES TO COMBUSTIBLE CONSTRUCTION
To eliminate the risk of burns or fire by reaching over heated
surface units, cabinet storage space located above the surface
units should be avoided. If cabinet storage is to be provided, the
risk can be reduced by installing a hood that projects
horizontally a minimum of 5 inches beyond the bottom of the
cabinets.
A = 30 inches minimum clearance between the top of the
cooking surface and the bottom of an unprotected wood or metal
cabinet.
A = 24 inches minimum when bottom of wood or metal cabinet
is protected by not less than 1/4-inch-thick flame-retardant
millboard covered with not less than No. 28 MSG sheet steel,
0.015-inch-thick stainless steel, 0.024-inch-thick aluminum.
May be installed with zero clearance between adjacent combustible construction below the cooking
surface and the back and sides of the appliance.
We recommend to leave 1/2” gap on each side in order to allow enough space for moving the range.
To be used in conjunction with a suitable ventilation hood.
A

14
2. ELECTRICAL SUPPLY
Voltage:
120/240 V a.c., single-phase, 3 wire system, 50/60 Hz
Safety:
The warming drawer, when installed must be electrically grounded in
accordance with national and local codes, with the latest edition of the
standard for Household Electric Ranges UL858 in the USA and the CSA
C22.2 No.61 "Household Cooking Ranges” in Canada.
Electric Rating:
240V (2 Wire + Grd), 60Hz, 1,300 W or 3,300 W
3. INSTALLATION
In order to ensure that the warming drawers is perfectly horizontal, especially in a kitchen with old
paving or flooring, we recommend that you install the warming drawers on a wooden or cement base,
the height of which will bring the hot top to a level in accordance with its environment or your
requirements.
We recommend a base of the exact size of the waring drawers base.

15
ASSEMBLY INSTRUCTIONS
1.HANDRAIL INSTALLATION
You have the option of installing the handrail as shownor adding the small plastic tabs inside the support
to prevent the bar from rotating.
2. RISER / BACKSPLASH INSTALLATION
8 mm
Inserts
Washer
M5x16
13 mm

16
3. HEIGHT ADJUSTMENT
Warming drawers are equipped with adjustable legs so the height of the cooktop can vary from 912 mm
(35.90 in) to 928 mm (36.53 in).
Remove the plinthes/toe-kicks, set the warming drawers in place, screw up the legs so the warming
drawers and adjust the height using 18mm Open Wrench.
Once the warming drawers is resting at the right height and is level, screw down the central legs to
balance the weight.
Install the plinthes/toe-kicks using a standard screwdriver.
Use the Standard T-20 Screwdriver to Install the Plinthes/Toe-Kicks to the Range.

17
CONNECTIONS
This appliance must be installed by a qualified professional in accordance with the current regulations
in the country where the appliance is installed.
Remove all packing material and literature from oven before connecting electrical supply to range.
Remove the back panel to access the connection
Rear view Warming drawers
Electrical connection compartment:
Main terminal block
Strain relief

18
1. NAMEPLATE LABEL
The nameplate label of your appliance is on the inside of the warming drawer
door.
You will find on this plate the name and address of the manufacturer as well
as the following information:
1)Kind of appliance (Model)
2)Serial number (order number)
3)Manufacturing date
4)Voltage rating in Volt, Total Electric Power in Watts and Intensity (Amps)
2. ELECTRICAL CONNECTION
The appliance must be electrically installed and grounded in accordance with local codes or in the
absence of such codes with the latest edition of the Standard for Household Electric Range UL858 in
the USA, and CSA C22.2 No.61 "Household Cooking Range” - in Canada.
Disconnect all the power supply circuits before accessing the junction boxes.
This appliancemust be supplied with 120/240 Volt and60 Hz frequency, and connected to an individual,
properly grounded branch circuit, protected by a circuit breaker or time-delay fuse, as noted on the rating
plate.
The power of the electric elements for each appliance see the related pages of the manual.
The overall wattage of your appliance is also indicated on the nameplate label and on the warranty
certificate.

19
OPERATION
IMPORTANT
Please make sure your cooker is unpacked completely before use.
Remove all tape and packaging.
Remove the accessory pack from the oven.
Check to be sure that no parts have come loose during shipping.
1. STARTING WITH THE WARMING DRAWERS
Before using the ovens for the first time, leave them on at 125°F for 60 minutes to remove the ”new”
smell.
The warming cupboard has three purposes:
- it can be used to heat up your plates to avoid a temperature difference between plate and food,
- the small volume of the drawer makes it an ideal tool for accurately cooking dishes at very low
temperatures (pates, foie gras, meringues),
- it allows you to store dishes in advance at a constant heat, making serving the food much easier.
Warming Drawers with the cooker

20
B
D
F
A Warming cupboard is not an oven.
The warming cupboard is equipped with a large warming drawer with a sliding shelf and a drawer
below. Depending on use, you can remove the sliding shelf to increase the size of the large drawer.
You may use the lower level of the large drawer, which is slightly warmer, for your dishes and the
upper level (sliding shelf) for your plates.
The thermostat (B) has a dual function of switch and temperature controller. In position ”0” the
heating elements are off.
The minimum temperature of the warming cupboard is 55°C (130°F); the maximum temperature
is 115°C (240°F).
The thermostat (B) is coupled to a switch-on light on the left
(D). This indicator lights up when you turn the thermostat, and
stays on throughout the cooking cycle.
The indicator light (F) to the left of the thermostat will come
on until warming cupboard reaches the required temperature.
This cycle comes on and off during cooking.
