LabRepCo GM-ULT-1786 User manual

Part number 21729, Rev 4
ULTRA LOW TEMPERATURE FREEZER
OWNER’S INSTRUCTIONS
This manual describes how to operate and care for your appliance to get the best, most efficient
performance.
READ THIS BOOK!
Note to Customer:
This merchandise was carefully packed and thoroughly inspected before leaving our plant. Responsibility
for its safe delivery was assumed by the carrier upon acceptance of the shipment. As directed on the side
of your packing carton, claims for loss or damage sustained in transit must be made on the carrier as
follows:
A.) Visible Loss, Damage, Shortage External Evidence of Loss or Damage: This type of damage
must be noted on the freight bill and acknowledged by the carrier’s agent (driver) at time of delivery.
Make sure you get a signed copy. Send a written request for an inspection to the carrier.
B.) Concealed Damage: This type of damage may not be discovered until the unit is being unpacked.
When concealed damage is discovered, stop unpacking immediately and contact the carrier
immediately to report the claim and request an inspection. This should be done as soon as possible
and, in any case, must be done within 15 days or receiving the merchandise. If at all possible, do not
move the item and save all packaging material for carrier’s inspection.
C.) FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN THE CARRIER
REFUSING TO HONOR YOUR COMPANY’S CLAIM. UNDER NO CIRCUMSTANCES
SHOULD THE MERCHANDISE BE RETURNED TO THE MANUFACTURER. NO
RETURNS WILL BE ACCEPTED WITHOUT PRIOR AUTHORIZATION.

1
Part number 21729, Rev 4
Table of contents
Table of contents.................................................................................................................................................. 1
Installation and start–up ....................................................................................................................................3
Control overview..................................................................................................................................................4
Control operation ................................................................................................................................................5
Setting the time and date................................................................................................................................5
Changing the Temperature Settings...............................................................................................................5
Changing Alarm Settings ................................................................................................................................5
Setting security access code (optional) ..........................................................................................................6
Control menus .....................................................................................................................................................8
Alarms ..................................................................................................................................................................8
Alarm Criteria................................................................................................................................................10
Door Open.......................................................................................................................................................11
Sensor Errors.................................................................................................................................................12
Contacts and communications..........................................................................................................................13

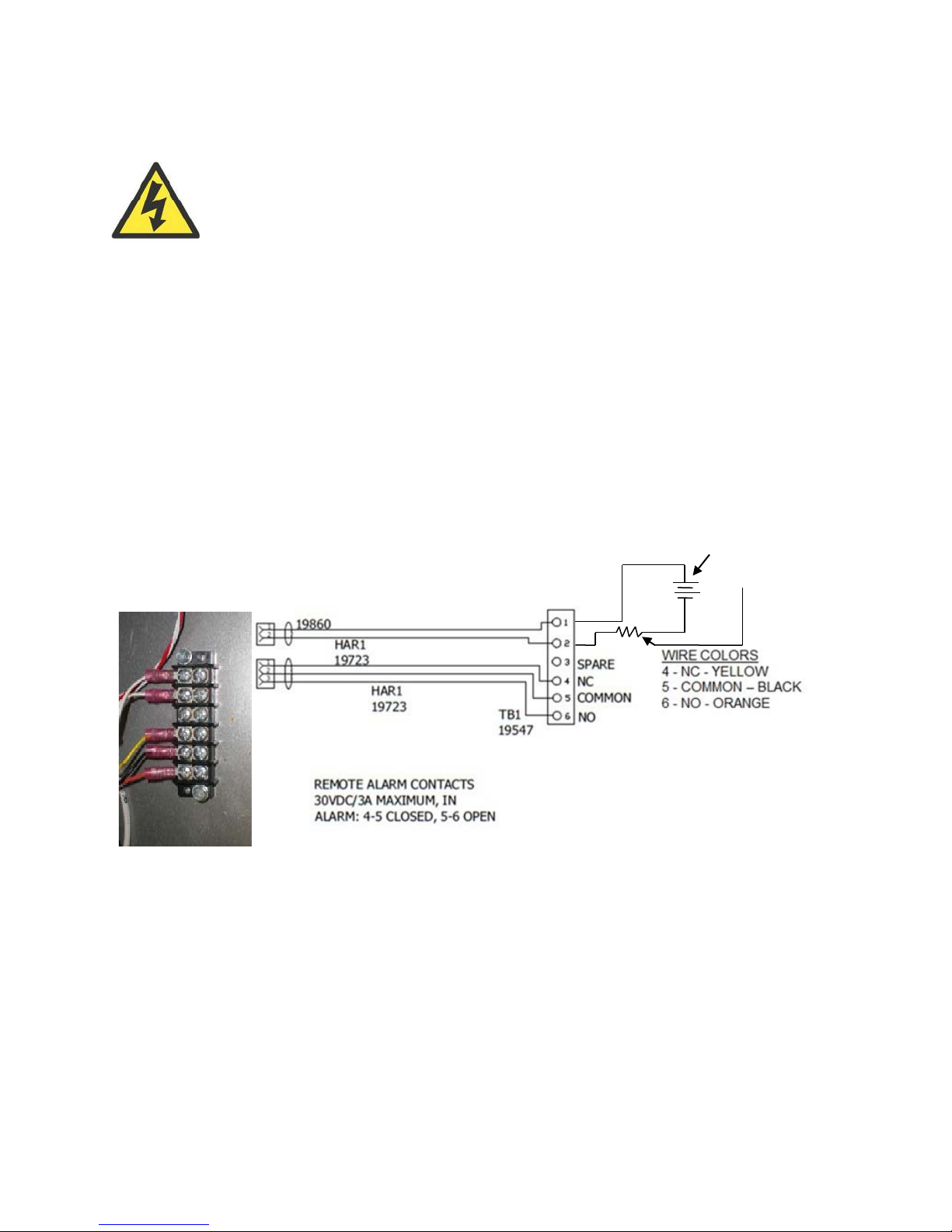

Remote alarm contacts..................................................................................................................................13
Maintenance intervals.......................................................................................................................................14
Maintenance procedures...................................................................................................................................14
Air filter..........................................................................................................................................................14
Condenser......................................................................................................................................................14
Annual calibration......................................................................................................................................... 15
Battery replacement...................................................................................................................................... 15
Door gasket and vacuum relief port............................................................................................................. 15
Defrost............................................................................................................................................................ 15
Calibration .....................................................................................................................................................16
Options...............................................................................................................................................................16
Sample probe.................................................................................................................................................16
Chart recorder. .............................................................................................................................................. 17
Chart recorder fuse........................................................................................................................................ 17
Troubleshooting ............................................................................................................................................ 17
Specifications.....................................................................................................................................................18
Statement of Warranty......................................................................................................................................19

2
Part number 21729, Rev 4
BEFORE CALLING THE MANUFACTURER’S TECHNICAL
SERVICE DEPARTMENT, please have the unit’s model and serial
number ready as well as the problem description. The model and serial
number is located on the serial tag which can be found on the interior left
OR right upper wall of the unit.
For convenience, you may want to record the following information here for
easy access in the future.
Model number: __________________________________
Serial number: __________________________________
Date of delivery: _________________________________

3
Part number 21729, Rev 4
Power: The ULT requires a dedicated power outlet and circuit breaker: 20-amp circuit for
115V models and 15-amp circuit for 230V models.
Installation and start–up
Placement clearance:The freezer must have a clearance of 5” in the rear and 6”
on each side so that sufficient air circulation is maintained for the removal of
exchange heat.
Start –up: Plug the ULT into power and engage the power switch/breaker located above the
power cord. The freezer will start, and the control panel will illuminate in the default status with
the words SYSTEM NORMAL in the message line, which is the top line of the control display.
The other lines will display available operating modes. You will note a pointer (˃) on the third
line.
The third line is always the active line, which means that you will enter that mode or menu by
pressing ENTER.
The default status:
Temperature Set Point (SP) -80ᵒC
High temp alarm SP+10ᵒC
Low temp alarm SP-10ᵒC
Password security OFF
Access code 1234
NOTICE!
READ THIS MANUAL
It is necessary to read and understand this instruction
manual because failure to do so may result in (1)
substandard performance of your freezer, (2) damage to
your freezer and stored items, and also (3) possible
injury to operating personnel.

4
Part number 21729, Rev 4
Control overview
The SYSTEM NORMAL display is a monitoring and access screen from which you may enter any
of the 4 control modes:
CONFIGURE
CALIBRATE
RUN
SETTINGS
The default setting will be sufficient for many hours while your freezer cools. You may
familiarize yourself with the control by setting the time, the date, and perhaps setting an access
code (numerical password).
Keys: The ENTER key serves to (1)accept menu selections and value changes and (2) advance
the active value through a row of values. The BACK key permits you to scroll back through the
values or menu.
The UP and DOWN keys permit you to make numeric steps in settings and selections in the
menu
Warning lights are provided for Voltage boost (which means you should speak to your
maintenance department about low line voltage).
The Low battery warning light indicates that you need to replace the battery, the procedure for
which is explained in the chapter on Maintenance.
UP and DOWN keys
BACK and ENTER keys
SILENCE key
VOLTAGE BOOST & LOW
BATTERY indicators

5
Part number 21729, Rev 4
Alarms:Your freezer is protected with 21 alarm monitors. In the event of an alarm, an ALARM
MESSAGE will appear in the message line at the top of the screen and an alarm will sound.
Consult the chapter on Alarms in this manual
Control operation
Setting the time and date.
1. Using the DOWN key, scroll to SETTINGS and press ENTER.
2. Scroll to SET TIME and press ENTER
3. The active value in the date display (hours) will blink on and off.
Set the value using the UP and DOWN keys, and Press ENTER to
set the value (hour), and move to the next value (minutes).
Set minutes using UP and DOWN keys, press ENTER to save. The
active value will automatically scroll to the next settable value,
which is SET DATE.
4. Follow the same process to set the date.
Pressing BACK at any time will cancel the entered values.
Changing the Temperature Settings
1. Navigate to the SETTINGS mode, and press ENTER to access
the SETTINGS mode menu.
2. Use the UP and DOWN keys to scroll to the TEMP SET line,
then press ENTER.
3. Use the UP and DOWN keys to set the temperature to the
desired value, then press ENTER
Changing Alarm Settings
1. The high (HI) and low (LO) alarm settings are set in the same
way as the TEMP SET described above. Note that the alarms
cannot be set any closer to the temperature set point than 10
degrees.
SYSTEM NORMAL
RUN MODE
˃SETTINGS MODE
SETTINGS MODE
˃SET TIME= 20:20:06
ACC CODE DISABLED
SETTINGS MODE
HI ALRM SET= -60.0
˃TEMP SET = -70.0
LOW ALRM SET= -80.0
SETTINGS MODE
LO ALRM SET= -80.0
˃SET DATE = 00/00/00
SETTINGS MODE
ADJUST
˃TEMP SET = -70.0
USING UP & DOWN
SETTINGS MODE
ACC CODE DISABLED
˃HI ALRM SET= -60.0
TEMP SET= -70.0

6
Part number 21729, Rev 4
The alarms that may be set by the user are
HIGH TEMP ALARM
LOW TEMP ALARM
Setting security access code (optional)
When delivered, the freezer has the password security value in the
OFF setting. This means that access to modes and settings other
than RUN can be addressed.
If you want to restrict access to all menus other than the RUN
menu, which is a read-only menu, then you may activate the
password security (PASSWRD SECURITY) by switching it to the
ON setting. This setting resides in the CONFIGURE menu.
Once you activate password security, you will automatically
acquire the factory default password, which is a four-digit
numerical code.
Default access code: 1 2 3 4
You may change the code itself by addressing the
SETTINGS menu.
Please note the two menus on the right, and remember that the
choice of whether or not a code is needed is made in the
CONFIGURE menu; but the code itself is edited in the SETTINGS
menu.
Setting security access ON of OFF
1. Navigate to the CONFIGURE mode on the SYSTEM level menu,
and then press ENTER.
This will take you to the CONFIGURE menu.
Scroll down to PASSWRD SECURITY OFF (the current status).
2. Use the UP and DOWN keys to change from
PASSWRD SECURITY OFF to
PASSWRD SECURITY ON,
And press ENTER.
You have now activated password protection
CONFIGURE MENU:
Ring-back delay
Password security
( Status message )
LCD contrast
Run battery test
Battery back up
Sample
SETTINGS MENU:
Set time
Set date
Access code
High alarm
Temperature set
Low alarm
SYSTEM NORMAL
˃CONFIGURE MODE
CALIBRATION MODE
CONFIGURE MODE
ADJUST
˃PASSWRD SECURITY ON
USING UP & DOWN

7
Part number 21729, Rev 4
3. Press BACK to return to the system level menu.
Once you have activated PASSWRD SECURITY ON, the following
window will appear when an operator requests access to any menu
except the RUN menu:
Changing the password
The password (access code) is only required when the security
setting is ON.
1. Navigate to the SETTINGS mode line, and press ENTER
2 Scroll to the SET ACC CODE, and press ENTER
3. Set the access code by using the UP and DOWN keys to change
the value of each digit, and using the ENTER key to move to the
next value. You may also use the BACK key to move back through
the digits.
SECURITY ACCESS REQD
ENTER ACC CODE
ACC CODE= 0 0 0 0
PRESS ENTER FOR NEXT
UP
DOWN
ENTER
BACK
SYSTEM NORMAL
RUN MODE
˃SETTINGS MODE
SETTINGS MODE
SET TIME= 00:00:00
˃ACC CODE= 1 2 3 4
HI ALRM SET= -40
SETTINGS MODE
ADJUST
˃ACC CODE= 1 2 3 4
USING UP & DOWN

8
Part number 21729, Rev 4
Control menus
Note that the RUN mode provides a “view only” menu in which you can verify settings. This is
the normal mode of operation for the freezer. To make changes in the settings themselves, you
must move to one of the other operation modes, CALIBRATE, CONFIGURE, or SETTINGS.
Operating modes and mode menus
Alarms
A series of alarms monitor the various operating conditions of the freezer. These alarms are
presented differently depending on the severity of the alarm condition.
The table below lists these alarms and also shows the method of notification. The “Message”
column shows what message will be displayed in the message center. The “Audible” column
shows if the audible device is activated. The “Ring Back” column indicates if the audible alarm
is repeated after a specific time frame. The ring back delay is user selectable in the
System
Normal
RUN
(View only)
CONFIGURE
CALIBRATE
SETTINGS
Version details
(software)
Condenser temp.
Heat exchanger temp.
Ambient temp.
Control temp.
Line voltage
Cycle period
Battery life
Ring-back delay
Password security
(Access code)
LCD contrast
Run battery test
Battery back up
Sample
See calibration
chapter for
calibration details.
Set time
Set date
Access code
(Status message)
High alarm
Temperature set
Low alarm

9
Part number 21729, Rev 4
Configuration mode. The “Relay” column shows whether each alarm is of sufficient priority to
warrant activating the remote alarm contacts.
Note that the remote alarm contacts will always have a 30 minute delay to
activate to allow time for on-site personnel to react to and resolve the alarm
condition.
Upon the occurrence of any alarm, the top line of the message center display will list the alarm
message as shown in the list. In the case of multiple alarm conditions, the display will show
each alarm message on the top line in a repeating sequence on three second intervals. The
alarms will appear on the message center ONLY when in RUN mode. If the operator changes to
a different mode, the alarm LED and the audible alarm will remain active, but the message
center top line will display whatever the normal message would be in that mode.
Description Message Audible
Ring
Back Relay
High control probe temperature
HIGH TEMP ALARM
yes
yes
yes
Low control probe temperature
LOW TEMP ALARM
yes
yes
yes
Door is open DOOR OPEN
Yes if ˃1
min. yes yes
Power failure – loss of AC input
voltage
POWER FAILURE 1
yes
no
yes
Power failure – loss of 12V power
supply
POWER FAILURE 2 yes no yes
Power failure – output of 12V
power supply is low with AC
voltage applied
POWER FAILURE 3 yes yes yes
Wrong power connected
WRONG POWER
yes
yes
yes
High Ambient Temperature
HIGH AMBIENT TEMP
no
n/a
no
Low battery voltage
LOW BATTERY
yes
yes
no
High stage system failure
H S SYSTEM FAILURE
yes
yes
yes
Low stage system failure
L S SYSTEM FAILURE
yes
yes
yes
Air flow alarm (determined from
temp probes) AIR FLOW PROBLEM yes yes no
Low voltage alarm
LOW LINE VOLTAGE
yes
yes
yes
High voltage alarm
HIGH LINE VOLTAGE
yes
yes
yes
Control Probe failure
CONT PROBE FAILURE
yes
yes
yes

10
Part number 21729, Rev 4
Heat exchanger probe failure
HS HX PROBE FAILURE
yes
yes
no
Condenser probe failure
COND PROBE FAILURE
yes
yes
no
Ambient probe failure
AMB PROBE FAILURE
yes
yes
no
Sample probe failure (if installed)
SAMP PROBE FAILURE
yes
yes
no
Control Probe Unplugged
CONT PROBE UNPLUGD
yes
yes
yes
Heat Exchanger Probe Unplugged
HTEX PROBE UNPLUGD
yes
yes
yes
Condenser Probe Unplugged
COND PROBE UNPLUGD
yes
yes
yes
Ambient Probe Unplugged
AMB PROBE UNPLUGD
yes
yes
yes
Sample Probe Unplugged (if
installed)
SAMP PROBE UNPLUGD
yes
yes
yes
Failed Battery Test
FAILED BATTERY TEST
yes
yes
no
Alarm Criteria
HIGH TEMP ALARM – Activates when the control probe temperature is at or above the
high temp alarm level as stored in memory for more than 1 minute. (Not Cold Enough)
LOW TEMP ALARM - Activates when the control probe temperature is at or below the low
temp alarm level as stored in memory for more than 1 minute. (Too Cold)
DOOR OPEN – Activates when the door is sensed open for more than 1 minute. Note that
the door sensor is an input to the main control board and its status is to be part of the
regular communication from the main control board to the display board.
AC LINE FAILURE – Activates when the input line voltage falls below 80 VAC for 115 V
unit or 160 VAC for 230 V unit for more than 10 seconds. This alarm will override and
cancel the “LOW LINE VOLTAGE” alarm, so that both alarms are not active at the same
time.
POWER FAILURE 1 – Activates when the input line voltage falls below 80 VAC for 115 V
unit or 160 VAC for 230 V unit for more than 10 seconds. This alarm will override and
cancel the “LOW LINE VOLTAGE” alarm, so that both alarms are not active at the same
time.
POWER FAILURE 2 – Activates when the 12 VDC on the main control board falls below
11.0 VDC for more than 2 seconds and the AC line voltage does not fail.
POWER FAILURE 3 – Identical to POWER FAILURE 2, except the 12 VDC on the main
control board recovers to more than 11.0 VDC. The control logic will return to operating
the main control board on the 12 VDC power supply rather than on battery backup power.
Operating the main control board on battery backup power will eventually drain the
battery output to 10.5 V and the compressors will shut off.

11
Part number 21729, Rev 4
HIGH AMBIENT TEMP – Activates when the ambient temp probe reading is above 36 C.
LOW BATTERY – Activates when the result of a battery test returns a reading of less than
11.0 VDC.
H S SYSTEM FAILURE – Activates when the high stage heat exchanger probe is unable to
reach at least -33 C after running the high stage compressor for 30 minutes.
L S SYSTEM FAILURE – Activates when the high stage heat exchanger probe reaches a
reading of -55 C or below.
AIR FLOW PROBLEM – Activates when a calculation shows that the difference between
the ambient temperature and the condenser temperature probes is greater than 10 C.
LOW LINE VOLTAGE – Activates when the incoming AC power voltage is below 90 VAC
on a 115 V unit or 180 VAC on a 230 V unit for more than 1 minute.
HIGH LINE VOLTAGE – Activates when the incoming AC power voltage is above 135 VAC
on a 115 V unit or 265 VAC on a 230 V unit for more than 1 minute.
PROBE FAILURE (Control, Heat Exchanger, Condenser, Ambient, Sample) – Activates
when either of the following conditions is detected on this probe: A resistance value over
250 ohms, indicating an open sensor, or a reading below 20 ohms, indicating a shorted
sensor. The same criteria will apply to the remaining probe failure alarms.
PROBE UNPLUGGED (Control, Heat Exchanger, Condenser, Ambient and Sample) –
Each probe has a two-pin logic control as part of its connector, which will be used to detect
that the sensor is properly connected. This alarm shows that the system detected this
probe is not connected. This same description applies to all probes.
FAILED BATTERY TEST – Activates when the result of a battery test returns a reading of
bad battery.
INITIALIZING
If the display board is unable to initialize properly, the message center will not display any
valid information. This will serve as the indication of a display board initialization
problem. If the main board fails to initialize properly, it will not be able to communicate
with the display board and the display board will report a communication problem, as
described elsewhere.
Door Open
A door open message is displayed in the message center whenever the door is opened. If
the door remains open for more than 1 minute, an audible alarm will sound, subject to
normal silence and ring back functions. If the door remains open continuously for 30
minutes, the remote alarm contacts will activate.

12
Part number 21729, Rev 4
Sensor Errors
In addition to any alarms, the control will take the following action if it detects any of the
unit’s sensors as being in error
Alarm
Result
Control Probe failure
Both compressors will turn on and remain on.
Heat exchanger probe failure
Compressor control during pull down will revert to timed
staging
Condenser probe failure
Alarm only, no change in compressor control
Ambient probe failure
Alarm only, no change in compressor control
Sample probe failure
Alarm only, no change in compressor control
Line/boost voltage sensing
Unit will operate normally, with boost voltage circuit Off

13
Part number 21729, Rev 4
Contacts and communications
ONLY Authorized, trained electricians should attempt any connection
behind the service panels!
Remote alarm contacts
The Remote Alarm provides a NO (normally open) output, a NC (normally closed) output, and a
Common. The Schematic below represents the alarm state and wire colors. The remote alarm
terminal block is located in the base area of the unit, to the left of the electronic enclosure.
Note:
1) The Remote Alarm contacts will have a 30 minute delay before they are tripped.
2) Always double check the continuity of the NO and NC contacts.
3) This procedure is for the Alarm only. 24 VDC (User supplied)
R= 250 Ω
A 4-20mA signal is available. Connect the circuit to positions 1 and 2 as shown above. Monitor
the DC voltage across a 250 Ω resistor. Remove the galvaneal access cover on the rear of the
ULT to gain access to a Type T thermocouple that can be used to monitor the chamber
temperature. Connect the thermocouple to a temperature reading device to view the chamber
temperature. The dc voltage drop across the resistor corresponds to the chamber temperature
(deg C) and should match the temperature on the display.

14
Part number 21729, Rev 4
Using a 250 Ω resistor, the voltage drop across the resistor varies with temperature per the
following equation.
Temp (C) = - 34.75 (Vdrop) + 74.75
See the table below for representative readings.
Voltage (V
DC
)
Chamber temperature (0C)
1.58
20
2.15
0
3.59
-50
4.46
-80
Maintenance intervals
Maintenance item
Recommended interval
Pre-Filter and Condenser
3 months
Calibration
1 year
Battery
1 year
Door gasket and vacuum relief port
Monthly minimum
Defrost
As needed
Maintenance procedures
Air filter
In most laboratory conditions, the air filter should be inspected monthly and cleaned once every
three months. Press the top of the filter cover to release the catch. The door will swing forward
allowing easy access to the washable pre-filter.
Condenser
Anytime that the air filter is removed for cleaning, the condenser fins and coils should be
inspected for dust that impedes the flow of air over the coils. Such dust should be removed with
a vacuum cleaner. The fins on the heat exchanger are very delicate and are easily bent, so be sure
to avoid placing any pressure or impact on the fins while cleaning.

15
Part number 21729, Rev 4
Annual calibration
The control temperature probe should be calibrated once a year. This procedure is described in
the Maintenance Procedures chapter under Calibration.
Battery replacement
Warning! Only authorized, trained electricians should attempt any access behind
the service panels!
The battery is located in the lower left-hand (handle side) corner of the compressor
compartment. It may be accessed by either removing the front or left-side cover panel. The
battery is secured with two carriage bolts, but it is only necessary to loosen one bolt to remove
the battery.
Be sure to disconnect the leads from the control box before removing the battery.
Door gasket and vacuum relief port
Any time that dirt or frost accumulation prevents the door from closing properly, the gasket
should be cleaned with a soft cloth. As a general rule, a minimum of once a month is
recommended.
When the door gasket is operating as designed, the only means of pressure equalization for the
chamber is the vacuum relief port behind the control panel. The vacuum relief port is equipped
with a built-in heater to reduce frost accumulation, but some frost can accumulate behind the
port on the freezer door. It is important to make a visual check for such accumulation whenever
the door is opened and remove any accumulation found.
Defrost
1. Switch off the unit breaker switch and disconnect the freezer from power.
DISCONNECT battery to avoid deep discharge. To disable the battery, scroll to the
CONFIGURE MODE and press ENTER. Scroll to BATTERY BACK-UP ON, and press
ENTER
Use the UP and DOWN keys to change to OFF, then press ENTER. Upon restart, this
configuration will automatically revert to the ON setting

16
Part number 21729, Rev 4
2. Empty the freezer of contents and transfer them to another freezer. Leave the inner
doors open.
3. Place moisture absorbing material such as paper or cotton towels in the bottom of the
freezer and on the floor in front of the freezer.
4. Allow frost to melt and loosen. The lose frost can be removed carefully in order to move
the process along more rapidly.
5. Once the freezer is free of frost, use a mild non-chloride cleaning agent, rinsing with
water.
6. Close doors and restore power.
7. Depending upon your temperature set point, storage temperature should be fully
restored in 8 to 12 hours.
Calibration
This procedure allows the temperature readout on the control panel to be adjusted to match
your temperature standard. The calibration allows for a +/-5°C adjustment to “offset” only.
There is no adjustment for “slope” or “span” available through the control panel.
1. Install reference temperature probe next to the control probe located on the interior of the
freezer. The reference probe should be calibrated and traceable to a known standard such as
NIST. The reference probe has to be installed through the access panel on the rear of the unit.
This is best accomplished when the freezer is at room temperature.
2. Turn the freezer on and allow the unit to pull down and cycle at the desired set point, or use
the default set point of -80 C.
3. Navigate to the calibration mode through the control panel, and access the calibration menu.
Scroll through the menu until “Control Probe” is reached. Press Enter to access the menu for
control probe calibration.
4. Using the Up/Down Arrows, adjust the temperature displayed next to “Control Probe” to
match the temperature readout from the reference temperature probe. The temperature is
displayed in tenths of a degree. Then Press Enter to accept the calibration for the control probe.
Note1: The large temperature display may change value when you press Enter, depending on
how much calibration is required.
Note2: The maximum calibration on the temperature probes is +/- 5 C. If further calibration is
required, contact the technical service department for assistance.
Options
Sample probe
There is access to a probe port at the rear of the freezer. It is uncovered when the access plate,
held in place with 6 Phillips head screws, is removed.

17
Part number 21729, Rev 4
Chart recorder.
The 7-day chart recorder is added at the factory. See manufacturer’s owner’s manual.
Chart recorder fuse
The chart recorder fuse, 0.5 Amps, is located below the chart recorder power connection.
Troubleshooting
For information in addition to that listed in this manual, please call the manufacturer and
request help. There is an additional technical troubleshooting guide available for qualified
serving personnel.
115V/230V power supply
connection for optional
chart recorder
Chart Recorder Fuse
Power switch

18
Part number 21729, Rev 4
Specifications
Model Number
GM-ULT-1786
GM-ULT-1786-
230V
GM-ULT-2186
GM-ULT-2186-230V GM-ULT-2586-230V
Temperature Range
-50C to -86C
Inventory capacity
20 racks 25 racks 30 racks
Box capacity (2”/3”)
320 / 240 400 / 300 480 / 360
Dimensions exterior
(HWD) inches 79.6 x 37.6 x 36.3 79.6 x43.3 x 36.3 79.6 x 49 x 36.3
Dimensions interior
(HWD) inches 50 x 23.4 x 23 50 x 29.1 x 23 50 x 34.8 x 23
Required area
12.85 ft₂14.38 ft₂15.94 ft₂
Inner doors
5 insulated
Security
Key lockable door. Passcode protectable control
Refrigeration - CFC free
½ HP x 1/2 HP cascade
Insulation
5.5” to 6” FIP urethane
Door gasket
3-point sealing
BTU rejection
2150
2370
2580
Net weight
610
680
730
Performance
Average stability
2ᵒC
Average uniformity
±4.5ᵒC
Reserve capacity
300 Btu/h @ 25ᵒ
Warm-up time
-80ᵒCto -50ᵒCin 5 hours. -80ᵒCto 0°C in 12 hours
Sound pressure level
55 to 65 dB A scale @ 5 feet, depending on location and testing
Average energy
consumption 15 kW Hour/day 16.5 kW Hour/day 18 kW Hour/day
Electrical
115V 60Hz
230V 60Hz
Breaker requirement
20 amp dedicated
15 amp dedicated
Plug
NEMA 5-20
NEMA 6-15
Agency listing
UL 471

19
Part number 21729, Rev 4
Statement of Warranty
LABREPCO, LLC. PRODUCT WARRANTY
LabRepCo, LLC warrants to the original purchaser every new LabRepCo, LLC refrigerated unit, the
cabinet and all parts thereof, to be free from defects in material or workmanship, when such unit is installed, used,
and maintained in accordance with provided instructions, for a period of two (2) years. The warranty period starts
two weeks from the date of shipment from LabRepCo, LLC. This two week period allows ample shipping
time so that the warranty will go into effect at approximately the same time your equipment is delivered. Unless
subject to prior written agreement with LabRepCo, LLC, this warranty does not allow for any warranty start
deferment greater than two weeks from date of shipment due to a delayed installation and/or start-up. By purchasing
any product from LabRepCo, LLC, you and any entity for which you are purchasing acknowledge and agree
to each and every provision contained herein, and all other Notices and Terms provided to Purchaser by LabRepCo,
LLC, which are hereby incorporated.
Under this warranty, LabRepCo, LLC, through its authorized service organizations, will repair, or at its
option, replace any part found to contain a manufacturing defect in material or workmanship without charge to the
owner for parts, service labor or any shipping or cartage costs. Replacement or repaired parts will be warranted for
only the unexpired portion of the original warranty.
ADDITIONAL THREE YEAR COMPRESSOR WARRANTY
In addition to the two (2) year warranty stated above, LabRepCo, LLC warrants its hermetically and semi-
hermetically sealed compressors to be free from defects in both material and workmanship under normal use and
service for a period of three (3) additional years from the end of the initial two (2) year warranty period, but not to
exceed five (5) years after shipment from LabRepCo, LLC
Compressors determined by LabRepCo, LLC to have been defective within this extended time period will, at
LabRepCo, LLC's option, be either repaired or replaced with a compressor or compressor parts of similar
design and capacity.
The three (3) year extended compressor warranty applies only to hermetically and semi-hermetically sealed parts of
the compressor and does not apply to any other parts or components, including, but not limited to, cabinet, paint
finish, temperature control, refrigerant, metering device, driers, motor starting equipment, fan assembly or any other
electrical components.
LabRepCo, LLC's sole obligation under this warranty is limited to either repair or replacement of parts,
subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume
obligations other than expressly covered by this warranty.
