Lacanche GAS SURFACE BURNERS User manual

Page 25 of 40
« LACANCHE»
USER'S MANUAL
IMPORTANT
Provide adequate air supply during use of the
appliance.
Provide adequate clearances for servicing and
proper operation by not obstructing front or side
of appliances.
WARRANTY
The warranty is stated on the sales contract.
Please contact your approved Dealer if any work
has to be carried out under warranty.
This warranty excludes damage resulting from
incorrect installation, improper use or inadequate
servicing.

Page 26 of 40
SAFETY INSTRUCTIONS
If the range is to be installed on an area covered with linoleum or any
other floor covering, make sure that the floor covering can withstand 90 F
(65°C) above room temperature without warping, shrinking or discoloring.
Do not install the range over carpeting.
Never store anything in the oven or the cooktop. Flammable materials can
catch fire, plastic items may melt or ignite and other types of items could
be ruined.
This appliance is for cooking. Based on safety considerations, never use the
oven or cooktop to warm or heat a room. Also, such use can damage the
cooktop or oven parts.
Do not obstruct the flow of combustion or ventilation air to the appliance.
Be sure a fresh air supply is available.
When using the cooktop, do not touch the burner grates or the immediate
surrounding area. Areas adjacent to the burners may become hot enough
to cause burns.
Do not hang articles from any part of the appliance or place anything
against the oven. Some fabrics are quite flammable and may catch on fire.
However, children should not be left alone in the kitchen while the range is
in use. Do not store items of interest to children over the unit. Children
climbing to reach items could be seriously injured.
Do not use aluminum foil to line any part of the oven or cooktop.
When using the oven, do not touch the interior surfaces of the oven, the
exterior area immediately surrounding the door or the backtrim.
Disconnect from power supply before servicing.

Page 27 of 40
GAS SURFACE BURNERS
Highly valued by chefs because of their fast heating and ease of use, gas flame burners have always been traditional heat
sources for cooking in large kitchens. Other heat sources have appeared in recent years but just as many users still prefer
gas. It offers many advantages; gas provides a fast increase in temperature. The height of the flame can be checked easily at
a glance in order to increase or reduce its power.
Lacanche gas hobs for cook’s stoves are fitted with burners of different ratings. These automatically stabilized flame
burners offer a very low slow setting to facilitate simmering or high heat for quick sealing. Depending on their rating, they
are suitable for various types of utensils.
Semi fast burner : is recommended for small sauceboats, small saucepans or blinis pans for example. A reducing adapter
can be placed on the pan support in order to obtain greater stability (§ accessories)
Fast and intensive burners : are ideal for shallow frying pans, saucepans and cooking pots. Their high output provides very
fast increases in temperature and very flexible use.
Ultra fast burner : is a high-power burner. It is especially recommended when using large utensils up to 40 cm in diameter
for slow cooked dishes (pot au feu, cassoulet, jams, etc.) or dishes that have to be sealed quickly (fricassees, fritters, grilled
meat).
You will quickly learn how to use the various types of burners to achieve optimum cooking.
Description :
The burners are arranged on a stainless steel hob in various configurations depending on the model. Each burner is
equipped with electric ignition.
The various types of burners can be identified by their respective diameter.
Designation Burner diameter
Ultra fast Ø 107 mm
Intensive Ø 90 mm
Fast Ø 72 mm
Semi fast Ø 55 mm
UF
SF
I
SF
F
F F

Page 28 of 40
Use :
Turn gas supply on.
Rotate burner valve handle to lighting position “IGN”.
Turn burner valve handle to high position for maximum flame.
Rotate burner valve handle to off position.
A reduced flowrate position identified by the “LOW” mark produces the
preset minimum burner power.
Useful hint :
Always choose a burner that matches the diameter of the utensil used.
Cleaning :
The burners are made in two parts in order to facilitate cleaning. Clean them separately.
After removing the pan supports and burners, the cooking surface can be cleaned easily and thoroughly by simply using a
sponge.
Do not use scouring pads or abrasive products such as oven cleaners and stain removers.
When cleaning, be careful not to splash liquid into the openings of the burners.
CLOSE THE MAINS GAS VALVE
BEFORE CLEANING
TOP BURNE
R
LOW
HIGH
OFF
IGN
CAUTION:
During use of the cooking surface or
oven, accessible parts may become
very hot during use. Warn users of
the potential hazards.

Page 29 of 40
HEATING PLATE
The heating plate is a cast iron plate heated by a high-power gas burner. It can be used as a work surface and several
saucepans can be placed on it at the same time.
Cast iron stores and retains heat uniformly over its entire surface and it is possible to cook or simmer dishes depending on
the temperature. Using the heating plate is ideal for cooking a pot au feu, coq au vin, warming a veal or fish stock or even
binding a sauce.
By removing the central plug of the plate, the burner can be used as a traditional flame burner. “TRADITION” type gas
hobs are equipped with a heating plate.
Description :
The heating plate is made entirely of cast iron. It consists of two parts, the main part rests directly on the cooking surface
and the other removable plug part is located in the middle of the plate.
DANGER: Temperature may exceed 300 °C.
Warn potential users of hazards involved.
T
SF
F

Page 30 of 40
Use :
Before using your heating plate for the first time, it is advisable to pre-heat the heating plate with the burner
set to the low flame position. When the plate is sufficiently hot, turn off the burner and then grease the plate by
using a cloth soaked in vegetable oil (e.g. ground-nut oil). Once this operation has been performed 3 or 4 times the
cast iron will be protected against oxidation.
Turn gas supply on.
Rotate burner valve handle to lighting position “IGN”.
Turn burner valve handle to high position for maximum flame.
Rotate burner valve handle to “OFF” position.
A reduced flowrate position identified by the “LOW” mark produces the
preset minimum burner power.
Cleaning the heating plate :
Immediately remove any spillages to make cleaning easier. You can use commercially available special products for
cleaning cast iron.
If the cast iron is heavily soiled, use scouring pads and grease after cleaning.
TOP BURNER
LOW
HIGH
OFF
IGN
DO NOT USE WATER TO CLEAN THE HEATING
PLATE WHEN IT IS HOT.
This can damage it.

Page 31 of 40
BEFORE USING OVENS
In order to achieve optimum use and maximum benefit from your oven, please read the following hints carefully in order
to familiarize yourself with the principles of oven cooking.
An oven cooks and heats by using a heat source which is generally located inside the oven. This heat source heats the air
and then the entire oven. The food therefore cooks thanks to the heat given off by the heating elements but also thanks to
heat radiated from the oven walls.
This is why it is advisable to:
Pre-heat the oven for 10 to 12 minutes depending on the setting selected before placing your dish in the oven.
When placing the dish in the oven, make sure that it is not too close to the oven walls in order to prevent the edges of
dishes being exposed to excessive radiated heat.
The material of which plates and moulds are made influences cooking due to its thickness, ability to transmit heat and its
color.
Aluminum, earthenware and aluminum with a non-stick coating reduce cooking and underside browning. These
materials are recommended for cooking cakes and roasts.
Enamelled cast iron, anodized aluminum, tin-plated iron, ovenproof glass, heat-resistant porcelain and aluminum with a
non-stick coating and colored exterior increase underside browning. These materials are recommended in particular for
open tarts, quiches and all crispy preparations that must be browned on the underside as well as on the top.
In order to prevent smoke being given off due to grease splashes when cooking meat, it is advisable to use pans that have
high thermal inertia (earthenware or enamelled cast iron pans) with high edges of a size that matches the joint being
roasted. Turn red meats over half way through cooking.
It is inadvisable to place a pan directly on the base of the oven or to cook joints simply placed in the drip tray.
These few hints plus your own experience will enable you to achieve excellent results.
Danger :
When the oven or grill is switched on, accessible parts may become very hot. Keep children away from
them. Be careful when handling dishes and shelves.
Openings or slits for ventilation or heat dissipation must not be blocked.
Never store flammable products in the compartment for saucepans

Page 32 of 40
GAS OVEN
The gas oven is a high-performance oven. Some chefs are convinced that gas ovens do not dry out dishes during cooking.
The results obtained are excellent and energy consumption is lower!
Gas ovens are ideal for slow cooking, for instance dishes cooked in earthenware dishes (terrines, gratins, ragouts, etc.) as
well as for meats that require fast cooking and need to be sealed (loin of lamb) or even roasts which do not form an outside
crust and remain really succulent.
In addition, gas ovens are ideal for cooking all dishes that require high “bottom heat” (1). We recommend the use of
electric ovens for dishes that have to be cooked in a dry atmosphere or at very low temperatures (below 150 °C / 302 °F)
such as meringues and certain cakes and pastries.
(1) ”Bottom heat” is obtained through heat from the lower part of the oven, i.e. in the case of a gas oven, the location
where the heat source is situated. Bottom heat is recommended for cooking fruit tarts, quiche lorraines, etc. for example.
Description :
Made of sheet steel with an acid-resistant enamel coating applied at 850 °C / 1562 °F; the gas ovens have racks with 4
shelf positions (58 mm / 2 5/16’’ spacing) allowing shelves and flatware to slide in easily. The oven volume is 62 liters / 2.18
ft3.
The gas oven is supplied equipped with a pastry tray, shelf and roasting pan as standard.
The oven burner is controlled by a thermostat valve. A thermocouple safety cut-out switches off the gas supply to the
thermostat valve if the burner is accidentally extinguished.
The oven burner is a large unit in order to ensure even heating of the base surface area. Its thermal output is 4.0 kW.
530 mm / 20 7/8”
305 mm
12”
455 mm / 17 29/32”

Page 33 of 40
Use the oven :
Turn the oven thermostat valve control knob counterclockwise past the “IGN”
mark to the desired temperature. An audible clicking sound will be heard.
The clicking sound stops when the gas has been ignited on the pilot.
To turn off, turn the control knob clockwise to the Off position. The control
knob returns to its initial position, the latching mechanism operates and the gas
safety cut-out is activated.
.
Before using the oven for the first time, it is advisable to switch it on without
anything in it at the maximum thermostat position for 1/2 hour in order to
eliminate the smell of fumes due to the composition of the mineral wool used to insulate the oven and residues from greases
applied during manufacture. These odors will disappear after the oven has been used a few times.
Useful hints :
- Use pans with high edges for roasting in order to minimize grease splashes.
- When cooking fruit tarts, place the drip tray at the bottom of the oven in order to collect any spillages.
- It is also advisable never to place foodstuffs directly in the drip tray

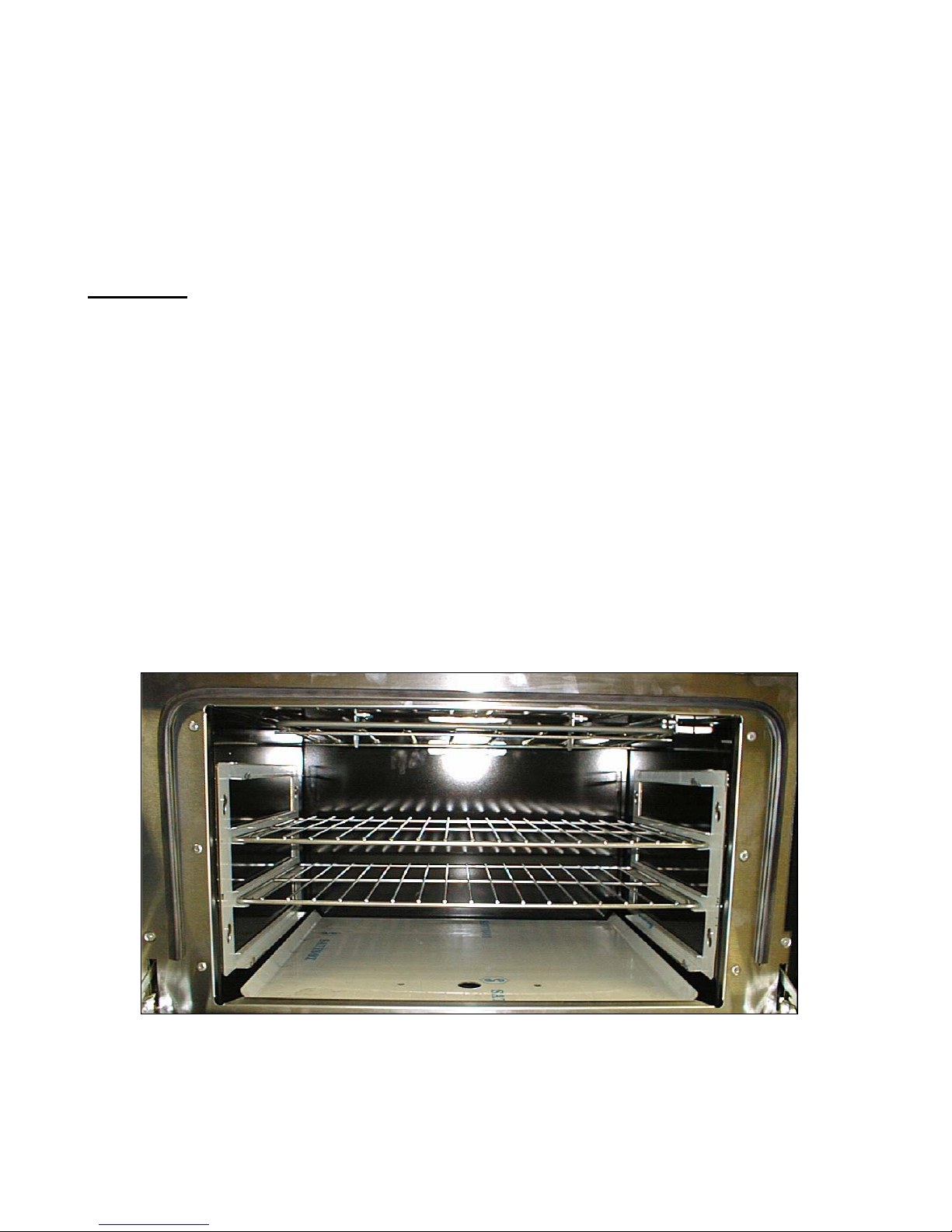

To remove oven racks :
Pull rack forward to the stop position.
Raise the forward edge of the rack and lift out..
Reverse procedure to install racks.
IGN
550
500
450
400
350
280
OFF
OVEN

Page 34 of 40
ELECTRIC OVEN
Electric ovens are simple to use and are ideal for cooking all usual dishes.
The electric oven has three heating elements and can be used as both an oven and a grill.
The electric oven is specially recommended for dry pastries such as almond biscuits, Genoese sponges, etc.
Description :
The dimensions of the oven are identical to those of the corresponding gas oven.
The electric oven is supplied equipped with a pastry tray, a shelf and a roasting pan as standard.
The heating elements consist of two 1030 W elements at the base and a peripheral 1300 W element in the roof which
operate simultaneously.
In the grill position, only the central element of the 3100 W element in the roof operates.
The heating elements are controlled by a thermostat switch.
There are 3 indicator lamps on the control panel of the electric-oven version :
- Red signal lamp lights when the unit is energized (it remains lit unless the appliance is disconnected from the
mains supply).
- Signal lamp B(red) lights when the components are switched on.
- Signal lamp C(orange) shows status of energized component. It is lit or not lit depending on the programmed
temperature.

Page 35 of 40
Use :
The oven must be pre-heated at the thermostat setting chosen for
cooking.
Turn the thermostat switch clockwise to the required mark. The
red and orange indicator lamps (Band C) are lit. When the
orange indicator lamp (C) is no longer lit, the selected
temperature has been reached and you can then place your dish in
the oven.
In order to switch off, turn the thermostat control knob from the
right to the left as far as the Off position.
Prior to first use of oven: Preheat empty on thermostat setting
220°C for 20 minutes, then operate at maximum temperature for
approximately 2 hours to heat the rockwool oven insulation and
burn off the grease used in the manufacturing process. All odors
will and smoke disappear when the oven has been used a few
times.
Useful hints :
- Use pans with high edges for
roasting in order to minimize grease splashes.
- When cooking fruit tarts, place the
drip tray at the bottom of the oven in order to
collect any spillages.
It is also advisable never to place foodstuffs directly in the drip tray
Electric grill :
The electric oven is equipped with a grid that can be used to grill meats and cook
all types of dishes au gratin.
The electric grill is ideal to finish off crèmes brûlées or obtain perfect cooking of a
rib of beef for example.
Use :
Turn the thermostat control knob to mark “BROIL”.
In order to switch off, return the control knob to position Off.
Useful hints :
CAUTION, the grill cooks very quickly, always keep an eye on the food you are cooking
Lightly oil the surface of meat and fish before placing them on the sliding grid
Only place and use the drip tray under the grid in order to collect cooking juices and prevent spillages in the case of
food cooked au gratin.
Increase the distance between the heating element of the grill and the food to be grilled depending on its thickness in
order to avoid overcooking the outer surface without cooking the inside of the food.
Keep a careful eye on the food you are cooking; grilling generally does not take long.
To remove oven racks :
Pull rack forward to the stop position.
Raise the forward edge of the rack and lift out.
Reverse procedure to install racks.
When grilling, the door must be closed and only opened to inspect the foods and
then close again.
212
LO
122
176
HIGH
554░F
OFF
BROIL
464
302
248
356
428
O
VEN
B
C
212
LO
122
176
HIGH
554░F
OFF
BROIL
464
302
248
356
428
OVEN

Page 36 of 40
ELECTRIC FORCED CONVECTION OVEN
The forced convection oven is a recent development in cooking techniques. Its principle is straightforward: air circulates
over a heating element, is heated when it comes into contact with the element and the heat thus obtained in the oven is used
to cook food.
Air circulation is achieved by using one or two turbines inside the oven which draw in air and expel it onto one or two
heating elements, thus producing movement of warm air referred to as “convection”.
Forced convection ovens have many advantages, the main benefit being that identical or different dishes can be cooked
evenly at several levels. It is therefore particularly suitable for cooking cakes, pastries, Viennese bread or flaky pastry.
It heats quickly and defrosts frozen food evenly.
Different dishes can be cooked simultaneously without taste transference because odors are destroyed as the air passes
over the heating element.
Description :
Made of sheet steel with an acid-resistant enamel coating applied at 850 °C / 1562 °F, the 62 liters / 2.18 ft3oven has
racks with 4 shelf positions (58 mm / 2 5/16’’ spacing) allowing shelves and flatware to slide in easily.
The dimensions of the oven are identical to the gas oven apart from its depth which is 405 mm / 1’-3 5/16’’.
The forced convection oven is equipped with one pastry tray, one shelf and one roasting pan as standard.
The oven is heated by two circular 1850 W elements which surround two reaction type fans.
This can optionally be fitted with an electric grill with a rating of 3100 W.
The heating element is controlled by a thermostat switch, the control panel has 3 indicator lamps :
- Red signal lamp lights when the unit is energized (it remains lit unless the appliance is disconnected from the
mains supply).
- Signal lamp B(red) lights when the components are switched on.
- Signal lamp C(orange) shows status of energized component. It is lit or not lit depending on the programmed
temperature.
405 mm –15
61
/64’’

Page 37 of 40
Use :
The oven must be pre-heated at the thermostat setting chosen for
cooking.
Turn the thermostat switch clockwise to the required mark. The red and
orange indicator lamps (Band C) are lit. When the orange indicator
lamp (C) is no longer lit, the selected temperature has been reached and
you can then place your dish in the oven.
In order to switch off, turn the thermostat control knob from the right to
the left as far as the Off position.
Before using the oven for the first time, it is advisable to switch it on without anything in it at the maximum thermostat
position for 1/2 hour in order to eliminate the smell of fumes due to the composition of the mineral wool used to insulate the
oven and residues from greases applied during manufacture. These odors will disappear after the oven has been used a few
times.
Grill (option) :
Turn the control knob to the setting beyond the BROIL position. To switch off, turn the selector knob from right to left as
far as the Off mark.
Note : White the grill is switched on, the fan continue to operate.
To remove oven racks :
Pull rack forward to the stop position.
Raise the forward edge of the rack and lift out.
Reverse procedure to install racks.
Useful hints :
When cooking different dishes simultaneously, preferably place cakes and pastries at higher levels above other items to be
cooked. If the cooking times of dishes vary, place them in the oven so that they are cooked just in time to serve them and
remove them as soon as they are ready.
In a forced convection oven cooking can take place at temperatures lower than in a conventional oven. Consider reducing
the heating temperature.
- Use pans with high edges for roasting in order to minimize grease splashes (e.g. casserole without lid).
- When cooking fruit tarts, place the drip tray at the bottom of the oven in order to collect any spillages.
- It is also advisable never to place foodstuffs directly in the drip tray.
CAUTION :The grill cooks very quickly and
the user must always keep an eye on it.
When grilling, the door must be closed and only opened to inspect the foods and
then close again.
OVEN
BROIL
OFF
HIGH
464
428
356
248
176
122
302
212

Page 38 of 40
CLEANING
Stainless Steel
All stainless steel parts should be cleaned regularly with hot, soapy water or any other neutral, non-abrasive detergent
at the end of each cooling period.
Wipe up any spills immediately.
When soapy water will not do the job, special-purpose products made just for stainless steel can be purchased at your
local hardware store or kitchen store.
Do not use steel wool pads, abrasive cloths, abrasive cleaners or powders to clean. Do not use a metal knife, spatula,
or any other metal tool to scrape stainless steel. Scratches are almost impossible to remove.
Do not permit citrus or tomato juice or forms of brine (concentrations of salt, sauerkraut, etc.) to remain on the stainless
steel surface, as citric acid or anything acidic will cause corrosion (pitting) and permanently discolor stainless steel.
Caution: Do NOT use any chlorinated cleansers (bleach of any kind) or ammonia to clean the stainless steel, as it will
permanently discolor stainless steel.
Oven
Do not use abrasive cleaners on the oven walls. Special oven cleaning products may be used but should be kept away from
the electrical elements, thermal probes, rubber gasket/seals, and hinges. You may remove the oven door gasket when using
any oven cleaning products.
Be sure to remove all residues from surfaces after using any cleaning products.
Clean the rear cover(s) (electric oven or fan-assisted oven) to ensure that the cooling louvers are not blocked with deposits.
After cleaning, before use, make sure that the base is properly mounted at rear and slid forward and fitted under the front
edge of the oven in order to avoid deformation of the base due to heat. (The bottom base enamel panel has a slight torsional
twist designed into it and will not lay flat when loose or removed – this is on purpose – it will be in compression when
fitted properly).
Enameled Surfaces
Use a sponge soaked in soapy water or a degreasing product applied with a soft cloth.
Never use any abrasives and avoid excessive or harsh rubbing when cleaning which can leave permanent marks on the
enamel.
Caution: Do NOT allow any metal, cast iron, or brass polish/cleaners (Brasso, Copper Brite, Flitz, etc.) to come in contact
with any enameled surfaces. The chemicals will cause permanent damage to the enameled finish.
BEFORE ANY CLEANING WORK, CLOSE THE GAS SUPPLY AND/OR ISOLATE
FROM THE MAIN ELECTRICAL SUPPLY

Page 39 of 40
CAST IRON CLEANING
Heating Plates
Caution: Do Not Use Water To Clean The Heating Plate When It Is Hot.
This can damage it.
** These are considered work surfaces and not recommended for direct food contact **
Traditional Simmer Plate “Coup de Feux” (CF) (with removable plug)
Large Portable Simmer Plate “Plaque Centrale Grand Mijotage” (PCFC) (solid surface)
Useful hint: “Seasoning” the heating plate before using it and keeping it “seasoned” will protect it against oxidation
(rust). “Seasoning” is just using a paper towel/cloth and coating the cast iron with high-temperature oil/fat (coconut oil)
when it is warm and letting it dry.
After each use, and while the plate is still warm, clean it off with a cleaning pad (Scotch Brite, for example) and a damp
cloth. Use of steel wool is not recommended because if there is any metal residue left behind it will promote oxidation.
Removing spills immediately will make cleaning easier. Drying the surface after cleaning and keeping the surface free of
moisture will prevent oxidation (rust).
If the cast iron is heavily soiled, use a non-metallic scouring pad or stiff bristle nylon brush to clean. After any heavy
cleaning it is recommended that you “season” the grill again (as you did before you used it the first time) to replace the
high-temperature oil/fat and prevent oxidation. If you ever need to remove heavy oxidation, rust or other marks you can
sand the surface with an emery cloth.
Mijotage/Simmer Plate (PM) (Portable Cast Iron Plate w/ holes over burners)
Using a brush or cleaning pad, wash with soap and water and then dry.
Grates
Using a brush or cleaning pad, wash with soap and water and then dry.
Grill Plate (with ridges)/Griddle Plate (smooth)– (Cast Iron Plate with treated finish)
Using a brush or cleaning pad, wash with soap and water and then dry. Even though these plates have a treated finish, a
light “seasoning” of these cooking surfaces will make for easier cleaning but it is not required.

Page 40 of 40
Brass
Newly machined brass parts will have a shine to them. However, these parts are a non-lacquered surface so as they age and
are used, they will develop a patina. Some consider this to be a very classic look and are careful to maintain this
discriminating look. If, on the other hand, you wish to have a polished look to your brass parts, and decide to use a
cleaner/polish of any kind, DO NOT allow any cleaner/polish to come in contact with the enamel or stainless steel surfaces
as it could permanently discolor the finish.
Towel Bar Supports – Wash with soap and water and then dry with a soft cloth.
Control Knobs and Drawer Pulls - Wash with soap and water and then dry with a soft cloth.
Chrome
Wash with soap and water and then dry with a soft cloth. DO NOT allow any cleanser/polish to come in contact with the
enamel or stainless steel surfaces as it could permanently discolor the finish.
Burner Assembly (Two parts - Aluminum Burner Bowl and Brass Burner Caps)
The burners are made in two parts in order to facilitate cleaning. Clean them separately.
Aluminum Burner Bowl - Using a non-metallic brush, wash with soap and water. (Older bowls, pre-1999, have
small flame hole that MUST be kept clean and free of residue of any kind to allow for proper operation of the
burner.)
Brass Burner Caps - Using a non-metallic brush, wash with soap and water. The small holes MUST be kept clean
and free of residue of any kind or the burner will not operate properly.
Please note: The brass burner caps come to you very shiny because this is how they look after the machining process.
Even though the cosmetic look of the brass looks great, it is chosen for its machinability and durability. Once you start
enjoying your range, it is normal to see the brass lose its new look and develop a brownish, mottled appearance. It is not
recommended that you polish these caps as you could affect the performance and shorten the use.
