Lacidoll LCDJSQ-J19 User manual
If any problem about quality, replacement or refund is available.
Please feel free to contact us by email.
Ersatz oder eine Rückerstattung wegen Qualitätsproblems ist
möglich. Sie können jeder Zeit Kontakt mit uns per E-Mail
aufnehmen.
User's Guide
LCDJSQ-J19
With Warranty Card
English & German Version
Thank you for purchasing our humidifier LCDJSQ-J19.
Please read this manual carefully before using
and keep it for future reference.
Precautions
Vielen Dank, dass Sie unseren Luftbefeuchter LCDJSQ-19 gekauft haben.
Bitte lesen Sie das Handbuch vor der Verwendung des Geräts sorgfältig
durch und bewahren Sie es zum späteren Nachschlagen auf.
Hinweis
Safety Guide
Components
Placement
Installation
Water Filling & Use of Essential Oil
Control Panel & Remote Control
Maintenance
FAQ
Product Specification
Warranty Card
1-2
3
4
5-6
7
8
9
10-11
12
13-14
ContentsContents
Sicherungshinweise
Geräteteile
Platzierung
Installation
Wasserfüllung & Aroma
Bedienfeld & Fernbedienung
Pflege
FAQ
Spezifikationen
Gewährleistungskarte
16-17
18
19
20-21
22
23
24
25-26
27
28-29
Inhaltsverzeichnis
Please do not disassemble or transform the machine.
Please do not let the machine be strongly impacted.
Please stop the machine before moving it.
Please don't connect the socket that exceeds the rated voltage and don't use the
extension cable, so as to avoid fire or electric shock.
When the plug or wire is abnormally hot, please stop using it.
Please do not use wet hands to pull out the power plug otherwise it may cause
electric shock or injury.
Please do not block the outlet or add water from the mist outlet otherwise it may
cause water leakage, machine deformation or failure.
Please do not use acidic detergent in the main body. If there is residual detergent,
it may produce toxic gas.
0101
Safety Guide
Children should use it under the supervision of adults.
Please do not deliberately inhale the spraying mist, especially for people with
sensitive respiratory tract.
0101
02
When not in use for a long time (more than 24 hours), please pour out water from
the tank and sink to avoid mold or impurities, which may damage health.
Please do not put essential oil into water or sink, which may cause water leakage
deformation or failure. There is an essential oil tray on the back of the machine,
please place a tissue or sponge underneath before adding essential oil.
Please do not insert your fingers or other things into the water inlet or air outlet or
the gap of the machine which may cause damage to the machine or electric shock.
Safety Guide
02
Cover Main Body
Water Pipe
Water Pump
Spray Tube
LED
Display
Water
Viewport
UV lamp Fan Outlet
Main Body
Water Outlet Float
Remote Control
Atomizer
Mist Outlet
Tank Handle
Water
Tank
Essential
Oil Tray
Power Cord
Components
03
Please place the humidifier in a horizontal position more than 50 cm away from walls,
furniture, household appliances, etc.
Please do not use it on the following occasions so as to avoid water leakage, signal
jamming damage or injury, etc.
Direct sunlight.
On the unstable platform.
With high temperatures humidity and dust.
Near the air conditioner, heater and stove.
Under the table, or on the carpets bedding,
etc.
Near the radio and other objects that emit
radio waves.
Near mobile phones, computers and other
precision instruments.
Placement
04

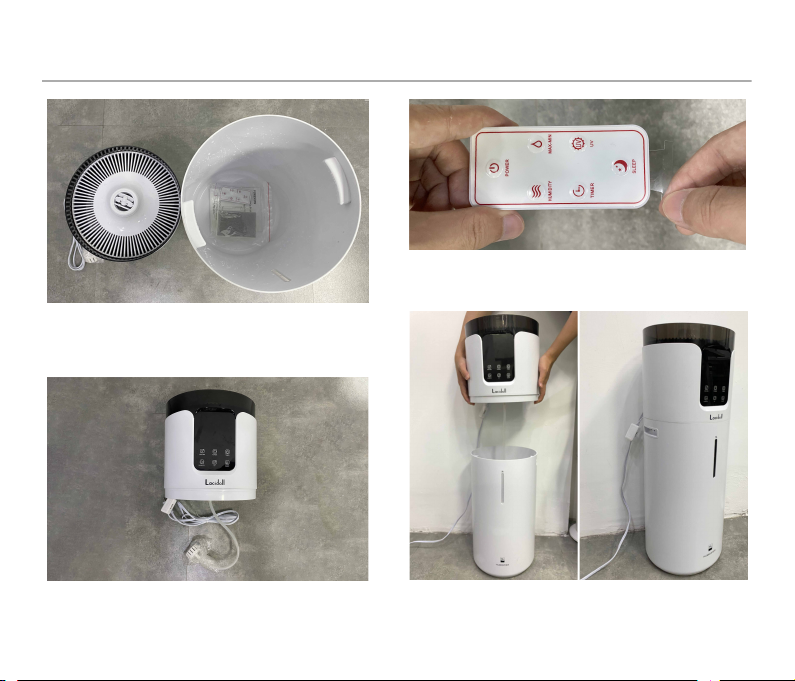

4.Place the main body on the water tank
properly.
3.Remove the protective bag from the
water pump.
1.Take off the main body, take out the
remote control and other accessories
in the water tank.
2.Remove the insulating plastic sheet
before using the remote control.
Installation
05
Step 1
Take out
the decorative cover
Assembly instructions for the mist tube
Installation
06
Step 2
Take out
the mist nozzle
Put on the mist tube
and tighten it clockwise
Step 3
07
Please add water below 40°C.
Please do not exceed the max water line.
Please do not let the water into the mist outlet
otherwise the water may enter the interior, caus-
ing machine failure.
Please do not add mineral water, plasma water
or tap water that has been left for a long time.
If mold or impurities breed, it may cause health
problems.
When the water is insufficient, the machine will
prompt for water shortage and shut down automa-
tically. Please refill the water and turn it on.
Place a tissue or sponge underneath before
adding essential oil.
Please do not put essential oil into water or sink
which may cause water leakage, deformation or
failure.
Add water without opening the cover.
There is an essential oil tray on the back of the
machine, please click and the tray will pop out.
Add water from the water tank.
Water Filling & Use of Essential Oil
Touch the power button, the display lights up and the
humidifier starts to work.
POWER
The humidity setting range is 40-90, and each touch
increases by 5%. The humidifier will automatically stop
spraying mist when the surrounding humidity reaches
the set value.
The timer can be set for 1-12 hours, and each touch
increases by 1 hour. The humidifier will shut down
automatically when the time reaches the set value.
The mist volume can be adjusted in four levels: low,
medium, high and turbo.
Touch the UV button to turn on or off the UV sterilization
function. A purple light in the water sink will appear when
turning it on.
Touch the sleep button to enter the sleep mode, and the
display will be dimmed. Touch any button to exit sleep
mode, and the display will light up.
The operation of remote control is the same as the control panel.
Please remove the insulating plastic sheet before using the remote
control.
When turning on the UV light, do not look directly for a long time,
otherwise it may cause eye discomfort.
Remote control
Display& buttons
HUMIDITY
TIMER
MAX-MIN
UV
SLEEP
Control Panel & Remote Control
08
POWER
MAX-MINHUMIDITY
SLEEP
TIMER UV
Be sure to pull out the power plug before maintaining the humdifier.
Do not directly flush the whole machine with water to avoid short circuit and failure.
When not in use for a long time (more than 24 hours), please pour out water from the
tank and sink to avoid mold or impurities which may damage health.
Make sure the main body is completely dry before use.
With the use of tap water, minerals and organics may adhere to it, which may cause the
function of humidifier to decline or malfunction. If the dirt is not easy to clean, the cloth
can be soaked in neutral detergent before wiping.
Maintenance
09
Tilt and pour out the water
from this outlet. Take care
not to wet the ground.
Wipe the outside of the
machine with a cloth.
Clean the sink and tank
with a soft cloth or brush.
The residue of detergent in the sink and tank should be cleaned up before use.
Q: After the power is turned on, the display does not light up.
A: There may be water entering the circuit board. Please air-dry the main body for 1
day. If it still can't be turned on, please contact customer service by email.
Q: Low mist output.
A: When the ambient humidity exceeds the set value, the machine will automati-
cally stop spraying mist. But if the atomizer is damaged, please contact
customer service by email.
Q: Abnormal noise.
A: There is too little water in the tank, or the ground is not stable. Please fill water
and place the humidifier on a flat and stable surface.
Q: The humidity value is not completely consistent with the room humidity.
A: Please keep the humidity sensor from blocking and wetting. The difference of
5-10 degrees is in the normal range. If not, please contact customer service
by email.
Q: Red light flashing.
A: Please open the sink and check whether the water can be pumped up. If not,
check whether the water pipe has fallen or broken. None of the above, contact
customer service by email.
FAQ
10
11
FAQ
Q: There is white powder around the humidifier.
A: Tap water contains certain minerals, may adhere to the object, please do not
worry and clean the water tank regularly. Keep the precision instrument away
from the humidifier to avoid damage to them.
Q: There is scale in the water sink or tank.
A: Tap water contains certain minerals, may adhere to the object, please do not
worry and clean the water sink and tank regularly.
Q: The floor is wet or there is water around the humidifier.
A: Humidity is too high, or the humidifier is placed in a non-ventilated place, so the
mist can not be fully evaporated.
Q: The fire on the stove turned red.
Q: Interference with TV remote control signal.
A: Keep the humidifier 1m away from the TV or other objects that emit radio waves.
A: Because the composition of the tap water reacts with the flame(Flame reaction),
please keep the humidifier away from the stove.
Product Name Ultrasonic Humidifier
Model Number LCDJSQ-J19
Operation Mode Low Medium High Turbo
Max Mist Output 300mL/h 500mL/h 800mL/h 1000mL/h
Rated Power 50W
Noise ≤35dB
Coverage Area 1000 sq.ft
Tank Capacity 4.2Gal / 16L
Size (W)285mm × (D)285mm × (H)682mm
N.W. 3.3Kg
G.W. 4.2Kg
Safety Functions
1-12 hours Timer
Waterless auto shut-off
Automatic shutdown when falling
Product Specifications
12
Model Number LCDJSQ-J19
Purchase date Year Month Date
Customer
Store
Name
Warranty Period Within 1 year from the date of purchase
Address
Phone Number
Warranty Card
13
Warranty Period
Our company provides a one-year warranty which starts from the date of purchase.
When returning the product, please confirm that the product is intact, and the
packing boxes and accessories are complete.
Warranty Requirements
1. Please provide the warranty card and the order number.
2. Please describe the problems in details with pictures or videos.
Non-Warranty Policy
The following conditions are not covered by the warranty.
Over the warranty period.
Damage caused by natural disasters and other force majeure.
Any damage caused by use not in accordance with the requirements in the User Manual.
Failure or damage caused by forced use of the product.
The user disassembles or repairs the product without authorization.
Sorry that warrant service would not be available if you are unable to provide the above
information.
14
