LaCie Slim Blu-ray User manual

LaCie Slim Blu-ray • Design by sam HecHt Table of Contents
User Manual page 1
Table of Contents
1. Introduction................................................................................................................. 5
1.1. Box Content ................................................................................................................................. 6
1.2. Minimum System Requirements ...................................................................................................... 7
1.2.1. Burning and Mastering ....................................................................................................... 7
1.2.2. Video and High Definition (HD) Playback ............................................................................. 8

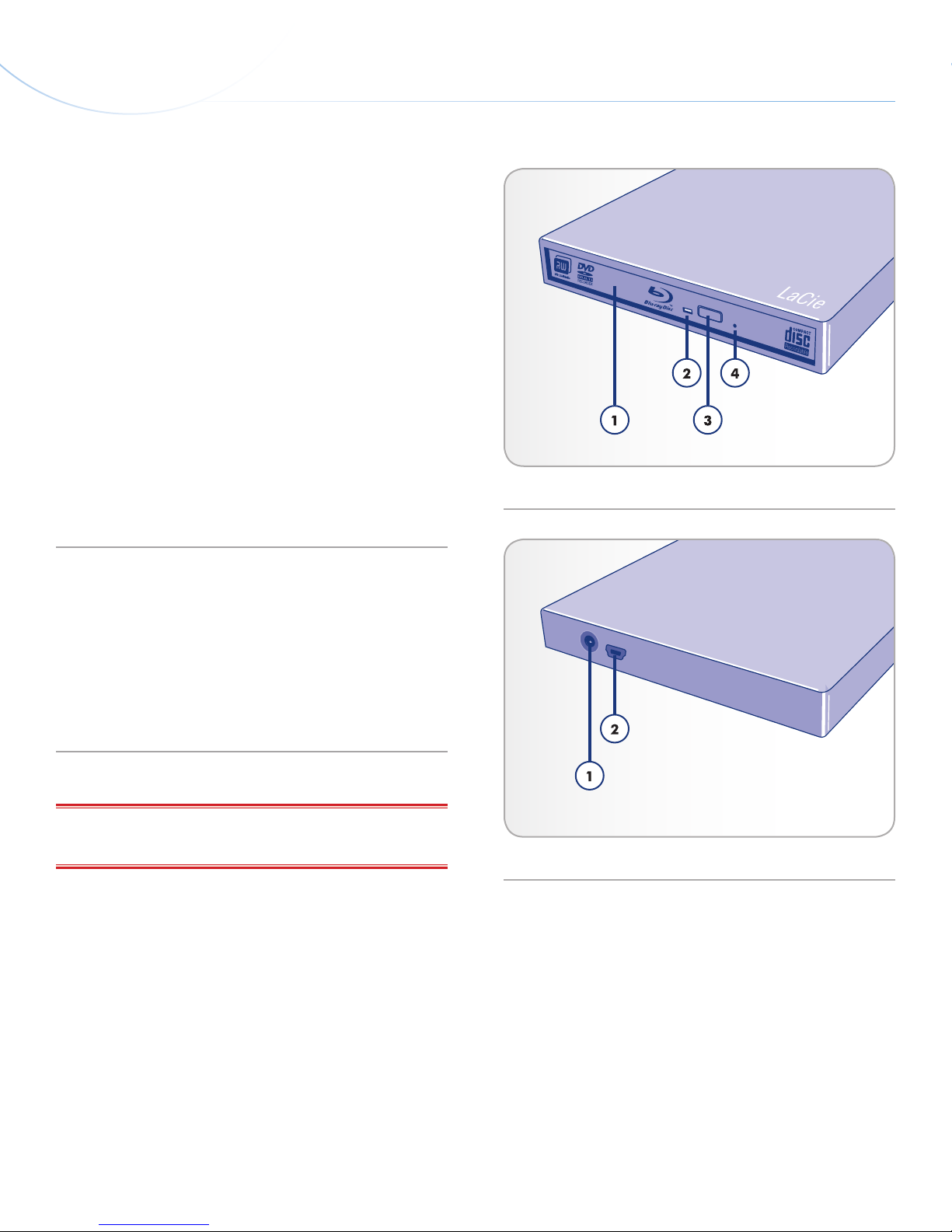

1.3. Views of the Drive ......................................................................................................................... 9
1.4. Cables and Connections ............................................................................................................. 10
1.4.1. Hi-Speed USB 2.0............................................................................................................ 10

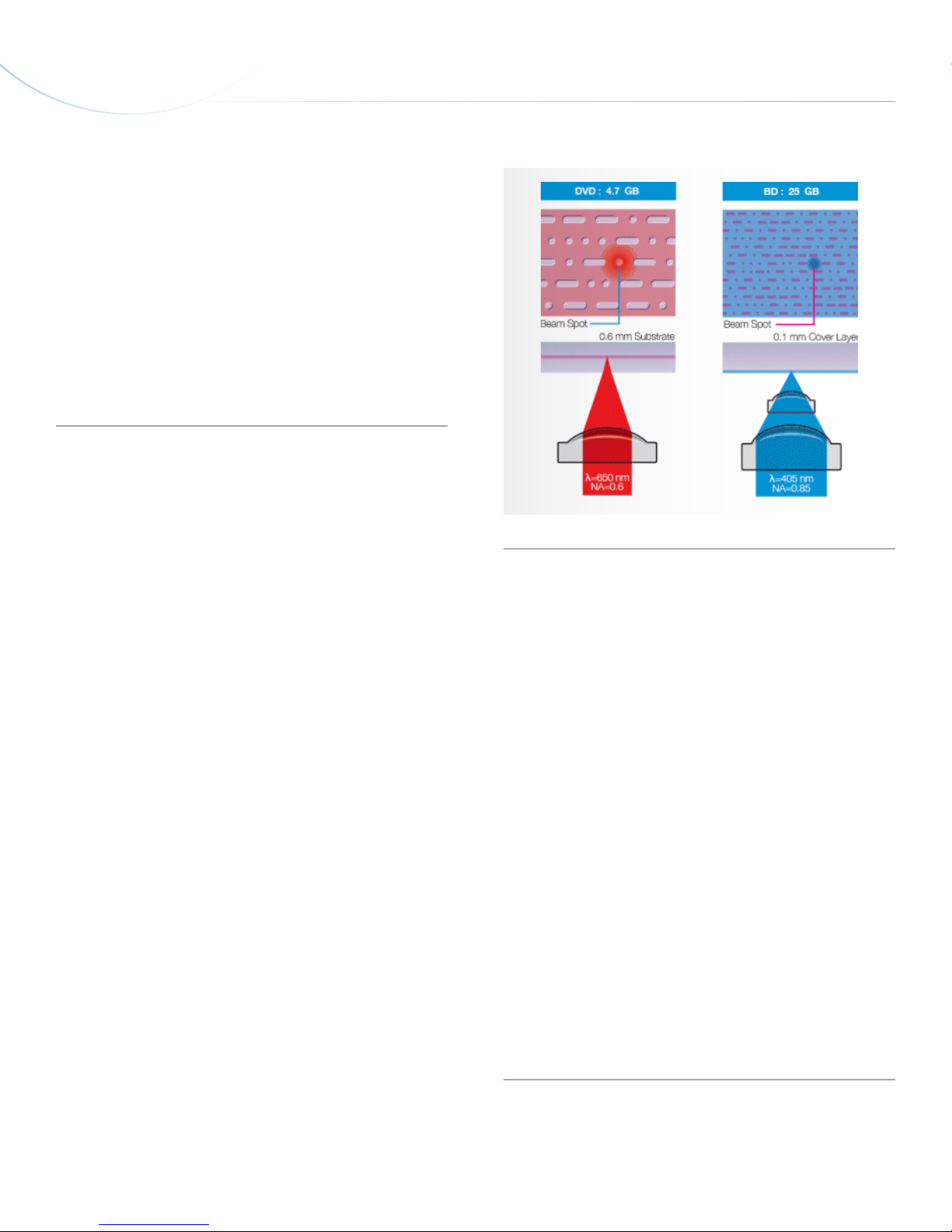

1.5. Blu-ray Technology ..................................................................................................................... 11
1.6. Supported BD, DVD, and CD Formats .......................................................................................... 12
1.6.1. Maximum Read and Write Speeds ..................................................................................... 12
1.6.2. Blu-ray, DVD, and CD Media Format Definitions ................................................................ 13
1.6.3. For Best Recording Results: ............................................................................................... 13
2. Connecting Your LaCie Slim Blu-ray.......................................................................... 14
2.1. Connecting the USB 2.0 Y Cable ................................................................................................. 14
2.2. Installing the BD/DVD/CD Burning Software (Windows) ................................................................. 15
2.2.1. Installing the Recording Software ....................................................................................... 15
2.2.2. Software Bundle............................................................................................................... 15
3. Using Your LaCie Slim Blu-ray .................................................................................. 16
3.1. Inserting Discs ............................................................................................................................ 16
3.2. Accessing Discs .......................................................................................................................... 16
3.3. Ejecting Discs ............................................................................................................................. 17
3.4. Emergency Disc Ejection.............................................................................................................. 17
4. Helpful Technical Information ................................................................................... 18
4.1. Cyberlink Software Assistance ...................................................................................................... 18
4.2. File System Formats..................................................................................................................... 18
4.3. Acronyms ................................................................................................................................... 18
4.4. Blu-ray Writing Methods .............................................................................................................. 19
4.5. About BD/DVD/CD Available Capacity......................................................................................... 20
4.6. About compression standards ...................................................................................................... 20
4.7. USB Questions & Answers ........................................................................................................... 20
4.8. Data Transfers ............................................................................................................................ 21
5. Troubleshooting ........................................................................................................ 22
5.1. The LaCie Slim Blu-ray and Mac OS 10.6 .................................................................................... 23
5.2. Self-Help.................................................................................................................................... 24
6. Contacting Customer Support ................................................................................... 26
6.1. LaCie Technical Support Contacts ................................................................................................ 27
7. Warranty Information ............................................................................................... 28

LaCie Slim Blu-ray • Design by sam HecHt Foreword
User Manual page 2
Copyrights
Copyright © 2011 LaCie. All rights re-
served. No part of this publication may
be reproduced, stored in a retrieval sys-
tem, or transmitted in any form or by any
means, electronic, mechanical, photo-
copying, recording or otherwise, without
the prior written consent of LaCie.
Trademarks
Blu-ray, Apple, Mac, and Macintosh are
registered trademarks of Apple Inc. Mi-
crosoft, Windows, Windows XP, Windows
Vista, and Windows 7 are registered
trademarks of Microsoft Corporation. All
trademarks mentioned in this manual are
the property of their respective owners.
Changes
The material in this document is for in-
formation only and is subject to change
without notice. While reasonable efforts
have been made in the preparation of this
document to assure its accuracy, LaCie
assumes no liability resulting from errors
or omissions in this document, or from the
use of the information contained herein.
LaCie reserves the right to make changes
or revisions in the product design or the
product manual without reservation and
without obligation to notify any person of
such revisions and changes.
Canada Compliance Statement
This Class A digital apparatus meets all
requirements of the Canadian Interfer-
ence-Causing Equipment Regulations.
Federal Communications
Commission Radio Frequency
Interference Statement (FCC)
WARNING: Changes or modifications
to this unit not expressly approved by the
party responsible for compliance could
void the user’s authority to operate the
equipment.
This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference when the equipment
is operated in a commercial environment.
This equipment generates, uses, and can
radiate radio frequency energy, and if not
installed and used in accordance with the
instructions, may cause harmful interfer-
ence to radio communications. However,
there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful in-
terference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encour-
aged to correct the interference by one of
the following measures:
✦Reorient or relocate the receiving
antennas.
✦Increase the separation between the
equipment and the receiver.
✦Connect the equipment into an out-
let on a circuit different from that to
which the receiver is connected.
✦Consult the reseller or an experi-
enced radio/TV technician for help.
Shielded cables and I/O cards must be
used for this equipment to comply with the
relevant FCC regulations.
This device complies with Part 15 of the
FCC rules. Operation is subject to the fol-
lowing two conditions: (1) this device may
not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
Manufacturer’s
Declaration for CE
Certification
We hereby certify that this device is in
compliance with both the EMC Direc-
tive (2006/95/EC) and the Low Voltage
Directive (2004/108/EC) issued by the
Commission of the European Community.
Compliance with these directives implies
conformity to the following European
Norms:
Class B EN60950, EN55022, EN50082-
1, EN61000-3-2
Class I Laser product
This equipment is certified to comply with
DHHS Rule 21 CFR Chapter I, subchapter
J in effect as of the date of manufacture.
This equipment is classified as a Class I
Laser product and no hazardous laser ra-
diation is emitted outside the drive.
Tested to comply with FCC
standards for home or office
use
Lacie Slim Blu-ray
111220 v1.1

LaCie Slim Blu-ray • Design by sam HecHt Foreword
User Manual page 3
This symbol on the product
or on its packaging indicates
that this product must not be
disposed of with your other
household waste. Instead, it
is your responsibility to dispose of your
waste equipment by handing it over to a
designed collection point for the recycling
of waste electrical and electronic equip-
ment. The separate collection and recy-
cling of your waste equipment at the time
of disposal will help to conserve natural
resources and ensure that it is recycled in
a manner that protects human health and
the environment. For more information
about where you can drop off your waste
equipment for recycling, please contact
your local city office, your household
waste disposal service, or the shop where
you purchased the product.
CAUTION: Modifications not authorized
by the manufacturer may void the user’s
authority to operate this device.
Health, Safety & General Use
Precautions
The drive you have just purchased in-
cludes a laser diode device, which clas-
sifies it as a “Laser Class I” product. This
laser is not dangerous for the user under
normal operating conditions. However,
we strongly advise you not to place any
reflective objects in the disc loading sys-
tem, due to the risk of exposure to laser
emissions that may be reflected by such
objects. Always follow the basic precau-
tions listed below to use your LaCie drive
safely and correctly. Respecting these
guidelines will help to avoid the possibility
of personal injury to yourself or others, as
well as to prevent damage to your device
and other computer equipment. These in-
clude, but are not limited to, the following
precautions.
Health & Safety Precautions
✦Read this User Manual carefully,
and follow the correct procedure
when setting up the device.
✦Do not look inside or place your
hand over the open media tray.
Never look directly or indirectly (with
a mirror) at the laser diode, even
when the device is not in operation.
If you expose your eyes to the laser
inside you drive, you risk damage or
loss of your vision or other injury.
✦Do not open your drive or attempt
to disassemble or modify it. Never
insert any metallic object into the
drive to avoid any risk of electri-
cal shock, fire, short-circuiting or
dangerous emissions. Your drive
contains no user-serviceable parts.
If it appears to be malfunctioning,
have it inspected by qualified LaCie
service staff.
✦Never expose your device to rain or
use it near water or in damp or wet
conditions. Never place containers
on it containing liquids that may
spill into its openings. Doing so in-
creases the risk of electrical shock,
short-circuiting, fire or personal in-
jury.
✦Make sure that the computer and
drive are electrically grounded. If
the devices are not grounded, there
is an increased risk of electrical
shock.
General Use Precautions
✦Do not expose the drive to tempera-
tures outside the range of 5° C to
40° C (41° F to 104° F) during op-
eration. Doing so may damage the
drive or disfigure its casing. Avoid
placing your drive near a source of
heat or exposing it to sunlight (even
through a window). Inversely, plac-
ing your drive in an environment
that is too cold or humid may dam-
age the unit.
✦Do not block the ventilation out-
lets on the rear of the drive. These
help to keep your drive cool during
operation. Blocking the ventilation
outlets may cause damage to your
drive and cause an increased risk of
short-circuiting or fire.
✦Always unplug the drive if there is
a risk of lightning or if it will not be
used for an extended period of time.
Otherwise, there is an increased risk
of electrical shock, short-circuiting
or fire.
✦Do not place heavy objects on top
of the drive or use excessive force
on its buttons, connectors and tray.
✦Always place your drive in a hori-
zontal position before using it. This
LaCie drive has not been designed
to be used in an upright position.
This may result in damage to the
device or data loss.
✦Always remove the disc from the
disc tray before transporting your
drive. Otherwise, written data may
be destroyed or the drive’s internal
components may be damaged.
✦Never use excessive force on the
disc loading system; discs should be
inserted effortlessly into your drive.
If you detect a problem, consult the
Troubleshooting section and con-
tact your after-sales department.
✦Protect your drive from excessive
exposure to dust during use or stor-
age. Dust can build up inside the
device, increasing the risk of dam-
age or malfunction.
✦Never use benzene, paint thin-
ners, detergent or other chemical
products to clean the outside of the
drive. Such products will disfigure
and discolor the front panel and
casing. Instead, use a soft, dry cloth
to wipe the device.

LaCie Slim Blu-ray • Design by sam HecHt Foreword
User Manual page 4
IMPORTANT INFO: Any loss, corrup-
tion or destruction of data while using a
LaCie drive is the sole responsibility of
the user, and under no circumstances will
LaCie be held liable for the recovery or
restoration of this data. To help prevent
the loss of your data, LaCie highly rec-
ommends that you keep TWO copies of
your data; one copy on your external hard
drive, for instance, and a second copy ei-
ther on your internal hard drive, another
external hard drive or some other form of
removable storage media. LaCie offers a
complete line of CD and DVD drives. If
you would like more information on back-
up, please refer to our website.
IMPORTANT INFO: 1GB =
1,000,000,000 bytes. 1TB =
1,000,000,000,000 bytes. Once format-
ted, the actual available storage capacity
varies depending on operating environ-
ment (typically 5-10% less).

LaCie Slim Blu-ray • Design by sam HecHt Foreword
User Manual page 5
1. Introduction
Light and compact, the LaCie Slim Blu-ray is ideal for all your disc
burning needs on a desktop or a laptop.
Blu-ray, DVD, and CD
The Slim Blu-ray gives you extraordinary flexibility to burn high-end
content and back up all your important files. With writable blu-ray
discs (BD) reaching up to 50 GB, you can now save high defini-
tion (HD) films*, back up all your photos, and copy multiple music
libraries.
To provide support for more common formats, you also have the
option to burn or copy files to DVD and CD. DVD dual layer (DL)
can have up to 8.5GB capacity and remain a widely used format
for many users. They are compatible with most DVD players and
computer DVD-ROM drives.
Always portable, the Slim Blu-ray enables you to burn HD content at
work, family pictures at home, and music on the road. When the BD
authoring is finished, sit back and relax with a great movie in full HD
played back on the LaCie Slim Blu-ray.
*A two hour HD movie takes an average of 23.3 GB of storage.
Click a topic:
✦Connecting Your LaCie Slim Blu-ray
✦Using Your LaCie Slim Blu-ray
✦Troubleshooting
Quick Links

LaCie Slim Blu-ray • Design by sam HecHt Foreword
User Manual page 6
1.1. Box Content
1. LaCie Slim Blu-ray
2. USB 2.0 Y cable - USB 2.0 mini B male to USB 2.0 A data and
USB 2.0 A power (lightning bolt icon)
3. Quick Install Guide
4. LaCie Software Utilities DVD (includes the User Manual)
IMPORTANT INFO: Please save your packaging. In the event that
the drive should need to be repaired or serviced, it must be returned
in its original packaging.
Setup Steps
1. Connect the Mini USB plug to the Slim
Blu-ray.
2. Connect the primary USB 2.0 A plug (without
the lightning bolt sticker) to your computer.
3. Yourdrive is ready for general use.
4. Install the software on the included CD for
disc burning.
NOTE:Your Slim Blu-ray must be connected to a
USB 2.0 port. Performance is not guaranteed using
USB 1.1.
NOTE:The primar y Y cable USB 2.0 A plug should
provide ample signal and power for the Slim Blu-
ray.The Y cable also includes a second USB 2.0
A plug for additional power.In the event that the
device does not receive enough power,connect the
additional A plug into a second USB 2.0 port on
your computer.Please note that the secondar y plug
has a lightning bolt sticker.
See the User Manual for more information.
Quick Install Guide
Slim Blu-ray
Box Content
Note: Please find the User Manual and
software on the CD.
Protect your investment – register for free
technical support at www.lacie.com/register
1. PrimaryUSB 2.0 A plug (signal and power)
2. Secondary USB 2.0 A plug (power only)
3. Mini USB plug
1. Connect the Mini USB plug to the
SlimBlu-ray.
2. Connect the primary USB 2.0 A plug
(withoutthe lightning bolt sticker) to
yourcomputer.
3. Your drive is ready for general use.
4. Install the software on the included CD
fordisc burning.
NOTE: Your Slim Blu-ray must be connected to
a USB 2.0 port. Performance is not guaranteed
using USB 1.1.
NOTE:
The primary Y cable USB 2.0 A plug
should provide ample signal and power for the
Slim Blu-ray. The Y cable also includes a second
USB 2.0 A plug for additional power. In the
event that the device does not receive enough
power, connect the additional A plug into a
second USB 2.0 port on your computer. Please
note that the secondary plug has a lightning bolt
sticker.
See the User Manual for more information.
XX Setup Steps
1. Connect the Mini USB plug to the
SlimBlu-ray.
2. Connect the primary USB 2.0 A plug
(withoutthe lightning bolt sticker) to
yourcomputer.
3. Your drive is ready for general use.
4. Install the software on the included CD
fordisc burning.
NOTE: Your Slim Blu-ray must be connected to
a USB 2.0 port. Performance is not guaranteed
using USB 1.1.
NOTE:
The primary Y cable USB 2.0 A plug
should provide ample signal and power for the
Slim Blu-ray. The Y cable also includes a second
USB 2.0 A plug for additional power. In the
event that the device does not receive enough
power, connect the additional A plug into a
second USB 2.0 port on your computer. Please
note that the secondary plug has a lightning bolt
sticker.
See the User Manual for more information.
XX Setup Steps
1. Connect the Mini USB plug to the
SlimBlu-ray.
2. Connect the primary USB 2.0 A plug
(withoutthe lightning bolt sticker) to
yourcomputer.
3. Your drive is ready for general use.
4. Install the software on the included CD
fordisc burning.
NOTE: Your Slim Blu-ray must be connected to
a USB 2.0 port. Performance is not guaranteed
using USB 1.1.
NOTE:
The primary Y cable USB 2.0 A plug
should provide ample signal and power for the
Slim Blu-ray. The Y cable also includes a second
USB 2.0 A plug for additional power. In the
event that the device does not receive enough
power, connect the additional A plug into a
second USB 2.0 port on your computer. Please
note that the secondary plug has a lightning bolt
sticker.
See the User Manual for more information.
XX Setup Steps
1. Connect the Mini USB plug to the
SlimBlu-ray.
2. Connect the primary USB 2.0 A plug
(withoutthe lightning bolt sticker) to
yourcomputer.
3. Your drive is ready for general use.
4. Install the software on the included CD
fordisc burning.
NOTE: Your Slim Blu-ray must be connected to
a USB 2.0 port. Performance is not guaranteed
using USB 1.1.
NOTE:
The primary Y cable USB 2.0 A plug
should provide ample signal and power for the
Slim Blu-ray. The Y cable also includes a second
USB 2.0 A plug for additional power. In the
event that the device does not receive enough
power, connect the additional A plug into a
second USB 2.0 port on your computer. Please
note that the secondary plug has a lightning bolt
sticker.
See the User Manual for more information.
XX Setup Steps
1. Connect the Mini USB plug to the
SlimBlu-ray.
2. Connect the primary USB 2.0 A plug
(withoutthe lightning bolt sticker) to
yourcomputer.
3. Your drive is ready for general use.
4. Install the software on the included CD
fordisc burning.
NOTE: Your Slim Blu-ray must be connected to
a USB 2.0 port. Performance is not guaranteed
using USB 1.1.
NOTE:
The primary Y cable USB 2.0 A plug
should provide ample signal and power for the
Slim Blu-ray. The Y cable also includes a second
USB 2.0 A plug for additional power. In the
event that the device does not receive enough
power, connect the additional A plug into a
second USB 2.0 port on your computer. Please
note that the secondary plug has a lightning bolt
sticker.
See the User Manual for more information.
XX Setup Steps
1. Connect the Mini USB plug to the
SlimBlu-ray.
2. Connect the primary USB 2.0 A plug
(withoutthe lightning bolt sticker) to
yourcomputer.
3. Your drive is ready for general use.
4. Install the software on the included CD
fordisc burning.
NOTE: Your Slim Blu-ray must be connected to
a USB 2.0 port. Performance is not guaranteed
using USB 1.1.
NOTE:
The primary Y cable USB 2.0 A plug
should provide ample signal and power for the
Slim Blu-ray. The Y cable also includes a second
USB 2.0 A plug for additional power. In the
event that the device does not receive enough
power, connect the additional A plug into a
second USB 2.0 port on your computer. Please
note that the secondary plug has a lightning bolt
sticker.
See the User Manual for more information.
XX Setup Steps
1. Connect the Mini USB plug to the
SlimBlu-ray.
2. Connect the primary USB 2.0 A plug
(withoutthe lightning bolt sticker) to
yourcomputer.
3. Your drive is ready for general use.
4. Install the software on the included CD
fordisc burning.
NOTE: Your Slim Blu-ray must be connected to
a USB 2.0 port. Performance is not guaranteed
using USB 1.1.
NOTE:
The primary Y cable USB 2.0 A plug
should provide ample signal and power for the
Slim Blu-ray. The Y cable also includes a second
USB 2.0 A plug for additional power. In the
event that the device does not receive enough
power, connect the additional A plug into a
second USB 2.0 port on your computer. Please
note that the secondary plug has a lightning bolt
sticker.
See the User Manual for more information.
XX Setup Steps
1. Connect the Mini USB plug to the
SlimBlu-ray.
2. Connect the primary USB 2.0 A plug
(withoutthe lightning bolt sticker) to
yourcomputer.
3. Your drive is ready for general use.
4. Install the software on the included CD
fordisc burning.
NOTE: Your Slim Blu-ray must be connected to
a USB 2.0 port. Performance is not guaranteed
using USB 1.1.
NOTE:
The primary Y cable USB 2.0 A plug
should provide ample signal and power for the
Slim Blu-ray. The Y cable also includes a second
USB 2.0 A plug for additional power. In the
event that the device does not receive enough
power, connect the additional A plug into a
second USB 2.0 port on your computer. Please
note that the secondary plug has a lightning bolt
sticker.
See the User Manual for more information.
XX Setup Steps
©
C
o
p
y
r
i
g
h
t
2
0
1
0
,
L
a
C
i
e
.
•
S
l
i
m
B
l
u
-
r
a
y
•
w
w
w
.
l
a
c
i
e
.
c
o
m
•
7
1
5
0
9
8
1
0
0
8
3
1
LaCie Slim Blu-ray
™
DESIGN BY SAM HECHT
Cyberlink Blu-ray Disc Suite for Windows
®
User Manual

LaCie Slim Blu-ray • Design by sam HecHt Foreword
User Manual page 7
1.2. Minimum System Requirements
1.2.1. Burning and Mastering
Operating System:
✦Windows XP SP 2, Windows Vista, or Windows 7. Burning and
mastering software included.
✦Compatible with Mac OS 10.6 and Linux. Burning and mas-
tering software not included.
Connectivity:
✦USB 2.0-equipped computer
✦Performance is not guaranteed using USB 1.1 and lower.
Graphics Cards (with the most recent drivers):
✦NVIDIA GeForce (Mobile)
✦NVIDIA Quadro (Mobile)
✦NVIDIA Tesla
✦ATI Stream
Screen Resolution:
✦1024 x 768, 16-bit color
Internet Access
✦Recommended
CPU:
Content Minimum CPU
AVI Capture/Production Pentium 2 450MHz or
AMD Athlon 500MHZ
VCD Quality (MPEG-1) Pentium 3 600MHz or
AMD Athlon 700MHz
DVD Quality (MPEG-2) Pentium 4 2.2GHz or
AMD Athlon XP 2200+
High-quality MPEG-
4, WMV, Quicktime,
RealVideo
Pentium 4 2.4GHz or
AMD Athlon XP 2400+
AVCHD & MPEG-2 HD Pentium Core 2 Duo
E6400 or AMD Athlon
X2 5000+
RAM:
Content Minimum RAM
Data and music 128MB SDRAM
Video 256MB DDRAM (512MB
DDRAM highly recom-
mended)
HD content from pro-
sumer or professional
editing software
2GB DDR2

LaCie Slim Blu-ray • Design by sam HecHt Foreword
User Manual page 8
1.2.2. Video and High Definition (HD)
Playback
Operating System:
✦Windows XP SP 3, Windows Vista, or Windows 7
Connectivity:
✦USB 2.0-equipped computer
✦Performance is not guaranteed using USB 1.1 and lower.
Hard disk space:
✦300MB for installation
Internet Access
✦Recommended
CPU:
Playback Minimum CPU
DVD Pentium 4 2.4GHz or AMD Athlon
2800+
Blu-ray Pentium 4 541 3.2GHz or AMD
Athlon XP 64 X2 3800+
Blu-ray 3D Core 2 Duo E6750 2.66GHz or
AMD Phenom 9450 2.10GHz
RAM:
Playback Minimum RAM
DVD 1GB SDRAM
Blu-ray and Blu-ray 3D 2GB SDRAM
Graphics Cards (with the most recent drivers):
Playback Minimum Graphics
DVD AGP or PCI Express
graphic accelerator sup-
porting DirectX 9.0
Blu-ray Intel G45 graphics de-
coder; NVIDIA GeForce
7600GT; ATI Radeon
X1600
Blu-ray 3D Intel G45 graphics de-
coder; NVIDIA GeForce
8600GT; ATI Radeon
HD 2400
Display:
Playback Minimum Display
DVD and Blu-ray Digital Output - High-Band-
with Digital Content Protec-
tion (HDCP) compliant dis-
play.
Analog output - TV or com-
puter monitor.
Blu-ray 3D 3D display with 3D glasses.
Digital Output - HDCP com-
pliant display.
Analog output - TV or com-
puter monitor.

LaCie Slim Blu-ray • Design by sam HecHt Foreword
User Manual page 9
1.3. Views of the Drive
Front View
1. Disc Tray – Open the tray by pressing the load/eject button,
then place a BD, DVD, or CD into the tray with the label facing
up. Close the tray by pushing the load/eject button or pushing
the front part of the tray. This drive has not been designed to
accept media with cartridges.
2. Drive Activity LED
3. Load/Eject Button – Push this button to open the media tray.
4. Emergency Eject Hole – Insert a straightened paper clip (or
similar object) and push to eject the tray if the load/eject
button does not work. In normal operation, the eject button
should always be used to unload the tray. If you must use the
emergency eject hole, make sure the drive’s power is turned
off and wait until disc rotation has stopped.
Rear View
1. Power Supply Connection – Plug in the optional AC adapter.
See section 2. Connecting Your LaCie Slim Blu-rayy for more
information.
2. Hi-Speed USB 2.0 Port – Plug in the USB 2.0 Y cable supplied
with the drive. See section 2. Connecting Your LaCie Slim Blu-
rayy for more information.
IMPORTANT INFO: You may attach an optional external power
supply (not included) to the power supply connector.
Fig. 01
Fig. 02

LaCie Slim Blu-ray • Design by sam HecHt Foreword
User Manual page 10
1.4. Cables and Connections
1.4.1. Hi-Speed USB 2.0
USB is a serial input/output technology for connecting peripheral
devices to a computer or to each other. Hi-Speed USB 2.0 pro-
vides the necessary bandwidth and data transfer rates to support
high speed devices such as hard drives, Blu-ray drives, and digital
cameras.
USB 2.0 Y Cable
Your LaCie drive is shipped with a Hi-Speed USB 2.0 Y cable to
ensure maximum data transfer performance when connected to a
Hi-Speed USB 2.0 port. The Y cable has a secondary USB 2.0 B
plug to provide additional power to the LaCie Slim Blu-ray.
Please see Fig. 03 - USB 2.0 Y Cable Ends to become acquainted
with the USB 2.0 Y cable:
1. The primary USB 2.0 A plug that connects a device to a com-
puter. For most computers, attaching this primary A plug will
provide ample signal and power for the LaCie Slim Blu-ray.
This USB 2.0 A plug carries the data signal to and from your
device.
2. In the event that the device does not receive enough power via
the primary USB 2.0 A plug, you may connect this secondary
USB 2.0 A plug into a second USB 2.0 port on your computer.
Please note the sticker with the lightning bolt to indicate that
this plug is only meant for additional power and does not carry
the data signal to and from your device.
3. Mini USB 2.0 plug for a device, such as the LaCie Slim Blu-
ray.
USB Icons
These icons will help you easily identify the USB interfaces. They ap-
pear on USB cables and next to the USB port connectors on certain
computers.
Fig. 03 - USB 2.0 Y Cable Ends
Fig. 04 - USB 2.0 logo
Fig. 05 - USB 1.0 logo

LaCie Slim Blu-ray • Design by sam HecHt Foreword
User Manual page 11
1.5. Blu-ray Technology
Blu-ray receives its name from the blue color of the laser that reads
and writes BD data. Standard CD and DVD writers and players have
red lasers. The blue laser is superior since it reads and writes smaller
areas of information, allowing much more data to fit on a disk than
red rays. Blu-ray also lasers also maintain superb HD picture quality.
The LaCie Blu-ray records onto:
✦BD-R/BD-RE/DVD±R, single layer and dual layer
✦DVD±RW/CD-R/CD-RW
The LaCie Blu-ray reads BD-ROM, DVD-ROM and CD-ROM.
Blu-ray Disc abbreviations
Blu-ray Disc can be shortened to “BD”:
✦BD-R is one-time writable Blu-ray media
✦BD-RE is rewritable.
Both BD-R and BD-RE are available as single layer or dual layer.
Please note that “layer” does not indicate both sides of the BD. Data
is written on one side of a disc, no matter if it is dual layer or single
layer. Dual layer discs include a second physical layer to store up to
twice as much data.
Blu-ray Disc video capacities
As with DVD, this depends upon video bandwidth, the number of
audio tracks, and other authoring criteria. The choice of the codec
has great impact on playback time as well. For example, on a single
layer BD, two hours of HD Video is approximately equal to:
135 minutes of HD using MPEG2 compression plus two hours of
bonus material in standard definition quality;
OR
10 hours of broadcast-quality, standard definition video.
There are many different codecs that can increase or decrease the
amount of video and audio stored on a BD.
Manage Copies Across Home Networks
Watching or copying media stored on pre-recorded BD is almost al-
ways dependent upon the compatibility of playback devices. Provid-
ed that your devices support the level of copyright protection (usually
HDCP), you will be able to copy a Blu-ray disc content throughout
your home.
Fig. 06
Disc durability
Blu-ray discs have a more advanced coating than previous disc for-
mats, making them much stronger and more resistant to scratches.
Due to its physical durability and larger capacity, BD is a great
choice for archiving.
Uses
Blu-ray discs are particularly suitable for:
✦High Definition television recording
✦High Definition video distribution
✦High Definition camcorder archiving
✦Mass data storage
✦Backup of workstations (the media can even be stored in a
remote location)
✦Transferring large files and entire projects from one computer
to another
✦Database storage

LaCie Slim Blu-ray • Design by sam HecHt Foreword
User Manual page 12
1.6. Supported BD, DVD, and CD
Formats
1.6.1. Maximum Read and Write Speeds
Table 01 - BD, DVD, and CD Format Speeds below provides the
read and write speeds for formats compatible with the Slim Blu-ray.
Please note that USB 2.0 transfer rates may impact device perfor-
mance.
Table 01 - BD, DVD, and CD Format Speeds
Format Type of Disc Read Speed Write Speed Capacity
Blu-ray BD-R (SL*) 6x 6x 25GB
BD-R (DL**) 4x 4x 50GB
BD-RE (SL* or DL**) 4x 2x 25/50GB
BD-R LtH*** 6x 6x 25GB
BD-ROM (SL*) 6x -- --
BD-ROM (DL**) 4x -- --
DVD DVD±R (SL*) 8x 8x 4.7GB
DVD±R (DL**) 6x 4x 8.5GB
DVD+RW 6x 8x 4.7GB
DVD-RW 6x 6x 4.7GB
DVD-RAM 5x 5x 9.4GB
DVD-ROM (SL*) 8x -- 4.7GB
DVD-ROM (DL**) 6x -- 8.5 GB
CD CD-R 24x 24x 700MB
CD-RW 24x 10x 650MB
CD-ROM 24x -- --
*SL = Single Layer
**DL = Dual Layer
***LtH = Low to High; BD-R LtH have a recording layer made of an
organic dye and are created from converted CD-R/DVD-R produc-
tion lines. The process also includes recycling excess materials.

LaCie Slim Blu-ray • Design by sam HecHt Foreword
User Manual page 13
1.6.2. Blu-ray, DVD, and CD Media Format
Definitions
Blu-ray Disc Recordable - BD-R (Single or dual layer)
✦Recorded once.
✦Cannot be accidentally erased.
✦Ideal format for archiving valuable data or storing and distrib-
uting video material.
Blu-ray Disc Rewritable - BD-RE (Single or dual layer)
✦Capable of rerecording or rewriting. Good quality Blu-ray
discs can be overwritten approximately 10,000 times.
✦Extensive editing functionality on the disc.
✦Ideal format for making sequential backups or recording vid-
eo for time shifting purposes.
Blu-ray Disc Read Only Memory - BD-ROM
✦Contains pre-recorded data.
✦Although a BD-ROM may contain any form of data, most are
HD movies for playback on Blu-ray Disc players.
✦BD-ROM can be read on your computer using the LaCie Slim
Blu-ray drive provided you own the appropriate playback
software, compatible system, graphic card, and monitor (see
1.2.2. Video and High Definition (HD) Playback).
Blu-ray Disc Recordable Low to High - BD-R LTH
✦A write-once format that supports less expensive Blu-ray discs
with an organic dye recording layer.
✦Many existing Blu-ray burners are compatible with this new
format and no further investment in new technology is neces-
sary.
DVD+RW Discs
✦Best suited for: backing up and archiving digital content.
✦These discs are functionally similar to CD-RW and DVD-RW
discs, but record in the same way as DVD+R. Using Direct
Overwrite (DOW) recording, this type of disc allows new data
to be written directly over existing data in a single pass.
DVD-RW Discs
✦Best suited for: backing up and archiving digital content.
✦These discs serve the same general purpose as CD-RW me-
dia, but with 4.7GB of space versus 650MB.
✦Discs can be written and erased up to 1,000 times.
DVD+R Discs
✦Best suited for: recording DVD videos, storing multiple photo
albums, and data storage under 4.7GB.
✦Just as CD-R discs, DVD+R is write-once, but with 4.7GB of
capacity versus 700MB for CD-R discs.
✦DVD+R supports “lossless linking” and the combination of
Constant Angular Velocity (CAV) and Constant Linear Velocity
(CLV) recording.
DVD-R Discs
✦Best suited for: recording DVD videos, storing multiple photo
albums, and data storage under 4.7GB.
✦These discs are also functionally similar to CD-R media and
have the same capacity as DVD+R discs.
✦There are two types of DVD-R discs: DVD-R General, which is
intended for home applications, and DVD-R Authoring, which
is intended for professional DVD-Video development applica-
tions.
DVD+RDL or DVD-RDL (Double Layer) Discs
✦Ideal for: recording high-quality DVD videos, backing up, and
archiving large data DVDs.
✦These discs follow the DVD+ recording techniques, but with
8.5GB of capacity versus 4.7GB for DVD±R discs.
✦Larger disk capacity makes it possible to increase the video bit
rate for higher quality DVD videos.
DVD-RAM
✦Best suited for camcorders and set-top boxes, as well as many
other situations where rewriting data is important.
✦Considered a very reliable format thanks to its built-in error
control and defect management system.
CD-R Discs
✦Best suited for: recording audio CDs and storing files, such as
photos or important documents.
✦Files can not be deleted from CD-R discs, and you cannot
write over existing files on a CD-R disc.
CD-RW Discs
✦Best suited for: exchanging files up to 650MB.
✦Discs can be reformatted up to 1,000 times, and files can be
written over.
✦Most CD-ROM drives and audio CD players cannot read CD-
RW discs.
1.6.3. For Best Recording Results:
✦Close all other open programs and disconnect from the in-
ternet
✦Copy data to your hard drive first
✦Check media speed rating
✦Use media that is free of scratches and fingerprints

LaCie Slim Blu-ray • Design by sam HecHt Getting Connected
User Manual page 14
2.1. Connecting the USB 2.0 Y Cable
1. Connect the Y cable’s primary Hi-Speed USB 2.0 A connector
(see 1.4. Cables and Connections) to an available USB 2.0 port
on your computer.
IMPORTANT INFO: The Y cable has two USB 2.0 connectors: the
primary A connector for signal and power and the secondary A con-
nector for additional power, if necessary. The difference is clearly
marked by a lightning bolt sticker on the secondary (power only)
connector. You must connect the primary A connector in order to
send and receive data. See 1.4. Cables and Connections.
2. Attach the other end (mini USB) of the USB 2.0 Y cable to your
LaCie Slim Blu-ray. See Fig. 07
3. Your drive should now be ready for use. To verify that your drive
is correctly installed and communicating with your computer,
follow these steps:
✦Windows Users
– Right-click My Computer to select Properties > Gen-
eral. Your drive should be listed.
✦Mac Users
– In the Apple menu, choose About This Mac > More Info
to open the Apple System Profiler. Your drive should be
listed under Hardware.
4. If your Slim Blu-ray does not appear to be receiving adequate
power, attach the secondary USB 2.0 A plug (with the lightning
sticker) to an available USB 2.0 port on your computer. See
Fig. 08.
TECHNICAL NOTE: Your drive must be connected to a USB 2.0
port. Performance is not guaranteed with USB 1.1. See section 1.4.
Cables and Connections.
TECHNICAL NOTE: For more information on USB connections,
see sections 1.4. Cables and Connections and 4.7. USB Questions
& Answers.
IMPORTANT INFO: The LaCie Slim Blu-ray includes a power
supply connection (see 1.2. Minimum System Requirements) that will
accept an external power supply (not included).
2. Connecting Your LaCie Slim Blu-ray
Fig. 07
Fig. 08

LaCie Slim Blu-ray • Design by sam HecHt Getting Connected
User Manual page 15
2.2. Installing the BD/DVD/CD
Burning Software (Windows)
The software bundled with the Slim Blu-ray is for computers running
Windows XP (SP3 preferred), Windows Vista, and Windows 7 (see
1.2.1. Burning and Mastering & 1.2.2. Video and High Definition
(HD) Playback).
IMPORTANT INFO: While the Slim Blu-ray is compatible with
Mac OS 10.6 and Linux 2.6, LaCie cannot guaranty performance
with third-party burning, authoring, and playback software.
2.2.1. Installing the Recording Software
Insert the included LaCie Software Utilities DVD into your computer’s
optical drive, and follow the instructions below. For more informa-
tion about the various programs, please refer to the software’s Help
section.
1. Double-click the LaCie Software Utilities DVD icon
2. Open the Cyberlink Blu-ray Disc Suite folder.
3. Double-click the installer and follow the on-screen steps to
completion.
TECHNICAL NOTE: You will be prompted for the CD key the first
time you use your application. The serial number for your copies
of the Cyberlink software suite are located on the back of the CD
sleeve.
IMPORTANT INFO: Please check the LaCie website for software
updates: http://www.lacie.com/support/index.htm?id=10008
2.2.2. Software Bundle
The Cyberlink Blu-ray Disc Suite is included with your LaCie Slim
Blu-ray. The software bundle includes the following:
PowerDVD 9
✦HD playback
✦Blu-ray 3D support
✦HD Home Theater Audio
Power2Go 6.1
✦Drag-and-drop burning
✦Burn any disc, any file
✦Secure data back-up (128-bit encryption)
✦Quick search
PowerDirector 8 HE
✦Video enhancement technology
✦Easy-to-use video authoring (BD, DVD, CD)
✦Customizable photo sideshows
✦Show and share your videos
PhotoNow 1.1
✦Easy-to-use image editing
✦Drag-and-drop
✦Special photo effects, image resizing, and many other photo
editing features
PowerStarter 7.0
✦One unique interface for all Cyberlink software
✦Shortcuts to basic functions
Supported languages for the Cyberlink Blu-ray Disc Suite:
✦Chinese simplified
✦Chinese traditional
✦English
✦French
✦German
✦Italian
✦Japanese
✦Korean
✦Spanish

LaCie Slim Blu-ray • Design by sam HecHt Using Your LaCie Slim Blu-ray
User Manual page 16
3.1. Inserting Discs
Please keep in mind:
✦The power must be on in order to open the drive.
✦The drive must be on a flat surface to work correctly.
✦Do not attempt to force the door open as it may damage the
drive.
To insert a disc:
1. Push the Open/Close button on your LaCie Slim Blu-ray.
2. When the disc tray opens, put the BD, DVD, or CD into the tray.
✦The label side must be facing up.
✦Make sure the disc is correctly placed in the center of the disc
tray.
3. Push the Open/Close button to close it (Fig. 09).
To close the disc tray:
Press the Open/Close button (Fig. 09). LaCie highly recommends
pushing the Open/Close button to close the media tray.
3.2. Accessing Discs
The BD, DVD, or CD volume will appear in My Computer (Windows
XP users) or Computer (Windows Vista and Windows 7 users). Click
on the icon to access the contents of the disc.
CAUTION: Do not force the disc tray open or closed, as you will
damage the drive. Also always remove discs before transporting the
drive, and never move the drive while it is in operation.
IMPORTANT INFO: This drive is not compatible with cartridges.
3. Using Your LaCie Slim Blu-ray
Fig. 09

LaCie Slim Blu-ray • Design by sam HecHt Using Your LaCie Slim Blu-ray
User Manual page 17
3.3. Ejecting Discs
1. Press the Open/Close button on the front of the drive.
2. Remove the disc.
3. Push the Open/Close button on the drive to close the disc tray.
CAUTION: Do not attempt to open the drive’s disc tray or remove
the disc while the unit is in use and being accessed by the computer.
You may injure yourself, damage the drive, and disrupt your com-
puter operating system. Do not transport the drive with the disc tray
open or with a BD, DVD, or CD disc inside. Doing so may damage
the drive and/or data stored on the disc, and will void your warranty.
3.4. Emergency Disc Ejection
Use this method only if the Open/Close button is not working.
In the event that a BD, DVD, or CD cannot be ejected with the
Open/Close button and software is not controlling the drive, use the
emergency eject operation to open the disc tray.
1. Make sure the drive is off and the power (if applicable) un-
plugged before attempting the emergency ejection procedure.
2. Switch off the drive and unplug the interface cable.
3. Insert a small metal poker, such as an unbent paper clip, into
the emergency eject hole (see Fig. 10). Lightly push the small
metal poker until it gently presses against the manual eject
mechanism. You will feel the mechanism eject the disc tray.
Fig. 10

LaCie Slim Blu-ray • Design by sam HecHt Helpful Technical Information
User Manual page 18
4.1. Cyberlink Software Assistance
All supported operating systems (see 1.2. Minimum System Require-
ments) include basic BD, DVD, and CD reading and writing func-
tions. However, if you require more features for your disc writing,
LaCie recommends using the include Cyberlink Blu-ray Disc Suite.
If you have questions about your Cyberlink software, go to www.
cyberlink.com.
IMPORTANT INFO: LaCie cannot guarantee that third-party soft-
ware will work with the LaCie Slim Blu-ray.
4.2. File System Formats
When writing BD-R/RE, DVD±R/RW, and CD-R/RW discs, you will
have the option to assign the disc a particular file format. The file
fomat is the way in which a computer names and organizes files for
storage and to manage data exchange.
LaCie recommends one of four primary file system formats when
using the Slim Blu-ray:
✦Universal Disk Format (UDF)
✦ISO 9660
✦Mac OS Extended (also known as HFS+)
✦Hybrid discs (Mac & PC)
UDF – This specification, developed by Optical Storage Technolo-
gies Association, is the predominant file system that allows compat-
ibility across various Bluray, DVD and CD applications, hardware
platforms, and computer operating systems.
ISO 9660 – This is the standard file system which allows media to
be read on a Mac, PC, or other major computer platform. Published
by the International Organization of Standardization, this standard
defines a file system for DVD-ROM and CDs. It supports Micro-
soft Windows, Mac OS, and operating systems that follow the Unix
specification, but doesn’t support custom features of Mac file sys-
tems such as long file names or icon options. Microsoft created an
extension to the format, called Joliet, which allows for Unicode file
character names and file names up to 64 characters in length (twice
as many as the ISO 9660 Level 2 and 3 specifications).
Mac OS Extended – Also known as HFS+, this is the file system used
by Macintosh. This is the preferred file format If you will be using
your disc only with the Mac OS. Please note that LaCie cannot guar-
antee performance when using the Slim Blu-Ray with the Mac OS.
4. Helpful Technical Information
Hybrid discs (Mac & PC) – Mac users can also choose to create
hybrid discs which contain two partitions: one to be viewed by Mac
users, one by Windows users. Certain software, such as Toast Tita-
nium, offers this file system for formatting your disc.
4.3. Acronyms
BD Blu-ray Disc
BDMV Blu-ray Disc Video
BD-R Blu-ray Disc Recordable Media
BD-ROM Blu-ray Disc Read Only Media
BD-R LTH Blu-ray Disc Low-to-High
CPS Content Protection System
MPEG Moving Picture Experts Group
BDAV Blu-ray Disc, Audio Visual
BD-CPS Content Protection System for Blu-ray Disc
BD-RE Blu-ray Disc Rewritable Media
CCI Copy Control Information
ECC Error Correction Code

LaCie Slim Blu-ray • Design by sam HecHt Helpful Technical Information
User Manual page 19
4.4. Blu-ray Writing Methods
Disc at Once (DAO) – The entire DVD is recorded in one session,
and data cannot be added after the recording is finished. This differs
somewhat from the CD-R DAO method because the lead-in area,
data area, and lead-out area are all written sequentially.
Session at Once (SAO) – A writing process which is similar to DAO,
where all of the information is written in one session, but SAO allows
for the ability to begin another session and record at a later time.
This mode allows for greater control of the recording process than
Packet Writing (PW) or TAO. Additionally, more disc space can be
utilized because there is no need for gaps between tracks.
Incremental Recording (IR) – A writing process that is similar to the
Session at Once (SAO) CDR writing method. Files may be added
directly to the DVD-R disc one recording at a time, instead of record-
ing the files to a hard drive before writing the disc. The minimum
recorded size, though, must be at least 32KB, even if the file to be
recorded is smaller. Capacities and write speeds are decreased due
to the overhead of combined lead-in/out areas and data. Also, the
disc must be finalized before it may be played back by a drive other
than the drive recording the disc.
Multi-Border Recording (MBR) – A writing process that is very similar
to IR. MBR allows you to make an IR disc and then play the disc
back on an IR-compatible device without finalizing the recording.
MBR creates a very short boundary zone around a recording session
so a compatible player or DVD-ROM drive does not attempt to play
beyond the border of the recorded area. Instead the unfinished disc
is read by a player that supports IR.
Restricted Overwriting (RO) – If a disc has already been written to,
new data segments can be randomly inserted anywhere within the
recorded boundary. New data, however, can only be added to an
area of the disc that has already been recorded over and from the
point where the last session was stopped.
Packet Writing (PW) – A drag-and-drop writing process that is very
useful for data backup. Buffer underrun* is impossible in this mode,
because the data is written in “packets” of a few KBs. Packet Writing
is a CPU-intensive process because it constantly checks the avail-
able space on the disc.
* Buffer Underrun – The recording of a disc is a system-intensive ap-
plication, and the rewritable drive needs a constant stream of data.
A buffer underrun occurs when the stream of data to the rewritable
drive is not fast enough to keep the rewritable drive’s buffer full,
causing an error in the recording process. If this problem occurs
often, turn down the recording speed.
Table 02 - Disc Writing Methods
DAO SAO IR MBR RO PW
CD X X X
DVD X X X X
BD-R X X
BD-RE X X

LaCie Slim Blu-ray • Design by sam HecHt Helpful Technical Information
User Manual page 20
4.5. About BD/DVD/CD Available
Capacity
There are important factors to consider when recording video, au-
dio, or data to BD, DVD and CD. The disc media specification pro-
vides for two physical sizes: 4.7” (12cm) and 3.1” (8cm) (both are
.47” (1.2cm) thick). Discs are single-sided and can have one (SL) or
two (DL) layers of data.
The amount of data a disc can hold is dependent upon many fac-
tors. Two primary considerations are the type and the degree of
compression used for data, video, and/or audio. For example, a
double-layer BD-R will store just over four hours of HD video using
MPEG2, but it is possible to store up to 20 hours of broadcast qual-
ity standard definition video.
When media companies reference the amount of data that a disc
can hold, they represent the total amount in terms of gigabytes
(GB), or a billion bytes (1000 x 1000 x 1000 bytes). This number,
though, is not the way in which a computer addresses the data;
to a computer the value is binary and larger than a billion bytes –
1,073,741,824 (1024 x 1024 x 1024 bytes).
4.6. About compression standards
Most Blu-ray video and all DVD video are compressed using
MPEG2 codec. The acronym MPEG stands for Moving Picture Ex-
perts Group, which worked to generate compression specifications
under ISO. What is commonly referred to as “MPEG video” actually
consists of three common media standards, MPEG1, MPEG2, and
MPEG4.
HD, with full-motion video and multi-channel sound (multi-lingual
soundtracks, surround sound, etc.), is a data-hungry application.
MPEG2 compression allows you to fit a full-length feature film in
HD, plus bonus material, on just one disc. MPEG4 AVC (H.264)
and VC-1 are two other HD video compression standards that
match MPEG2 quality while using half the data rate.
An example of HD bit rates:
✦MPEG2 = 21Mb/s
✦MPEG4 (H.264) = 8Mb/s
✦VC-1(WMV9) = 8 Mb/s
4.7. USB Questions & Answers
What Are the Benefits of the USB Interfaces?
✦Cross-platform: All recent Macs and PCs include USB 2.0
ports.
✦“Hot Swappable”: No need to shut down or restart your com-
puter when adding or removing a USB device. Plug it in and
its ready.
✦Automatic configuration: Once your device is connected, your
computer recognizes the device and configures the software
(Windows XP, Windows Vista, and Windows 7).
✦Daisy-Chaining: USB 2.0 ports on your computer support up
to 127 peripherals using hubs.
✦Easy Installation: One standardized port and plug combina-
tion makes it simple to connect.
Will Hi-Speed USB 2.0 Devices Work on USB 1.1 Hubs
and Vice Versa?
Many Hi-Speed USB 2.0 devices work with USB 1.1 hubs, but the
peripherals will be limited to USB 1.1 performance levels. Please
note that LaCie cannot guaranty performance when using the Slim
Blu-ray with USB 1.1 and lower.
For more information about the USB interface, please visit the LaCie
website:
www.lacie.com/technologies
