LAIWIN LWB0502A User manual

BLUETOOTH SPEAKER
LWB0502A
USER
MANUAL
LAIWIN
Trademark: LAIWIN

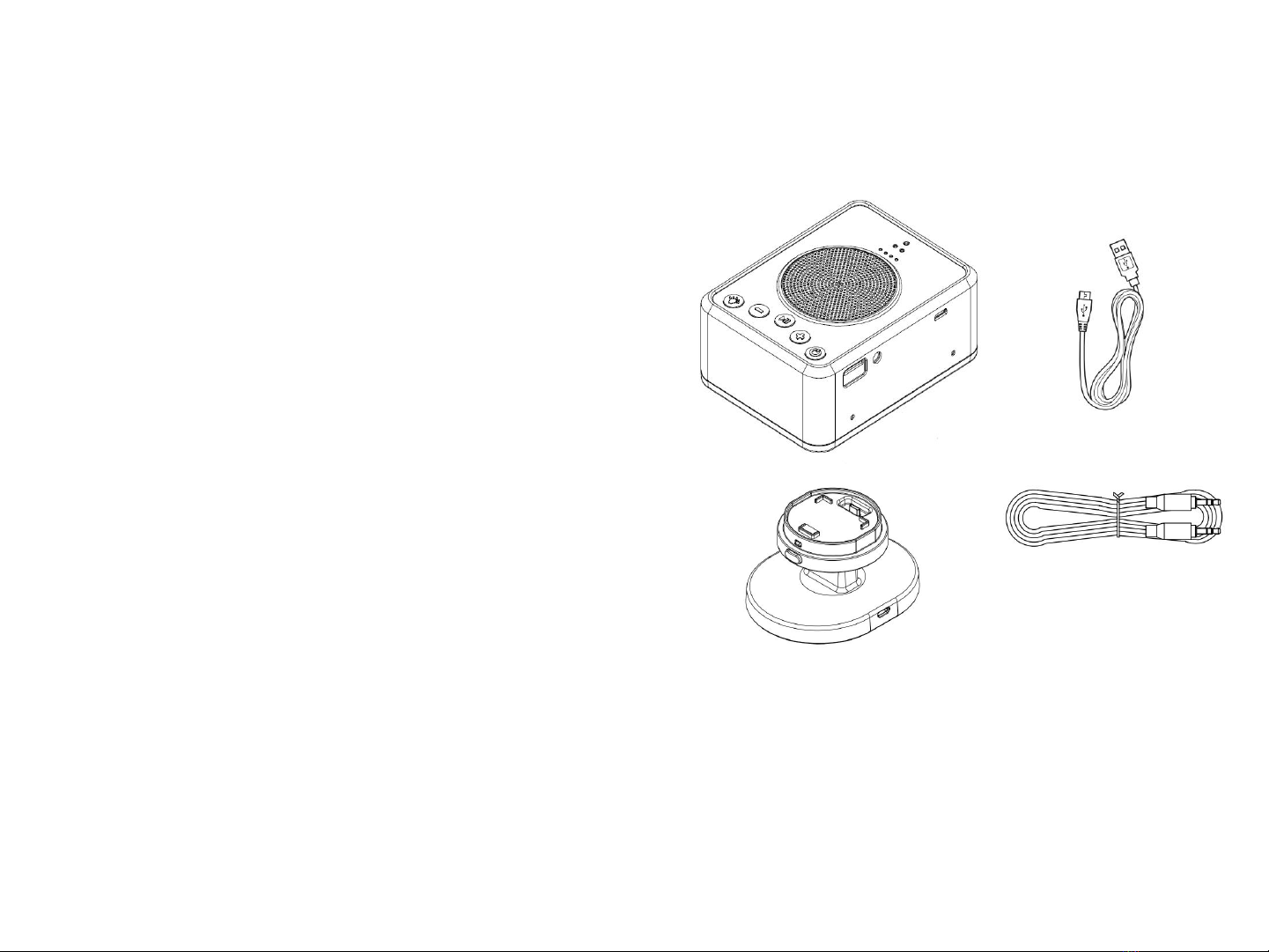

1 x Bluethtooth Speaker with a base
1 x USB Charging Cable
1 x User Manual
1 x 3.5mm Audio Cable (Purchase goods)
Package Content
(Purchase goods)

Structure lntroduction
1. Speaker
2. Bluetooth speaker with metal unibody
3. 3 type Mode indicator lights
4. Power,Volume,Play,Stop,LED Power Buttons
5. 4-stage LED charging indicator
6. Button for disconnect the base and the body
7. Base
8. LED lamp
9. TF Card & Auxiliary Φ3.5mm jack
10. USB Charging port
11. SD Card Saving place
12. USB Charging port
1
2
3
4
5
6
7
8
9
10
11
12

3 type brightness :low/middle/high , and easy to adjust the angle
of the lights when it setting on the base with the Speaker.
Support 64GB TF memory card.
Support blurtooth connected to paly music.
Connect the speaker with your PC, MP3/MP4, player, tablet, Mobile
and other playback devices with 3.5mm cable jack by 3.5mm audio
cable.
Intro
1.
2.
3.
4.

Bluetooth Mode
Mode Switch (executes in one single mode)
1. Press the Power key to the Bluetooth
function.
2. Turn on the phone Bluetooth, search for
the name LWB0502A and connect.
3. Play music on your phone.
Bluetooth
<Settings
Bluetooth
LWB0502A Connected i
My device
Power On - Bluetooth - TF Card - AUX - Power Off
Play - Pause 1.5s : Bluetooth parallel connection
Volume UP 1.5s : Next MP3
Volume DOWN 1.5s : Previous MP3
LED 10% - 50% - 100% - Flash - Off 1.5s : Voice prompt off/on
Power

Touch POWER butten to toggle play mode among Bluetooth,
TF Card and Aux-in connection.
Mode Switch
AUX mode
(additional puchase3.5mm Audio Cable)
Auxiliary Φ3.5mm jack: Use it for cabled
playback with compatible devices.
TF card mode:
Use it for TF card (with music) playback.
(executes in one single mode)
Power
Power

Bluetooth pairing 《executes in one bluetooth mode》
Step1. Turn off the Bluetooth function of the mobile phone ( in the case where there is no Bluetooth
connection ), press the two Bluetooth speaker power keys to the Bluetooth function. At this time,
the two speaker indicators are flashing blue.
Step2. Press the Play button of any speaker for about 1.5sec, the speaker will be automatically
paired, the pairing is successful, the indicator light will show 1 constant light and 1 flashing state
( when pairing, the distance between 2 speakers should not exceed 1m, if Unsuccessful, please
repeat steps 1 and 2 )
Step3. At this point, turn on the phone Bluetooth, search for the name LWB0502A and connect it.
The connection is successful, and the 2 speaker indicators are always on.
Step4. Play the music on your phone and enjoy the stereo sound from TWS technology.
Step 1
Speaker A Speaker B
Flash Flash
Step 2
Constant
light
閃爍
Step 3
Speaker A
Speaker B Speaker A Speaker B
Flash
Press
1.5 sec
Constant
light
Constant
light
LWB0502A
Power
Power

1. SIZE: 103mm*78mm*42mm(BODY)
95mm*76mm*48mm(BASE)
2. WEIGHT: 420g
3. 5W Speaker
4. Lithium Battery 2600mAh*2
5. Bluetooth 5.0 technology
6. Support 64GB TF memory card
7. Support 3.5mm audio cable
8. 3 type brightness : low/middle/high
9. lnput power: DC5V/2A Max
Specifications

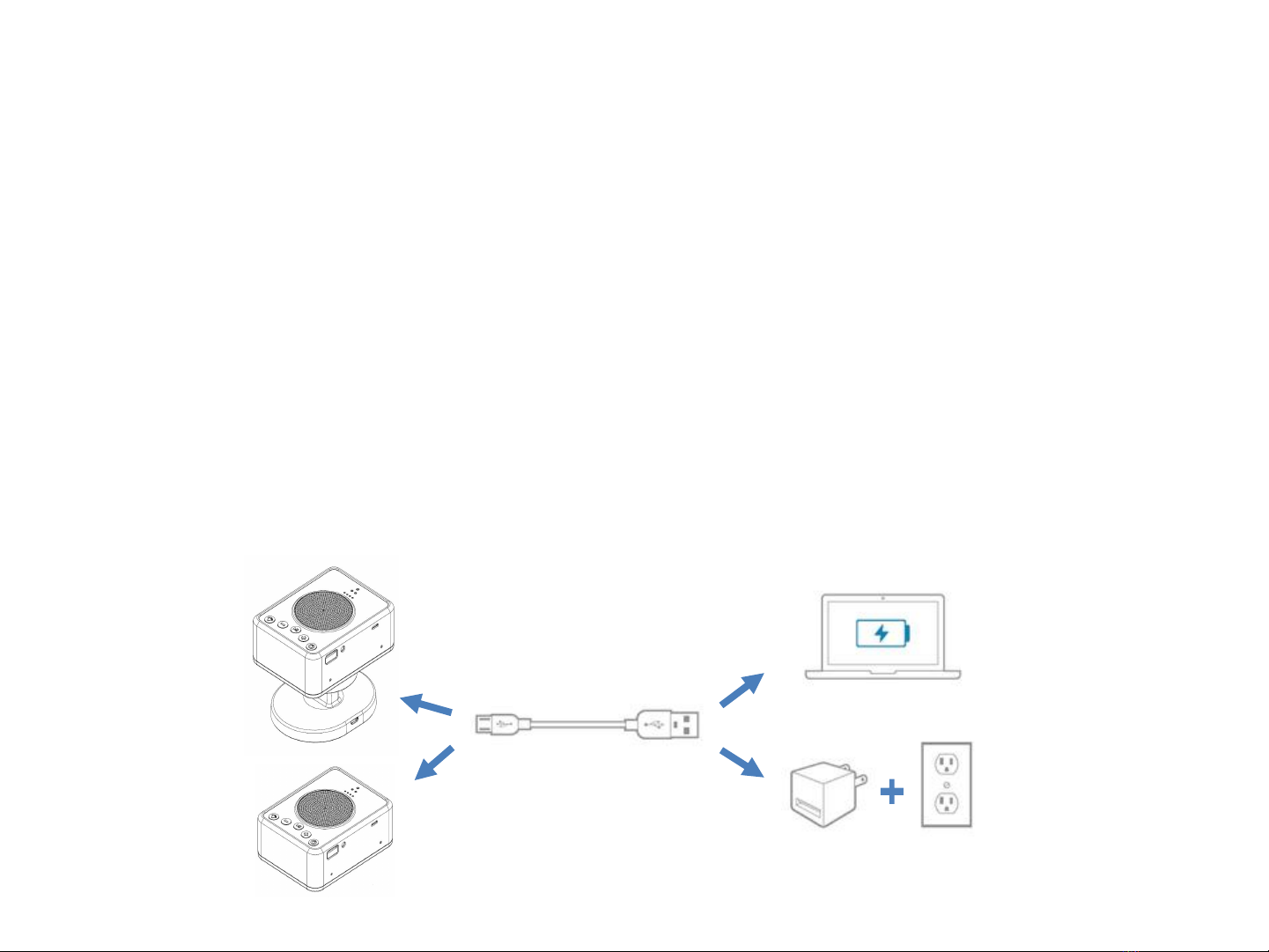

There are 2 way to charge the Bluetooth Speaker .
1. Connect the USB port on the button of the Bluetooth Speaker with 5V USB cable.
2. Set the Bluetooth Speaker on the base , and connect the USB port on the base
with 5V USB cable.
5V@1A(normal) 8-12 hours， 5V@2A (fast) 4-6 hours
Charging the Bluetooth Speaker

•Do not try to destruct the device.
•Avoid exposing your device to very cold
or very hot temperatures.
•Use this product only for its intended use
as described in this manual.Do not use
attachments not recommended by Laiwin.
•Do not expose this product to rain or
moisture
•Keep your device and all accessories out
of the reach of small children
Warning and Cautions
※根據 NCC 低功率電波輻射性電機管理辦法規定：
第十二條 經型式認證合格之低功率射頻電機，非經許可，
公司、商號或使用者均不得擅自變更頻率、加大功率或變
更原設計之特性及功能。第十四條 低功率射頻電機之使
用不得影響飛航安全及干擾合法通信；經發現有干擾現象
時，應立即停用，並改善至無干擾時方得繼續使用。前項
合法通信，指依電信法規定作業之無線電通信。低功率射
頻電機須忍受合法通信或工業、科學及醫療用電波輻射性
電機設備之干擾。減少電磁波影響，請妥適使用。
設備名稱:音悅藍牙搖擺音響 型號：LWB0502A
Equipmentname：BLUETOOTH SPEAKER Type：LWB0502A
單元
(Unit)
限用物質及其化學符號
Restricted substances and chemical symbols
鉛
汞
鎘
六價鎘
多溴聯苯
多溴二苯醚
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
( )
(PBB)
(PBDE)
外殼
○
○
○
○
○
○
電路板
○
○
○
○
○
○
喇叭
○
○
○
○
○
○
線材
○
○
○
○
○
○
USB孔
○
○
○
○
○
○
備註1：''超出0.1wt %''及''超出0.01wt %''係指限用物質之百分比含量超
出百分比含量基準值。
備註2：''○'' 係指該項限用物質之百分比含量未超出百分比含量基準值。
備註3： ''─'' 係指該項限用物質為排除項目。
Note1 : "Exceeding 0.1 wt %'' and '' exceeding 0.01 wt %'' indicate that
the percentage content of the restricted substance exceeds the
reference percentage value of presence condition.
Note2 : ''○'' indicates that the percentage content of the restricted
substance does not exceed the percentage of reference value of
presence.
Note3 : ''─'' indicates that the restricted substance corresponds to the
exemption.

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the quipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
RF exposure warning
The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment.
The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.
