Lamona LAM9002 Guide

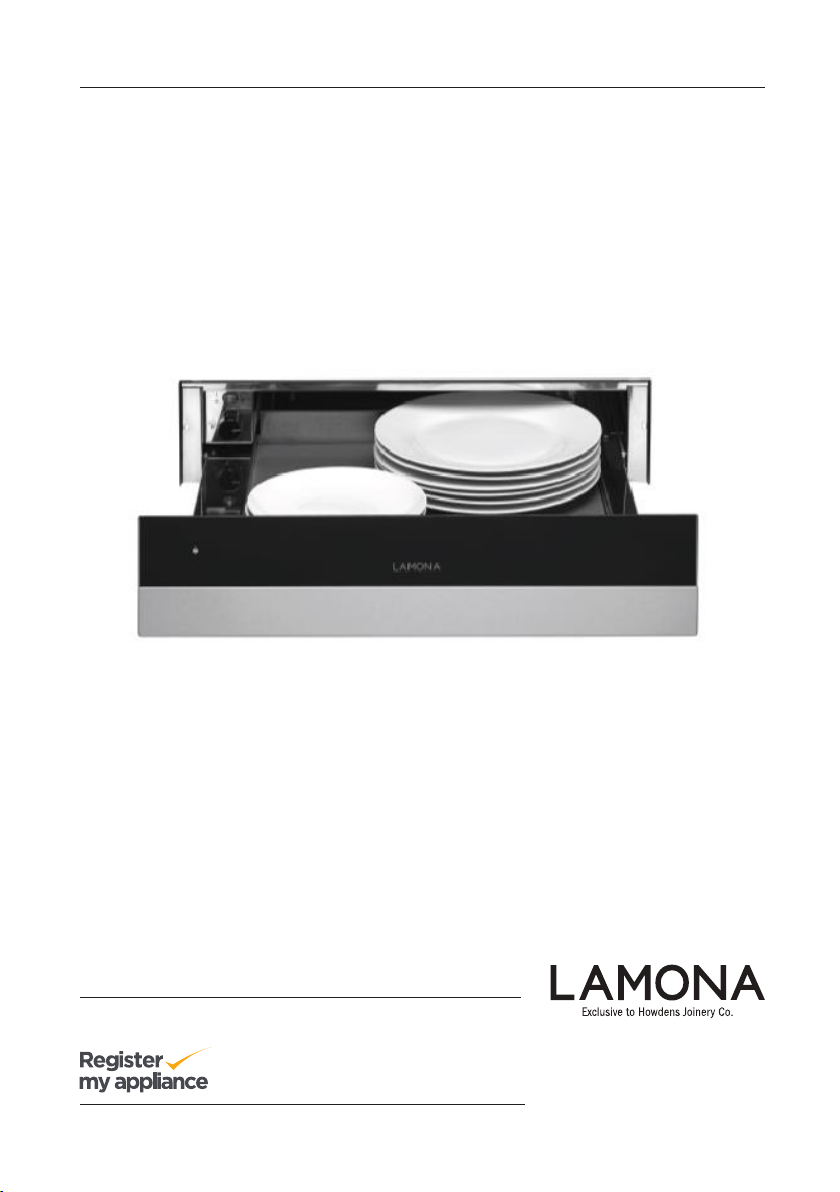

Warming Drawer LAM9002
Instructions and Installation
www.howdens.com/appliance-registration

See back page for product serial number

3
CONTENTS
Safety information ................................................................................................... 4
Appliance Description .............................................................................................8
Use..........................................................................................................................9
Load capacity ........................................................................................................ 10
Cleaning and Maintenance ...................................................................................11
What should I do if the Crockery Warmer doesn’t work?......................................12
Environment concerns ..........................................................................................13
Installation Instructions .........................................................................................13
Installation .............................................................................................................15
Product Guarantee Details (UK only)....................................................................16
Dear Customer,
Thank you for choosing this LAMONA product.
We ask you to read the instructions in this booklet very carefully as this will allow you
to get the best results from using it.
KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.
Always keep the instruction manual handy. If you lend the appliance to
someone else give them the manual as well!
The user manual is also available for download at www.howdens.com

4
SAFETY INFORMATION
Carefully read the instructions before installing and using
the equipment. The manufacturer is not liable for improper
installation and use of the equipment that may cause
injuries and damage. Always keep the instructions at hand,
so they can be easily referred to during use. This appliance
complies with current safety standards. Improper use of the
appliance may put the user at risk.
Safety of children and vulnerable adults
WARNING!
Risk of choking, injury or permanent disability.
This appliance can be used by children aged 8 years and
above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge
if they are given supervision or instructions efconcerning
how to use the appliance in a safe way and understand
the hazards involved.
Children should not play with the appliance.
Keep packaging materials away from children.
Keep children and pets away from the appliance during
operation or when cooling.
Cleaning and maintenance should not be done by
children without supervision.
WARNING: Accessible parts may become hot during
use. Young children should be kept away.
Warnings on general safety
WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years of
age shall be kept away unless continuously supervised.
During use the appliance becomes hot. Care should be
taken to avoid touching heating elements inside the
device.
Depending on the temperature selected and the
operating time, the temperature inside the appliance may
reach 80 ºC. To take crockery out of the crockery warmer

5
protect your hands by using oven gloves or an oven
cloth.
Do not sit or hang on the drawer. The telescopic runners
will be damaged. The maximum load capacity of the
drawer is 25 kg.
Do not store synthetic containers or easily inflammable
objects inside the crockery warmer. When you switch on
the appliance such containers and objects may melt or
catch fire. Fire danger.
Do not use the appliance to heat up the air temperature
in the kitchen. The high temperatures reached may
cause easily inflammable objects close to the appliance
to catch fire.
When you stop using the appliance at the end of its
working life, disconnect it from the power supply and
render the electrical cable unusable so that the appliance
is not a danger if, for example, children use it for playing.
Installation
During installation, follow the instructions supplied
separately.
Only qualified personnel can install the appliance and
replace the cable.
The electric system must be equipped with a means for
disconnection, with a contact separation in all poles that
provides full disconnection under overvoltage category
III.
If a plug is used for the electric connection, then it must
be accessible after installation.
The connection should include correct earthing, in
compliance with current norms.
WARNING! Before connecting the appliance compare
the power data (voltage and frequency) indicated on the
characteristics plate with those of the power supply in
question. If these data do not match there may be
problems. In case of doubt, contact an electrician.
WARNING! If the electrical wire plug is removed, the
appliance must be installed and connected by a
technician. Contact a qualified electrician who knows and
respects current safety standards. The manufacturer

6
cannot be held responsible for damage resulting from
fitting or connecting errors.
WARNING! The electrical safety of the appliance can
only be guaranteed if it is earthed. The manufacturer
cannot be held responsible for damage resulting from the
absence of or defects in the installation’s protection
system (e.g. electrical shock).
WARNING! Only use the appliance once it has been
fitted into its built-in position. Only in this manner can it
be guaranteed that users cannot access the electrical
components.
WARNING! Never open up the appliance’s frame.
Possible contacts with electrical conducting parts or
changes to electrical or mechanical components may
represent a danger to users’ safety and prejudice the
correct working of the appliance.
Cleaning
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the device since they can scratch the
surface.
Do not use steam cleaners to clean the appliance.
Do not use high pressure or steam jet cleaning devices.
The steam may affect electrical components and cause a
short circuit. The steam pressure may also cause
damage to the appliance’s surface and components in
the long term.
Repairs
Disconnect the appliance from the power supply before
carrying out any maintenance operation.
WARNING! The appliance must be disconnected from
the electrical current when installation and repair work is
being done. To disconnect the appliance from the
current, one of the following conditions must apply:
- The switchboard fuses / circuit breakers must be
disconnected.

7
- The plug should be removed from the socket. To
remove the plug from the socket do not pull on the
electric cable but rather pull out the plug itself directly.
WARNING! Repairs and maintenance, especially of parts
carrying electrical current, must only be done by
technicians authorised by the manufacturer. The
manufacturer and retailers do not accept responsibility
for any damaged caused to people, animals or property
as a result of repairs and maintenance carried out by
non-authorised personnel.
WARNING! Repairs undertaken during the guarantee
period must only be done by technicians authorised by
the manufacturer. If this is not the case then any damage
resulting from the repair in question is excluded from the
guarantee.

8
APPLIANCE DESCRIPTION
MAIN COMPONENTS
Thermostat
Anti-slip mat
On/Off switch
Front
HOW THE CROCKERY WARMER WORKS
This appliance is equipped with a warm air
circulation system. A fan distributes the heat
generated by an electrical heating element
throughout the interior of the appliance.
The thermostat allows the user to define and
control the temperature wanted for the
crockery.
The circulating hot air that is generated heats
up the crockery quickly and evenly.
A metal grille protects both the heating
element and the fan.
The base of the drawer is fitted with a anti-
slip mat to prevent plates and dishes sliding
around, when the drawer is opened and
closed.
1
3
2
4

9
USE
BEFORE USING FOR THE FIRST
TIME
Before using the appliance for the first time
you should clean the interior and the exterior,
following the cleaning instructions given in
the section “Cleaning and Maintenance”.
Then heat the Warming Drawer for at least 2
hours. For this, turn the temperature control
to the maximum position (see section
‘Selecting temperature”).
Make sure the kitchen is well-ventilated when
you are doing this.
The appliance’s parts are protected by a
special product. For this reason, during the
first heating an odour will be released. Both
the odour and any smoke that may form will
disappear after a short time and neither
signifies that there is anything wrong with the
connection or the appliance.
CONTROL PANEL
The control panel has a Thermostat and
on/off switch. The control panel is only visible
when the drawer is open.
USING THE WARMING DRAWER
To use the Warming Drawer, proceed as
follows:
Put the crockery in the drawer.
Select the function you want by turning the
thermostat control to the desired position.
Switch on the appliance by pressing the
switch, which will light up.
Close the drawer.
Be careful not to use too much force when
closing the drawer since it may open up
again. Before taking out the warm crockery
you must switch off the Warming Drawer by
pressing the switch again.
SELECTING FUNCTION
By turning the thermostat control you can
select temperatures between 30 and 80 °C.
Do not force the thermostat control to the left
of the “0” position or to the right of the
maximum position since this may damage
the appliance.
As soon as the temperature selected is
reached, the heating is turned off. When the
temperature drops to a value below that
selected, the heating is turned back on.
The temperature scale is marked with
absolute temperatures in ºC and symbols
which correspond to the optimum
temperatures for groups of crockery:
Symbol
ºC
Function
30ºC Defrosting
40ºC
Proving dough
Cups / glasses warming
60ºC
Crockery warming
Keep food warm
80ºC Keep food Warm

10
HEATING TIMES
Various factors affect heating times:
Material and thickness of the crockery;
Load quantity;
How the crockery is arranged;
Temperature setting.
It is therefore not possible to give any precise
heating times.
As you use the Warming Drawer more and
more you will learn the best settings for your
crockery.
However, as a guide, the following times are
given for the thermostat setting and for
uniform heating of the crockery:
Load
Time (min)
Crockery for 6
people
30 – 35
SUGGESTIONS FOR THE
FUNCTION KEEP FOOD WARM
AND FOOD WARMING:
Preheat the Warming Drawer 15 minutes to
ensure the interior space has the required
temperature.
LOAD CAPACITY
Load capacity depends on the size of the crockery items:
LAM9002
6 persons servings
6 x 24cm Dinner Plates
6 x 10cm Soup Bowls
1 x 19cm Serving Dish
1 x 17cm Serving Dish
1 x 32cm Meat Plates
or
20 dishes with 28 cm
or
80 espresso coffee cups
or
40 tea cups
or
…

11
CLEANING AND MAINTENANCE
Cleaning is the only maintenance action
that is required normally.
WARNING!
Cleaning must be done with the
Warming Drawer disconnected from the
electrical power supply. Remove the plug
from the power socket or disconnect the
Warming Drawer power supply circuit.
Do not use aggressive or abrasive
cleaning products, abrasive sponges or
pointed objects since stains or abrasion
marks may appear.
Do not use high pressure or steam jet
cleaning appliances.
APPLIANCE FRONT AND
CONTROL PANEL
The Warming Drawer can be cleaned
using just a damp cloth. If it is very dirty,
add a few drops of washing-up liquid to
the washing water.
Wipe the surfaces dry using a dry cloth.
For stainless steel fronted Warming
Drawers, special products for treatment
of stainless steel surfaces can be used.
These products prevent the surfaces
becoming dirty again for some time.
Apply a thin layer of such a product on
the surface using a soft cloth.
On aluminium fronted Warming Drawers
use a gentle glass cleaning product and
a soft cloth that does not release fluff.
Wipe horizontally without pressing on the
surface since aluminium is sensitive to
scratches and cuts.
INTERIOROF THE WARMING
DRAWER
Clean the inside of the Warming Drawer
regularly using a damp cloth. If it is very
dirty add a few drops of washing-up
liquid to the washing water.
Wipe the surfaces dry using a dry cloth.
Avoid water entering through the air
circulation opening.
Only use the Warming Drawer again
when it is completely dry.
ANTI-SLIP MAT
The anti-slip surface mat can be
removed to facilitate cleaning of the
drawer.
The mat can be cleaned by hand using
hot water with a few drops of washing-up
liquid. Dry thoroughly.
The anti-slip mat should only be replaced
when it is completely dry.

12
WHAT SHOULD I DO IF THE CROCKERY WARMER
DOESN’T WORK?
WARNING!
Any type of repair must only be
done by a specialised technician.
Any repair done by a person not
authorised by the manufacturer is
dangerous.
Before contacting Technical Assistance,
check on the following:
The crockery doesn’t heat up enough.
Check whether:
The appliance has been switched on.
The appropriate temperature has
been selected.
The air circulation orifices are
covered by the crockery.
The crockery was left to heat up for
sufficient time.
Heating time depends on several
factors, such as, for example:
Crockery material type and thickness.
Quantity of crockery.
How the crockery is arranged.
The crockery doesn’t heat up at all.
Check whether:
You can hear the noise of a fan.If the
fan is operating then the heating
element is broken; if the fan is not
operating then the fan is broken.
The switchboard fuses / circuit
breakers have fused / tripped out.
The crockery is heating up too much,
check if:
The thermostat selector is broken.
The on/off switch does not light up,
check if:
The switch’s pilot light has blown.
SERVICE DATA
If you cannot find a solution to the problem yourself, contact your dealer or an
Authorised Service Centre.
The necessary data for the service centre is on the rating plate. The rating plate is on
the front frame of the oven cavity. Do not remove the rating plate from the oven
cavity.
We recommend that you write the data here:
Model (MOD:)
……………………………………..
Product number (PNC)
……………………………………..
Serial number (S.N.)
……………………………………..

13
ENVIRONMENT CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances.
Do not dispose appliances marked with
the symbolwith the household waste.
Return the product to your local recycling
facility or contact your municipal office
INSTALLATION INSTRUCTIONS
BEFORE INSTALLATION
Check that the input voltage indicated on the
characteristics plate is the same as the
voltage of the power outlet you are going to
use.
Minimum fuse rating: 5 Amps.
Open the drawer and take out all the
accessories and remove the packing material.
WARNING!
The front surface of the Warming Drawer may
be wrapped in a protective film. Before using
the Warming Drawer for the first time, remove
this film carefully.
Make sure that the Warming Drawer is not
damaged in any way. Check that the drawer
opens and closes correctly. If you find any
damage, contact the Technical Assistance
Service.
ATTENTION:
The power socket should be easily accessible
after the Warming Drawer has been installed.
The Warming Drawer should only be built-in
in combination with those appliances
indicated by the manufacturer. If it is fitted in
combination with other appliances, the
guarantee is no longer valid since it is
impossible to guarantee that the Warming
Drawer will work correctly.
INSTALLATION
To build-in the Warming Drawer in
combination with another appliance there
must be a fixed,interim shelf in the housing
unit to support the weight of both appliances.
The appliance to be combined with the
Warming Drawer will be placed directly on the
latter without any need to have a separating
shelf.
To build-in the appliance which is combined
with the Warming Drawer, follow the
instructions set out in the respective
instructions and fitting booklet.
The relevant installation dimensions are
indicated in mm in the diagrams shown at the
end of this booklet. Proceed as follows:
1. Place the Warming Drawer on the shelf
and slide it towards the interior of the niche
in such a way thatit is centred and
completely lined up with the front of the
unit.
2. Check that the Warming Drawer’s frame is
properly levelled and is sitting evenly on
the shelf.
3. Open the drawer and fix the Warming
Drawer to the sides of the unit using the
provided screws.
ELECTRICAL CONNECTION
The product should only be installed by a
suitably qualified person. The product must
be installed in accordance with all local
regulations. Before connecting the Warming
Drawer to the electric mains, check that the
voltage and frequency of the mains matches
which is shown on the rating plate located
in the heating block inside.

14
The electric connection is made via an
omnipolar switch, which is suitable for the
intensity to be tolerated and which has a
minimum gap of 3mm between its contacts,
which will ensure disconnection in case of
emergency or when cleaning the Warming
Drawer.
If a plug is used for the electric connection,
then it must be accessible after installation.
The connection should include correct
earthing, in compliance with current norms.
WARNING:
THE WARMING DRAWER MUST BE
EARTHED.
If the flexible supply cable fitted to the
Warming Drawer ever needs to be changed,
it should be replaced by an official After Sales
Service, because it requires special tools.
The manufacturer and retailers do not accept
responsibility for any damage that may be
caused to people, animals or property if these
installation instructions are not observed.

15
INSTALLATION

YOUR GUARANTEE
PRODUCT GUARANTEE DETAILS (UK ONLY)
Your appliance has the benefit of a comprehensive manufacturer’s guarantee
which covers the cost of breakdown repairs. (Details of which are shown on
your Proof of Purchase Document).
•Any claim during the period of the guarantee (MUST BE ACCOMPANIED
BY THE PROOF OF PURCHASE)
•The product must be correctly installed and operated in accordance with
the manufacturer’s instructions and used for normal domestic purposes.
•This guarantee does not cover accidental damage, misuse or alterations
which are likely to affect the product.
•The guarantee is invalid if the product is tampered with, or repaired by
any unauthorised person.
(The guarantee in no way affects your statutory or legal rights)
What to do if you need to report a problem-
Please ensure you have ready:
•The product’s model & serial numbers
•Howdens Proof of Purchase document
•Your full contact details.
Call the Lamona Service Line on 0344 460 0006.

Product serial number
(Place sticker here)
ISSUE v2 010518
