Lancaster Clear-Flo Haloshield 7-LWT-UV410-009 Service manual

PAGE 1
INSTALLATION, OPERATING AND SERVICE MANUAL
Lancaster Clear-Flo
HAL SHIELD
OLD
NEW
ULTRAVIOLET DISINFECTION SYSTEM
7-LWT-UV410-009
PLEASE CAREFULLY READ INSTRUCTIONS BEFORE INSTALLING SYSTEM
FOLLOW ALL STATE AND LOCAL CODES AND REGULATIONS FOR PLUMBING AND ELECTRICAL.
INSTALLATION BY A CERTIFIED PLUMBER IS RECOMMENDED.
In the event that you need assistance for servicing your UV system, please rst contact the
professional contractor who installed the system.
Congratulations on purchasing your new Lancaster Water UV Disinfection System. This unit is
designed to give you many years of trouble free service. For servicing and future inspection purposes,
please le this booklet with your important documents.

PAGE 2
PLEASE CAREFULLY READ INSTRUCTIONS BEFORE INSTALLING SYSTEM
FOLLOW ALL STATE AND LOCAL CODES
AND REGULATIONS FOR PLUMBING AND ELECTRICAL.
INSTALLATION BY A CERTIFIED PLUMBER IS RECOMMENDED.
Safety Instructions:
DANGER
Failure to follow these instructions will result in serious injury or death.
• Electric Shock: To avoid possible electric shock, special care should be taken since water is present near
the electrical equipment. Unless a situation is encountered that is explicitly addressed by the provided
maintenance and troubleshooting sections, DO NOT attempt repairs yourself, refer to a certied plumber/
technician.
• GROUNDING: This product must be grounded. If it should malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electrical shock. This system is equipped
with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and grounded in accordance with all local codes and
regulations. Improper connection of the equipment-grounding conductor can result in a risk of electrocution.
Check with a qualied electrician if you are in doubt as to whether the outlet is properly grounded. DO NOT
modify the plug provided with this system – if it does not t in the outlet, have a proper outlet installed by a
qualied electrician. DO NOT use any type of adapter with this system.
• GROUND FAULT CIRCUIT INTERRUPTER PROTECTION: To comply with the National Electrical Code
(NFPA 70) and to provide additional protection from the risk of electric shock, this system should only be
connected to a properly grounded, grounding-type controller receptacle that is protected by a Ground Fault
Circuit Interrupter (GFCI) or to a residual current device (RCD) having a rated residual operating current not
exceeding 30 mA. Inspect operation of GFCI as per manufacturer’s suggested maintenance schedule.
• DO NOT operate the disinfection system if it has a damaged cord or plug, if it is malfunctioning or if it has
been dropped or damaged in any manner.
• DO NOT use this disinfection system for other than intended use (potable water applications). The use of
attachments not recommended or sold by the manufacturer / distributor may cause an unsafe condition.
• DO NOT install this disinfection system where it will be exposed to the weather or to temperatures below
freezing.
• DO NOT store this disinfection system where it will be exposed to the weather.
• DO NOT store this disinfection system where it will be exposed to temperatures below freezing unless all
water has been drained from it and the water supply has been disconnected.
WARNING
• During extended periods of no water ow, the water in your chamber can become very hot and potentially
lead to scalding. It is recommended to run your water until this hot water has been purged from your
chamber. Do not allow water to contact your skin during this time.
• This system contains a UV Lamp. Do not operate the UV Lamp when it is removed from the chamber.
Unintended use or damage of the system may result in the exposure of dangerous UV radiation. UV
radiation may, even in little doses, cause serious burns to the unprotected eyes and skin. NEVER look
directly at the UV Lamp when in operation. Disconnect power before servicing or replacing the UV Lamp.
• Changes or modications made to this system without the consent of the manufacturer could render the
system unsafe for operation and may void the manufacturer’s warranty.

PAGE 3
CAUTION
Safety Information
3
Section 1 Safety Information
These are the original instructions. Please read this entire manual before operating this equipment. Pay attention to all
danger, warning, and caution statements in this manual. Failure to do so could result in serious personal injury or damage to
the equipment.
Make sure that the protection provided by this equipment is not impaired. DO NOT use or install this equipment in any
manner other than that specified in the installation manual.
1.1 Potential Hazards:
Read all labels and tags attached to the system. Personal injury or damage to the system could occur if not observed.
1.2 Safety Precautions:
Waste electrical and electronic equipment (WEEE). This symbol
indicates that you should not discard wasted electrical or electronic
equipment (WEEE) in the trash. For proper disposal, contact your local
recycling/reuse or hazardous waste center.
This symbol indicates not to store any combustible or flammable
material close to the system.
This symbol indicates there is Mercury present. This symbol indicates that the contents of the transport package are
fragile and the package should be handled with care.
This is the safety alert symbol. Obey all safety messages that follow
this symbol to avoid potential injury. When on the equipment, refer to
the Operational and Maintenance manual for additional safety
information.
This symbol indicates safety glasses with side protection is required for
protection against UV exposure.
This symbol indicates a risk of electrical shock and/or electrocution
exists. This symbol indicates gloves must be worn.
This symbol indicates the marked equipment may contain a
component that can eject forcibly. Obey all procedures to safely
depressurize.
This symbol indicates safety boots must be worn.
This symbol indicates the system is under pressure. This symbol indicates the operator must read all available
documentation to perform required procedures.
This symbol indicates there is a potential UV hazard. Proper protection
must be worn. This symbol indicates the plumber must use copper piping.
This symbol indicates the marked item could be hot and should not be
touched without care.
This symbol indicates that the system should only be connected to a
properly grounded, grounding-type controller receptacle that is
protected by a Ground Fault Circuit Interrupter (GFCI).
This symbol indicates there is a potential for VERY hot water when
flow is started.
Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
DANGER
Failure to follow these instructions will result in serious injury or death.
• ElectricShock: To avoid possible electric shock, special care should be taken since water is present near the electrical equipment. Unless a
situation is encountered that is explicitly addressed by the provided maintenance and troubleshooting sections, DO NOT attempt repairs yourself,
refer to an authorized service facility.
• GROUNDING:This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electrical shock. This system is equipped with a cord having an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of electrocution. Check with a qualified electrician or service
personnel if you are in doubt as to whether the outlet is properly grounded. DO NOT modify the plug provided with this system – if it does not fit in
the outlet, have a proper outlet installed by a qualified electrician. DO NOT use any type of adapter with this system.
• GROUNDFAULTCIRCUITINTERRUPTERPROTECTION: To comply with the National Electrical Code (NFPA 70) and to provide additional
protection from the risk of electric shock, this system should only be connected to a properly grounded, grounding-type controller receptacle that is
protected by a Ground Fault Circuit Interrupter (GFCI) or to a residual current device (RCD) having a rated residual operating current not exceeding
30 mA. Inspect operation of GFCI as per manufacturer’s suggested maintenance schedule.
• DO NOT operate the disinfection system if it has a damaged cord or plug, if it is malfunctioning or if it has been dropped or damaged in any manner.
• DO NOT use this disinfection system for other than intended use (potable water applications). The use of attachments not recommended or sold by
the manufacturer / distributor may cause an unsafe condition.
• DO NOT install this disinfection system where it will be exposed to the weather or to temperatures below freezing.
• DO NOT store this disinfection system where it will be exposed to the weather.
• DO NOT store this disinfection system where it will be exposed to temperatures below freezing unless all water has been drained from it and the
water supply has been disconnected.
Hg
UV
Cu
Failure to follow these instructions could result in minor or moderate injury.
• Carefully examine the disinfection system after installation. It should not be plugged in if there is water on
parts not intended to be wet such as, the electronic ballast controller or lamp connector.
• Due to thermal expansion concerns and potential material degradation due to UV exposure, it is
recommended to use metal ttings and at least 10” of copper pipe on the outlet of your UV chamber.
• Hg EXPOSURE: The UV lamp contains mercury. If the lamp breaks, then avoid inhalation or ingestion of
the debris and avoid exposure to eyes and skin. Never use a vacuum cleaner to clean up a broken lamp as
this may scatter the spilled mercury. Obey local regulations and guidelines for the removal and disposal of
mercury waste.
NOTICE
Safety Information
3
Section 1 Safety Information
These are the original instructions. Please read this entire manual before operating this equipment. Pay attention to all
danger, warning, and caution statements in this manual. Failure to do so could result in serious personal injury or damage to
the equipment.
Make sure that the protection provided by this equipment is not impaired. DO NOT use or install this equipment in any
manner other than that specified in the installation manual.
1.1 Potential Hazards:
Read all labels and tags attached to the system. Personal injury or damage to the system could occur if not observed.
1.2 Safety Precautions:
Waste electrical and electronic equipment (WEEE). This symbol
indicates that you should not discard wasted electrical or electronic
equipment (WEEE) in the trash. For proper disposal, contact your local
recycling/reuse or hazardous waste center.
This symbol indicates not to store any combustible or flammable
material close to the system.
This symbol indicates there is Mercury present. This symbol indicates that the contents of the transport package are
fragile and the package should be handled with care.
This is the safety alert symbol. Obey all safety messages that follow
this symbol to avoid potential injury. When on the equipment, refer to
the Operational and Maintenance manual for additional safety
information.
This symbol indicates safety glasses with side protection is required for
protection against UV exposure.
This symbol indicates a risk of electrical shock and/or electrocution
exists. This symbol indicates gloves must be worn.
This symbol indicates the marked equipment may contain a
component that can eject forcibly. Obey all procedures to safely
depressurize.
This symbol indicates safety boots must be worn.
This symbol indicates the system is under pressure. This symbol indicates the operator must read all available
documentation to perform required procedures.
This symbol indicates there is a potential UV hazard. Proper protection
must be worn. This symbol indicates the plumber must use copper piping.
This symbol indicates the marked item could be hot and should not be
touched without care.
This symbol indicates that the system should only be connected to a
properly grounded, grounding-type controller receptacle that is
protected by a Ground Fault Circuit Interrupter (GFCI).
This symbol indicates there is a potential for VERY hot water when
flow is started.
Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
DANGER
Failure to follow these instructions will result in serious injury or death.
• ElectricShock: To avoid possible electric shock, special care should be taken since water is present near the electrical equipment. Unless a
situation is encountered that is explicitly addressed by the provided maintenance and troubleshooting sections, DO NOT attempt repairs yourself,
refer to an authorized service facility.
• GROUNDING:This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electrical shock. This system is equipped with a cord having an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of electrocution. Check with a qualified electrician or service
personnel if you are in doubt as to whether the outlet is properly grounded. DO NOT modify the plug provided with this system – if it does not fit in
the outlet, have a proper outlet installed by a qualified electrician. DO NOT use any type of adapter with this system.
• GROUNDFAULTCIRCUITINTERRUPTERPROTECTION: To comply with the National Electrical Code (NFPA 70) and to provide additional
protection from the risk of electric shock, this system should only be connected to a properly grounded, grounding-type controller receptacle that is
protected by a Ground Fault Circuit Interrupter (GFCI) or to a residual current device (RCD) having a rated residual operating current not exceeding
30 mA. Inspect operation of GFCI as per manufacturer’s suggested maintenance schedule.
• DO NOT operate the disinfection system if it has a damaged cord or plug, if it is malfunctioning or if it has been dropped or damaged in any manner.
• DO NOT use this disinfection system for other than intended use (potable water applications). The use of attachments not recommended or sold by
the manufacturer / distributor may cause an unsafe condition.
• DO NOT install this disinfection system where it will be exposed to the weather or to temperatures below freezing.
• DO NOT store this disinfection system where it will be exposed to the weather.
• DO NOT store this disinfection system where it will be exposed to temperatures below freezing unless all water has been drained from it and the
water supply has been disconnected.
Hg
UV
Cu
• The UV lamp inside the disinfection system is rated at an eective life of approximately 9000 hours. To
ensure continuous protection, replace the UV lamp annually.
• This system is intended to be permanently connected to the water lines.
• This system is not intended to be used in or above water or outdoors or used in swimming pools when
persons are in the pool.
• EXTENSION CORDS: If an extension cord is necessary, use only 3-wire extension cords that have 3-prong
grounding-type plugs and 3-pole cord connectors that accept the plug from this system. Use only extension
cords that are intended for outdoor use. Use only extension cords having an electrical rating not less than
the rating of the system. A cord rated for less amperes or watts than this system rating may overheat.
Exercise caution when arranging the cord so that it will not be tripped over or pulled. DO NOT use damaged
extension cords. Examine extension cord before using and replace if damaged. DO NOT abuse extension
cord. Keep extension cord away from heat and sharp edges. Always disconnect the extension cord from
the receptacle before disconnecting this system from the extension cord. Never yank cord to pull plug from
outlet. Always grasp the plug and pull to disconnect.
• If the electronic ballast power cord is damaged, it must be replaced by a special cord or assembly available
from the manufacturer or its service agent.
• A dedicated circuit breaker must not exceed the electronic ballast power cord current rating (10A for 125V,
18AWG x 3C, SVT or SJT cord type).
• Read and understand this Manual before operating and performing any maintenance on this equipment.
• Save these instructions:
Water Chemistry:
Water quality is extremely important for the optimum performance of your UV system. The following levels are
recommended for installation:
•Iron:<0.3ppm(0.3mg/L)
•Hardness*:<7gpg(120mg/L)
•Turbidity:<1NTU
•Manganese:<0.05ppm(0.05mg/L)
•Tannins:<0.1ppm(0.1mg/L)
•UVTransmittance:>75%(callfactoryforrecommendationsonapplicationswhereUVT
<75%)
*Where total hardness is less than 7 gpg, the UV unit should operate eciently provided the quartz sleeve is cleaned
periodically. If total hardness exceeds 7 gpg, the water should be softened. If your water chemistry contains levels in
excess of those mentioned above, proper pre-treatment is recommended to correct these water problems prior to the
installation of your UV disinfection system. These water quality parameters can be tested by your local dealer, or by
most private analytical laboratories. Properpre-treatmentisessentialfortheUVdisinfectionsystemtooperateas
intended.

PAGE 4
14-UV
ALUMINUM GLAND NUT
17-UV
GROUND NUT
UV-100 MP
STAINLESS STEEL
UV CHAMBER
UV-MAN-1AP
MANIFOLD
FILTER HOUSING
VENT-VALVE
FILTER
HOUSING HEAD
410-C5-MB
FILTER CARTRIDGE
FILTER HOUSING
O-RING
410-H-1-B
BLUE FILTER HOUSING,
INCLUDING PLUGGED
HEAD, SUMP, O-RING
UV-ELL-1FM
STAINLESS STEEL STREET ELBOW
AND FM1-24 FLEXIBLE HOSE
FILTER HOUSING
SPANNER WRENCH
INCLUDED
(NOT SHOWN)

PAGE 5

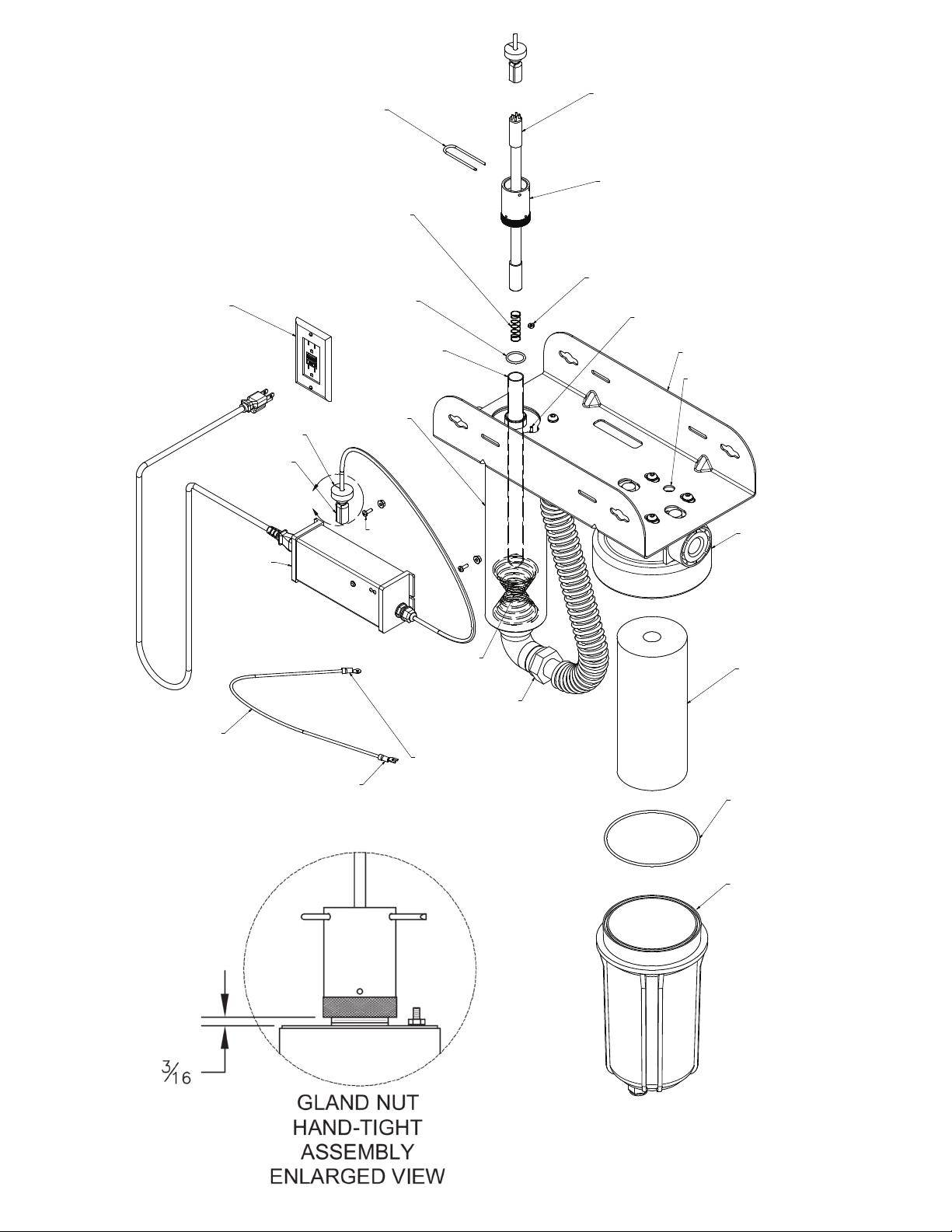

DETAIL A
A
UV LAMP
U - CLIP
ALUMINUM GLAND NUT
LAMP COMPRESSION SPRING
GROUND NUT
O - RING
QUARTZ SLEEVE
BUSHING
LAMP CONNECTOR
STAINLESS STEEL
UV CHAMBER
GROUND WIRE
GFCI
PROTECTED
CIRCUIT 120V
ELECTRONIC
BALLAST
(INCLUDES
POWER
CORDSET
AND LAMP
CORDSET)
GROUND WIRE RING TERMINAL
(CONNECT TO UV CHAMBER
GROUND STUD WITH GROUND NUT)
GROUND WIRE FORK TERMINAL
(CONNECT TO BALLAST WITH
GROUND SCREW LOCATED UNDER BALLAST)
STAINLESS STEEL
STREET ELBOW
AND FLEXIBLE HOSE
QUARTZ SLEEVE
DOMED END
BALLAST
MOUNTING
GROUND STUD
MANIFOLD
FILTER HOUSING
VENT-VALVE
FILTER
HOUSING HEAD
FILTER
CARTRIDGE
FILTER HOUSING
O-RING
FILTER HOUSING
SUMP
FILTER HOUSING
SPANNER WRENCH
INCLUDED
(NOT SHOWN)
SCREWS/
NUTS
ASSEMBLY:

PAGE 6
4.50
11.25 21.00
16.00
9.00
4.50
20.44
OUTLET
1.0 MNPT
INLET
1.0 FNPT
GENERAL NOTES FOR ESTIMATING ONLY.
ALL DIMENSIONS ARE IN INCHES.
DRAIN
0.5 MNPT
WEIGHT: 22 LBS

PAGE 7
SPECIFICATIONS:
FLOW RATE
FLUENCE
(UV DOSE)
US PUBLIC
HEALTH
16mJ/cm2
MODEL
7-LWT-UV410-009
INDUSTRY
STANDARD
30mJ/cm2
NSF/EPA
40mJ/cm2
(1)
(1) At flow rates stated, the corresponding fluence (UV dose) levels are theoretically met or exceeded at 95% UVT and EOL (end of lamp life; 1 year).
R, developed by Bolton Photosciences Inc., is based on calculations of fluence rates (irradiances) using the multiple point source
summation approximation with full accomodation of reflection and refraction occurring at the air/quartz/water interface and is the only mathematical
fluence rate model that has been experimentally verified. Contact LANCASTER WATER TREATMENT for references.
17 GPM
9 GPM
7 GPM
VOLTAGE 110V to 240V AC 50/60Hz
(2)
(2) Models are supplied with a 5 FT. power cordset for 120V AC 60 Hz (NEMA 5-15P plug to IEC 60320/C13 connector).
POWER
CONSUMPTION 34 W
29 WLAMP WATTS
LAMP TYPE LOW PRESSURE HIGH OUTPUT (LPHO)
ELECTRICAL
MAX / MIN
OPERATING
PRESSURE
120 PSI / 7.25 PSI
AMBIENT
AIR & WATER
TEMPERATURE
36 to 104°F
PRESSURE DROP
at 30mJ/cm
RATED FLOW
2
UV CHAMBER
MATERIAL 304 SS
INLET / OUTLET
PORT SIZE 1.0" FNPT FILTER HOUSING HEAD INLET / 1.0" MNPT UV CHAMBER OUTLET

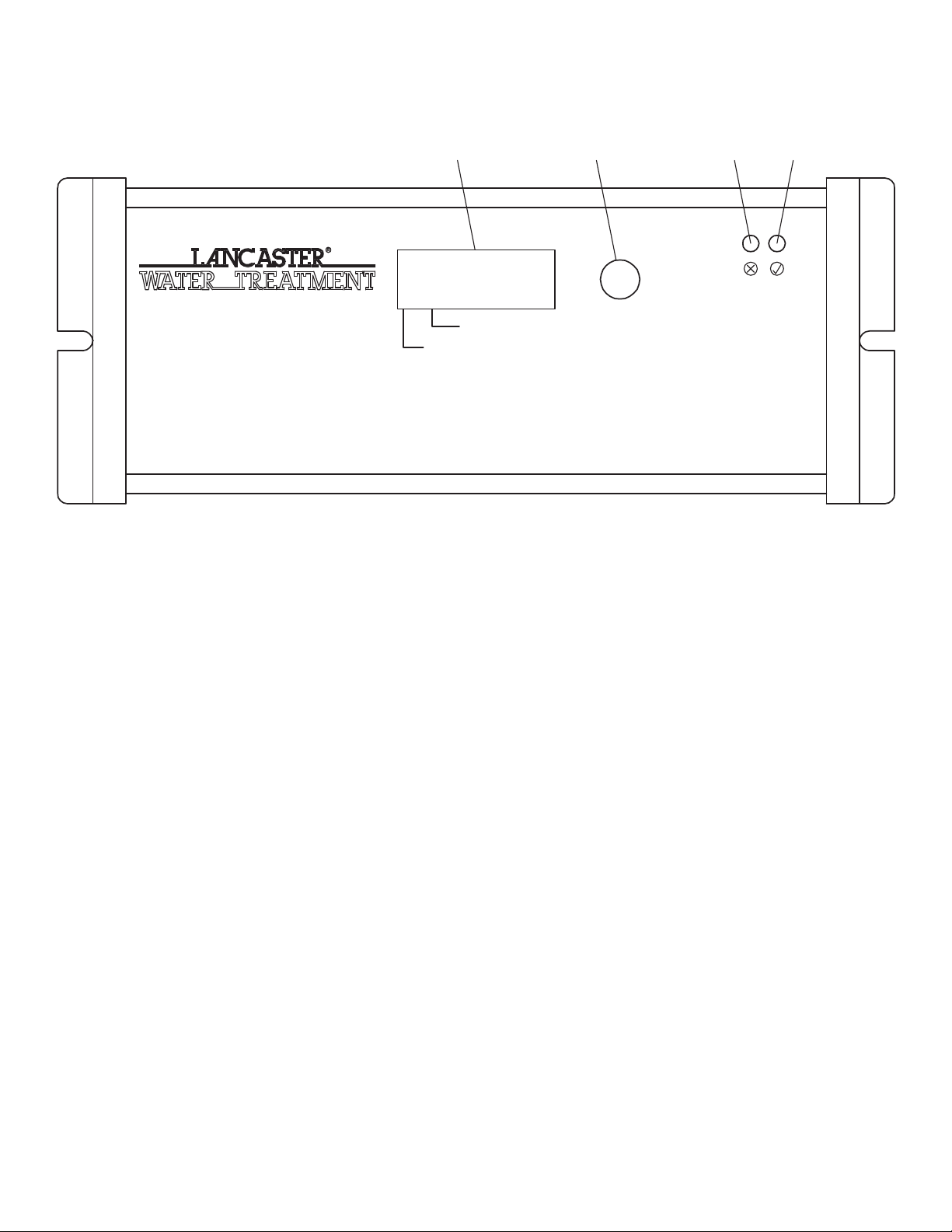

STEADY "WORK" GREEN LED
LAMP-ON
INDICATOR
LAMP LIFE REMAINING (DAYS) CONTINUES TO BE DISPLAYED BUT STOPS COUNTING DOWN,LAMP FAILURE
INDICATOR
VISUAL COUNT DOWN DISPLAY (365 - 0); MANUAL RESET FUNCTION
LAMP LIFE REMAINING
(DAYS)
LAMP REPLACEMENT
REMINDER
VISUAL DISPLAY (A3),
REMINDER DELAY SILENCES AUDIBLE ALARM FOR 7 DAYS, REPEATABLE UP TO 4 TIMES (28 DAYS MAXIMUM)
BALLAST TOTAL
RUNNING DAYS VISUAL INCREMENTAL DISPLAY (0 - 9999); CANNOT BE RESET
LAMP REPLACEMENT
BALLAST FAILURE
INDICATOR BLANK DISPLAY
"FAULT" RED LED FLASHES and AUDIBLE ALARM SOUNDS INTERMITTENTLY (1 SEC. BEEP EVERY 1 SEC.)
"FAULT" RED LED FLASHES and AUDIBLE ALARM SOUNDS INTERMITTENTLY (1 SEC. BEEP EVERY 5 SEC.)
APPROX. 1.5 PSI (NEW 410-C5-MB FILTER CARTRIDGE)
+ LESS THAN 1 PSI (UV CHAMBER)
= LESS THAN 3 PSI TOTAL
5 MICRON NOMINAL, 4.50" OD x 10" NOMINAL HEIGHT, PP MELT-BLOWN SMOOTH WITH DOE
FILTER HOUSING
MATERIAL
FILTER CARTRIDGE
TYPE
REINFORCED PP HEAD AND BLUE BOWL, PP VENT VALVE BODY, EPDM O-RINGS

PAGE 8
Installing your UV Disinfection System:
CAUTION
The electronic ballast must be connected to a Ground Fault Protected Circuit (GFCI) receptacle. Ensure the
green ground wire ring terminal is securely fastened to the UV chamber ground stud using its ground nut.
Ensure the green ground wire fork terminal is securely fastened to the electronic ballast using its ground screw.
The disinfection system is designed to be installed at point-of-entry. Drip loops in all cordage connected to the electronic
ballast is highly recommended. Refer to installation diagram below.
• The complete water system including any pressure or hot water tanks, must be sterilized before start up by ushing
with chlorine (household bleach) to destroy any residual contamination. Refer to Disinfection Procedure Section.
• For safety purposes, the disinfection system must be connected to a Ground Fault Protected Circuit (GFCI).
• The disinfection system is intended for indoor use only. Do not install disinfection system where it may be exposed to
the weather. Protect system from freezing temperature.
• Refer to specications page for ambient conditions and maximum operating pressure.
• Install the disinfection system on cold water line only.
• If treating the entire house, install the disinfection system before any branch lines.
PROCEDURE:

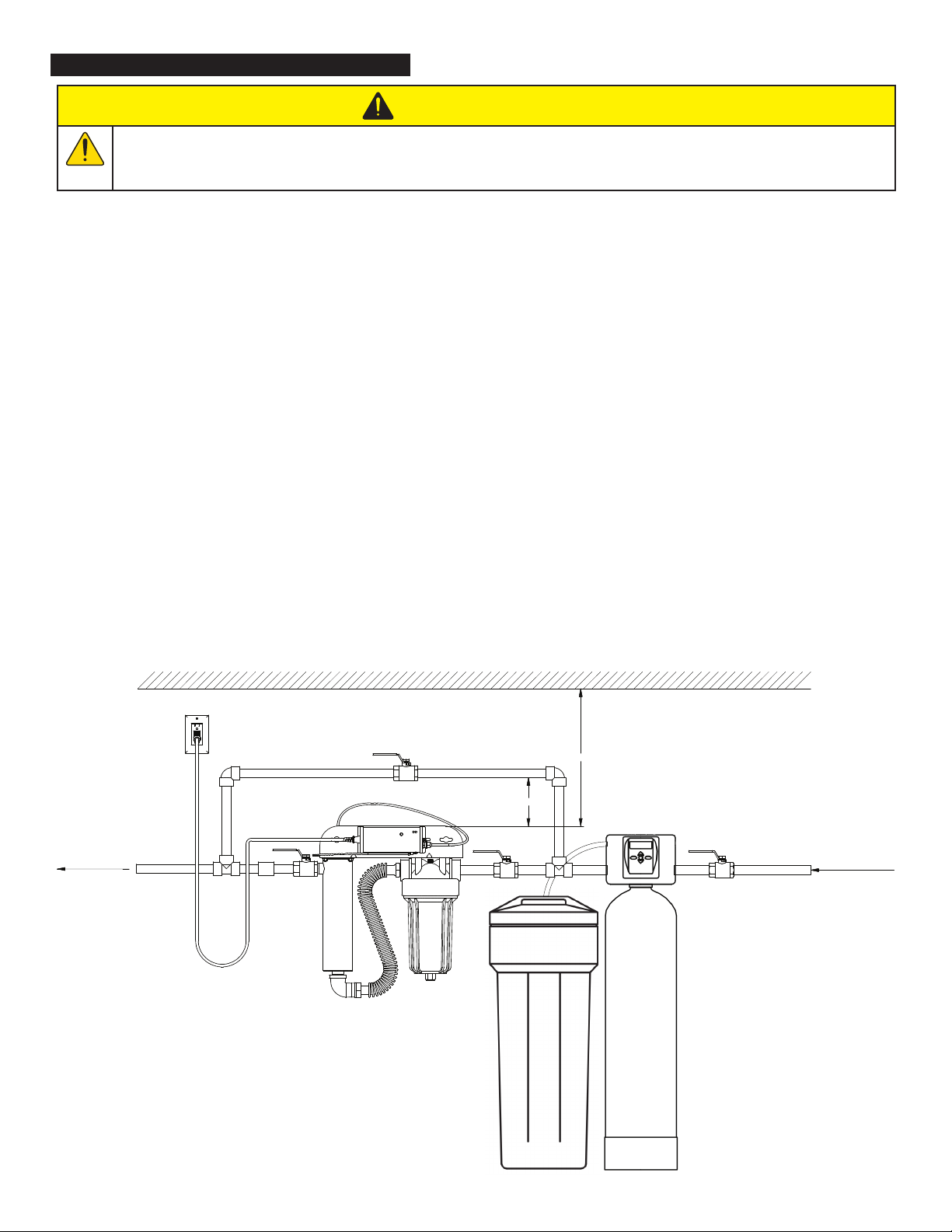

1. The diagram below shows the installation of a typical drinking water system and the related components that may
be used for the installation. The use of a bypass assembly is recommended in case the system requires “o-line”
maintenance. If this is the case, it must be noted that the system will require supplementary disinfection of the
distribution system if any water is used during this bypass condition. In addition, during bypass, the water will NOT
be disinfected and a “DO NOT CONSUME THE WATER” tag should be physically installed on the bypass assembly
until such time as the system is sanitized and returned to service. Please refer to the Disinfection Procedure Section
for the complete disinfection procedure. If the water is to be consumed while the system is o-line, the water must be
brought to a rolling boil for at least one minute before consumed. At higher altitudes, boiling should be extended to 3
minutes. Refer to public health boil-water advisory recommendations.
OPTIONAL
BYPASS ASSEMBLY
MAIN WATER
SHUT-OFF FROM
SUPPLY
PRE-TREATMENT
EQUIPMENT
AS REQUIRED
TO
SERVICE
GFCI
DRIP
LOOP
OPTIONAL
FLOW
CONTROL
ELECTRONIC BALLAST
EXAMPLE OF A TYPICAL INSTALLATION.
FOLLOW ALL STATE AND LOCAL CODES AND
REGULATIONS FOR PLUMBING AND ELECTRICAL.
SEE NOTE 1
SEE NOTE 1
NOTE 1
PROVIDE NECESSARY CLEARANCE
TO INSTALL/REPLACE LAMP AND
QUARTZ SLEEVE

PAGE 9
2. Select a suitable location for the disinfection system and its related components. As it is recommended to install a
ground fault protected circuit (GFCI), make sure that this is taken into consideration prior to any installation. When
selecting a mounting location, you must also leave enough space to allow for the removal of the UV lamp and/or
quartz sleeve, as well as enough space to change out the lter cartridge.
3. Install the quartz sleeve as shown on assembly page 5. Keep quartz sleeve free of nger prints and dirt. Make sure
the small lamp compression spring is inside the sleeve. Carefully insert sleeve into the UV chamber (do not drop) until
the sleeve domed end seats in the center of the hourglass retainer spring located in the bottom end of the chamber.
Install o-ring onto the sleeve until it is positioned against the chamfered seat. Install the aluminum gland nut on the UV
chamber by turning clockwise and hand-tighten only.
4. Mount the system to the wall with appropriate lag screws (not supplied) through the two mounting holes located on
the metal manifold. Refer to page 6 for dimensions and weight. Various connection methods can be used to connect
the water source to the system, however due to thermal expansion concerns and potential material degradation
due to UV exposure, it is recommended to use metal ttings and at least 10” of copper pipe on the outlet of your UV
chamber. The use of a ow restrictor device is strongly recommended when installing your system in order to maintain
the manufacturer’s rated ow rate. The ow restrictor should be installed on the outlet port and is designed to be
installed in one direction only. Ensure that the ow of the water matches the ow direction as indicated on the ow
restrictor. DO NOT SOLDER CONNECTIONS WHILE ATTACHED TO THE SYSTEM AS THIS COULD DAMAGE
THE O-RING SEALS.
5. Mount the electronic ballast controller onto the metal manifold as shown on assembly page 5. A ground stud and nut
are provided on the UV reactor chamber. Attach the supplied 3 foot long, #14 AWG green ground wire to this ground
stud using the ring terminal end. Attach the fork terminal end of the ground wire to the electronic ballast controller
ground screw.
6. Install the UV lamp as shown on assembly page 5. Handle the lamp by the ceramic end caps; keep lamp quartz
surface free of nger prints and dirt. Carefully insert the lamp into the UV vessel (actually inside the quartz sleeve);
leave approximately two inches of the lamp protruding from the chamber and attach the lamp connector to the UV
lamp. Make sure the connector is fully seated on the lamp. Slide the connector and bushing into the aluminum gland
nut. Gently press down on the bushing and squeeze/slide the U clip through the gland nut’s four upper holes (2 pair,
180° apart).
7. Install the lter cartridge as shown on assembly page 5.
8. When all plumbing connections are made, slowly turn on the water supply and check for leaks. The most likely cause
for leaks is from the o-ring seals. In case of a leak at the UV chamber, shut water o, drain chamber, remove gland
nut assembly, wipe the o-ring and threads clean and re-install. In case of a leak at the lter, shut o water, vent/drain
and remove sump, wipe o-ring and threads clean, ensure the o-ring is properly seated, then reinstall.
9. Once it is determined that there are no leaks, plug the system into the GFCI, and check electronic ballast controller
to ensure the system is operating properly. The controller is designed to detect both power to the system and lamp
illumination. It is important to NEVER LOOK DIRECTLY AT THE GLOWING UV LAMP.
10. Allow the water to run for a few minutes to clear any air or dust that may be in the UV chamber.
PLEASE NOTE: When there is no ow, the water is the chamber will become warm, as the UV lamp
is always on. To remedy this, run a cold water tap anywhere in the house for a minute to ush out the
warm water.

PAGE 10

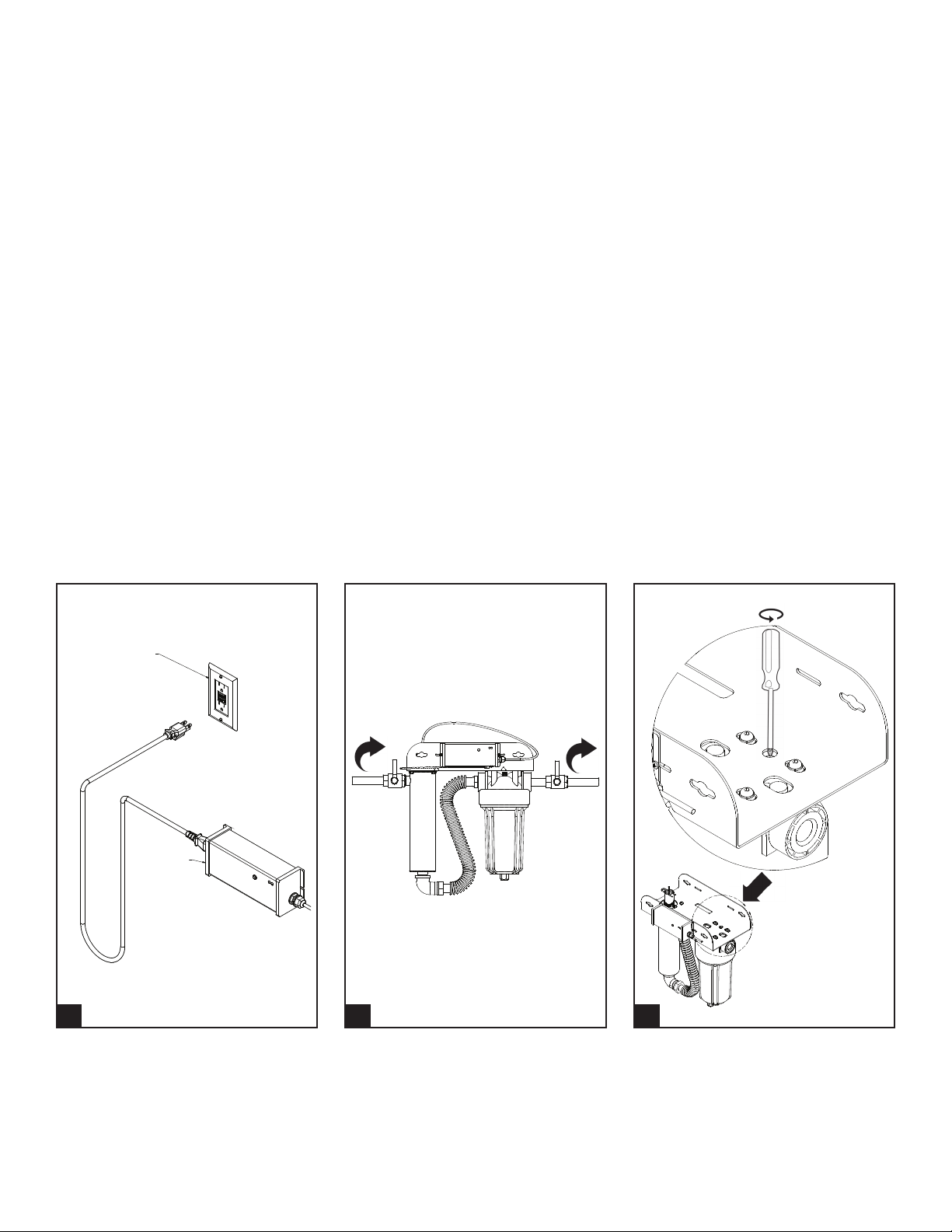

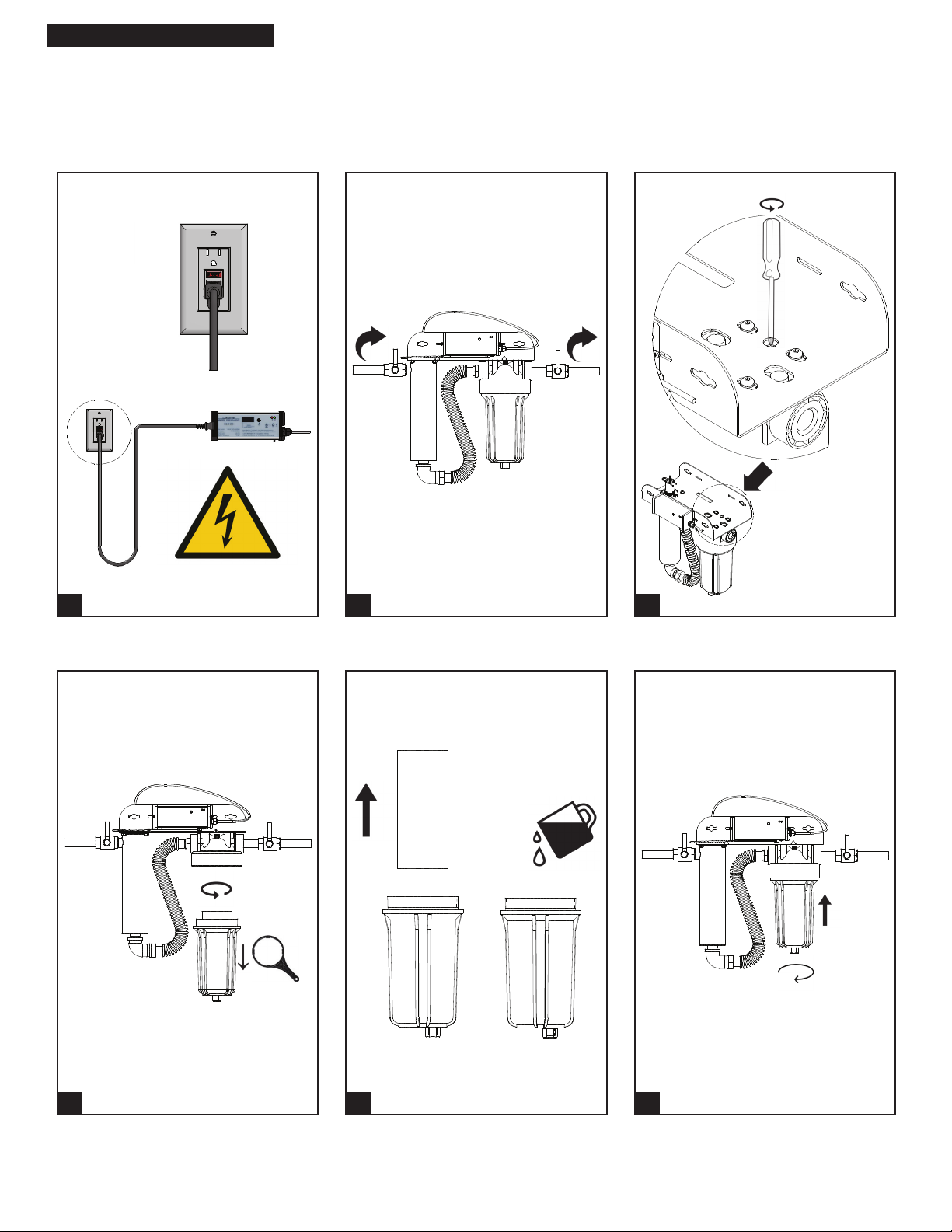

Disinfection Procedure:
UV disinfection is a physical disinfection process and does not add any potentially harmful chemicals to the water. As
UV does not provide a disinfection residual, it is imperative that the entire distribution system located after the UV be
chemically disinfected to ensure that the water is free from any bacteriological contaminants. The disinfection process
must be performed immediately after the UV unit is installed and repeated thereafter whenever the UV is shut down
for service, without power, or inoperative for any reason. The procedure for sanitizing the plumbing system is readily
accomplished as follows:
• Ensure the electronic ballast controller is
plugged in for entire disinfection process.
• Shut o the water supply.
• Close each valve.
• Slowly and partially open vent to release
the pressure from the lter.
• Remove sump housing using sump
wrench.
• Remove cartridge and pour 2 cups of
household bleach solution into the sump
housing.
Note: DO NOT use Hydrogen Peroxide.
• Connect only the sump housing to the
unit.
1
654
32

PAGE 11
Minutes
• Make sure vent is closed.
• Turn on water supply.
• Allow water to ll the chamber.
• Turn on the cold water supply faucets
followed by hot water until you smell the
bleach. You must ensure that all taps,
including outside faucets, dishwasher,
shower heads, washing machines,
connection to refrigerators, toilets, etc.
pass the bleach solution.
• Close all faucets and allow bleach to
settle in the water lines for 30 minutes.
• With valves closed, vent pressure and
remove sump housing using sump
wrench.
Notes:
1. Household bleach’s main constituent
is 5.25% sodium hypochlorite (liquid
chlorine). The addition of chlorine to
a hot water tank that has in the past
been fed with untreated raw water
with high levels of other contaminants
(iron, manganese, hydrogen
sulphide, organics, etc.) will result
in oxidation of these contaminants
and may require repeated ushing of
the hot water tank. This contingency
must be dealt with independently
under the start-up procedure for any
other conditioners that may form a
part of the pre-treatment for the UV
unit.
2. This disinfection procedure will result
in a massive chlorine residual far in
excess of the 0.5 to 1.0 mg/L typically
present in municipally chlorinated
water and of a magnitude consistent
with the minimum 50 mg/L chlorine
solution recommended for the
disinfection of distribution systems
known to be contaminated. Do not
consume water until complete system
has been ushed.
• Reinstall the cartridge into sump housing
and connect to the unit.
• Open valves and ush all water outlets
until bleach can no longer be smelled (at
least 5 minutes).
• Vent to purge air and to complete the
disinfection procedure.
7
1110
98

PAGE 12
Maintenance Instructions:
WARNING
• Always disconnect power before performing any work on the disinfection system.
• Always shut-o water ow and release water pressure before servicing.
• Regularly inspect your disinfection system to ensure that the power indicators are on and no alarms are
present.
• Replace the UV lamp annually (or biennially if seasonal home use) to ensure maximum disinfection.
• Always drain the chamber when closing a seasonal home or leaving the unit in an area subject to freezing
temperatures.
UV LAMP REPLACEMENT:
NOTICE
• Reset lamp life timer after lamp replacement. Refer to page 15. Refer to www.lamprecycle.org for UV lamp disposal.
• Do not use water during replacement of UV lamp.
1. To replace the lamp, there is NO need to disconnect the system from the water supply, nor to drain the water from
the UV chamber. DO NOT USE WATER DURING THIS PROCEDURE. Lamp replacement is a quick and simple
procedure requiring no special tools. The UV lamp must be replaced after 9,000 hours of continuous operation
(approximately one year) in order to ensure adequate disinfection. Refertotheassemblydiagramonpage5.
2. Unplug the electronic ballast from the electrical outlet and allow the lamp to cool for at least 5 minutes before
removing. Pull out the U clip from the gland nut. Remove bushing, connector and lamp from the UV chamber.
Separate the lamp from the connector. Do not twist the lamp from the connector, simply slide the two apart. Avoid
touching the lamp’s quartz surface. Handling the lamp at the ceramic ends is acceptable, however if you must touch
the lamp quartz, please use gloves or a soft cloth. Fully remove the lamp from the reactor chamber being careful not
to angle the lamp as it is removed from the chamber. If the lamp is removed on an angle, pressure will be applied on
the inside of the quartz sleeve, causing the sleeve to fracture.
3. To install a new lamp, rst remove the lamp from its protective packaging, again being careful not to touch the lamp’s
quartz surface. Oil deposits from your ngers can create hot spots on the surface which may lead to premature
lamp failure. Handle the lamp by the ceramic ends only. If the quartz surface becomes dirty, use a lint-free cloth and
isopropyl alcohol to remove dirt. Carefully insert the lamp into the UV vessel (actually inside the quartz sleeve). Insert
the lamp fully into the chamber leaving about two inches of the lamp protruding from the chamber. Next, attach the
connector to the UV lamp. Ensure the connector is fully seated onto the UV lamp.
4. Once the lamp is fully seated on the connector, slide the connector and bushing into the aluminum gland nut. Gently
press down on the bushing and squeeze/slide the U clip through the gland nut’s four upper holes (2 pair, 180° apart).
5. Plug in ballast to the electrical outlet. RESETLAMPLIFETIMERAFTERLAMPREPLACEMENT*PAGE15)
QUARTZSLEEVEREPLACEMENT/CLEANING:
Mineral deposits and sediment may accumulate on the quartz sleeve decreasing the UV light transmittance and system
performance. Good maintenance of ltration equipment will reduce the accumulation of residues. If necessary, remove the
quartz sleeve and clean with a commercially available scale remover (CLR, Lime-Away, etc.) and a lint free cloth. Repeat
the process as often as necessary to keep the quartz sleeve clean. Be sure to remove all traces of cleaning uid from the
sleeve before it is reinstalled in the UV chamber (be sure not to allow liquid inside the sleeve).
1. First remove the UV lamp by following steps 1 & 2 as outlined in the “Lamp Replacement” section above.
2. Shut o the upstream water supply that feeds water into the UV chamber.
3. Shut o the downstream water supply. Use the lter housing vent-valve to slowly depressurize. If your system does
not have a separate downstream valve, simply open a downstream faucet to release any pressure that may be built-
up in the system.

PAGE 13
4. Remove the aluminum gland nut by turning counter clockwise. Place a small pail under the UV chamber to catch any
water that may leak from the system. Grasp the quartz sleeve and fully remove from the UV chamber. Make sure the
sealing o-ring is removed with the quartz sleeve. As with the lamp, make sure the sleeve is removed from the UV
chamber being careful not to angle the sleeve as it is removed from the chamber to avoid breakage.
5. Clean the sleeve as previously described, or replace with a new sleeve. Reinstall the quartz sleeve in the reverse
order. To install the sleeve, carefully insert the sleeve into the UV chamber (do not drop) until the sleeve domed end
seats in the center of the hourglass retainer spring located in the end of the chamber. Install o-ring onto the sleeve
until it is positioned against the chamfered seat. Make sure the small lamp compression spring is inside the sleeve.
6. Reinstall the aluminum gland nut on the UV chamber and tighten by turning clockwise. The gland nut should be hand-
tightened only, the use of a wrench is not required, nor recommended. Reinstall the UV lamp and connector as
outlined in steps three and four of the “Lamp Replacement” section.
7. Slowly turn on water and pressurize the chamber to verify that there are no leaks.
8. Reconnect to power source and ensure that the UV lamp is operating by verifying ballast green LED indicator is on
and display is operational.
Note: After replacing the UV lamp or quartz sleeve, perform the disinfection procedure.
FILTER CARTRIDGE REPLACEMENT :
It is recommended to change the lter cartridge every six months (or earlier). Please note that a drop in pressure may
indicate that the lter cartridge requires replacement.
It is recommended to replace the lter housing sump at least every 5 years.
Note: Prior to performing any work on the drinking water system, ALWAYS DISCONNECT THE ELECTRONIC BALLAST
CONTROLLER FIRST. As a small amount of water may leak from the cartridges during this procedure, please place a
small bucket under the system to catch any water.
DETAIL A
A
UV LAMP
U - CLIP
ALUMINUM GLAND NUT
LAMP COMPRESSION SPRING
GROUND NUT
O - RING
QUARTZ SLEEVE
BUSHING
LAMP CONNECTOR
STAINLESS STEEL
UV CHAMBER
GROUND WIRE
GFCI
PROTECTED
CIRCUIT 120V
ELECTRONIC
BALLAST
(INCLUDES
POWER
CORDSET
AND LAMP
CORDSET)
GROUND WIRE RING TERMINAL
(CONNECT TO UV CHAMBER
GROUND STUD WITH GROUND NUT)
GROUND WIRE FORK TERMINAL
(CONNECT TO BALLAST WITH
GROUND SCREW LOCATED UNDER BALLAST)
STAINLESS STEEL
STREET ELBOW
AND FLEXIBLE HOSE
QUARTZ SLEEVE
DOMED END
BALLAST
MOUNTING
GROUND STUD
MANIFOLD
FILTER HOUSING
VENT-VALVE
FILTER
HOUSING HEAD
FILTER
CARTRIDGE
FILTER HOUSING
O-RING
FILTER HOUSING
SUMP
FILTER HOUSING
SPANNER WRENCH
INCLUDED
(NOT SHOWN)
SCREWS/
NUTS

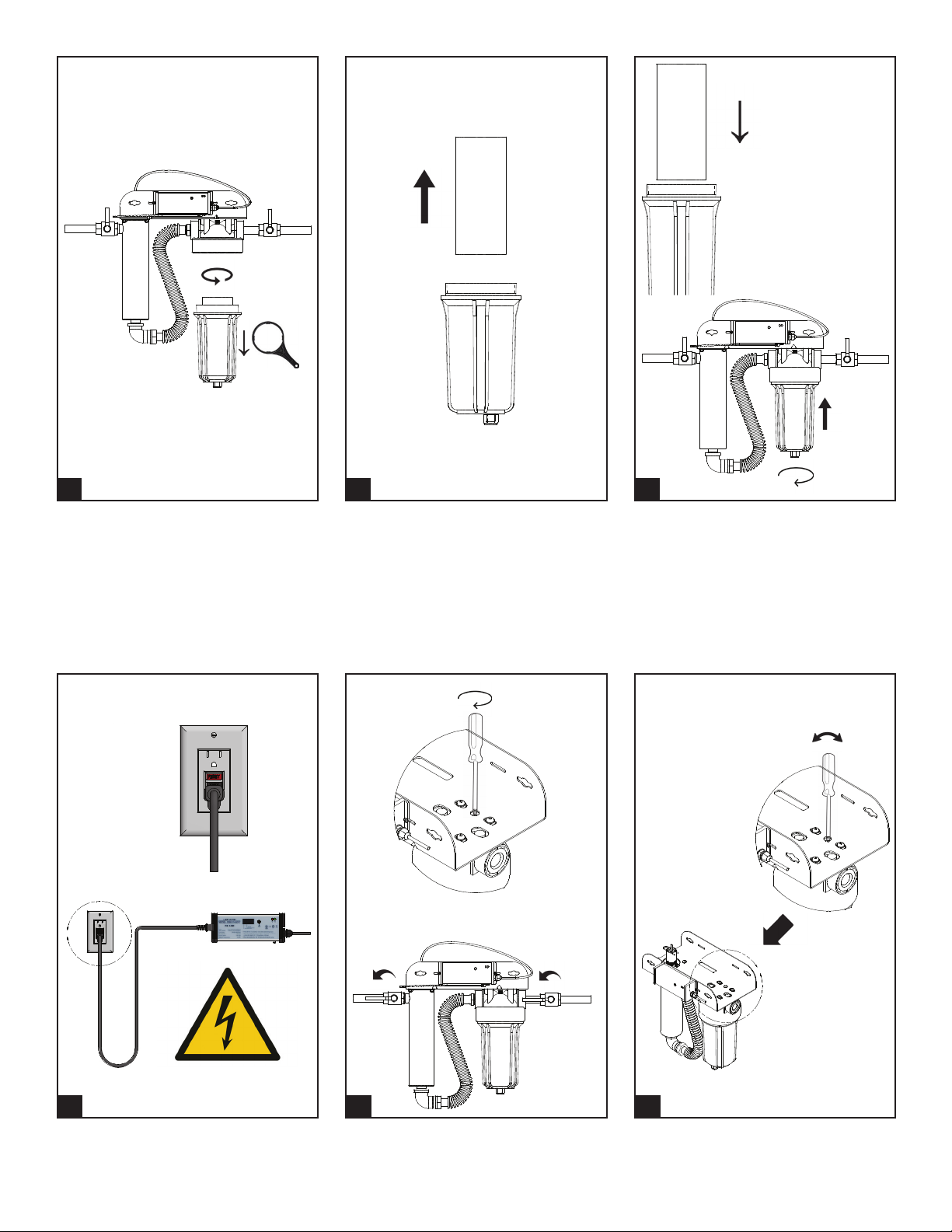

• Unplug the electronic ballast controller. • Shut o water supply. • Release the pressure from the lter using
the vent-valve on top of the lter head.
1 32

PAGE 14
• Remove sump housing using the sump
spanner wrench.
Note: Be careful as it will be full of water
and heavy. Recommend a bucket or pail
under the sump. If sump is tted with
a bottom drain port, removing the plug
to drain the system into the bucket is
recommended.
• Remove and discard the used lter
cartridge in accordance with applicable
codes and regulations. Wipe clean the
sump housing with cold water and a soft
sponge.
• Before installing new lter cartridge, make
sure lter housing o-ring seal is properly
seated and shows no sign of visible
damage. Ensure o-ring is lubricated using
silicone based lubricant.
• Open the new lter cartridge wrap
and discard wrap. Insert the new lter
cartridge into the sump housing and
connect to the unit using the sump
spanner wrench.
Note: Be careful not to overtighten.
• Plug the electronic ballast controller into
the GFCI outlet and power-up the system.
• Make sure vent-valve is closed.
• Slowly turn on water supply.
• Vent to purge air, then turn and tighten
vent-valve closed.
• Let water ow for at least 5 minutes
before use.
654
798

PAGE 15
The 7-UVC Electronic Ballast (a.k.a. EPS-Electronic Power Supply or simply “controller”) is equipped
with visible and audible operation indicators:
LAMP-ON INDICATOR: Steady “work” green LED.
LAMP LIFE REMAINING (DAYS): Default count down display (365 - 0); manually reset - see * below.
BALLAST TOTAL RUNNING DAYS: Incremental display (0-9999); cannot be reset. To view, press and hold button
for 2 seconds, release button and LED display will show ballast total days running. After 10 seconds, the LED display will
automatically return to default display (lamp life) or shortly press and hold button again (2 seconds) before 10 seconds
elapse to return to the default (lamp life) display.
LAMP REPLACEMENT REMINDER: The 365 day countdown timer displays the number of days remaining until lamp
replacement is required. When the countdown timer reaches 0 days an audible alarm sounds (1 second BEEP every 5
seconds), the red LED ashes and the display will indicate alarm A3.
LAMP REPLACEMENT REMINDER DELAY: To allow time for obtaining a replacement lamp, the audible alarm can
be silenced for 7 days by pressing and holding the button for 2-5 seconds. The display will continue to show A3 and the
red LED will continue to ash. After 7 days, the audible alarm will sound again if the lamp has not been replaced. The
alarm can be silenced up to 4 times (28 days). After 4 times, the alarm can no longer be silenced until a replacement lamp
is installed and the lamp life timer is reset.
Please note that the lamp has an approximate life of one year. Although the lamp will continue to operate long past one
year, the UV output continually decreases after one year and may no longer provide adequate disinfection. Use only
Lancaster Water Treatment lamps to ensure proper operation and performance.
RESET LAMP LIFE TIMER AFTER LAMP REPLACEMENT: After replacing the lamp by following instructions on
page 12, reset the lamp life timer to 365 days by pressing and holding the button for 10 seconds... LED displays “rSEt”...
keep holding button until LED displays 365 and alarm sounds (1 BEEP). Release button.
LAMP FAILURE INDICATOR: In the event of a failure of the lamp (no current running through the lamp), an audible
alarm sounds (1 second BEEP every 1 second), the red LED ashes and the display continues to show lamp life
remaining days but stops counting down (ballast total running days continues counting). The audible alarm cannot be
silenced. Please note that if this condition occurs and you are on a non-municipal water source, you should immediately
stop using the water for potable applications until the lamp is replaced and distribution lines are disinfected.
BALLAST FAILURE INDICATOR: Blank display.
*
ELECTRONIC BALLAST OPERATION:
7-UVC Total Days Running
Lamp Life
LED Display Button
Red
LED
(Fault)
Green
LED
(Work)
The 7-UVC Electronic Ballast (a.k.a. EPS-Electronic Power Supply or simply "controller")
is equipped with visible and audible operation indicators:
LAMP-ON INDICATOR - Steady "work" green LED.
LAMP LIFE REMAINING (DAYS) - Default count down display (365 - 0); manually reset - see * below.
BALLAST TOTAL RUNNING DAYS - Incremental display (0-9999); cannot be reset. To view, press
and hold button for 2 seconds, release button and LED display will show ballast total days running. After 10
seconds, the LED display will automatically return to default display (lamp life) or shortly press and hold button
again (2 seconds) before 10 seconds elapse to return to the default (lamp life) display.
LAMP REPLACEMENT REMINDER - The 365 day countdown timer displays the number of days
remaining until lamp replacement is required. When the countdown timer reaches 0 days an audible alarm
sounds (1 second BEEP every 5 seconds), the red LED flashes and the display will indicate alarm A3.
LAMP REPLACEMENT REMINDER DELAY - To allow time for obtaining a replacement lamp, the
audible alarm can be silenced for 7 days by pressing and holding the button for 2-5 seconds. The display will
continue to show A3 and the red LED will continue to flash. After 7 days, the audible alarm will sound again
if the lamp has not been replaced. The alarm can be silenced up to 4 times (28 days). After 4 times, the alarm
can no longer be silenced until a replacement lamp is installed and the lamp life timer is reset.
RESET LAMP LIFE TIMER AFTER LAMP REPLACEMENT - After replacing the lamp by following
instructions on the previous page, reset the lamp life timer to 365 days by pressing and holding the button for
10 seconds... LED displays "rSEt"... keep holding button until LED displays 365 and alarm sounds (1 BEEP).
Release button.
*
LAMP FAILURE INDICATOR - In the event of a failure of the lamp (no current running through the lamp),
an audible alarm sounds (1 second BEEP every 1 second), the red LED flashes and the display continues to
show lamp life remaining days but stops counting down (ballast total running days continues counting).
The audible alarm cannot be silenced.
Please note that if this condition occurs and you are on a non-municipal water source, you should immediately
stop using the water for potable applications until the lamp is replaced and distribution lines are disinfected.
BALLAST FAILURE INDICATOR - Blank display.
Please note that the lamp has an approximate life of one year. Although the lamp will continue to operate
long past one year, the UV output continually decreases after one year and may no longer provide adequate
disinfection. Use only Lancaster Water Treatment lamps to ensure proper operation and performance.
Click to buy NOW!
P
D
F
-
X
C
H
A
N
G
E
w
w
w
.
d
o
c
u
-
t
r
a
c
k
.
c
o
m
Click to buy NOW!
P
D
F
-
X
C
H
A
N
G
E
w
w
w
.
d
o
c
u
-
t
r
a
c
k
.
c
o
m

PAGE 16
11/19 A DIVISION OF C-B TOOL CO.
1340 MANHEIM PIKE ● LANCASTER PA 17601-3196 ● TEL:717-397-3521 ● FAX: 717-392-0266
www.lancasterwatertreatment.com ● E-mail: [email protected]
TROUBLESHOOTING GUIDE
Symptom PossibleCauses Solutions
PressureDrop
Sediment pre-lter clogged
• replace lter cartridge with appropriate 5 micron cartridge
Note: check source water supply as uctuations may occur in
source pressure
Flow regulator (not provided) • ow regulator will result in pressure drop when approaching full
ow
High Bacteria
Counts
Quartz sleeve is stained or dirty • clean sleeve with scale cleaner and eliminate source of staining
problem (i.e. soften hard water, see page 3)
Change in feed water quality • have source water tested to ensure that water quality is still
within allowable limits for this system
Contamination in water lines after UV
system due to a power failure, plumbing
dead ends, etc.
• it is imperative that euent water stream be shocked with
chlorine (bleach) before water leaves UV system - disinfection
system must have a bacterial free distribution system to work
eectively (see page 10-11 disinfection procedure).
Possible break-through of sediment
through pre-lter
• have source water tested for turbidity - may need stepped
ltration in order to catch all sediment entering water system
(20 micron lter followed by a 5 micron lter followed by UV
system)
Heated Product
Water
Common problem caused by infrequent
use of water; water sitting in UV chamber
and heating up
• run water until it returns to ambient temperature
Excessive Heat
Generated Water temperature is too high • Ensure treatment is on cold water side only (prior to heating of
water)
WaterAppears
Milky Caused by air in the water lines • run water until air is purged
UVChamber
Leaking Water
Problem with o-ring seal on gland nut • ensure o-ring is in place, check for cuts or abrasions, clean
o-ring, moisten with water and re-install, replace if necessary
Condensation on reactor chamber caused
by excessive humidity & cold water • check location of disinfection system and control humidity
Inadequate (misaligned or cross-threaded)
inlet/outlet port connections
• check thread connections, reseal with Teon® tape and re-
tighten
Water hammer causing pressure spikes • Install a “water hammer” arrestor in the plumbing system
LeaksBetween
FilterSumpand
Filter Head.
Sump not suciently tightened. • Tighten further the sump with the wrench.
O-ring aected/old. • If the sump still leaks, change the sump’s O-ring with a new one
(use original replacement / spare parts).
Leaks in Filter
Inlet/Outlet
Connections.
Not enough sealant and/or connection not
suciently tightened.
• Remove the previous sealing tape from the tting and place
more sealing tape and/or tighten the connection properly.
System
ShuttingDown
Intermittently
Interrupted power supply
• ensure system has been installed on its own circuit, as other
equipment may be drawing power away from UV (i.e. pump or
refrigerator)
• UV system should not be installed on a circuit which is
incorporated into a light switch
LampFailure
Alarmon-New
Lamp
Loose connection between lamp and
connector
• disconnect lamp from connector and reconnect, ensuring that a
tight t is accomplished
Moisture build up in connector may keep
lamp and connector from making a solid
connection
• eliminate chanc e of any moisture getting to the connector and/
or lamp pins
LEDDisplay
reads “A3”
Lamp life expired - countdown is at “0”
days
• Press and hold button 2 to 5 seconds for an alarm silence
delay, replace lamp (see page 12 UV lamp replacement)
LEDDisplayis
Blank
No power to electronic ballast;
GFCI wall socket is tripped
• Reset, following GFCI manufacturer’s instructions
• Check socket with other applications
Table of contents
