ADAPTER KIT INSTALL, 30-24-44 IBD UNIVERSAL
KIT PN: 82-9999-010701
PN 28-2845
CONTINUED ON NEXT PAGE.....
Lancer Corp., 6655 Lancer Blvd., San Antonio, Texas 78219
800-729-1500 - Technical Support/Warranty: 800-729-1550
Manual PN: 28-2845 - NOVEMBER 2014
“Lancer” is the registered trademark of Lancer © 2014 by Lancer, all rights reserved.
1. INSTALLATION
A. Remove bin from the top of the unit.

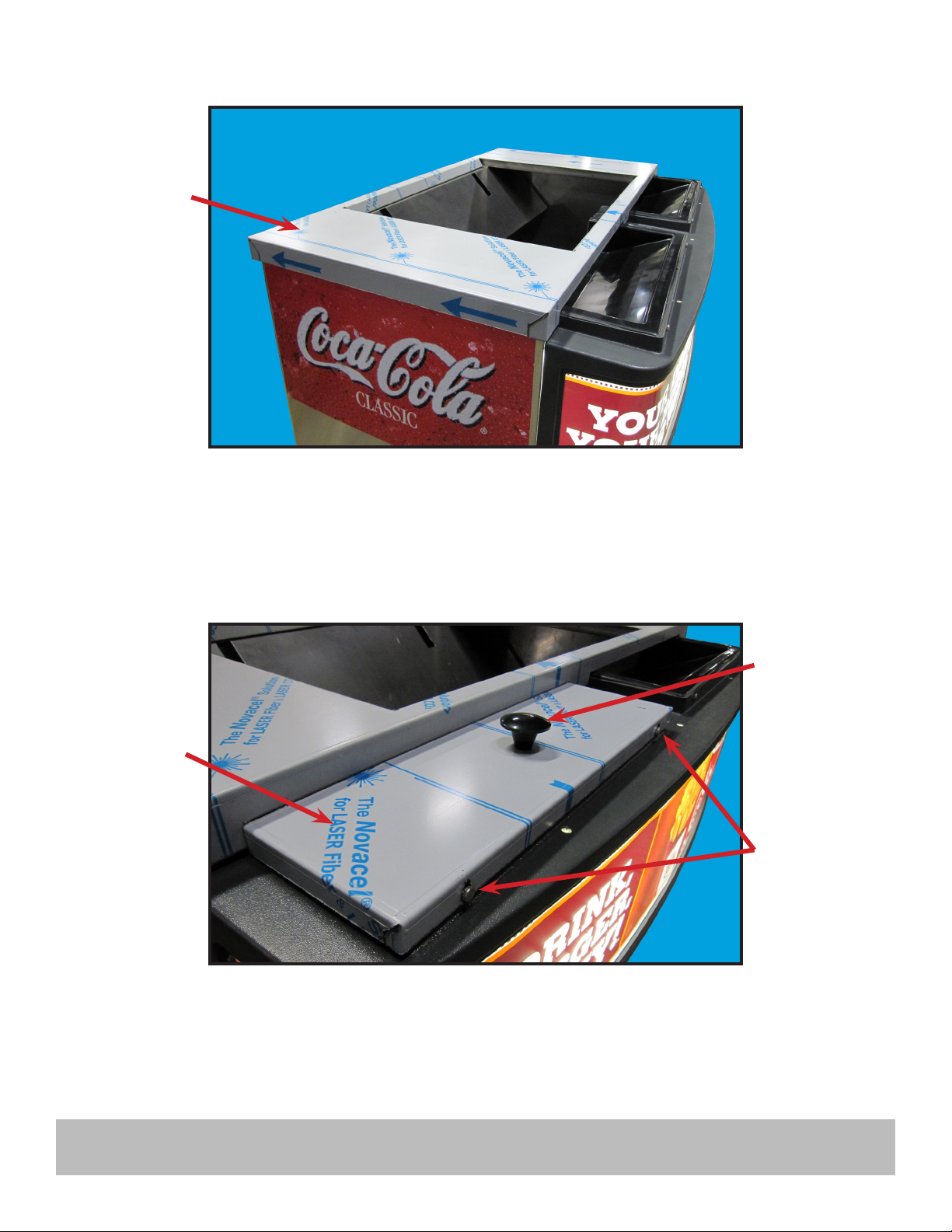

B. Install the angled buffer to the top of the unit by sliding the buffer to the back of the unit.
Angled Buffer
!Please refer to the Lancer web site (www.lancercorp.com) for information relating to Lancer Installation and Service
Manuals, Instruction Sheets, Technical Bulletins, Service Bulletins, etc. !
C. Install adapter plate over the angled buffer, noting the open notches in the adapter plate
slidingoverthetwomanualllzonesinthefrontoftheunit.
D. Install the handles of the two front covers using the screws provided.
E. Loosenthetwothumbscrewstowardthefrontoftheunit,infrontoftheopenmanualll
zones.
NOTE: DO NOT fully remove thumb screws.
F. Once thumb screws are loosened, slide cover plate over opening and tighten screws to
secure in place.
G. Repeat Steps E-F for the second cover opening.
Thumb Screws
Cover Handle
Cover Plate
Adapter Plate
