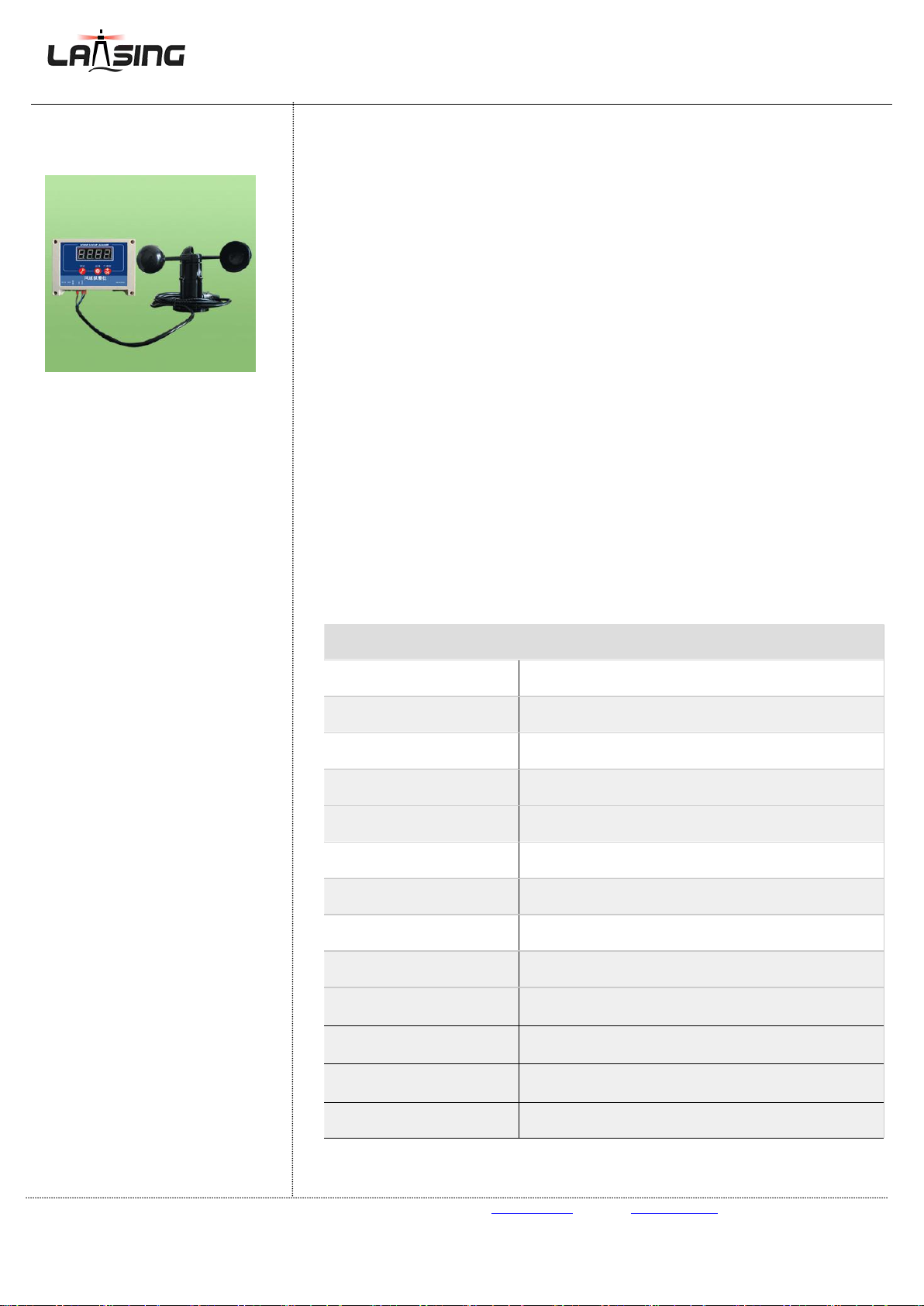

SY01 Wind Speed Sensor & Display Recorder
SY01
1/4
Description:
SY01 Wind speed sensor & display recorder is a meteorological instrument used to measure and
record the wind speed.The product adopts high-definition LCD display the current date, time,the
wind speed value,built-in high-capacity flash memory chip which can be automatically stored for
at least one year meteorological data.It is available through three kinds of communication
interface (RS232/RS485/USB) establish a communication connection with a computer.The
instrument can be widely used in meteorology, agriculture, forestry, environmental protection,
marine, airport, port, scientific research and other fields.A complete set of products including
SZ10 data logger, wind speed sensor(WA01&WS05).The default is WA01&WS05,the SZ10 data
logger can also match WA01&WS05 to use.
Features:
● Compact size for easy installation
● Great dynamic characteristics
● Visual display
● Real-time monitoring
● Light weight
● Rapid response
● Overall carbon fiber material
● Large capacity data storage
● Various output signal optional
Specifications
Wind speed(WA01&WS05)
Range
0-32.4m/s
Resolution
0.1m/s
Accuracy
±1m/s
Power supply
12VDC
Storage capacity
>10，000 message
Recording time interval
1min to 24 hrs(adjustable)
Wind Limit Alarm
0.0m/s~25.5m/s adjustable(two TTL signals output)
Power consumption
50mA
Communication mode
4~20 mA
Operating temperature
-40℃-+85℃@5%RH～95%RH
Wind speed value
(input current -4)/16*32.4m/s
Alarm threshold
0-32m/s
Ingress protection(Data logger)
IP54

Shanghai Lansing Electronics Co., Ltd Tel：[phone] Fax：[phone] Web：www.lansinglight.com E-mail：[e-mail] Add: No. 609，Tahui Rd,
Shihudang Town, Songjiang district Shanghai, China, 201612
All rights reserved by Lansing, without the written authorization of the Lansing, any part thereof shall not be reproduced or transmitted in any form.
SY01 Wind Speed Sensor & Display Recorder
SY01
2/4
Application:
* Weather monitoring stations
* Safety monitoring of high altitude equipment
* Ports
* Solar and wind power generation
* Mobile weather monitoring vehicles
* Marine vessels
* Remote airports & helipads
* Road & rail tunnels
1. Rail installation
Push down the mounting card on the back of the instrument, insert the guide rail into the
guide groove on the back of the instrument, push the mounting card up to catch the guide
rail, and fix the guide rail with the instrument with bolts. (Specifications as shown below)
2. Installation through mounting holes
Use four mounting holes of Φ3mm, and use bolts to tightly fix it in the control box.
Appearance size:
Wind speed display: The wind speed alarm uses a bright red 4-digit digital tube display, the
wind speed display is accurate to 0.1, and the wind speed value is updated every 1 second;
Power on display countdown: 3333, 2222, 1111 and then enter normal working mode;
Digital tube display sensor wind speed value 00.0 M/S Display range: 0.1-32.4
Digital tube display setting threshold C-00. M/S Setting range: 1-32

Shanghai Lansing Electronics Co., Ltd Tel：[phone] Fax：[phone] Web：www.lansinglight.com E-mail：[e-mail] Add: No. 609，Tahui Rd,
Shihudang Town, Songjiang district Shanghai, China, 201612
All rights reserved by Lansing, without the written authorization of the Lansing, any part thereof shall not be reproduced or transmitted in any form.
SY01 Wind Speed Sensor & Display Recorder
SY01
3/4
Function:
Alarm function: threshold alarm and fault alarm;
Threshold alarm: When the wind speed exceeds the preset alarm threshold, the digital tube flashes, the buzzer emits an alarm
sound that repeats for 1.5 seconds, and the relay operates at the same time, the default value = 10m/s.
Failure alarm: If the device detects that there is no signal or the sensor's collection value exceeds the range, the device will emit a
continuous short beep to remind the customer that the sensor is faulty or the signal line is faulty, and the error message code is
displayed at the same time:
E-01: The signal wire is not connected, or the sensor is damaged, and the current is out of range;
Relay action: normally closed point open circuit, normally open point closed
Keys: TEST, SET, +/confirm
TEST: Test the button, press the button, the device emits a continuous short beep, the nixie tube flashes, and the relay keeps
operating; the button release function is cancelled.
SET: Set the alarm threshold function, in the normal working mode, press the SET button, the digital tube display will switch from
the wind speed display to the alarm threshold display, and the display time will
be maintained for 10s (automatically return to the wind speed display after 10s without action). "+/Confirm" button to adjust the
threshold (in the process of adjustment, each time you press "+/confirm", the alarm threshold setting display delay 10s), press
"SET" again, the alarm threshold is successfully set and switched to Wind speed display;
+/Confirm: This button is used to adjust the alarm threshold value, and it will take effect after the SET button is effective; the
adjustment value 1-32-1-32 increases cyclically.
Note: In the event of a fault alarm, all the buttons will not work and must be restored to the normal working mode or the
confirm button will cancel the alarm before the button is effective.
When a threshold alarm occurs, press any key to cancel the buzzer alarm, the relay will continue to operate, and the nixie tube will
flash; press and hold the confirm button for three seconds to cancel the buzzer, display flashing, and relay action functions, and
the alarm will be within one hour There will be no repeated alarms. If the wind speed value decreases below the threshold value,
the alarm device judges that the alarm is cancelled, and the corresponding alarm function is also cancelled. After the alarm
threshold is reset, the alarm device will judge the alarm again.
Note: The above-mentioned alarm does not occur repeatedly within one hour, excluding when the wind speed value decreases
below the alarm threshold, the alarm will re-determine the alarm at this time and re-issue the alarm action.
Wiring definition
Terminal
符号
定义
power
supply
P1
+
Power is positive
-
Power is negative
P3
+
+12vOutput to power the
sensor
IN
Sensor signal input
-
GND
P2
NO
Normal Open 常开
COM
Public
NC
Normal Close 常闭

Shanghai Lansing Electronics Co., Ltd Tel：[phone] Fax：[phone] Web：www.lansinglight.com E-mail：[e-mail] Add: No. 609，Tahui Rd,
Shihudang Town, Songjiang district Shanghai, China, 201612
All rights reserved by Lansing, without the written authorization of the Lansing, any part thereof shall not be reproduced or transmitted in any form.
SY01 Wind Speed Sensor & Display Recorder
SY01
4/4
Preparation and inspection before use
Pay attention
Please read this manual completely before use
Correctly connect the equipment line
First confirm
﹡Check whether the equipment is the same as the equipment you purchased
﹡Check whether the appearance of the equipment is damaged
﹡Check if the equipment accessories are complete
caveat
Wiring not in accordance with the wire sequence may cause damage to the equipment and the equipment connected to the
equipment
When the input power exceeds the maximum access power of the device, it will cause damage to the device
Fault analysis and troubleshooting
1.Sensor output signal is
abnormal
2. The sensor has no signal
output
◆Check whether the
supply voltage is stable
◆Check whether the
power supply range is
normal
◆Check whether the
line is virtual connection
◆Check whether the
positive and negative poles
of the power supply and the
ground wire are connected
correctly
◆Check whether the power
supply voltage meets the
requirements
Care and maintenance：
This instrument is a scientific and technological product with excellent design and functional principles, and attention should be
paid to maintenance. The following suggestions will help you effectively use maintenance services.
﹡Avoid the instrument being scratched, maintain the integrity of the external protective film, and increase the service life of the
instrument
﹡When using the instrument, please fix each connection part firmly to avoid damage to the instrument
﹡Rough treatment of the instrument will destroy the internal circuit board and precise structure
﹡Do not paint the instrument with paint, as the paint will block debris in the detachable parts and affect normal operation
﹡Use a clean, dry soft cloth to clean the outside of the instrument
﹡Check the power supply of other configuration equipment regularly to ensure the normal operation of the instrument
﹡During the use of the turbidity sensor, the surface of the sensor needs to be cleaned regularly. The cleaning cycle is based on
the conditions of use, and it is cleaned every 3-6 months. When cleaning, turn off the power, take out the sensor, and then gently
wipe the surface of the sensor and the inner surface of the constant current device with soft filter paper, and then rinse it with
clean water. When cleaning, be careful not to scratch the surface of the sensor.
