Lasonic JL-016 User manual

User Manual of Portable Digital PhotoAlbum
JL-016 JL-025
Before attempting to connect, operate or adjust this product, please read these instructions completely. Please save this manual.

Table of Contents
Contents Page
IMPORTANT SAFETY INSTRUCTIONS 1 - 4
PRECAUTIONS 5
Package Contents 6
Brief Introduction of Controls 7
The Remote Control 8
Quick Start (viewing your photos) 9
- 10
Advanced Features: 11 – 26
Zooming, Rotating &
Deleting Photos / Starting Slideshow 11
Setting Properties 12 - 13
Using Folder Mode 14
Switching Between Memory Cards 15
Viewing Your AVIs (motion jpeg) 16
Repeating, Deleting AVIs / Starting Slideshow 17

Returning To Main Menu
Playing On Your TV
Uploading Photos From Your Computer
Uploading Photos From A PC
Uploading Photos From A Mac
Install the stand
Troubleshooting
Specifications
18
19
20 - 21
22 - 24
25
26
27
28

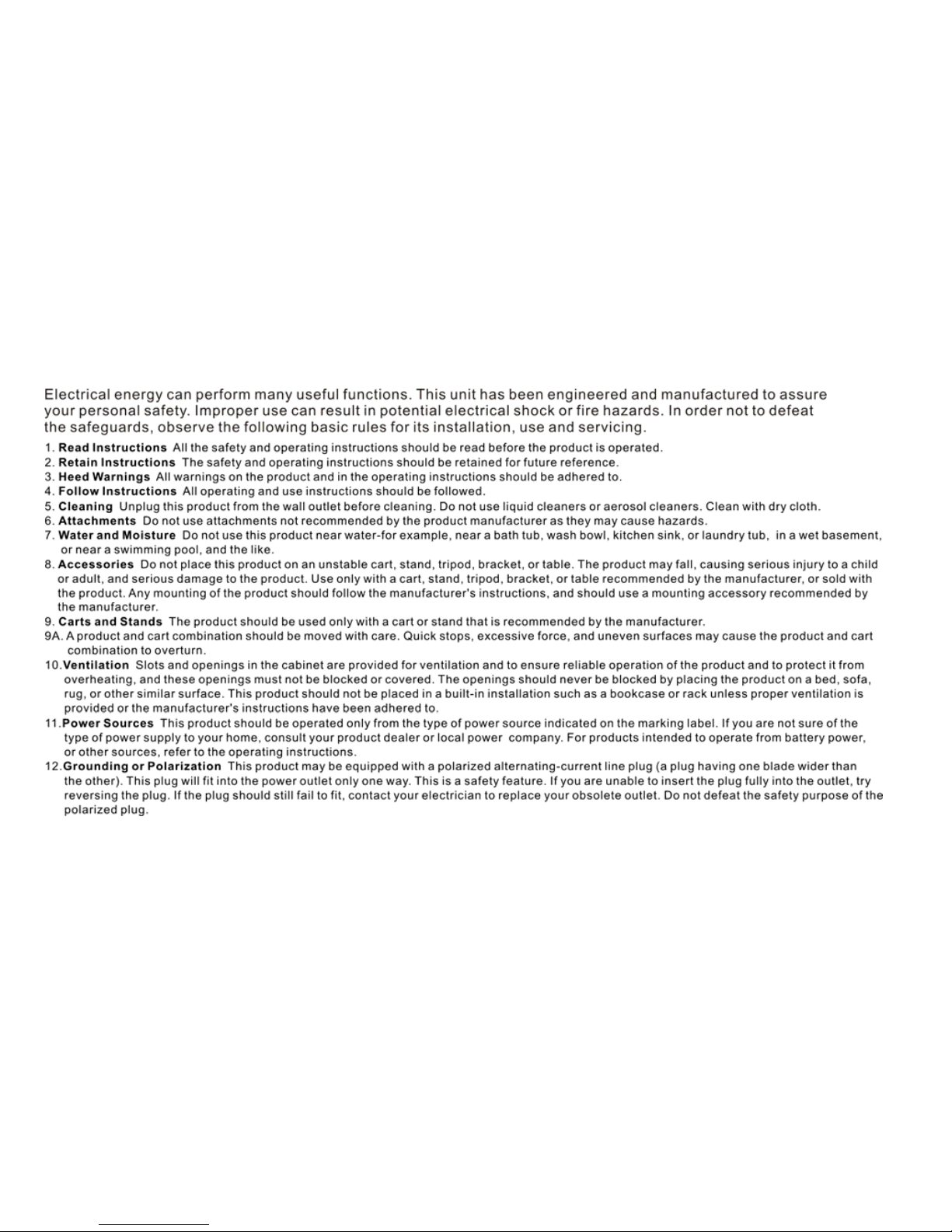

Important : Only use attachments/accessories specified by the manufacturer.

1

2

3

4

5

Package Contents
(2) Portable Digital Photo Album (JL-016) (1) Instruction Booklet
(3) Portable Digital Photo Album (JL-025) (4) Video Cord
(5) Power Adaptor (6) USB Cable
(7) Remote Control (8) Stand
(1) (2) (3) (4)
6
(5) (6) (7) (8)

Brief introduction of control elements
Power Switch
ENTER button
MENU button
Navigation button (Left/Right/Up/Down)
Video OUT jack
USB jack
DC IN jack
SD/MMC/MS card slot
7

The Remote Control
SETUP button : Press Setup button on Start-up screen to set
setup menu.
8
1
2
3
4
5
6
Zoom button : Zoom in on photo for closer view.
EXIT button : Press EXIT button to return the thumbnails or setup
menu.
NAVIGATION button (LEFT/RIGHT/UP/POWER/ENTER) :
Press Navigation button to select and playback the photo in the
thumbnails.
AUTOPLAY button : Press AUTOPLAY button to slideshow all
pictures.
ROTATE button : Press Rotate button to rotate photo 90 degrees
clockwise.

Quick Start: Viewing Your Photos
1. Basic controls (3) Using Navigation button, highlight thumbnail you want to
view and press ENTER button.
zPress large round Navigation button left, right, up, or down
to highlight items on the screen. (4) Selected photo will fill the screen.
zPress ENTER button to select the item you’ve highlighted.
zPress EXIT button to stop an operation or to return to a
previous screen.
2. Viewing photos
(1) Turn player on and insert memory card into appropriate
slot (SD or MS). You can use any capacity memory card.
The greater the capacity, the more photos you will be able
to show with your player.
(5) To view next photo, press Navigation button right. To view
previous photo, press Navigation button left.
(2) Photos on card will appear automatically on screen as
thumbnails. (If folders appear instead, player is in Folder
Mode – see page 15) To view additional thumbnails, press
Navigation button down until additional thumbnails appear.
(6) To return to thumbnails, press EXIT button.
9

Quick Start: Viewing Your Photos
3. Starting slide show
(1) While viewing any photo, press ENTER button.
(2) Photo tool bar will appear.
(3) Using Navigation button, highlight slideshow icon (third
icon) and press ENTER button.
(4) Slideshow will begin.
(5) To stop slide show, press EXIT button. To return to
thumbnails, press EXIT button again.
Please read through the Advanced Features section of this
manual to review additional player features.
10

Advanced Features: Zooming, Rotating & Deleting Photos / Starting Slideshow
1. Zooming, rotating & deleting photos / starting
slideshow (4) Tools:
(1) While viewing any photo, press ENTER button. Rotate : Rotate photo 90 degrees clockwise.
11
Zoom : Zoom in on photo for closer view.
Slideshow : Start slideshow.
Delete : Delete photo appearing on screen.
Set Up Menu : Bring up Set Up screen to choose your player’s
properties - language, slideshow interval, tv type,
and whether folders and file descriptions appear
on screen.
(2) Photo Tool Bar will appear.
(3) Using Navigation button, highlight desired tool. Press
ENTER button to effect action (photo will rotate, zoom,
etc.).

Advanced Features : Setting Properties
1. Setting properties (3) Using Navigation button, change parameters as desired.
(4) Press EXIT button.
You can use the Setup Menu to choose how your player will
operate. (5) If you’ve changed parameters, you will be prompted to
confirm or reject your changes by pushing ENTER
(confirm) or EXIT (reject).
(1) Using the Navigation button, highlight the tools icon in the
main menu. Press ENTER button.
12
(2) Setup Menu will appear. The function explaining see
page 13.

Advanced Features : Setting Properties
.
Menu Item Description
13
Language Change language displayed (English is default).
Slide Description Set interval time between photos in slideshow mode.
Yes Both files and folders are viewable.
Folder Mode No Folders are hidden; only files are viewable.
TV Type TV System NTSC or PAL
Aspect Ratio LCD panel
display
16 : 9 or 4 : 3

Advanced Features: Using Folder Mode
1. Understanding folder mode 3. Using folder mode
Player can operate in folder or non-folder mode. In folder
mode, folders containing photos and AVIs appear, and you
must open a folder to view thumbnails. In non-folder mode,
folders are not visible – photos and AVIs appear directly as
thumbnails.
(1) When folders appear, use Navigation button to highlight
folder containing desired photo or AVI. Press ENTER
button.
2. Activating & deactivating folder mode
Following instructions under Setting Properties (page 13
select “Yes” beside the menu item “Folder Mode” to activate;
select “No” to deactivate.
(2) Thumbnails contained in selected folder will appear.
14

Advanced Features: Switching Between Memory Cards
1. Switching between memory cards (4) Thumbnails of photos or AVIs on the selected memory
card will appear. (If folders appear instead, you are in
Folder Mode – see page 13.)
(1) Using Navigation button, highlight memory card tool.
Press ENTER button.
(5) View photos or AVIs.
15
(2) Icons representing memory cards in device will appear.
(3) Using Navigation button, highlight card you wish to use.
Press ENTER button.

Advanced Features: Viewing Your AVIs (motion jpeg)
1. Viewing AVIs (4) AVIs on card will appear automatically on screen as
thumbnails. (If folders appear instead, player is in Folder
Mode – see page 14.) To view additional thumbnails,
press Navigation button down until additional
thumbnails appear.
(1) Turn player on and insert memory card into appropriate
slot (SD or MS).
(2) Using Navigation button, highlight camera icon on the
main menu. Press ENTER button.
(5) Using Navigation button, highlight thumbnail you wish to
view and press ENTER button.
(3) Two additional icons appear. Highlight the camcorder
icon. Press ENTER button. (6) Selected AVI will play.
(7) To view next AVI, press Navigation button right. To view
previous AVI, press Navigation button left.
(8) To return to thumbnails, press EXIT button.
16

Advanced Features: Repeating & Deleting AVIs / Starting Slideshow
(4) Tools.
1. Repeating & deleting AVIs / starting slideshow
(1) After viewing an AVI, press ENTER button. Repeat : Replay current AVI.
Slideshow : Starts slideshow (all AVI’s play one after another).
Delete : Deletes current AVI.
Set Up Menu : Bring up Set Up screen to choose your player’s
properties - language, slideshow interval, tv type,
and whether folders and file descriptions appear
on screen.
(2) AVI Toolbar will appear.
(3) Using Navigation button, highlight desired tool. Press
ENTER to effect action (AVI will repeat, delete, etc.)
17
