CROSSOVER 2.0 SERIES
In a class by itself
WASHER INSTALLATION MANUAL
MODEL NO. WHLFP817M
WHLFP817MI
DOC. NO. 0020506871C
EDITION 23.2018
OPERATING MANUAL
ATTENTION INSTALLER
Four transportation bolts are installed in the rear of the machine,
to protect the suspension and tub assembly from damage during
shipment. REMOVE ALL FOUR BOLTS AND PLASTIC TUBES
THROUGH WHICH THE BOLTS PASS BEFORE OPERATING THE
MACHINE!! See instructions later in this manual.
Installation Manual
WHLFP817M
WHLFP817MI
WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN IN THIS MANUAL
MUST BE FOLLOWED AT THE FREQUENCY SPECIFIED FOR PROPER OPERATION OF
YOUR MACHINE.
PLEASE ENTER THE FOLLOWING INFORMATION AS IT APPEARS ON THE MACHINE(S)
DATA PLATE(S).
KEEP THIS MANUAL IN A SECURE PLACE FOR FUTURE REFERENCE.
MACHINE MODEL
MACHINE SERIAL NUMBER(S)
ELECTRICAL CHARACTERISTICS: VOLTS, PHASE, HZ.
244824
Intentionally blank
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANTES MESURES DE SECURITE
WARNING -
To reduce the risk of re, electric chock, or injury to persons when using your appliance:
AVERTISSEMENT -
Pour réduire les risques d´incendie, de choc électrique ou de blessure quand, I´appareil est utilisé:
1. Read all instructions before using the appliance.
Lire toutes les instructions avant d’utiliser l’appareil.
2. This machine must be installed according to the installation instructions.
Ce machine doit être visseé sur le plancher selon les instructions d’installation.
3. This machine MUST be serviced and operated in compliance with manufacturers instructions. CHECK DOOR LOCKS
EVERY DAY FOR PROPER OPERATION TO PREVENT INJURY OR DAMAGE. IF THE DOOR LOCK FAILS TO
OPERATE PROPERLY, PLACE THE MACHINE OUT OF ORDER UNTIL THE PROBLEM IS CORRECTED.
IL FAUT QUE cette appareil soit entretenue et actionnée conformement aux instructions du fabriquant. CONTROLEZ LA
SERRURE DE PORTE TOUS LES JOURS AFIN DE EVITER DES DOMMAGES OU DES RISQUES PERSONNELLES.
SI LA SERRURE DE PORTE NE FONCTIONNE PAS, IL FAUT METTRE LA MACHINE HORS SERVICE JUSQU’Á LE
PROBLEME SOIT CORRIGÉ.
4. Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, drycleaning
solvents, or other ammable or explosive substances, as they give off vapors that could ignite or explode.
Ne pas laver des articles qui ont été nettoyés ou lavés avec de l’essence, des solvants pour nettoyage à sec ou d’autres
substances inammables ou explosives, ou que l’on a fait tremper dans ces produits. Ces substances dégagent des
vapeurs qui peuvent s’enammer ou exploser.
5. Do not add gasoline, dry-cleaning solvents, or other ammable or explosive substances to the wash water. These
substances giveoff vapours that could ignite or explode.
Ne pas ajouter d’essence, de solvants pour nettoyage à sec ou d’autres substances inammables ou explosives à l’eau
de lavage. Ces substances dégagent des vapeurs qui peuvent s’enammer ou exploser.
6. Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2 weeks or
more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using a
washing machine, turn on all hot-water faucets and let the water ow from each for several minutes. This will release any
accumulated hydrogen gas. As the gas is ammable, do not smoke or use an open ame during this time.
De l’hydrogène peut être produit dans un système à eau chaude qui n’a pas été utilisé depuis deux semaines ou plus.
L’HYDROGÈNE EST EXPLOSIF. Si le système à eau chaude n’a pas été utilisé depuis un certain temps, ouvrir tous les
robinets d’eau chaude et laisser l’eau couler pendant plusieurs minutes avant d’utiliser une laveuse, l’hydrogène accu
mulé, le cas échéant, s’échappera. L’hydrogène étant inammable, ne pas fumer ou utiliser un appareil à amme nue
pendant que l’eau coule.
7. Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is
used near children.
Ne pas permettre aux enfants de jouer sur ou dans l’appareil. Surveiller ètriotement les enfants lorsqu’ils se trou veent
près d l’appareil qui fonctionne.
8. If the machine is to be discarded, remove the door to prevent accidental entrapment.
Avant de mettre l’appareil hors service ou de jeter, retirer la porte.
9. Do not reach into the appliance if the tub is moving.
Ne pas mettre la main dans l’appareil lorsque la cuve bougent.
10. Do not install or store this appliance where it will be exposed to the weather.
Ne pas installer ou placer cet appareil dans un endroit où il sera exposé aux intempéries.
11. Do not tamper with controls.
Ne pas traquer les commandes.
12. Do not repair or replace any part of the appliance or attempt any servicing unless specically recommended in the user
maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.
Ne pas réparer ou remplacer les pièces de l’appareil ou procéder à l’entretien de celui-ci sauf si les instructions visant
l’entretien et les réparations qui doivent être effectués par l’utilisateur le spécient, si vous comprenez bien ces instructi
si vous possédez les connaissances nécessaires.
MANUFACTURED BY HAIER EXCLUSIVELY FOR LAUNDRYLUX
NOTICE TO: OWNERS, OPERATORS AND DEALERS
IMPROPER INSTALLATION AND INADEQUATE MAINTENANCE, POOR HOUSEKEEPING AND WILLFUL NEGLECT OR
BYPASSING OF SAFETY DEVICES MAY RESULT IN SERIOUS ACCIDENTS OR INJURY. TO ASSURE THE SAFETY
OF CUSTOMERS AND/OR OPERATORS OF YOUR MACHINE, THE FOLLOWING MAINTENANCE CHECKS MUST BE
PERFORMED ON A DAILY BASIS.
NOTICE À L’ATTENTION DES PROPRIÉTAIRES, UTILISATEURS ET REVENDEURS
UNE INSTALLATION INCORRECTE ET UN ENTRETIEN INADÉQUAT, DE MÊME QUE LA NÉGLIGENCE OU LA
NEUTRALISATION DÉLIBÉRÉES DES DISPOSITIFS DE SÉCURITÉ, PEUVENT ÊTRE CAUSES DE BLESSURES OU
D’ACCIDENTS SÉRIEUX. POUR ASSURER LA SÉCURITÉ DES CLIENTS ET/OU DES UTILISATEURS DE VOTRE
MACHINE, IL EST INDISPENSABLE DE PROCÉDER CHAQUE JOUR AUX CONTRÔLES DE ROUTINE CI-APRÈS.
1. Prior to operation of the machine, check to make certain that all operating instructions and warning signs
are afxed to the machine and legible. (See the following page of this manual for description and location
of the signs.) Missing or illegible ones must be replaced immediately. Be sure you have spare signs and
labels available at all times. These can be obtained from your distributor or from Laundrylux.
2. Check the door safety interlock, as follows:
(a) OPEN THE DOOR of the machine and attempt to start in the normal manner:
For coin-operated models, insert the proper coins to start the machine.
For card-operated models, insert the card to start the machine.
THE MACHINE MUST NOT START
(b) CLOSE THE DOOR to start machine operation and, while it is operating, attempt to
open the door without exerting extreme force on the door handle. The door should
remain locked!
If the machine can start with the door open, or can continue to operate with the door
unlocked, the door interlock is no longer operating properly. The machine must be
placed out of order and the interlock immediately replaced.
3. DO NOT UNDER ANY CIRCUMSTANCES ATTEMPT TO BYPASS OR REWIRE ANY OF THE MACHINE
SAFETY DEVICES AS THIS CAN RESULT IN SERIOUS ACCIDENTS.
4. Be sure to keep the machine(s) in proper working order. Follow all maintenance and safety procedures.
Further information regarding machine safety, service and parts can be obtained from your dealer or from
Laundrylux through its Technical Support Hotline - (516) 371-0700.
All requests for assistance must include the model, serial number and electrical characteristics as
they appear on the machine identication plate. Insert this information in the space provided on the
previous page of this manual.
5. WARNING: DO NOT OPERATE MACHINE(S) WITH SAFETY DEVICES BYPASSED, REWIRED OR
INOPERATIVE! DO NOT OPEN MACHINE DOOR UNTIL DRUM HAS STOPPED ROTATING!
AVERTISSEMENT: NE PAS FAIRE FONCTIONNER LA (LES) MACHINE(S) AVEC UN DISPOSITIF
DE SÉCURITÉ NEUTRALISÉ, RECÂBLÉ OU NON OPÉRATIONNEL! NE PAS OUVRIR LA
MACHINE TANT QUE LE TAMBOUR NE S’EST PAS IMMOBILISÉ!
NOTICE TO INSTALLER
Improper installation of this machine:
• May cause serious damage to the machine.
• May result in other property damage.
• May cause personal injury.
• Will void the manufacturer’s warranty.

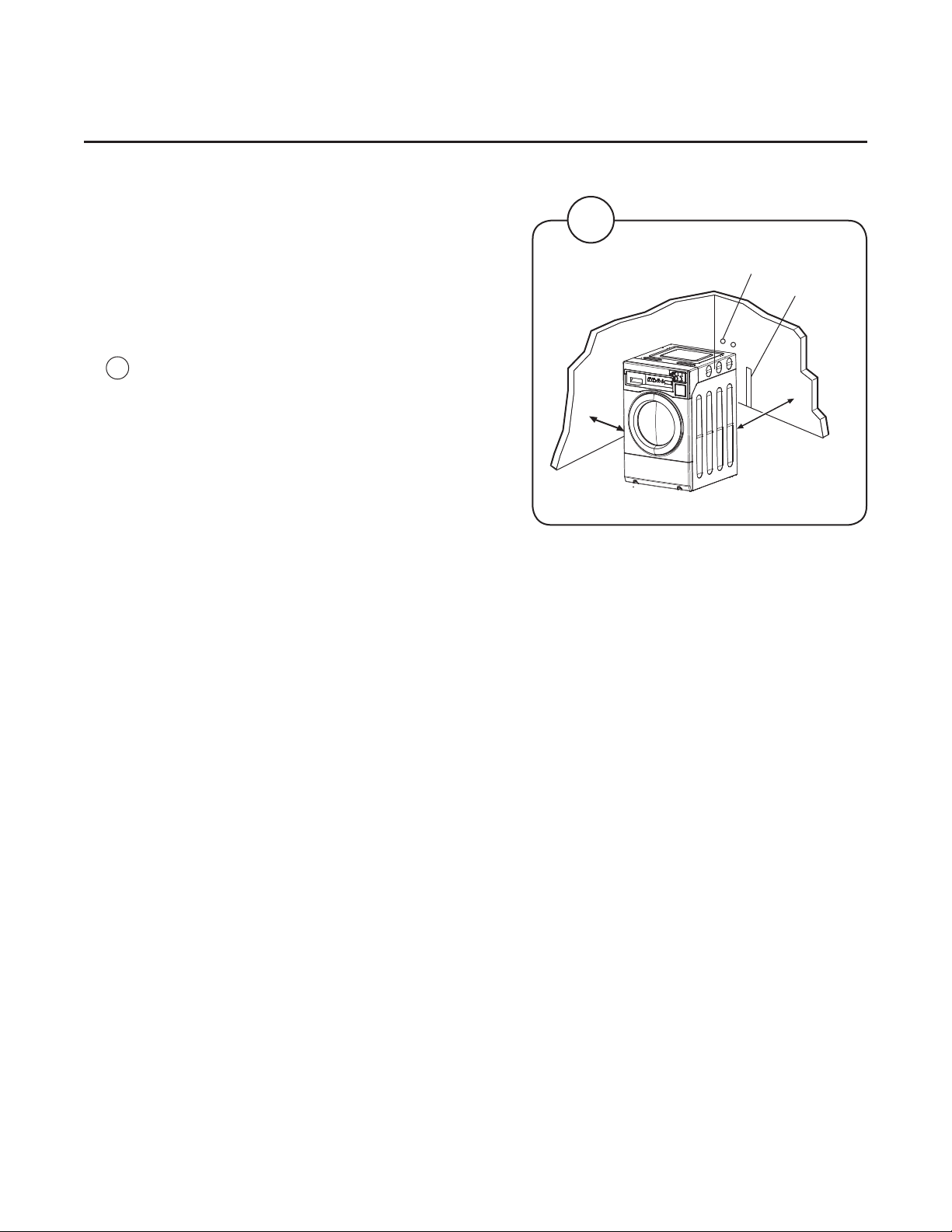

Location Requirements
• The location for your washer should have a at and even oor. This will improve
performance, minimize noise and decrease washer movement.
• The unit can be installed in a laundry room, or other recessed area.
Additional Requirements
• A grounded electrical outlet. Do not use an extension cord with this appliance. It must be
plugged directly into a grounded electrical outlet.
• It is not recommended to use washer on soft ooring such as carpets or foam.
• Do not operate washer if ambient room temperature is less than freezing, as this can cause
damage to the unit.
Contents

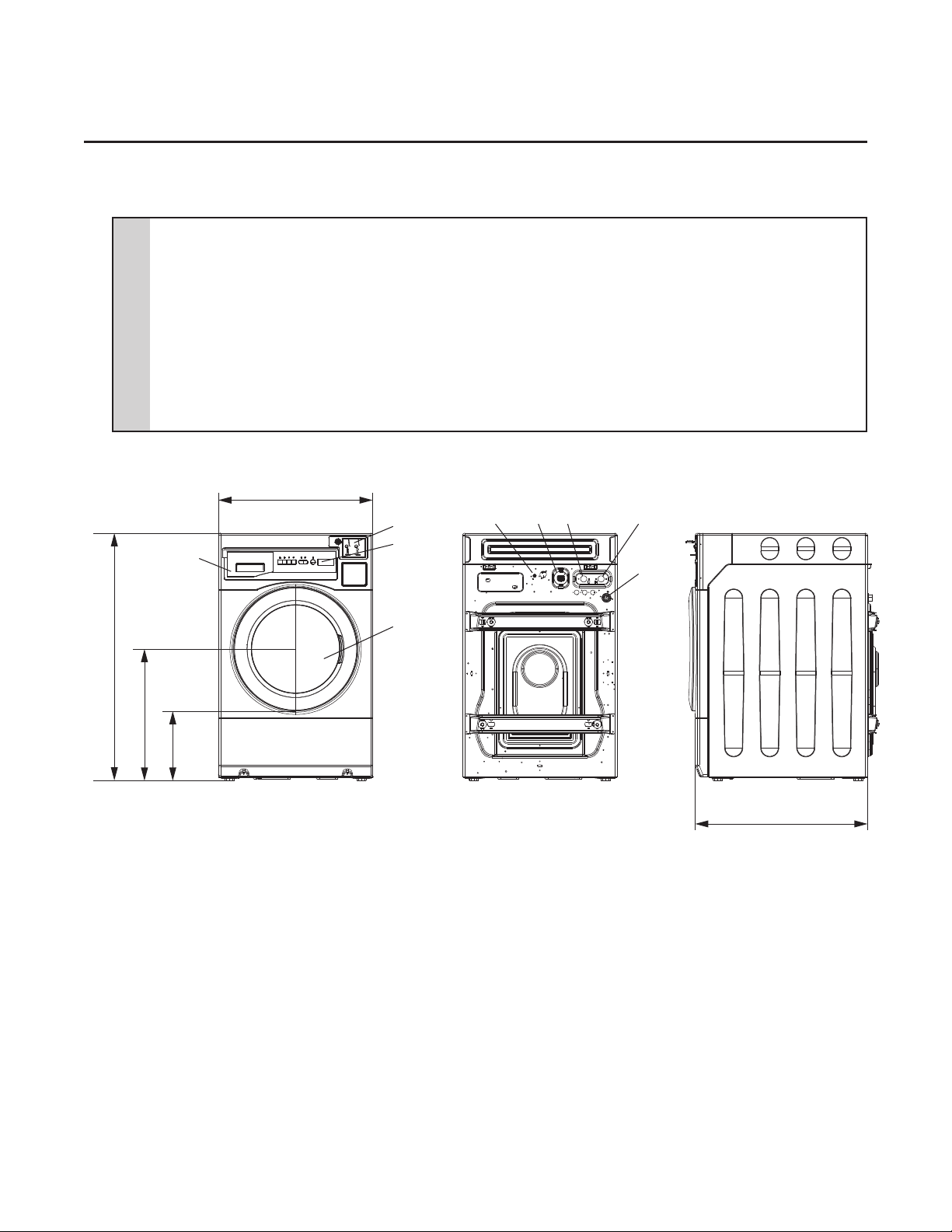

Technical Data..................................................................................................1:1
Installation ........................................................................................................2:1
Water Connections .....................................................................................3:1
Drain Connection........................................................................................4:1
Connection of External Liquid Supplies......................................................5:1
Function Checks...............................................................................................6:1
Preventive Maintenance ...................................................................................7:1
The manufacturer reserves the right to make changes to design, material
and/or specications without notice.
Safety Instructions
• The machine is designed for water washing only.
• The machine must not be used by children.
• Allinstallationoperationsaretobecarriedoutbyqualiedpersonnel.
Licensed personnel are necessary for all electric power wiring and
plumbing.
• The door interlock must be checked daily for proper operation and
must not be bypassed.
• All leaks, due to faulty gaskets etc., must be repaired immediately.
• All service personnel must be fully familiar with the operating manual
before attempting any repair or maintenance of the machine.
• The machine must not be sprayed with water.
• Donotaddammableorexplosivesubstancestothewashwater.
Theycangiveoffvaporsthatcouldigniteorexplode.
Consignes de sécurité
• Lamachineestconçuepourlelavageàl’eauexclusivement.
• La machine ne peut être utilisée par des enfants.
• Touslestravauxd’installationdoiventêtreeffectuésparunepersonne
qualiée.Touslescâblagesélectriquesdoiventêtreréalisésparun
électricien diplômé.
• Leverrouillageduhublotdoitêtrevériéchaquejouretnepeutêtre
neutralisé.
• Toutefuitedusystème,dueàdesjointsdéfectueuxetc.,doitêtre
réparée sans délai.
• Tous les membres du personnel d’entretien doivent être parfaitement
familiarisés avec le manuel d’entretien avant d’entreprendre une
réparation ou un entretien de la machine.
• Nejamaisaspergerd’eaulamachinesouspeinederisquerun
court-circuit.
• Nepasutiliserdanslamachinedesadoucissantstextilescontenant
desliquidesvolatilsouinammables.
Technical Data 1:1
Technical Data
Innerdrum
volume litres/ft3
diameter mm/inch
98/3.5
554/21 13/16
Drum speed
wash rpm
extraction max rpm
45
1000
G-factor
Weight, net kg/lbs
306
136/300
Connections
Water valves
connection
DN20
3/4" Garden Hose via included hoses
Rec. water pressure psi
kPa
30-90
200-600
Functioning limits psi
for water valve kPa
8-145
50-1000
Capacity at 45 psi
(300 kPa) gallon/min
liter/min
2.6
10
Drain hose inch
outer Ø mm
1
25
Draining gallon/min
capacity liter/min
5
20
Technical Data
1:2
1
2
3
4
5
6
7
8
9
Power Line
Air Vent for Safety
Cold Water
Hot Water
Drain
Coin Meter (coin operated models only)
Control Panel
Detergent Dispenser
Door
A
B
C
D
E
1234
5
6
7
9
8
NOTES:
A 1098mm = 43 1/4 inch
B 584mm = 23 inch
C 310mm = 12 3/16 inch
D 686mm = 27 inch
E 765mm = 30 1/8 inch
