System Unpack and Check
Carefully unpack the shipment and check the unit for the following:
12 Volt Power
Cable
Centering Bands
(with Collars)
Camera
Camera Case
Winch
Winch Power
Cable
Control Cable
BNC-RCA Cable
Tripod (Collapsed)
Tripod Sheave
Control Unit
TriLight
Lens Shield
Optional Accessories
(Sold Separately)
See www.lavalparts.com
for more details
Cable Head Repair Kit
1
Operating Checklist
Before Starting Setup
1. Unpack the Winch (Figure 1 Item 1) and place the Winch on a stable surface, or bolt
the frame to a secure platform using appropriately rated anchors.
2. Place Control Unit (Figure 1 Item 2) within 2 feet of the Winch on a flat secure
surface.
3. Make sure the power is off by flipping the Power Switch (Figure 2 Item 6), located on
the Winch Motor Controller (Figure 1 Item 3), to the OFF position.
4. Connect the Control Cable (Figure 1 Item 4) from the Control Unit (Figure 5 Item 2)
to the Winch Control Connector (Figure 2 Item 3).
5. Connect the Power Cable (Figure 1 Item 5) from the Control Unit 12 VDC input
(Figure 5 Item 1) to the 12 VDC output on the Winch (Figure 2 Item 4).
6. Insert the Power Cord into the Power Plug on the Winch (Figure 2 Item 5).
7. Turn the Speed Dial (Figure 2 Item 2) all the way to MIN.
8. Set up your Tripod (Figure 1 Item 6) or E-Z Over (not shown) on or over the hole for
surveying.
9. Flip the Power Switch on the Winch to the ON position (Figure 2 Item 6).
10. Flip the Winch Control Switch (Figure 2 Item 1) to the FORWARD position and turn
the Speed Dial (Figure 2 Item 2) slowly towards the MAX.
11. Run out enough cable to feed through the Tripod or E-Z Over so that the Camera
(Figure 1 Item 7) when connected is centered above the hole.
1
2
4
5
6
7
3
Figure 1
Note: All accessories are shown, please follow applicable instructions only
2
Connecting the Camera
1. Position the Winch Power Switch to OFF (Figure 2 Item 6).
2. Before connecting the Camera to the Cable head Connector (Figure 3 Item 1) inspect the
O-rings in both connectors to be sure they are clear of debris or any contamination. Also
check for any wear or damage. The O-rings should also be re-lubricated on a regular
basis. Use a NEMA-rated O-rings lubricant.

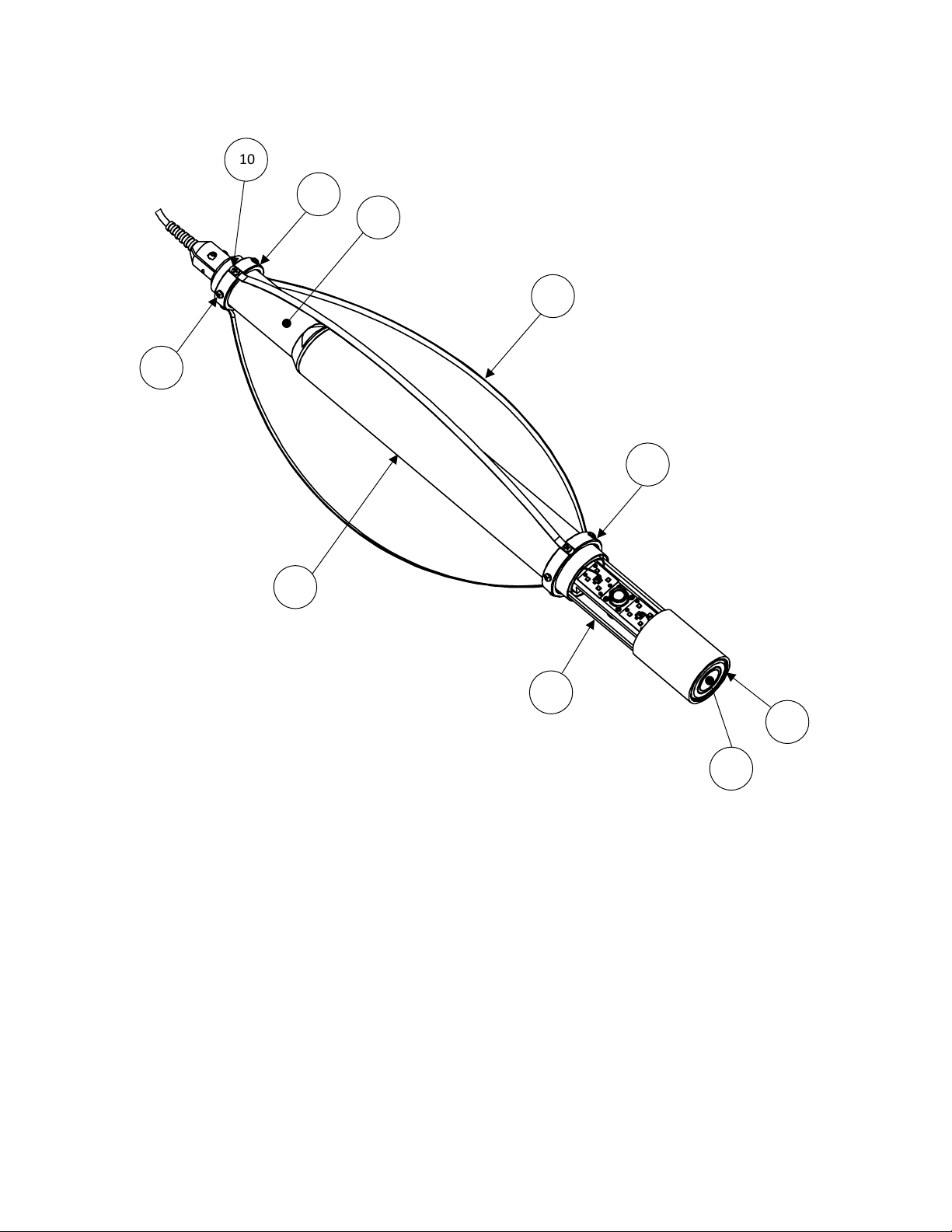

3. Slide the Centering Band Assy (Figure 4 Item 1) and Upper Support Tube (Figure 4 Item
2) beveled end first, over and past the Cable head (Figure 3 Item 1). Connect the Twist
Locking Cable head Connector to the Camera by carefully aligning the keyway on the
connectors together and twisting the lock until seated. The cable head connector
should only be hand tightened. Never over tighten the connectors or upper support
tube.
4. Thread the Upper Support Tube to the top of the Camera. Position the Lower Centering
Band Collar on the Camera Housing (Figure 4 Item 3) at least ½” above the Side View
Port (Figure 4 Item 4) DO NOT ATTACH THE CENTERING BAND COLLAR TO WITHIN ½”
OF THE GLASS PORT. Position the Upper Collar on the Upper Support Tube so that the
Centering Bands are extended to approximately ½ inch less than the diameter of the
well or borehole being inspected.
1
0
Figure 3
1
0
2
0
3
0
4
0
5
0
6
0
Figure 2
3
System Start Up
1. Position the Camera Control Power Switch to ON (Figure 5 Item 3), on the Control Unit.
Position the Winch Power Switch to ON (Figure 2 Item 6), on the Winch Motor
Controller.
2. Turn on the LCD Monitor. While watching the Monitor to verify operation Switch
between side and down view and adjust light intensity, with the VIEW-LIGHT Switch
(Figure 5 Item 5). The LED lighting should light up with the view selected. The light
intensity of the view selected can be changed by pressing LIGHT; this will cycle through
5 light intensity levels. Check the rotation by using the Cam Control FORWARD-REVERSE
Switch (Figure 5 Item 4); both the Down View and Side Views will rotate.
3. Rewind any excess cable by using the Winch Motor Controller functions (Figure 2) to
position the Camera in the well, near the top. Press the Camera Control CLEAR Switch
(Figure 5 Item 6) to reset depth counter to zero (000.00f).
4. Ensure the wireless keyboard is plugged into the Keyboard USB Input (Figure 5 Item 7)
and the supplied USB Flash Drive is installed into the Recording USB Input (Figure 5 Item
8). Press Ron the wireless keyboard to begin recording. Press Sat any time to capture a
NOTE: The Reel Control on the Control Unit does not operate the Winch.
The Winch Motor Controller and switches on the winch operate the Winch.
1
0
2
3
0
4
0
Figure 4
4
snapshot. Press ESC to stop and finalize the recording. (See Keyboard Functions Section
on page 13)
7
0
8
0
3
0
5
0
4
0
2
0
1
0
6
0
Figure 5
5
Tripod and Sheave Mounting
1. Extend the three Tripod legs (Figure 6 Item 1) fully away from the center of the unit until
it is in a stable position. The Sheave Assembly (Figure 6 Item 2) is mounted to the center
eyebolt with the use of a Mounting Clip (Figure 6 Item 3).
2. Remove the Quick Release Pin (Figure 6 Item 4) by pulling it out of the Sheave Assembly.
Thread the camera cable through the Sheave Assembly following the direction of the
arrow. Lay the cable over the Sheave Wheel in the center with the cable head in the
direction of the arrow.
3. Place the Quick Release Pin (Figure 6 Item 4) back into position to trap the cable, once
the Mounting Clip (Figure 6 Item 3) is clipped to the assembly.
4. Adjust the length of legs by lifting the red Lock (Figure 6 Item 5) and sliding each leg to
the desired length. Lower the red Lock back to lock the leg in place.
NOTE: For this Tripod and Sheave, the camera is required to be connected after feeding
the Cable Head (Figure 3 Item 1) through the Sheave Assembly.
Ensure power is OFF (Figure 5 Item 3) before disconnecting the camera.
Figure 6
1
0
2
0
3
0
4
0
5
6
CAUTION/ATTENTION
1. NEVER POINT THE DOWN HOLE OR SIDE VIEW CAMERAS DIRECTLY AT THE SUN EITHER
WHILE ON OR OFF
2. DO NOT connect or disconnect the Camera with the Control Unit CAM CONTROL ON-
OFF Switch ON (Figure 4 Item 2).
3. DO NOT operate the camera system in salt water, acidic or contaminated wells.
Whenever the camera and cable have been exposed to acidic or brine water, be sure to
wash immediately after use with fresh water.
4. DO NOT FORCE CONNECTIONS. OBSERVE ALL KEYWAYS ON CONNECTORS AND CABLE
HEAD TO PREVENT DAMAGE.
5. CAUTION Before connecting Power to the Control Unit be sure the REEL CONTROL
Power ON-OFF Switch is OFF (Figure 4 Item 1), CAM CONTROL ON-OFF Switch is OFF
(Figure 4 Item 2), SPEED Control is set to MIN (Figure 4 Item 4), and FORWARD-STOP-
REVERSE Switch is at the STOP or center position (Figure 4 Item 3).
6. You CANNOT switch between DOWN VIEW and SIDE VIEW while the Camera is rotating.
7. Loss of power will reset the On-Screen Counter.
8. Store the camera system in an indoor, dry, temperature-controlled environment.
Preferably in the provided carry case. DO NOT expose the camera system to extreme
temperatures during use or storage.
9. CAUTION: The Control Unit is NOT water proof when open. Take measures to prevent
water intrusion during use.
10. DO NOT exceed the minimum bend radius of 4” on the cable or cable head. Excessive
bending and kinking will damage the cable and cable head.
11. At least ten wraps of the Cable should always be left on the Reel Assembly Cable Drum
at maximum depths
12. DO NOT overtighten the cable head. Finger tighten when threading the cable head into
the camera, a wrench is not necessary.
7
Maintenance Instructions
•Ensure the cable head is properly secured during transport and storage.
•Regularly inspect the cable head o-ring condition and o-ring seal area for cleanliness.
This area should be free of debris and lubricated as needed.
•The cable head will experience normal wear during use and will need to be replaced at
various intervals depending on care and usage. A Cable Head Repair Kit, Part# 126883,
is available to replace the cable head in the field as needed. It can be purchased at
www.lavalparts.com or by calling +1 (559) 251-1396.
•Wash the Camera with fresh water and wipe clean after use. Ensure the camera is free
of unwanted oil and contaminates. If necessary, use mild dish soap to clean the camera.
•Prior to and after conducting each survey, inspect the glass ports on the side-view and
down-view for any cracks or debris in crevices. If necessary, use household glass cleaner
to clean the viewing ports.
•Inspect the cable head connection point at the top of the camera before connecting the
cable head to the camera. This area should be clean, free of debris, and the pins should
be in the upright position. If the pins are bent or deformed, do not attempt to connect
the cable head.
•When not in use store the system in an indoor, temperature-controlled environment in
the carry case and foam pads provided.
•Guide the cable evenly across the drum and wipe clean when spooling to prevent
contamination, build-up, and damage.
•Keep the Control Unit clean and free of debris. Wipe clean after each use.
•Before use check the lead screw for debris and dirt. Wipe clean as needed.
8
Description of Equipment
Overall
The DW-1500/ DW-2000 Color Video Water Well Inspection System is equipped with two
cameras in a single housing, each with a wide-angle lens, for viewing down hole and side view
images in water wells or boreholes. Low light level CCD sensors allow the cameras to detect
images with minimal lighting power, as low as 1 LUX.
Light Emitting Diodes (LED’s) are housed in the Camera and provide lighting for the Down Hole
Image and the Side View Image. LED’s are shock proof, and long lasting, providing
approximately 5000 hours of use.
The Video Output from the Camera duplexes with the control signals and power, going down to
the Camera, on a single conductor armored, Kevlar reinforced, coaxial cable. The Camera is
therefore operable only with the R-Cam Control Unit supplied with the System and is not
compatible with other types of closed circuit survey systems.
A single coaxial Cable head Connector on the rear of the Camera is connected to the Cable by a
watertight pressure rated connector.
The R-Cam Control Unit provides all the controls to operate the Camera and Reel Assembly,
equipped with a 9” LCD Color Video Monitor, and embedded DVR with internal memory.
A standalone power generating system, which supplies 115 VAC or 220 VAC (specified at time
of order) must be used to power to the Winch. The Control Unit is then powered by a 12 VDC
power supply from the 12 VDC output plug on the Winch.
Camera
The Camera, shown in Figure 6, electronics and LED lighting are housed in a stainless steel outer
housing (Figure 7 Item 8), which when assembled is water tight at external pressures of 500 PSI.
The Down View Port (Figure 7 Item 5) protects the downhole view lens and LED lighting. The
Side View Pyrex Glass Port (Figure 7 Item 7) protects the side view lens and LED lighting.
9
1. Lower Centering Band Collar
2. Centering Bands
3. Thread Protector and Support Tube
4. Upper Centering Band Collar
5. Down View Lens Port
6. Down View LED Lighting Port
7. Glass Side View Lens and LED Lighting Port
8. Camera Housing
9. Set Screw for Centering Band Collar
10. Screw for Centering Band
8
2
4
9
5
6
3
1
7
10
Figure 7
10
Winch
The custom Winch (Figure 8) supplied by Laval Underground Surveys (LUS) is manufactured for
operating LUS video camera systems in water wells, boreholes, etc. The Winch is driven by a
low speed, high torque electric motor (Figure 8 Item 1). Electric motor power sources for Winch
operation are 115V or 220V AC 60/50 Hz (specified at time of order) or an AC generator.
Winch speed and direction are controlled by the variable speed controller built into the Winch
Motor Controller (Figure 8 Item 2).
Counter-Sheave Assembly
A Counter-Sheave Assembly (Figure 8 Item 3) travels back and forth on a Lead Screw to level
the Cable as it winds onto the Spool. The sheave drives an electronic Encoder that provides
input for the footage counter display on the monitor.
1
2
3
Figure 8
11
Control Unit
The R-CAM XLT Control Unit is a lightweight portable, hard case that houses the 9” LCD Monitor
Video display with DVR and all the necessary electronics, to control and operate the Camera in
a lightweight, portable, hard cover, carrying / storage case.
The front panel controls on the Control Unit are shown in Figure 9.
12 VDC power is supplied to the control unit from the DW-1500/DW-2000 Winch 12 VDC
output.
The ON-OFF Switch (Figure 9 Item 5) routes power to the Camera and the Camera LED lighting
when switched to the ON position.
The FORWARD-REVERSE Switch (Figure 9 Item 6) rotates the Camera’s Side-View and Down-
View images, and is spring loaded to the STOP (center) position when released.
The VIEW-LIGHT Switch (Figure 9 Item 7) controls the image and light to be viewed on the LCD
Monitor, and is spring loaded to the center position when released. Pressing VIEW toggles
between “DOWN VIEW” and “SIDE VIEW” on the Monitor. Pressing LIGHT cycles through 5
preset light intensities or levels. The “DOWN VIEW” light intensity is independent of the “SIDE
VIEW” light intensity and do not have to match.
The CLEAR Switch (Figure 9 Item 8) is used to set the depth counter to zero (000.00f) after
positioning the Camera near the top of the well prior to the start of the survey.
NOTE: THE DW-1500/DW-2000 WINCH MUST BE SUPPLIED BY EITHER 115 VAC OR 220
VAC 60Hz/50 Hz. WINCH INPUT POWER VOLTAGE MUST BE SPECIFIED AT TIME OF ORDER.
NOTE: The REEL CONTROL functions of the Control Unit will NOT operate the Winch Motor
Control Functions and WILL disrupt power to the Camera if switched ON.
For DVR set-up and connections, see DVR GUIDE on page 12
12
1. 12 VDC power input connector
2. Video Signal output connection
to external Video input
3. Monitor Power cable
4. Camera Function, Video, and
Depth Encoder connector
5. Camera and Control Unit Power
ON-OFF Switch
6. Camera Rotation FORWARD-
STOP-REVERSE Switch
7. Camera VIEW-LIGHT Selector
Switch
8. MENU and Depth counter reset
CLEAR Switch
9. Monitor function INC/DEC
Switch
10. Keyboard USB Input
11. Memory USB (Flash Drive) Input
12. Embedded Microphone
5
1
3
4
2
6
7
8
9
10
Figure 9
11
12
13
Winch Motor Control Functions
The ON-OFF Switch (Figure 10 Item 6) routes power to the Motor Drive controls when switched
to the ON position.
The FORWARD-STOP-REVERSE Switch (Figure 10 Item 1) controls the Cable Drum to either
lower or raise the Camera in the well, and is used in conjunction with the SPEED Control. The
toggle switch in the “STOP” position will prevent the winch from moving in the forward or
reverse direction.
The SPEED Control Dial (Figure 10 Item 2) is used to control the rate at which the Motor Drive
plays out or rewinds the Cable. The speed should always be at MIN to start and then returned
back to MIN to stop the Motor Drive.
NOTE: After individual use, the cable windings will NOT look or lay the same as when the
unit was delivered from the factory. This is normal and expected. It will NOT affect the
proper working of the Cable or Winch.
NOTE: THE WINCH CONTROLS ARE LOCATED ON THE DW-1500/DW-2000 WINCH. THE
REEL CONTROL ON CONTROL UNIT WILL NOT OPERATE THE WINCH MOTOR
1
0
2
0
3
0
4
0
5
0
6
0
Figure 10
14
Adjustments
Level-Wind Adjustment
If cable windings become uneven, gapped, or bunched, the level-wind Counter-Sheave
Assembly (Figure 11 Item 3) should be adjusted. The metal adjustment Knob (Figure 11 Item 1)
on the end of the Level-Wind Lead Screw (Figure 11 Item 2) engages and disengages to move
the Counter-Sheave Assembly back and forth.
To adjust the level-wind, pull and hold the adjustment Knob (Figure 11 Item 1) out, then turn it
to move the Counter-Sheave Assembly so that the level-wind trails (follows) the cable windings
on the spool. When correctly adjusted, the cable should lay, wrap by wrap, without gaps,
overlays, or bunching.
3
0
1
0
2
0
Figure 11
15
Level-Wind Key Replacement
With use, the level-wind brass Key (Figure 12 Item 1) that tracks in the level-wind Lead Screw
grooves will eventually wear down. To replace the level-wind brass Key:
1. Remove the (2) #6-32 socket head bolts (Figure 12 Item 3) that holds down the Keeper
(Figure 12 Item 2) and Key (Figure 12 Item 2).
2. Remove the #6-32 socket head bolt (Figure 12 Item 4) that holds the Key to the Keeper.
3. Remove the worn brass Key.
4. Replace the worn brass Key with a duplicate new Key from Laval Underground Surveys.
5. Re-insert and tighten the 6-32 screw (Figure 12 Item 4) back into the new brass Key and
Keeper. Make sure Key is secured but spins freely within the Keeper.
6. Re-engage the Keeper and Key into the level-wind Counter-Sheave Assembly (Figure 12
Item 5) and then secure them with the (2) #6-32 screws (Figure 12 Item 3).
7. Check the travel direction of the level-wind and ensure it moves properly by testing level-
wind adjustment Knob as directed on the previous page.
1
2
3
4
5
Figure 12
16
DVR Guide
The Digital Video Recorder (DVR) records video and audio to USB storage media and can capture
snapshot images on-the-fly without interrupting recording. It has an internal real-time clock with
battery backup that provides date and time information. Videos and snapshots are saved to a folder
called DCIM on the USB devices. The DCIM folder is created if not present. The videos are recorded as
.ts files and the snapshots are .jpeg files. File names are automatically generated by the real-time clock.
The video bit rate can be tailored to match the user requirements and storage capacity.
The recorded audio comes from an internal microphone behind the front panel. The microphone can be
muted from recording if desired. Text overlays reflecting current date and time can be applied to
appear in the recorded video. A single line of user defined text comments can be overlaid in the video.
There are 5 user entered custom text lines.
The DVR has an internal 16GB USB storage device. This internal memory will store at least 8 hours of
video. There is a USB jack on the panel for an external storage device. There is no limit on capacity of
the USB storage devices; however, the devices need to be FAT 32 format. The DVR will simultaneously
record to both the internal and external USB storage devices. When either internal or external memory
becomes full, an on-screen message will prompt the user to address the capacity of the internal or
external memory before the recording option will resume.
There is also a USB jack on the panel for plugging in a standard PC-type USB keyboard. A wireless mini
keyboard is supplied with the DVR. There is a black ‘receiver’ for the provided mini keyboard inserted in
a USB space on the control unit. It will have two letters on it that correlate with the mini keyboard.
Without the receiver plugged into the control unit, the keyboard will not be able to function. NOTE: the
keyboard and its USB receiver are paired and cannot be mixed with another set.
Keyboard Use and Charging
The internal battery is a non-replaceable Polymer Lithium-ion type. If no keys are pressed for more than
3 minutes, the keyboard goes into Sleep Mode. Because of Sleep Mode, the keyboard’s battery will last
many hours and even many days on one charge. The battery will retain a charge in Sleep Mode from
500 to 700 hours. To re-charge the battery, plug the charging cable into the keyboard and into any
standard USB jack. The charging cable can be plugged into the RCAM panel to charge the battery and
simultaneously operate the keyboard; however, the keyboard receiver must be plugged in to either the
RCAM panel or the female-USB jack on the charging cable. The Green Power LED will flash when the
battery power is low. The Red Battery LED will light up when the keyboard is being properly charged.
17
Keyboard Functions
Key Function
Enter or Space Bar Menu or OK
Up Arrow Rewind Playback or Move Text Up
Down Arrow Fast Forward Playback or Move Text Down
ESC (Escape) Stop/Finalize Recording, Menu Back, or Playback Stop
RRecord Start or Pause Recording
SSnapshot
MMute or Unmute Microphone
PPause Record or Playback
Keyboard LED Indicators Meaning
YELLOW RF Signal ON=Transmitting
RED Battery Cable plugged in: ON=charging
OFF=Fully charged
GREEN Power ON=Power on, OFF=Sleep Mode, FLASHING=Low Power
WHITE CAPS LOCK ON=Caps Lock Active, OFF=Caps Lock Inactive
The DVR is controlled using the keyboard and an on-screen menu system. After initial power-up, press
the Space Bar or the Enter key to bring up the Top Menu. Then again press the Space Bar or Enter key to
go into one of the Sub Menus.
Getting Started
To start a recording press R. Press Ra second time to pause a recording, before pressing Ra third time
to resume recording again to create one continuous video. To stop and finalize recordings press ESC.
Finalization can take up to 2 minutes for long recordings. It is important to note that powering down
before stopping/finalizing the recording can result in losing the recording. A maximum video length of
1.5 hours is recommended to manage file size. Press Sat any time to take a snapshot image of the
video. To add a text overlay before recording see the Overlays Section on page 18.
Top Menu:
Play Video
View Snapshots
Overlays
File Management
Setup
Help With Keys
This manual suits for next models
1
Table of contents
