LawnMaster MEB1840M User manual

Instruction Manual
LawnMaster 40cm 1800W Electric Mower MEB1840M
Read all safety instructions carefully before assembling and operating
this machine. Ensure the machine has been assembled correctly and safely. Keep the
instructions safe and pass them on to any subsequent user so that the information is always
available.
WARNING:
Original Instructions

1
2
3
4
5
7
6
8
9
10
11
12
13
14
15
16
17
18
19

4
TABLE OF CONTENTS
Section Page
Symbols
Safety Information
In the Box
Assembly
Operation
Maintenance
Troubleshooting
Technical Data
Recycling and Disposal
5
6-13
13
14-16
17-19
20-21
22-23
24
24

5

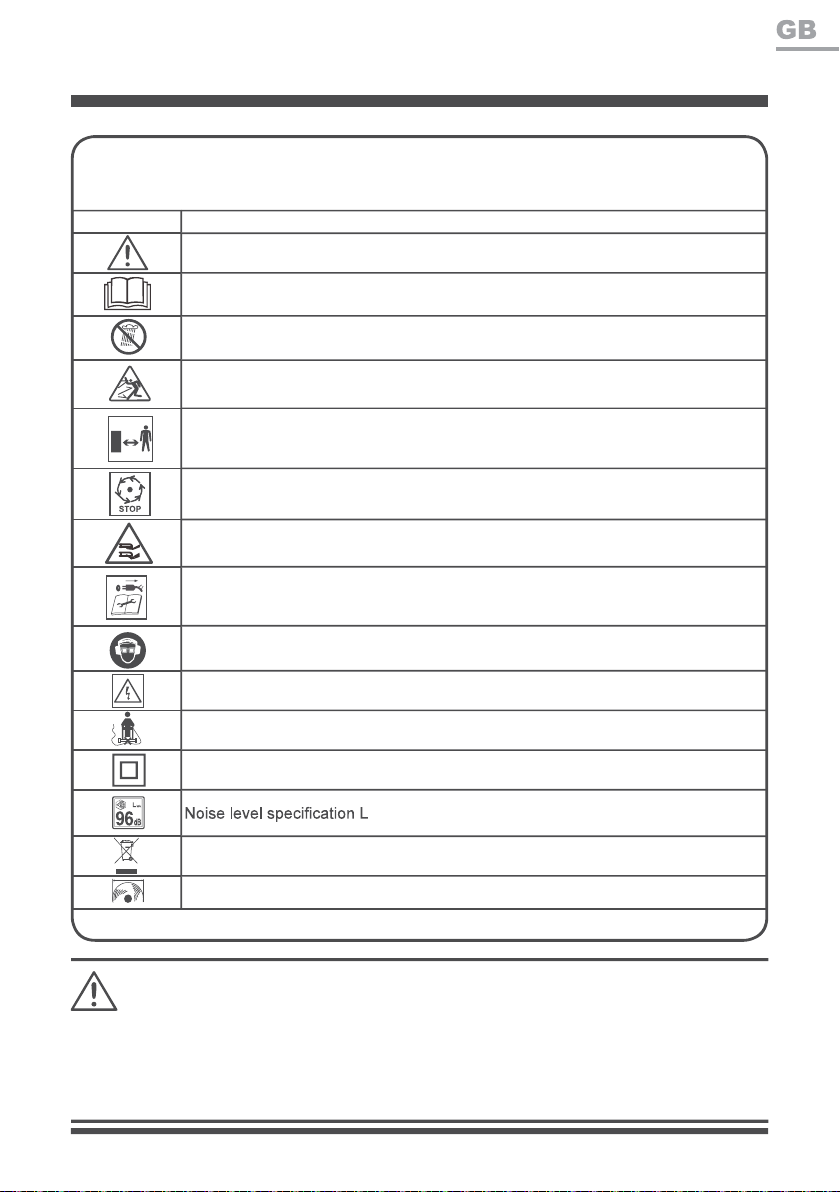

SYMBOL DESIGNATION/EXPLANATION
Caution! Take extra care, beware of hazards.
Read instruction manual.
Do not expose the equipment to rain or leave outdoors. Do not work in the rain
and do not cut wet grass.
Risk of injury by objects thrown out of from the machine.
Keep bystanders and pets at a safe distance while operating the mower.
Caution! The lawnmower blade continues to run after switching off.
Caution-sharp cutting blade! Keep feet and hands away. Risk of injury!
Switch off the motor and disconnect the plug before carrying out maintenance or
repair work, or if the power cable is caught or damaged.
Wear eye and ear protection.
Warning! Beware of electric shocks.
Keep the power cable away from the cutting blade!
Protection class II
WA in dB.
Do not dispose of electrical equipment in domestic waste.
Cutting diameter
SYMBOLS
The following warning symbols appear throughout this manual and indicate the appropriate
safety measures you should take when operating and maintaining the appliance.
To avoid serious personal injury, do not attempt to use this product until you read thoroughly and
understand completely the instruction manual.
If you do not understand the warnings and instructions in the instruction manual, do not use this
product.
WARNING

6
SAFETY INFORMATION
Read all safety regulations and instructions and keep in
a safe place for future use.
Important! When using equipment, the following safety
precautions must be followed to avoid injuries and damage:
IMPORTANT
them. It is important to understand these instructions and to
acquaint yourself with the machine, its correct usage and
all safety requirements.
available to the operator at all times.
these operating instructions as well.
from non-compliance with these instructions.
with limited physical, sensory or mental faculties or who
lack the necessary experience and/or knowledge - other
than they are supervised by a person responsible for safety
or are being instructed to operate the appliance by such a
person.
regulations can restrict the age of the operator.
children, or pets are nearby.
accidents or hazards occurring to other people or their
property.

7
SAFETY INFORMATION
footwear and long trousers. Do not operate the machine
when barefoot or wearing open toed sandals. Avoid
cords or ties.
used and remove all objects which can be thrown by the
machine.
blade, blade bolt and the blade assembly are not worn or
damaged. Replace worn or damaged components in sets
to preserve balance. Replace damaged or unreadable
labels.
cord for signs of damage or aging. If the cord becomes
damaged during use, disconnect the cord from the supply
immediately. DO NOT TOUCH THE CORD BEFORE
if the cord is damaged or worn.
light.
slopes.
towards you.

8
SAFETY INFORMATION
transportation when crossing surfaces other than grass,
and when transporting the machine to and from the area to
be used.
and/or grass collector, in place.
if the machine has to be tilted for starting. In this case, do
not tilt it more than absolutely necessary and lift only the
part, which is away from the operator.
discharge opening.
clear of the discharge opening at all times.
running.
sure that all moving parts have come to a complete stop.
for damage and make repairs before restarting and
operating the machine.

9
SAFETY INFORMATION
is in safe working condition.
deterioration.
parts of the machine.
power source is switched off, the blades can still be moved.
genuine replacement parts and accessories.
mA.
on the rating plate.
are no more than 75 m long and suitable for outdoor use.
The power cable wire cross section must be at least 2.5
mm2. Always completely unroll cable drums before use.
Check the cable for damage.
working. The cutting blades may damage the power cable
and result in contact with live parts. Always run the power
cable behind the operator. The extension cable can be
accidentally cut. Risk of electric shock!
Protect the power cable from heat, oil and sharp edges.

10
SAFETY INFORMATION
socket if the power cable is damaged. If the power cable
is damaged, it must be replaced by the manufacturer, the
order to avoid hazards.
not touch a damaged power cable when it is connected to
the mains. A damaged power cable may result in contact
with live parts.
recommended by the manufacturer. The use of non-original
parts will immediately invalidate the guarantee.
equipment. Do not use the equipment if protective devices
bolts are missing, worn or damaged. To avoid imbalance,
damaged tools and bolts are to be replaced only in sets.
Always take breaks in good time. Take a sensible approach
to the work. A moment of carelessness when using the
equipment can result in serious injury.
settings on the motor. Do not use low-powered machines
for heavy work. Do not use your equipment for purposes
other than those for which it is designed.

11
SAFETY INFORMATION
manufacturer. Do not use the equipment with damaged
safety devices or screens or with missing safety equipment
running. Risk of injury from cuts.
explosion.
children.
Remove cut material only when the equipment is stopped
and disconnected from power supply.
even if the power source is off.
clean, in order to facilitate better and safer work. Follow the
maintenance instructions.
Double Insulation
Double insulation is a concept in safety in electric power tools,
which eliminates the need for the usual three-wire grounded
power cord.
All exposed metal parts are isolated from the internal metal
motor components with protecting insulation. Double insulated
tools do not need to be grounded.

12
NOTE: Servicing of a product with double insulation requires
extreme care and knowledge of the system and should be

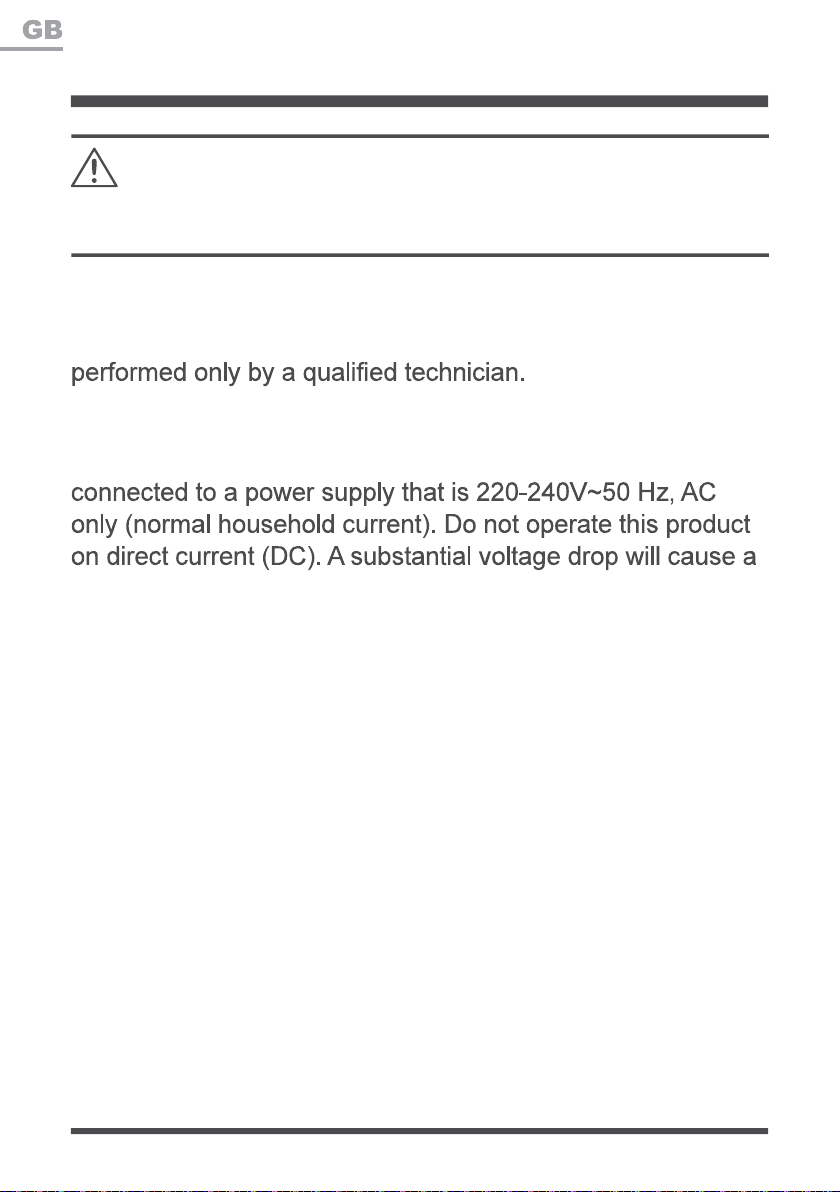

Electrical Connection
This product has a precision-built electric motor. It should be
loss of power and the motor will overheat. If the product does
not operate when plugged into an outlet, double-check the
power supply.
Extension Cords
When using a power tool at a considerable distance from
a power source, be sure to use an extension cord that has
the capacity to handle the current the product will draw. An
undersized cord will cause a drop in line voltage, resulting in
overheating and loss of power.
Before you connect the mower to the mains supply make
sure that data on the rating plate are identical to the mains
data. Before using any extension cord, inspect it for loose or
exposed wires and cut or worn insulation.
SAFETY INFORMATION
The double insulated system is intended to protect the user from shock resulting from a break in
the tool’s internal insulation. Observe all normal safety precautions to avoid electrical shock.
WARNING

13
SAFETY INFORMATION
Intended Use
This lawnmower is designed for domestic use only:
domestic and hobby gardens.
and may not be used to mow wet or unusually high grass.
not for any commercial trade use. It must not be used for
any purposes other than those described. Any use of the
machine that deviates from its intended use will invalidate
the warranty.
Keep the extension cord clear of the working area. Position the cord so that it will not get caught
on other obstructions while you are working. Failure to do so can result in serious personal injury.
WARNING
IN THE BOX
1. Foam Grip
2. Upper Handle
5. Grass Collection Bag
7. Rear Wheel
8. Deck
9. Front Wheel
10. Motor Housing
11. Carry Handle
13. Grass Collection Bag Handle
14. Cord Retainer
16. Safety Button
18. Mulching Plug
19. Instruction Manual

14
ASSEMBLY
Assembly Preparation
includes suitable personal protective equipment.
Assembling the Lower Handle (See Fig. 1)
Assembling the Upper Handle (See Fig. 2)
If any parts are damaged or missing do not operate this product until the parts are replaced.
Failure to pay attention to this warning could result in serious personal injury.
Do not connect to power supply until assembly is complete. Failure to comply could result in
accidental starting and possible serious personal injury.
Do not attempt to modify this product or create accessories not recommended for use with this
leading to possible serious personal injury.
Never operate the mower without the proper safety devices in place and in correct working order.
Never operate the mower with damaged safety devices. Failure to pay attention to this warning
can result in serious personal injury. Make sure all packing is removed from product parts before
starting assembly.
WARNING
WARNING
WARNING
WARNING

15
ASSEMBLY
disconnecting from power supply. Failure to comply could result in accidental starting and possible
serious personal injury.
WARNING
Assembling the Grass Collection Bag (See Fig. 3)
Attaching/Removing the Grass Collection Bag (See Fig. 4)
NOTE: When using the grass collection bag, do not install the mulching plug. The mulching plug
collection chute of the mower.
Grass Collection Full Indicator (See Figs. 5-6)
Attaching/Removing the Mulching Plug (See Fig. 7)
NOTE: The mulching plug MUST be removed if collection bag is used during mowing operation.
This mulching plug prevents grass from being collected by blocking the collection chute. This allows
nutrient for the lawn.

16
ASSEMBLY
To install the mulching plug:
To remove the mulching plug:
the mulching plug up and out of the discharge chute.

17
OPERATION
Setting the Cutting Height (See Fig. 8)
Do not allow familiarity with this type of product to make you careless. Always pay attention when
operating this product, not doing so can result in serious injury.
WARNING
your lawn. The mower can be set to 6 cutting heights between 20mm and 70mm. Choose the
season, a higher cutting setting should be selected.
Always wear safety goggles or safety glasses with side shields when operating this product.
Failure to do so could result in objects being thrown into your eyes, resulting in possible serious
injury.
WARNING
Do not use any attachments or accessories not recommended by the manufacturer of this product.
The use of attachments or accessories not recommended can result in serious personal injury.
WARNING
Switch off the equipment, disconnect the plug from the power supply and wait for the blade to
come to a complete stop before adjusting the cutting height. A rotating blade can cause injury.
Keep your feet away from the deck when adjusting its height.
WARNING
Position Cutting Height
1 20mm
2 30mm
3 40mm
4 50mm
5 60mm
6 70mm

18
OPERATION

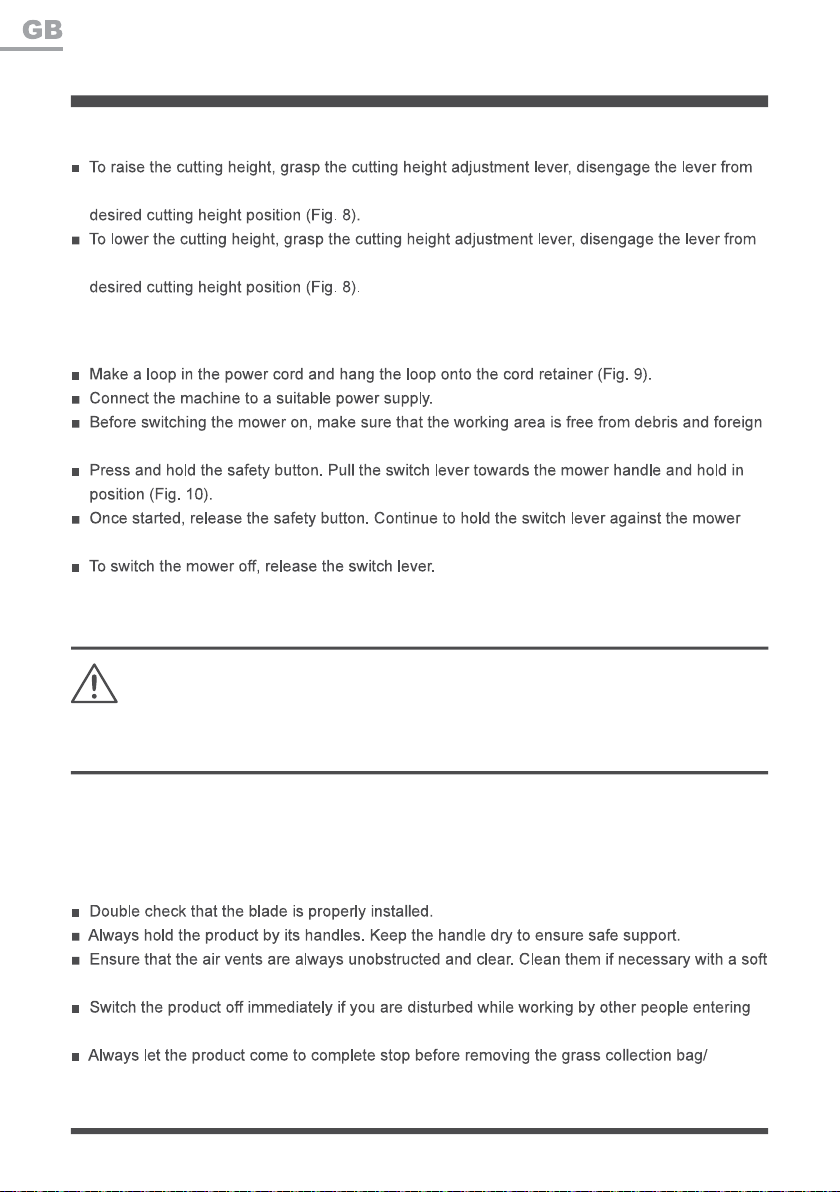

To set the cutting height:
its current setting, and then move it towards the back of the mower and engage the lever in the
its current setting, and then move it towards the front of the mower and engage the lever in the
Starting/Stopping the Mower (See Figs. 9-10)
objects.
handle as you mow.
NOTE: A high-pitched noise and sparking may occur as the electric motor decelerates. This is
normal.
The blade may keep rotating for a few seconds after the device has been switched off. Do not
touch the rotating blade. A rotating blade can cause injury.
WARNING
General Operation
Check the product, its power cord and accessories for damage before each use. Before use,
ensure all power connections are in good working order prior to operation. If damage is present or
observed, stop and have mower serviced before use. Do not use the product if it is damaged.
brush. Blocked air vents may lead to overheating and damage the product.
the working area.
mulching plug.

19
OPERATION
been mowed.
have full control over the product.
Mowing (See Fig. 11)
lawn mower blades or motor. Such objects could be accidentally thrown by the mower in any
direction and cause serious personal injury to the operator and others.
the cord retainer provided.
proper discharge of the clippings.
roughly 6cm long, the grass should not be shorter than 4cm once mowed. If the grass is higher,
you should gradually cut it down to the desired length so as not to damage the grass. Cutting
grass that is too long will result in poor collection performance and may overload the motor.
the proper discharge of grass clippings resulting in poor collection performance.
Mowing on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your
safety, do not attempt to mow slopes greater than 15 degrees.
direction on slopes.
grass can hide obstacles. Remove all objects such as rocks, tree limbs, etc., which could be
tripped over or thrown by the blade.
are losing your balance, release the switch lever immediately.
prevent scalping on borders and edges.

20
MAINTENANCE
General Maintenance
solvents when cleaning plastic parts. Most plastics are susceptible to damage from various
types of commercial solvents and may be damaged by their use. Use clean, dry cloths to
remove dirt, dust, oil, grease, etc.
with a dry cloth occasionally. Do not use water as this may damage any electrical components.
Replacing the Mower Blade (See Fig. 12)
Always wear protective, heavy gloves and/or wrap the cutting edges of the blade with rags when
performing blade maintenance. Failure to pay attention to this warning could result in serious
personal injury.
WARNING
If a part become warn or damage, use recommended manufacturers replacement parts. Use of
any other parts may create a hazard or cause product damage.
Do not use any attachments or accessories not recommended by the manufacturer of this product.
The use of attachments or accessories not recommended can result in serious personal injury.
Switch off the equipment before all maintenance and cleaning work, disconnect the plug and wait
until the blade stops.
WARNING
WARNING
WARNING
tightened.
