LawnMaster M2EB1537M User manual

M2EB1537M
L951096
Operators Manual
Original Instruction
WARNING: Read the instructions before using the product
Before initial start-up, please read through these operating instructions carefully
prior to using the machine. Keep the instructions safe and pass them on to any
subsequent user so that the information is always available.
Serial Number:

2
Contents 2
Specifications
2
Introduction
3
General Safety Instructions 3-8
Caution 8
Symbols
9-10
Electrical 11-12
Features 13
Assembly 13-17
Operation
17-19
Maintenance 20-23
Troubleshooting 24
Disposal and Recycling 24
Warranty 25
CE 26
TABLE OF CONTENTS
SPECIFICATIONS
Electric Mower M2EB1537M
Voltage 230 V~50Hz
Power 1500W
Motor Speed
3250 r/min
Cutting Width
370mm
Cutting Height Adjustment
20-70mm
Volume Of Catch Bag 40L
Wheel Size 140/200mm
Weight 11Kg
Degree Of Protection Against Liquids IP24
Lpa Sound Pressure Level 84 dB(A) K=3dB
Lwa Sound Power Level Measured 94 dB (A)，K=2dB
Lwa Sound Power Level Guaranteed 96 dB (A)
9LEUDWLRQ$W7KH+DQGOHEDUV$KYPV²
Protection Class II / 回

3
GENERAL SAFETY INSTRUCTIONS
INTRODUCTION
This product has many features for making its use more pleasant and enjoyable.Safety,
performance, and dependability have been given top priority in the design of this product making
it easy to maintain and operate.
Note: Supply power to the equipment only using acircuit
protected by an RCD with a maximum tripcurrent of 30mA.
ŶNever allow others who are unfamiliar with the operating
instructions to use the lawn mower. Local regulations may
fix the minimum age of the user.
ŶDisconnect the mains lead before carrying out any
inspection, servicing and maintenance work.
ŶThe user is responsible for any harm to third parties in the
working area of the lawn mower, caused by using the lawn
mower.
ŶOnly work in good light or provide the appropriate artificial
light. Always check the mower for signs of damage.
ŶEnsure that all the guards are fitted and function correctly.
ŶNever use the mower when you are tired.
ŶNever use the mower in enclosed or poorly ventilated
rooms or if there are inflammable or explosive fluids,
vapours or gases nearby.
ŶSwitch off the motor and disconnect the mainslead before
releasing blockages in the discharge channel and before
you check, clean, service or work on the lawn mower or if
the mower has struck a foreign body.
ŶBefore use always inspect the mower to check the cutting
tools, fastening bolts and the entire cutting unit for signs of
wear or damage. To prevent imbalance, worn or damaged

GENERAL SAFETY INSTRUCTIONS
cuttingtools and fastening bolts may only be replaced infull.
ŶDamaged parts on the mower must be replaced by trained
personnel. Use only genuine spareparts.
ŶFollow the instructions to fit or remove the blade and wear
protective gloves.
ŶCheck the site on which you intend to use the lawn mower
and remove all objects that may becaught and thrown up
by the mower. Foreign bodies must be removed before you
start mowing. Keep an eye of the extension cables that
you need to power the mower.
ŶAlways wear strong, anti-slip footwear and long trousers
when using the mower. Never mow inbare feet or in
open-toed sandals.
Ŷ$OZD\VXVHWKHODZQPRZHUZLWKWKHJUDVVEDJDWWDFKHGRU
with the safety flap closed if you are not using the grass
bag.
Ŷ'RQRWOLIWWKHODZQPRZHUZKHQ\RXVWDUWWKHPRWRU
Ŷ1HYHUUHDFKLQWRURWDWLQJSDUWVZLWK\RXUKDQGVRUIHHW
Always keep away from the discharge opening.
Ŷ%HIRUH\RXDWWDFKRUHPSW\WKHJUDVVEDJVZLWFKRIIWKH
motor and wait until the blade hasreached a standstill.
Ŷ7KHVDIHW\GLVWDQFHSURGXFHGE\WKHORQJKDQGOHPXVWEH
maintained at alltimes.
Ŷ,I\RXXVHWKHPRZHURQDVORSHPRZDFURVVWKHVORSH
(not in up or down direction). Always be sure of your
footing on slopes.
Ŷ'RQRWXVHWKHODZQPRZHURQJUDGLHQWVRIRYHU
degree.
Ŷ%HIRUH\RXOLIWWKHODZQPRZHUWRWUDQVSRUWLWVZLWFKRIIWKH
motor, disconnect the mains lead and wait until the blade
has reached a standstill.
4

5
GENERAL SAFETY INSTRUCTIONS
Ŷ:KHQWKHPRZHULVZRUNLQJHQVXUHWKDWQRERG\
particularly children and animals, is in the immediate
vicinity of the lawn mower. Ensure that you keep everybody
10 meters away from the mower when it is working.
Ŷ.HHSWKHODZQPRZHULQDGU\SODFH
Ŷ5HSDLUZRUNRQWKHHOHFWULFDOSDUWVRIWKHODZQPRZHUPD\
only be carried out by an electrician.
Ŷ7KHPDLQVOHDGVPXVWEHQROLJKWHUWKDQOLJKWZHLJKWUXEEHU
hose cables H07RN-F asdescribed in DIN 57 282/VDE
0282 and musthave a minimum cross-section of 1.5 mm².
The plug connectors must have safety contacts and the
connection must be splashproof. The mainslead must be
threaded through the strain-reliefclamp on the strut and
connected to thes witch/plug combination. Before use
check the lead for signs of damage and ageing. Never use
the mower if the cables are not in perfect condition (this
also applies to the motor supply cable on the mower). If the
cable is damaged whilst the mower is working, disconnect
the mains plug from the power supply immediately and then
check the extent of the damage.
Ŷ:KHQ\RXVWDUWWKHPRWRUWKHODZQPRZHUPXVWQRWEH
tilted unless it has to be raised for this purpose. In this case
only tilt it up as far as isreally necessary and only raise the
side that is furthest away from the user.
Ŷ,IWKHODZQPRZHUEHJLQVWRH[SHULHQFHH[FHSWLRQDOO\
strong vibrations,immediately switch it off and check it. Pull
the plug immediately if the lawn mower starts to vibrate
abnormally.
Ŷ(QVXUHWKDWDOOWKHQXWVEROWVDQGVFUHZVDUHWLJKWDQGWKDW
the mower is in a safe condition for use.

6
GENERAL SAFETY INSTRUCTIONS
ŶSwitch off the motor and disconnect the plug from the
power supply if the mower strikes a foreign body. Check
the mower for signs of damage and carry out the necessary
repair work before you start work with the mower again.
ŶDo not leave the mower out in the rain. The lawn must not
be wet or very damp. Ensure that you have safe footing at
all times whilst working with the mower.
ŶOnly push the mower at walking pace.
Be particularly careful when changing direction with the
mower whilst working on a slope.
ŶBe particularly careful when you change the direction of the
mower or pull it towards you.
ŶSwitch off the mower if it has to be tilted for transport
purposes, when you have to take it over surfaces other
than grass, and when moving the mower to and from the
area you wishto mow.
ŶCarefully actuate the starter switch in accordance with the
manufacturer’s instructions.Make sure that your feet are far
enough away from the mower blade! Do not start the motor
if you are positioned in front of the chute.
ŶDo not touch the cutting blade until the machine has been
disconnected from the mains and the cutting blade has
reached a complete standstill.
ŶNever lift or carry the mower whilst the motor is running.
ŶSwitch off the motor and pull the plug before you leave the
lawn mower.
ŶAllow the motor to cool down before you place the machine
in enclosed rooms for storage.
ŶCheck the grass bag at regular intervals for signs of wear
and to ensure that it is still in perfect working order.

7
GENERAL SAFETY INSTRUCTIONS
ŶBefore you adjust or clean the mower or check whether
the mains lead is kinked or damaged,switch off the mower
and disconnect the plugfrom the power supply.
ŶThe connection sockets on the connectors must be made
of rubber, soft PVC or other thermoplastic material with the
same strength or they must be coated with this material.
ŶEnsure that you do not push the mower over routes that
might hamper the free movement of the extension cable.
ŶDo not switch the mower on and off frequently over a
short period of time, and in particular do not play with the
ON/OFF switch. Check the grass catcher frequently for
wear or deterioration. Replace worn or damaged parts
forsafety.
ŶAs a result of the voltage fluctuations this mower causes
as it gets up to speed, other equipment connected to the
same circuit may suffer faults if the mains supply is not in
perfect condition. In this case suitable action has to be
taken (for example connect the mower to a different
circuitor run the mower on a circuit with lower impedance).
Ŷ7KLVDSSOLDQFHFDQEHXVHGE\FKLOGUHQDJHGIURP\HDUV
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be
made by children without supervision.

8
GENERAL SAFETY INSTRUCTIONS
CAUTION !
Read all safety regulations and instructions.
Any errors made in following the safety regulations and
instructions may result in an electric shock, fireand/or seri-
ous injury.
Keep all safety regulations and instructions in
asafe place for future use.
ŶNot to use the lawnmower if the cords are damaged or
worn.
ŶNot to connect a damaged cord to supply or touch a
damaged cord before it is disconnected from supply,
A damaged cord can lead to contact with live parts.
ŶNot to touch the blades before the machine is
disconnected from the supply and the blades have come
to complete stop.
ŶTo keep extension cords away from the blades. The
blades can cause damage to the cords and lead to contact
with live parts.
ŶTo disconnect the supply (i.e. pulling the plug from the
socket)
• whenever leaving the machine unattended,
• before cleaning a blockage,
• after striking a forgien object,
• whenever the machine starts vibrating abnormally.

9
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
NOITANALPXE/NOITANGISEDLOBMYS
V
A
zH
W
srh
Wear eye and ear protection.
Do not use the machine in the rain or leave it
outdoors when it is raining.
Keep bystanders a safe distance away from the
machine.
Sharp blade. Beware of injury to toes or fingers.
Warning. Beware of electric shocks.
You must read the operating instructions carefully.
Pay attention that bystanders are not injured by
objects thrown out from the machine.
Precaution that invole your safety.
Voltage
Double-insulated construction
Time
Power
Frequency (cycles per second)
Current

WARNING
10
SYMBOLS
SERVICE
Servicing requires extreme care and knowledge and should beperformed only by aqualified service
technician. For service we suggest you return the product to your nearest SERVICE CENTER for
repair. When servicing, use only identical replacement parts.
To avoid serious personal injury, do not attempt to use this product until you read thoroughly and
understand completely the operator’s manual.
If you do not understand the warnings and instructions in the operator’s manual, do not use this
product. Call customer service for assistance.
SYMBOL SIGNAL MEANING
DANGER:
Indicates an imminently hazardous situation, which, if not avoided,
will result in death or serious injury.
WARNING:
Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
CAUTION:
(Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
The following signal words and meanings are intended to explain the levels of risk associated with this
product.
Disconnect from the mains supply before any
maintenance work.
Keep the mains supply cord away from the
cutting blade.
Wait until all moving parts have stopped
completely before touching them. The blade
may continue to rotate after the machine is
switched off, a rotating blade can cause injury.

WARNING
11
ELECTRICAL
DOUBLE INSULATION
Double insulation is a concept in safety in electric power tools, which eliminates the need for the
usual three-wire grounded power cord.
All exposed metal parts are isolated from the internal metal motor components with protecting
insulation. Double insulated tools do not need to be grounded.
The double insulated system is intended to protect the user from shock resulting from a break in the
tool’s internal insulation. Observe all normal safety precautions to avoid electrical shock.
NOTE: Servicing of a product with double insulation requires extreme care and knowledge of the
system and should be performed only by a qualified service technician. For service, we suggest you
return the product to your nearest authorized service center for repair. Always use original factory
replacement parts when servicing.
ELECTRICAL CONNECTION
This product has a precision-built electric motor. It should be connected to a power supply that is 230
volts, 50 Hz, AC only (normal household current). Do not operate this product on direct current (DC).
A substantial voltage drop will cause a loss of power and the motor will overheat. If the product does
not operate when plugged into an outlet, double-check the power supply.
EXTENSION CORDS
When using a power tool at a considerable distance from a power source, be sure to use an
extension cord that has the capacity to handle the current the product will draw. An undersized cord
will cause a drop in line voltage, resulting in overheating and loss of power.
Before you connect the mower to the mains supply make sure that data on the rating plate are identical
to the mains data. Before using any extension cord, inspect it for loose or exposed wires and cut or
worn insulation.
Make a loop in the extension cord. From the right side, pass the loop through the hole in the back
of cord retainer and place it around the hook.（Fig. 14）

12
ELECTRICAL
FEATURES
WARNING
WARNING
Keep the extension cord clear of the working area. Position the cord so that it will not get caught on
number, tools, or other obstructions while you are working with a power tool. Failure to do so can
result in serious personal injury.
Check extension cords before each use. If damaged replace immediately.
Never use the product with a damaged cord since touching the damaged area could cause electrical
shock resulting in serious injury.
8
7
9
10
11
5
6
3
2
4
Fig. 1
1

13
FEATURES

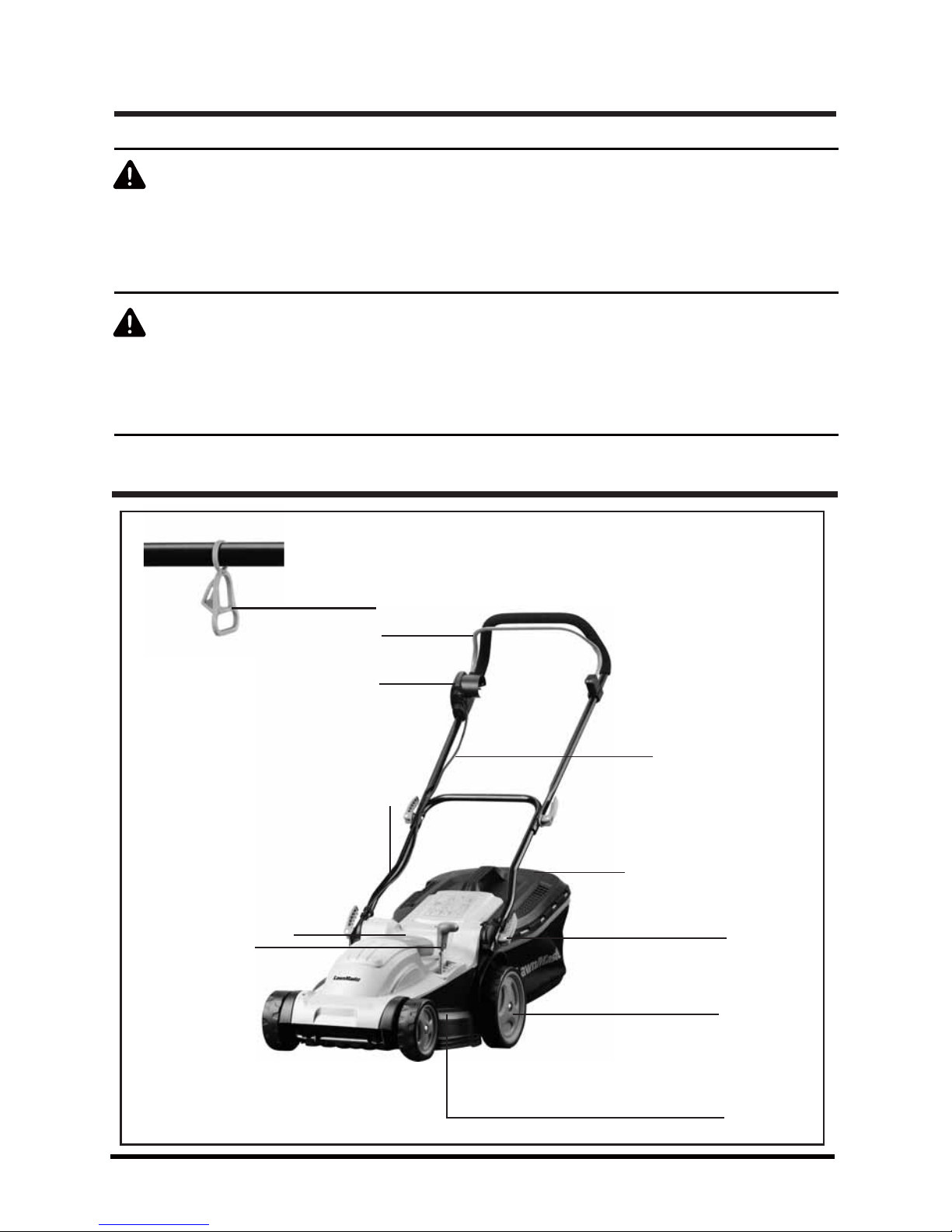

KNOW YOUR LAWN MOWER (See Fig. 1)
The safe use of this product requires an understanding of the information on the product and in this
operator’s manual as well as a knowledge of the project you are attempting.
Before use of this product, familiarize yourself with all operating features and safety rules.
1) Cord retainer - A convenient cord retainer helps keep the extension cord connection secure
during mower operation.
2) Height adjustment lever - one handed height adjustment lever.
3) Lift Handle - makes lifting & moving simpler & safer.
4) Loop style handle - ergonomic cushion grip steel handle makes mowing easy.
5) Bale switch - when engaged, will allow power mower motor.
6) Switch button - engages power to bale switch allowing for start-up.
7) Power cord - easy attach power cord
8) Grass catcher - 40L grass catcher with full capacity indicator.
9) Cam locks - allows for quick & easy adjustments & storage.
10) Wheel - large 200mm rear wheels
11) Mower deck - lightweight never rust mower deck.
KNOW YOUR LAWN MOWER
This product requires assembly.
Ŷ&DUHIXOO\UHPRYHWKHSURGXFWDQGDQ\DFFHVVRULHVIURPWKHER[0DNHVXUHWKDWDOOLWHPVOLVWHGLQ
the packing list are included.
Ŷ,QVSHFWWKHSURGXFWFDUHIXOO\WRPDNHVXUHQREUHDNDJHRUGDPDJHRFFXUUHGGXULQJVKLSSLQJ
Ŷ'RQRWGLVFDUGWKHSDFNLQJPDWHULDOXQWLO\RXKDYHFDUHIXOO\LQVSHFWHGDQGVDWLVIDFWRULO\RSHUDWHG
the product.
Ŷ,IDQ\SDUWVDUHGDPDJHGRUPLVVLQJSOHDVHFDOOVHULFHFHQWHU
PACKING LIST
Mower
Grass Catcher
Operator’s Manual
ASSEMBLY

14
ASSEMBLY
ADJUSTING HANDLE (See Figs. 2-7)
Ŷ)XOO\ORRVHQWKHIRXUKDQGOHFDPORFNVRQERWKVLGHVRIWKHKDQGOH
Ŷ3XOOXSDQGEDFNRQWKHORZHUKDQGOHDQGXSSHUKDQGOHWRUDLVHWKHKDQGOHVLQWRRSHUDWLQJSRVLWLRQ
Make certain the handles snap.
Ŷ7LJKWHQWKHKDQGOHFDPORFNVRQERWKVLGHVRIWKHKDQGOHWRVHFXUH
Never operate the mower without the proper safety devices in place and working. Never operate the
mower with damaged safety devices. Failure to heed this warning can result in serious personal injury.
Fig. 2 Fig. 3 Fig. 4
WARNING
If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to
heed this warning so could result in serious personal injury.
WARNING
Do not attempt to modify this product or create accessories not recommended for use with this product.
Any such alteration or modification is misuse and could result in a hazardous condition leading to
possible serious personal injury.
WARNING
Do not connect to power supply until assembly is complete. Failure to comply could result in accidental
starting and possible serious personal injury.
WARNING
Handle Cam Locks
Handle Cam Locks
Fig. 5 Fig. 6 Fig. 7

15
ASSEMBLY
INSTALLING THE GRASS CATCHER (See Fig. 12)
Ŷ/LIWWKHUHDUGLVFKDUJHGRRU
Ŷ/LIWWKHJUDVVFDWFKHUE\LWVKDQGOHDQGSODFHXQGHUWKHUHDUGLVFKDUJHGRRUVRWKDWWKHKRRNVRQ
the grass catcher are seated on the door rod.
Ŷ5HOHDVHWKHUHDUGLVFKDUJHGRRU
Fig. 12
GRASS CATCHER (See Figs. 8-11)
Ŷ6OLGHWKHHQGVRIWKHPHWDOJUDVVIUDPHLQWRWKHFKDQQHOVIRXQGRQWKHXSSHUFROOHFWLRQER[
cover (hard plastic cover) until they are completely seated.
Ŷ0DNHFHUWDLQWKHVWHHOIUDPHHQGVDUHVHDWHGLQFKDQQHOVXVHWKHSURYLGHGIODWZDVKHUDQG
screw to secure into place as shown in figure “9”, by tightening each side.
Ŷ3RVLWLRQWKHORZHUFROOHFWLRQER[FRYHUVRWKDWWKHKDUGSODVWLF³WRQJXH´LVLQVLGHWKHPHWDOIUDPH
as shown in figure “8”.
Ŷ$VVHPEOHWKHXSSHUDQGORZHUJUDVVFRYHUVWRJHWKHUE\VQDSSLQJWKHJUHHQEDQGIRXQGRQWKH
lower portion of grass cover into the channel found on the upper portion of the grass cover as
shown in figure “10”.
Ŷ&OLSDQGVHFXUHWKHKDUGSODVWLFFKDQQHOVERWWRPOHIWULJKWRQWRWKHPHWDOJUDVVIUDPHRQ
three sides as shown in figure “11”.
Fig. 8 Fig. 9 Fig. 10 Fig.11
Grass Clip
Lower Grass Cover
Grass Bar screw
Upper Grass Cover

16
ASSEMBLY
OPERATION
Do not allow familiarity with this type of product to make you careless. Remember that a careless
fraction of a second is sufficient to inflict serious injury.
WARNING
Fig. 13
Position Cutting height
20 mm
30 mm
40 mm
50 mm
60 mm
70 mm
1
2
3
4
5
6
A higher cut height should generally be selected for the first cut of the season. When cutting longer
grass, cut the grass in 2 or more passes by lowering the cutting height gradually at each pass.
These techniques will help to a avoid over-stressing your grass.
Your mower may be fitted with a grass full indicator.This is a small red flap on the top side of the grass
collector.
When this flap remain open as you work,it means that the grass collector is not full (air flowing freely
through the grass collector).
When this flap remain closed it means that the grass collector is full and needs to be emptied(no
airflow through the grass collector)
SETTING CUTTING HEIGHT (See Fig. 13)
When shipped, the wheels on the mower are set to a low-cutting position. Bofore using the mower
forthe first time, adjust the cutting position to the height best suited for your lawn. The average
lawn should be between 20mm to 70mm.
To set the cutting height:
Ŷ
To raise the cutting height, grasp the height adjustment lever and move it toward the back of the
mower.
Ŷ To lower the cutting height, grasp the height adjustment lever and move it toward the front of the
mower.

17
STARTING/STOPPING THE MOWER (See Figs. 14-15)
Ŷ$WWDFKWKHRXWOHWHQGRIDQH[WHQVLRQFRUGWRWKHSOXJRQWKHUHDURIWKHPRZHU
NOTE: Use only an approved outdoor extension cord as described previously in this manual.
Ŷ0DNHDORRSLQWKHH[WHQVLRQFRUG)URPWKHULJKWVLGHSDVVWKHORRSWKURXJKWKHKROHLQWKHEDFN
of cord retainer and place it around the hook.
Ŷ3UHVVGRZQWKHVZLWFKEXWWRQDQGKROGLW
Ŷ3XOOWKHEDOHVZLWFKWRZDUGWKHPRZHUKDQGOHDQGOHWJRRIWKHVZLWFKEXWWRQUHOHDVH&RQWLQXHWR
hold the bale switch against the mower handle as you mow.
Ŷ7RVWRSWKHPRZHUUHOHDVHWKHEDOHVZLWFK
NOTE:
A high-pitched noise and sparking may occur as the electric motor decelerates. This is normal.
MOWING TIPS
Ŷ0DNHVXUHWKHODZQLVFOHDURIVWRQHVVWLFNVZLUHVDQGRWKHUREMHFWVWKDWFRXOGGDPDJHWKHODZQ
mower blades or motor. Such objects could be accidentally thrown by the mower in any direction
and cause serious personal injury to the operator and others.
Ŷ7RUHGXFHWKHOLNHOLKRRGRIGLVFRQQHFWLQJWKHODZQPRZHUIURPWKHH[WHQVLRQFRUGEHVXUHWRXVH
the cord retainer provided.
Ŷ)RUDKHDOWK\ODZQDOZD\VFXWRIIRQHWKLUGRUOHVVRIWKHWRWDOOHQJWKRIWKHJUDVV
Ŷ:KHQFXWWLQJKHDY\JUDVVUHGXFHZDONLQJVSHHGWRDOORZIRUPRUHHIIHFWLYHFXWWLQJDQGDSURSHU
discharge of the clippings.
Switch button
Bale Switch
Fig. 14
Fig. 15
ASSEMBLY
APPLICATIONS
You may use this product for the purpose listed below: Mowing your lawn.
Always wear safety goggles or safety glasses with side shields when operating this product. Failure
to do so could result in objects being thrown into your eyes, resulting in possible serious injury.
WARNING
Do not use any attachments or accessories not recommended by the manufacturer of this product.
The use of attachments or accessories not recommended can result in serious personal injury.
WARNING
OPERATION

18
OPERATION
Ŷ'RQRWFXWZHWJUDVV,WZLOOVWLFNWRWKHXQGHUVLGHRIWKHGHFNDQGSUHYHQWSURSHUPXOFKLQJRIJUDVV
clippings.
Ŷ1HZRUWKLFNJUDVVPD\UHTXLUHDQDUURZHUFXW
Ŷ&OHDQWKHXQGHUVLGHRIWKHPRZHUGHFNDIWHUHDFKXVHWRUHPRYHJUDVVFOLSSLQJVOHDYHVGLUWDQG
any other accumulated debris.
MOWING ON A SLOPE (See Fig. 16)
Ŷ6ORSHVDUHDPDMRUIDFWRUUHODWHGWRVOLSDQGIDOODFFLGHQWVWKDWFDQUHVXOWLQVHYHUHLQMXU\
Mowing on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your
safety, do not attempt to mow slopes greater than 15 degrees.
Ŷ0RZDFURVVWKHIDFHRIVORSHVQRWXSDQGGRZQ([HUFLVHH[WUHPHFDXWLRQZKHQFKDQJLQJ
direction on slopes.
Ŷ:DWFKIRUKROHVUXWVURFNVKLGGHQREMHFWVRUEXPSVZKLFKFDQFDXVH\RXWRVOLSRUWULS7DOO
grass can hide obstacles. Remove all objects such as rocks, tree limbs, etc., which could be
tripped over or thrown by the blade.
Ŷ$OZD\VEHVXUHRI\RXUIRRWLQJ$VOLSDQGIDOOFDQFDXVHVHULRXVSHUVRQDOLQMXU\,I\RXIHHO\RX
are losing your balance, release the bale switch immediately.
Ŷ'RQRWPRZQHDUGURSRIIVGLWFKHVRUHPEDQNPHQWV\RXFRXOGORVH\RXUIRRWLQJRUEDODQFH
Fig. 16

19
OPERATION
EMPTYING THE GRASS CATCHER (See Fig. 17)
Ŷ/LIWWKHJUDVVFDWFKHUE\LWVKDQGOHDQGOLIWWRUHPRYHIURPPRZHU
Ŷ(PSW\JUDVVFOLSSLQJV
Ŷ/LIWWKHUHDUGLVFKDUJHGRRUDQGUHLQVWDOOWKHJUDVVFDWFKHUDVGHVFULEHGHDUOLHULQWKLVPDQXDO
Fig. 17

GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from
various types of commercial solvents and may be damaged by their use. Use clean cloths to remove
dirt, dust, oil, grease, etc.
When servicing, use only identical replacement parts. Use of any other parts may create a hazard
or cause product damage.
WARNING
Periodically check all nuts and bolts for proper tightness to ersure safe operation of the mower.
Remove any buildup of grass and leaves on or around the motor cover. Wipe the mower clean with
a dry cloth occasionally. Do not use water.
LUBRICATION
All of the bearings in this product are lubricated with a sufficient amount of high grade lubricant for
the life of the unit under normal operating conditions. Therefore, no further bearing lubrication is
required. At the beginning and end of each mowing season:
Ŷ/XEULFDWHWKHVSULQJVRQWKHUHDUGLVFKDUJHGRRUZLWKOLJKWRLO
Ŷ/XEULFDWHWKHKHLJKWDGMXVWPHQWOHYHUDQGUHODWHGKDUGZDUHZLWKOLJKWRLO
Ŷ5HPRYHWKHZKHHOVDQGOXEULFDWHWKHVXUIDFHRIWKHD[OHEROWDQGWKHLQQHUVXUIDFHRIWKHZKHHO
with light oil.
Ŷ5RPRYHWKHEODGHDQGEODGHKXEDVVHPEO\DQGOXEULFDWHWKHPRWRUVKDIWZLWKOLJKWRLORUHQJLQH
oil. See Replacing the Cutting Blade for instructions on removing the blade.
Do not use any attachments or accessories not recommended by the manufacturer of this product.
The use of attachments or accessories not recommended can result in serious personal injury.
WARNING
Always wear safety goggles or safety glasses with side shields during power tool operation or when
blowing dust. If operation is dusty, also wear a dust mask.
WARNING
20
MAINTENANCE
