1
Installation Instructions for
Aspenti 5, 14, and 20 Outdoor
980ASPENO
1.1
OD1060, OD1061, OD1062
CAUTION RISK OF FIRE-
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
Wall
1A

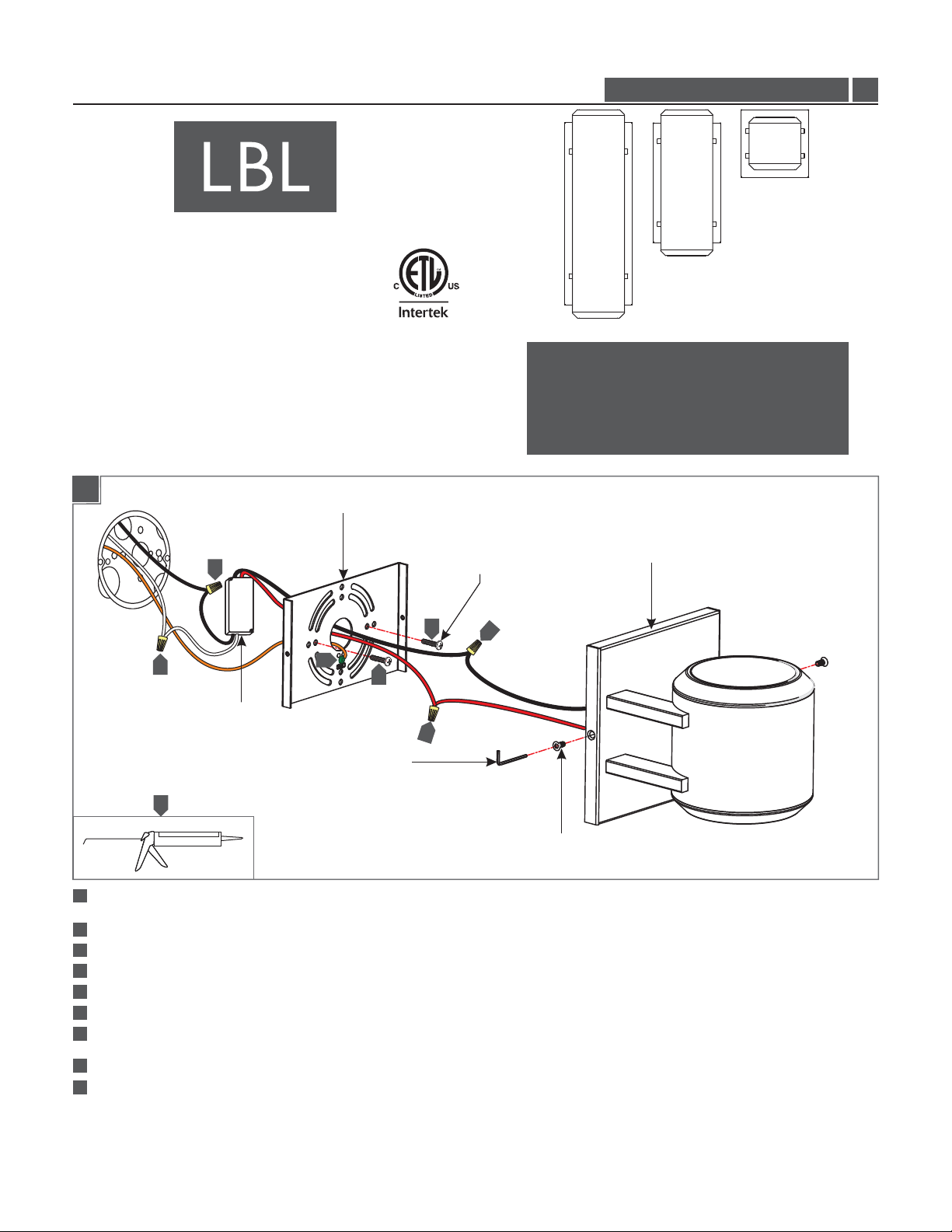

Install the Fixture
GP I :ENERAL RODUCT NFORMATION
These fixtures are intended to be installed utilizing
NEC compliant junction boxes.
This product is suitable for wet locations.
This product may be dimmed with a low-voltage electronic dimmer.
This instruction shows a typical installation.
Remove the fixture screws located on the sides of the fixture base using the provided Allen Wrench, then remove the mounting plate from
the fixture base.
Connect the fixture to a suitable ground in accordance with local electrical codes.
Connect the black fixture wire to the black driver wire with a wire nut.
Connect the red fixture wire to the red driver wire with a wire nut.
Connect the white driver wire to the neutral power line wire with a wire nut.
Connect the black driver wire to the hot power line wire with a wire nut.
Properly place the driver, all wires, and wire nut connections into the electrical box, then secure the mounting plate to the electrical box
using the two #8-32 screws provided.
Mount the fixture back onto the mounting plate and reinstall fixture screws (reversal of step 1A).
For wet locations, caulk around the entire fixture base with waterproof construction sealant.
1
2
3
4
5
6
7
9
ALLEN WRENCH
FIXTURE SCREW
MOUNTING PLATE
FIXTURE BASE
#8-32 SCREW
4
3
7
7
2
8
9
5
6
DRIVER

2
SAVETHESE INSTRUCTIONS!
