Installation Instructions for
Nikko
1.0
147_, 159_
980NIKKO
Install the Fixture
GP I :ENERAL RODUCT NFORMATION
This product is suitable for wet locations.
This product can be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.

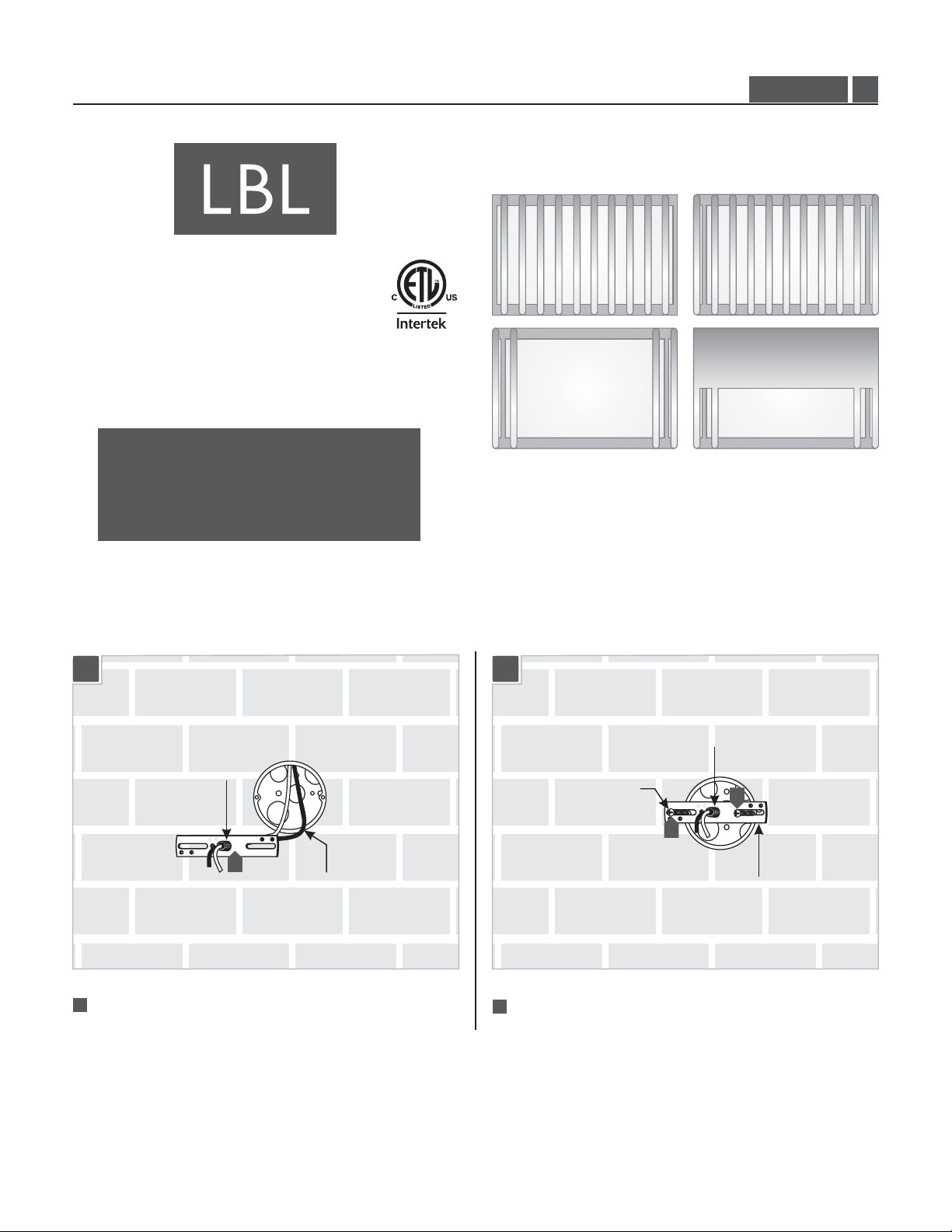

Feed the power line wires through the crossbar nipple.
NIPPLE
POWER LINE
WIRE
Attach the crossbar to the electrical box using two #8-32
screws provided.
NIPPLE
#8-32 SCREW
CROSSBAR
3
Outdoor
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
1B1A
12
1
2
2

2
Make sure the fixture base is level, and secure it to the nipple
with a lock washer and nut.
Remove all the screws from the front of the fixture.
Lift the cover off of the fixture.
Connect the hot power line wire to the black socket wire with
a wire nut.
Connect the neutral power line wire to the white socket wire
with a wire nut.
Connect the fixture to a suitable ground according to local
electrical codes.
Reattach the reflector to the fixture base.
WASHERNUT NIPPLE
SCREWCOVER
Remove the screws on the reflector.
Lift the reflector out of the fixture base.
SCREW
FIXTURE BASE
REFLECTOR
1E
7
7
1F
8
8
9
10
11
9
1D
1C
3
4
5
7
3
3
33
5
5
6

3
Replace the cover and reattach the screws to secure the cover
to the fixture.
Caulk around the base with waterproof construction sealant.
Screw the lamp base into the socket.
Before continuing, turn on power to the fixture to verify all
connections are good.
CAUTION:To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
Install the Lamp and Cover
Use MAX 60 Watt
type B10 torpedo medium base lamp.
2B
2A
1
2
3
4
2C
44
44

4
SAVETHESE INSTRUCTIONS!
