Instructions for use 739 962
Set 2 Lithium-Ion-Batteries 18650
Note: Read this complete manual carefully before you use the batteries!
1 Description
The devices described here are a set consisting of two
low-power 18650 lithium-ion batteries with integrated
protective circuitry.
2 Scope of delivery
Set 2 Lithium-Ion-Batteries 18650
These instructions for use
3 Safety notes
- The lithium batteries described here may only be used
under supervision!
- Handling lithium batteries requires increased
attention from the supervisor!
- The lithium batteries described here are only suitable
for use in dry indoor areas!
- The lithium batteries described here must not be put
into operation if they show visible damage.
- The lithium batteries described here may only be used
for training purposes. Commercial use is not
permitted!
- External short circuits must be avoided, e.g. by using
the transport container.
- Internal short circuits due to external damage must
be avoided, e.g. by using the transport container
and proper handling.
- Incorrect handling of lithium batteries can lead to
ignition!
- Lithium batteries must not be directly and/or
permanently exposed to temperatures above 30
°C. Lithium batteries must not be exposed to heat
sources or direct sunlight.

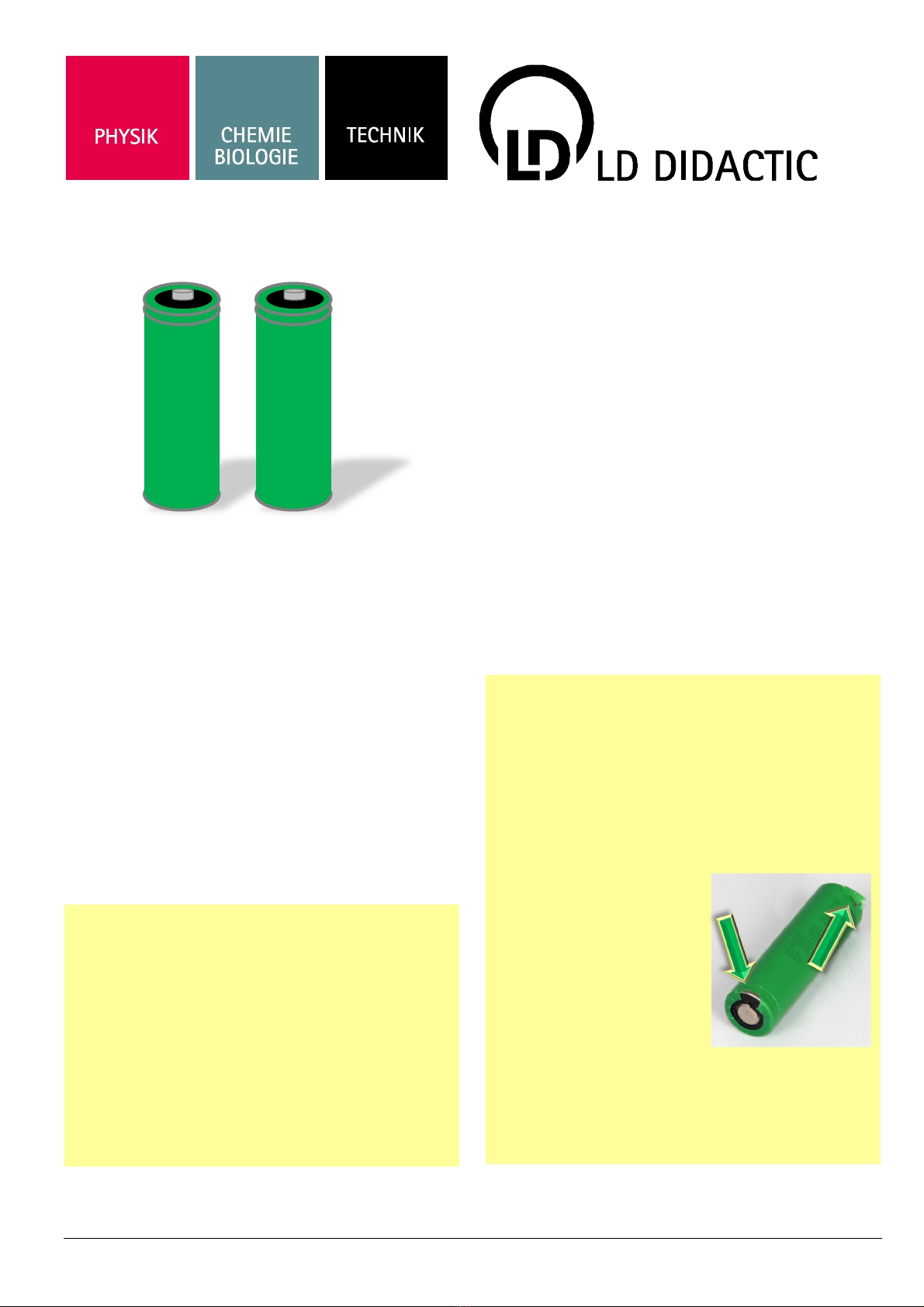

- Lithium batteries with
visible damage, e.g. to
the outer protective
cover, must never be
inserted or used! The
lithium battery shown on
the right should no longer
be used and must be
disposed of.
- Damaged or defective lithium batteries must be
disposed of properly and stored safely in a
separate area until then (e.g. with the battery
terminals taped off).
- Lithium batteries with a voltage of less than 2.55 V
must be disposed of.

Instructions for use Page 2/4
LD DIDACTIC GMBH Leyboldstrasse 1 D-50354 Huerth Phone [phone] Fax [phone] e-mail: [e-mail]
by LD Didactic GmbH Technical alterations reserved
4 Intended use
These lithium batteries are intended to be used within
didactic education. These lithium batteries must be
inserted in the device STE LiIo battery holder, 739 955,
and operated in accordance with the valid associated
operating instructions. Electrical energy may only be
drawn off in conjunction with the STE LiIo battery holder,
739 955 and the Model HV battery "Cells", 739 952.
Electrical energy may only be supplied in conjunction
with the devices STE LiIo battery holder, 739 955 and
Model HV battery "Cells", 739 952, or with an approved
and suitable charger. The assembly and/or disassembly
must be done by the instructor. It must not be done by
the students!
5Fundamentals
Lithium secondary cells are chemical energy accumula-
tors that can release the stored electrical charge as elec-
trical energy through an electrochemical reaction. The
advantages of lithium batteries include their high effi-
ciency, low self-discharge, use in a wide temperature
range, high cell voltage and the absence of the memory
effect.
6 Possible hazards when handling
lithium batteries
When used properly, lithium batteries are safe. However,
if accelerated and/or uncontrolled energy release occurs,
the chemical reaction may release so much thermal
energy that a fire may result. Therefore, lithium batteries
must not be operated outside their specification.
Improper handling and incorrect use of the batteries can
result in, for example:
internal short circuits occur due to mechanical
damage
internal short circuits occur due to "revived" deeply
discharged cells (U<2.55 V)
internal short circuits occur due to thermal stress
(e.g. fire)
strong temperature increase occurs, due to
overcharging
The battery itself represents a certain source of danger
itself, if e.g.
a temperature increase occurs due to excessive
current drain or short circuit, which can lead to a
fire
an electric arc occurs due to a short circuit, which
can lead to a fire
toxic and/or flammable or explosive contents
escape, which may form an explosive mixture and
be harmful to health.
a battery bursts due to strong internal heating and
failure of the safety valve.
7 Special handling instructions
The lithium batteries described here are subjected to
greater stress during experimentation than during nor-
mal use. They therefore age more quickly and may need
to be replaced and disposed of. They are considered con-
sumables in connection with all material lists in the ex-
perimental literature! The number of charge cycles spec-
ified in the data sheets is not reached and does not rep-
resent a defect!
7.1 Charging
7.1.1 Charging current: Charging current should be less
than maximum charge current specified in the technical
data.
7.1.2 Charging voltage: Charging should be done by
voltage less than that specified in the technical data.
7.1.3 Charging time: A charge timer is recommended
to be installed from a safety consideration, which shuts
off further charging at time specified in the technical
data.
7.1.4 Charging temperature: The cell should be
charged within a range of specified temperatures in the
technical data.
7.1.5 Reverse charging: The cell should be connected,
confirming that its poles are correctly aligned. Inverse
charging is strictly prohibited. If the cell is connected
improperly, it may be damaged
7.2 Discharging
7.2.1 Discharging: The cell should be discharged at less
than maximum discharge current specified in the tech-
nical data.
7.2.2 Discharging temperature: The cell should be dis-
charged within a range of temperatures specified in the
technical data.
7.2.3 Over-discharging: The system should be
equipped with a device to prevent further discharging
exceeding discharging cut-off voltage specified in the
technical data (over-discharging). Over-discharging
may occur by self-discharge if the battery is left for a
very long time without any use. The charger should
equip with a device to detect cell voltage and to deter-
mine recharging procedures.
7.3 Storage
7.3.1 Storage conditions: The cell should be stored
within a range of temperatures specified in the tech-
nical data.
Otherwise, it may cause loss of characteristics, leakage
and/or rust.
7.3.2 Long-term storage: The cell should be used
within a short period after charging because long-term
storage may cause loss of capacity by self-discharging.
If long-term storage is necessary, the cell should be
stored at lower voltage within a range specified in the
technical data, because storage at higher voltage may
cause loss of characteristics.

Page 3/4 Instructions for use
7.4 Others
7.4.1 Disassembly: Internal short-circuit caused by dis-
assembly may lead to heat generation and/or venting.
When the electrolyte is coming in contact with the skin
or eyes, flush immediately with fresh water and seek
medical advice.
7.4.2 Short-circuiting: Short-circuit results in very high
current which leads to heat generation. An appropriate
circuitry should be employed to protect accidental
short-circuiting.
7.4.3 Incinerating and disposing of the cell in fire are
strictly prohibited, because it may cause rupture.
7.4.4 Immersion: Soaking the cell in water is strictly
prohibited, because it may cause melt of components
to damaged to functions.
7.4.5 Although the cell contains no environmentally
hazardous component, such as lead or cadmium. the
battery should be disposed according to the local regu-
lations when it is disposed.
7.4.6 The cell should be promptly disposed of with a
discharged state to avoid heat generation by an inad-
vertent short-circuit.
7.4.7 Caution - The Battery used in this device may
present a risk of fire or chemical burn if mistreated. Do
not disassemble, heat above 100 °C or incinerate.
7.5 Safety precaution and prohibitions
To ensure the safety of the product, observe the follow-
ing precautions:
7.5.1 [Danger!]
■Electrical misusage
Use dedicated charger.
Use or charge the battery only in the dedicated ap-
plication.
Don't charge the battery reversely.
■Environmental misusage
Don't leave the battery near the fire or a heated
source.
Don't throw the battery into the fire.
Don't leave, charge or use the battery in a place
where inside of temperature may be over 60°C.
Don't immerse, throw, wet the battery in water /
seawater.
■others
Don't fold the battery cased with laminated film
such as pouch and Polymer.
Don't store the battery in a pocket or a bag to-
gether with metallic objects such as keys, neck-
laces, hairpins, coins, or screws.
Don't short circuit (+) and (-) terminals with me-
tallic object intentionally.
Don't pierce the battery with a sharp object such
as a needle, screw drivers.
Don't heat partial area of the battery with heated
objects such as soldering iron.
Don't hit with heavy objects such as a hammer,
weight.
Don't step on the battery and throw or drop the
battery on the hard floor to avoid mechanical
shock.
Don't disassemble the battery or modify the bat-
tery design including electric circuit.
Don't use seriously scared or deformed battery.
Don't put the battery into a microwave oven, dryer
or high-pressure container.
7.5.2 [Warning!]
Stop charging the battery if charging isn't com-
pleted within the specified time.
Stop using the battery if the battery becomes ab-
normally hot, order, discoloration, deformation, or
abnormal conditions is detected during use,
charge, or storage.
Keep away from fire immediately when leakage or
foul odours are detected. If liquid leaks onto your
skin or cloths, wash well with fresh water immedi-
ately.
If liquid leaking from the battery gets into your
eyes, don't rub your eyes and wash them with
clean water and go to see a doctor immediately.
If the terminals of the battery become dirty, wipe
with a dry cloth before using the battery.
The battery can be used within the following tem-
perature ranges. Don't exceed these ranges.
Charge temperature ranges : 0 °C ~ 45 °C
Discharge Temperature ranges : -20 °C ~ 60 °C
Store the battery at temperature below 60 °C
Cover terminals with proper insulating tape before
disposal.
7.5.3 [Caution!]
■Electrical misusage
Battery must be charge with constant current-con-
stant voltage (CC/CV).
Charge current must be controlled by specified
value in Cell specification.
Cut-off Voltage of charging must be 4.2 V.
Charger must stop charging battery by detecting
either charging time or current specified in Cell’s
specification.
Discharge current must be controlled by specified
value in Cell’s specification.
Cut-off Voltage of discharging must be over 2.5 V.
■others
Keep the battery away from babies and children to
avoid any accidents such as swallow.
If younger children use the battery, their guardians
should explain the proper handling method and
precaution before using.
Before using the battery, be sure to read the user's
manual and precaution of its handling.

Instructions for use Page 4/4
LD DIDACTIC GMBH Leyboldstrasse 1 D-50354 Huerth Phone [phone] Fax [phone] e-mail: [e-mail]
by LD Didactic GmbH Technical alterations reserved
Before using charger, be sure to read the user's
manual of the charger.
Before installing and removing the battery from
application, be sure to read user's manual of the
application.
Replace the battery when using time of battery be-
comes much shorter than usual.
Cover terminals with insulating tape before proper
disposal.
If the battery is needed to be stored for a long pe-
riod, battery should be removed from the applica-
tion and stored in a place where humidity and tem-
perature are low.
While the battery is charged, used and stored,
keep it away from object materials with static elec-
tric chargers
8 Special instructions for transport
Do not send lithium batteries to LD Didactic GmbH with-
out prior consultation with the service department. The
contact details can be found on the Internet at www.ld-
didactic.de.

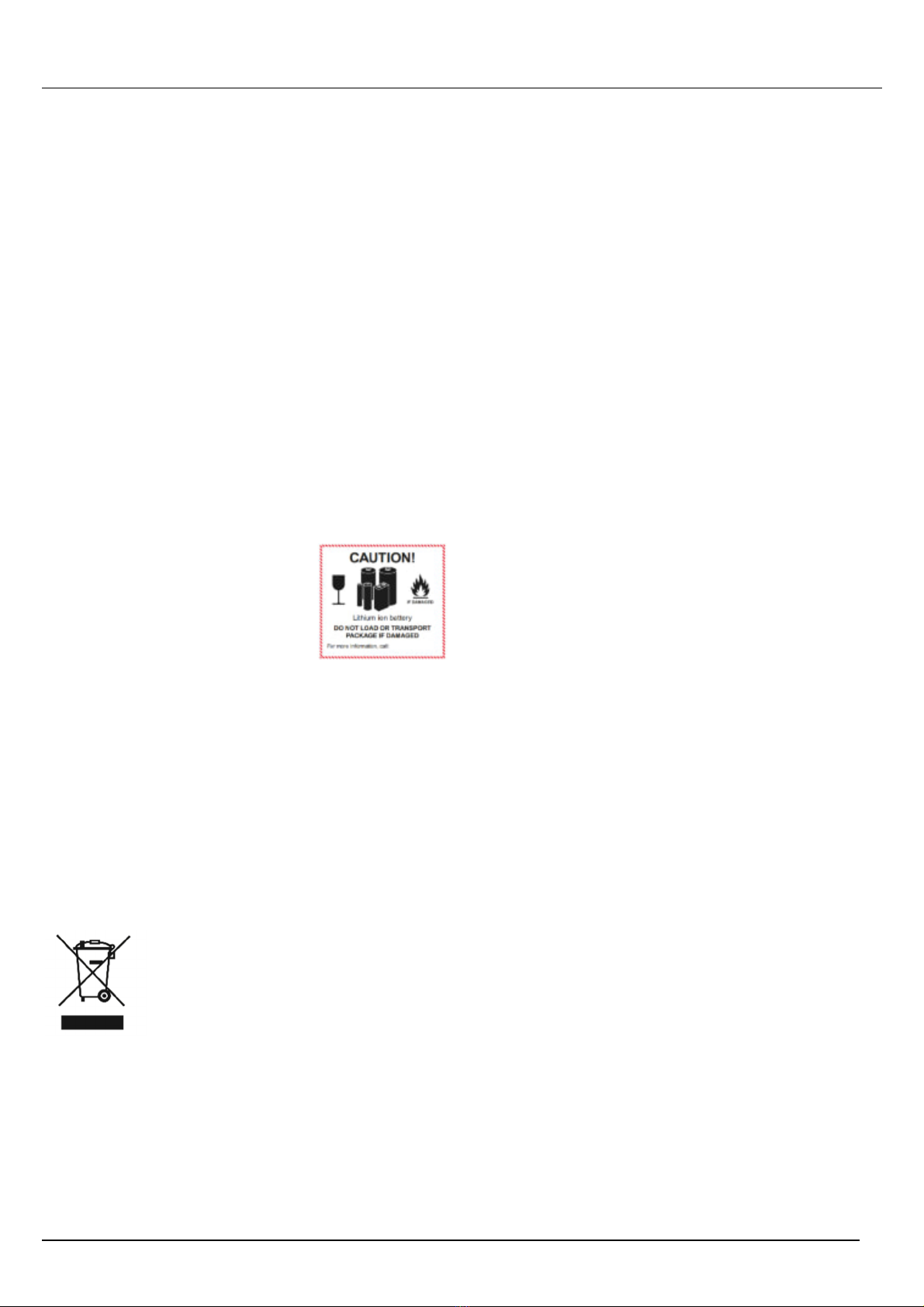

The transport packaging of lithium
batteries must be provided with an
appropriate hazard label in accordance
with UN 3480.
In principle, the sender is responsible
for the safe transport of lithium bat-
teries.
Defective lithium batteries must not be shipped or trans-
ported.
9 Special instructions for storage
Areas for storing lithium batteries must be structurally
separated from other areas in a fire-resistant manner.
Storage together with other products is not permitted.
The lithium batteries must be stored in their original
packaging. The storage area must be monitored by a
suitable fire alarm system.
10 Disposal
Electrical and electronic products must
not be disposed of with household
waste. Dispose of the product that has
become unusable in accordance with the
applicable legal regulations. Batteries
must be removed before disposal and
disposed of separately if necessary. The
cell should be promptly disposed of with a discharged
state to avoid heat generation by an inadvertent short-
circuit. The poles must be covered.
11 Technical data
Size: 18650
Nominal voltage: 3.6 V/ 3.7 V
Capacity: >2000 mAh
Max. charging voltage: 4.20 ±0.05 V
Max. charging current: 3.0 A
Max. charging time: 2.5 hours
Discharge Cut-off voltage: 2.75 V

LD DIDACTIC GMBH Leyboldstrasse 1 D-50354 Hürth Phone [phone] Fax [phone] e-mail: [e-mail]
by LD Didactic GmbH Printed in the Federal Republic of Germany
LN 30918240 Technical alterations reserved
04/22-W365-Wei
+ +
- -
Nutzungsinformation 739 962
Satz 2 Lithium-Ionen-Akkus 18650
Achtung: Vor Gebrauch des Produktes ist diese Nutzungsinformation vollständig durchzulesen!
1 Beschreibung
Bei den hier beschriebenen Geräten handelt es sich um
einen Satz bestehend aus zwei Lithium-Ionen-Akkus
geringer Leistung der Bauform 18650 mit integrierter
Schutzbeschaltung.
2 Lieferumfang
Satz 2 Lithium-Ionen-Akkus 18650
Diese Gebrauchsanleitung
3 Sicherheitshinweise
- Die hier beschriebenen Lithium-Batterien dürfen nur unter
Aufsicht verwendet werden!
- Der Umgang mit Lithium-Batterien erfordert erhöhte
Aufmerksamkeit der Aufsichtsperson!
- Die hier beschriebenen Lithium-Batterien sind nur zur
Verwendung in trockenen Innenräumen geeignet!
- Die hier beschriebenen Lithium-Batterien dürfen nicht in
Betrieb genommen werden, wenn sie sichtbare Schäden
ausweisen.
- Die hier beschriebenen Lithium-Batterien dürfen nur zu
Ausbildungszwecken eingesetzt werden. Die gewerbliche
Nutzung ist nicht zulässig!
- Äußere Kurzschlüsse müssen vermieden werden, z. B.
durch Verwendung des Transportbehälters.
- Innere Kurzschlüsse aufgrund von äußeren
Beschädigungen müssen vermieden werden, z. B. durch
Verwendung des Transportbehälters und sachgerechte
Handhabung.
- Falscher Umgang mit Lithium-Batterien kann zur
Entflammung führen!
- Lithium-Batterien dürfen nicht unmittelbar und/oder
dauerhaft Temperaturen von über 30 °C ausgesetzt
werden. Lithium-Batterien dürfen keinen Wärmequellen
und keiner direkten Sonneneinstrahlung ausgesetzt
werden.
- Es dürfen auf keinen Fall Li-
thium-Batterien eingesetzt
und benutzt werden, die
sichtbare Beschädigungen
z. B. der äußeren Schutz-
hülle aufweisen! Die rechts
abgebildete Lithium-Batterie
dürfte nicht mehr benutzt
werden und müsste entsorgt
werden.
- Beschädigte oder defekte Lithium-Batterien sind fachge-
recht zu entsorgen und bis dahin in einem getrennten Be-
reich sicher aufzubewahren (z. B. mit abgeklebten Batte-
riepolen).
- Lithium-Batterien, deren Spannung kleiner 2,55 V ist,
müssen unbedingt entsorgt werden.
