USER GUIDE
10652- Version 1 / 03-2017

KADEO460QC - Projector with 4 x 60W 4-in-1 RGBW LEDs, Zoom and rotating animation effect
Page 2
English
1 - Safety information
This symbol signals an important safety precaution.
The CAUTION symbol signals a risk of product deterioration.
The WARNING symbol signals a risk to the user’s physical integrity.
The product may also be damaged.
Important safety information
Symbols used
Any maintenance procedure must be performed by a CONTEST authorised
technical service. Basic cleaning operations must thoroughly follow our safety
instructions.
This product contains non-isolated electrical components. Do not undertake any
maintenance operation when it is switched on as it may result in electric shock.
This unit is intended for indoor use only. Do not use it in a wet, or extremely
cold/hot locations. Failure to follow these safety instructions could result in
fire, electric shock, injury, or damage to this product or other property.
WARNING: This unit contains no user-serviceable parts. Do not open the housing or attempt
any maintenance by yourself. In the unlikely even your unit may require service, please contact
your nearest dealer.
In order to avoid any electrical malfunction, please do not use any multi-socket, power cord
extension or connecting system without making sure they are perfectly isolated and present no
defect.
Recycling your device
• As HITMUSIC is really involved in the environmental cause,
we only commercialise clean, ROHS compliant products.
• When this product reaches its end of life, take it to a
collection point designated by local authorities. The separate
collection and recycling of your product at the time of
disposal will help conserve natural resources and ensure that
it is recycled in a manner that protects human health and the
environment.
Instructions and recommendations
11 - Power cords protection:
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to cords at lugs, convenience receptacles and
the point where they exit from the fixture.
12 - Cleaning precautions :
Unplug the product before attempting any cleaning operation. This product should be cleaned only
with accessories recommended by the manufacturer. Use a damp cloth to clean the surface. Do not
wash this product.
13 - Long periods of non use :
Disconnect the unit’s main power during long periods of non use.
14 - Liquids or objects penetration :
Do not let any object penetrate this product as it may result in electric shock or fire.
Never spill any liquid on this product as it may infiltrate the electronic components and result in
electric shock or fire.
15 - This product should be serviced when :
Please contact the qualified service personnel if :
- The power cord or the plug has been damaged.
- Objects have fallen or liquid has been spilled into the appliance.
- The appliance has been exposed to rain or water.
- The product does not appear to operate normally.
- The product has been damaged.
16 - Inspection/maintenance :
Please do not attempt any inspection or maintenance by yourself.
Refer all servicing to qualified personnel.
17 - Operating environment :
Ambient temperature and humidity: +5 - +35°C, relative humidity must be less than 85% (when cooling
vents are not obstructed).
Do not operate this product in a non-ventilated, very humid or warm place.
1 - Please read carefully :
We strongly recommend to read carefully and understand the safety instructions before attempting
to operate this unit.
2 - Please keep this manual :
We strongly recommend to keep this manual with the unit for future reference.
3 - Operate carefully this product :
We strongly recommend to take into consideration every safety instruction.
4 - Follow the instructions:
Please carefully follow each safety instruction to avoid any physical harm or property damage.
5 - Avoid water and wet locations :
Do not use this product in rain, or near washbasins or other wet locations.
6 - Installation :
We strongly encourage you to only use a fixation system or support recommended by the manufacturer
or supplied with this product. Carefully follow the installation instructions and use the adequate tools.
Always ensure this unit is firmly fixed to avoid vibration and slipping while operating as it may result
in physical injury.
7 - Ceiling or wall installation :
Please contact your local dealer before attempting any ceiling or wall installation.
8 - Ventilation :
The cooling vents ensure a safe use of this product, and avoid any overheating risk.
Do not obstruct or cover these vents as it may result in overheating and potential physical injury or
product damage. This product should never been operated in a closed non-ventilated area such as a
flight case or a rack, unless cooling vents are provided for the purpose.
9 - Heat exposure :
Sustained contact or proximity with warm surfaces may cause overheating and product damages.
Please keep this product away from any heat source such as a heaters, amplifiers, hot plates, etc...
10 - Electric power supply :
This product can only be operated according to a very specific voltage. These information are specified
on the label located at the rear of the product.
Warning
This product is equipped with Class 2 LEDs.
Please avoid looking directly at the beam as it may cause severe eye
injuries.

KADEO460QC - Projector with 4 x 60W 4-in-1 RGBW LEDs, Zoom and rotating animation effect
Page 3
English
2 - Technical specifications
Light sources
› 4 x 60W 4-in-1 RGBW LEDs
› Front lens with rotative effect
› PAR beam angle from 6° to 80° via motorized zoom
Colours
› Main RGBW settings
› Colour macros
Colours
› Zoom from 6° to 80°
› 3 beam rotation modes:
-indexable
-infinity at adjustable speed
-adjustable shake
› Stroboscope at adjustable speed
› Adjustable electronic dimmer from 0 to 100%
Control
› Standard DMX-512
› 1, 10 or 12 DMX channels
› Built-in music-sensitive shows (internal mic)
› Drop-down display for assignation and mode selection
Additional characteristics
› Power consumption: 350W max.
› Power supply: 100/230V, AC - 50/60Hz
› Dimensions: 342 x 320 x 305 mm
› Net weight: 6,3 Kg
Package contents:
The package must contain the following elements:
› The projector
› The user guide

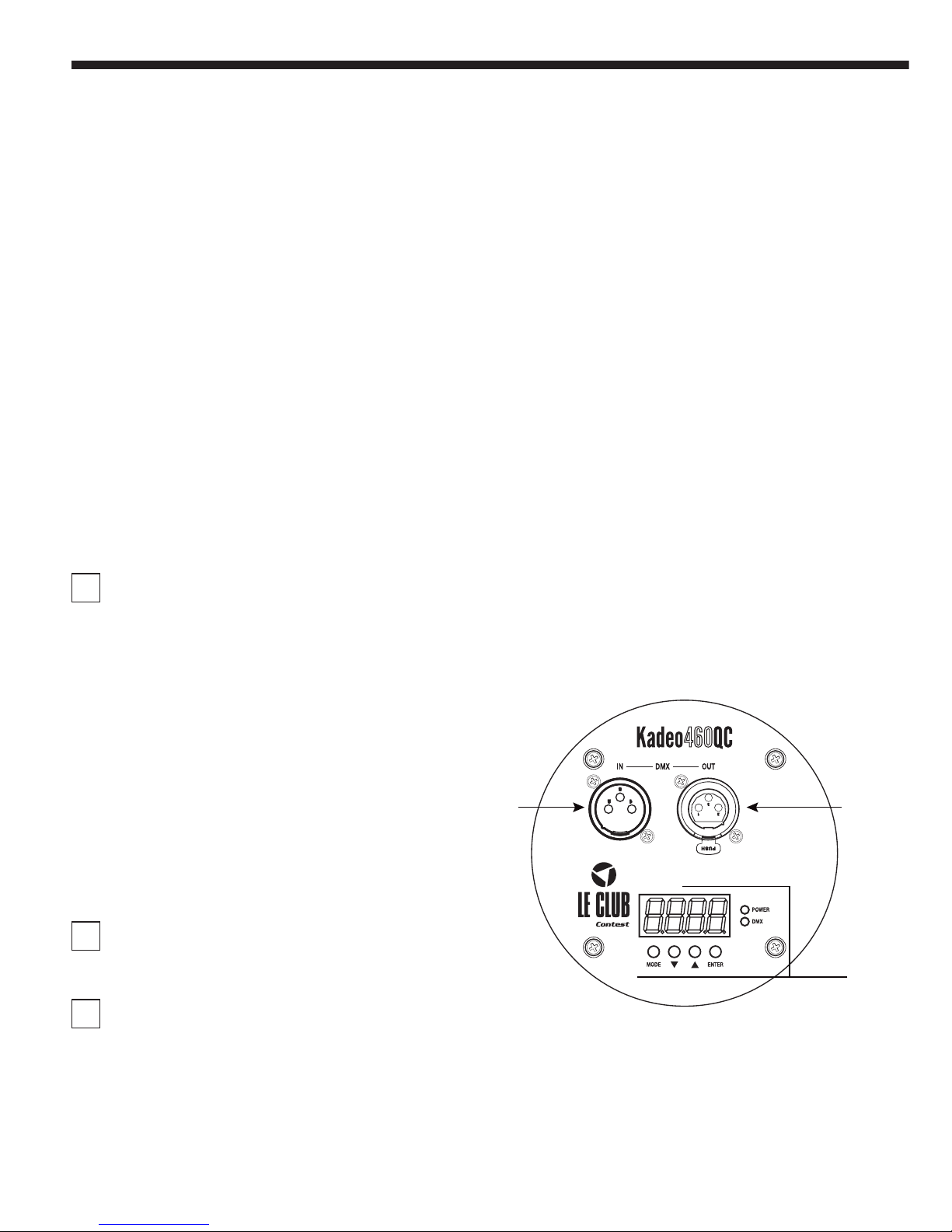

1Display, menu buttons and LED indicators
Display
Allows you to intuitively configure your device. Please refer to
next paragraph for more details about the menu functions. The
backlight can be turned off via the Backlight function from the
menu.
MODE Button
ALlows you to access the menu and select a function.
ENTER Button
Allows you to enter sub-menus and apply changes.
UP and DOWN buttons
Allows you to increase or decrease parameter values.
DMX LED
Flashes regularly when the DMX mode is activated.
POWER LED
Lights up when your device is activated.
2DMX input
Allows you to receive a signal from a DMX controller or from
a master unit.
3Power output
Allows you to power up more units.
3 - Description
2 3
1

KADEO460QC - Projector with 4 x 60W 4-in-1 RGBW LEDs, Zoom and rotating animation effect
Page 4
English

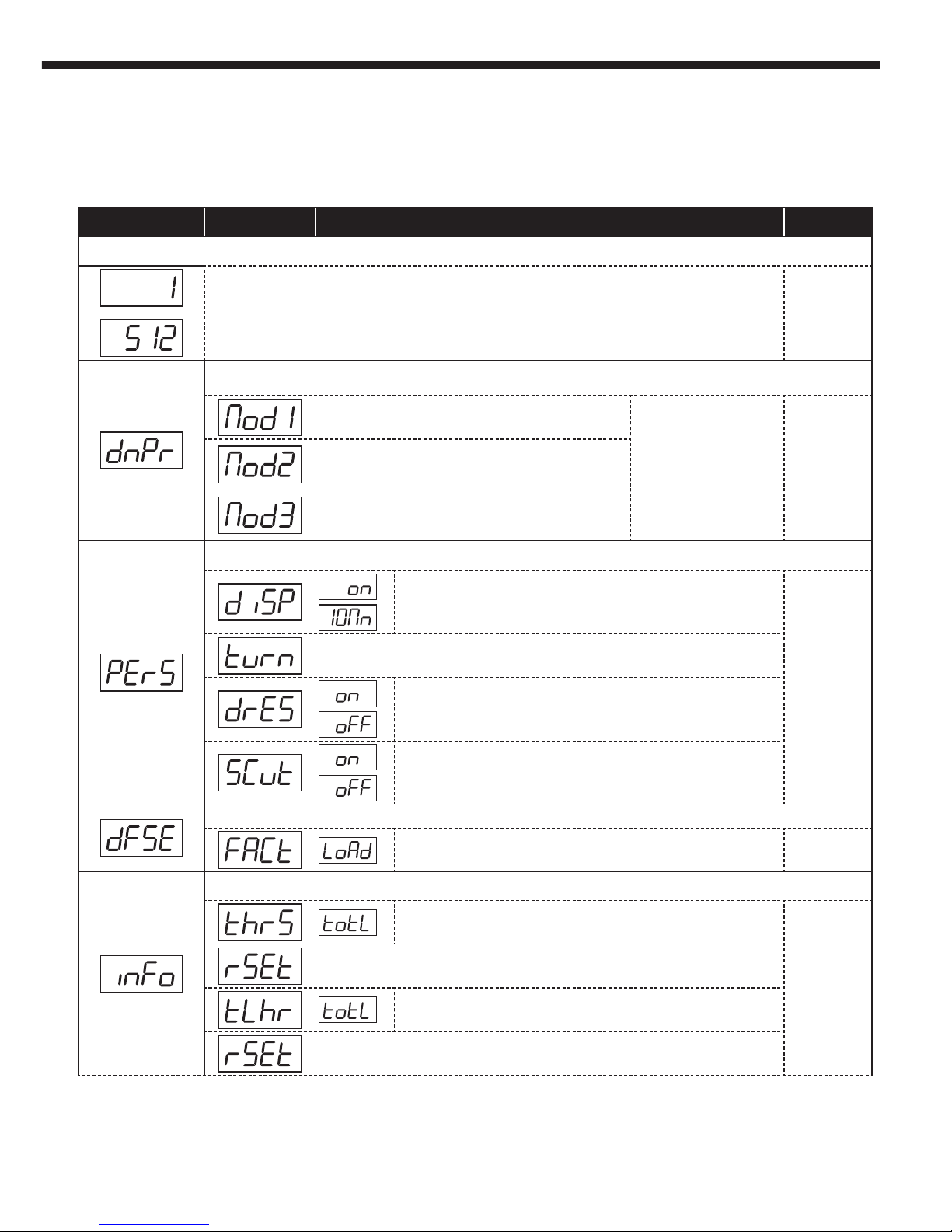

4 - Internal menu
MENU UP and DOWN Action ENTER
DMX address
DMX Address selection
Press ENTER and use UP and DOWN to select an address Saves changes
DMX modes
Mod1 : 1 channel: Shows selection in auto or music-sen-
sitive mode
Press ENTER, then select
a mode using the UP and
DOWN buttons.
Saves changes
Mod2 : 12 channels : Dimmer / Shutter / Red / Green / Blue
/ White / Beam Effect/ Beam effect speed / Zoom / Special
functions
Mod3 : 12 channels : Dimmer / Shutter / Red / Green / Blue
/ White / Colour presets / Colour macros / Beam Effect/
Beam effect speed / Zoom / Special functions
DIsplay settings
Display behaviour:
on : The display never turns off
10Mn : The display automatically turns off after a 10-second period
Saves changes
Rotates the display
Resets DMX information
Allows you to adapt beams width to smaller rooms
Mesut reset
Resets the menu back to factory settings. Saves changes
Uptime information and resets
Total projector uptime since last reset.
Saves changes
Resets the ThrS function back to 0.
Total LEDs uptime since last projector reset.
Resets the TLhr function back to 0.
The projector will initialize its functions upon activation.
You will then be able to press ENTER to access menus.
Please find the menu tree description below.

KADEO460QC - Projector with 4 x 60W 4-in-1 RGBW LEDs, Zoom and rotating animation effect
Page 5
English

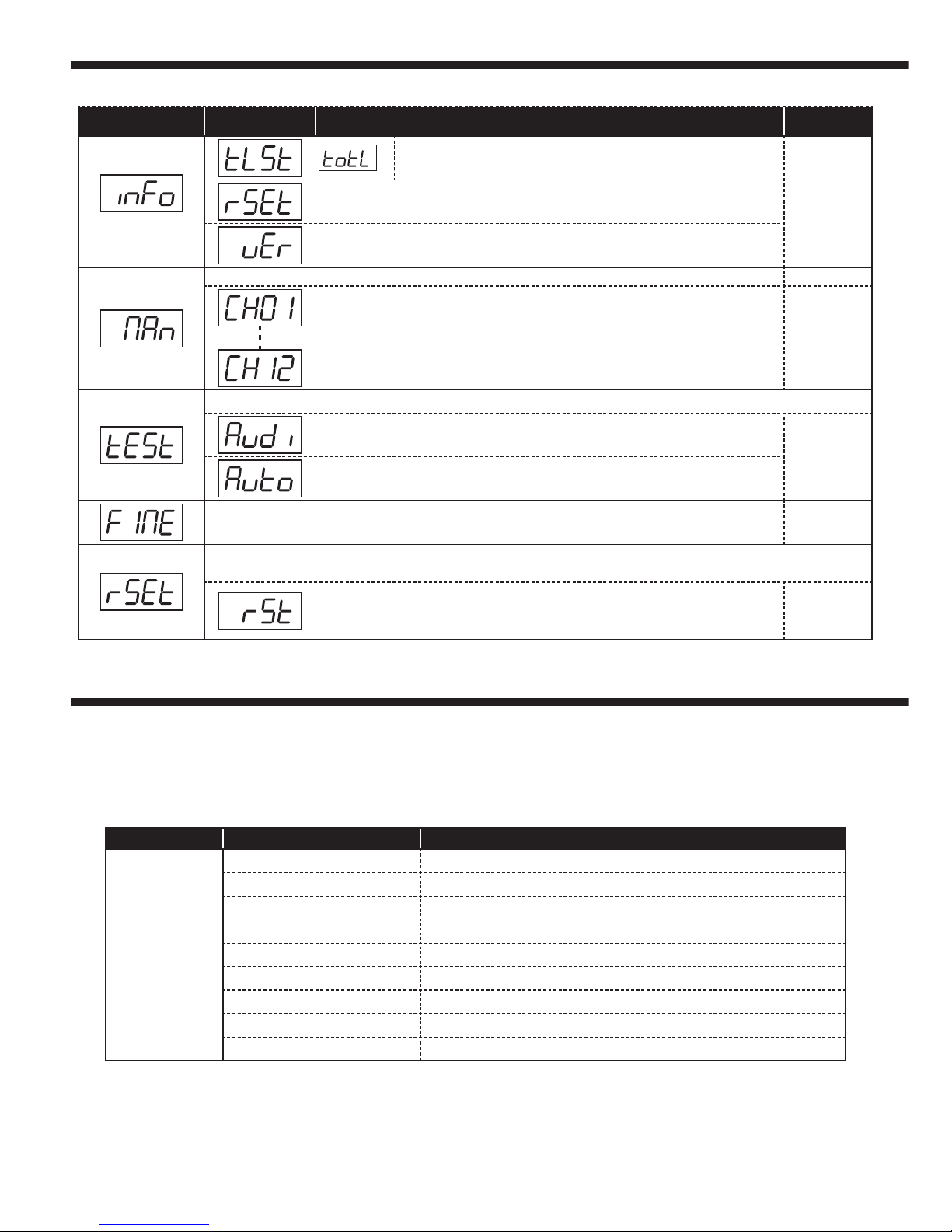

MENU UP and DOWN Action ENTER
(continuation)
Total projector uptime since its very first activation.
Saves changes
Projector uptime since last reset.
Current software version.
Manual mode
Manually adjusts each of the 12 channel. Saves changes
Test mode
Tests each function in automatic mode
Saves changes
Tests each function in music-sensitive mode
Non used function
Reset
Resets all functions Saves changes
5.1 - 1-channel mode
5 - DMX modes
Channel Values Action
1
000 - 007 Black-Out
008 - 059 Slow to fast Show 1 in automatic mode
060 - 111 Slow to fast Show 2 in automatic mode
112 - 163 Slow to fast Show 3 in automatic mode
164 - 215 Slow to fast Show 4 in automatic mode
216 - 225 Music-sensitive Show 1
226 - 235 Music-sensitive Show 2
236 - 245 Music-sensitive Show 3
246 - 255 Music-sensitive Show 4

KADEO460QC - Projector with 4 x 60W 4-in-1 RGBW LEDs, Zoom and rotating animation effect
Page 6
English
Channels Values Action
1Dimmer 000 - 255 Increasing brightness from 0 to 100%
2
Shutter
000 - 015 Blackout
016 - 131 Slow to fast strobe
132 - 139 Open
140 - 181 Slow to fast pulse effect
182 - 189 Open
190 - 231 Slow to fast reversed pulse effect
232 - 239 Open
240 - 247 Slow to fast random strobe
248 - 255 Open
3Red 000 - 255 Red from 0 to 100%
4Green 000 - 255 Green from 0 to 100%
5Blue 000 - 255 Blue from 0 to 100%
6White 000 - 255 White from 0 to 100%
7
Beam effect
000 - 119 Indexation
120 - 239 Rotative beam effect (increasing aperture)
240 - 255 Beam effect rotation
8
Beam effect rotation speed
000 - 007 No function
008 - 247 Increasing speed
248 - 255 Music-sensitive mode
9Zoom 000 - 255 Zoom from 6° to 80°
10
Special functions
000 - 079 No function
080 - 087 Beam rotary reset
088 - 090 No function
091 - 120 Slow to fast Show 1 in automatic mode
121 - 150 Slow to fast Show 2 in automatic mode
151 - 180 Slow to fast Show 3 in automatic mode
181 - 210 Slow to fast Show 4 in automatic mode
211 - 221 Music-sensitive Show 1
222 - 232 Music-sensitive Show 2
233 - 243 Music-sensitive Show 3
244 - 255 Music-sensitive Show 4
5.2 - 10-channel mode

KADEO460QC - Projector with 4 x 60W 4-in-1 RGBW LEDs, Zoom and rotating animation effect
Page 7
English
Channels Values Action
1 Dimmer 000 - 255 Increasing brightness from 0 to 100%
2Shutter
Similar to channel 2 in 10-channel mode
3 Red 000 - 255 Red from 0 to 100%
4 Green 000 - 255 Green from 0 to 100%
5 Blue 000 - 255 Blue from 0 to 100%
6 White 000 - 255 White from 0 to 100%
7
Colour presets
000 - 007 No function
008 - 017 Red
018 - 027 Orange
028 - 037 Yellow
038 - 047 Green
048 - 057 Cyan
058 - 067 Blue
068 - 077 Pink
078 - 087 Magenta
088 - 097 Cold white
098 - 107 Warm white
108 - 117 Full power
118 - 127 Pastel pink
128 - 137 Pastel apricot
138 - 147 Pastel ochre
148 - 157 Yellow/Pastel pink
158 - 167 Pastel pearl green
168 - 177 Pastel pearl gray
178 - 187 Pastel blue
188 - 197 Pastel pearl blue
198 - 207 Pastel veronese green
208 - 217 Pastel lagoon blue
218 - 227 Pastel sky blue
228 - 237 Light blue
238 - 255 Pastel blue
8
Colour macros (crossfades)
000 - 007 No function
008 - 038 Macro 1 : Crossfade including all colours at increasing speed
039 - 069 Macro 2 : Red to Purple crossfade at increasing speed
070 - 100 Macro 3 : Pink to Purple crossfade at increasing speed
101 - 131 Macro 4 : Blue to Cyan crossfade at increasing speed
132 - 162 Macro 5 : Cyan to Green crossfade at increasing speed
163 - 193 Macro 6 : Green to Yellow crossfade at increasing speed
194 - 224 Macro 7 : Yellow to Orange crossfade at increasing speed
225 - 255 Macro 8 : Orange to Red crossfade at increasing speed
9Beam effect
Similar to channel 7 in 10-channel mode
10 Beam effect rotation speed
Similar to channel 8 in 10-channel mode
11 Zoom 000 - 255 Zoom from 6° to 80°
12 Special functions
Similar to channel 10 in 10-channel mode
5.3 - 12-channel mode

Because CONTEST®takes the utmost care in its products to make sure you only get the best possible quality, our
products are subjects to modifications without prior notice. That is why technical specifications and the products
physical configuration might differ from the illustrations.
Make sure you get the latest news and updates about the CONTEST®products on www.contest-lighting.com
CONTEST® is a trademark of HITMUSIC S.A. - Zone Cahors sud - 46230 FONTANES - FRANCE
