LEDLight MSL-1W RGB User manual

1

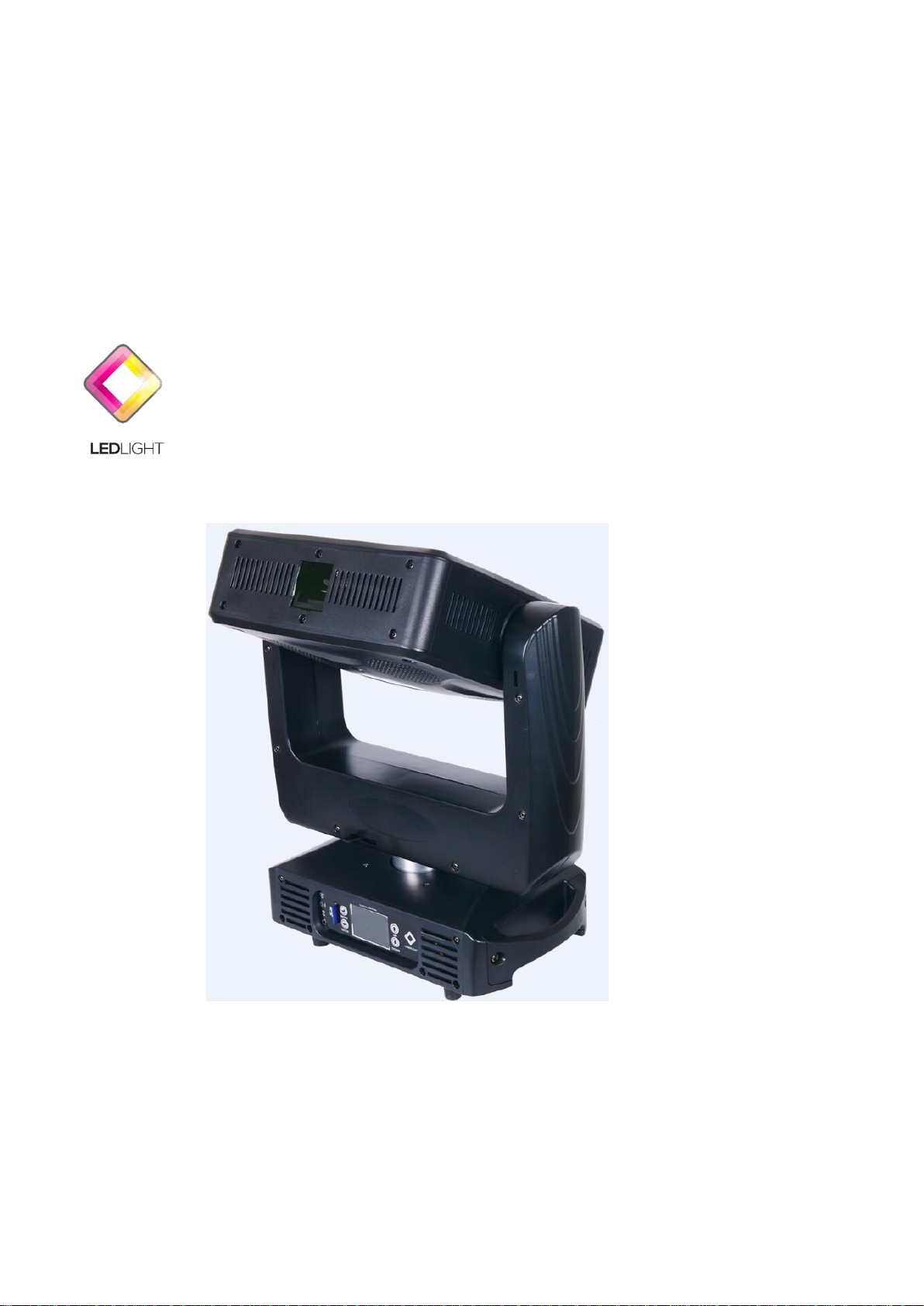

LASER LIGHT MOVING LASER
MSL-1W RGB
User Manual
Please keep the manual carefully for future reference

2
Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For
your own safety, please read this user manual carefully before installing the device.
In order to install , operate, and maintain the lighting safety and correctly. We suggest that the installation and
operation should be done by the verified technician and follow the instruction strictly.
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow carefully the instructions of this manual
Introduction
Thank you for having chosen this professional moving head. You will see you have acquired a powerful and
versatile device.
Unpack the device. Inside the box you should find:
1. 1*DMX512 cable
2. 1*quick lock handle
3. 1* use manual
4. 1* power cable
Please check carefully that there is no damage caused by transportation. Should there be any, consult your local
dealer
Symbol Instruction On The Device
……………………………………………………………
CE Certificate
………
……………………………………………………………
……………………………………………………
…
……………………………
Suitable directly installed on the common combustible materials devices
Only indoor use
Environmental protection
The minimum distance from lighted objects(meter)
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!

3
1. Description of the Device
●Total 1W RGB(200mW/638nm+150mW/520nm+650mW/445nm) laser light, good beam light, and can
output small stand straight beam light.
●20K Scanner.
●Low energy consumption, compact light weight, high brightness and farther of visible light beam.
●Quickly scan speed, Pan scanning 630 degree , and Tilt scanning 254 degree.
●Can play by Auto,ILDA,SD card or DMX controller.
●Perfect blue LCD display.
●Product widely using, simple installation. Applicable for Disco, Clubs, KTV, Pub,Bar,Family party etc..
1. Power In
2. Fuse
3. ILDAIn
4. ILDAOut
5. DMX In
6. DMX Out
1. SD Card
2. <Up>
3 . <Down>
4. <Menu>
5. Display
6. <Enter>

4
2. Safety Instructions
This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe
operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in
this user manual.
►If the device has been exposed to temperature changes due to environmental changes, do not switch it on
immediately. The arising condensation could damage the device. Leave the device switched off until it has
reached room temperature.
►Please make sure that the device be earthed.
►Please replace housing if it is broken. This fixture can be using after finished installed.
►The electric connection must carry out by qualified person.
►Make sure that the available voltage is not higher than stated at the end of this manual.
►Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case,
replacement of the cable must be done by an authorized dealer.
►If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
►Please cut off the power if don't use the fixture or want to clean, maintenance.
Please be aware that damages caused by manual modifications to the device are not subject to warranty. Keep
away from non-professionals.
CAUTION!
Be careful with your operations. With a dangerous voltage you can suffer a
dangerous electric shock when touching wires!
Warning!
Damages caused by the disregard of this user manual are not subject to warranty. The
dealer will not accept liability for any resulting defects or problems.

5
General Guidelines
►This device is a lighting effect for professional use on stages, in discotheques, theaters, etc., the device was
designed for indoor use only.
►This fixture is only allowed to be operated with the max alternating current which stated in the technical
specifications in the last page of this manual.
►The device can do continuous work for eight hours. Lighting effects are not designed for permanent
operation. Consistent operation breaks may ensure that the device will serve you for a long time without
defects.
►Handle with care, do not make the device by strong shocks.
While choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture
or dust. Please don't project the beam onto combustible substances.The minimum distance between light-output
from the projector and the illuminated surface must be more than 1 meter.
►Please do not in damp, overheat or dusty environment install and use the device. Do not use light on fuel. The
distance between the device and the projectile to keep at least 1 meter.
►If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners turned in
the quick lock holes correctly.
►Operate the device only after having familiarized with its functions. Do not permit operation by persons not
qualified for operating the device. Most damages are the result of unprofessional operation.
►Please use the original packaging if the device is to be transported.
►For safety reasons, please be aware that all modifications on the device are forbidden.
►If this device will be operated in any way different to the one described in this manual, the product may
suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to short-circuit,
burns, electric shock, lamp explosion, crash, etc.
3. Installation Instruction
►The applicable temperature for the lighting is between -25°C to 45°C. Do not use the lighting under or above
the temperature.
►The installation of the effect has to be built and constructed in a way that it can hold 10 times the weight for
1 hour without any harming deformation.
CAUTION!
Please consider the GB7000.15/EN60598-2-17 and the other respective national norms during
The installation. The installation must only be carried out by a qualified person.
