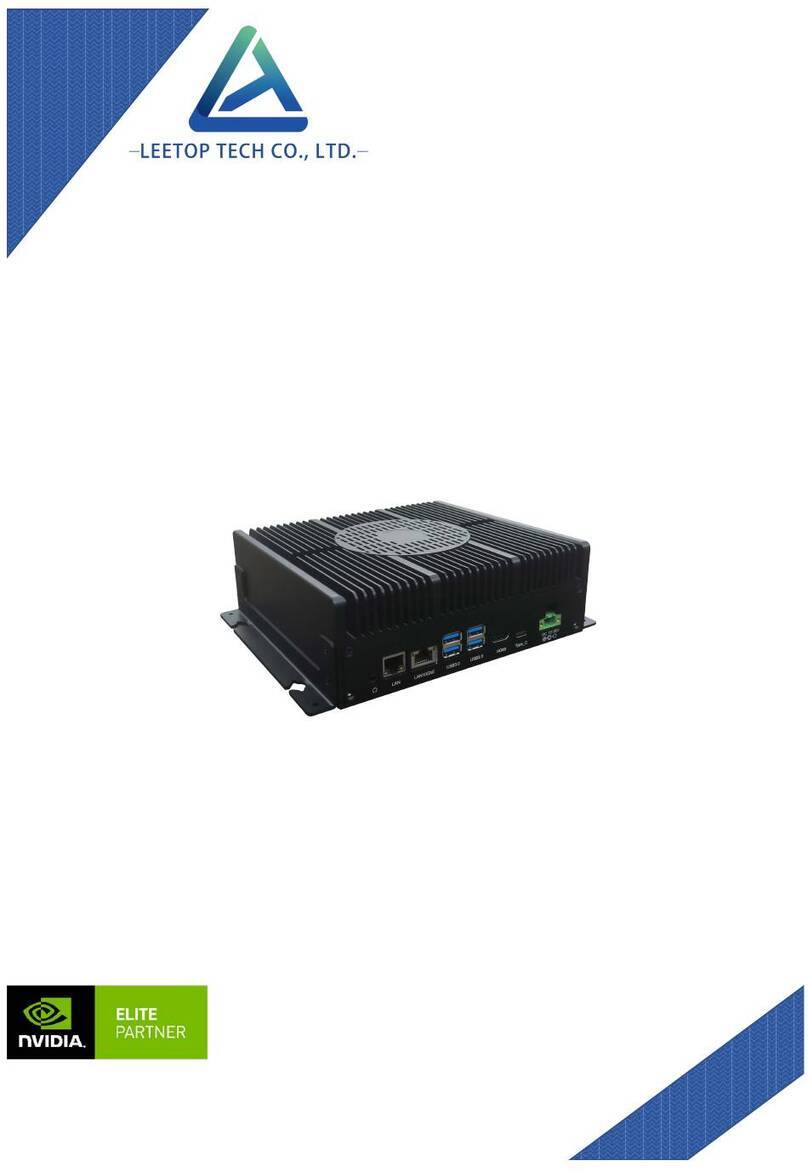

Leetop Leetop-FLAME-NX User manual

Leetop-FLAME-NX
AI-at-the-edge Computing Platform

Leetop-FLAME-NX AI-at-the-edge Computing Platform
安全警示及使用注意事项 Notice
Leetop-FLAME-NX产品介绍
简介 Brief
产品清单 Packing List
产品规格 Specifications
处理器模组 Processor
接口 I/O
供电 Power Supply
结构 Mechanical
环境 Environmental
结构尺寸及安装 Install Dimension
服务与支持 Service and Support
技术支持 Technical Support
保修 Warranties
Leetop-FLAME-NX 接口说明 Interfaces
盒子接口说明
正面接口 Front
背面接口 Back
载板接口说明
载板规格
接口位置
接口详述 Interface descriptio
USB-OTG (W1)
HDMI (W2/W3)
双层USB 3.0 (W4/W5)
网口 (W6/W7)
TF CARD座 (W8)
Audio Jack接口 (W9)
喇叭接口 (W10/W11)
喇叭接口 (W12/W13)
Download firmware接口 (W14)
Download firmware接口 (W15)
多功能接口 (W16)
3V Lithium Battery (W17)
电源LED (LED)
DC电源接口 (W18)
DC电源接口 (W19)
12V/5V风扇接口 Fan (W20/W24)
风扇接口 Fan (W21)
SATA接口 (W26/W27/W28/W29/W30)
CSI Camera接口 (W31/W34/W35/W36/W37/W38)
按键 Button(W32/W33)
M.2 KEY接口 (W22)
功能介绍 Software /BSP
系统配置 Software configuration
Recovery模式
系统重刷 Reflash the system
硬件准备 Hardware preparation
安装工具Installation Tools
烧写步骤 Burn-in steps
切换工作模式 Switching working modes
安装Jtop工具 Installation of Jtop tools

安全警示及使用注意事项 Notice
请在使用本产品前仔细阅读本手册，未经授权的操作会导致错误或意外。制造商对因错误操作而导致设
备出现的任何问题均不负责。
Please read manual carefully before install, operate, or transport Leetop device.
在给设备供电之前，确保使用正确的电源范围。
Ensure that the correct power range is being used before powering the device.
避免热插拔设备接口。 Avoid hot plugging.
要正确关闭电源，请先关闭Ubuntu系统，然后再切断电源。由于Ubuntu系统的特殊性，在Nvidia
的开发套件(沥拓套件)上，如启动未完成的时候强行断电，会有0.03%的概率出现异常，进而导致
设备无法启动。
To properly turn off the power, please shut down the Ubuntu system first, and then cut off
the power. Due to the particularity of the Ubuntu system, on the Nvidia developer kit, if the
power is turned off when the startup is not completed, there will be a 0.03% probability of
abnormality, which will cause the device to fail to start. Due to the use of the Ubuntu system,
the same problem also exists on the Leetop device.
请勿使用本手册提及以外的线缆。
Do not use cables or connectors other than described in this manual.
避免在强磁场环境下使用本设备。
Do not use Leetop device near strong magnetic fields.
长期不使用及运输前需要对数据进行备份。
Backup your data before transportation or Leetop device is idle.
推荐使用原包装进行运输。
Recommend to transport Leetop device in its original packaging.
警告！ 此为A级产品，在生活环境中，该产品可能会造成无线电干扰。在这种情况下，可能需要用
户对干扰采取切实可行的措施。
Leetop-FLAME-NX产品介绍
简介 Brief
Leetop-FLAME-NX是一款嵌入式人工智能计算机，能够为众多终端设备赋予高达21TOPS的计算力。
Leetop-FLAME-NX提供快速的被动散热设计，可以满足抗震防静电等工业标准。同时Leetop-FLAME-
NX接口丰富，性价比高。

Leetop-FLAME-NX is an embedded artificial intelligence computer capable of empowering many
end devices with up to 21TOPS of computing power. leetop-FLAME-NX offers a fast passive
thermal design that can meet industrial standards such as anti-vibration and anti-static.
Meanwhile, Leetop-FLAME-NX is rich in interfaces and cost-effective.
产品清单 Packing List
Leetop-FLAME-NX x 1
天线 Antenna x2
Non-standard equipment：
电源适配器 Power adapter x 1
电源线 Power cord x 1
产品规格 Specifications
处理器模组 Processor

Specification
Processor NVIDIA Jetson Xavier NX
AI
Performance 21 TOPS (INT8)
GPU 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
GPU Max
Freq 1100 MHz
CPU 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU6MB L2 + 4MB L3
CPU Max
Freq 2-core @ 1900MHz 4/6-core @ 1400Mhz
Memory 8 GB 128-bit LPDDR4x @ 1866MHz59.7GB/s
Storage 16 GB eMMC 5.1
Power 10W|15W|20W
PCIe 1 x1 + 1x4(PCIe Gen3, Root Port & Endpoint)
CSI Camera Up to 6 cameras (36 via virtual channels)12 lanes MIPI CSI-2D-PHY 1.2 (up
to 30 Gbps)
Video
Encode
2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265) 2x 4K60 | 4x 4K30
| 10x 1080p60 | 20x 108p30 (H.264)
Video
Decode
2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x
4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)
Display 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
DL
Accelerator 2x NVDLA Engines
Vision
Accelerator 7-Way VLIW Vision Processor
Networking 10/100/1000 BASE-T Ethernet
接口 I/O

接口 Interface 规格 Specification
网络接口 Network 2 x Gigabit Ethernet Connector (10/100/1000)
视频输出 Video
Output 2 x HDMI 2.0 (TYPE A)
音频接口 Audio 1 x Audio Jack (3.5mm)
USB 4 x USB 3.0 (TYPE A) + 1 x USB-OTG (Type C)
TF卡座 TF Slot 1 x TF Card Slot
按键 Function
Keys 1 x Reset Button + 1 x Recovery Button
Hard Disk 2.5" hard drive （SATA） x 1
Serial port
（Optional）
RS232 x 1 (2) / RS485 x 1 (2) / 1X SPI Bus(+3.3V Level) / 1x CAN /2x I2C
Link（+3.3V I/O）
1x UART(+3.3V Level) / 1X SPI Bus(+3.3V Level) / 2x GPIO(+3.3V Level)
Power Supply Specification
Input Type DC
Input Voltage +13V(8A) ~ +24V(5A)
Typical consumption 30W
Mechanical Specification
Dimensions (W x H x D) 209.0mm x 68.3mm x 130.0mm
Weight 1.5kg
Environmental Specification
Operating Temperature -20℃-60℃, 0.2~0.3m/s air flow
Storage Temperature -25℃ ~ +80℃
Storage Humidity 10%-90% 非结露环境 non-condensing
供电 Power Supply
结构 Mechanical
环境 Environmental
结构尺寸及安装 Install Dimension
Leetop-FLAME-NX主体尺寸如下图所示：
Dimensions as below:

俯视图 Up view (Unit:mm)
主视图 Front view (Unit:mm)
左视图 Left view (Unit:mm)
Leetop-FLAME-NX外部支架安装孔位尺寸如下图所示：
The holder mounting hole position as below:

主视图 Front view (Unit:mm)
安装孔位图 Mounting Hole (Unit:mm)
服务与支持 Service and Support
技术支持 Technical Support
沥拓科技非常愿意帮助你解决关于我们产品的任何问题，或者关于你的应用技术的使用。最快的方法是
向我们发送电子邮件：[email protected]
Leetop is glad to help you with any questions you may have about our product, or about the use
of the technology for your application. The fastest way is sending us an email: [email protected]
保修 Warranties
保修期：自交付之日起一年
Warranty period: One year from the date of delivery.
保修内容：
leetop保证由我们制造的产品在保修期内没有材料和工艺上的缺陷。在退回任何物品进行维修或更换之
前，请联系[email protected]，以获得退货授权（RMA）。产品必须以其原始包装退回，以防止在运
输过程中损坏。在退回任何产品进行维修之前，建议备份您的数据并删除任何机密或个人数据。

Warranty content:
Leetop warrants the product manufactured by us to be free from defects in material and
workmanship during warranty period. Please contact [email protected] for return material
authorization (RMA) prior to returning any items for repair or exchange. The product must be
returned in its original packaging to prevent damage during shipping. Before returning any
product for repair, it is recommended to back up your data and delete any confidential or
personal data.

Leetop-FLAME-NX正面接口示意图
接口
Interfaces 接口名称 接口说明 Interface description
RESET 复位开关 Resetting
switch 系统复位开关 Resetting switch
REC Recovery按钮 进入Recovery模式
Type-C USB Type-C 接口 1路USB-OTG Type-C接口
HDMI 高清多媒体接口
2路HDMI接口 （左侧为主输出，右侧为辅助输出）
(Main output on the left, secondary output on
the right)
USB 3.0 USB 3.0接口 4路USB3.0 Type-A接口（兼容USB2.0）
RJ45 以太网千兆口 2x Gigabit Ethernet (10/100/1000)
TF Card TF卡槽 可插入Micro SD卡
Audio 耳机接口 3.5mm耳机接口
Leetop-FLAME-NX 接口说明 Interfaces
盒子接口说明
正面接口 Front

Leetop-FLAME-NX背面接口示意图
接口
Interfaces 接口名称 接口说明 Interface description
DC 直流电源接口 DC power supply
interface
直流+13V(8A)~+20V(5A)电源接
口
LNB 天线高频头 Antenna HF head Antenna HF head
背面接口 Back
注：本产品插电自启动
Note: This product is self-starting when on power.

Feature Carrier for NVIDIA Jetson NX
PCB Size /
Overall Size 170mm x 100mm (6.693” x 3.937”)
Display 2x HDMI
Ethernet 2x Gigabit Ethernet (10/100/1000)
USB 4x USB 3.0 Type A (Integrated USB 2.0) + 1x USB 2.0 Type C (Support OTG)
SATA 1x5 SATA
M.2 KEY E 1x M.2 KEY E Interface
Camera 6 x Camera (CSI 2 Lane)
TF_CARD 1x TF_CARD
USB WIFI
MODE Standard USB WIFI MODE(4 PIN Interface)
AUDIO 1x Audio Jack, 2x Speaker(1W)
SPI Bus 1X SPI Bus(+3.3V Level)
FAN 2 x Fan(12V/5V),1 x FAN(5V PWM)
CAN 1x CAN
Misc.
1x System Control + 1x POWER Control + 2x I2C Link(+3.3V I/O) + 1x
UART(+3.3V Level) + 1X SPI Bus(+3.3V Level) + 2x GPIO(+3.3V Level) + 1x
LED STATE
Power
Requirements +13---+19V DC Input @ 8A
Operating
Temperature -25 o C to +80 ℃
载板接口说明
载板规格

Leetop-FLAME-NX载板正面接口示意图
Leetop-FLAME-NX载板背面接口示意图
接口位置

接口 Interfaces 接口名称 Name 接口说明 Interface
description
W1 USB 2.0 OTG USB 2.0 Link 0 OTG TYPE C
Connector
W2/W3 HDMI Port HDMI Right Angle Vertical
Connector
W4/W5 USB 3.0 Type A USB 3.0 Link 1 Type A
Connector
W6/W7 Gigabit Ethernet RJ45 Gigabit Ethernet
Connector (10/100/1000)
W8 TF Card Slot TF Card Slot
W9 3.5mm Audio Jack Audio Jack(美标CTIA)
W10/W11 Speaker connector 1.5mm pitch Speaker
connector
W12/W13 Microphone connector 1.5mm pitch Microphone
connector
W14 Download firmware
connector
2.54mm pitch 4 pins Test
connector
W16 Multifunctional port 2.54mm pitch 40 pins
Multifunctional port
W17 RTC BATTARY
connector
1220 3V Rechargeable lithium
battery connector
LED POWER LED POWER Status LED
W18 DC 电源输入接口 4.2mm pitch 4pins DC
connector
W19 DC 电源输入接口 5.08mm pitch 2pins DC
connector
W20/W24 12V/5V FAN connector 2.54mm pitch 8 pins 12V/5V
FAN connector
W22 M.2 KEY E connector 67 pins M.2 KEY E connector
W23 NVIDIA Jetson NX 260
pins connector
NVIDIA Jetson NX 260 pins
connector
W26/W27/W28/W29/W30 SATA connector 7 pins SATA connector
W31/W34/W35/W36/W37/W38 CSI CAMERA connector 1mm pitch 15 pins CSI Camera
connector
W32 RESET Button RESET Button
W33 Recovery Button Recovery Button

引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
A1, A12, B1, B12 GND A4, A9, B4, B9 VBUS
A5, B5 USB ID A6, B6 USB D+
A7, B7 USB D-  
引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
1 TMDS Data2+ 2 TMDS Data2 GND
3 TMDS Data2- 4 TMDS Data1+
5 TMDS Data1 GND 6 TMDS Data1-
7 TMDS Data0+ 8 TMDS Data0 GND
9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock GND 12 TMDS Clock-
13 CEC 14 NC
15 DDC clock 16 DDC data
17 DDC GND 18 +5V
19 Hot Plug Detect  

接口详述 Interface descriptio
USB-OTG (W1)
注：
USB-OTG 为主机模式时 ，USB ID 引脚需浮空 。
USB-OTG 为从机模式时 ，USB ID 引脚需接地 。
HDMI (W2/W3)
双层USB 3.0 (W4/W5)

引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
1 VBUS 2 USB 2.0 D-
3 USB 2.0 D+ 4 GND
5 SSRX- 6 SSRX+
7 GND 8 SSTX-
9 SSTX+ 10 VBUS
11 USB 2.0 D- 12 USB 2.0 D+
13 GND 14 SSRX-
15 SSRX+ 16 GND
17 SSTX- 18 SSTX+
引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
1 TP0+ 2 TP0-
3 TP1+ 4 TP2+
5 TP2- 6 TP1-
7 TP3+ 8 TP3-
引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
1 Data2 2 Data3
3 CMD 4 3.3V
5 CLK 6 GND
7 Data0 8 Data1
引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
1 Microphone P 2 GND
3 HP_L 4 HP_R
引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
1 SPK- 2 SPK+
网口 (W6/W7)
TF CARD座 (W8)
Audio Jack接口 (W9)
喇叭接口 (W10/W11)

引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
1 GND 2 Microphone P
引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
1 C2D 2 C2K
3 GND 4 3V3_AO
引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
1 SPI_CS 5 SPI_D1
2 WP 6 GND
3 SPI_D0 7 SPI_CLK
4 HOLD 8 3V3
喇叭接口 (W12/W13)
Download firmware接口 (W14)
Download firmware接口 (W15)
多功能接口 (W16)

引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
1 +3.3V 2 +3.3V
3 CAN_L 4 CAN_H
5 GND 6 GND
7 FORCE_RECOVERY 8 SYS_RST_IN
9 ACOK 10 GND
11 UART2_RXD_3V3 12 UART2_TXD_3V3
13 I2C1_DAT_3V3 14 I2C1_CLK_3V3
15 ID_I2C_DAT_3V3 14 ID_I2C _CLK_3V3
17 UART1_CTS_3V3 18 UART1_TXD_3V3
19 UART1_RTS_3V3 20 UART1_RXD_3V3
21 SPI0_MOSI_3V3 22 SPI0_CS0_3V3
23 SPI0_SCK_3V3 24 SPI1_CS1_3V3
25 SPI0_MISO_3V3 26 I2S1_SDOUT_3V3
27 GIPO11_3V3 28 I2S1_LRCK_3V3
29 BBAT(3V RTC) 30 I2S1_SDIN_3V3
31 GND 32 I2S1_SCLK_3V3
33 GND 34 GND
35 POWER_LED 36 STAND_LED
37 GPU_LED 38 FAN_LED
39 PWR_BTN 40 5V
注：
UART1&UART2经过载板电平转换电路转换为3.3V逻辑电平;
I2S1经过载板电平转换电路转换为3.3V逻辑电平;
SPI0经过载板电平转换电路转换为3.3V逻辑电平;
GPIO11_3V3, SPI1_CS1_3V32个引脚都是3.3V逻辑电平;
注：以下接口主要是为工业控制领域的1U机箱提供外接开关机，系统复位按键，系统状态LED指
示用：
GPU_LED-----系统温度指示灯负极; FNA_LED----风扇运行指示灯负极;
STAND_LED----系统正常工作指示灯负极; POWER_LED----系统电源正常工作指示灯负极
PWR_BTN----系统开机正极;
ACOK与地短路----系统关闭上电自动开机功能;

引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
1 GND 2 GND
3电源正极 Power+ 4 电源正极 power-
引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
1 GND 2 电源正极
SYS_RST_IN----系统复位; FORCE_RECOVERY 为刷机键正极
Note：
Uart1 & UART2 are converted to 3.3V logic level by carrier level conversion circuit;
I2s1 is converted to 3.3V logic level through the board level conversion circuit;
Spi0 is converted to 3.3V logic level through the board level conversion circuit;
GPIO11_ 3V3, SPI1_ CS1_ 3v32 pins are all 3.3V logic levels;
Note：The following interfaces are mainly used to provide external switch, system reset
button and system status LED indication for 1U chassis in industrial control field.
GPU_ Led: negative pole of system temperature indicator;
FNA_ Led --- negative pole of fan running indicator light;
STAND_ Led --- negative pole of system normal working indicator;
POWER_ Led --- system power supply normal working indicator negative
PWR_ BTN --- system startup positive pole;
Acok is short circuited to the ground --- the system turns off the power on automatic start-
up function;
SYS_ RST_ In --- system reset; force_ Recovery is the positive pole of the brush key;
3V Lithium Battery (W17)
RTC后备电池，系统断电后，可以存储系统的时钟持续100天正常工作。
Note:
RTC Spare battery, After power failure of the system,It can keep the clock of the storage system
working normally for 100 days.
电源LED (LED)
插入电源正常开机后，电源LED灯亮（红色）
After power on，Power LED Light up (red)
DC电源接口 (W18)
注：电源输入范围：直流+13V(8A)~+20V(5A)
Note：Power input range: DC + 13V (8A) ~ + 20V (5A)
DC电源接口 (W19)
注：电源输入范围：直流+13V(8A)~+20V(5A)

引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
1 GND 2 +12V
3 GND 4 +5V
5 GND 6 +12V
7 GND 8 +5V
引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
1 GND 2 +5V
3 FAN_TACH 4 FAN_PWM
引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
1 GND 2 TXP
3 TXN 4 GND
5 RXN 6 RXP
7 GND  
引脚 Pin 信号名称 Signal 引脚 Pin 信号名称 Signal
1 GND 2 CSI_D0N
3 CSI_D0P 4 GND
5 CSI_D1N 6 CSI_D1P
7 GND 8 CSI_CLK_N
9 CSI_CLK_P 10 GND
11 CAM_PWDN 12 CAM_MCLK
13 CAM_I2C_CLK 14 CAM_I2C_SDA
15 3V3  
12V/5V风扇接口 Fan (W20/W24)
注：这个接口支持可给SATA提供12V电源（1A）
风扇接口 Fan (W21)
注：这个是1.25mm间距连接器。
SATA接口 (W26/W27/W28/W29/W30)
CSI Camera接口 (W31/W34/W35/W36/W37/W38)
