LEISURE-TEC MYCOOLMAN CCP Series User manual

CCP FRIDGE·FREEZER
LEISURE-TEC Australia Pty Ltd
Operation Manual
for AC/DC Fridge·Freezer
Single Zone Models CCP 30 / 36 / 44 / 60 / 73 / 105
Dual Zone Models CCP 69 / 85 / 96
www.mycoolman.com.au

Important Safety Warnings page 2
Important Product Information page 3
Product Features page 3
LED Control Panel & Operation Instructions page 4-5
Bluetooth Mode Instructions page 6
Two Way Opening and Removable Lid page 7
Emergency Override page 8
Cleaning & Maintenance page 8
Troubleshooting page 9
Status Indicator page 10
Notes page 11
Product Specications page 12
Warranty Terms & Conditions page 12
• DO NOT use if any of the electrical cables or
plugs are worn or frayed. Replace with original
manufacturers parts.
• ALWAYS check cables for mechanical damage,
cuts in the insulation, heat / moisture
damage before use. If in any doubt REPLACE.
• DO NOT handle electrical exes with wet
hands.
• DO NOT place electrical items in refrigerator.
• If your fridge/freezer has been o with food
stored, do not consume if in any doubt!
• Repairs should only be carried out by a
suitably qualied and authorized person.
Poor repair could be dangerous.
• DO NOT store dangerous items in the
appliance, such as spray cans, explosives,
and ammable liquids / propellants.
• ALWAYS leave room for airow around the
contents stored in the refrigerator to ensure
optimum performance.
• DO NOT operate this appliance in the rain.
• DO NOT allow children to play with the
appliance.
• Small children must be supervised when
around all electrical appliances.
• DO NOT allow children or pets to climb inside
appliance.
• ALWAYS disconnect before cleaning.
• Food must be stored in suitable and
appropriate containers.
• If your appliance is plugged in to a DC vehicle
socket – ensure that you disconnect from
power when you stop. Or use the battery
protection (page 5).
Don’t come back to a at battery!
• DO NOT ll appliance with ICE, WATER
or other liquid.
• DO NOT attempt to remove frost with scraper
or knife. Serious damage to cooling system
could occur.
• Buildup of heat in a vehicle can be extreme,
‘shutdown‘ will occur if cooling is not possible.
CCP FRIDGE·FREEZER
Contents
Important Safety Warnings
page 2

• Best performance is achieved in ambient
temperatures between +10 °C and + 43 °C.
• Temperatures above +32 °C may see a slight per-
formance drop, and power consumption increase.
• The lower the ambient temperature, the lower
the power usage. In order to maximize effi ciency,
keep the unit in a cool location out of direct
sunlight.
• When using the unit ensure the circuit being used
has a fuse or circuit breaker, recommended size
for DC 12 Volt is 10 Amp, DC 24 Volt is 5 Amp.
• Make sure the voltage is within the correct
range for socket and cable being used.
• Do not place any electrical devices inside
the refrigerator as they may be damaged.
• Your unit requires good ventilation, especially
around the vents of the refrigerator; allow a
gap of at least 100 mm around all vents.
• Do not allow a large amount of frost to
build up on the inside walls as this may
impair cooling.
• Defrost by turning the unit o . Once frost
has melted, remove the bung plug to
drain any excess water and wipe out any
remaining moisture with a clean cloth.
• It is recommended to operate the unit on a  at
surface, but it will operate at angles up to 30 º.
12
11
10
9
87
5
5
4
3
2
1
6
13
1 Powered by 12/24 Volt DC compressor
2 Two way opening lid (not CCP 30/36/44)
3 Bottle openers on both sides
4 Flat carry and tie down handles
5 Digital display for each compartment
(only Dual Zone models)
6 Multi-voltage system AC (240v) and
DC (12/24v) with battery protection
DC inlet on two ends
7 USB port and charger with 3000 mA
8 Stylish robust corners for protection
9 LED interior light
10 Divided compartment storage
11 Fully refrigerated stepped compartment
12 Headroom for upright standing bottles
13 Bluetooth App for mobile use
Damage may occur if the DC cable supply is
undersized. This will cause low voltage.
As a guide, from the battery to the appliance
follow this guide.
Important Product Information
Product Features
page 3
NOTE:
At inclinations of more than 15 ° the
compressor noise level may increase
(without any e ect on the cooling
performance).
CCP FRIDGE·FREEZER
Cable cross
section
12v maximum
cable length
24v maximum
cable length
mm² Metre Metre
2,5 2,5 5
4 4 8
6 6 12
10 10 20

Turning the unit on and o:
Step 1: Plug in the AC or DC power cable (ensure power is on at source).
Step 2: Press the button once to turn on - To switch o press and hold the for 3 seconds.
Changing the set temperature:
Single Zone
Step 1: Press the button once.
Step 2: Use the and button to change the
temperature.
Step3: Once you reach your desired temperature
you do not need to press any further buttons.
Just leave it sit until you see the temperature
ash 5 times – this means the temperature is
now locked in.
Changing the set temperature:
Dual Zone
Step 1: Press the button once.
Step 2: Use the and button to change
the temperature in the left-hand zone
(the zone with the step inside).
Step3: Once you reach your desired temperature
in the rst zone press the button again. This
then moves to the right zone (the large deep zone).
Step 4: Use the and button to change the
temperature.
Step 5: Once you reach your desired temperature
you do not need to press any further buttons.
Just leave it sit until you see the temperature
ash 5 times – this means the temperature is
now locked in.
Control Panel Single Zone
(CCP 30 / 36 / 44 / 60 / 73 & 105)
Control Panel Dual Zone
(CCP 69 / 85 & 96)
NOTE: Temperature can be set from –22 ºC to +10 ºC in each compartment
NOTE:
• The ‘Power/Status Indicator Light’ will illuminate green to show the unit is running OK.
• The system has a memory which records your last setting before shutting down.
• If the power supply is cut o or disconnected, the unit will switch o automatically,
once the power supply is restored it will automatically switch back on. Your unit may
temporarily show a status of E3 or E4 and will clear after approximately 5 minutes.
• When adjusting settings directly on the fridge, the LED display will ash to let you know
that the settings are now adjustable.
NOTE:
• The fridge temperature shown on the LED
(as a solid - non ashing icon) is the current
inside temperature. This will lower to your
set temperature, given time to chill down.
LED Control Panel & Operation Instructions
page 4
Power Switch Power/Status
Indicator Light
Turbo Indicator Light
LED-Displays Switch Compartments / Mode
Temperature Settings
Turbo Switch
Power Switch Power/Status
Indicator Light
Turbo Indicator Light
LED-Display Mode
Temperature Settings
Turbo Switch
CCP FRIDGE·FREEZER

Engaging Turbo mode:
What is the purpose of Turbo Mode? It enables the compressor to run at a higher speed,
therefore achieving faster cooling to your nominated temperature.
Step 1: Press the button once to turn on. The light will illuminate green to indicate that
Turbo Mode is engaged.
Step 2: To turn o, press the button again. The green light will now go out to indicate that
Turbo mode is no longer engaged.
Change temperature between °C or °F:
Step 1: Press the button 2 times for single zones or 3 times for dual zones.
Step 2: Use the and button to change between °C or °F.
Step 3: Once you reach your desired setting you do not need to press any further buttons.
Just leave it sit until you see the setting ash 5 times – this means the setting is now locked in.
Turn o one zone – only for Dual zone models:
Turn on and o LEFT zone (the zone with step inside): Press and hold the button for 3 seconds.
Turn on and o RIGHT zone (the large deep zone): Press and hold the buttonfor 3 seconds.
Setting Battery Protect:
Step 1: Press the button 3 times for single zones or 4 times for dual zones.
Step 2: Use the and button to choose either HI, MED or LO protection levels.
Step 3: Once you reach your desired setting you do not need to press any further buttons.
Just leave it sit until you see the setting ash 5 times – this means the setting is now locked in.
12v Input 24v Input
Unit turns o at Unit turns on at Unit turns o at Unit turns on at
LO: 10.1 11.1 21.5 23.0
MED: 11.4 12.2 22.5 24.0
HI: 11.8 12.6 23.0 24.5
Automatic shut down and re-start voltage levels:
NOTE:
• When o, there will be NO LED temperature display in the correlating zone.
• You CAN NOT turn o single zones through the App, this must be done directly on the unit.
page 5
CCP FRIDGE·FREEZER
LED Control Panel & Operation Instructions

Activate Bluetooth mode:
Step 1: Press the and button for 3 seconds together at the same time
Step 2: Use the and button to choose either CLO (closed) or OPE (open).
Step 3: Once you reach your desired setting you do not need to press any further buttons.
Just leave it sit until you see the setting ash 5 times – this means the setting is now locked in
Installing Bluetooth App:
Step 1: Download the ‘myCOOLMAN’ app (for
FREE) from the Apple or Google Play store.
Step 2: Open the App.
Step 3: Connecting to your unit - There are
2 ways to discover your unit within the App.
Option 1 – Scan QR code.
Step 1: Click on the icon
Step 2: Scan QR code – this is on a sticker
adhered to the side of the unit.
Option 2 – ‘Search’ for the device
Step 1: Click the icon
Step 2: Select your unit from the list.
If your unit does not appear, you can either
complete option 1 or see above ‘Activate Blue-
tooth mode‘ to turn on Bluetooth connectivity.
NOTE:
• CLO: Bluetooth mode is o. You can only pair your unit to the App by directly scanning the
QR code adhered to the side of the fridge.
• OPE: Bluetooth connection is open. You can now ‘search’ using your App for your unit and
pair your unit to the App
NOTE:
• A secondary QR code sticker is included in the
power lead box with the instruction manual.
What can I do through the app now
that I am activated and connected?
• Turn your fridge on and o
• Adjust the fridge temperature
between –22 °C to +10 °C
• Check the current temperature
• Turn the Turbo mode on and o
• Choose the ‘Battery Protection Level’
(see the chart on page 5)
• Monitor the current battery voltage
• Choose between °C or °F in the settings
• Switch and control several fridges
• Recognize any fault immediately
• Personalise your units name
Bluetooth Mode Instructions
page 6
CCP FRIDGE·FREEZER

CCP 30/36/44
CCP 60/69/73/85/96/105
CCP 60/69/73/85/96/105
CCP 60/69/73/85/96/105
page 7

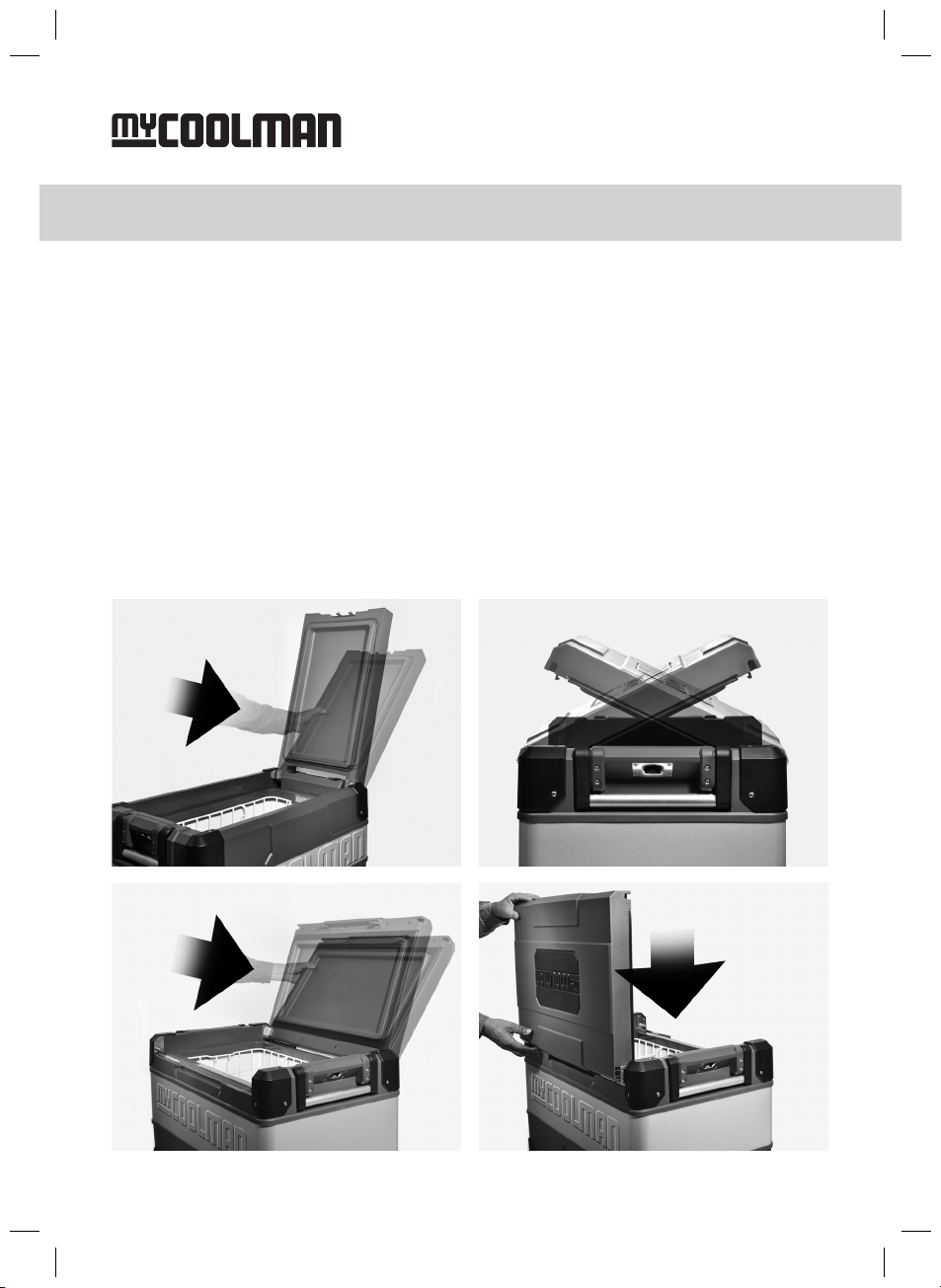

Two Way Opening and Removable Lid
CCP FRIDGE·FREEZER
Purpose for removing the lid:
CCP 30, 36 & 44 – This lid can be removed for cleaning.
CCP 60, 69, 73, 85, 96, 105 – This lid can be removed to aid with cleaning and to change the
opening direction. You can change the direction of the lid by following the below instructions.
How to remove the lid:
Open the lid fully, then overextend, pushing lid past this point to remove.
How to attach the lid:
Line the hinges up with the metal posts and press down rmly. If you would like to change the
opening direction of the lid - line the hinges up with the metal posts on the other side of the
fridge and press down rmly (only available on CCP 60/69/73/85/96/105).
Examples:

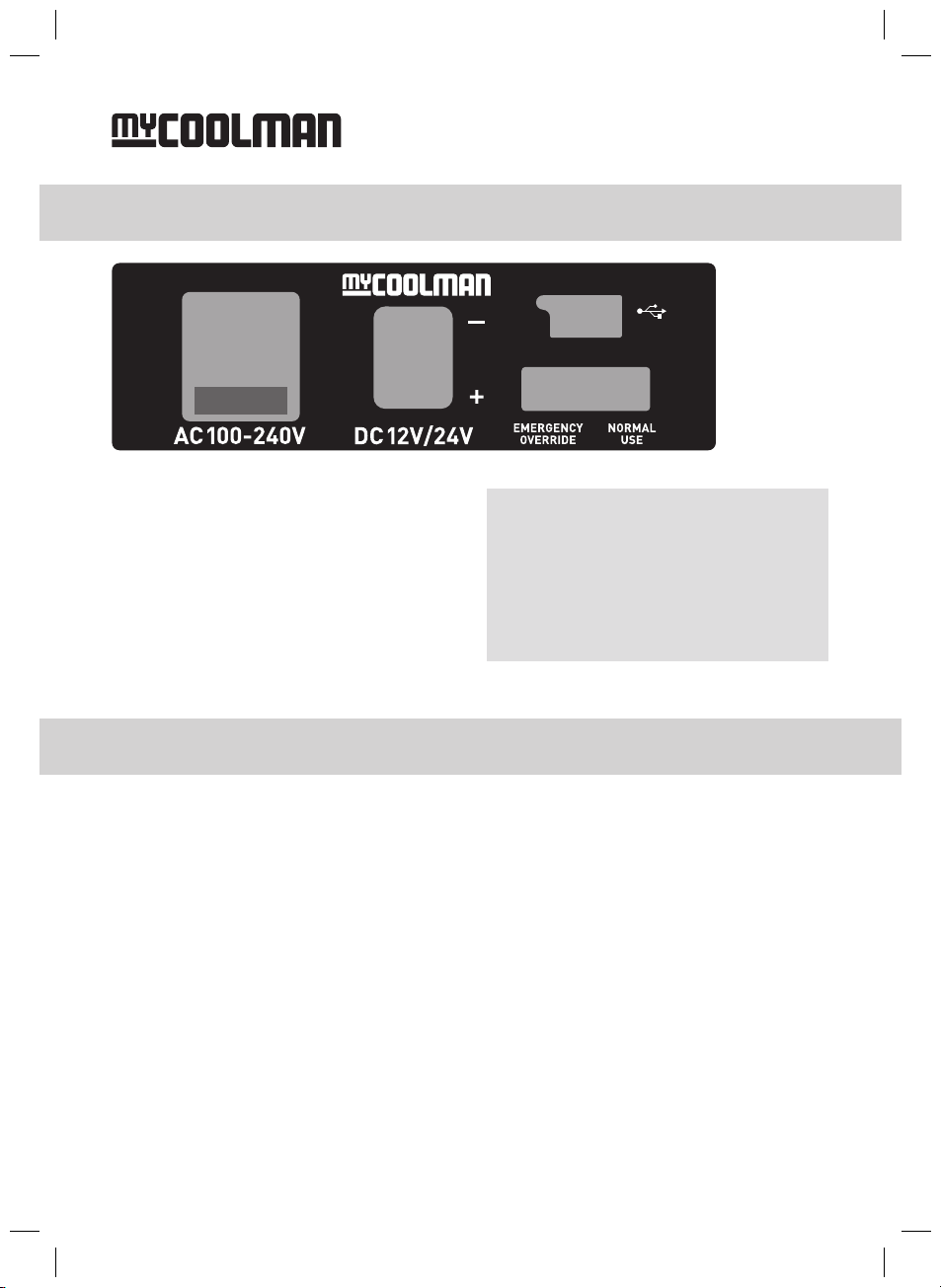

The Emergency Override Switch is
located just below the main control
panel next to the power inlets
For normal operation the switch is in the
“NORMAL USE” position. If the electronics
in the display board fail or controls become
non-functional, slide the switch to
EMERGENCY OVERRIDE position.
NOTE:
• In EMERGENCY OVERRIDE, the cooler runs
with full cooling capacity (i.e. will chill as
heavily as possible with no regard to the
set temperature) and may freeze.
• The compressor will run continuously for
8 hours before going into a hibernation
mode.
The second DC socket
on the back side
allows the optimal use in every position.
Here you also nd the serial number of
your device.
How to clean your unit:
• Clean the appliance inside and outside with a clean damp cloth every week.
If it is dirty, use sodium bicarbonate dissolved in lukewarm water to clean the unit.
• Please don’t use abrasive products, detergents, soap or hard objects to clean as these can
damage your refrigerator.
• After cleaning, wipe out with a clean damp cloth and dry carefully.
• Never clean the unit under running water or in dish water.
• Do not store products inside unit if the unit is o.
• Do not store the unit if it is wet inside or without leaving the lid open.
page 8
Cleaning & Maintenance
CCP FRIDGE·FREEZER
Emergency Override
Fuse 6.3A

How to get the most out of your unit:
• Best performance is achieved at ambient temperatures between +10 °C and +32 °C.
• Product is rated as a ‘T Climate’ class (Tropical), which means that the units meet the
requirements of ISO-15502 at 43 °C.
• Higher ambient temperatures mean that the compressor will run faster and longer.
• If the unit is in direct sun, this also increases the ambient temperature and may result in the
compressor running faster and longer.
• In extraordinary high temperatures the compressor will purposely slow to 1080 RPM for safety.
• Never stack meat, sh or any other solid water-based food directly against each other without
air gaps. If the cool air cannot circulate and surround the individual contents, it will take much
longer to freeze and may even result in partial freezing.
The unit is not turning on
• Check whether the unit has been turned on.
• Check the power supply (try a dierent power source/vehicle/socket).
• Check whether the plug and the socket have a good connection.
• Check whether the fuse has been burned out or blown.
Low refrigeration performance
• Too much product has been placed inside the unit.
• There is no room for air to circulate between the items in the fridge/freezer.
• There is too much warm product inside the unit.
• The lid is unlatched or open.
• The lid seal is broken.
• Poor ventilation (allow 100 mm of space around all vents).
• The ambient temperature is too high.
• The temperature setting is too high.
Can hear the sound of liquid owing or gurgling from inside the unit
• This is normal, due to the ow of refrigerant in the unit.
Unusual noise when refrigerator is working
• The refrigerator is not placed on a level surface. If none of the above solves your issue,
see page 3 or contact myCOOLMAN.
page 9
Troubleshooting
CCP FRIDGE·FREEZER
NOTE:
At inclinations of more than 15 ° the compressor noise level may increase
(without any eect on the cooling performance).

E0 ash every 4 seconds temperature sensor issue:
• Contact Leisure-Tec on 1300 07 2018
E1 ash every 4 seconds - low voltage & Battery Protection:
• An E1 will occur when the battery protection level has been reached.
i.e input voltage to low for protection setting, check power source voltage.
• Try on dierent power source (vehicle or 240V AC power).
If changing power source xed issue, then possible issue with original power source.
• Ensure cabling between fridge and battery is at least 1.5 mm2,
if the distance is more than 2 metres use at least 2.5 mm2 cable.
E2 ashes every 4 seconds - fan issue:
• Fan is drawing too many amps (over 0.6 amps), replace fan.
Contact Leisure-Tec on 1300 07 2018
E3 ashes every 4 seconds - compressor start issue:
• Unplug cable and allow unit to rest for 10 minutes.
• Try on dierent power source (vehicle or 240 V AC power).
• Electronic box fault.
• Compressor fault.
• If changing from 240v AC to 12v DC power or vice versa, if the change is done too quickly
without switching o the unit; the unit will show an error.
Just wait 5 minutes and it will automatically correct and run normally.
E4 ashes every 4 seconds - low motor speed:
• Reduce products/items inside unit.
• Move so unit is in a lower ambient temperature,
clean vents/ensure clear air ow over compressor.
• Fan fault.
• If changing from 240v AC to 12v DC power or vice versa, if the change is done too quickly
without switching o the unit; the unit will show an error.
Just wait 5 minutes and it will automatically correct and run normally.
E5 ashes every 4 seconds - over temperature:
• Ambient temperature too high.
• Clean vents/ensure clear air ow over compressor.
• Fan fault.
NOTE:
The status indicator will be green if running normal. If it changes to a ashing orange light,
this indicates that there is a change in status. There will also be a status indicator code
shown on the LED display.
page 10
Status Indicator
CCP FRIDGE·FREEZER

Notes:
page 11
CCP FRIDGE·FREEZER

LEISURE-TEC Australia Pty Ltd
50 Metrolink Circuit
Campbell eld, VIC 3061 Australia
1300 07 2018
Model
CCP 30
Single Zone
CCP 36
Single Zone
CCP 44
Single Zone
CCP 60
Single Zone
CCP 73
Single Zone
CCP 105
Single Zone
CCP 69
Dual Zone
CCP 85
Dual Zone
CCP 96
Dual Zone
Dimensions
mm
Length 610
Width 340
Height 424
Length 652
Width 412
Height 428
Length 652
Width 412
Height 488
Length 732
Width 456
Height 488
Length 732
Width 456
Height 555
Length 912
Width 536
Height 500
Length 732
Width 456
Height 555
Length 912
Width 536
Height 470
Length 912
Width 536
Height 500
Weight / kg 17.5 21.8 23.4 25.6 28.2 33.2 29.4 33.6 34.9
Connection
voltage DC 12/24 v / AC 100–240v
50– 60Hz
Rated
current
12v 3.40 A
24v 1.70 A
240 v 0.30 A
12v 3.40 A
24v 1.70 A
240 v 0.31 A
12v 3.80 A
24v 1.90 A
240 v 0.30 A
12v 5.60 A
24v 2.90 A
240 v 0.30 A
12v 5.90 A
24v 3.00 A
240 v 0.30 A
12v 5.50 A
24v 2.80 A
240 v 0.32 A
12v 5.30 A
24v 2.80 A
240 v 0.31 A
12v 5.80 A
24v 2.90 A
240 v 0.34 A
12v 5.80 A
24v 2.90 A
240 v 0.34 A
USB 5v / 3000 mA
Climate
class N, T
Refrigerant
Quantity R134a / 37g R134a / 43g R134a / 45g R134a / 65g R134a / 70g R134a / 100g R134a / 75g R134a / 96g R134a / 96g
Cooling
capacity – 22 °C to +10 °C (0 °F to +50 °F)
Volume
litres 30 36 44 60 73 105 69 (24 /45 )
85
(35.5/49.5)
96
(41/55)
Warranty Terms & Conditions
To warranty register your unit please head to: https://mycoolman.com.au/pages/warranty-registration and
upload a copy of your proof of purchase as well as completing the online form.
When you buy myCOOLMAN Fridge·Freezer you have peace of mind knowing that it is backed by a comprehensive
3 year warranty against defects in materials and workmanship plus 2 years (parts only) on the compressor. The
myCOOLMAN warranty is provided in addition to any rights provided under Australian Consumer Law. All claims
under this warranty should be made by returning the product to the place of purchase at your expense, with the
detail of the fault, proof of purchase and  tment details. If we determine that a myCOOLMAN product is defective
in materials or workmanship during the warranty period, we will either repair or replace the unit.
This warranty does not apply to failure or damage to a myCOOLMAN product caused by incorrect or faulty  tment,
accidental or intentional damage, failure of other products, incorrect application, incorrect voltage, environmental
damage, operation of the product outside of its environmental and technical speci cations, or repair or modi ca-
tion carried out by anyone other than an authorised repairer.
Product Speci cations
page 12
Designed in Germany, made in China for
www.mycoolman.com.au
CCP FRIDGE·FREEZER
