LEISURE-TEC myCOOLMAN CEP 47 User manual

CEP FRIDGE·FREEZER
Operation Manual
for AC/DC Fridge·Freezer
Model CEP 47
LEISURE-TEC Australia Pty Ltd
www.mycoolman.com.au
www.mycoolman.com.au
www.mycoolman.com.au

Important Safety Warnings page 2
Important Product Information page 3
Product Features page 3
LED Control Panel & Operation Instructions page 4-5
Handle Fitting Instructions page 6
Two Way Opening and Removable Lid page 7
Emergency Override page 8
Cleaning & Maintenance page 8
Troubleshooting page 9
Status Indicator page 10
Notes page 11
Product Specications page 12
Warranty Terms & Conditions page 12
• DO NOT use if any of the electrical cables or
plugs are worn or frayed. Replace with original
manufacturers parts.
• ALWAYS check cables for mechanical damage,
cuts in the insulation, heat / moisture
damage before use. If in any doubt REPLACE.
• DO NOT handle electrical exes with wet
hands.
• DO NOT place electrical items in refrigerator.
• If your fridge/freezer has been o with food
stored, do not consume if in any doubt!
• Repairs should only be carried out by a
suitably qualied and authorized person.
Poor repair could be dangerous.
• DO NOT store dangerous items in the
appliance, such as spray cans, explosives,
and ammable liquids / propellants.
• ALWAYS leave room for airow around the
contents stored in the refrigerator to ensure
optimum performance.
• DO NOT operate this appliance in the rain.
• DO NOT allow children to play with the
appliance.
• Small children must be supervised when
around all electrical appliances.
• DO NOT allow children or pets to climb inside
appliance.
• ALWAYS disconnect before cleaning.
• Food must be stored in suitable and
appropriate containers.
• If your appliance is plugged in to a DC vehicle
socket – ensure that you disconnect from
power when you stop. Or use the battery
protection (page 5).
Don’t come back to a at battery!
• DO NOT ll appliance with ICE, WATER
or other liquid.
• DO NOT attempt to remove frost with scraper
or knife. Serious damage to cooling system
could occur.
• Buildup of heat in a vehicle can be extreme,
‘shutdown‘ will occur if cooling is not possible.
CEP FRIDGE·FREEZER
Contents
Important Safety Warnings
page 2

• Best performance is achieved in ambient
temperatures between +10 °C and + 43 °C.
• Temperatures above +32 °C may see a slight per-
formance drop, and power consumption increase.
• The lower the ambient temperature, the lower
the power usage. In order to maximize effi ciency,
keep the unit in a cool location out of direct
sunlight.
• When using the unit ensure the circuit being used
has a fuse or circuit breaker, recommended size
for DC 12 Volt is 10 Amp, DC 24 Volt is 5 Amp.
• Make sure the voltage is within the correct
range for socket and cable being used.
• Do not place any electrical devices inside
the refrigerator as they may be damaged.
• Your unit requires good ventilation, especially
around the vents of the refrigerator; allow a
gap of at least 100 mm around all vents.
• Do not allow a large amount of frost to
build up on the inside walls as this may
impair cooling.
• Defrost by turning the unit o . Once frost
has melted, remove the bung plug to
drain any excess water and wipe out any
remaining moisture with a clean cloth.
• It is recommended to operate the unit on a  at
surface, but it will operate at angles up to 30 º.
8
8
75
4
3
2
1
6
1 Powered by 12/24 Volt DC compressor
2 Two way opening lid without tools
3 Multi-voltage system AC (240v) and
DC (12/24v) with battery level protection
4 LED interior light
5 Fully refrigerated stepped compartment
6 Headroom for upright standing bottles
7 47 litre capacity (56 x 375ml cans)
8 Digital display
Damage may occur if the DC cable supply is
undersized. This will cause low voltage.
As a guide, from the battery to the appliance
follow this guide.
Important Product Information
Product Features
page 3
NOTE:
At inclinations of more than 15 ° the
compressor noise level may increase
(without any e ect on the cooling
performance).
CEP FRIDGE·FREEZER
Cable cross
section
12v maximum
cable length
24v maximum
cable length
mm² Metre Metre
2.5 2.5 5
4 4 8
6 6 12
10 10 20

Turning the unit on and o:
Step 1: Plug in the AC or DC power cable (ensure power is on at source).
Step 2: Press the button once to turn on - To switch o press and hold the for 3 seconds.
Changing the set temperature:
Step 1: Use the and button to change the temperature.
Step 2: Once you reach your desired temperature you do not need to press any further buttons.
Just let it sit until you see the temperature ash 5 times – this means the temperature is now
locked in.
Control Panel CEP 47
NOTE: Temperature can be set from –18 ºC to +10 ºC
NOTE:
• The ‘Power/Status Indicator Light’ will illuminate green to show the unit is running OK.
• The system has a memory which records your last setting before shutting down.
• If the power supply is cut o or disconnected, the unit will switch o automatically,
once the power supply is restored it will automatically switch back on. Your unit may
temporarily show a status of E3 or E4 and will clear after approximately 5 minutes.
• When adjusting settings directly on the fridge, the LED display will ash to let you know
that the settings are now adjustable.
NOTE:
• The fridge temperature shown on the LED (as a solid, non ashing icon) is the current
inside temperature. This will lower to your set temperature, given time to chill down.
LED Control Panel & Operation Instructions
page 4
Power Switch
Power/Status
Indicator Light
Turbo Indicator Light
LED-Display
Temperature Settings
Turbo Switch
CEP FRIDGE·FREEZER

Engaging Turbo mode:
What is the purpose of Turbo Mode? It enables the compressor to run at a higher speed,
therefore achieving faster cooling to your nominated temperature.
Step 1: Press the button once to turn on. The light will illuminate green to indicate that
Turbo Mode is engaged.
Step 2: To turn o, press the button again. The green light will now go out to indicate that
Turbo mode is no longer engaged.
Change temperature between °C or °F:
Step 1: Press and hold the button to enter battery protection screen,
this will display HI, ME or LO to indicate the battery protection setting High, Medium or Low.
Step 2: In this setting release, then press and hold the button again for a further 3-4 seconds,
Step 3: C or F will appear.
Step 4: Use the and button to change between °C or °F.
Step 5: After adjusting to the required setting, the system will automatically save
and exit the setting.
Setting Battery Protect:
Step 1: Press the Turbo button 3 - 4 seconds.
The display will show HI, ME or LO (High, Medium or Low)
Step 2: Press the and button to scroll through High, Medium or Low protection levels.
Step 3: Once you reach your desired setting you do not need to press any further buttons.
Just let it sit until you see the setting ash 5 times – this means the setting is now locked in,
and the display will automatically return to your current temperature setting.
12v Input 24v Input
Unit turns o at Unit turns on at Unit turns o at Unit turns on at
HI: 11.8 12.6 23.0 24.5
ME: 11.4 12.2 22.5 24.0
LO: 10.1 11.1 21.5 23.0
Automatic shut down and re-start voltage levels:
page 5
CEP FRIDGE·FREEZER
LED Control Panel & Operation Instructions

Contents:
1. 2 x handle assemblies (complete)
2. 8 x Hex Head SS set screws
3. 1 x 5 mm Hex tool (Allen key)
Assembly process:
Step 1: Place screw in handle
and secure in location 1
Step 2: Use Hex tool to screw into the
captive nut in body of CEP47
Step 3: Tighten about halfway
Step 4: Repeat process at locations 2-3-4
Step 5: Tighten all screws fully
without over-tightening.
Step 6: Repeat at the opposite end
of refrigerator.
In your myCOOLMAN CEP 47
you will receive handle kit.
Handle Fitting Instructions
page 6
CEP FRIDGE·FREEZER
4
3
2
1

WARNING:
Potential pinch point. Never place ngers
or items that can be damaged between
the lid and the wall of the fridge as there
is potential for injury
page 7
Two Way Opening and Rwemovable Lid
CEP FRIDGE·FREEZER
Purpose for removing the lid:
CEP47 This lid can be removed to aid with
cleaning and to change the opening direction.
You can change the direction of the lid by
following the below instructions.
How to remove the lid:
Open the lid fully, then overextend, pushing lid
past the “fully open point” to remove. Keep
ngers clear of base.
How to attach the lid:
Line the hinges up with the metal posts and
press down rmly. If you would like to change
the opening direction of the lid - line the
hinges up with the metal posts on the other
side of the fridge and press down rmly.

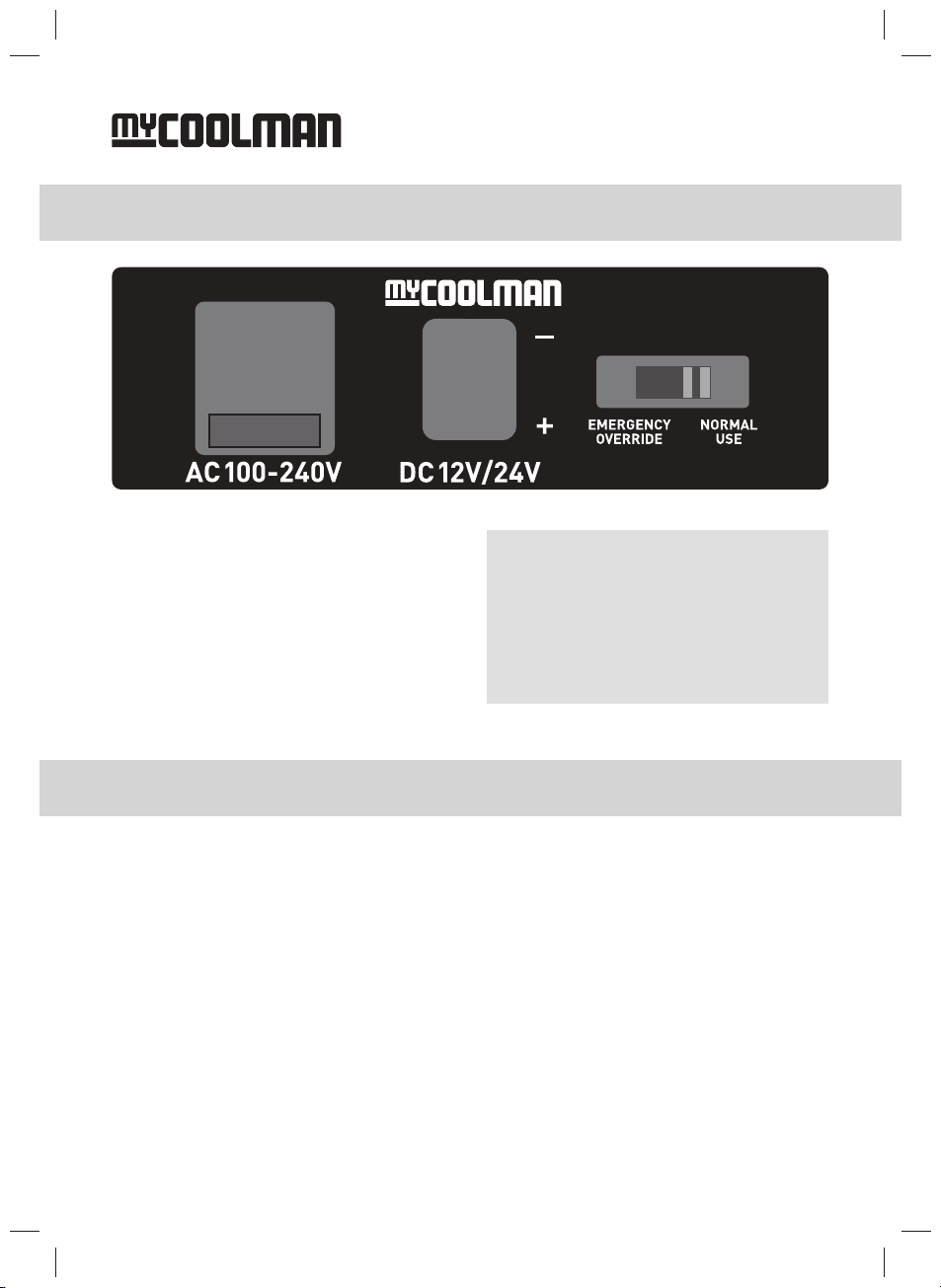

The Emergency Override Switch is
located just below the main control
panel next to the power inlets
For normal operation the switch is in the
“NORMAL USE” position. If the electronics
in the display board fail or controls become
non-functional, slide the switch to
EMERGENCY OVERRIDE position.
NOTE:
• In EMERGENCY OVERRIDE, the cooler runs
with full cooling capacity (i.e. will chill as
heavily as possible with no regard to the
set temperature) and may freeze.
• The compressor will run continuously for
8 hours before going into a hibernation
mode.
How to clean your unit:
• Clean the appliance inside and outside with a clean damp cloth every week.
If it is dirty, use sodium bicarbonate dissolved in lukewarm water to clean the unit.
• Please don’t use abrasive products, detergents, soap or hard objects to clean as these can
damage your refrigerator.
• After cleaning, wipe out with a clean damp cloth and dry carefully.
• Never clean the unit under running water or in dish water.
• Do not store products inside unit if the unit is o.
• Do not store the unit if it is wet inside or without leaving the lid open.
page 8
Cleaning & Maintenance
CEP FRIDGE·FREEZER
Emergency Override
Fuse 6.3A

How to get the most out of your unit:
• Best performance is achieved at ambient temperatures between +10 °C and +32 °C.
• Product is rated as a ‘T Climate’ class (Tropical), which means that the units meet the
requirements of ISO-15502 at 43 °C.
• Higher ambient temperatures mean that the compressor will run faster and longer.
• If the unit is in direct sun, this also increases the ambient temperature and may result in the
compressor running faster and longer.
• In extraordinary high temperatures the compressor will purposely slow to 1080 RPM for safety.
• Never stack meat, sh or any other solid water-based food directly against each other without
air gaps. If the cool air cannot circulate and surround the individual contents, it will take much
longer to freeze and may even result in partial freezing.
The unit is not turning on
• Check whether the unit has been turned on.
• Check the power supply (try a dierent power source/vehicle/socket).
• Check whether the plug and the socket have a good connection.
• Check whether the fuse has been burned out or blown.
Low refrigeration performance
• Too much product has been placed inside the unit.
• There is no room for air to circulate between the items in the fridge/freezer.
• There is too much warm product inside the unit.
• The lid is unlatched or open.
• The lid seal is broken.
• Poor ventilation (allow 100 mm of space around all vents).
• The ambient temperature is too high.
• The temperature setting is too high.
Can hear the sound of liquid owing or gurgling from inside the unit
• This is normal, due to the ow of refrigerant in the unit.
Unusual noise when refrigerator is working
• The refrigerator is not placed on a level surface. If none of the above solves your issue,
see page 3 or contact Leisure-Tec.
page 9
Troubleshooting
CEP FRIDGE·FREEZER
NOTE:
At inclinations of more than 15 ° the compressor noise level may increase
(without any eect on the cooling performance).

E0 ash every 4 seconds temperature sensor issue:
• Contact Leisure-Tec on 1300 07 2018
E1 ash every 4 seconds - low voltage & Battery Protection:
• An E1 will occur when the battery protection level has been reached.
i.e input voltage to low for protection setting, check power source voltage.
• Try on dierent power source (vehicle or 240V AC power).
If changing power source xed issue, then possible issue with original power source.
• Ensure cabling between fridge and battery is at least 1.5 mm2,
if the distance is more than 2 metres use at least 2.5 mm2 cable.
• Try turning on your vehicle so that the battery is being charged. E1 should automatically clear
after a few minutes, and the fridge will resume normal operation, when the power source voltage
increases above the battery protection cut o point.
E2 ashes every 4 seconds - fan issue:
• Fan is drawing too many amps (over 0.6 amps), replace fan.
Contact Leisure-Tec on 1300 07 2018
E3 ashes every 4 seconds - compressor start issue:
• Unplug cable and allow unit to rest for 10 minutes.
• Try on dierent power source (vehicle or 240 V AC power).
• Electronic box fault.
• Compressor fault.
• If changing from 240v AC to 12v DC power or vice versa, if the change is done too quickly
without switching o the unit; the unit will show an error.
Just wait 5 minutes and it will automatically correct and run normally.
E4 ashes every 4 seconds - low motor speed:
• Reduce products/items inside unit.
• Move so unit is in a lower ambient temperature,
clean vents/ensure clear air ow over compressor.
• Fan fault.
• If changing from 240v AC to 12v DC power or vice versa, if the change is done too quickly
without switching o the unit; the unit will show an error.
Just wait 5 minutes and it will automatically correct and run normally.
E5 ashes every 4 seconds -
over temperature:
• Ambient temperature too high.
• Clean vents/ensure clear air ow
over compressor.
• Fan fault.
NOTE:
The status indicator will be green if running normal.
If it changes to a ashing orange light, this indicates
that there is a change in status. There will also be
a status indicator code shown on the LED display.
page 10
Status Indicator
CEP FRIDGE·FREEZER

Notes:
page 11
CEP FRIDGE·FREEZER

LEISURE-TEC Australia Pty Ltd
50 Metrolink Circuit
Campbell eld, VIC 3061 Australia
1300 07 2018
Model CEP47
Product descriptoin Single Zone Fridge / Freezer
Dimensions / mm Length 672 / Width 600 / Height 480
Weight / kg 17.5
Connection voltage DC 12/24v / AC 100–240v 50–60Hz
Rated current
12v 4.65 A / 24v 2.8 A / 240v 0.48 A
Climate class N, T
Refrigerant / quantity R134a / 45 grams
Cooling capacity – 18 °C to +10 °C (0 °F to +50 °F)
Volume / litres 47 (approximately 56 x 375 ml cans)
Warranty Terms & Conditions
To warranty register your unit please head to: https://mycoolman.com.au/pages/warranty-registration and
upload a copy of your proof of purchase as well as completing the online form.
When you buy myCOOLMAN Fridge·Freezer you have peace of mind knowing that it is backed by a comprehensive
3 year warranty against defects in materials and workmanship. The myCOOLMAN warranty is provided in addition
to any rights provided under Australian Consumer Law. All claims under this warranty should be made by returning
the product to the place of purchase at your expense, with the detail of the fault, proof of purchase and  tment
details. If we determine that a myCOOLMAN product is defective in materials or workmanship during the warranty
period, we will either repair or replace the unit.
This warranty does not apply to failure or damage to a myCOOLMAN product caused by incorrect or faulty  tment,
accidental or intentional damage, failure of other products, incorrect application, incorrect voltage, environmental
damage, operation of the product outside of its environmental and technical speci cations, or repair or modi ca-
tion carried out by anyone other than an authorised repairer.
Product Speci cations
page 12
Designed in Germany, made in China for
www.mycoolman.com.au
CEP FRIDGE·FREEZER
