Leisure DI54280 User manual
Dishwasher
DI54280
User’s Manual
Explanation of symbols
Throughout this User Manual the following symbols are used:
C
Important information or useful
hints about usage.
A
Warning for hazardous
situations with regard to life and
property.
B
Warning for electric shock.
Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations.
Do not dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated by the local
authorities.
Please read this user manual first!
Dear Customer,
We hope that you get the best results from your product which has been manufactured
with high quality and state-of-the-art technology. Therefore, please read this entire user
manual and all other accompanying documents carefully before using the product and
keep it as a reference for future use. If you handover the product to someone else, give
the user manual as well. Follow all warnings and information in the user manual.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
DI54280
Dishwasher
User’s Manual
Explanation of symbols
Throughout this User Manual the following symbols are used:
C
Important information or useful
hints about usage.
A
Warning for hazardous
situations with regard to life and
property.
B
Warning for electric shock.
Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations.
Do not dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated by the local
authorities.
Please read this user manual first!
Dear Customer,
We hope that you get the best results from your product which has been manufactured
with high quality and state-of-the-art technology. Therefore, please read this entire user
manual and all other accompanying documents carefully before using the product and
keep it as a reference for future use. If you handover the product to someone else, give
the user manual as well. Follow all warnings and information in the user manual.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
CONTENTS
1 INSTRUCTIONS FOR SAFETY
AND ENVIRONMENT 4
General safety ....................................4
Intended use .......................................4
Children’s safety .................................5
Disposing of packaging material.........5
Transportation of the product .............5
Compliance with WEEE Directive and
Disposing of the Wae Product .........6
Compliance with RoHS Directive........6
Package information ...........................6
2 DISHWASHER 7
Overview.............................................7
Fan drying syem ..............................8
Technical specifications ......................8
3 INSTALLATION 9
Appropriate inallation location ..........9

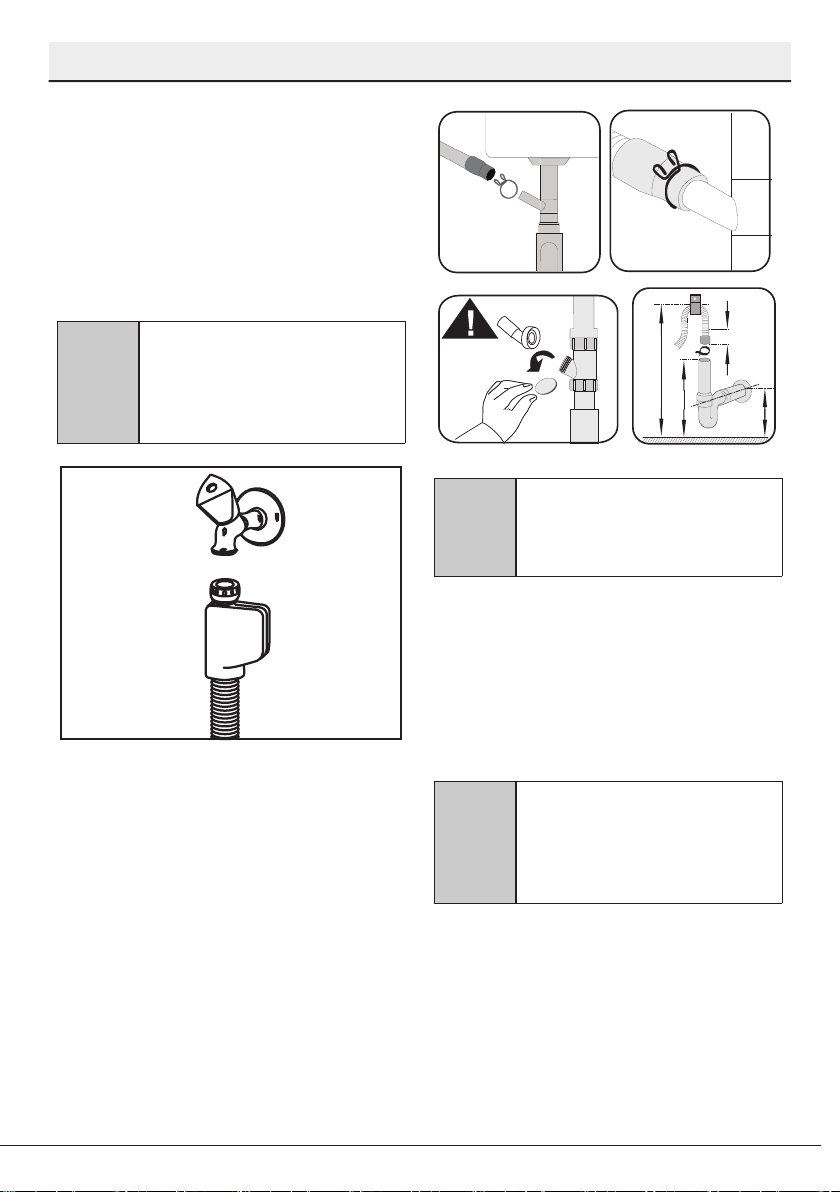

Connecting water supply ....................9
WaterProtect+ ..................................10
Connection to the drain ....................10
Adjuing the feet ..............................10
Electrical connection.........................10
This appliance mu be earthed ....... 11

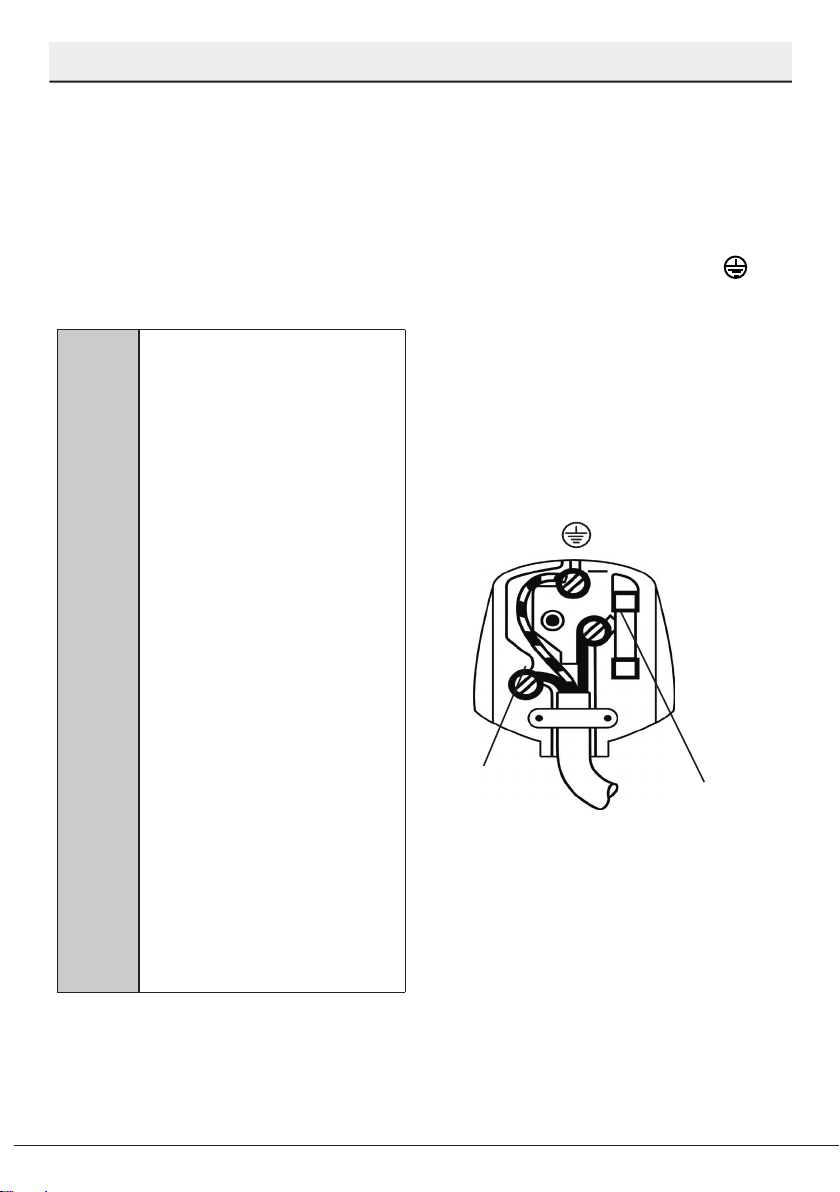

Fitting a dierent plug ....................... 11
Initial use ..........................................12
4 PREPARATION 13
Tips for energy saving ......................13
Water softening syem ....................13

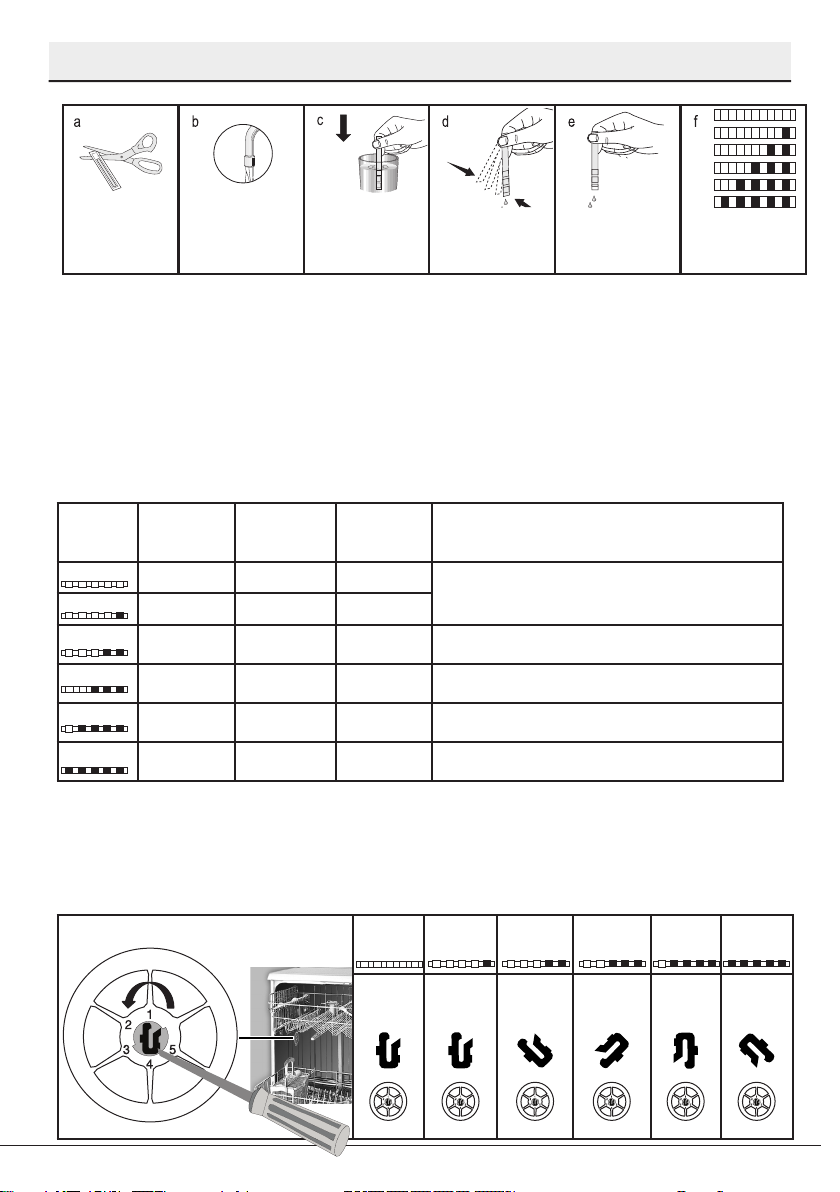

Adjuing the water softening syem13
Adding salt ........................................15
Detergent ..........................................16
Tablet detergents ..............................17
Rinse aid...........................................18
Items not suitable for washing in the
dishwasher .......................................18
Placing the dishes into the
dishwasher .......................................19
Adjuing the height of the upper
basket ...............................................21
Collapsible upper basket wires .........22
Cutlery basket ..................................22
Collapsible lower basket tines ..........23
Tray Wash Supports .........................23
Upper basket height adjuable rack 23
Ceiling cutlery basket .......................24
5 OPERATING THE PRODUCT 25
Programme Selection / Programme
Cancel key ........................................26
Function Keys ...................................26
Preparing the machine .....................26
Programme selection........................26
Auxiliary functions.............................28
Scheduling the washing time ............30
Starting the programme ....................31
Cancelling the programme ...............31
Salt indicator ( ) .............................31
Rinse Aid indicator ( ) ....................31
Adjuing the amount of rinse aid .....32
End of programme ............................32
Water cut-o warning ........................32
Overowing warning .........................32
6 MAINTENANCE AND CLEANING
33
Cleaning the outer surface of the
product..............................................33
Cleaning the interior of the machine . 33
Cleaning the filters ............................33
Cleaning the hose filter .....................34
Cleaning the impellers ......................35
Lower impeller ..................................35
Upper impeller .................................35
7 TROUBLESHOOTING 36
8 GUARANTEE 41
4
/42 EN
Instructions for safety and envIronment
1
This section contains safety
instructions that will help to
give protection from risk of
personal injury or property
damage. Failure to follow
these instructions shall void all
warranties.
General safety
•Never place the product
on a carpet-covered floor;
otherwise, lack of airflow
beneath the product will
cause electrical parts to
overheat. This will cause
problems with your product.
•Do not operate the product
if the power cable / plug is
damaged! Call the Authorised
Service Agent.
•Connect the product to a
grounded outlet protected
by a fuse complying with
the values in the “Technical
specifications” table. Do
not neglect to have the
grounding installation made
by a qualified electrician.
Our company shall not be
liable for any damages that
will arise when the product
is used without grounding
in accordance with the local
regulations.
•The water supply and
draining hoses must be
securely fastened and remain
undamaged.
•Unplug the product when not
in use.
•Never wash the product by
spreading or pouring water
onto it! There is the risk of
electric shock!
•Never touch the plug with
wet hands! Never unplug by
pulling on the cable, always
pull out by grabbing the plug.
•The product must be
unplugged during installation,
maintenance, cleaning and
repairing procedures.
•Always have the repair
procedures carried out by the
Authorised Service Agent.
Manufacturer shall not be
held liable for damages that
may arise from procedures
carried out by unauthorised
persons.
•Never use chemical solvents
in the product. They bring
forth the risk of explosion.
•When you pull the upper and
lower baskets out completely,
the door of the product will
bear all the weight of the
baskets. Do not put other
loads on the door; otherwise,
the product may tilt.
•Never leave the door of
the product open apart
from loading and unloading
procedures.
•Do not to open the door of
the product when it is running
unless necessary. Be careful
for the rush of hot steam
when you need to open the
door.
Intended use
•This product has been
designed for domestic use.
•It must be used to do the
domestic type dishes only.
5 / 42
EN
Instructions for safety and envIronment
•This appliance is intended
to be used in household and
similar applications such as:
- Staff kitchen areas in shops,
offices and other working
environments.
•Only dishwasher safe
detergents, rinse aids and
additives must be used.
•The manufacturer waives
any responsibility arisen
from incorrect usage or
transportation.
•This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical,sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use
of the appliance in a safe
way and understand the
hazards involved. Children
shall not play with the
appliance. Cleaning and
user maintenance shall not
be made by children without
supervision.
•Electrical products are
dangerous for the children.
Keep children away from the
product when it is in use. Do
not let them to tamper with
the product.
•Do not forget to close the
door of the product when
leaving the room where it is
located.
•Store all detergents and
additives in a safe place
away from the reach of the
children.
Packaging materials are
dangerous to children. Keep
packaging materials in a safe
place away from reach of the
children.
Packaging materials of the
product are manufactured from
recyclable materials. Dispose
of them properly and sort in
accordance with recycled waste
instructions. Do not dispose
of them with normal domestic
waste.
A
If you need to move the
product, do it in upright
position and hold from
the rear side. Tilting the
product onto its front
side may cause the
electronic parts in it get
wet and damaged.
1. Unplug the product before
transporting it.
2. Remove water drainage and
water supply connections.
3. Drain the remaining water in
the product completely.
6
/42 EN
Instructions for safety and envIronment
This product complies with
EU WEEE Directive
(2012/19/EU). This product
bears a classification
symbol for waste electrical and
electronic equipment (WEEE).
This product has been
manufactured with high quality
parts and materials which can be
reused and are suitable for
recycling. Do not dispose of the
waste product with normal
domestic and other wastes at the
end of its service life. Take it to
the collection center for the
recycling of electrical and
electronic equipment. Please
consult your local authorities to
learn about these collection
centers.
The product you have purchased
complies with EU RoHS Directive
(2011/65/EU). It does not contain
harmful and prohibited materials
specified in the Directive.
Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations. Do
not dispose of the packaging
materials together with the
domestic or other wastes. Take
them to the packaging material
collection points designated by
the local authorities.
7 / 42
EN
2
1. Upper basket
2. Upper impeller
3. Lower impeller
4. Silverware basket
5. Door
6. Rating Label
7. Control panel
8. Detergent dispenser
9. Lower basket
10. Filters
11. Salt reservoir lid
12. Upper basket rail
13. Upper cutlery basket (depends on model)
14. Tabletop (depends on model)
15. Fan drying system (depends on model)
15
8
/42 EN
Dishwasher
This product complies with the following EU directives;
Development, production and sales stages of this product comply with the safety
rules included in all pertaining European Community regulations.
2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242
Power input 220-240 V, 50 Hz (see rating label)
Total power consumption 1800-2100 W (see rating label)
Heater power consumption 1800 W (see rating label)
Total current (depends on the model) 10 A (see rating label)
Drain pump power consumption 30 W (see rating label)
Water pressure 0.3 –10 bar (= 3 – 100 N/cm² = 0.01-1.0
Mpa)
C
Technical specifications may be changed without prior notice to improve the
quality of the product.
C
Figures in this manual are schematic and may not match the product exactly.
C
Values stated on the markings of the product or in the printed documents
accompanying the product are obtained in the laboratory on basis of the
relevant standards. Depending on operational and environmental conditions of
the product, these values may vary.
Data required for performance tests shall be provided upon request. Requests can be
e-mailed to the following address:
Do not forget to provide the code, stock and serial numbers of the product to be tested in
your request e-mail along with your contact information. Code, stock and serial numbers of
the product may be found on the type label attached to the side wall of the door.
Fan drying system ensures efficient drying of your dishes.
It is normal to hear a different sound than that of washing cycle during fan operation.
9 / 42
EN
3Installation
To make the product ready for use,
make sure that the electricity, tap water
supply and water drainage systems are
appropriate before calling the Authorised
Service Agent. If they are not, call a
qualified technician and plumber to have
any necessary arrangements carried out.
C
Preparation of the location
and electrical, tap water and
waste water installations at the
place of installation is under
customer's responsibility.
B
Manufacturer shall not be
held responsible for damages
arising from processes carried
out by unauthorised persons.
A
Prior to installation, visually
check if the product has any
defects on it. If so, do not have
it installed. Damaged products
cause risks for your safety.
C
Make sure that the water inlet
and discharge hoses are not
folded, pinched or crushed
while pushing the product into
its place after installation or
cleaning procedures.
When placing the product, pay attention not
to damage the floor, walls, piping, etc. Do
not hold the product from its door or panel
to move it.
•Place the product on a solid and flat
floor that has sufficient load carrying
capacity! The product must be
installed on a flat surface in order for
the door to be closed comfortably and
securely.
•Do not install the product at places
where temperature may fall below
0ºC.
•Place the product on a rigid floor. Do
not place it on a long pile rug or similar
surfaces.
B
Ensure the power cable does
not get trapped under the
product.
•Make sure that you select a location
that will allow you to load and unload
the dishes in a fast and comfortable
manner.
•Install the product in a place close
to the tap and the drain. Select the
installation location by considering
that it will not be changed after the
connections are made.
•Do not use old or used water inlet
hose on the new product. Use the
new water inlet hose supplied with the
product.
•Connect the water inlet hose directly
to the cold water tap. Permitted water
temperature up to 25°C. Pressure
coming from the tap should be
minimum 0.3 and maximum 10 bars.
If the water pressure exceeds 10
bars, a pressure relief valve should be
installed in between.
•Open the tap completely after making
the connections to check for water
leaks.
A
For your safety, close the water
inlet tap completely after the
washing programme is over.
10
/42 EN
Installation
min
300
min
120
max 1000
min 500
WaterProtect+
The WaterProtect+ system protects against
water leaks that may occur at the hose
inlet.Water contact with the valve box of
the system must be avoided to prevent
damage to the electrical system. If the
WaterProtect+ system is damaged, unplug
the product and call the Authorised Service
Agent.
A
As the hose set contains
electrical connections and
assemblies, never shorten
or lengthen the hose with
extension hoses.
Water discharge hose can directly be
connected to the drain hole or sink’s
drainage. The length of this connection
must be min. 50 cm and max. 100 cm from
the floor. A discharge hose longer than 4
meters will cause washing performance
to be affected.Attach the water discharge
hose to the drainpipe without bending
it. Tightly fix the water discharge hose
to the drainpipe in order to prevent any
dislocation of the water discharge hose
during operation of the product.
C
Drainpipe must be connected
to the foul water system and it
should not be connected to any
surface water drain.
If the door of the product cannot be closed
properly or if the product wobbles when
you push it slightly, then you need to adjust
the feet of the product. Adjust the feet of
the product as illustrated in the relevant
section.
A
Diswashers door must be
aligned properly otherwise hot
steam can escape! Danger of
serious burns, other injury or
may damage furniture.
Before you insert the plug into the wall
socket make sure that the voltage and
the frequency shown in the rating label
corresponds to your electricity supply.
11 / 42
EN
Installation
As the colours of the wires in the mains
lead of this appliance may not correspond
with the coloured markings identifying the
terminals on your plug, proceed as follows:
1. Connect the green - yellow or green
(earth) wire to the terminal in the plug
marked ‘E’ or with the symbol or
coloured green and yellow or green.
2. Connect the blue (neutral) wire to
the terminal in the plug marked ‘N’ or
coloured black.
3. Connect the brown (live) wire to the
terminal in the plug marked ‘L’ or
coloured red.
With the alternative plugs a 13A fuse must
be fitted either in the plug or adaptor or
in the main fuse box. If in doubt contact a
qualified electrician.
We recommend that this appliance be
connected to the mains supply via a
suitable switched and fused socket in a
readily accessible position.
If the supply cord or the mains lead is
damaged please do not replace it yourself.
The supply cord or the mains lead must be
replaced by a Authorised Service Agent or
a similarly qualified person.
A
be earthed
If the fitted moulded plug is not
suitable for your socket, then
the plug should be cut off and
an appropriate plug fitted.
Destroy the old plug, which is
cut off as a plug with a bared
cord could cause a shock
hazard if inserted into a socket
elsewhere in the house.
The moulded plug on this
appliance incorporates a 13A
fuse. Should the fuse need to
be replaced an ASTA approved
BS1362 fuse of the same rating
must be used. Do not forget
to refit the fuse cover. In the
event of losing the fuse cover,
the plug must not be used
until a replacement fuse cover
has been fitted. Colour of the
replacement fuse cover must
be the same colour as that
visible on the pin face of the
plug. Fuse covers are available
from any good electrical store.
12
/42 EN
Installation
Before starting to use the product, make
sure that all preparations are made
in accordance with the instructions in
sections “Important safety instructions” and
“Installation”.
•Before using the product, fill the salt
reservoir with 1 litre of water, add salt
(see next page) and stir to dissolve.
Run the Dishwasher without dishes
on a short programme with a small
amount of detergent.
A
There might be a small amount
of water left in the product after
factory quality control tests. This
causes no harm to the product.
13 / 42
EN
4
Following information will help you use
the product in an ecological and energy-
efficient manner.
Wipe away any coarse food remnants
on the dishes before putting them in the
product.
Operate the product after filling it
completely.
When selecting a programme, consider
the table of "Programme data and average
consumption values".
Do not put more detergent than suggested
on the detergent package.
The product is equipped with a water
softening system which reduces the
hardness of incoming water. This system
softens the supply water to a level that will
allow washing the dishes with the required
quality.
C
The mains water hardness must
be softened if it is over 7°dH.
Otherwise, hardness ions will
accumulate on the dishes that
are washed and may affect the
washing, rinsing and drying
performances of the machine.
Cleaning, rinsing and drying performance
of your dishwasher will increase when
water softening system is adjusted properly.
Adjust the new water hardness level
according to the Water hardness level
instruction in this booklet.
Use the test strip supplied with the product
according to the steps given below to
determine hardness level of your supply
water.
14
/42 EN
Installation
Remove the test
strip from the
packet.
Turn on the tap and
let the water run for
about a minute.
Hold the test strip in
the water for about
a second.
Remove the test
strip from the water
and shake it.
Wait for 1 minute. The test strip shows
you the hardness
level.
After determining hardness level of the supply water:
1. After switching on your machine, long press the Menu key
2. Pres the settings menu key for 3 seconds to enter the Settings Menu.
3. Using <- and +> keys, proceed until the water hardness setting indicator becomes on (“r”
position will be displayed).
4. Using the Selection key, adjust water hardness level according to the hardness of the
supply water. For correct setting please see “Water hardness level setting table”.
5. Press the Menu key to exit the settings menu. Your setting will be saved automatically.
Water hardness level adjustment table
Hardness
Level
English Water
Hardness °dE
German Water
Hardness °dH
French Water
Hardness °dF Water Hardness Level Indicator
Level 0 0-5 0-4 0-8 Press the Selection key to switch the water
hardness level to position 1. (r1)
Level 1 6-9 5-7 9-13
Level 2 10-15 8-12 14-22 Press the Selection key to switch the water
hardness level to position 2. (r2)
Level 3 16-19 13-15 23-27 Press the Selection key to switch the water
hardness level to position 3. (r3)
Level 4 20-24 16-19 28-34 Press the Selection key to switch the water
hardness level to position 4. (r4)
Level 5 25-62 20-50 35-90 Press the Selection key to switch the water
hardness level to position 5. (r5)
In order to protect your glassware against glass corrosion in an optimal way, you have to
perform the same hardness settings, which you have made in the control panel, with the
regeneration setting switch.
For example, if you have adjusted to “3rd level” in the control panel, also set the
regeneration adjustment switch to 3rd level.
Regeneration Adjustment Switch
0th Level 1st Level 2nd Level 3rd Level 4th Level 5th Level
1 1 2 3 4 5
15 / 42
EN
Preparation
If the hardness level of the supply water
is above 90 °dF or if you are using well
water, then it is recommended to use water
purification devices and special filters.
If the hardness level of the supply water is
below 13°dF, there is no need to use salt
in your dishwasher. If this is the case, “No
Salt Warning Indicator” (if any) illuminates
continuously on the panel of your machine.
If the water hardness level adjustment is
set to level 1, the “No salt warning indicator”
will illuminate continuously although it is not
necessary to use salt. If you use salt under
this condition, salt will not be consumed and
the Salt indicator will not illuminate.
C
If you move your house, it is
necessary to readjust water
hardness level of your machine
by considering the information
given above according to the
hardness level of the supply
water in your new location.
Your machine will display the
most recently adjusted water
hardness level.
Water softening system needs to be
regenerated in order for the product operates
with the same performance continuously.
Dishwasher salt is used for this purpose.
C
Use only special softening salts
produced particularly for the
dishwashers in your machine.
C
It is recommended to use
granule- or powder-formed
softening salts in the water
softening system. Do not use
salts that do not completely
dissolve in water such as table
salt or rock salt. Otherwise the
performance of the system may
deteriorate in time.
C
Salt reservoir will be filled
with water when you start
the product. For this reason,
add salt before operating the
machine.
1. Firstly, take the lower basket out to add
softening salt.
2. Turn the salt reservoir lid counter-
clockwise to open it (A).
3. Add 1 litre of water to salt reservoir of
your machine only in initial use.
4. Fill the salt reservoir with salt by
using the salt funnel (D). To speed up
dissolution rate of salt in water, stir it
with a spoon.
C
You can put about 2 kg of
softening salt into the salt
reservoir.
5. Replace the lid and tighten it when the
reservoir is full.
16
/42 EN
Preparation
A
Do not put solvents into the
detergent dispenser. There is
the risk of explosion!

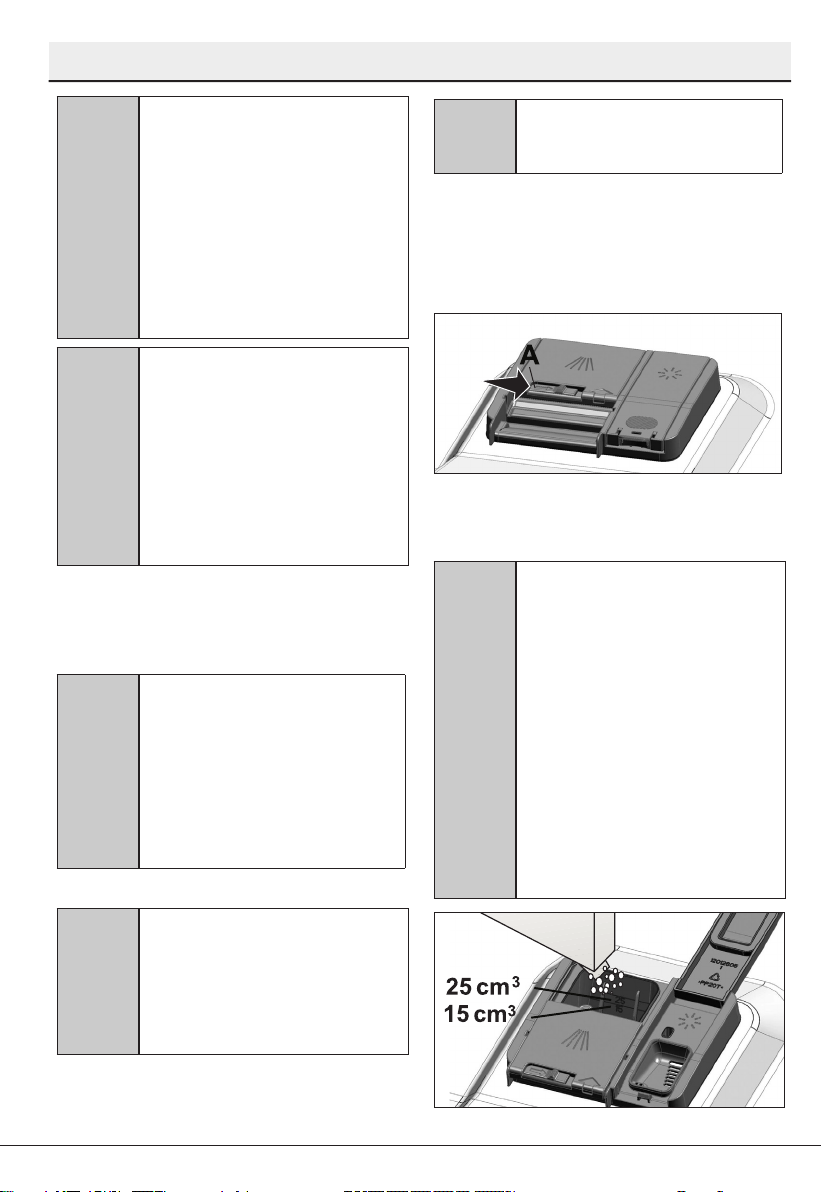

Put the detergent into the detergent
dispenser just before operating the
machine as illustrated below.
1. Push the latch to right to open the
detergent dispenser lid (A).
2. Put suggested amount of powder,
liquid/gel or tablet detergent in the
reservoir.
C
Inside the detergent dispenser
there are level markings that
help you use appropriate
amount of powder detergent.
When brimful, detergent
dispenser will contain 45 cm³ of
detergent. Fill detergent up to
15 cm³ or 25 cm³ level marks
in the detergent dispenser
according to fullness of the
machine and/or soiling degree
of the dishes. One tablet
is enough if you are using
detergent tablets.
C
You need to add salt right
before starting the machine.
Thus, the overflowing
salty water will be flushed
immediately, preventing the
risk of corrosion in machine. In
cases where you would not start
washing immediately, run your
machine empty in the shortest
program.
C
Since different salt brands in the
market have different particle
sizes and since the water
hardness may vary, dissolution
of the salt in water may take
a couple of hours. Therefore,
Salt Indicator remains on for a
while after adding salt into the
machine.
You can use powder, liquid/gel or tablet
detergents in the machine.
A
Only use in the machine
the detergents produced
particularly for use with
dishwashers. We recommend
you not use detergents that
contain chlorine and phosphate
as they are harmful for the
environment.
C
Pay attention to the warnings
on the detergent packaging
to get better washing and
drying results. Contact the
manufacturer of the detergent
for further questions.
17 / 42
EN
Preparation
together with the detergent if the water
hardness level is above the mentioned
level.
C
The best washing performance
in dishwashers is obtained by
using detergent, rinse aid and
water softening salt individually.
C
Observe the instructions of
the detergent manufacturer on
the package when using tablet
detergents.
C
Contact the detergent
manufacturer if your dishes
are wet and/or if you notice
limescale spots particularly on
your glasses after the washing
programme is over when using
a tablet detergent.
1. Make sure that salt and rinse aid
reservoirs are full.
2. Set the water hardness to the highest
level and perform an empty run.
3. After the empty washing cycle, review
the user manual and readjust the water
hardness level so as to suit the water
supply.
4. Make the appropriate rinse aid settings.
3. Push the lid of the detergent dispenser
to close it. A "click" will be heard when
the lid is closed.
1
2
3
C
Use powder or liquid/gel
detergent in short programmes
without prewash since the
solubility of the tablet detergent
changes depending on the
temperature and time.
In addition to the conventional tablet
detergents, there are also commercially
available detergent tablets that show water
softening salt and/or rinse aid effect. Some
types of these detergents contain special-
purpose components such as glass and
stainless steel protectors. These tablets
show their effects up to a certain water
hardness level (21°dH). Water softening
salt and rinse aid must also be used
18
/42 EN
Preparation
4. If there are stains on tableware items
after washing, level must be increased
and if there is a blue trace after wiping
them by hand, it must be decreased.
This is set to position 3 as factory
default.
C
The rinse aid adjustment is
described under "Adjusting
the amount of rinse aid" in
the section for operating the
machine.
C
Wipe clean any spilled rinse
aid outside the reservoir. Rinse
aid that spilled accidentally
will cause foaming and it will
eventually decrease washing
performance.
•Never wash dishes soiled by cigarette
ash, candle remnants, polish, dyestuff,
chemicals, etc. in your dishwasher.
•Do not wash silverware and cutlery
with wooden or bone stems, glued
pieces, or pieces that are not resistant
to heat, as well as copper and tin-
plated containers in the dishwasher.
C
Decorative prints of chinaware
as well as aluminium and silver
items may get discoloured or
tarnished after washing in the
dishwasher just as it happens
in handwashing as well. Some
delicate glass types and
crystals may become dull in
time. We strongly recommend
you to check if the tableware
you are going to purchase is
suitable for washing especially
in the dishwasher.
C
The rinse aid used in
dishwashers is a special
combination that aims to
increase drying efficiency and
prevent water or lime stains
on the washed items. For this
reason, care must be paid
to have rinse aid in the rinse
aid reservoir and to use rinse
aids produced specially for
dishwashers only.

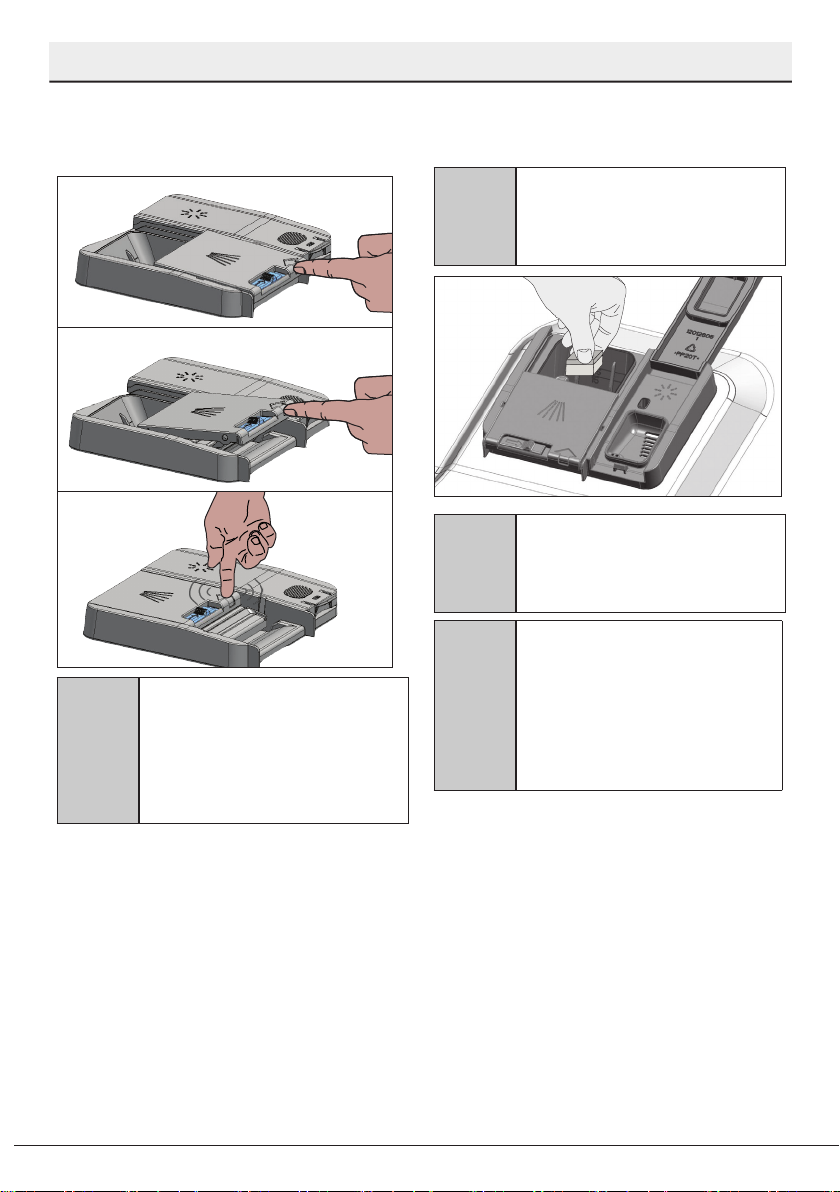

1. Open the lid of the rinse aid reservoir
with the help of the latch.
2. Fill the reservoir until “MAX” level.
3. Slightly press the point (B) of the
reservoir lid to close it.
