Leitch AES6800+ User manual

Edition B
175-000186-00
AES6800+
AES/EBU Audio Distribution Amplifiers
Installation and Operation Manual

AES6800+
AES/EBU Audio Distribution
Amplifier
Installation and Operation Manual
Edition B
July 2005

Trademarks and Copyrights
CCS, CCS CoPilot, CCS Navigator, CCS Pilot, Command Control
System, CineTone, CinePhase, CineSound, DigiBus, DigiPeek, Digital
Glue, DigiWorks, DTV Glue, EventWORKS, EZ HD, Genesis, HDTV
Glue, Image Q, Inca, Inca Station, InfoCaster, Inscriber, Inscriber CG—
FX, Icon, IconLogo, IconMaster, IconMaster Nav, IconSet, IconStation,
Integrator, LeFont, Leitch, LogoMotion, MediaFile, MIX BOX, NEO,
the NEO design, NEOSCOPE, NewsFlash, Nexio, Opus, Panacea,
PanelMAPPER, Platinum, Portal, PROM-Slide, RouterMAPPER,
RouterWORKS, Signal Quality Manager, SpyderWeb, SuiteView,
TitleMotion, UNIFRAME, Velocity, VelocityHD, VideoCarte,
Videotek, and X75 are trademarks of Harris Corporation which may be
registered in the United States, Canada, and/or other countries. All
other trademarks are the property of their respective owners.
Copyright 2005, Harris Corporation. All rights reserved. This
publication supersedes all previous releases. Printed in Canada.
Warranty Information
The limited warranty policy provides a complete description of your
warranty coverage, limitations, and exclusions, as well as procedures
for obtaining warranty service. To view the complete warranty, visit
www.broadcast.harris.com/leitch>support>warranties.

AES6800+Installation and Operation Manual v
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute.
Contents
Preface
Manual Information ............................................................................... ix
Purpose ............................................................................................ ix
Audience ......................................................................................... ix
Revision History ............................................................................. ix
Writing Conventions .........................................................................x
Obtaining Documents .......................................................................x
Unpacking/Shipping Information .......................................................... xi
Safety Standards and Compliances ....................................................... xii
Restriction on Hazardous Substances (RoHS) Directive ............... xii
Waste from Electrical and Electronic Equipment
(WEEE) Directive ......................................................................... xiii
Safety Terms and Symbols ........................................................... xiv
Chapter 1: Introduction
Overview...................................................................................................1
Product Description ..................................................................................2
Typical Broadcast and Production Applications ..............................2
Main Features ...................................................................................2
Module Descriptions ................................................................................3
Front Module ....................................................................................3
Back Module .....................................................................................6
Signal Flow ..............................................................................................9
Chapter 2: Installation and Configuration
Overview.................................................................................................11
Maximum 6800+Frame Power Ratings ................................................12
Unpacking the Module ...........................................................................13

vi AES6800+Installation and Operation Manual
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute.
Contents
Preparing the Product for Installation ............................................ 13
Checking the Packing List ............................................................. 13
Jumper Control Types ........................................................................... 14
Setting Jumpers ...................................................................................... 14
EQ Mode ........................................................................................ 14
AES or Bypass Mode ..................................................................... 15
Setting the Jumper for the AES Digital Audio Signal ................... 16
Setting DIP Switches ............................................................................. 17
Installing 6800+Modules ..................................................................... 18
Required Frames and Back Connector Types ................................ 18
Installing AES6800+Modules ...................................................... 18
Removing AES6800+Modules ..................................................... 18
Making Connections ...................................................................... 18
Chapter 3: Operation
Overview ................................................................................................ 19
Understanding Jumper Controls ............................................................ 20
Introducing Jumper Control Types ................................................ 20
Introducing Parameter Types ................................................................. 21
Operating Notes...................................................................................... 22
Setting Locally Accessible Parameters ................................................. 23
Changing Parameter Settings ................................................................ 24
Recalling Default Parameter Settings ............................................ 24
Reading the Software Version ....................................................... 24
Reading the Hardware Version ...................................................... 24
LEDs and Alarms .................................................................................. 25
Module Status LED ........................................................................ 25
Other LED Descriptions ................................................................. 25
Chapter 4: Troubleshooting
Overview ............................................................................................... 27
General Troubleshooting Steps ............................................................. 28
Common Problems and Suspected Failures .......................................... 29
+Pilot Lite Fails to Communicate with Installed Modules ............ 29
+Pilot Lite Does Not Find All Modules in Frame ......................... 29
+Pilot Lite or CCS Software Application Not Responding ........... 29
+Pilot Lite Cannot Control a Module Showing
in the Control Window ................................................................... 29
+Pilot Lite Status Bar Reports “Not Ready” ................................. 30
CCS Software Application or Remote Control Panel
Does Not Communicate with Module ........................................... 30

AES6800+Installation and Operation Manual vii
Contents
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute.
Alarm Query Fails When a Device Reboots ...................................30
Frame Does Not Communicate with PC
After a Power Failure ......................................................................31
Module Does Not Seem to Work ....................................................31
Contacting Customer Service .................................................................32
Chapter 5: Specifications
Overview.................................................................................................33
Inputs ......................................................................................................34
Outputs ...................................................................................................35
Performance ...........................................................................................36
Power Consumption................................................................................36
Propagation Delay...................................................................................36
Temperature ...........................................................................................37
Index
Keywords ...............................................................................................39

viii AES6800+Installation and Operation Manual
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute.
Contents

AES6800+Installation and Operation Manual ix
Preface
Manual Information
Purpose
This manual details the features, installation procedures, operational
procedures, and specifications of the AES6800+AES/EBU audio
distribution amplifier.
Audience
This manual is written for engineers, technicians, and operators
responsible for the installation, setup, and/or operation of the
AES6800+AES/EBU audio distribution amplifier.
Revision History
Table P-1. Manual Revision History
Edition Date Revision History
A November 2003 Initial release
B July 2005 • Added information concerning maximum
6800+frame power ratings
• Added index

x AES6800+Installation and Operation Manual
Preface
Writing Conventions
To enhance your understanding, the authors of this manual have
adhered to the following text conventions:
Obtaining Documents
Technical documents can be viewed or downloaded from our Web site
at www.broadcast.harris.com/leitch (go to Support>Documentation).
Alternatively, contact your Customer Service representative to request a
document (see “Contacting Customer Service” on page 32).
Table P-2. Manual Style and Writing Conventions
Term or
Convention Description
Bold Indicates dialog boxes, property sheets, fields, buttons,
check boxes, list boxes, combo boxes, menus, submenus,
windows, lists, and selection names.
Italics Indicates email addresses, the names of books or
publications, and the first instances of new terms and
specialized words that need emphasis.
CAPS Indicates a specific key on the keyboard, such as ENTER,
TAB, CTRL, ALT, or DELETE.
Code Indicates variables or command-line entries, such as a
DOS entry or something you type into a field.
> Indicates the direction of navigation through a hierarchy
of menus and windows.
hyperlink Indicates a jump to another location within the electronic
document or elsewhere
Internet address Indicates a jump to a Web site or URL
Note
Indicates important information that helps to avoid and
troubleshoot problems.

AES6800+Installation and Operation Manual xi
Preface
Unpacking/Shipping Information
This product was carefully inspected, tested, and calibrated before
shipment to ensure years of stable and trouble-free service.
1. Check equipment for any visible damage that may have occurred
during transit.
2. Confirm that you have received all items listed on the packing list.
3. Contact your dealer if any item on the packing list is missing.
4. Contact the carrier if any item is damaged.
5. Remove all packaging material from the product and its associated
components before you install the unit.
Keep at least one set of original packaging, in the event that you need to
return a product for servicing.
In the unlikely event that your product fails to operate properly, please
contact Customer Service to obtain a Return Authorization (RA)
number, then send the unit back for servicing.
Keep at least one set of original packaging in the event that a product
needs to be returned for service. If the original package is not available,
you can supply your own packaging as long as it meets the following
criteria:
• The packaging must be able to withstand the product’s weight.
• The product must be held rigid within the packaging.
• There must be at least 2 in. (5 cm) of space between the product and
the container.
• The corners of the product must be protected.
Ship products back to us for servicing prepaid and, if possible, in the
original packaging material. If the product is still within the warranty
period, we will return the product prepaid after servicing.

xii AES6800+Installation and Operation Manual
Preface
Safety Standards and Compliances
See the 6800+Safety Instructions and Standards Manual to find the
safety standards and compliances for this 6800+series product. A
safety manual is shipped with every FR6802+Frame Installation and
Operation Manual and can be downloaded from our Web site at
www.broadcast.harris.com/leitch. Alternatively, contact your Customer
Service representative for a copy of this safety manual (see “Contacting
Customer Service” on page 32).
Restriction on Hazardous Substances (RoHS) Directive
Directive 2002/95/EC—commonly known as the European Union (EU)
Restriction on Hazardous Substances (RoHS)—sets limits on the use of
certain substances found in electrical and electronic equipment. The
intent of this legislation is to reduce the amount of hazardous chemicals
that may leach out of landfill sites or otherwise contaminate the
environment during end-of-life recycling. The Directive takes effect on
July 1, 2006, and it refers to the following hazardous substances:
• Lead (Pb)
• Mercury (Hg)
• Cadmium (Cd)
• Hexavalent Chromium (Cr-V1)
• Polybrominated Biphenyls (PBB)
• Polybrominated Diphenyl Ethers (PBDE)
In accordance with this EU Directive, all products sold in the European
Union will be fully RoHS-compliant and “lead-free.” (See our Web site,
www.broadcast.harris.com/leitch, for more information on dates and
deadlines for compliance.) Spare parts supplied for the repair and
upgrade of equipment sold before July 1, 2006 are exempt from the
legislation. Equipment that complies with the EU directive will be
marked with a RoHS-compliant symbol, as shown in Figure P-1.
Figure P-1. RoHS Compliance Symbol

AES6800+Installation and Operation Manual xiii
Preface
Waste from Electrical and Electronic Equipment
(WEEE) Directive
The European Union (EU) Directive 2002/96/EC on Waste from
Electrical and Electronic Equipment (WEEE) deals with the collection,
treatment, recovery, and recycling of electrical and electronic waste
products. The objective of the WEEE Directive is to assign the
responsibility for the disposal of associated hazardous waste to either
the producers or users of these products. Effective August 13, 2005,
producers or users will be required to recycle electrical and electronic
equipment at end of its useful life, and must not dispose of the
equipment in landfills or by using other unapproved methods. (Some
EU member states may have different deadlines.)
In accordance with this EU Directive, companies selling electric or
electronic devices in the EU will affix labels indicating that such prod-
ucts must properly recycled. (See our Web site, www.broadcast.har-
ris.com/leitch, for more information on dates and deadlines for
compliance.) Contact your local Sales representative for information on
returning these products for recycling. Eequipment that complies with
the EU directive will be marked with a WEEE-compliant symbol, as
shown in Figure P-2.
Figure P-2. WEEE Compliance Symbol

xiv AES6800+Installation and Operation Manual
Preface
Safety Terms and Symbols
This product manual uses the following safety terms and symbols to
identify certain conditions or practices. See the 6800+Safety
Instructions and Standards Manual for more information.
Table P-3. Safety Terms and Symbols
WARNING
Identifies conditions or practices that can result in
personal injury or loss of life—high voltage is
present. Uninsulated dangerous voltage within
the product’s enclosure may be sufficient to
constitute a risk of electric shock to persons.
CAUTION
Identifies conditions or practices that can result in
damage to the equipment or other property.
Important operating and maintenance (servicing)
instructions are included in the literature
accompanying the product.

AES6800+Installation and Operation Manual 1
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute.
Chapter 1
Introduction
Overview
This chapter introduces the AES6800+, and includes the following
topics:
•“Main Features” on page 2
•“Module Descriptions” on page 3
•“Product Description” on page 2
•“Signal Flow” on page 9

2 AES6800+Installation and Operation Manual
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute.
Chapter 1: Introduction
Product Description
AES6800+is a digital audio distribution amplifier module set in the
new 6800+family. The AES6800+features cable auto-equalization,
data reclocking, and incoming data error detection and reporting. The
error detection and reporting features use front-mounted LEDs and an
external alarm reporting. Housed in an FR-6802+series frame, this
distribution amplifier meets the AES interface standards according to
SMPTE 276M, AES3 1992 (r 1997), and AES3 id-2001.
These DAs feature high audio performance, low cost, remote
monitoring, and diagnostic capability in our control system.
You can set up and monitor the AES6800+locally via DIP switches.
You can monitor error signals and card status remotely on a PC. For
remote monitoring, you can use either a serial RS-232 or optional
ICE6800+Ethernet connection.
Typical Broadcast and Production Applications
The AES6800+distribution amplifier can be used in broadcast, cable,
production, educational, and auditorium applications where a low cost
method of distributing AES/EBU digital audio signals is required.
Main Features
• Available in balanced (AES6800+B) and coaxial (AES6800+C)
I/O formats
• Distribution of one signal input into four or nine isolated outputs
• Input signal lock detect
• Automatic or manual EQ
• Sampling frequency from 30 kHz to 192 kHz
• Bypass mode for non-AES signals of < 30 MHz @ 50% duty cycle
• Automatic reporting of data or signal quality errors, such as
• CRC errors
• Validity
• Confidence
• Biphase encoding errors
• Parity errors

AES6800+Installation and Operation Manual 3
Chapter 1: Introduction
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute.
Module Descriptions
Front Module
AES6800+B
The AES6800+B is a balanced 4- or 9-output AES/EBU digital audio
distribution amplifier. It uses serial transmission format over twisted
pair for two-channel linearly represented digital audio data per
AES3-1992.

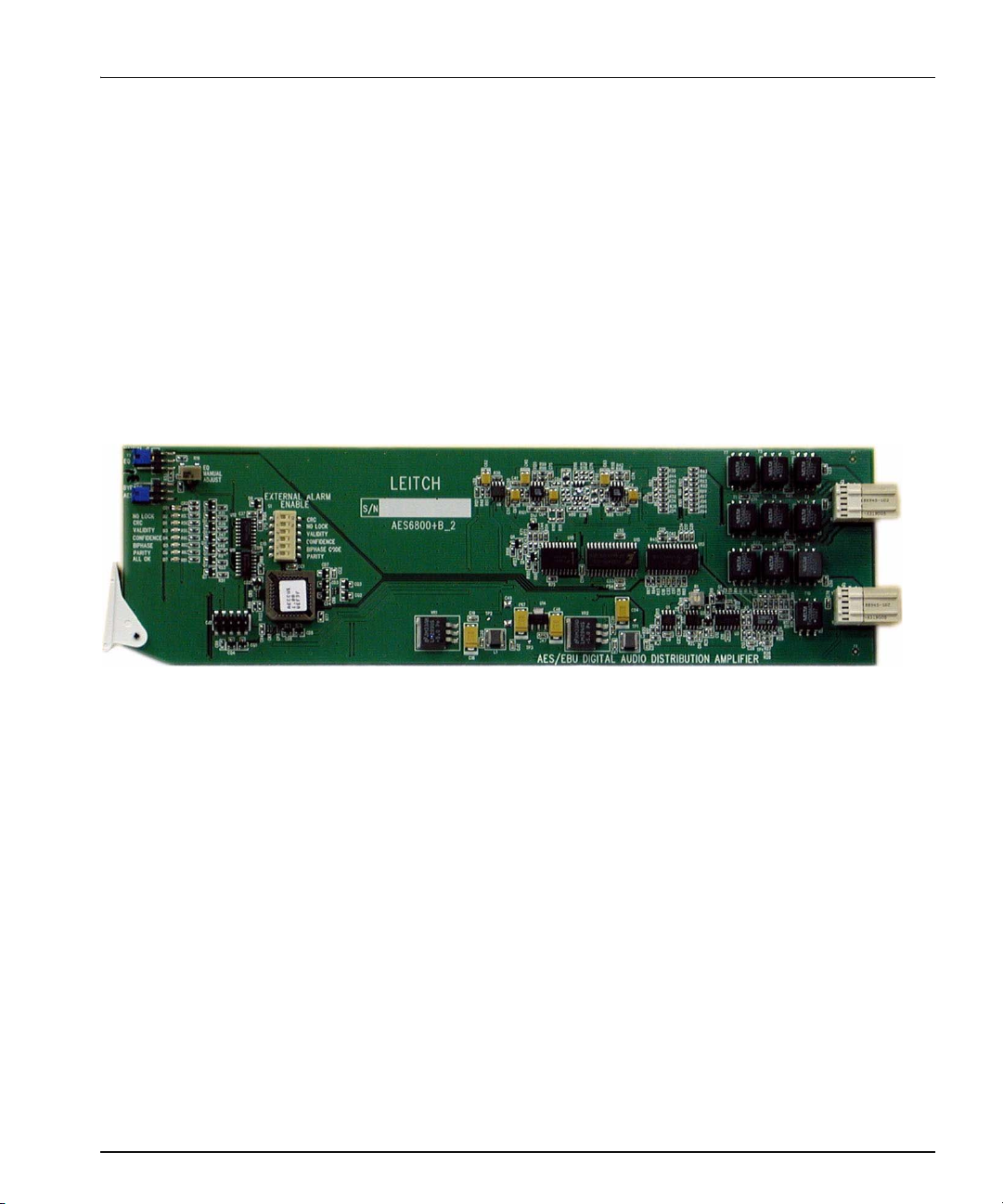

Figure 1-1 is a generic top-front view of a typical AES6800+B front
module, and shows the general location of LEDs and jumpers.
Figure 1-1. Typical AES6800+B Front Module
AES6800+C
The AES6800+C is a coaxial 4- or 9-output AES/EBU digital audio
distribution amplifier. It uses serial transmission format over 75Ω
coaxial cable per SMPTE 276M.

4 AES6800+Installation and Operation Manual
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute.
Chapter 1: Introduction
Figure 1-2 is a generic top-front view of a typical AES6800+C front
module, and shows the general location of LEDs and jumpers.
Figure 1-2. Typical AES6800+C Front Module
LEDs, Switches, and Jumpers
Table 1-1 briefly describes generic 6800+LEDs, switches, and
jumpers. See Chapter 2: “Installation and Configuration” for more
information on specific AES6800+module controls, LEDs, and
jumpers.
Table 1-1. Generic 6800+Module Features
Feature Description
Module status
LEDs
Various color and lighting combinations of these LEDs
indicate the module state. See Table 1-2 on page 5 and
“LEDs and Alarms” on page 25 or more information.
Control LEDs Various lighting combinations of these control LEDs
(sometimes referred to as “Bank Select LEDs”) indicate
the currently selected bank. (This item not available on
the AES6800+)
Monitoring
LEDs
Each 6800+module has a number of LEDs assigned to
indicate varying states/functions. See “LEDs and
Alarms” on page 25 for a description of these LEDs.
Local/remote
control jumper
•Local: Locks out external control panels and allows
card-edge control only; limits the functionality of
remote software applications to monitoring
•Remote: Allows remote or local (card-edge)
configuration, operation, and monitoring of the
AES6800+

AES6800+Installation and Operation Manual 5
Chapter 1: Introduction
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute.
Each 6800+module has a number of LEDs assigned to indicated
varying states/functions. These functions are listed in Table 1-2.
Table 1-2. AES6800+Module-Specific Status LEDs
Condition Color Function
All OK
No Errors
Green No error, everything working well
No lock Red Signal not present or cannot be locked
Biphase
coding error
Amber Biphase coding of incoming data incorrect
Parity error Amber AES stream’s parity not set as specified
CRC error Amber CRC value calculated for incoming data
does not match the CRC byte of channel
status word
Confidence
flag error
Amber Received data eye opening less than half a
bit period, indicating a possible lack of
signal strength or high jitter; also may mean
that insufficient EQ applied
Validity error Amber AES stream’s validity bit is high (incoming
data not suitable for conversion to an analog
audio signal)
Alarm Amber External alarm contact closure asserted; card
reporting an alarm
Frame status* Red Frame alarm
Green All OK, no frame alarm
* If the frame status LED is not lit, the module may not be operational.

6 AES6800+Installation and Operation Manual
Preliminary—Contents are proprietary and confidential. Do not photocopy or distribute.
Chapter 1: Introduction
Back Module
FR6802+Frame Back Module

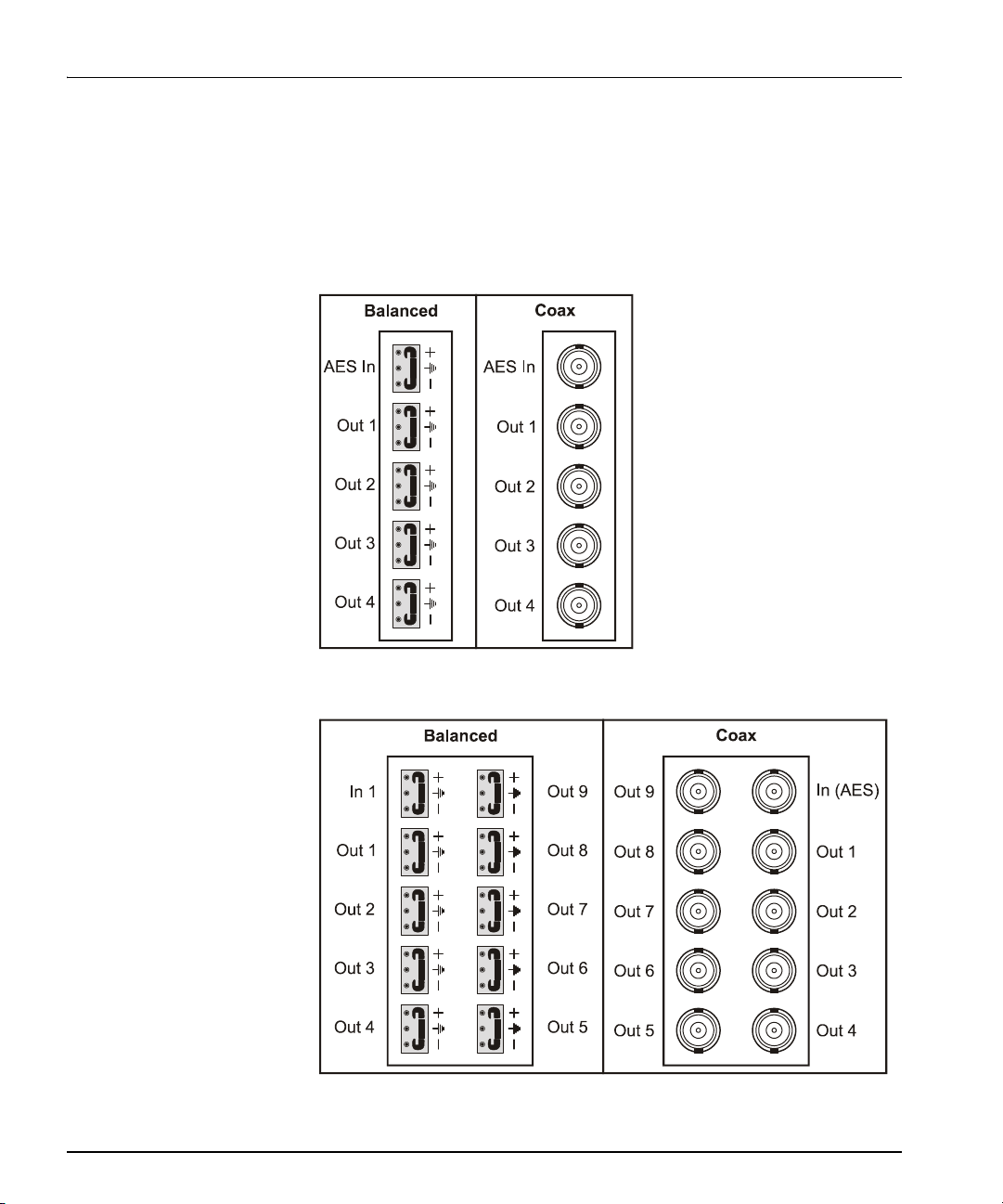

Figure 1-3 shows the single-width back connector and Figure 1-4
shows the double-slot back connector used by the AES6800+when
installed in an FR6802+frame.
Figure 1-3. Single-Width Back Connectors for FR6802+Frame
Figure 1-4. Double-Slot Back Connectors for FR6802+Frame
