Lennox R22 User guide

APPLICATION GUIDE
FLOOR STANDING
•Heat pump
•Cooling Capacities of 8 a 13 kW

1
INSTALLATION
TECHNICAL DATA
VERTICAL FLOOR SPLIT. HEAT PUMP R22
HEAT PUMP UNIT VHA 30 VHA 50
Cooling capacity W 8.150 12.895
Heating capacity W 8.150 14.070
Cooling mode power input kW 3 4,5
Heating mode power input kW 2,8 4,5
Current Cool A 14,5 7,8
Heat A 13,5 7,5
Voltage: 50 Hz V/f 230/I 400/III
Indoor U. air flow (Height) m3/h 1140 2100
Compressor Type Reciprocating Reciprocating
Sound level Indoor U. dB(A), Height, 1m 46 48
Outdoor U. dB(A), Height, 1m 58 58
Bevel coupling pipe Liquid 3/8" 3/8"
Gas 5/8" 3/4"
Dimensions Indoor U. H x L x D (mm) 1.800 x 500 x 320 1.810 x 590 x 440
Outdoor U. H x L x D (mm) 800 x 870 x 320 1.225 x 900 x 370
Net weight Indoor U. kg 40 62
Outdoor U. kg 65 90
(1) At Eurovent Conditions Cooling operation Heating operation
Indoor air 27o C d.b.- 19o C w.b. Indoor air 20o C d.b. - 12o C w.b.
Outdoor air 35o C w.b. - 24o C w.b. Outdoor air 7o C d.b. - 6o C w.b.

2
Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips
Air Outlet Vent
Remote Signal
Receptor
Air Inlet Vent
Air Inlet Vent
(Rear)
Air Outlet
Vent
Features and Specifications
Specifications
Designed for cooling and heating
Super energy efficiency
Micom control
Whisper quiet operation
Wireless remote control
Removable air filter
Anti-Bacteria filter
3 minutes delay circuit
Auto restart
Features
1
2
3
4
5
6
7
8
9

ENGLISH
3
L
M
H
M
O
D
E
A/CL
OUT
DOOR
ROOM TEMP SET TEMP
6
2 3 4 1
97 10 12 13 14
515
M
O
D
E
A/CL
OUT
DOOR
ROOM TEMP SET TEMP
L
M
H
6
2 3 4 1
711 813 14
515
START/STOP BUTTON
Operation starts when this button is pressed
and stops when the button is pressed again.
OPERATION MODE SELECTION BUTTON
Used to select the operation Mode.
ROOM TEMPERATURE SETTING
BUTTONS
Used to select the room temperature.
INDOOR FAN SPEED SELECTION
Used to select fan speed in three steps-low,
med, high.
OUTDOOR UNIT OPERATION LAMP
COOLING OPERATION LAMP
SOFT DRY OPERATION LAMP
FAN OPERATION LAMP
HEATING OPERATION LAMP
ELECTRIC HEATER OPERATION LAMP
(Option)
AUTO OPERATION LAMP
DEFROST OPERATION LAMP
OFF TIMER OPERATION LAMP
AUTO AIRFLOW OPERATION LAMP
(HORIZONTAL)
AIR CLEANER OPERATION LAMP
(Option)
The remote control transmits the signals to the system.
Features of the Remote Control- Door Closed
1
8
9
10
11
12
13
14
15
2
3
4
5
6
7

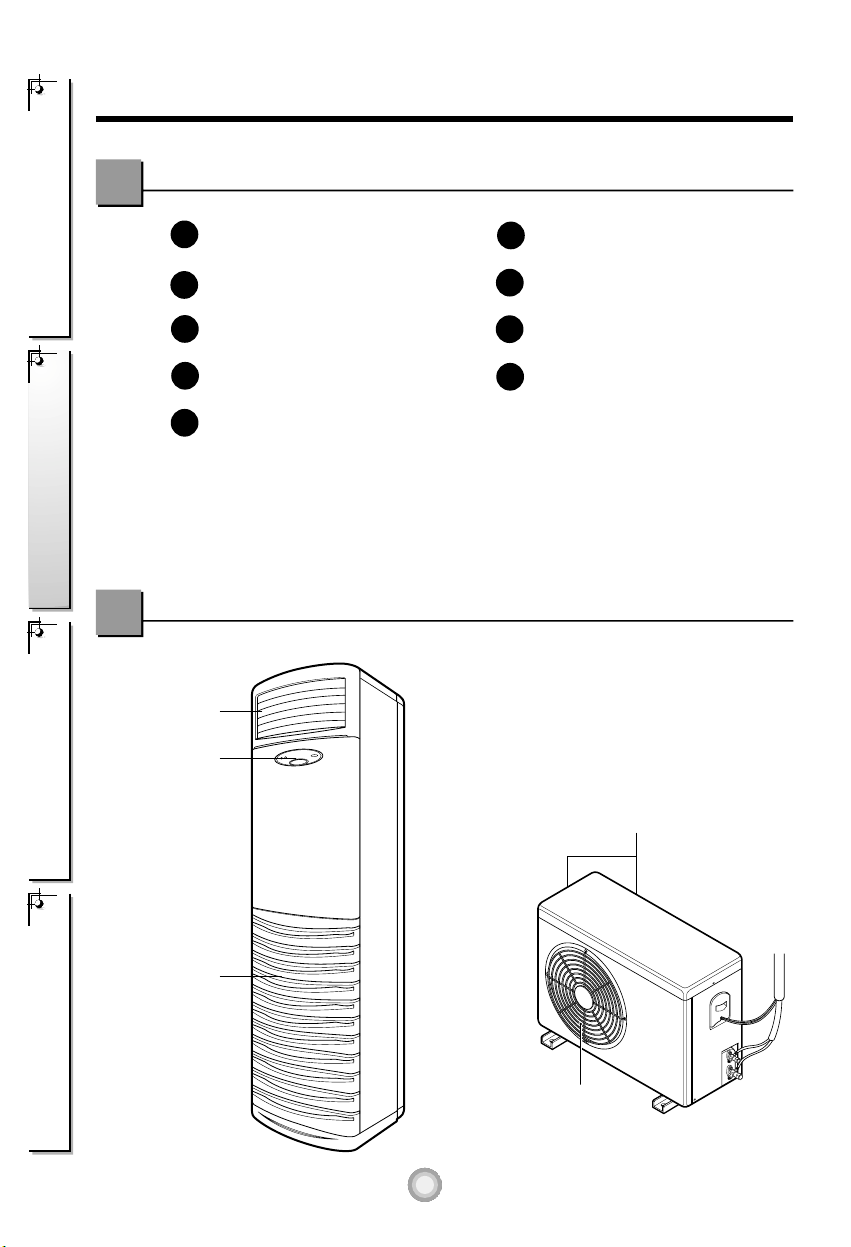

Indoor Unit Controls and Indicators
(Heat Pump Model) (Cooling Model)

4
Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips
2
4
10
7
3
9
8
6
5
12
11
1
Control
Signal Transmitter
•Transmits the signals to the Floor
standing Type air conditioner
Operation Display of the Remote
Control
Indoor Fan Speed Selection Button
•To select the desired fan speed in three
steps [Low, Med, High]
Cooling ON Button
Temperature Setting Buttons
Power ON/OFF Button
•Operation will start when this button is
pressed, and stop when the button is
pressed again.
Timer Set Button
•Each time the button is pressed, the
mode is changed in the following
process.
Timerset(1,2,3,4,5,6,7hours)
If you select “0:00”the off Timer function
will be cancelled.
Auto Airflow Direction Control Button
•The vertical louvers swing left and right.
•The horizontal louvers can be set by
hand.
Heating Button
(Heat Pump Model Only)
Auto Mode Operation Button
(Cooling Model Only)
Soft Dry Operation Button
Indoor Fan Operation Button
(Cooling
Model Only)
Electric Heater ON/OFF Button (Option)
1
2
3
4
5
6
7
8
9
10
11
12

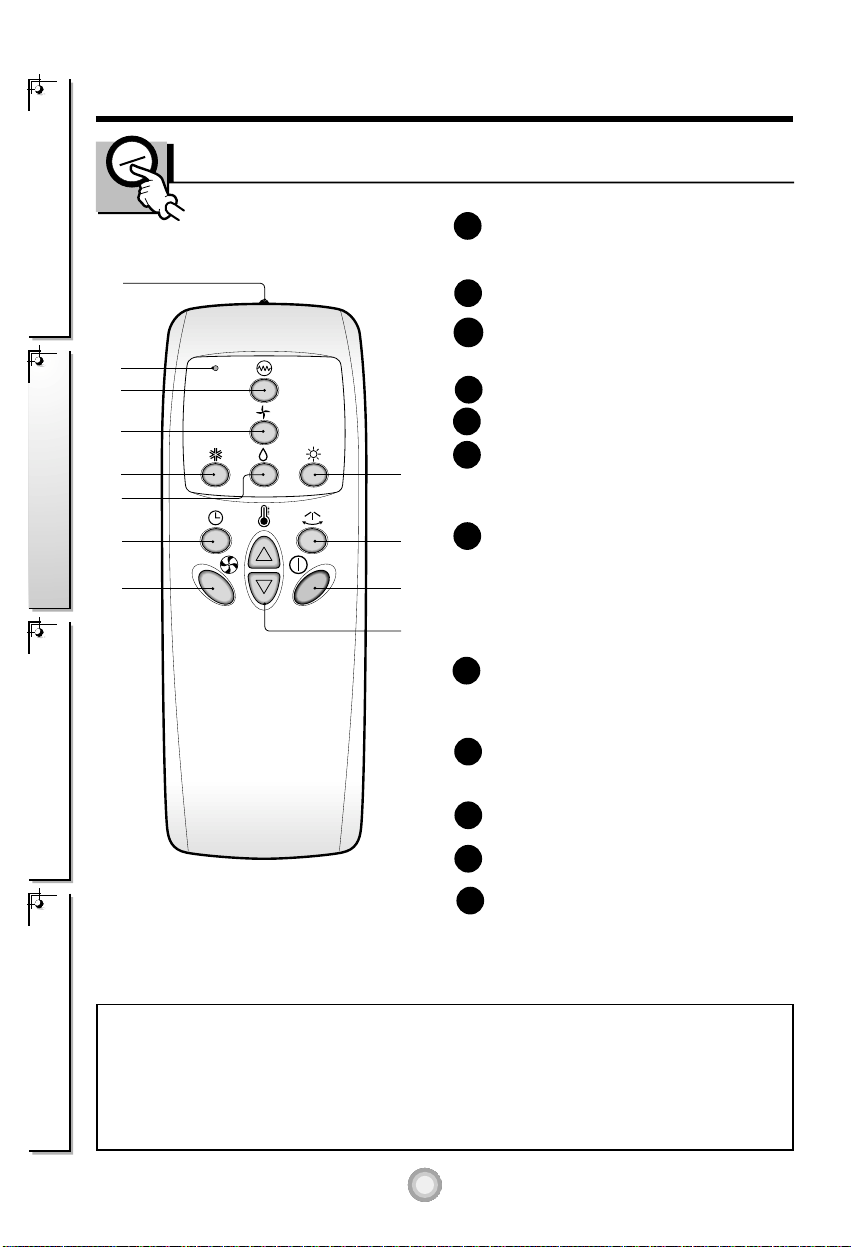

Name and Function-Remote Control
Handling the remote control
•Aim at the signal receptor on the Floor standing Type air conditioner when operating.
•The remote control signal can be received at a distance of up to about 7meters.
•Be sure that there are no obstructions between the remote control and the signal receptor.
•Do not drop or throw the remote control.
•Do not place the remote control in a location exposed to direct sunlight, or next to a heating unit, or
other heat source.
Wireless Remote Control Puts all functions at your fingertips

ENGLISH
5
1
2
Insert Pull

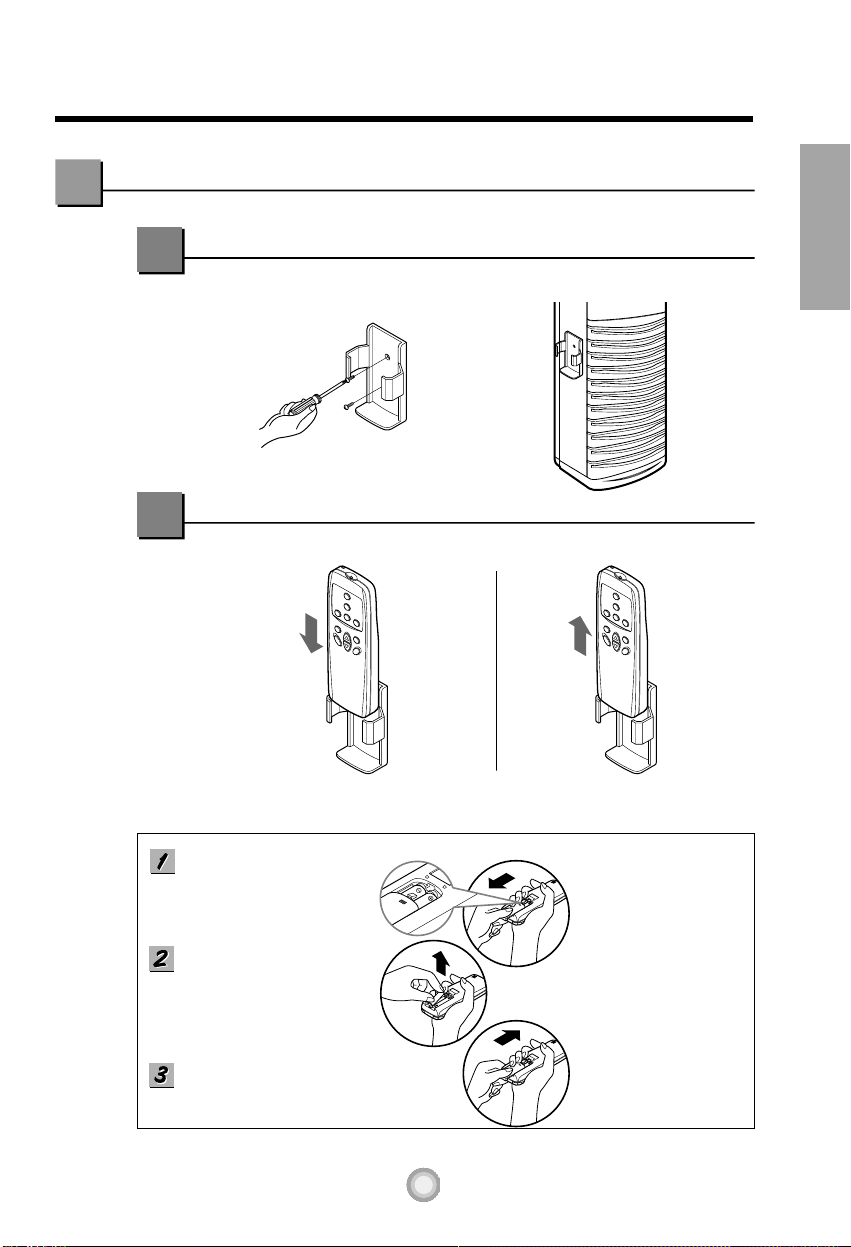

Remote Control Preparation
How to mount onto a wall
To insert the remote control to the holder.
How to insert batteries
Remove the cover from the
back of the remote controller.
•Slide the cover according to
the arrow direction.
Insert two batteries.
•Be sure that the (+) and (-)
directions are correct.
•Be sure that both batteries
are new.
Re-attach the cover.
•Slide the cover into back
position.
•Do not use rechargeable
batteries such batteries
are different from
standard dry cells in
shape, dimensions, and
performance.
•Change the batteries with
a new one if the remote
control does not work
properly after using for an
extended length of time.
Use the screws to secure the holder to the wall or attach the holder side of indoor
unit.

6
Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips
1
2
Heating Operation
Heating + E/Heater Operation
(model only with Electirc heater)
Cooling Operation Soft Dry Operation
OUT
DOOR
ROOM TEMP SET TEMP
OUT
DOOR
ROOM TEMP SET TEMP
OUT
DOOR
ROOM TEMP SET TEMP
OUT
DOOR
ROOM TEMP SET TEMP
HH
H
H
M
O
D
E
M
O
D
E
OUT
DOOR
ROOM TEMP SET TEMP
H
OUT
DOOR
ROOM TEMP SET TEMP
H
OUT
DOOR
ROOM TEMP
H
Cooling Operation Soft Dry Operation
Medium
Auto Operation
M
O
D
E
H
M
L
High Low
Air conditioner operation
HowtousetheFanspeedButton
•Each time the Fan speed Button is pressed, the Fan speed is shifted in the arrow direction.
How to use the Operation Mode Button
•Each time the Operation Mode Selection Button is pressed, the Operation Mode is
shifted in the arrow direction.
(Heat pump Model)
(Cooling Model)

ENGLISH
7
3
2
3
4
1
To raise the temperature
To lower the temperature
OUT
DOOR
ROOM TEMP SET TEMP
H
M
O
D
E
M
O
D
E
OUT
DOOR
ROOM TEMP SET TEMP
H
M
O
D
E

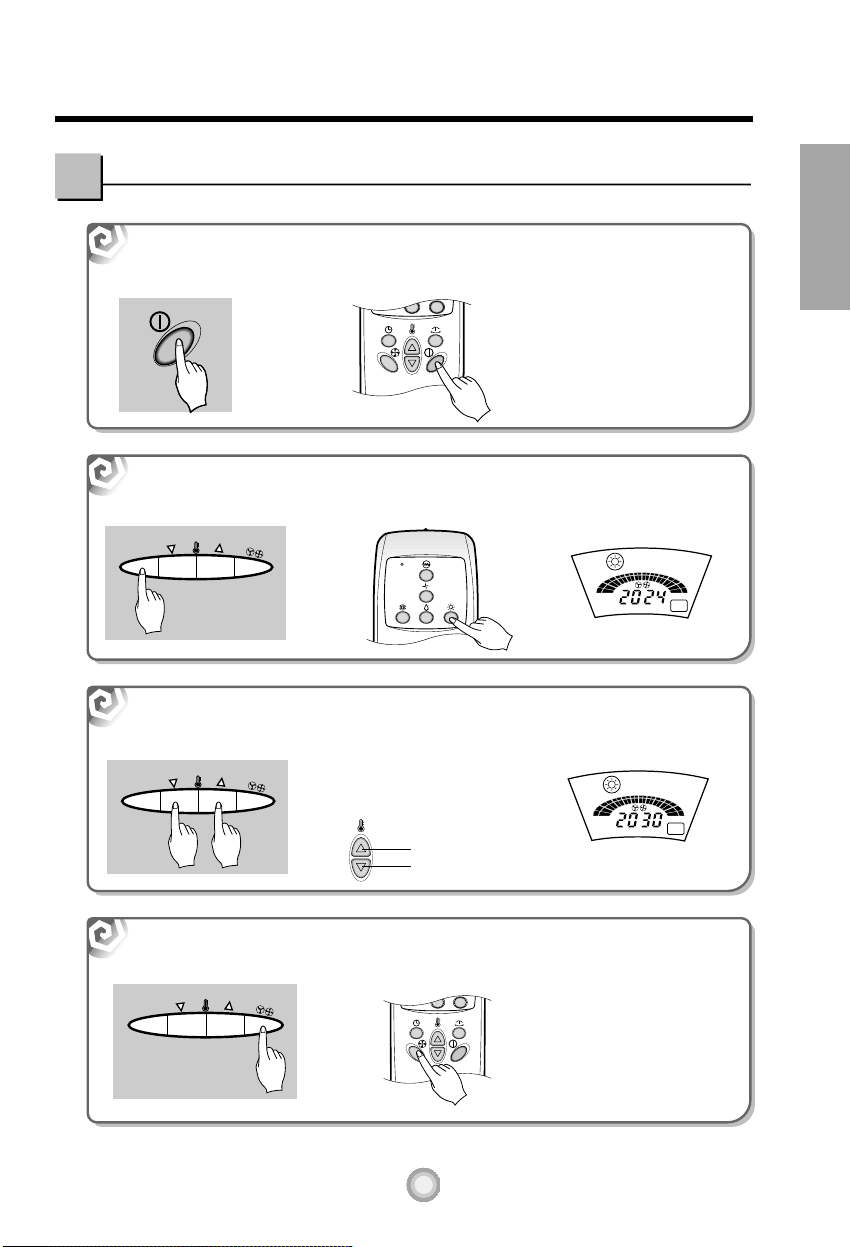

Cooling Operation Mode

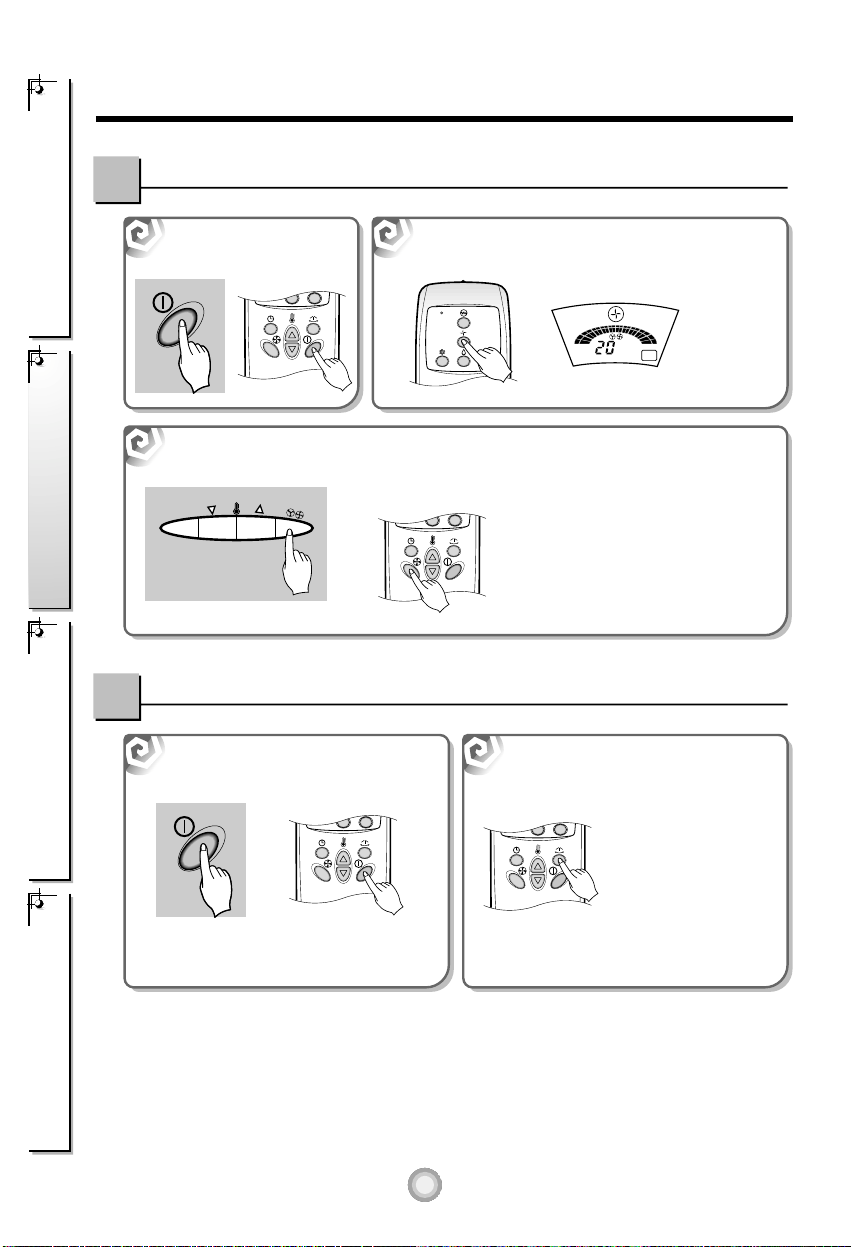

Press the Start/Stop Button.
Select Cooling Operation.
Press the Operation Mode Selection Button.
Press the Cooling Operation Button on the remote controller.
Set the temperature lower than the room temperature.
Thetemperaturecanbesetwithinarangeof16°C~30°Cby1°C.
Set the Fan Speed.
•Each time the Button is
pressed, the Fan Speed mode
is shifted.

8
Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips
4
2
3
1
M
O
D
E
M
O
D
E
OUT
DOOR
ROOM TEMP SET TEMP
H
OUT
DOOR
ROOM TEMP SET TEMP
H
To raise the temperature
To lower the temperature
Press the Start/Stop Button.
Select Soft Dry Operation.
Press the Operation Mode Selection Button.
Press the Soft Dry Operation Button on the remote controller.
Set the temperature lower than the room temperature.
The temperature can be set within a range of 16°C~30°Cby1°C.
During soft Dry Operation
•The indoor fan speed is automatically set to low.
Soft Dry Operation

9
5
2
3
4
1
OUT
DOOR
ROOM TEMP SET TEMP
M
O
D
E
H
OUT
DOOR
ROOM TEMP SET TEMP
M
O
D
E
H
To raise the temperature
To lower the temperature
M
O
D
E
ENGLISH
Heating Operation Mode(Heat Pump Model Only)
Press the Start/Stop Button.
Select heating Operation.
Press the Operation Mode Selection Button.
Press the heating Operation Button on the remote controller.
Set the temperature upper than the room temperature.
The temperature can be set within a range of 16°C~30°C by 1°C.
Set the Fan Speed.
• Each time the Button is pressed,
the Fan Speed mode is shifted.

10
Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips
6
2
3
4
1
To raise the temperature
To lower the temperature
M
O
D
E
OUT
DOOR
ROOM TEMP SET TEMP
M
O
D
E
H
OUT
DOOR
ROOM TEMP SET TEMP
M
O
D
E
H
Electric Heater Operation Mode(Option)
Press the Start/Stop Button.
Select heating+ E/heater Operation.
Press the Operation Mode Selection Button.
Press the Heater Operation Button on the remote controller. (When the unit operates in heating mode.)
Set the temperature upper than the room temperature.
The temperature can be set within a range of 16°C~30°Cby1°C.
Set the Fan Speed.
•Each time the Button is pressed,
the Fan Speed mode is shifted.

11
7
2
3
1
OUT
DOOR
ROOM TEMP SET TEMP
M
O
D
E
H
Cold HotWarmCool Proper
OUT
DOOR
ROOM TEMP SET TEMP
M
O
D
E
H
To raise the temperature. (When you feel too cool or cold)
To lower the temperature. (When you feel too warm or hot)
ENGLISH

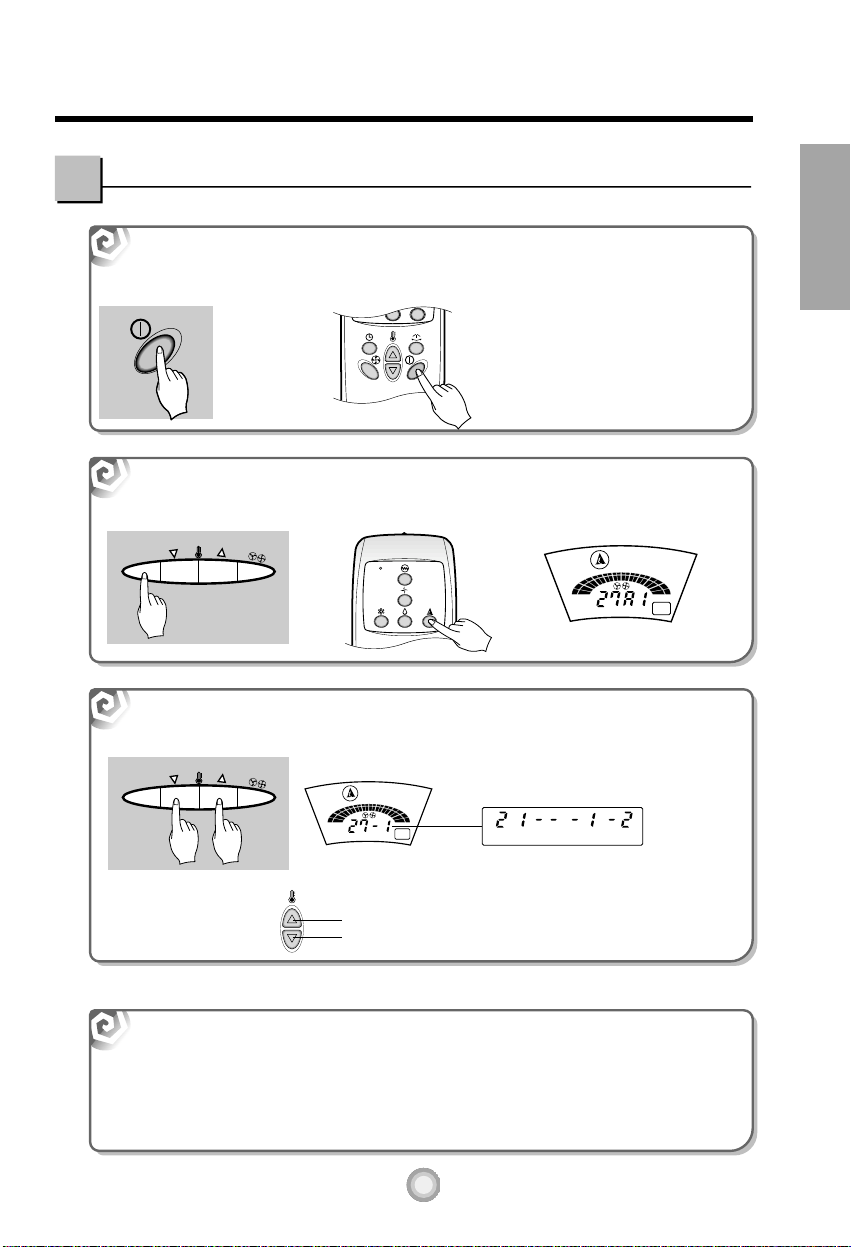

Auto Operation Mode(Cooling Model Only)
Press the Start/Stop Button.
Select Auto Operation.
Press the Operation Mode Selection Button.
Press Auto Operation Button on the remote controller.
Set the temperature upper than the room temperature.
The temperature can be set within a range of 16°C~30°Cby1°C.
(This indication will be shifted to the initial Auto Mode Display state
after 4 seconds.)
During Auto Operation
•It is impossible to switch the indoor fan speed because of being already set to the
best condition by fuzzy rule.

12
Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips
8
3
1 2
9
1 2
OUT
DOOR
ROOM TEMP SET TEMP
H
M
O
D
E
Fan Operation Mode(Cooling Model Only)
Set the Fan Speed.
❑Each time the Button is pressed,
the Fan Speed mode is shifted.
Airflow Direction Procedure
Note
Always use the remote control to adjust the right/left airflow direction, manually moving the vertical airflow
direction louver by hand could change the air conditioner.
Vertical Airflow Direction Control
Adjust the vertical airflow direction manually by moving the horizontal louvers with hand.
Press the Start/Stop
Button. Press Fan Operation Button.
Press the Start/Stop Button.
(Operation will start when the button is
pressed, and stop when the button is pressed
again.)
Press the Auto Swing Button and then
louvers will swing left and right.
Press the Airflow Direction
ControlButtonagaintoset
the Vertical louver at the
desired airflow direction.
The vertical louver swing left and right.

ENGLISH
13
10
2
3
4
1
OUT
DOOR
ROOM TEMP SET TEMP
H
OUT
DOOR
ROOM TEMP SET TEMP
H
OUT
DOOR
ROOM TEMP SET TEMP
H
After 4 seconds
Press the Timer Button.
•If you select ‘’, the Off Timer function will be cancelled.
When you finish the Off Timer setting, the Timer indicator lights off.
During off-timer operation if you press the Timer Button, the rest time will be displayed.
OFF Timer Setting Procedure(OFF TIMER Setting, or CANCEL)
Press the Start/Stop Button.
•If you press the button, the selected off timer is displayed as follows;

14
Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips
11
2
3
1
M
O
D
E
OUT
DOOR
ROOM TEMP SET TEMP
H
OUT
DOOR
ROOM TEMP SET TEMP
H
OUT
DOOR
ROOM TEMP SET TEMP
H
After 3 seconds,
it will be shifted. After 3 seconds, it will be shifted.
M
O
D
E
OUT
DOOR
ROOM TEMP SET TEMP
H
OUT
DOOR
ROOM TEMP SET TEMP
H
OUT
DOOR
ROOM TEMP SET TEMP
H
After pressing
the buttons it will be shifted
immediately
After 3 seconds,
it will be shifted.

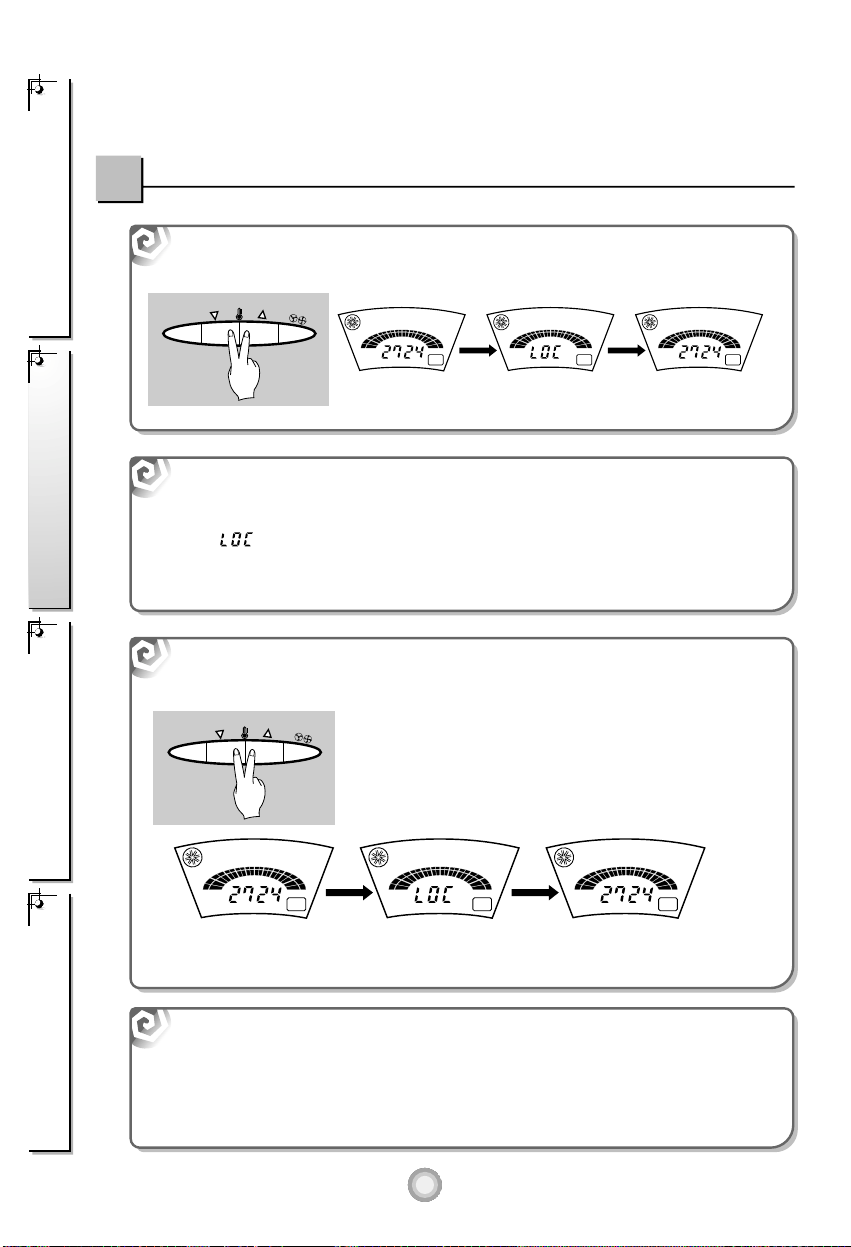

Press the low and high temperature setting buttons simultaneously for 3 seconds.
The unit will respond with beep.
Child Lock Operation Procedure
During Child Lock Operation
➊Whenever you press any Button on Display Panel, it will immediately display
“”, which means Display panel is Locked.
❷All the Button on the indoor unit Display panel will not work.
❸But the Button on the remote controller will work.
For releasing child lock Operation
Press the low and high temperature setting buttons
simultaneously for 3 seconds again.
The unit will respond with beep, Child Lock Operation will
removed.
Auto restart
In case the power comes on again after a power failure, Auto Restarting Operation is the
function to operate procedures automatically to the previous operating conditions.

ENGLISH
15
CAUTION
CAUTION
Care and Maintenance
Remove the Air Filter.
Take hold of the tab and pull slightly forward to
remove the filter.
Clean.
•
To remove the dust adhering to the filters, either use a
vacuum cleaner, or wash them in water and dry in the
shade.
•Re-insert the filter to the original position.
Cleaning of the air filters.
Recommended about once every two weeks
Cleaning of the air conditioner
•Don’twashwithwater.
•Wipe with a soft dry cloth.
At the end of the season
Operate the air conditioner at the following
settings for 2 to 3 hours.
•Type of operation : Cooling.
•Temperature setting : 30°C.
This will dry out the internal mechanisms.
Remove the batteries from the Remote Control.
Turn off the circuit breaker.
Turn off the circuit breaker when the air conditioner
isnotgoingtobeusedforalongtime.
Dirt may collect and may cause a fire.
Clean the air filters, re-insert, then operate
the air conditioner.
Be sure that nothing obstructs the air outlet
and intake vents.
At the start of the season
•Water hotter than 40°C.
Could cause deformation
and/or discoloration.
•Volatile substances.
Could damage the surfaces
of the air conditioner.
Never use any of the followings.
Cleaning of the air cleaner.
Recommended about once every three months
Whentheairconditionerisnotgoingtobeusedforalongtime.
Remove the Air Cleaner.
Take hold of the tab and pull slightly forward to
remove the air cleaner.
Clean.
•Dip the air cleaner into the water mixed with
detergent, for 20~30 minutes, and dry in the shade.
•Re-insert the air cleaner to the original position.
CAUTION: Before performing any maintenance, turn off the main power to the system.
During the season
Do not overcool the room.
This is not good for your health and
wastes electricity.
Make sure that the doors and
windows are shut tight.
Avoid opening doors and windows as
much as possible to keep the cool air in
the room.
Keep blinds or curtains closed.
Do not let direct sunshine enter the
room when the air conditioner is in
operation.
Clean the air filter regularly.
Blockages in the air filter reduce the
airflow and lower cooling and
dehumidifying effects. Clean at least
once every two weeks.
Keep the room temperature uniform.
Adjust the vertical and horizontal airflow
direction to ensure a uniform
temperature in the room.
Ventilate the room occasionally.
Since windows are kept closed, it is a
good idea to open them and ventilate
the room now and then.
Operation Tips

?
16
Safety PrecautionsOperating InstructionsCare and MaintenanceTroubleshooting Tips
Before you call for service...
Check the following points before requesting repairs or service.... If the fault persists, please
contact your dealer or service center.
Troubleshooting Tips! Save time and money!
Case Explanation See page
Does not operate.
The room has a peculiar
odor.
It seems that condensation is
leaking from the air
conditioner.
Air conditioner does not
operate for about 3 minutes
when restarted.
Does not cool or heat
effectively.
The air conditioner operation
is noisy.
Remote controller display is
faint, or no display at all.
•Have you made a mistake in timer operation?
•Has the fuse blown or has the circuit breaker been
tripped?
•Is the power Switch at Off?
•Is the unit at the starting of Heating Operation?
If yes, Hot-start is activating.
•Is the unit in the Deicing?
If yes, wait for finishing the Deicing.
•Check that this is not a damp smell exuded by the
walls, carpet, furniture, or cloth items in the room.
•Condensation occurs when the airflow from the air
conditioner cools the warm room air.
•This is the Protection device of the air conditioner .
•Wait about three minutes and operation will begin.
•If the airflow begins before its temperature become
warm, it will cause an undesired cooling effect. In
order to prevent this, the airflow will not begin until
it is sufficiently warm.
•Is the air filter dirty? See air filter cleaning
instructions.
•The room may have been very hot when the room
air conditioner was first turned on. Allow time for it
to cool down.
•Has the temperature been set incorrectly?
•Are the indoor unit's air inlet or outlet vents
obstructed?
•For a noise that sounds like water flowing.
-This is the sound of freon flowing inside the air
conditioner unit.
•For a noise that sounds like the compressed air
releasing into atmosphere.
-This is the sound of the dehumidifying water being
processed inside the air conditioning unit.
•Are the batteries depleted?
•Are the batteries inserted in the opposite (+) and (-)
directions?
-
-
-
17
-
-
-
7
NOTE
WATER RESISTANT: The outdoor side of this appliance is WATER RESISTANT.
The indoor side is not water resistant and should not be exposed to excess water.

www.Lennoxeurope.com
LENNOX BENELUX N.V./S.A.
tél. : + 32 3 633 30 4
fax : + 32 3 633 00 89
e-mail : [email protected]
LENNOX JANKA
tél. : + 420 2 10 88 111
fax : + 420 2 79 10 393
e-mail : [email protected]
LENNOX FRANCE
tél. : + 33 4 72 23 20 20
fax : + 33 4 78 20 07 76
e-mail : [email protected]
LENNOX DEUTSCHLAND GmbH
tél. : + 49 69 42 09 79 0
fax : + 49 69 42 09 79 40
e-mail : [email protected]
LENNOX DISTRIBUTION
tél. : + 971 4 262 9309
fax : + 971 4 266 7082
e-fax : + 1 240 368 73 62
Mobile : [phone]
e-mail : [email protected]
LENNOX BENELUX B.V.
tél. : + 31 33 2471 800
fax : + 31 33 24 9 220
e-mail : [email protected]
LENNOX POLSKA Sp. z o. o.
tél. : + 48 22 832 26 61
fax : + 48 22 832 26 62
e-mail : [email protected]
LENNOX CLIMATIZAÇAO LDA.
tél. : [phone]
fax : [phone]
e-mail : [email protected]
LENNOX DISTRIBUTION MOSCOW
tél. : + 7 09 246 07 46
fax : + 7 02 933 29
e-mail : [email protected]
LENNOX SLOVAKIA
tél. : + 421 2 44 87 19 27
fax : + 421 2 44 88 64 72
LENNOX REFAC S.A.
tél. : + 34 91 40 18 10
fax : + 34 91 42 84 04
e-mail : [email protected]
LENNOX DISTRIBUTION KIEV
tél. : + 380 44 213 14 21
fax : + 380 44 213 14 21
e-mail : [email protected]
LENNOX INDUSTRIES LTD
tél. : + 44 1604 99400
fax : + 44 1604 94200
e-mail : [email protected]
tél. : + 33 4 72 23 20 14
fax : + 33 4 72 23 20 28
e-mail : [email protected]
BELGIUM :
CZECH REPUBLIC :
FRANCE :
GERMANY :
MIDDLE EAST :
NETHERLANDS :
POLAND :
PORTUGAL :
RUSSIA :
SLOVAKIA :
SPAIN :
UKRAINE :
UNITED KINGDOM :
OTHER EUROPEAN
COUNTRIES, AFRICA,
LENNOX DISTRIBUTION :
AGU-FS-April 02
