Lenoxx Sound SL-328 User manual

®
WITH DIGITAL RADIO & BASS REFLEX
SPEAKERS
MODEL SL-328
OPERATING INSTRUCTIONS
DIGITAL RADIO WITH PRESETS
PLAYS MUSIC COMPACT DISCS
FULLY PROGRAMMABLE CD PLAYER WITH REPEAT PLAY
RECEIVES AM/FM STEREO BROADCASTS
RECORDS CASSETTES FROM CD OR RADIO
AC POWER INDICATOR
LARGE BACKLIT LCD DISPLAY FOR CD & RADIO
PRESET GRAPHIC EQUALIZER SYSTEM
BASS REFLEX SPEAKER SYSTEM
CD AUDIO SYSTEM
PLEASE READ CAREFULLY BEFORE USE
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com
all-guides.com

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH AN EXTENSION
CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, install in accordance with the manufacturers
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightening storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally or has been dropped.
14. This appliance shall not be exposed to dripping or splashing water and that no
object filled with liquid such as vases shall be placed on the apparatus.
1

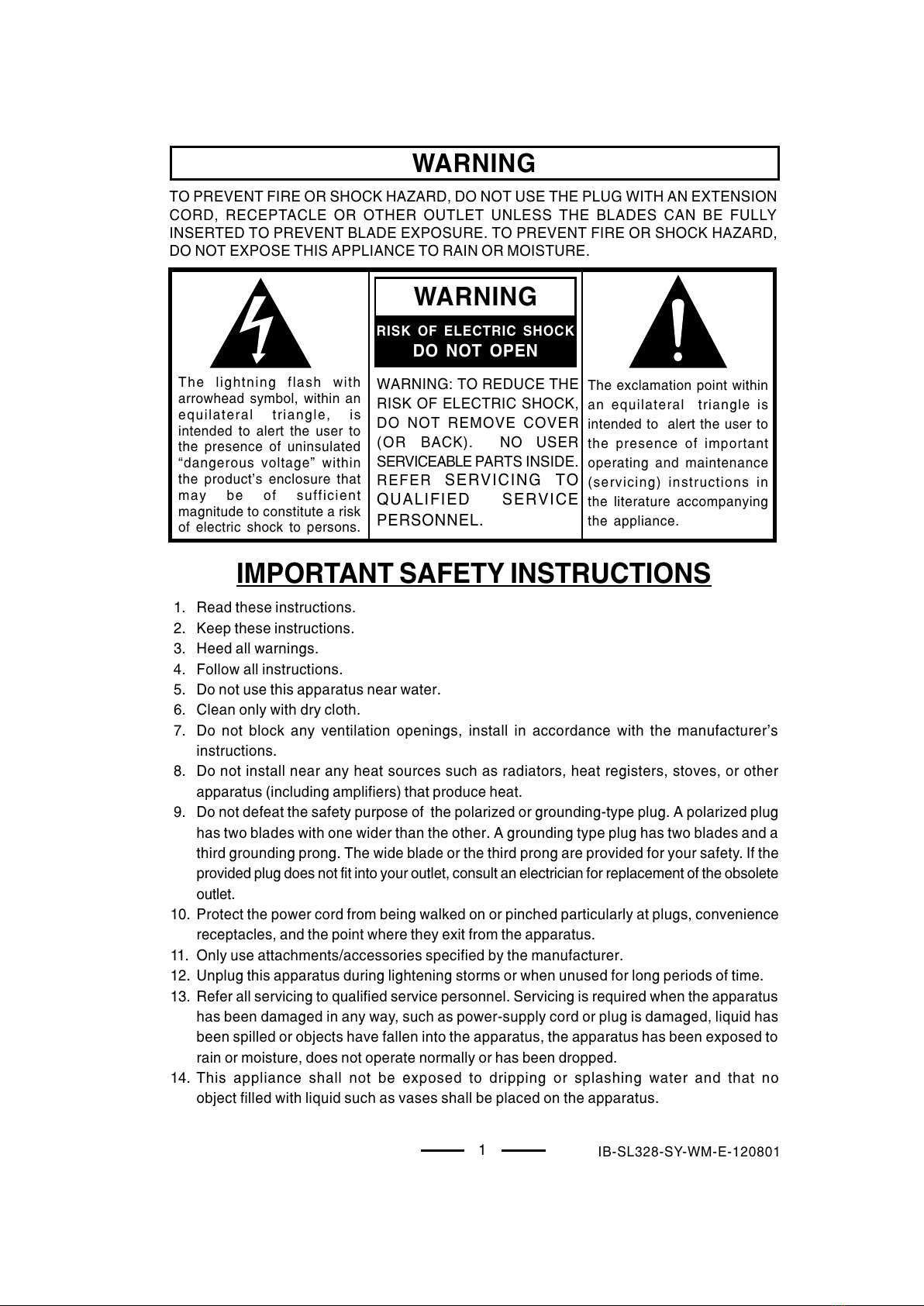

WARNING
IMPORTANT SAFETY INSTRUCTIONS
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is
intended to alert the user to
the presence of uninsulated
dangerous voltage within
the products enclosure that
may be of sufficient
magnitude to constitute a risk
of electric shock to persons.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER
(OR BACK). NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
The exclamation point within
an equilateral triangle is
intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in
the literature accompanying
the appliance.
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com

ADDITIONAL SAFETY INSTRUCTIONS
1. Power Sources - The appliance should be connected to a power supply only of the type
described in the operating instructions or as marked on the appliance.
2. Wall or Ceiling Mounting - The appliance should not be mounted to a wall or ceiling.
3. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids
are not spilled into the enclosure through openings.
4. Servicing - The user should not attempt to service the appliance beyond that described in
the operating instructions. All other servicing should be referred to qualified service personnel.
5. Do not connect FM antenna wire to any outdoor antenna.
CAUTION
Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
This compact disc player is classified as CLASS 1 LASER PRODUCT as stated
on the back of the set.
Do not apply oil or petroleum products or solvents to any part of this set.
It is the intent of Lenoxx that this product be used in full compliance with the
copyright laws of the United States and that prior permission be obtained from
copyright owners whenever recording songs from the RADIO or CDs.
2IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com

POWERING UP
TIP
If the plug of the AC power cord does not match your outlet, do not force it.
Reverse it and try again. The plug is polarized and only fits one way into the wall
outlet.
3
To a wall outlet
NOTE: One blade of
plug and outlet
is wider.
Carefully unwind and stretch out the speaker wire on the back of each speaker
box and plug the right plug into Speaker Jack marked  R , and the left plug into
Speaker Jack marked  L .
Plug the AC POWER CORD into a 120V, 60Hz wall outlet. The AC POWER STANDBY
INDICATOR will be on. This indicator shows you that the set & outlet are OK.
CONNECTING THE SPEAKERS AND ANTENNAS
Unwind the FM ANTENNA (thin wire) at the back of the set and straighten it out for FM
reception; for AM reception, please use the AM LOOP ANTENNA and plug its wire
into the AM ANTENNA SOCKET at the back of the set, then position the AM ANTENNA
on the top of the set for the best AM reception.
FM ANTENNA
AC CORD
AM LOOP
ANTENNA
AC POWER
STANDBY
INDICATOR
AM ANTENNA
SOCKET
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com

REMOTE CONTROL
You can control the player with the provided REMOTE control.
Slide the battery cover to remove. Insert two size AAA batteries (not included)
correctly so that the + and - polarities match the polarity diagrams inside the
battery compartment.
NOTE:
Point the REMOTE control at the REMOTE SENSOR.
The functions of the buttons on the REMOTE control
are the same as the corresponding controls on the
main unit.
About half a year of normal operation can be expected
when using the alkaline batteries.
When the batteries are exhausted, the REMOTE
control will no longer operate the system. Replace
both batteries with new ones.
When the REMOTE control is not to be used for a long
time (2 months or more), remove the batteries to avoid
possible damage that may be caused by battery
leakage.
Avoid keeping the REMOTE control in extremely hot
or humid locations.
The REMOTE controls operating distance is about
0.2m (8 inches) to 5m (16.5 feet)away from the
REMOTE SENSOR.
1. MUTE
2. TAPE
3. BAND
4. CD REPEAT/RADIO PRESET
5. RADIO TUNING DOWN/CD BACKWARD SKIP
6. STOP
7. VOLUME DOWN
8. POWER
9. CD
10. RADIO
11. CD PROGRAM/RADIO STORE
12. RADIO TUNING UP/CD FORWARD SKIP
13. CD PLAY/PAUSE
14. VOLUME UP
4
1
2
3
7
4
5
6
8
9
10
11
12
13
14
REMOTE SENSOR
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com

CLOCK SETTING
3&5
2,4&6
1
4
Press the TIME/TUNING
switches to select the correct
hour time. Observe the AM & PM
indicators, advance the time 12
hours to change AM to PM.
2
Once the set is connected with the
AC power, the display will show as
right:
3
Press the PROGRAM(STORE)
switch to accept the hour time and
switch to minute setting.
5
6
HOUR MINUTE
Connect the AC power cord (see page 3).
Press the PROGRAM(STORE)
switch, the hour digits will flash for
10 seconds.
Press the TIME/TUNING
switches to select the correct
minute time.
Press the PROGRAM(STORE)
switch again to complete clock
setting. The numbers will not
flash, but the colon  :  will flash,
indicating that the clock is set.
AM
AM
AM
AM
AM
AM
NOTE: If the POWER switch is
ON and you want to set
the time, press the TAPE
switch first, and then
follow the listed steps to
set the clock.
5IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com
all-guides.com

1
Press the CD switch, the display
will show six zeros 0.
4
1
2
3&4
Press the CD DOOR OPEN/CLOSE
button to open the CD DOOR and
place the disc in the CD
compartment. The label side of
the CD should face outward.
2
Connect the AC power cord (see page 3).
PLAYING A CD
Press the POWER switch, the AC
POWER STANDBY INDICATOR will
go off and the display will light up.
3
Close the CD DOOR by pressing
the CD DOOR OPEN/CLOSE
button again. The display will
show the total tracks on that CD
(after a few seconds).
Press the CD PLAY button.
The player will play all the
tracks (songs) once.
6
5
5
Press the EQ switch to
choose different music
effects (CLASSIC, ROCK, POP
or flat).
6
TOTAL
TRACKS
TOTAL PLAYING
TIME ON THE CD
6
TRACK PLAYING TIME
STANDBY
INDICATOR
TRACK
TRACK
TRACK
TRACK
POP
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com

USE THESE BUTTONS FOR
ADDITIONAL OPERATIONS
To Press or Adjust
Adjust the volume VOLUME + or VOLUME - button
Stop playback
Pause playback The elapsed playing time will
flash during pause. Press again
to resume play after pause.
Go to the next track
Go back to the previous
track
Locate a point in a
song
or
Press and hold down while
playing until you find the point.
TIP
When CD play
is paused, the
elapsed playing
time will flash and
no music will play.
Remove the CD Press the CD DOOR OPEN/
CLOSE switch (press STOP first).
Turn off the player Press the POWER switch, the AC
POWER STANDBY INDICATOR
will go on.
To resume play,
press the PAUSE
button again, the
elapsed playing
time will stop
flashing and music
will play.
VOLUME +
7
If you bump the set
or table it is sitting
on, during CD play,
the music will stop
or skip for a few
seconds. This is
normal for this type
TIP
FORWARDS
BACKWARDS
TRACK
CD DOOR
OPEN/CLOSE
VOLUME -
POWER
PAUSE button
STOP button
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com

REPEAT PLAY
PLAYING CD SONGS (TRACKS) OVER AND OVER
2. Press the CD switch.
3. Select the track by pressing or , and then press .
4. Press the CD REPEAT button.
To repeat Press
a single track (song) Press the REPEAT button twice
all the tracks (all songs)
You can play CD tracks over and over in normal or programmed play modes (see
page 9).
Press the REPEAT button once
programmed tracks During programmed play, press
the REPEAT button once
Display shows
REPEAT Flashing
REPEAT steady
on (MEMORY also
on)
To cancel Repeat Play
Press the REPEAT button until the REPEAT goes off in the display.
8
REPEAT steady on
1. Press the POWER switch, the AC POWER STANDBY INDICATOR will go off.
PROGRAM
GRAPHIC
EQUALIZER
POWER
CD FUNCTION
SWITCH
REPEAT
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com

You can make a program of up to 20 tracks
in the order you want them to be played.
9
SELECTING YOUR OWN MUSIC PLAYING ORDER
(Programmed Play)
NOTE: Programming is only done during
stop mode.
1
2
3
4
5
During STOP mode, press the
PROGRAM (STORE) button. The
display will show  ,
MEMORY and TRACK will flash
in the display.
Press the SKIP/SEARCH buttons
either or until the desired
track shows in the display.
Press the PROGRAM button. The
display will show  .
Repeat steps 2&3 until all the
desired tracks are programmed.
Press the PLAY button to start
programmed play. MEMORY and
TRACK will be steady in the
display, the track number being
played will show in the display.
To change the current program
Just create a new program following the programming procedure.
To cancel Programmed Play
Press the STOP button in programming mode.
PROGRAM
POWER
TRACK
MEMORY
TRACK
MEMORY
TRACK
MEMORY
TRACK
MEMORY
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com

LISTENING TO THE RADIO
Connect the AC power cord (see page 3).
1
1
2
3Press the BAND switch to choose the
proper band (AM or FM ) that you want.
4
STEREO will light up when receiving FM
Stereo broadcasts.
10
Press the RADIO switch.
Press the POWER switch, the AC POWER
STANDBY INDICATOR will be off.
Tune into the station you prefer using
the TUNING UP or DOWN button.
Each time the button is pressed, the
frequency changes. Keep the button
pressed, the station will change rapidly
(automatic tuning), release the button
and it will stop at the next strong station.
5
3
Press the GRAPHIC EQUALIZER button
to choose different music effects
(CLASSIC, ROCK, POP or flat).
6
6
4
2
STEREO
FM MHz
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com
all-guides.com

PRESETTING RADIO STATIONS
3
Press the PROGRAM (STORE)
button again to confirm, the station
now broadcasting is stored into that
preset memory location. MEMORY
disappears from the display.
4
Repeat the above steps to store other
19 stations into memory.
While the MEMORY is flashing,
press the PRESET (REPEAT)
button to choose a memory location
(01-20).
1Follow Steps 1 to 4 (LISTENING TO
THE RADIO on the previous page)
to select a station.
2Press the PROGRAM (STORE)
switch, CH will show and
MEMORY will flash in the display
for about 5 seconds.
5
2&4
3
NOTE: Steps 2-4 should be done quickly.
TIP: UP TO 20 AM AND 20 FM STATIONS CAN BE STORED INTO THE
PRESET MEMORY LOCATIONS.
Connect the AC power cord (see page 3).
11
Allows you to store your favorite stations for quick one button tuning.
STEREO
CH
MHz
FM
STEREO
CH
MHz
FM
STEREO
CH
MHz
FM
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com

12

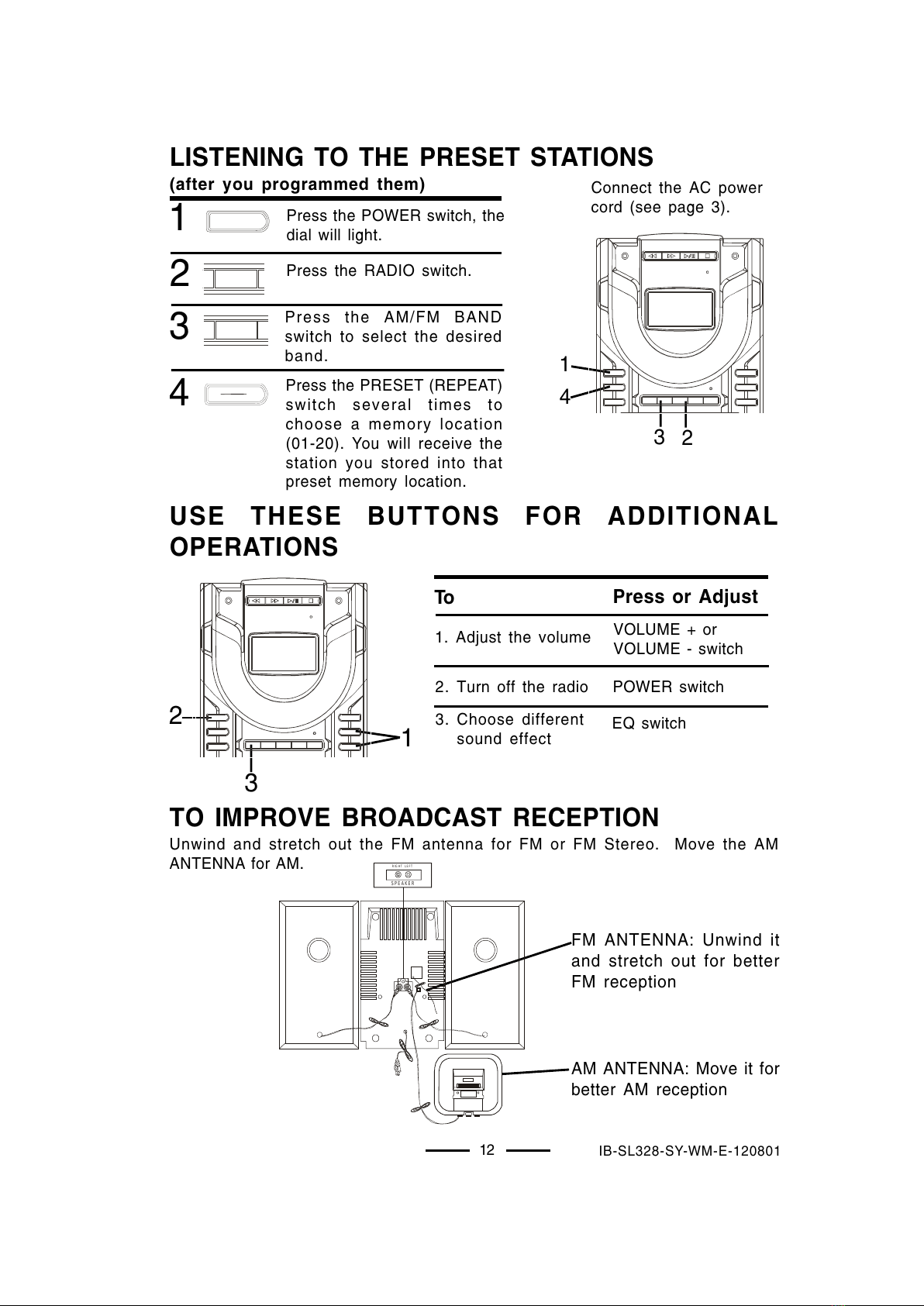

LISTENING TO THE PRESET STATIONS
(after you programmed them) Connect the AC power
cord (see page 3).
3Press the AM/FM BAND
switch to select the desired
band.
1Press the POWER switch, the
dial will light.
4Press the PRESET (REPEAT)
switch several times to
choose a memory location
(01-20). You will receive the
station you stored into that
preset memory location.
1
2
3
USE THESE BUTTONS FOR ADDITIONAL
OPERATIONS
To Press or Adjust
1. Adjust the volume VOLUME + or
VOLUME - switch
2. Turn off the radio POWER switch
1
23. Choose different
sound effect
EQ switch
TO IMPROVE BROADCAST RECEPTION
Unwind and stretch out the FM antenna for FM or FM Stereo. Move the AM
ANTENNA for AM.
3
FM ANTENNA: Unwind it
and stretch out for better
FM reception
LEFT
SPEAKER
RIGHT
AM ANTENNA: Move it for
better AM reception
2Press the RADIO switch.
4
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com

PLAYING A TAPE
Connect the AC power cord (see page 3).
Press the STOP/EJECT
button to open the tape
compartment and insert a
recorded tape as shown.
3
2
3
13
1
1
2Press the TAPE switch.
Press the POWER switch,
the dial will light up.
4
4
5When the set finishes
playing this side of the tape,
the set will stop. To hear
the other side of the tape,
flip the tape over, then insert
and press PLAY.
AUTO STOP
Press the EQ switch to choose different
music effect (CLASSIC, ROCK, POP or flat).
6
INSERT THIS WAY
Close the door.
Press the PLAY button.
The player turns on and
starts playing.
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com

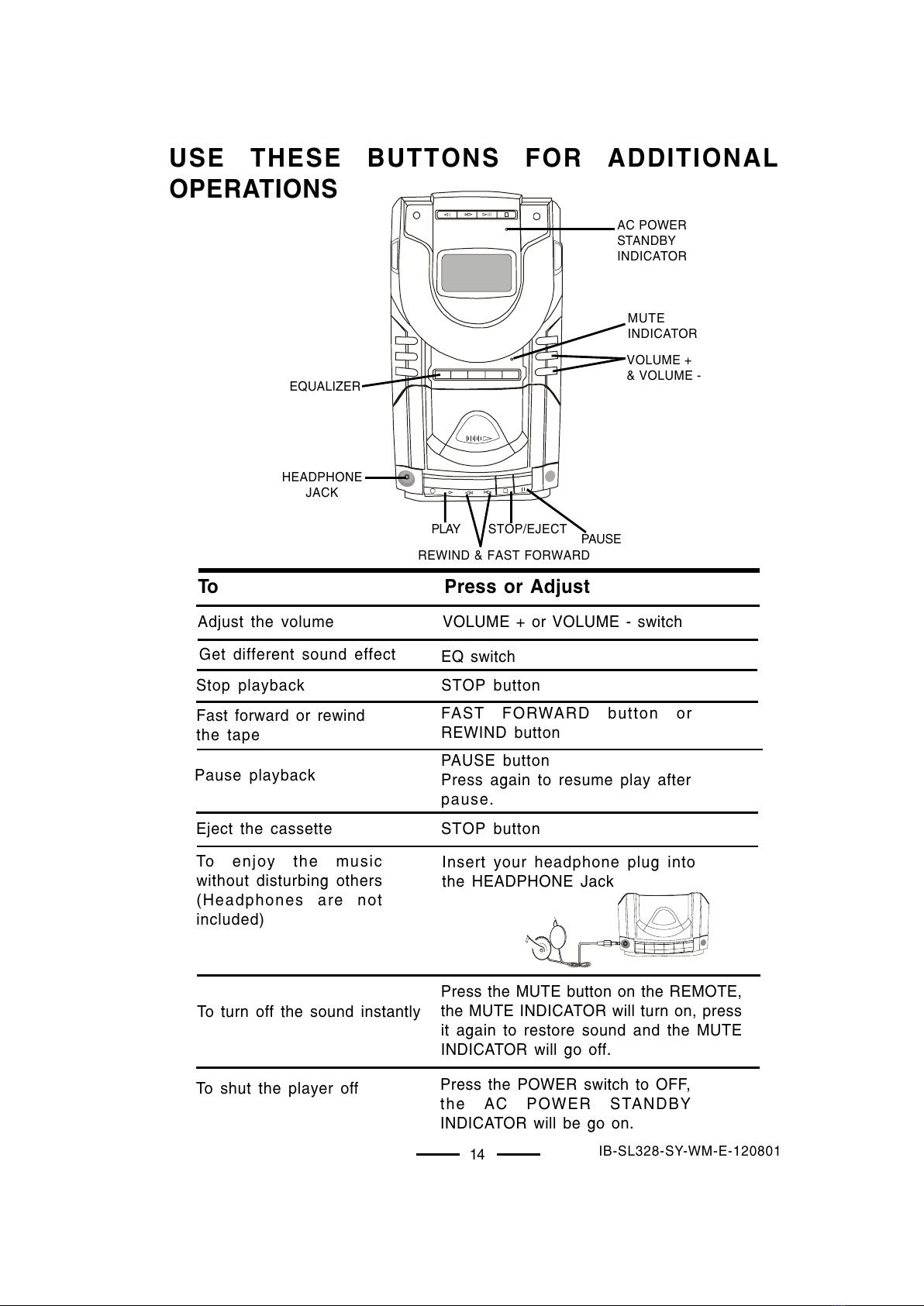

USE THESE BUTTONS FOR ADDITIONAL
OPERATIONS
To
Stop playback
Eject the cassette
Press or Adjust
Adjust the volume VOLUME + or VOLUME - switch
Fast forward or rewind
the tape
FAST FORWARD button or
REWIND button
Pause playback PAUSE button
Press again to resume play after
pause.
EQ switch
VOLUME +
& VOLUME -
PAUSE
STOP/EJECT
REWIND & FAST FORWARD
PLAY
To enjoy the music
without disturbing others
(Headphones are not
included)
Insert your headphone plug into
the HEADPHONE Jack
HEADPHONE
JACK
14
To shut the player off Press the POWER switch to OFF,
the AC POWER STANDBY
INDICATOR will be go on.
STOP button
AC POWER
STANDBY
INDICATOR
STOP button
Get different sound effect
EQUALIZER
To turn off the sound instantly
MUTE
INDICATOR
Press the MUTE button on the REMOTE,
the MUTE INDICATOR will turn on, press
it again to restore sound and the MUTE
INDICATOR will go off.
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com

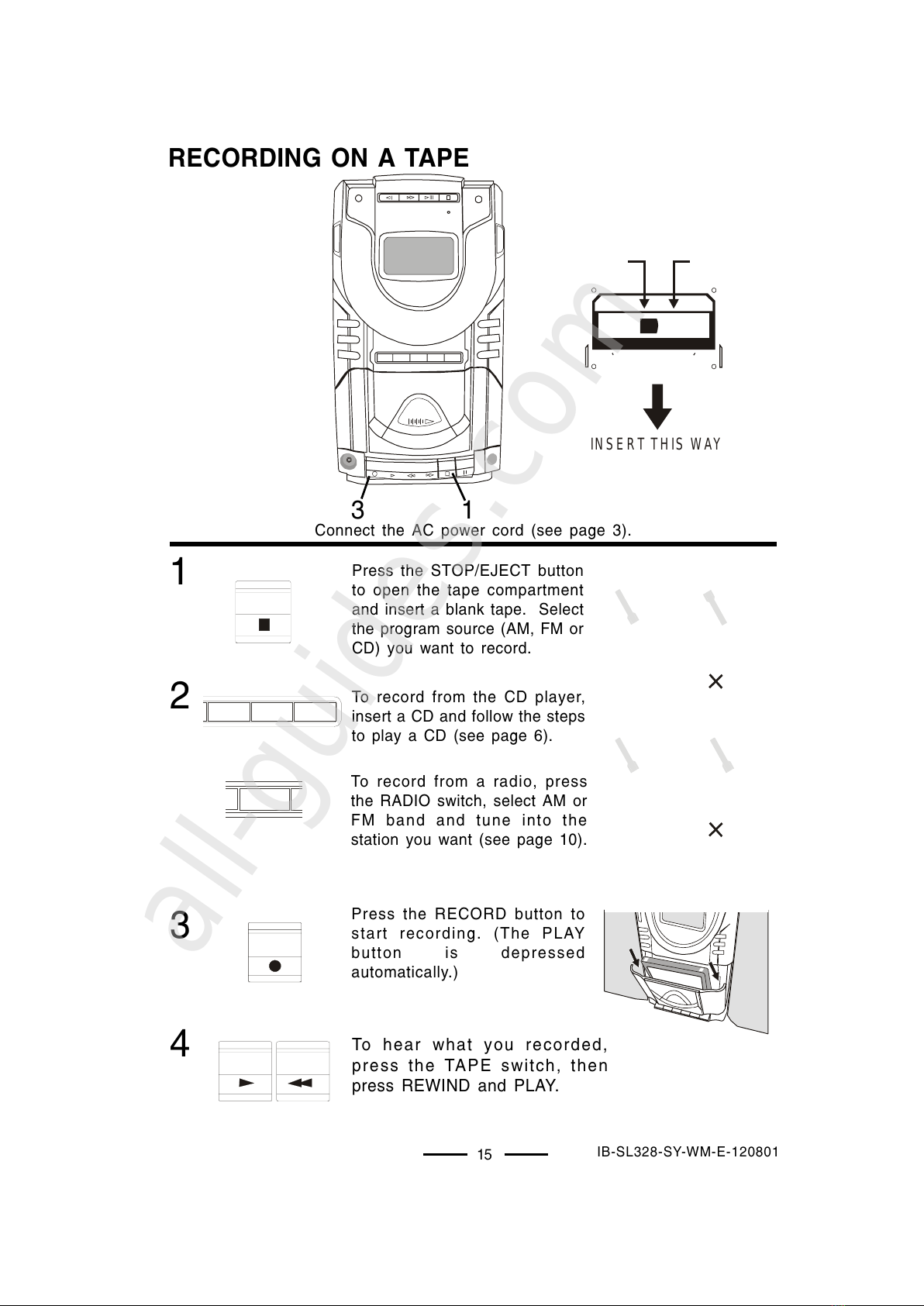

RECORDING ON A TAPE
Connect the AC power cord (see page 3).
Press the STOP/EJECT button
to open the tape compartment
and insert a blank tape. Select
the program source (AM, FM or
CD) you want to record.
1
3
1
2To record from the CD player,
insert a CD and follow the steps
to play a CD (see page 6).
To record from a radio, press
the RADIO switch, select AM or
FM band and tune into the
station you want (see page 10).
3Press the RECORD button to
start recording. (The PLAY
button is depressed
automatically.)
To hear what you recorded,
press the TAPE switch, then
press REWIND and PLAY.
4
15
INSERT THIS WAY
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com
all-guides.com

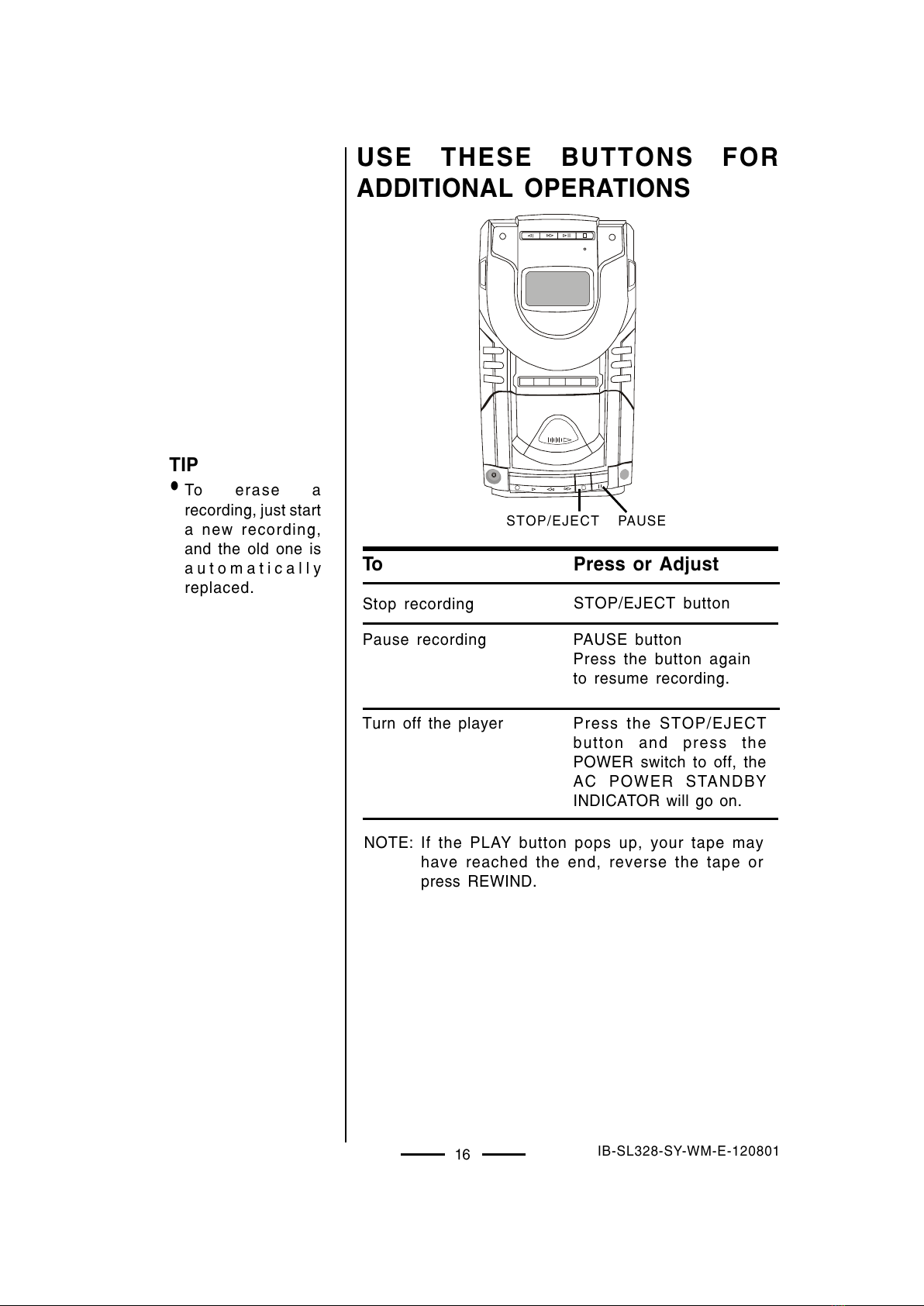

USE THESE BUTTONS FOR
ADDITIONAL OPERATIONS
To
Turn off the player Press the STOP/EJECT
button and press the
POWER switch to off, the
AC POWER STANDBY
INDICATOR will go on.
TIP
Press or Adjust
Stop recording STOP/EJECT button
PAUSE button
Press the button again
to resume recording.
Pause recording
•To erase a
recording, just start
a new recording,
and the old one is
automatically
replaced.
PAUSESTOP/EJECT
16
NOTE: If the PLAY button pops up, your tape may
have reached the end, reverse the tape or
press REWIND.
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com

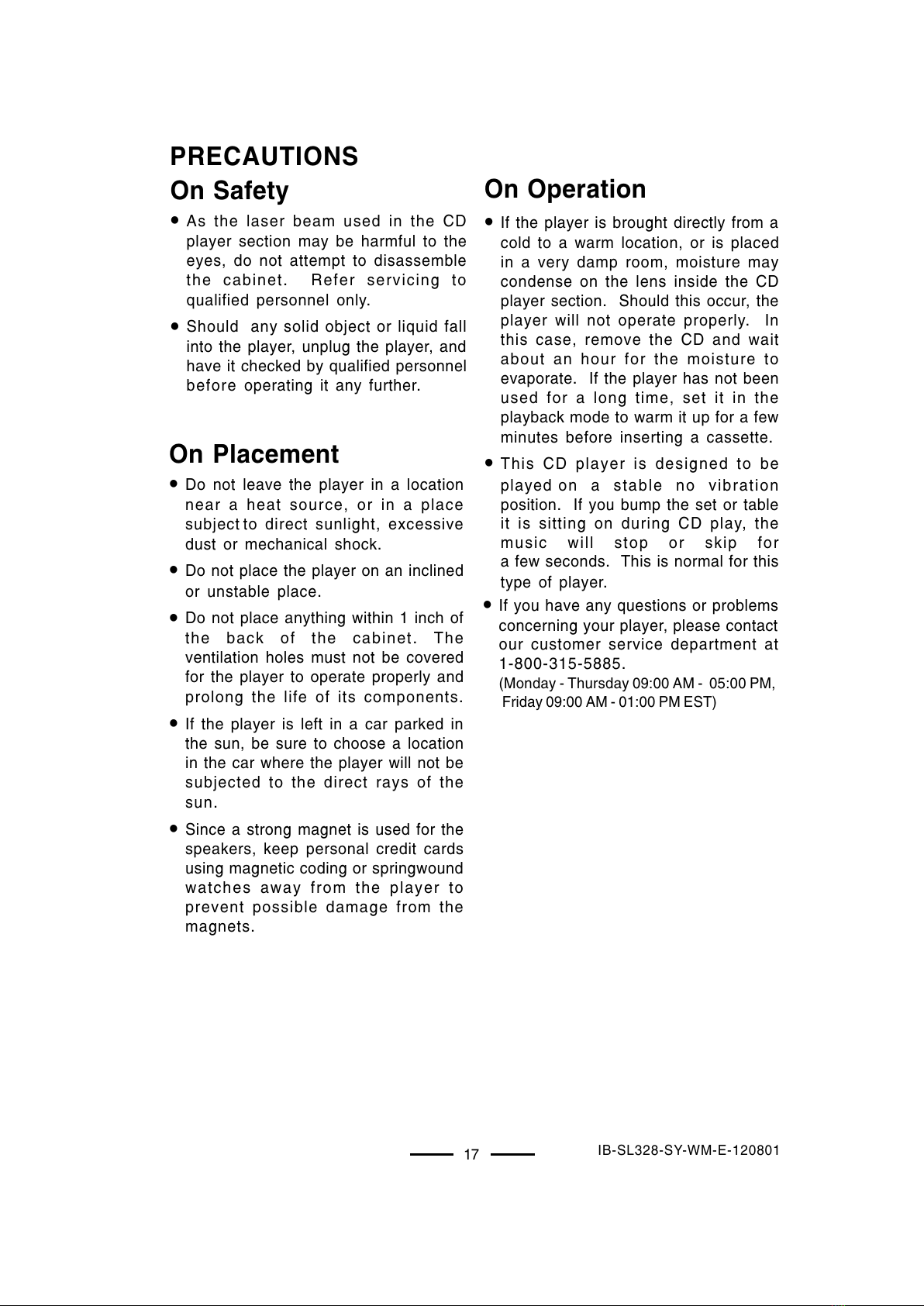

PRECAUTIONS
On Safety
As the laser beam used in the CD
player section may be harmful to the
eyes, do not attempt to disassemble
the cabinet. Refer servicing to
qualified personnel only.
Should any solid object or liquid fall
into the player, unplug the player, and
have it checked by qualified personnel
before operating it any further.
17
On Placement
Do not leave the player in a location
near a heat source, or in a place
subject to direct sunlight, excessive
dust or mechanical shock.
Do not place the player on an inclined
or unstable place.
Do not place anything within 1 inch of
the back of the cabinet. The
ventilation holes must not be covered
for the player to operate properly and
prolong the life of its components.
If the player is left in a car parked in
the sun, be sure to choose a location
in the car where the player will not be
subjected to the direct rays of the
sun.
Since a strong magnet is used for the
speakers, keep personal credit cards
using magnetic coding or springwound
watches away from the player to
prevent possible damage from the
magnets.
If you have any questions or problems
concerning your player, please contact
our customer service department at
1-800-315-5885.
(Monday - Thursday 09:00 AM - 05:00 PM,
Friday 09:00 AM - 01:00 PM EST)
On Operation
If the player is brought directly from a
cold to a warm location, or is placed
in a very damp room, moisture may
condense on the lens inside the CD
player section. Should this occur, the
player will not operate properly. In
this case, remove the CD and wait
about an hour for the moisture to
evaporate. If the player has not been
used for a long time, set it in the
playback mode to warm it up for a few
minutes before inserting a cassette.
This CD player is designed to be
played on a stable no vibration
position. If you bump the set or table
it is sitting on during CD play, the
music will stop or skip for
a few seconds. This is normal for this
type of player.
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com

PRECAUTIONS (continued)
Notes on CDs
Before playing, clean the CD with a
cleaning cloth. Wipe the CD from the
center out.
Do not use solvents such as benzene,
thinner, commercially available
cleaners or anti-static spray intended
for vinyl LPs.
Do not expose the CD to direct
sunlight or heat sources such as hot
air ducts, nor leave it in a car parked
in direct sunlight as there can be a
considerable rise in temperature inside
the car.
Do not stick paper or stickers on the
CD, nor scratch the CD.
After playing, store the CD in its case.
If there is a scratch, dirt or fingerprints
on the CD, it may cause a tracking
error or skipping.
To record on a tape with its tab broken
off, cover the respective tab hole for
side A or B with adhesive tape.
The use of a cassette with more than
90 minutes of play time is not
recommended except for long
continuous recording or playback.
To reduce the chances of tape
jamming or tangling, you should check
that there are no loose layers of tape
visible through the cassette center
window. If any, tighten these loose
layers of tape using a pencil before
inserting the cassette into the set.
Side A
Tab for side A
Tab for side B
18
Notes on Cassettes
Break off the cassette tab from side A
or B to prevent accidental recording.
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com

MAINTENANCE
Cleaning the Lens
If the lens becomes dirty, it may cause a
skipping of sound during CD operation.
Clean with a commercially available lens
cleaner and blower.
Cleaning the Tape Heads
Wipe the heads, the pinch roller and
the capstan with a cleaning swab slightly
moistened with cleaning fluid or alcohol
after every 10 hours of operation for
optimum playback and recording quality.
After cleaning, insert a tape when the
areas cleaned are completely dry.
Cleaning the Cabinet
Clean the cabinet, panel and controls
with a soft cloth slightly moistened with
a mild detergent solution. Do not use
any type of abrasive pad, scouring
powder, or solvent, such as alcohol or
benzene.
RECORD/PLAY BACK HEAD
PINCH ROLLER
CAPSTAN
COTTON SWAB
ERASE HEAD
19
Notes for Storing
Cassette Tapes
1. Do not put a tape near a magnetic
field, such as a TV, or speaker.
Magnetic fields may reduce the tape
sensitivity or even erase the
recording.
2. Do not store tape for any length of
time in a hot, moist or dusty place.
NOTE: In order to see and clean the
head, you may have to press
PLAY first.
IB-SL328-SY-WM-E-120801
All manuals and user guides at all-guides.com
