Leopard Imaging LeopardBoard 368 Installation instructions
LeopardBoard368HardwareGuideRev.1.0
LeopardBoard 368 Hardware Guide
Rev. 1.0
Jan 3, 2011
1
LeopardBoard368HardwareGuideRev.1.0
2
LeopardBoard.org provides the enclosed product(s) under the following conditions:
This evaluation kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR
EVALUATION PURPOSES ONLY and is not considered by LeopardBoard.org to be a finished end-
product. Persons handling the product(s) must have electronics training and observe good engineering
practice standards. As such, the goods being provided are not intended to be complete in terms of
required design-, marketing-, and/or manufacturing-related protective considerations, including product
safety and environmental measures typically found in end products that incorporate such semiconductor
components or circuit boards.
The kit can’t be returned, it can be exchanged if it is defect.
The user assumes all responsibility and liability for proper and safe handling of the goods; it is the user’s
responsibility to take any and all appropriate precautions with regard to electrostatic discharge.
LeopardBoard.org assumes no liability for the changes to this document without notice, customer
product design, software performance, no guarantees as to the correctness or accuracy of the
information provided in this document. For additional information on LeopardBoard.org environmental
and/or safety programs, please visit LeopardBoard.org.
No license is granted under any patent right or other intellectual property right of LeopardBoard.org
covering or relating to any machine, process, or combination in which such LeopardBoard.org products or
services might be or are used.
WARRANTY: The LeopardBoard 368 is warranted against defects in materials and workmanship for a
period of 30 days from purchase. This warranty does not cover any problems occurring as a result of
improper use, modifications, exposure to water, excessive voltages, abuse, or accidents. All boards will
be returned via standard mail if an issue is found. If no issue is found or express return is needed, the
customer will pay all shipping costs.
Mailing Address:
LeopardBoard.org
47061 Warm Springs Blvd
Fremont, CA 94539
USA
LeopardBoard368HardwareGuideRev.1.0
3
List of Contents
1.What’sincluded…………………………….………………………………………………………….………………………3
1.1LeopardBoard368……………………………………………………………………………………………………………………………..5
1.2OptionalParts………………………………………………………………………………………………………………………………..6
1.2.1SerialCable…………………………………………………………………………………………………………………….6
1.2.2+5VDCPowerAdapter…………………………………………………………………………………………………..7
1.2.3Mini‐BUSBCable……………………………………………………………………………………………………………8
1.2.426‐pinFlexCable..…………….……………………………………………………………………………………………..9
1.2.5CameraBoards……………………………………………………………………………………………………………….10
1.2.6DVIBoard………………………………………………………………………………………………………………………..19
1.2.7VideoInputBoard…………………………………………………………………………………………………………..20
1.2.8HDComponentVideoInputBoard……………………………………………………………………………………21
1.2.9ComponentVideoAdapter………………………………………………………………………………………………22
1.2.10CamFlexCable……………………………………………………………………………………………………………….23
2.LeopardBoard368Specification………………………………………………….…………………………..24
2.1LeopardBoard368Features………………………………………………………………………………………………………….24
2.2LeopardBoard368FunctionalBlock………………………………………………………………………………………………25
2.3DM368Processor………………………………………………………………………………………………………………………….25
2.4FlashMemory……………………………………………………………………………………………………………………………….27
2.5DDR2SDRAM………………………………………………………………………………………………………………………………..28
2.6CameraInterface…………………………………………………………………………………………………………..……………….29
2.7AudioInput…………………………………………………………………………………………………………………………………….31
2.8AudioOutput…………………………………………………………………………………………………………………………………32
2.9JTAGPort……………………………………………………………………………………………………………………………………….33
2.10SerialPort:RS‐232………………………………………………………………………………………………………………………….34
2.11USB2.0Port…………………………………………………………………………………………………………………………………35
2.12SDCardSlot………………………………………………………………………………………………………………………………….36
2.13PowerManagement……………………………………………………………………………………………………………………..37
2.14PowerInput…………………………………………………………………………………………………………………………………..38
2.15CompositeVideoOutputPort………………………………………………………………………………………………………..39
2.16ComponentVideoOutput………………………………………………………………………………………………………………40
2.17NetworkInterface………………………………………………………………………………………………………………………….41
2.18LCD/DVIInterface………………………………………………………………………………………………………………………….42
2.19ExpansionPort………………………………………………………………………………………………………………………………44
2.20ResetButton………………………………………………………………………………………………………………………………….46
2.21DIPSwitch…………………………………………………………………………………………………………………….………………47
LeopardBoard368HardwareGuideRev.1.0
What’s included?
1. This section is a description of what comes in the box when the LeopardBoard 368 is
purchased and Optional Parts provided for purchasing. See Figure 1
Figure1.LeopardBoard368 inBox
4
LeopardBoard368HardwareGuideRev.1.0
NOTE: Standard package only includes LeopardBoard 368; all
other optional parts are sold separately.
1.1 LeopardBoard 368, see Figure 2.
oPart number: LI-TB02
oFull featured, low cost high performance platform.
oCapable of streaming 1080P H.264 video at 30fps.
Where to buy: http://shop.leopardimaging.com/product.sc?productId=30&categoryId=13

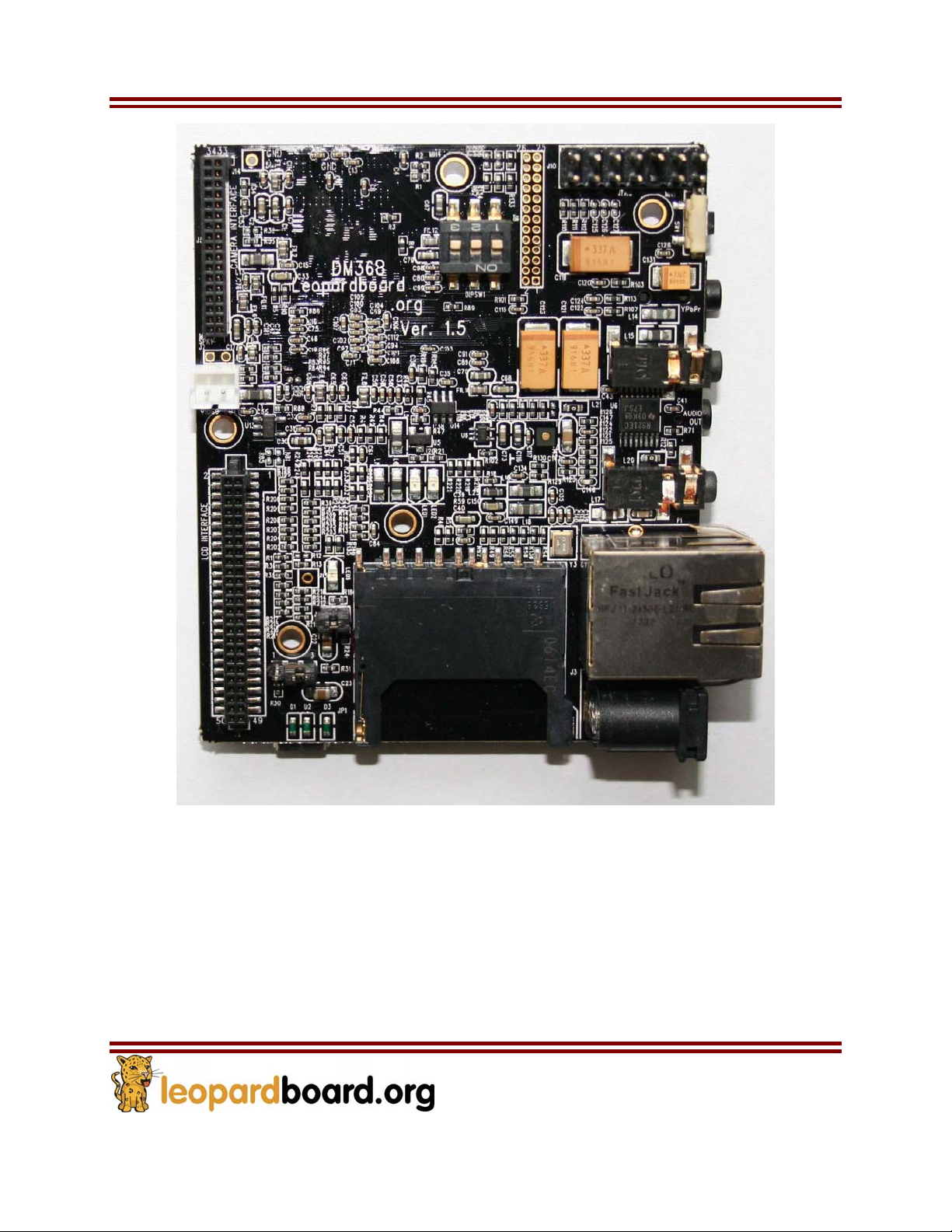

Figure2.LeopardBoard368
5
LeopardBoard368HardwareGuideRev.1.0
1.2 Optional Parts, not included in the package, these parts have to be purchased
separately
1.2.1 Serial Cable, see Figure 3.
oPart number: LI-SER-01
oOne end is Female DB9 connector
oAnother end is 2.5mm Stereo Plug connector
oCable Length: 70”
Wheretobuy:http://shop.leopardimaging.com/product.sc?productId=14&categoryId=13

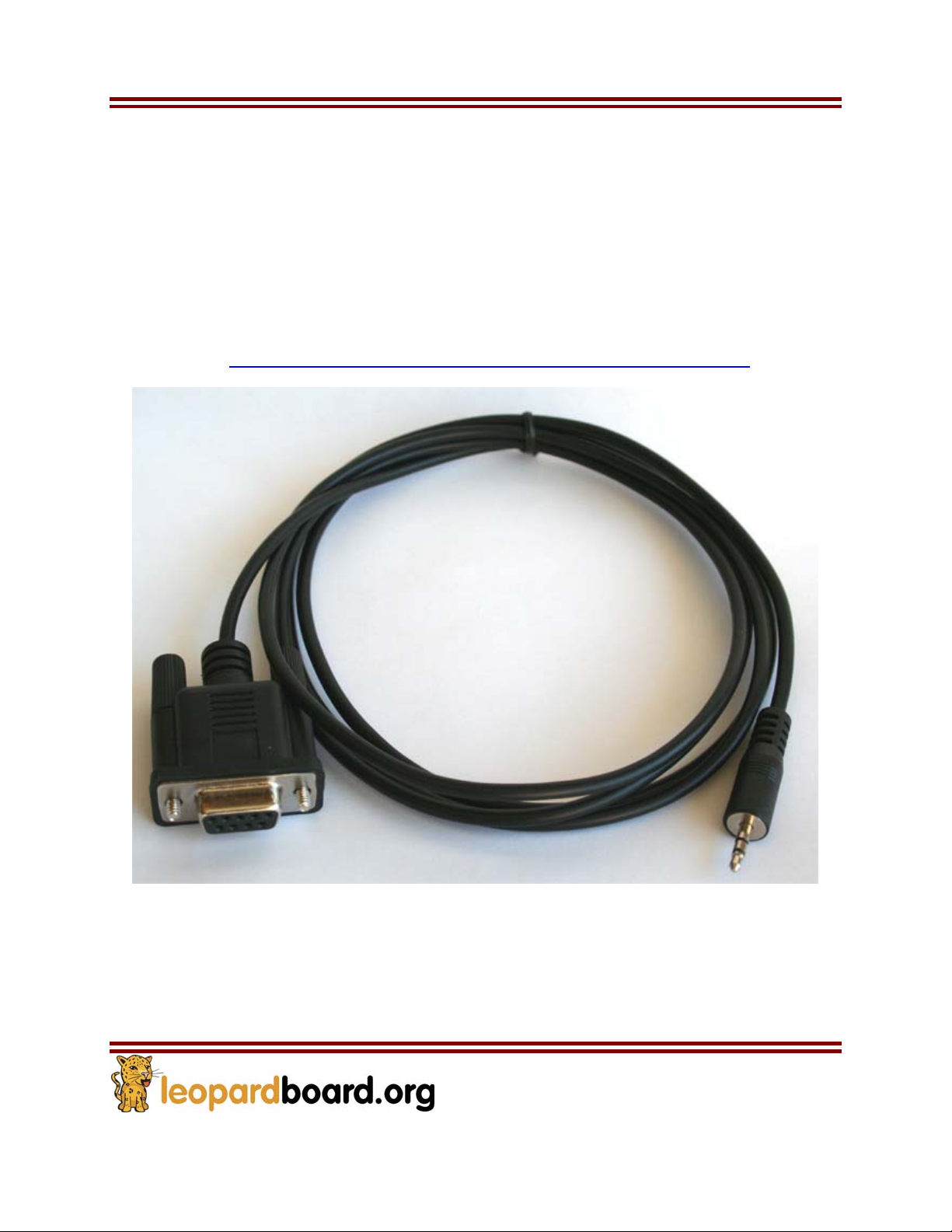

Figure3.SerialCable
6
LeopardBoard368HardwareGuideRev.1.0
1.2.2 +5V DC Power Adapter, see Figure 4.
oPart number: LI-PS5-01
oWall Mount AC/DC Switching Power Supply (2-prong)
oUniversal AC Input
oPower Input Frequency: 50/60Hz
oDC Output: [email protected]
oPolarization: Positive Center
oCord Plug: 2.1mm I.D. x 5.5mm O.D. x 12mm Female
oCable length: 43”
Wheretobuy:http://shop.leopardimaging.com/product.sc?productId=13&categoryId=13

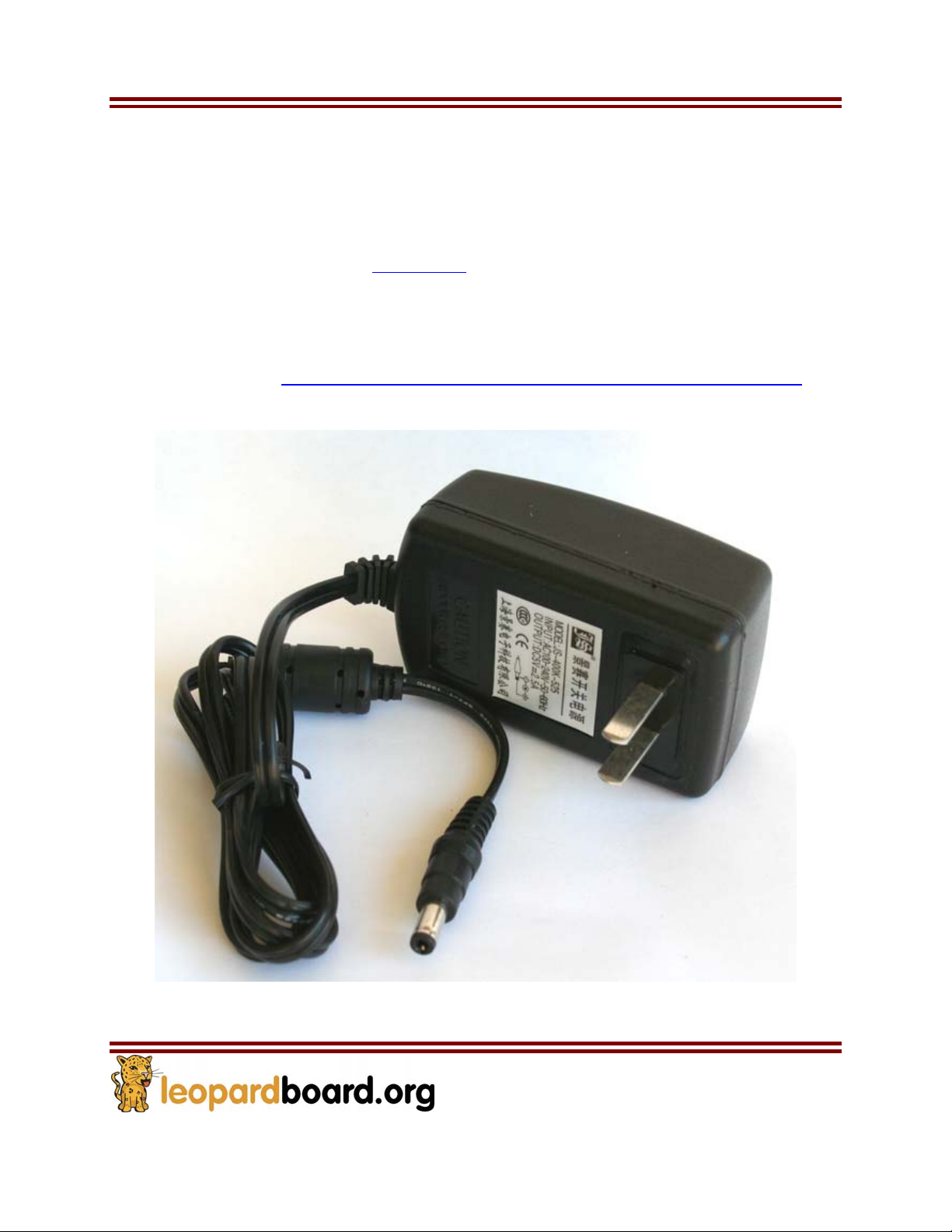

Figure4.+5VDCPowerAdapter
7
LeopardBoard368HardwareGuideRev.1.0

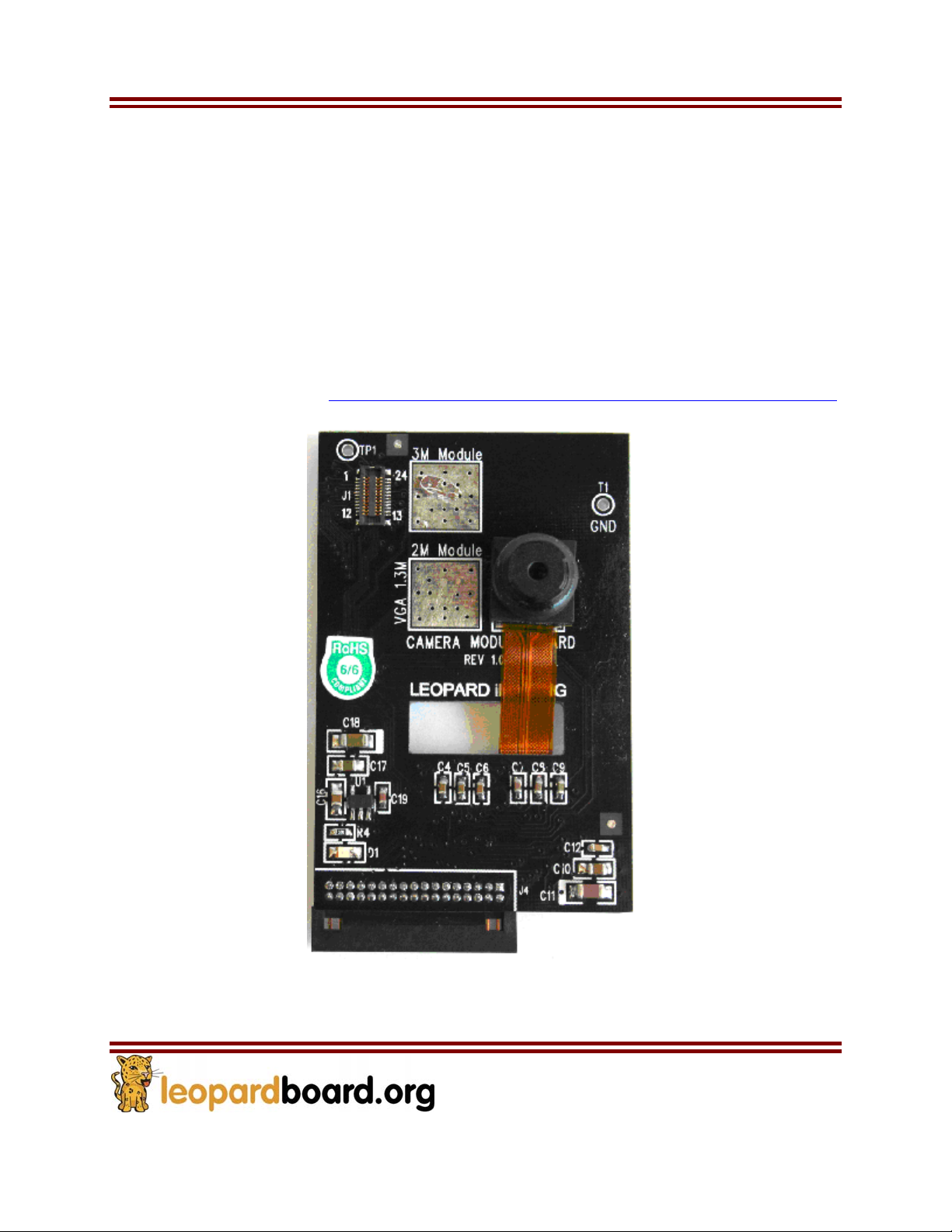

1.2.5 Camera Boards
1.2.5.1 VGA Camera Board, see Figure 7.
oPart number: LI-LBCMVGA
oSensor: Micron/Aptina 1/11“ CMOS Sensor MT9V113
o# of Pixels: VGA (648 x 488 pixels)
oOutput Data Format: YUV (YCbCr)
oOptical Filter: Infrared Coating at 650nm+/-10nm
oFocal Length, F#: f=1.34+/-0.1mm, F2.8+/-5%
oVertical View Angle: 660
oFocus Distance: 40cm+/-2cm
oFocus Range: 20cm to Infinity
oRoHS Compliance
Where to buy: http://shop.leopardimaging.com/product.sc?productId=8&categoryId=13

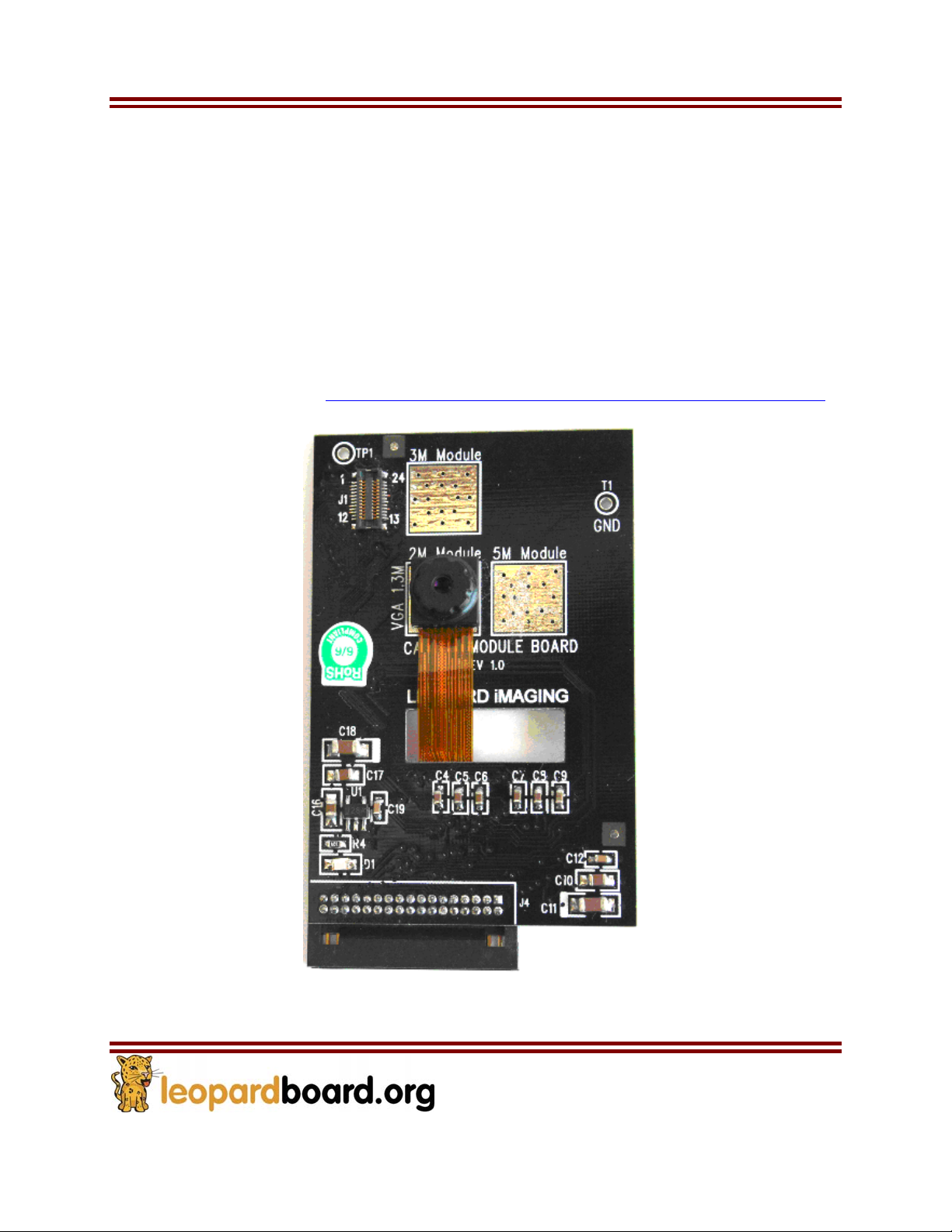

Figure7.VGACameraBoard
10
LeopardBoard368HardwareGuideRev.1.0
1.2.5.2 1.3 Mega-pixel Camera Board, see Figure 8
oPart number: LI‐LBCM1M1
oSensor: Aptina 1/4“ CMOS Sensor MT9M112
o# of Pixels: 1.3Mega (1280 x 1024 pixels)
oOutput Data Format: YUV (YCbCr)
oOptical Filter: Infrared Coating at 650nm+/-10nm
oFocal Length, F#: f=4+/-0.1mm, F2.0+/-5%
oVertical View Angle: 59.30
oFocus Distance: 120cm+/-2cm
oFocus Range: 60cm to Infinity
oRoHS compliance
Where to buy: http://shop.leopardimaging.com/product.sc?productId=9&categoryId=13

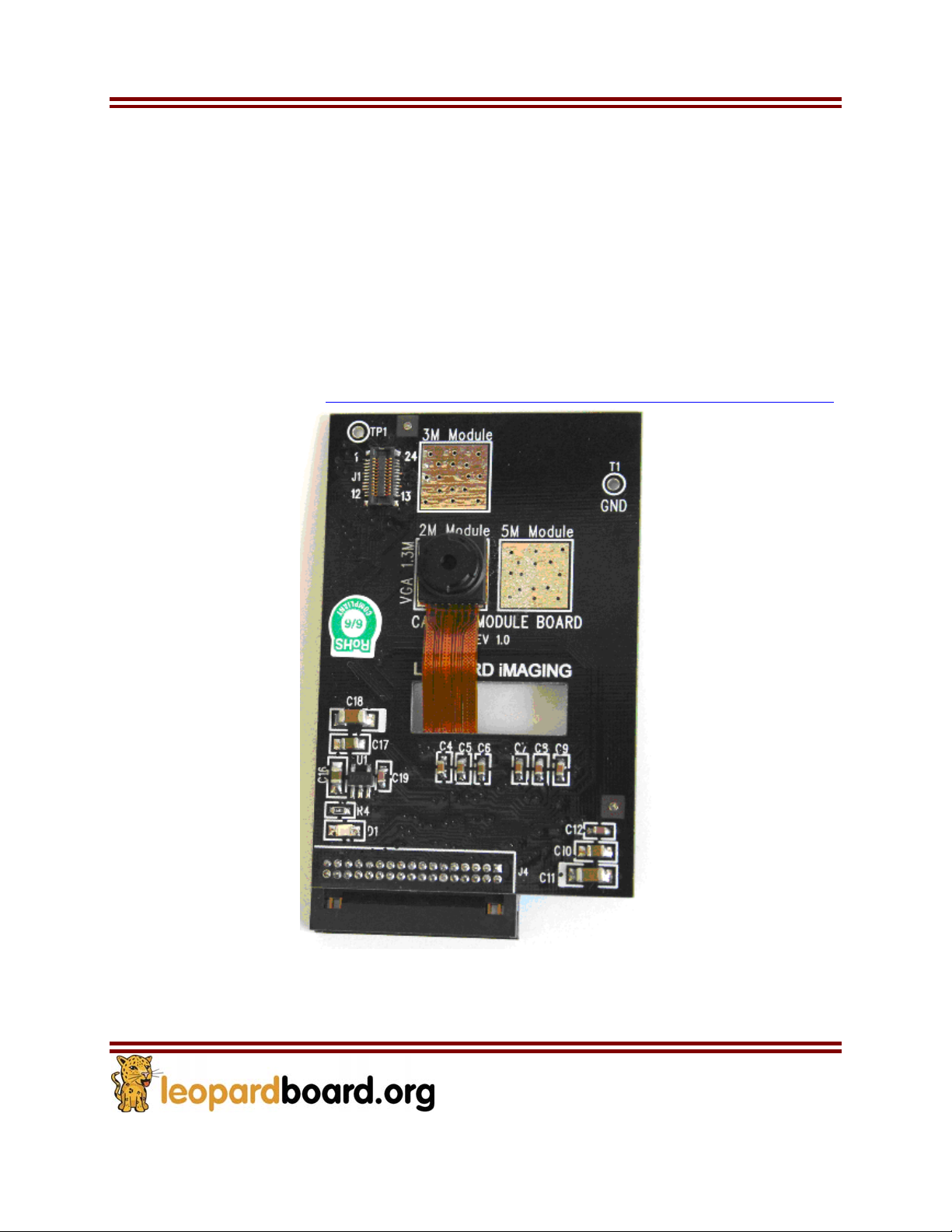

Figure8.1.3MCameraBoard
11
LeopardBoard368HardwareGuideRev.1.0
1.2.5.3 2 Mega-pixel Camera Board, see Figure 9
oPart number: LI‐LBCM2M1
oSensor: Aptina 1/4“ CMOS Sensor MT9D112
o# of Pixels: 2Mega (1600 x 1200 pixels)
oOutput Data Format: YUV (YCbCr)
oOptical Filter: Infrared Coating at 650nm+/-10nm
oFocal Length, F#: f=3.79+/-0.1mm, F2.0+/-5%
oVertical View Angle: 610
oFocus Distance: 120cm+/-2cm
oFocus Range: 60cm to Infinity
oRoHS Compliance
Where to buy: http://shop.leopardimaging.com/product.sc?productId=10&categoryId=13

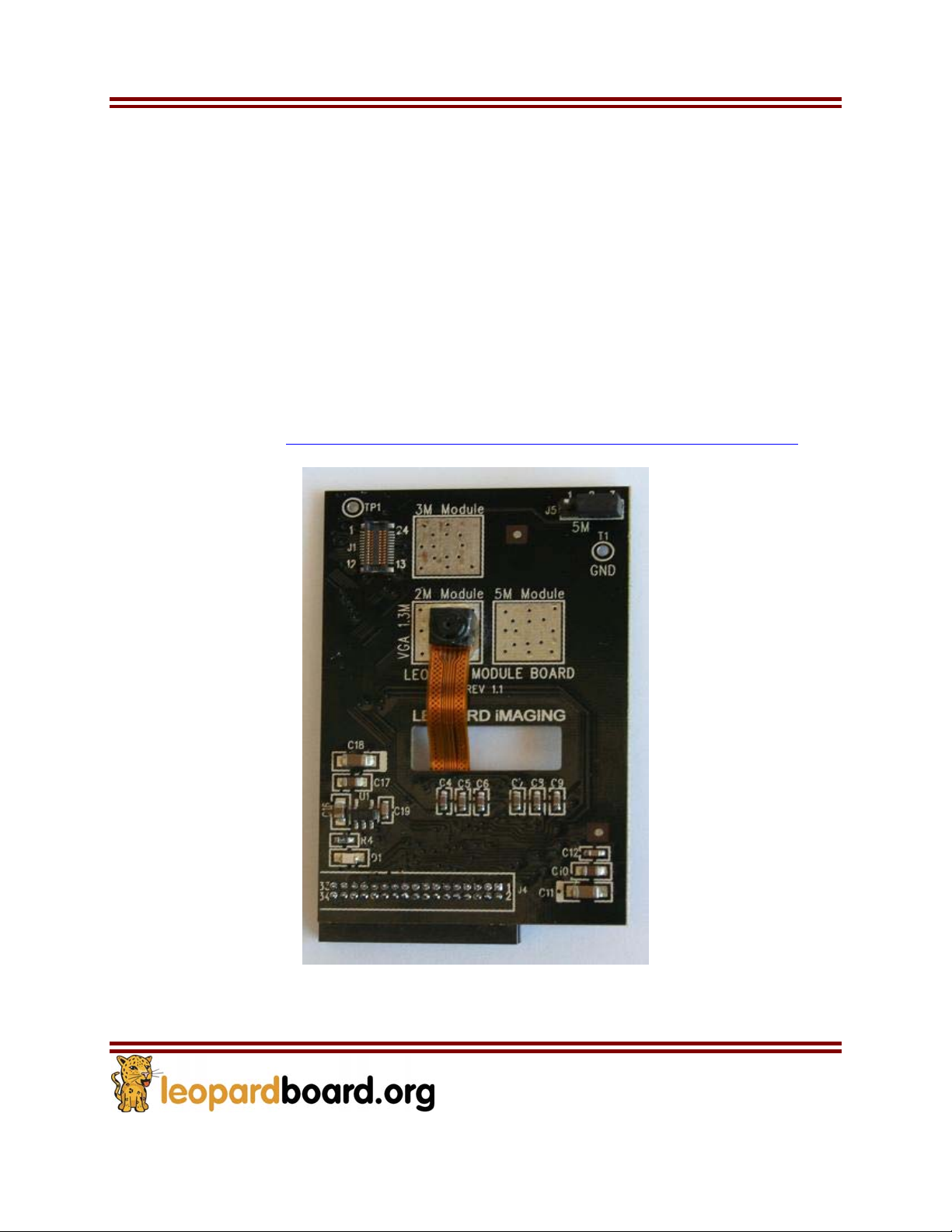

Figure9.2MCameraBoard
12
LeopardBoard368HardwareGuideRev.1.0
1.2.5.4 3 Mega-pixel Camera Board, see Figure 10
oPart number: LI‐LBCM3M1
oSensor: Aptina 1/4“ CMOS Sensor MT9T111
o# of Pixels: 3Mega (2048 x 1536 pixels)
oOutput Data Format: YUV (YCbCr)
oOptical Filter: Infrared Coating at 650nm+/-10nm
oFocal Length, F#: f=3.78+/-0.1mm, F2.8+/-5%
oVertical View Angle: 61.40
oFocus Distance: 120cm+/-2cm
oFocus Range: 60cm to Infinity
oRoHS Compliance
Where to buy: http://shop.leopardimaging.com/product.sc?productId=11&categoryId=13

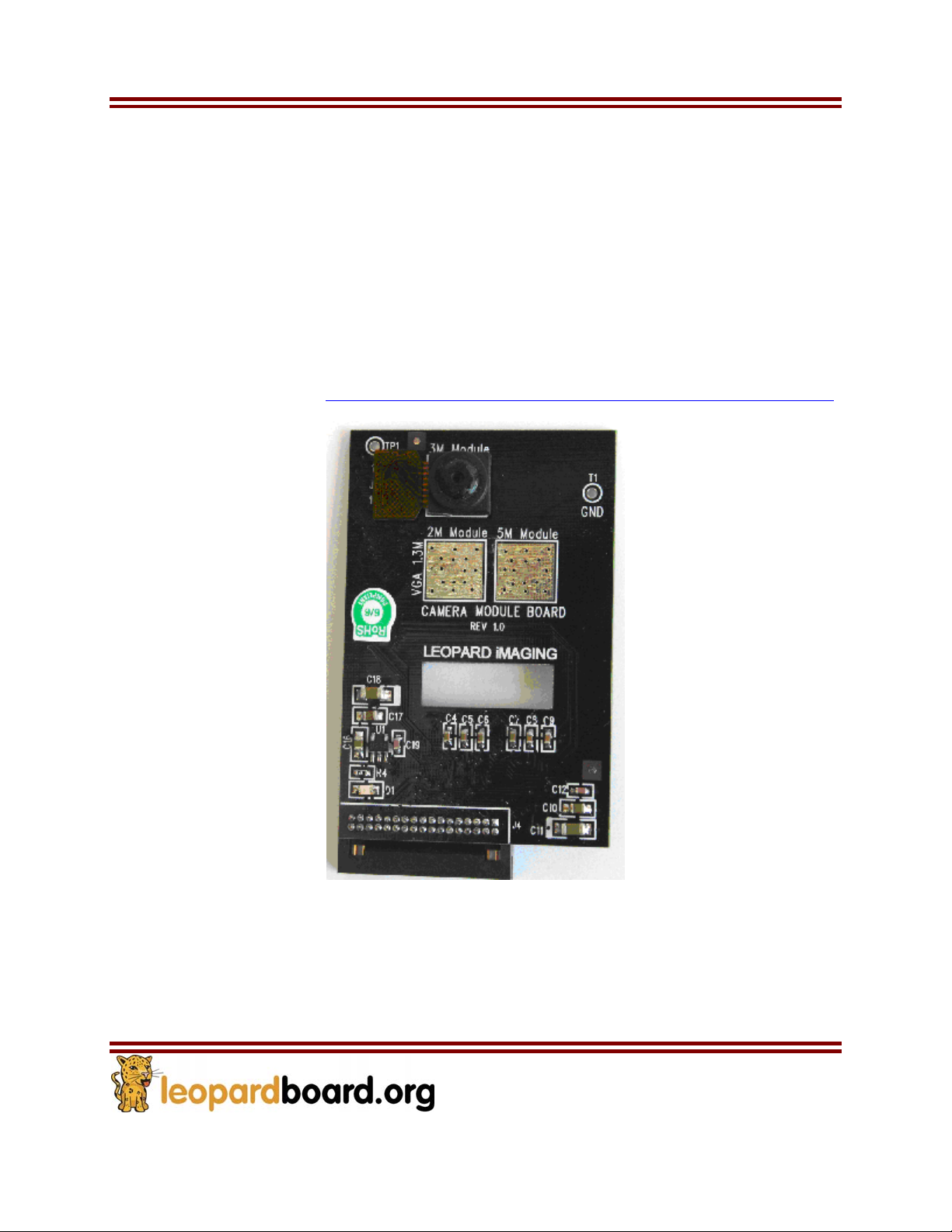

Figure10.3MCameraBoard
13
LeopardBoard368HardwareGuideRev.1.0
1.2.5.5 5 Mega-pixel Camera Board, see Figure 11
oPart number: LI‐LBCM5M1
oSensor: Aptina 1/2.5“ CMOS Sensor MT9P011
o# of Pixels: 5Mega (2592 x 1944 pixels)
oOutput Data Format: RGB
oOptical Filter: Infrared Coating at 650nm+/-10nm
oFocal Length, F#: f=6.12+/-0.1mm, F2.8+/-5%
oVertical View Angle: 60.30
oFocus Distance: 120cm+/-2cm
oFocus Range: 60cm to Infinity
oRoHS Compliance
Where to Buy: http://shop.leopardimaging.com/product.sc?productId=12&categoryId=13
Figure11.5MCameraBoard
14
LeopardBoard368HardwareGuideRev.1.0
1.2.5.6 5 Mega-pixel Camera Board, see Figure 12
oPart number: LI‐5M03
oSensor: Aptina 1/2.5“ CMOS Sensor MT9P031
o# of Pixels: 5Mega (2592 x 1944 pixels)
oPixel Size: 2.2μm x 2.2μm
oSupport 720p @ 60 fps
oPixel Dynamic Range: 70.1dB at full resolution
oOutput Data Format: RGB
oAlso Comes with CS mount (no lens)
oRoHS Compliance
Where to buy: http://shop.leopardimaging.com/product.sc?productId=17&categoryId=13
Figure12.LI‐5M03
15
LeopardBoard368HardwareGuideRev.1.0

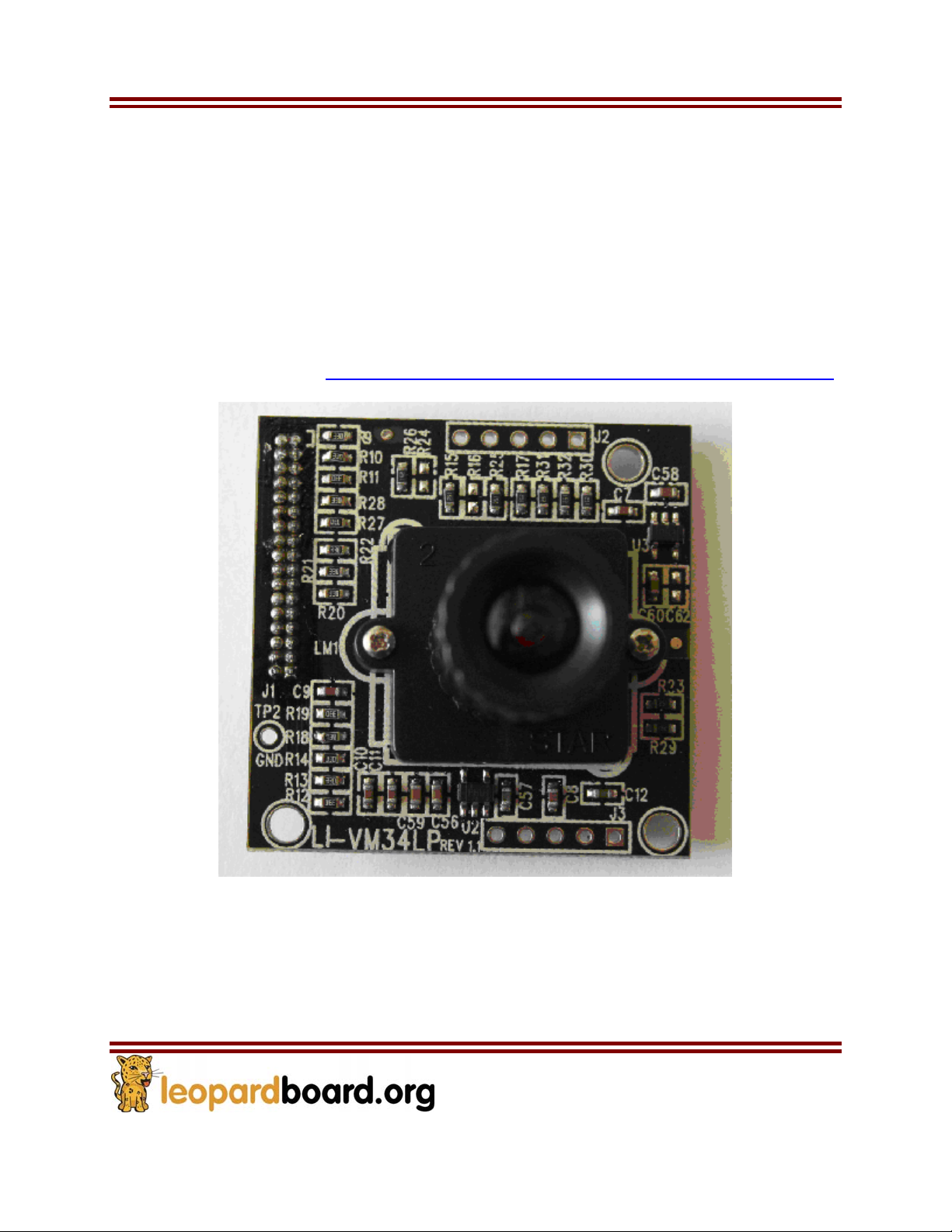

1.2.5.7 WVGA Global Shutter Camera Board, see Figure 13
oPart number: LI‐VM34LP
oSensor: Aptina 1/3” CMOS Digital Sensor MT9V034
o# of Pixels: VGA (752 x 480 pixels)
oPixel Size: 6μm x 6μm
oMax Data rate: 27 Mega pixel Per Second
oFrame rate: 60 fps at full resolution
oResponsivity: 4.8 V/lux-sec (550nm)
oSupport either M12 lens or CS-Mount lens
oRoHS Compliance
Where to buy: http://shop.leopardimaging.com/product.sc?productId=29&categoryId=13
Figure13.WVGACameraBoard
16
LeopardBoard368HardwareGuideRev.1.0
1.2.5.8 Omni Vision 720p Camera Board, see Figure 14
oPart number: LI‐OV720
oSensor: Omnivision 1/4“ CMOS Sensor OV9712
oWXGA (1280 x 800), 30fps
oPixel size: 3um x 3um
oOutput Data Format: 10-bit raw RGB data
oFocal Length, F#: f=3.45+/-0.1mm, F2.8+/-5%
oView Angle: 65.9
oFocus Range: 40cm to Infinity
oRoHS Compliance
Where to buy: http://shop.leopardimaging.com/product.sc?productId=49&categoryId=13
Figure14.OmniVision720p
CameraBoard
17
LeopardBoard368HardwareGuideRev.1.0
1.2.5.9 Omni Vision 1080p Camera Board, see Figure 15
oPart number: LI‐OV1080
oSensor: Omnivision 1/3“ CMOS Sensor OV2710
o# of Pixel: 1920 x 1080
oImage size: 1080p @ 30fps
oPixel size: 3um x 3um
oOutput Data Format: 8-/10-bit raw RGB data
oRoHS Compliance
Where to buy: http://shop.leopardimaging.com/product.sc?productId=52&categoryId=13
Figure15.OmniVision1080p
CameraBoard
18
LeopardBoard368HardwareGuideRev.1.0
1.2.7 Video Input board, see Figure 17
oPart number: LI‐VI365
oSupport standard S-video/Composite video input
oRoHS Compliance
Where to buy: http://shop.leopardimaging.com/product.sc?productId=47&categoryId=13
Figure17.VideoInputBoard
20
