less care LH1-36G User manual

LH1-36G
RANGE HOOD
WALL MOUNT
36" Wide Glass
Canopy
30" Wide
Glass Canopy
LH2-30G
RANGE HOOD
WALL MOUNT
www.lesscare.com
INSTALLATION INSTRUCTIONS
Version 1.0

www.lesscare.com
LH1-36G & LH2-30G
WALL MOUNT RANGE HOODS
IMPORTANT INFORMATION
2
BEFORE INSTALLATION AND/OR OPERATING LESSCARE RANGE HOOD
YOU MUST READ AND UNDERSTAND ALL INSTRUCTIONS, SAFETY RULES,
WARNINGS, AND OTHER NOTES OF THIS OWNER’S MANUAL
• Turn off electric main power at fuse box with circuit breaker before installation
• Keep children in a distance when operating appliance
• Do not put fingers or hands into any moving parts of the range hood
• Do not turn on or operate the range hood if any of the parts are missing or disassembled
• Using a range hood for unintened purpose may and will cause personal injury and/or property damage
• Turn off electric main power at fuse box or circuit breaker before removing grease filter for cleaning
• Turn off electric main power at fuse box or circuit breaker before installation or servicing range hood
• This range hood must be connected to a grounded power outlet
• Improper connection of equipment-grounding conductor may and will result in a risk of electric shock and/or fire
• For plug-in installation an outlet must be properly installed and grounded in accordance with all local codes
FIRE HAZARD!
Do not store any flammable materials near range hood!
PERSONAL INJURY WARING! Do not position your head or body under
range hood when installing or removing range hood.
ELECTRICAL SHOCK WARNING! All wiring must comply with local electrical codes.
This unit must be properly grounded, consult a licensed electrician with concerns.
IMPORTANT!
Shut off main power supply prior to installation!
SAFETY RULES
GROUNDING INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT
2 PEOPLE ARE REQUIRED TO LIFT AND DURING
ENTIRE INSTALLATION OF THIS PRODUCT
INSTRUCTIONS THAT, IF IGNORED COULD RESULT IN DEATH OR SERIOUS INJURY CAUSED BY INCORRECT HANDLING
OR INSTALLATION OF THE PRODUCT. THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION.
LessCare reserves the right to change, update, modify, alter, redesign this manual/product or its policies without prior notice!
It is your responsibility to visit website to download or contact customer service for the most updated version of the installation instructions.
LessCare shall not be liable for any injuries or property damages in connection with this product during installation or use of this product!

www.lesscare.com
LH1-36G & LH2-30G
WALL MOUNT RANGE HOODS
WHAT’S IN THE BOX / REQUIRED TOOLS
3
OTHER TOOLS MAY BE REQUIRED
Range HoodA
Mounting BracketD
Screws & AnchorsDDuct PipeE
Installation InstructionsBOil TrayC
ø10x40mm
M5x50mm
Security Brackets
M4x12mm
M3x10mm
PRODUCT COMPONENTS
PRODUCT COMPONENTS
Electric drill Cross screwdriver Tape Measure Pencil/Marker Hammer Level
Safety Glass
Drill Bit
ø = 5/16"
Drill Bit
ø = 1/8"
Soft Cloth
or Blanket Stud Finder

www.lesscare.com
LH1-36G & LH2-30G
WALL MOUNT RANGE HOODS
DIMENSIONS
4
22 3/4
"
25 1/8
"
18
"
glass panel
glass canopy
12 1/2
"
3 3/4"
11
"
min 20"
max 36"
35 7/8"
LH1-36G
29 7/8"
LH2-30G
ATTENTION! Dimensions may vary by up to 3/8". It is highly recommended to pull
all dimensions of actual model for installation and measuring purposes.
ATTENTION! The measurements in inches are rounded to the nearest 1/8"

www.lesscare.com
LH1-36G & LH2-30G
WALL MOUNT RANGE HOODS
INSTALLATION EXAMPLE/TECHNICAL DATA
5
INSTALLATION OF WALL MOUNT RANGE HOOD (EXAMPLE)
TECHNICAL DATA
ATTENTION! Dimensions may vary by up to 3/8". It is highly recommended to pull
all dimensions of actual model for installation and measuring purposes.
ATTENTION! The measurements in inches are rounded to the nearest 1/8"
Min 24" 11 3/4"
11 1/4"
12"
13"
15"
4 1/2"
1 1/2"
36"
17 7/8"
min 20" ~ max 36"
• 120 V / 60 Hz voltage (Plug-in)
• 1.58 Amps
• 190 Watt

Using a tape measure find the middle of
the cooktop and draw a thin vertical line
using a pencil from cooktop to a ceiling
to ensure correct vertical alignment of
the range hood installation. See Figure 1
Important: You must use a stud finder to
find location of wooden studs located in
the installation area. All screws on the
mounting bracket must be screwed in
the wooden stud located inside the wall.
If the installation loacation does not have
required wooden stud than it must be
installed inside the wall
Using a tape measure find the distance
(B) from the cooktop to the middle of the
pre-drilled holes on the mounting
bracket. Please refer to the table on the
Figure 2 to keep the range hood
installation within the required distance
from the cooktop surface.
Align and level the bracket to the wall
using a level and the drawn center line.
Using a pencil and the bracket as a
template, mark 4 holes for drilling on the
wall through the bracket's pre-drilled
holes. See Figure 2
Remove the bracket. Using a drill, make 4
holes through the wall. Apply silicone into
the holes and insert 4 wall anchors. Attach
the bracket and using a screwdriver screw
in 4 screws (M5x50mm) to secure the
bracket on the wall. Use only manual
screwdriver and do not overtighten the
screws. See Figure 3
www.lesscare.com
LH1-36G & LH2-30G
WALL MOUNT RANGE HOODS
INSTALLATION INSTRUCTIONS
6
INSTALL WALL BRACKET
Cooktop
Figure 1 Figure 2
Figure 3
B
A
A
B
Cooktop
to Range Hood
Min: 24" Min: 37"
Cooktop
to Bracket
Cooktop
Range Hood
1 1/2"
13"
15"
1 1/2"
2"
Important Note:
Installation of the range
hood requires that a
properly grounded power
outlet is located in the
area where the telescopic
chimney will be installed.
Ideally, the outlet must be
offset from the edge of
the chimney by 1 1/2"
from either side and not
less than 1 1/2" above the
bracket.
1 2 3 4
M5x50mm (4 screws)
IMPORTANT
All screws on the mounting bracket must be screwed in the wooden stud located inside the wall. If the
installation loacation does not have the required wooden stud than it must be installed inside the wall.
INSTALLATION
AREA
INSTALLED
WOODEN STUD
WOODEN STUD WOODEN STUD WOODEN STUD WOODEN STUD

Using assistance of a second person,
carefully lift the range hood and hang it
on the installed bracket. Adjust the
position of the range hood by slightly
sliding it from side to side to center it by
the cooktop. See Figure 5
Using the pre-installed power cable
connect the range hood to the power
outlet. Ensure that voltage of the power
supply matches voltage of the appliance,
all wiring is properly grounded, the supply
cord is well fixed and do not contact the
sharp edge of the enclosure. Plug the
appliance into the power supply socket.
Clean the area of all dust and waste
matter to avoid it being sucked into the
chimney before testing. Check that the
work top lights, motor and speed work
properly. See Figure 6
Range hood can be optionally ducted to
the outside using a rigid or flexible fire
retardant ducting of a suitable and
matching size. The installer should provide
suitable ducting and sealing material for
the installation.
The ducting tube should run parallel to the
wall up to the ducting hole and not be bent
more than 90 degrees to ensure easy flow
of extracted air. The length should not be
more than 29 1/2' with not more than 2
bends.
See Figure 7
Figure 4
Figure 5
Figure 7
Figure 6
www.lesscare.com
LH1-36G & LH2-30G
WALL MOUNT RANGE HOODS
INSTALLATION INSTRUCTIONS
7
ATTACH DUCT PIPE TO AIR OUTLET
MOUNT RANGE HOOD TO WALL AND CONNECT TO POWER
The range hood comes with a flexible
duct pipe that is extendable up to 70" in
length.
Prior to the range hood mounting attach
the duct pipe to the flopper and secure
the duct pipe with the range hood by
screwing in 2 M3x10mm screws into the
designated holes from the bothe sides of
the duct pipe.
See Figure 4
M3x10mm
(2 screws)
Extendable to 70"
4"
6"
Profile
Front
FIT DUCT PIPE
IN DUCT OPENING
Range Hood Chimney
Range Hood Chimney
Ceiling Ducting
Wall Ducting

www.lesscare.com
LH1-36G & LH2-30G
WALL MOUNT RANGE HOODS
INSTALLATION INSTRUCTIONS
8
INSTALL SAFETY CLIPS
EXTEND AND SECURE CHIMNEY
After mounting the range, safety clips must be
installed to help avoid the range hood
accidentally slide up and fall from the wall.
1. Place both safety clips in the designated
locations inside of the chimney.
2. Use the safety clips as a template and mark
holes for drilling using a pencil or marker.
3. Drill two holes (one for each safety clip) and
insert two wall anchors. Attach safety clips to the
drilled holes and secure both safety clips by
screwing in two M5x50mm screws into the
anchors through the pre-drilled holes on the clips.
See Figure 8
Remove protection film al protection film from
the Chimney Extension. Insert Chimney
Extension in the Base Chimney through the top of
the hood using designated space.
Extend Chimney Extension to neccessary height
(7'-8' from the hood.) Secure Chimney Extension
by fastening it to the wall with two M4x12mm
screws
See Figure 9
Figure 8
Figure 9
1 2
M4x12mm

1
3
4
Figure 11
Figure 10Figure 12
www.lesscare.com
LH1-36G & LH2-30G
WALL MOUNT RANGE HOODS
INSTALLATION INSTRUCTIONS
9
INSTALL/REMOVE OIL TRAY
FILTER AND LIGHTS REPLACEMENT
Oil tray is located inside of the range hood, above the
removable aluminum grease filter attached to the bottom
of the motor. Turn off and disconnect the range hood from
the power source. Wear thick gloves prior to removing the
fiter. Find the filter underneath the rangehood. The filter's
open/close lock is located in the center on the rigt side of
the filter. Using your finger press the lock's button and
carefully pull the filter down while holding the oposite side
of the filter with another hand to prevent from falling down.
Filter is now removed. Locate the installation space at the
bottom of the motor. Slide in the plastic oil tray forward
until it stops. Make sure that the holes on the bottom of the
motor are centered by the tray.
Important Note: Incorrect installation of the tray or if the
tray is not installed will cause the oil to drip through the
range hood on top of the range and will cause fire. Timely
cleaning of the oil tray is required. Check the oil tray at least
once a week to make sure it will not overflow when full.
See Figure 10
Turn off and disconnect the range hood from the power
source. Wear thick gloves prior to removing the fiter. Find
the filter underneath the rangehood. The filter's
open/close lock is located in the center on the rigt side of
the filter. Using your finger press the lock's button and
carefull pull the filter down. Filter is now removed.
See Figure 11
Wear thick gloves prior to removing the LED module.
After removing the filter push the LED modules through
the mounting holes. See Figure 12
2

www.lesscare.com
LH1-36G & LH2-30G
WALL MOUNT RANGE HOODS
INSTALLATION INSTRUCTIONS
10

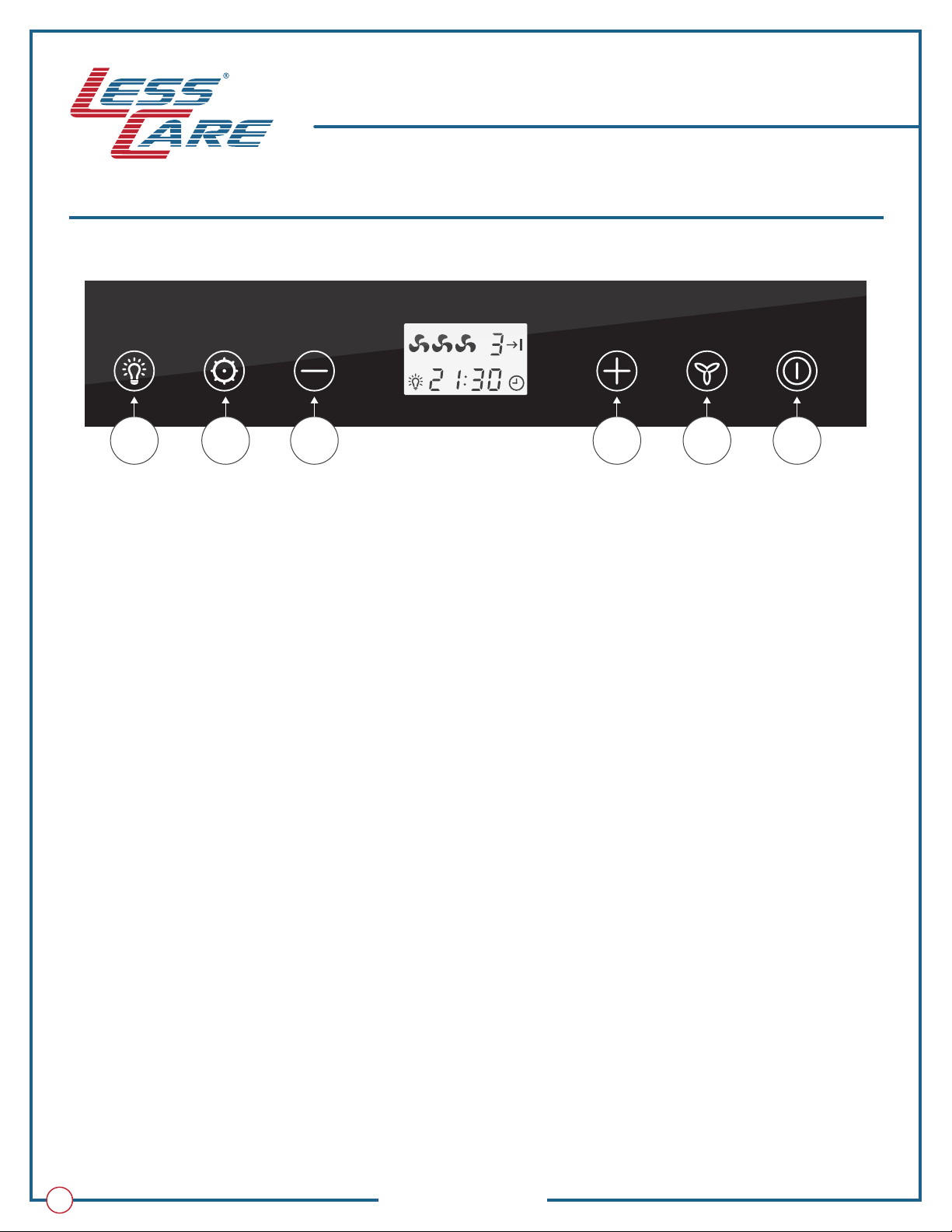

For your convenience all LessCare® wall mount range hoods have touchscreen controls. Follow these simple
instructions to experience all features of your range hood.
K6
Light
Control
Clock
Setup
Add
Time
Reduce
Time
Fan
Speed
Power/
Delay Timer
K5 K4 K3 K2 K1
1. Displayed Time. After you install and conect the range hood to a power source you may set time on the display
clock. Range hood must be turned off before entering time settings. If the Power button (K1) is lit in red light press it
once to turn off the range hood. Press Clock Setup Key (K5) to enter the setup. You will see hours that will stay
blinking for 5 seconds. After 5 seconds of inactivity any change will be applied. Adjust hours by pressing either (K3)
to add hours or (K4) to reduce hours. Once hours are set press (K5) to set minutes on the clock. Use (K3) and (K4)
buttons the same way to adjust minutes. After you set the right time press the Clock Setup key (K5) once again to
confirm the settings.
2. Light Control. Press (K6) to turn on 2 energy efficient LED lights located next at the bottom of the range hood.
This light serves to illuminate the cooktop beneath the range hood. To turn off the light press (K6) again.
3. Power/Fan Speed. Turn on the range hood by pressing (K1) button (If you press (K1) button again the range hood
will turn off). While the range hood is on press (K2) button to activate the fan. On top of the display you will see a
speed indicator in form of 3 fan icons and a number 3 on the right side. You have 3 speed to choose from. By default
the fan's motor will start in the fastest speed. To slow down the fan press (K2) button every time you need to switch
to a slower speed. If you press (K2) after the slowest (1st speed) it will switch back to the fastest (3rd speed). To turn
off the fan press (K1) twice. If you press (K1) one time, the display will be switched to Fan Power delay settings.
4. Fan Power Delay Settings. While the range hood is on and the fan is working at any chosen speed press (K1)
button. After that the display will be switched to Fan Power delay settings (by default fan is set to turn off in 3
minutes). After you enter the power delay settings you will see that minutes indicator is blinking. It will stay blinking
for 5 seconds. After 5 seconds the timer will start countdown. When the timer reaches 00:00 the fan will turn off. To
add or decrease minutes on the timer use (K3) and (K4) buttons. Maximum delay time is 15 minutes. You may only
set minutes but not seconds. After the timer is set and countdown starts you may not change the delay time;
however, you may change speed of the fan and turn on/off range hood's lights at any time until the timer reaches
00:00 and the fan stops. You may interupt the power delay countdown stop the fan immediately ay any time by
pressing the (K1) power button.
TOUCHSCREEN CONTROLS

www.lesscare.com
LH1-36G & LH2-30G
WALL MOUNT RANGE HOODS
COMPONENT LIST/CIRCUIT DIAGRAM
11
ATTENTION! Check the box for all components prior to installation!
Basic Chimney
Glass Canopy
Touchscreen Module Glass Cover
Touchscreen Module
LED Light Module
Left Fan
Right Fan
Fan Cover Screw
Grease Filter
Oil Tray
Motor Cover
Motor
Chimney Extension
Power
Outlet Plug
Vent Pipe
Power Line
Box Cover
Power
Line Box
Air Outlet
Light Power
Hood Body
Smoke Collector
Fan Cover
Power
Board
L BROWN
N BLUE
E YELLOW & GREEN
LIGHT
110V~60 Hz
16µF/250V
YELLOW
STRONG (BLACK)
STRONG (BLACK)
SWITCH
MIDDLE (WHITE)
SLOW (GREEN)
BLUE
RED
V – VOLT W – WATT Hz – HERTZ
CIRCUIT DIAGRAM

Retain these installation instructions
for future reference!
Thank you for using LessCare products!
LessCare products must be installed by a fully insured and licensed professional only. Installation of any LessCare product by
anyone other than fully insured and licensed professional shall void limited warranty. LessCare recommends that such licensed
professional have experience in the installation of such products.
LessCare is not responsible for local code compliance. Building and electrical codes may vary from state-to-state in accordance
to your location. LessCare is not resonsible for providing any compliance certifications.
Neither manufacture, nor distributor, nor retailer is responsible for any harm or damage caused due to use of this product.
ATTENTION! This limited warranty is voids on any commercial installation
www.lesscare.com
LH1-36G & LH2-30G
WALL MOUNT RANGE HOODS
MAINTENANCE & CARE
For better performance, appearance, and sanitary level of the range hood's grease filter, fan, and other surfaces that may be
covered in grease must be regulary cleaned using soft cloth with mild detergent.
Aluminum grease filter must be cleaned in a dishwasher with detergent solutions that does not contain phosphate. Phosphate
detergents may cause discoloration of the filter. Discoloration also may cause condition of local water. Discoloration only affect
apperance of the filter and does not affect its performance. Discolorations is not covered by warranty.
Motor is lubricated permanently and does not require additional lubricating. If the motor bearings produce unusual noise the
motor may need to be replaced.
IMPORTANT!
DO NOT USE: Abrasive cleaners such as: acid, ammonia, bleach, and simmilar solutions. Use of such solutions may cause
corrosion, finish peeling, and/or dull the surface.
DO NOT USE: Abrasive sponges or cloth. Never use steel, wool, or wired brushes that will permanently scratch the surface.
CLEANING
