COMPONENT SPECIFICATIONS
41084-FxF 40831-0Bx

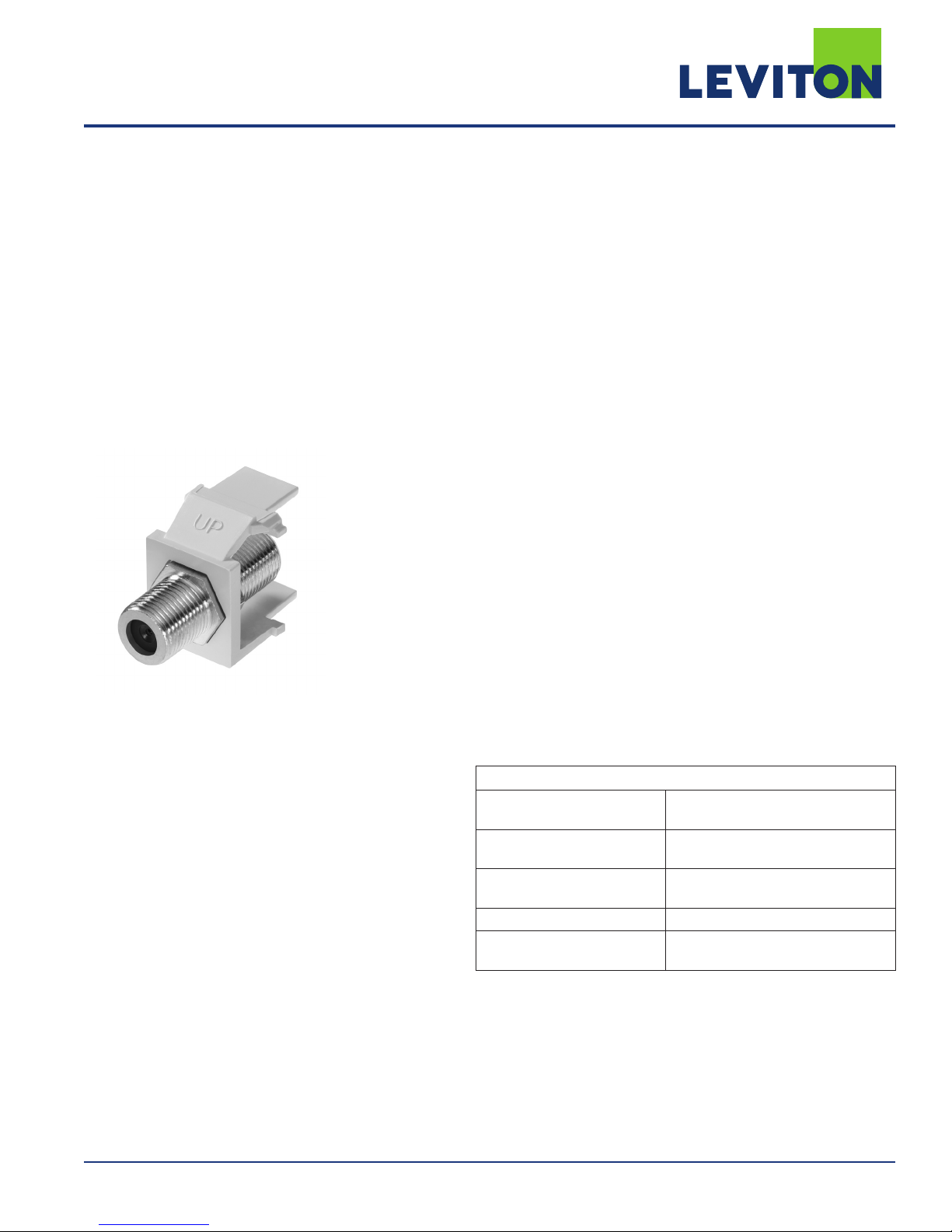

QuickPort®F-Type Adapters
Leviton Mfg. Co., Inc. 2222 - 222nd St. SE Bothell, WA 98021 Tech Line: 1-800-722-2082 Fax: [phone] www.leviton.com
Copyright © 2007 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
41084-FxF 40831-0Bx
APPLICATION
Nickel or gold-plated female-to-female connector features
screw-on front and rear connections. Pass through design
applications: TV, VCR, DVD, satellite, and home theater.
Cable: coaxial cable terminated with “F” plugs. QuickPort
F-Type Adapters snap into any QuickPort housing, includ-
ing ush and surface mount outlets, Multimedia Outlet
System (with adapter), Decora® Inserts, patch panels, and
patch blocks.
SPECIFICATION
The modules for coaxial cable shall be individual
QuickPort snap-in style female-to-female bulkhead
adapters, and shall t all other installed telecommunications
wallplates, outlets and eld-congurable patch panels
and patch blocks. Bulkhead modules shall be available in
multiple colors to match the housings or provide unique
color-coding for port I.D. Modules shall be UL listed. All
plastics used in construction of the module bodies shall
be re-retardant with a UL ammability rating of 94V-0.
Page 1 of 2
FEATURES
• Female-female adapter for quick screw-on connections
• 360 degree gold plated seizing pin provides clearest
signal transmission
• Works with all F-connectors and coax varieties
DESIGN CONSIDERATIONS
• F-type connector works for all coax applications
• QuickPort bulkhead modules snap into any QuickPort housing,
including ush and surface mount outlets, Multimedia Outlet
System (with adapter), patch panel, and patch blocks
• Check clearance behind proposed location of bulkhead module,
to ensure space for proper bend-radius
STANDARDS COMPLIANCE
Meets or exceeds all applicable standards
Bulkhead Modules are cULus Listed
Society of Cable Telecommunications Engineers (SCTE) Compliant
PHYSICAL SPECIFICATIONS
Dimensions: .64”h x .58”w x 1.24”d
Materials: Zinc die cast body wtih machined threads
Insulation: Polypropylene
WARRANTY INFORMATION
For a copy of Leviton product warranties, visit www.leviton.com.
PERFORMANCE SPECIFICATIONS
Frequency Range DC - 1.0 GHz (Nickel)
DC - 2.5 GHz (Gold)
Insertion Loss ≤ 0.1 dB @ 1.0 GHz (Nickel)
≤ 0.2 dB @2.5 GHz (Gold)
Return Loss ≥ 30 dB @ 1.0 GHz (Nickel)
≥ 26 dB @ 2.5 GHz (Gold)
Contact Resistance < 4 Milliohms
Holding Force > 160 Grams Initial
> 120 Grams after Insertion

Leviton Mfg. Co., Inc. 2222 - 222nd St. SE Bothell, WA 98021 Tech Line: 1-800-722-2082 Fax: [phone] www.leviton.com
Copyright © 2007 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
COMPONENT SPECIFICATIONS
41084-FxF 40831-0Bx
41084-FxF 40831-0Bx
Page 2 of 2 K/7 #2347
PART NUMBERS
Description Part No.
F-Type Adapter, Nickel Plated 41084-FxF
F-Type Adapter, Gold Plated 40831-0Bx
41084-FxF Color Choices: Ivory (I), White (W), Almond (A), Grey (G), Black (E), Light Almond (T)
40831-OBx Color Choices: Ivory (I), White (W), Almond (A), Light Almond (T)
ELECTRONIC FILES
For CAD les, Typical specs, or Dimensional Line Art. (.DXF, .DWG,
MS-DOS.eps or .TXT), visit www.leviton.com.
