Lex System 3I610DW User manual
3I610DW
Intel Skylake-U / Kaby Lake-U Core i CPU,
DDR4 2133 MT/s SODIMM, 5 x LAN / HDMI / USB /
COM / PCIe mini card
All-In-One
Intel Skylake-U / Kaby Lake-U Core i CPU,
5 x Intel GbE LAN, 2 x PCIe mini card slots, 2 x HDMI, eDP,
4 x USB 3.0, 3 x USB 2.0, 2 x COM, Wide Range DC-IN
NO. 3I610DW
Release date: JULY. 23. 2018
i
3I610DW
Warning!...................................................................................................................................
Hardware Notice Guide ......................................................................................................
CHAPTER 1 GENERAL INFORMATION .................................................................................
1-1 MAJOR FEATURE................................................................................................................
1-2 SPECIFICATION ..................................................................................................................
1-3 INSTALLING THE SO-DIMM ................................................................................................
1-3-1 REMOVING THE SO-DIMM ..............................................................................................

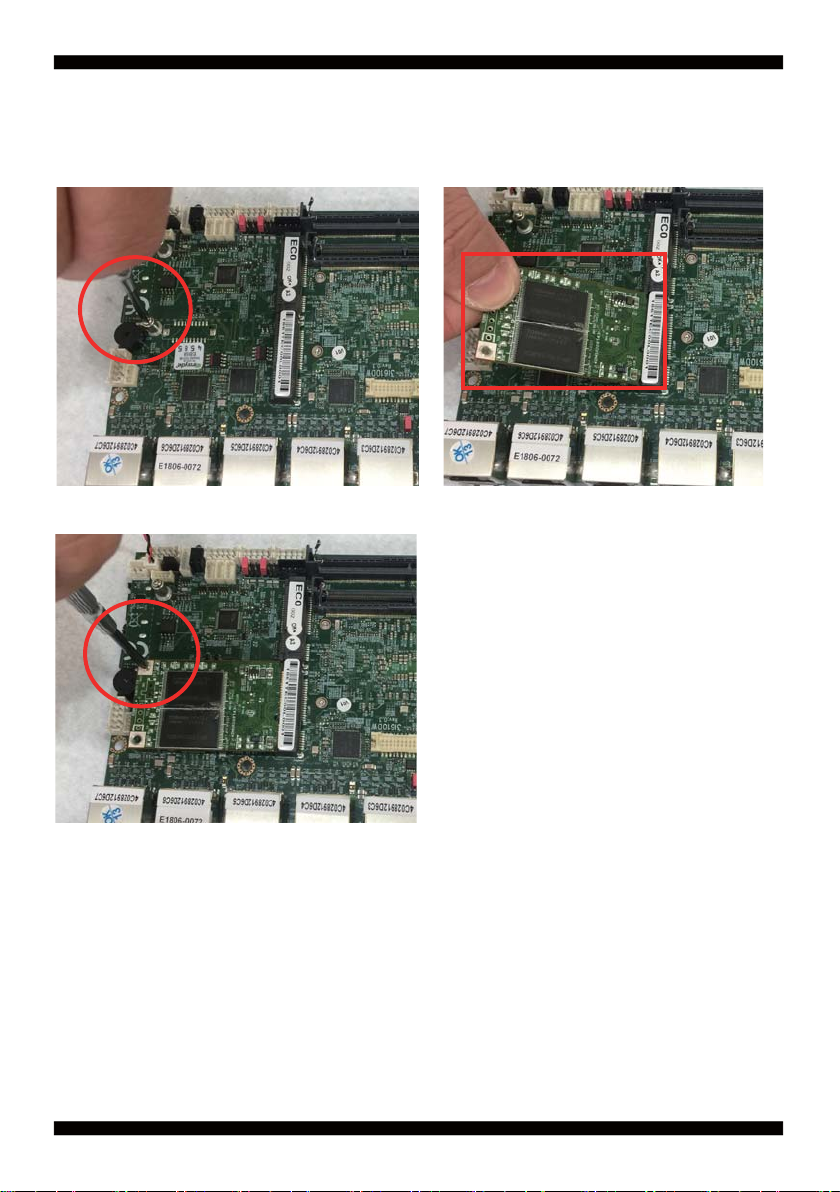

1-4 INSTALLING THE MINI PCI-e CARD (FULL SIZE) ...............................................................
1-5 PACKING LIST .....................................................................................................................
CHAPTER 2 HARDWARE INSTALLATION ............................................................................
2-1 UNPACKING PRECAUTION ................................................................................................
2-2 UNPACKING CHECKUP ......................................................................................................
2-3 DIMENSION-3I610DW .........................................................................................................
2-4 LAYOUT-3I610DW-FUNCTION MAP-TOP ..........................................................................
2-4-1 LAYOUT-3I610DW-FUNCTION MAP-BOT .......................................................................
2-5 FUNCTION MAP-3I610DW ..................................................................................................
2-6 CONNECTOR MAP-3I610DW-TOP .....................................................................................
2-6-1 CONNECTOR MAP-3I610DW-BOT ..................................................................................
2-7 DIAGRAM-3I610DW-TOP ....................................................................................................
2-7 DIAGRAM-3I610DW-BOT ....................................................................................................
2-8 LIST OF JUMPERS ..............................................................................................................
2-9 JUMPER SETTING DESCRIPTION ....................................................................................
2-10 JSB2: COMS DATA CLEAR ................................................................................................
2-11 JVL1: eDP PANEL POWER SELECT ................................................................................
2-12 JVC1/2: COM1/2 PIN9 RI / +12V / +5V SELECT ...............................................................
CHAPTER 3 CONNECTION ....................................................................................................
3-1 LIST OF CONNECTORS.......................................................................................................
3-2 CMOS BATTERY CONNECTOR ..........................................................................................
3-3 AUDIO INTERFACE .............................................................................................................
3-4 CC1/2 COM1/2 2x5 PIN (2.0mm) WAFER ............................................................................
3-5 CFP1 FRONT PANEL CONNECTOR 2x5pin (2.0mm) WAFER ...........................................
3-6 CIO1 DIO 0--3 (2x5 PIN 2.0mm WAFER) .............................................................................
3-6-1 IO DEVICE: F75111 UNDER DOS ....................................................................................
3-6-2 IO DEVICE: F75111 UNDER WINDOWS ..........................................................................
3-6-3 IO DEVICE: F75111 VB6 UNDER WINDOWS ..................................................................
3-6-4 IO DEVICE: F75111 UNDER LINUX .................................................................................
3-7 CKM1: KB/MS PORT 1x6 PIN (1.25mm) WAFER ................................................................
3-8 CU1/2/3/4: USB3.0 PORT 1/2/3/4 TYPE A CONNECTOR ...................................................
Contents
1
2
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
21
22
23
23
24
24
25
26
27
28
29
30
32
38
42
47
47
ii
48
49
49
50
50
51
52
53
54
55
56
56
57
58
59
59
60
61
62
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
84
3-9 USB INTERFACE .................................................................................................................
3-10 CL1/2/3/4/5: RJ45 LAN1/2/3/4/5 CONNECTOR .................................................................
3-11 CO1: 12C BUS 4PIN (1.25mm) WAFER) ............................................................................
3-12 COH1: +12V HEATER (1x2 PIN 2.0mm WAFER) ..............................................................
3-13 CPI1: DC POWER INPUT (2x4 PIN 2.0mm WAFER) (RED) ..............................................
3-14 CPO1: +12V/+5V DC VOLTAGE OUTPUT WAFER CONNECTOR (BLACK) ....................
3-15 EDP1: EDP INTERFACE (2x10 PIN 1.25mm WAFER) ......................................................
3-16 EIO1: eIO PIN 2x20 PIN HEADER .....................................................................................
3-17 HDMI1/HDMI2: HDMI CONNECTOR .................................................................................
3-18 SATA INTERFACE ..............................................................................................................
3-19 SODIMM1/2 SOCKET ........................................................................................................
3-20 SWP1 POWER ON/OFF SWITCH WAFER (1X2 PIN 2.0mm WAFER) .............................
3-21 MODULE SOCKER ............................................................................................................
3-22 CONNECTOR WAFER OF COMPATIBLE BRAND AND PART NUMBER LIST ................
CHAPTER 4 INTRODUCTION OF BIOS ................................................................................
4-1 ENTER SETUP ....................................................................................................................
4-2 BIOS MENU SCREEN & FUNCTION KEYS .......................................................................
4-3 GETTING HELP ...................................................................................................................
4-4 MENU BARS ........................................................................................................................
4-5 MAIN ....................................................................................................................................
4-6 ADVANCED ..........................................................................................................................
4-6-1 BOOT CONFIGURATION .................................................................................................
4-6-2 GRAPHICS CONFIGURATION .........................................................................................
4-6-2-1 DISPLAY CONFIGURATION .........................................................................................
4-6-3 PCH-IO CONFIGURATION ...............................................................................................
4-6-3-1 PCI EXPRESS CONFIGURATION ................................................................................
4-6-3-1-1 PCI EXPRESS ROOT PORT 09 FOR MPCE1 ............................................................
4-6-3-1-2 PCI EXPRESS ROOT PORT 10 FOR MPCE2 ............................................................
4-6-3-1-3 PCI EXPRESS ROOT PORT 11 FOR EIO PORT 1 ...................................................
4-6-2-3 SATA AND RST CONFIGURATION ...............................................................................
4-6-3-3 HD AUDIO CONFIGURATION .......................................................................................
4-6-4 PCH-FW CONFIGURATION .............................................................................................
4-6-5 SIO F81804 .......................................................................................................................
4-6-5-1 HARDWARE MONITOR ................................................................................................
4-6-6 CONSOLE REDIRECTION ...............................................................................................
4-7 SECURITY ...........................................................................................................................
4-8 POWER ................................................................................................................................
4-9 BOOT ...................................................................................................................................
4-10 EXIT ...................................................................................................................................
CHAPTER 5 DRIVER INTRODUCTION ....................................................................................
5-1 INF INSTALL INTEL SKYLAKE KABY LAKE CHIPSET DRIVER .........................................
iii
5-2 VGA INSTALL INTEL SKYLAKE & KABY LAKE VGA Driver ................................................
5-3 HD AUDIO INSTALL HIGH DEFINITION AUDIO DRIVER ...................................................
5-4 ME TOOL INSTALL INTEL USB 3.0 ME DRIVER ................................................................
5-5 LAN INSTALL LAN DRIVER (EXAMPLE FOR WIN10 64bit) ...............................................
5-6 ITEMS FOR WINDOWS 7 INSTALLATION ..........................................................................
5-6-1 KMDF INSTALL WINDOWS UPDATE PACKAGE (FOR WIN 7 ONLY) ............................
5-6-2 ME TOOL INSTALL INTEL ME TOOL DRIVER FOR WIN7 PLEASE INSTALL KMDF
FILE FIRST .................................................................................................................................
5-6-3 USB 3.0 INSTALL FOR WIN7 ...........................................................................................
5-6-4 TPM 2.0 .............................................................................................................................
5-11 HOW TO UPDATE INSYDE BIOS ......................................................................................
APPENDIX A: POWER CONSUMPTION TEST .........................................................................
APPENDIX B: RESOLUTION LIST ............................................................................................
86
88
89
90
92
93
94
95
97
98
99
100
Copyright
This manual is copyrighted and all rights are reserved. It does not allow any non
authorization in copied, photocopied, translated or reproduced to any electronic or
machine readable form in whole or in part without prior written consent from the
manufacturer.
In general, the manufacturer will not be liable for any direct, indirect, special, incidental
or consequential damages arising from the use of inability to use the product or
documentation, even if advised of the possibility of such damages.
The manufacturer keeps the rights in the subject to change the contents of this
manual without prior notices in order to improve the function design, performance,
quality, and reliability. The author assumes no responsibility for any errors or omissions,
which may appear in this manual, nor does it make a commitment to update the
information contained herein.
Trademarks
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
All other trademarks, products and or product's name mentioned here are for
identification purposes only, and may be trademarks and/or registered trademarks
of their respective companies or owners.
© Copyright 2018
All Rights Reserved.
User Manual edition 0.1, JULY. 23. 2018
1
Warning !
1. Battery
Batteries on board are consumables.
The life time of them are not guaranteed.
2. Fless solution with HDD
The specification & limitation of HDD should be considered carefully when
the fanless solution is implemented.
3. We will not give further notification in case of changes of
product information and manual.
4. SATA interface does not support Hot SWAP function.
5. There might be a 20% inaccuracy of WDT at room temperature.
6. Please make sure the voltage specification meets the requirement
of equipment before plugging in.
8. Caution! Please notice that the heat dissipation problem could cause the MB
system unstable. Please deal with heat dissipation properly when
buying single MB set.
9. Please avoid approaching the heat sink area to prevent users from
being scalded with fanless products.
12. It is important to install a system fan toward the CPU to decrease
the possibility of overheating / system hanging up issues,
or customer is suggested to have a fine cooling system to dissipate heat
from CPU.
11. DO NOT apply any other material which may reduce cooling
performance onto the thermal pad.
10. If users repair, modify or destroy any component of product unauthorizedly,
We will not take responsibility or provide warranty anymore.
7. There are two types of SSD, commercial grade and industrial grade, which
provide different read/write speed performance, operation temperature and
life cycle. Please contact sales for further information before making orders.
2
Hardware Notice Guide
1. Before linking power supply with the motherboard, please attach DC-in adapter to
the motherboard first. Then plug the adapter power to AC outlet.
Always shut down the computer normally before you move the system unit or
remove the power supply from the motherboard. Please unplug the DC-in adapter first
and then unplug the adapter from the AC outlet.
Please refer photo 1 as standard procedures.
2. In case of using DIRECT DC-in (without adapter), please check the allowed range
for voltage & current of cables. And make sure you have the safety protection for
outer issues such as short/broken circuit, overvoltage, surge, lightning strike.
3. In case of using DC-out to an external device, please make sure its voltage and
current comply with the motherboard specification.
4. The total power consumption is determined by various conditions
(CPU/motherboard type, device, application, etc.). Be cautious to the power cable
you use for the system, one with UL standard will be highly recommended.
5. It’s highly possible to burn out the CPU if you change/ modify any parts of
the CPU cooler.
6. Please wear wrist strap and attach it to a metal part of the system unit
before handling a component. You can also touch an object which is
ground connected or attached with metal surface if you don't have wrist strap.
7. Please be careful to handle & don't touch the sharp-pointed components on
the bottom of PCBA.
8. Remove or change any components form the motherboard will VOID the warranty of
the motherboard.
9. Before you install/remove any components or even make any jumper setting
on the motherboard, please make sure to disconnect the power supply first.
(follow the aforementioned instruction guide)
10. "POWERON after PWR-Fair” function must be used carefully as below:
When the DC power adaptor runs out of power, unplug it from the DC current;
Once power returns, plug it back after 5 seconds.
If there is a power outage, unplug it from the AC current, once power returns,
plug it back after 30 seconds. Otherwise it will cause system locked or made
a severe damage.
Remark 1:
Always insert/unplug the DC-in horizontally & directly to/from the motherboard.
DO NOT twist, it is designed to fit snugly.
Moreover, erratic pull / push action might cause an unpredictable damage to the
component & system unit.
*
3
2
1
3
1
2
3
Photo 1 Insert
Unplug
4
Chapter-1
General Information
The 3I610DW is a 3.5" (146 x 102 mm) motherboard with wide range 9~36V DC power
input & fantastic flexibility and integration with optional eIO (PCIe + USB) expansion
Function: 3I610DW is based on the Intel® Skylake-U i7 / i5 / i3 / Celeron processor,
integrated 5 x GbE LAN, 7 x USB, 2 x COM Port and HDMI, DP display interface that offer
the ideal platforms for high performance applications in Networking, Smart Automation,
Point-Of-Information (POI), Self-Services, In-vehicle, Industry 4.0 and any compact high-
performance Internet of Things (IoT) applications.
The 3I610DW supports high-speed data transfer interfaces such as PCIe gen3, USB 3.0,
and SATA 6 Gb/s (SATA III), with two-channels DDR4 2133 MHz memory up to 32 GB
SODIMM slot and supports two serial ports RS232 / RS485 / RS422 jumper free auto
switch by BIOS and +5V / 12V selectable by jumper. It supports 4 ports of USB 3.0, 3
ports of USB 2.0. The expandable interfaces include 1 full-size PCIe Mini card for PCIe x 1
or mSATA (auto-detection) and USB interface, and 1 full-size PCIe Mini card for PCIe x 1
and USB interface and two SATA III ports, as well as graphics interface for HDMI displays.
One nano SIM push-push socket onboard for the mini card (mini card 2) to get the 3G / 4G
communication easier and quickly
The embedded motherboard 3I610DW is specially designed with wide-Range Voltage
DC in (9~36V) for widely varying input voltage requirement. It offers superb performance
and PC specification in the industry using the specific housing. It supports with five
10/100/1000 Mbps Ethernet for seamless broadband connectivity. With Wake-On LAN
function and the PXE function in BIOS, these are perfect control boards for networking
devices. It also supports 1 LVDS interface for LCD Panel with touch function and 1 panel
inverter power for Panel dimming control. It suitable for ALL-IN ONE Panel PC, POS Kiosk
and automation control systems.
the detail information.
5
1. Intel® Celeron 3955U Processor 2.0GHz, (Dual core), Intel® Core i5-6200U
Processor 2.3GHz / 2.8GHz (Dual core), Intel® Core i7-6600U Processor 2.6GHz
/ 3.4GHz (Dual core)
2. Intel 9th generation (Gen 9) LP graphics and media encode / decode engine,
Intel® Celeron 3955U 300MHz / 900MHz, Intel® Core i5-6200U 300MHz / 1GHz,
Intel® Core i7-6600U 300MHz / 1.05GHz
3. Support eDP 1.4 2 Lanes up to 1920 x 1080 resolution,
2 x HDMI 1.4b up to 3840 x 2160
4. DDR4 SODIMM slot x 2, up to 32GB
5. Support 5 x 10 / 100 / 1000 Mbps Intel LAN ports.
6. Support 2 x RS232 auto switch to RS485 / RS422 by BIOS
7. 4 x USB 3.0 and 3 x USB 2.0, 4 ports external, 3 ports internal
8. ALC886 HD Audio Specification 1.0, Two channel Class D Audio Amplifier
9. Support extended 1 x full-size Mini PCIe card for PCIe x 1 / mSATA (auto-detect) and
USB interface, 1 x full-size Mini PCIe card for PCIe x 1 and USB interface.
10. 1 Nano SIM card push-push socket pair with MPCE2
11. Support 2 SATA ports
12. Support PS2 Keyboard Mouse
13. 2 x 20 pin eIO with 1 PCIe x 1, 1 x USB2.0 and SMBus signals.
14. Hardware digital Input & Output, 4 x DI / 4 x DO, Hardware Watch Dog Timer,
0~255 sec programmable
15. Support TPM 2.0 (Optional)
16. Wide Range DC IN +9V~36V
17. PCB Dimension: 146 x 102 mm
1-1 Major Feature
6
1 SOC: Intel®Celeron 3955U Processor 2.0GHz, (Dual core), Intel®Core i5-6200U
Processor 2.3GHz / 2.8GHz (Dual core), Intel®Core i7-6600U Processor 2.6GHz
/ 3.4GHz (Dual core)
2. Memory: DDR4 SODIMM slot x 2, up to 32GB
3. Graphics: Intel 9th generation (Gen 9) LP graphics and media encode / decode
engine, Intel®Celeron 3955U 300MHz / 900MHz, Intel®Core i5-6200U 300MHz
/ 1GHz, Intel®Core i7-6600U 300MHz / 1.05GHz. Support eDP 1.4 2 Lanes up
to 1920 x 1080 resolution, 2 HDMI 1.4b up to 3840 x 2160
4. SATA: Integrated Serial ATA Host Controller 2 SATA port, SATA Gen3 Data transfer
rates up to 6.0 Gb/s (600 MB/s).
5. LAN: 4 Intel I210-IT LAN chipset & 1 Intel I219LM Giga Phy with 10 / 100 / 1000
Mbps for PCIe x 1 V2.1
6. l/O Chip: F81804U I/O chipset for 2 ports RS232 / RS422 / RS485 auto switch by BIOS
7. USB: 4 type A USB 3.0, 3 USB 2.0
8. Sound: Support line in, line out and MIC in, Two channel Class D Audio Amplifier
9. WDT/DIO: Hardware digital Input & Output, 4 x DI / 4 x DO (Option) / Hardware
Watch Dog Timer, 0~255 sec programmable
10. Expansion interface: one full-size PCIe Mini card for PCIe x 1 / mSATA (auto-detect)
and USB interface, one full-size Mini PCIe card for PCIe x 1and USB interface
11. SIM: 1 Nano push-push socket pair with MPCE2
12. TPM: SLB 9665 TT 2.0 Trusted Platform Module (Optional)
13. BIOS: Insyde UEFI BIOS
14. Dimension: 146 x 102 mm (3.5 inch)
15. Power: On board DC +9~36V
1-2 Specification
7
1-3 Installing the SO-DIMM
1. Insert the memory into the SODIMM slot diagonally.
2. Press the memory into the SODIMM slot.
8
1-3-1 Removing the SO-DIMM
1. Pull down two sides of fixed flat- springs out of the memory
9
1-4 Installing the Mini PCI-e Card (Full Size)
1. Unscrew the screw on the board
3. Gently push down the Mini Card and screw the screw back.
2. Plug in the Mini Card in a 45 angle
10
1-5 Packing List
Material Code Description Detail Specification Quantit
17G1901-1705001-0 MB-3I610DW-EC0-001 LF 1
26G6003-7350-0100 Power Cable LF, 2.0 2*4/DC JK,L=9cm 1
36G6001-2203-0100 SATA DATA Cable (Red) LF,L=25cm 1
46G6003-1009-0100 SATA Power Cable LF,L=25cm,1*4/2.0 to 180° SATA 15p 1
56G8006-2350-0100 DVD LF, Support Apollo Lake/Skylake 1
66G5212-0620-0100 ■60W Power
Adapter,12V/5A,2.5Ø LF,L Type,FSP060-DIBAN2,FSP 1
*The packing list above is for the users who purchase single motherboard. The users
who purchase the board with chassis may refer to the packing list in the Assembly Guide.
Please contact with your dealer if any of these items is missing or damaged
on delivery. And please keep all parts of the delivery package with packing
materials in case if you need to deliver or store the product in the future.
11
Chapter-2
This chapter provides the information how to install the hardware of 3I610DW.
2-1 and 2-2 to check the delivery package and unpack
carefully. Please follow the jumper setting procedure.
You should follow these
steps to protect the board from the static electric
discharge whenever you handle the board:
1. Ground yourself by a grounded wrist strap at all times when you
handle the 3I610DW.
Well secure the ALLIGATOR clip of the strap to the end of the shielded wire lead from
a grounded object. Please put on and connect the strap before handling the
3I610DW for harmlessly discharge any static electricity
through the strap.
2. Please use anti-static pad to put any components, parts, or tools on the pad whenever
you work on them outside the computer. You may also use the anti-static bag instead of
the pad. Please ask your local supplier for necessary parts on anti-static requirement.
3. Do not plug any connector or set any jumper when the power is on.
Hardware Installation
2-1 Unpacking Precaution
NOTE!
1. Do not touch the board or any other sensitive components without all necessary
anti-static protection.
2. Please pay attention to the voltage limitation of DC-IN 12V 5%.
Overuse of DC-IN voltage limitation or change to another power adapter
(not provided with this system) will VOID warranty.
12
First of all, please follow all necessary steps of section 2-1 to protect 3I610DW
from electricity discharge. With reference to section 1-5
please check the delivery package again with following steps:
1. Unpack the 3I610DW board and keep all
packing material, manual and driver disc etc, do not dispose !
2. Is there any components lose or drops from the board?
DO NOT CONTINUE TO INSTALL THIS BOARD!
CONTACT THE DEALER YOU PURCHASED
THIS BOARD FROM, IMMEDIATELY.
3. Is there any visible damage on the board?
DO NOT CONTINUE TO INSTALL THIS BOARD!CONTACT
THE DEALER YOU PURCHASED THIS BOARD FROM, IMMEDIATELY.
4. Check your optional parts (i.e. DDR, CF etc.), all necessary jumpers
setting to jumper pin-set, and CMOS setup correctly.
Please also refer to all information of jumper settings in this manual.
5. Check your external devices (i.e. Add-On-Card, Driver Type etc.)
for complete add-in or connection and CMOS setup correctly.
Please also refer to all information of connector connection in this manual.
6. Please keep all necessary manual and driver disc in a good condition for future
re-installation if you change your Operating System.
2-2 Unpacking checkup
13
2-3 Dimension-3I610DW
TOP
14
2-4 Layout-3I610DW-Function Map
TOP
Power switch
Front Panel
CMOS Battery
Clear CMOS Jumper
PS2 KB/MS
4DI/DO
USB2.0
COM2
COM1
COM1/2 PIN9 Jimper
SMBUS
+12V/+5V Output
DDR4 CH1 SODIMM
Heater
EIO PinHeader
DC-IN
HDMI
HDMI
RJ45 Giga LAN
Audio, Line-in,
Line-out,
Mic-in
Audio Amp
PCIe/USB/SIM
PCIe/mSATA/
Auto detect USB
eDP Power Jumper
eDP
DDR4 CH0 SODIMM
15
2-4-1 Layout-3I610DW-Function Map
BOT
SATA2 SATA1
NANO SIM
USB3.0 TYPE A
Table of contents
