2010- RX 350/450h TVIP V9 REMOTE ENGINE STARTER PLUS (RES+)
OWNER’S GUIDE
SMARTPHONE OPERATION KEY FOB OPERATION
TABLE OF CONTENTS
PAGE
REFERENCE 1
•FOR SMARTPHONE OPERATION
USAGE PRECAUTIONS 2–3
INTRODUCTION 4
FEATURES 4
CONTRACT INFORMATION 4
RES+ QUICK SETUP GUIDE 5-6
OPERATION 7–10
Operating conditions 7
Engine start 8
Engine stop 8
Door lock 9
Door unlock 9
Carnder 9
Operating priority overview 10
RES+ INFORMATION 11
Heater / air conditioner / defroster / defogger settings 11
Vehicles with automatic air conditioner 11
Vehicles with manual air conditioner 11
Vehicles with heated and ventilated seats 11
•FOR VEHICLE’S KEY FOB OPERATION
INTRODUCTION 12
USAGE PRECAUTIONS 13–14
OPERATION 15-18
Operating conditions 15
Remote engine start 16
Remote engine stop 17
REMOTE ENGINE STARTER INFORMATION 18
Heater / air conditioner / defroster / defogger settings 18
Vehicles with automatic air conditioner 18
Vehicles with manual air conditioner 18
Vehicles with heated and ventilated seats 18
Remote engine starter range 18
All specications provided in this Owner’s Guide are current at the time of printing. We reserve the right to make changes
at any time without notice. Any vehicle, hardware, web and/or smartphone application images used in the Owner’s Guide
are for illustrative purposes only and may differ from the actual product.
LEXUS — RES+ Page 1
SMARTPHONE OPERATION KEY FOB OPERATION
REFERENCE
- United States of America
Contains FCC ID: QIPAHS3-US
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC WARNING: Changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
- Canada
Contains IC: 7830A-AHS3US
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts
de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire
de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type
and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une
antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans
le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le
type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas
l’intensité nécessaire à l’établissement d’une communication satisfaisante.
This radio transmitter 7830A-AHS3US has been approved by Industry Canada to operate with the antenna
types listed below with the maximum permissible gain and required antenna impedance for each antenna
type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated
for that type, are strictly prohibited for use with this device. The antenna type approved for the transmitter
7830A-AHS3US is: a dedicated lm antenna with 2dBi of maximum gain and 50 ohms of impedance.
Le présent émetteur radio 7830A-AHS3US a été approuvé par Industrie Canada pour fonctionner avec
les types d’antenne énumérés ci-dessous et ayant un gain admissible maximal et l’impédance requise pour
chaque type d’antenne. Les types d’antenne non inclus dans cette liste, ou dont le gain est supérieur au gain
maximal indiqué, sont strictement interdits pour l’exploitation de l’émetteur.
Le type d’antenne approuvé pour le 7830A-AHS3US émetteur est: une antenne lm dédié à 2dBi de gain
maximum et de 50 ohms d’impédance.
SMARTPHONE OPERATION
Page 2 LEXUS — RES+
KEY FOB OPERATION
USAGE PRECAUTIONS (for SMARTPHONE OPERATION)
Warning NOT following the instructions below could result in serious injury,
death, and/or damage to the vehicle.
• NEVER remotely start the engine if you are unaware of the circumstances
surrounding the vehicle as it may cause a life threatening situation for those located in
the vehicle’s vicinity.
• DO NOT remotely start the engine if the vehicle is in an enclosed area (such as an
unventilated garage/parking lot) where too much exhaust may accumulate and create
a hazardous environment with the potential for Carbon monoxide (CO) poisoning.
• DO NOT remotely start the engine if children or pets are present in or near the
vehicle. It can lead to serious injury, or death.
• NEVER use product, or product packaging for purposes other than originally
intended. Doing so could result in damage to the unit, fire, or injury/death.
• DO NOT walk while using the CarFinder function of RES+. Always confirm your
surroundings first to avoid safety hazards.
• DO NOT remotely start the engine when it is near flammable substances and/or has
a car cover on. The exhaust pipe and emissions can create a hazardous environment
which can lead to serious injury or death.
Caution NOT following the instructions below could result in damage to the
vehicle, or the product.
• If the Check Engine Light has come on, DO NOT operate RES+ to start the engine
until the vehicle has been checked by an authorized dealer technician.
• NEVER attempt to disassemble, alter, or modify the product. An accident, injury, fire,
or damage to the product may result.
• ALWAYS shut off mechanical components such as the windshield wipers after parking.
If left on, they may be damaged after remotely starting your vehicle.
LEXUS — RES+ Page 3
SMARTPHONE OPERATION KEY FOB OPERATION
USAGE PRECAUTIONS (for SMARTPHONE OPERATION)
General Information
• All smartphone(s) authorized by the owner have access to the vehicle’s location as part of the
CarFinder functionality.
• RES+ should only be used by licensed drivers.
• Laws in some communities may require that the vehicle be within view of anyone
using RES+. In some states, use of RES+ may violate state or local laws.
Before using RES+, check your state and local laws.
• RES+ is for vehicles with automatic transmissions only. Do not use it with manual transmission
vehicles.
• RES+ should be installed or repaired by an authorized dealer technician.
• This product uses a mobile phone communications network to operate the engine start/stop
and door lock/unlock functions. Consequently, the time taken to perform the functions and
for current information to be refreshed, is influenced by the signal strength at that location
and time.
• CarFinder information and vehicle location may vary slightly depending on GPS signal
strength, and location.
• RES+ is designed to work at temperatures above -22° F (-30° C). This specification is related
to the RES+ operation, but is dependant on the vehicle’s operating temperature range which
may be different.
• RES+ is designed for remote operation. A key FOB is still necessary to drive the vehicle.
• Contents subject to change without notice.
• All features may not be applicable to all vehicle models.
• Refer to the online Owner’s Guide for the most current information
• The FAQ, Troubleshooting Guide, and online Owner’s Guide can be found in the RES+
section of http://www.lexusdrivers.com.
SMARTPHONE OPERATION
Page 4 LEXUS — RES+
KEY FOB OPERATION
INTRODUCTION (for SMARTPHONE OPERATION)
Thank you for purchasing this Genuine Lexus Accessory.
RES+ uses a smartphone application to remotely access various vehicle functions and features listed
below. The use of this application requires installation of the RES+ accessory in your vehicle and an
annual subscription.
FEATURES
• Remote Engine Start
Start your vehicle’s engine from your smartphone. If you have preset your Heating/Cooling
System to your desired temperature the RES+ will assist you in obtaining a comfortable cabin
upon entry. As an added convenience, this feature works with the defroster (when preset) to
help clear up the windshield during cold weather.
The RES+ is designed to shut the engine off when it detects any attempt to enter or move the
vehicle after a remote engine start.
• Lock/unlock doors
Lock and unlock your vehicle’s doors from your smartphone.
• CarFinder
Use the CarFinder feature to nd the general location of your vehicle.
• Check the following vehicle information:
- Exterior temperature at location of vehicle
- Engine status - ON/OFF
- Door(s) status - LOCKED/UNLOCKED
CONTRACT INFORMATION
• Account registration for use of this service can be done by any one person, usually the owner or
someone authorized by the owner.
• Complete the Registration Process immediately after RES+ has been installed in the vehicle by
visiting http://www.lexusdrivers.com
• Please refer to the section RES+ Quick Setup Guide for web registration instructions.
LEXUS — RES+ Page 5
SMARTPHONE OPERATION KEY FOB OPERATION
RES+ Quick Setup Guide
It is necessary to complete the account registration procedure and download the smartphone
application software by following the steps in the same order mentioned below.
Web Registration
1
Do you have a Lexus Drivers Account?
Ye s No
1. Log in to Lexus Drivers.
(http://www.lexusdrivers.com)
2. Click RES+ Icon.
3. Click on the register button
1. Go to the following URL on the
Internet and Register a new account.
(http://www.lexusdrivers.com)
2. Click RES+ Icon.
3. Click on the register button
2
RES+ Registration.
1. After you have clicked “REGISTER”, you will be prompted to enter additional
information and complete the account registration.
Enter the following information in accordance with the screen instructions:
• Account information (account owner)/vehicle information (VIN), RES+ ECU Serial
Number.
• Payment method (for annual subscription fee).
• Add smartphone(s) (max 4 per vehicle)
– Warning: Each added smartphone can locate your vehicle through
CarFinder.
SMARTPHONE OPERATION
Page 6 LEXUS — RES+
KEY FOB OPERATION
Smartphone application download
Refer to http://www.lexusdrivers.com to determine if your smartphone and vehicle are compatible.
1
RES+ application software download
1. Search RES+ and download the application from your smartphone application store.
• iPhone™ - Apple™ App Store
• Android™ - Google Play™
2
Smartphone settings
1. Run the RES+ application on your smartphone.
2. Log in to RES+ with your “username“ and “password“ provided by the owner.
NOTE: By setting “Remember my username” to “ON”, login information will be
remembered for every subsequent login.
[iPhone only]
• Refer to the owner’s manual on the website prior to using the CarFinder
function.
• Refer to the iPhone User Guide for details on iPhone operation.
NOTE: For the latest information and smartphone application instructions, please
visit the RES+ section online at http://www.lexusdrivers.com and refer to the
Owner’s Guide.
Complete
LEXUS — RES+ Page 7
SMARTPHONE OPERATION KEY FOB OPERATION
OPERATION (for SMARTPHONE OPERATION)
OPERATING CONDITIONS
The engine will NOT remotely start if one of the following conditions is detected.
Door(s) and/or hatch is open. Brake pedal is being pressed.
Hood is open. Vehicle’s transmission is not in park (P).
Ignition is ON.
The remotely started engine will shut off if one of the following inputs is detected.
Door(s) and/or hatch is opened. Brake pedal is pressed.
Hood is opened. Vehicle’s transmission is shifted
out of park (P)
Ignition is turned ON. The security alarm is triggered.*
Door is unlocked by Smart key, manual key,
or key FOB.
If the vehicle’s engine has been running for
10 minutes after being remotely started.**
* The engine will continue to run if the panic alarm is activated.
** The vehicle can be restarted remotely for a total of 20 minutes. After 20 minutes of total run-time
the Vehicle must be manually restarted to reset the run-time.
SMARTPHONE OPERATION
Page 8 LEXUS — RES+
KEY FOB OPERATION
OPERATION (for SMARTPHONE OPERATION)

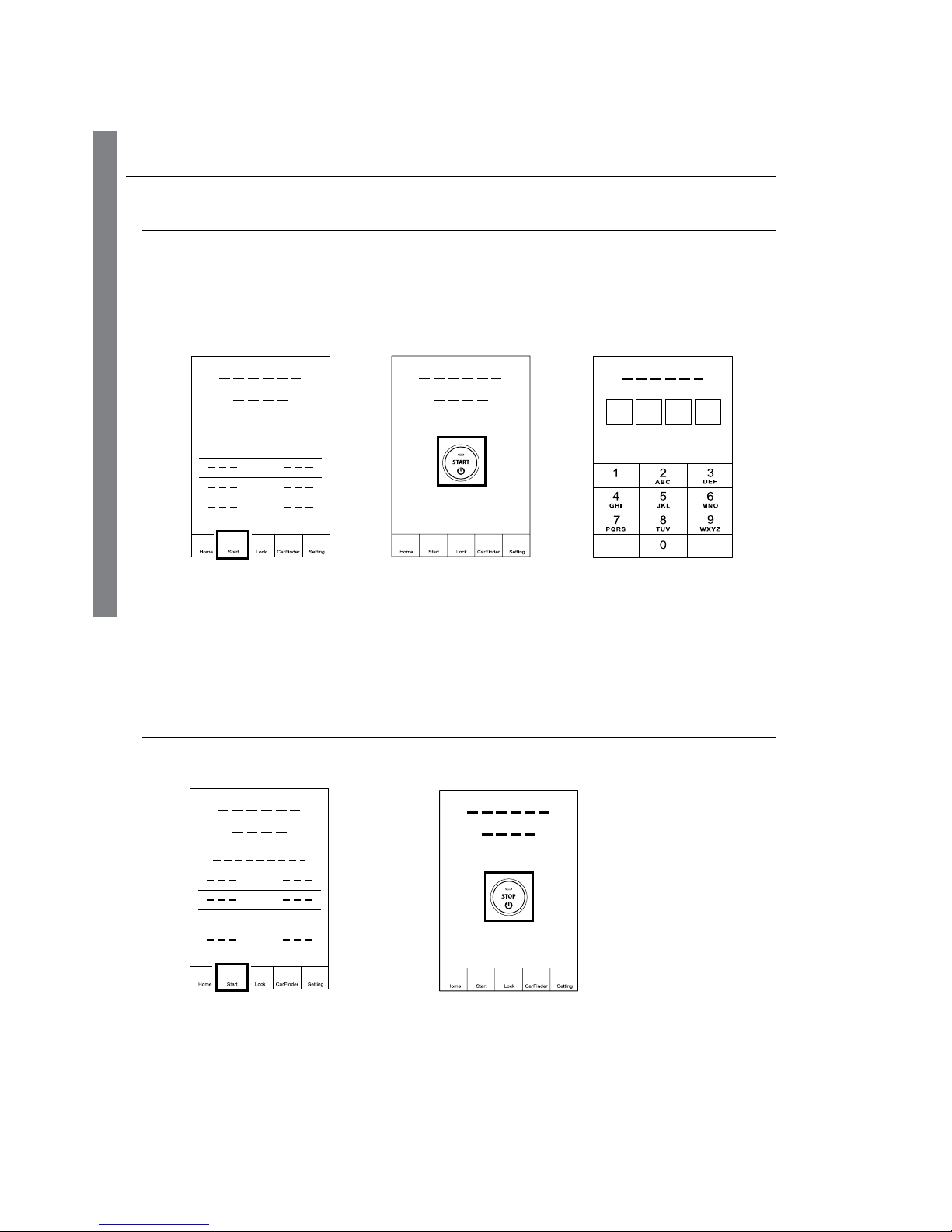

ENGINE START
NOTE: When using RES+, data usage fees mayapply.Conrmdatausagefeesbeforeusing
this service.
1. Tap “Start”. 2. Tap “START”. 3. Enter your PIN (4 digit).
The engine starts.
NOTE: Vehicles remotely started with the RES+ can idle for a total of 20 minutes, however
automatic engine shutdown occurs after 10 minutes of run-time. You can always restart the vehicle
after this initial shutdown. Once the total run-time of 20 minutes is reached the vehicle must be
manually started in order to reset the RES+. If the vehicle is started manually within the 20 minute
window, the run-time will be reset.
ENGINE STOP
1. Tap “Start”. 2. Tap “STOP”.
The engine shuts off.
NOTE
Refer to the online Owner’s Guide for additional details about the Engine Start and Engine Stop
operations.
LEXUS — RES+ Page 9
SMARTPHONE OPERATION KEY FOB OPERATION
OPERATION (for SMARTPHONE OPERATION)
DOOR LOCK
1. Tap “Lock”. 2. Tap “LOCK” to lock the doors.
DOOR UNLOCK
NOTE: Thisfunctionmaynotbeapplicableforallmodels.
1. Tap “Lock”. 2. Tap “UNLOCK”. 3. Enter your PIN (4 digit).
The doors will unlock.
NOTE: The Door Lock and Unlock functions cannot be performed while the engine is running.
CAR FINDER
1. Tap “CarFinder”. 2. CarFinder function starts.
NOTE
Refer to the online Owner’s Guide for additional details about the Door Lock / Unlock and CarFinder
operations.
Tap “ “ icon
Tap “ “ icon
SMARTPHONE OPERATION
Page 10 LEXUS — RES+
KEY FOB OPERATION
OPERATION (for SMARTPHONE OPERATION)
OPERATING PRIORITY OVERVIEW
If Engine is started by push button Engine can be shut off
by push start button
Engine can NOT be shut
off by key fob
Engine can NOT be shut
off by smartphone
If Engine is started by Key fob
(conventional RES)
Engine can be shut off
by push start button
Engine can be shut off
by key fob
Engine can NOT be shut
off by smartphone
If Engine is started by smartphone 1
(User A)
Engine can be shut off
by push start button
Engine can be shut off
by key fob
Engine can be shut off by
smartphone 1 (User A)
Engine can NOT be shut off
by smartphone 2 (User B)
If Engine is started by smartphone 2
(User B)
Engine can be shut off
by push start button
Engine can be shut off
by key fob
Engine can NOT be shut
off by smartphone 1
(User A)
Engine can be shut off by
smartphone 2 (User B)
The following Table provides an overview of the
operation priorities. This priority list was designed to
provide optimal safety and security.
LEXUS — RES+ Page 11
SMARTPHONE OPERATION KEY FOB OPERATION
If Engine is started by push button Engine can be shut off
by push start button
Engine can NOT be shut
off by key fob
Engine can NOT be shut
off by smartphone
If Engine is started by Key fob
(conventional RES)
Engine can be shut off
by push start button
Engine can be shut off
by key fob
Engine can NOT be shut
off by smartphone
If Engine is started by smartphone 1
(User A)
Engine can be shut off
by push start button
Engine can be shut off
by key fob
Engine can be shut off by
smartphone 1 (User A)
Engine can NOT be shut off
by smartphone 2 (User B)
If Engine is started by smartphone 2
(User B)
Engine can be shut off
by push start button
Engine can be shut off
by key fob
Engine can NOT be shut
off by smartphone 1
(User A)
Engine can be shut off by
smartphone 2 (User B)
RES+ INFORMATION (for SMARTPHONE OPERATION)
HEATER / AIR CONDITIONER / DEFROSTER / DEFOGGER SETTINGS
For your comfort and convenience, the vehicle’s air conditioning system controls can be preset to operate
the heater, air conditioner, and defroster/defogger at engine startup. The two tables below contain the
settings recommended for best results. Users should preset these before exiting the vehicle. (Please see
your vehicle’s owner’s manual for available settings.)
VEHICLES WITH AUTOMATIC AIR CONDITIONER
Auto Button A/C Button Temperature
Selector
Windshield
Airow
Button
Fan Speed
Selector
Heat ON OFF User Settings OFF OFF
Cool ON ON User Settings OFF OFF
Defrost OFF ON Max Setting ON HIGH
Defog OFF ON Max Setting ON HIGH
NOTE: The RES+ may not activate the rear window defroster/defogger.
VEHICLES WITH MANUAL AIR CONDITIONER
A/C Button Temperature
Selector
Airow
Selector
Fan Speed
Selector
Heat OFF WARM PANEL HIGH
Cool ON COLD PANEL HIGH
Defrost ON WARM WINDSHIELD HIGH
Defog ON WARM WINDSHIELD HIGH
NOTE: The RES+ may not activate the rear window defroster/defogger.
VEHICLES WITH HEATED AND VENTILATED SEATS
For vehicles equipped with Heated and Ventilated front seats these features can also be left on so
that when the vehicle is remotely started these features will provide you with additional comfort upon
entering the vehicle.
RES+ RANGE
The RES+ has unlimited range to operate provided there is sufcient cellular reception for both the
Smartphone and Vehicle. The physical makeup of the surrounding environment (hills, trees, buildings,
etc.) may affect the RES+ performance.
SMARTPHONE OPERATION
Page 12 LEXUS — RES+
KEY FOB OPERATION
INTRODUCTION (for KEY FOB OPERATION)
The REMOTE ENGINE STARTER allows you to start your engine from outside the vehicle. It utilizes
your vehicle’s keyless entry remote, so there is no need to carry around an extra remote. The REMOTE
ENGINE STARTER is operated the same way for vehicles equipped with or without the Smart Entry
/ Push Start system; simply push the remote’s LOCK button in a quick, two step sequence. In addition,
the REMOTE ENGINE STARTER can activate the heater or air conditioner according to your preset
temperature controls, providing you with a comfortable cabin upon entry. As an added convenience,
the REMOTE ENGINE STARTER can also activate the defroster (when preset) to clear up the
windshield during cold weather.
To ensure your safety, and the safety of anyone near the vehicle, the REMOTE ENGINE STARTER is
designed to shut the engine off when it detects any attempt to enter or move the vehicle after a remote
engine start. Please consult your Lexus dealer for more details.
NOTE: To utilize the REMOTE ENGINE STARTER, your vehicle must have an automatic transmission;
it cannot be used for manual transmission models. The transmission range for remote start may be
shorter than the remote’s basic keyless entry operation. Range can also be affected by the surrounding
environment. Laws in some communities require that the vehicle be within view of anyone using the
REMOTE ENGINE STARTER. In some states, use of the REMOTE ENGINE STARTER may violate
state or local laws. Before using the REMOTE ENGINE STARTER, check your state and local laws.
For any questions or concerns about the REMOTE ENGINE STARTER, please call Lexus Customer
Relations at (800) 255-3987.
LEXUS — RES+ Page 13
SMARTPHONE OPERATION KEY FOB OPERATION
USAGE PRECAUTIONS (for KEY FOB OPERATION)
Warning NOT following the instructions below could result in serious injury,
death, and/or damage to the vehicle.
• NEVER remotely start the engine if you are unaware of the circumstances
surrounding the vehicle as it may cause a life threatening situation for those located in
the vehicle’s vicinity.
• DO NOT remotely start the engine if the vehicle is in an enclosed area (such as an
unventilated garage/parking lot) where too much exhaust may accumulate and create
a hazardous environment with the potential for Carbon monoxide (CO) poisoning.
• DO NOT remotely start the engine if children or pets are present in or near the
vehicle. It can lead to serious injury, or death.
• NEVER use product, or product packaging for purposes other than originally
intended. Doing so could result in damage to the unit, fire, or injury/death.
• DO NOT remotely start the engine when it is near flammable substances and/or has
a car cover on. The exhaust pipe and emissions can create a hazardous environment
which can lead to serious injury or death.
Caution NOT following the instructions below could result in damage to the
vehicle, or the product.
• If the Check Engine Light has come on, DO NOT operate the Remote Engine
Starter to start the engine until the vehicle has been checked by an authorized dealer
technician.
• NEVER attempt to disassemble, alter, or modify the product. An accident, injury, fire,
or damage to the product may result.
• ALWAYS shut off mechanical components such as the windshield wipers after parking.
If left on, they may be damaged after remotely starting your vehicle.
SMARTPHONE OPERATION
Page 14 LEXUS — RES+
KEY FOB OPERATION
USAGE PRECAUTIONS (for KEY FOB OPERATION)
General Information
• The Remote Engine Starter should only be used by licensed drivers.
• Laws in some communities may require that the vehicle be within view of anyone using the
Remote Engine Starter. In some states, use of Remote Engine Starters may violate state or
local laws. Before using the Remote Engine Starter, check your state and local laws.
• Remote Engine Starter is for vehicles with automatic transmissions only. Do not use it with
manual transmission vehicles.
• Remote Engine Starter should be installed or repaired by an authorized dealer technician.
• The Remote Engine Starter is designed to work at temperatures above -22° F (-30° C).
This specification is related to the Remote Engine Starter operation, but is dependant on the
vehicle’s operating temperature range which may be different.
• Contents subject to change without notice.
• All features may not be applicable to all vehicle models.
LEXUS — RES+ Page 15
SMARTPHONE OPERATION KEY FOB OPERATION
OPERATION (for KEY FOB OPERATION)
OPERATING CONDITIONS
The engine will NOT remotely start if one of the following conditions is detected.
Door(s) and/or hatch is open. Brake pedal is being pressed.
Hood is open. Vehicle’s transmission is not in park (P).
Ignition is ON.
The remotely started engine will shut off if one of the following inputs is detected.
Door(s) and/or hatch is opened. Brake pedal is pressed.
Hood is opened. Vehicle’s transmission is shifted
out of park (P)
Ignition is turned ON. The alarm is triggered.*
Door is unlocked by Smart key, manual key,
or key FOB.
If the vehicle’s engine has been running for
10 minutes after being remotely started.**
* The engine will continue to run if the panic alarm is activated.
** The vehicle can be restarted remotely for a total of 20 minutes. After 20 minutes of total run-time
the Vehicle must be manually restarted to reset the run-time.
SMARTPHONE OPERATION
Page 16 LEXUS — RES+
KEY FOB OPERATION
OPERATION (for KEY FOB OPERATION)
REMOTE ENGINE START
To start a vehicle remotely, press and release the LOCK button twice within two seconds, then press and
hold the LOCK button for three seconds.
NOTE: Vehicles started with the Remote Engine Starter can idle for a total of 20 minutes, however
automatic engine shutdown occurs after 10 minutes of run-time. You can always restart the Vehicle after
this initial shutdown. Once the total run-time exceeds 20 minutes the vehicle must be manually started
in order to reset the Remote Engine Starter.
NOTE: For vehicles equipped with Piezo, the buzzer will chirp the same number of times that the light
ashes.
For any questions or concerns about the Remote Engine Starter, please call Lexus Customer Relations
at (800) 255-3987.
FOLLOWED IMMEDIATELY BY:
TWO SECONDS
A) Press and
release
the LOCK
button.
B) The hazard
lights ash
once.
D) The hazard
lights ash
again.
C) Press and
release the
LOCK
button again.
D) The engine
starts and the
hazard lights
ash for 20
seconds.
20 SECONDS
STEP 1. Press and release the LOCK button on the remote twice within two seconds. The hazard lights will
flash each time.
STEP 2. Press and hold the LOCK button on the remote for three seconds. The hazard lights flash once when
pressed, then again after three seconds. The engine starts, and the hazard lights flash for 20 seconds.
THREE SECONDS
A) Press and
hold the
LOCK
button for
three
seconds.
B) The hazard
lights ash
once.
C) After
three
seconds,
the hazard
lights ash
again.
UNLOCK UNLOCK
UNLOCK
LEXUS — RES+ Page 17
SMARTPHONE OPERATION KEY FOB OPERATION
OPERATION (for KEY FOB OPERATION)
REMOTE ENGINE STOP
There are two methods by which to shut off the vehicle engine remotely: Either press the UNLOCK button
once OR press and hold the LOCK button for two or more seconds.
Using Method 1, your vehicle will remain unlocked for 30 seconds. Then it automatically relocks if
no doors are opened. If your vehicle will not be in plain view for that time, or you have other security
concerns, you may wish to use Method 2 (below), which does not unlock the vehicle.
NOTE: All doors will remain locked after the engine is shut off.
NOTE: For vehicles equipped with Piezo, the buzzer will chirp the same number of times that the light
ashes.
AUTOMATIC ENGINE SHUTDOWN
The engine will stop automatically after 10 minutes.
METHOD 2: Press and hold the LOCK button on the remote for two or more seconds. The engine stops and
the hazard lights flash once.
A) Press and
hold the
LOCK
button for two
seconds or
more.
B) The
engine
stops.
C) The hazard
lights ash once.
UNLOCK
METHOD 1: Press the UNLOCK button on the remote. The engine stops and the hazard lights flash twice.
A) Press the
UNLOCK
button.
B) The
engine
stops.
C) The hazard
lights ash
twice.
UNLOCK
SMARTPHONE OPERATION
Page 18 LEXUS — RES+
KEY FOB OPERATION
REMOTE ENGINE STARTER INFORMATION
(for KEY FOB OPERATION)
HEATER / AIR CONDITIONER / DEFROSTER / DEFOGGER SETTINGS
For your comfort and convenience, the vehicle’s air conditioning system controls can be preset to operate
the heater, air conditioner, and defroster/defogger at engine startup. The two tables below contain the
settings recommended for best results. Users should preset these before exiting the vehicle. (Please see
your vehicle’s owner’s manual for available settings.)
VEHICLES WITH AUTOMATIC AIR CONDITIONER
Auto Button A/C Button Temperature
Selector
Windshield
Airow
Button
Fan Speed
Selector
Heat ON OFF User Settings OFF OFF
Cool ON ON User Settings OFF OFF
Defrost OFF ON Max Setting ON HIGH
Defog OFF ON Max Setting ON HIGH
NOTE: The Remote Engine Starter may not activate the rear window defroster/defogger.
VEHICLES WITH MANUAL AIR CONDITIONER
A/C Button Temperature
Selector
Airow
Selector
Fan Speed
Selector
Heat OFF WARM PANEL HIGH
Cool ON COLD PANEL HIGH
Defrost ON WARM WINDSHIELD HIGH
Defog ON WARM WINDSHIELD HIGH
NOTE: The Remote Engine Starter may not activate the rear window defroster/defogger.
VEHICLES WITH HEATED AND VENTILATED SEATS
For vehicles equipped with Heated and Ventilated front seats these features can also be turned on so
that when the vehicle is remotely started these features will provide you with additional comfort upon
entering the vehicle.
REMOTE ENGINE STARTER RANGE
The Remote Engine Starter can be effectively operated up to 80 feet in an open space. The physical
makeup of the surrounding environment (hills, trees, buildings, etc.) may affect the Remote Engine
Starter’s maximum range.
Other manuals for RES+
1
Table of contents
Other Lexus Remote Starter manuals
