LG-Nortel iPECS-50 Operating manual

Administration
&
Maintenance Manual

IPECS Release 5
Admin & Maintenance Issue 5.0
i
Revision History
Issue Date Description of Changes
1.0 16-Aug-02 Initial release
1.1 8-Nov-02 General editing and update to Software version 1.1Bd
2.0 29-Aug-03 Final update for iPECS Software release 2.
2.1 12-Feb-04 Add Offline Web Admin
2.2 19-Apr-04 Update for iPECS S/W Phase 2
2.3 18-May-04 Update for iPECS S/W Phase 2
2.4 28-May-04 Update for iPECS S/W Phase 2 (Web Admin)
2.5 29-Jul-04 Update for iPECS S/W Phase 2 (2.0Ai base)
3.0 22-Feb-05 Update for iPECS S/W Phase 3 (3.0As base)
4.0d2 13-Aug-06 Update for iPECS S/W Phase 4, as of 7-02-06
General edits throughout.
Section 1.5 VLAN support added
Added section 1.6 Menu Structure
Keyset Admin
PGM 102 btn 8 updated description of Second System address.
PGM 102 btn 16 & 17 added LAN2 port IP address for redundancy.
PGM 103 btn 3 updated for MISC only.
PGM 103 btn 4 and 5 modified for VSF and MCIM, respectively.
PGM 109 btn 10 and 11 added for TNET and Join Conf Room respectively
PGM 111 btn 18 and 19 added for VM Gateway and SIP User ID respectively.
PGM 112 btn 20~24 added for Call Recording and back-up VM station.
PGM 113 btn 18 & 19 added for VMIM/VSF notification to e-mail.
PGM 124 modified for registered station as linked pair.
PGM 132 btn 5 added for TNET.
PGM 141 btn 11 added for IP protocol.
PGM 160 btn 17 added for Conf Room.
PGM 161 btn 18 added for unified message print for serial interface
PGM 161 btn 19 added for message wait and two-way record warning tone.
PGM 161 btn 20 added for CPU redundancy.
PGM 165 btn 29 and 54 added for VMIM/VSF BGM/MOH RTP & RTCP ports.
PGM 171 Added VMIM/VSF Music source
PGM 177 btn 8 & 24 modified for left right deletion.
PGM 179 added for VMIM/VSF Multi-language support.
PGM 190 & 191 added UCS group.
PGMs 330~333 added for TNET and Fail-over.
Web Admin
Added changes as above.
Deleted Menu Tree structure from section 3.4, added section 1.6 see above.
Added section 3.3.3 Java applet for Web password encryption
Station SIP Attributes 2 added for SIP protocol support.
PGM 132 added UMS Sender e-mail address for VM notification to e-mail.
SIP Gateway Attributes added for SIP protocol support.
PGM 177 added SMDR System Domain Name to allow FQDN support for e-mail
delivery.
Zone Data section 3.5.12 added for Zone configurations
Device Login section 3.5.13 added for Remote Registration Table and Password
Login/out.
Station Program section 3.8 expanded.
4.0d3 30-Sep-06 Update for iPECS S/W Phase 4 (General edits for errata)
4.0d4 01-Dec-06 Update for iPECS S/W Phase 4 (General edits for errata)

IPECS Release 5
Admin & Maintenance Issue 5.0
ii
Issue Date Description of Changes
4.0d5 15-Mar-07 Updated for iPECS S/W Phase 4 (General edits for errata)
Keyset Admin
PGM 174 – Attr 6 Deleted (Purpose : MISC)
PGM 435 – firewall protect default value : from OFF to ON
Web Admin
PGM 106~109 – Updated in case of MFIM600
PGM 174 – Attr 6 Deleted (Purpose : MISC)
PGM 435 – firewall protect default value : from OFF to ON
4.0d6 13-Jun-07 Updated for iPECS S/W Phase 4 (General edits for errata)
Keyset Admin
PGM 100 – Insert warning when change country code
PGM 113 – insert a field (“BY PASS DTMF”)
Web Admin
PGM 113 – insert a field (“BY PASS DTMF”)

IPECS Release 5
Admin & Maintenance Issue 5.0
iii
Issue Date Description of Changes
5.0
Updated for iPECS S/W Phase 5.0
Section 2.3.2.2 partially modified for WTIM Gateway
Section 2.3.5.3 & 2.3.5.5 & 2.3.7.2 & 2.3.9.5 partially modified for expanded VSF
announcement, was 20 now 70
Section 2.3.18 DECT ATTRIBUTES added
Section 3.5.15 DECT Data added
Keyset Admin
PGM102 btn 18 added for DNS IP address
PGM103 btn 7 added for WTIM Gateway
PGM109 btn 12,13 added for Enter Into Conf-Group, Station ICR
PGM111 btn 21 added for Serial DSS usage option
PGM111 btn 22 & 23 added for ICM Dial/Ringback Tone
PGM115 Serial DSS button program description is added
PGM129 added for LESS Label Edit
PGM132 Codec Type G.722 added for LIP-80XX Keyset
PGM142 btn 15 & 16 added for PSTN SMS outgoing & received station
PGM142 btn 17 & 18 added for CO line Dial/Ringback Tone
PGM160 btn 24 added for SIP station connection mode
PGM161btn 22 & 23 added for PSTN SMS number & protocol
PGM161 btn 24 added for added menu
PGM169 btn 4 added for weekday display mode
PGM177 btn 26-29 added for SMDR Interface, SMDR ICM, disconnect cause
PGM178 btn 3 & 4 & 5 added for DST(Daylight Saving Time) ability
PGM195 added for NTP Attributes
PGM231 destination type 12 added for Voice Mail box
PGM231 destination type 13 added for ICLID Routing table
PGM231 flex button 7 added for auto ring assign table
PGM325 added for Network feature code table
PGM444 added for Zone Holiday Assignment
Web Admin
PGM102 insert a filed(“DNS IP Address”)
PGM109 btn 12,13 added for Enter Into Conf-Group, Station ICR
PGM111 btn 21 added for Serial DSS usage
PGM111 btn 22 & 23 added for ICM Dial/Ringback Tone
PGM115 Serial DSS button program and LSS Label edit description inserted
PGM132 Codec Type G.722 added
PGM142 btn 17 & 18 added for CO line Dial/Ringback Tone
PGM161 btn 24 added for added menu
PGM169 btn 4 added for weekday display mode
PGM177 btn 26-29 added for SMDR Interface, SMDR ICM, disconnect cause
PGM195 added for NTP Attributes
PGM196 added for SNMP Attributes
PGM197 added for Cabinet Attributes
PGM231 insert a field(“Auto Ring Mode Table”)
PGM231 insert a destination type
PGM325 added for Network feature code table
PGM439 insert a field(“Display Time Zone”)
PGM444 added for Zone Holiday Assignment
Web Admin – Station Program
Section 3.8.3 added for Station ICR Scenario
Section 3.8.9 added for Conference Group
Update VSF memory/channel capacity

IPECS Release 5
Admin & Maintenance Issue 5.0
iv
Table Of Contents
1. Introduction...................................................................................... 1-1
1.1 Manual Application................................................................................... 1-1
1.2 General .................................................................................................... 1-2
1.3 Initialization.............................................................................................. 1-3
1.4 Registration.............................................................................................. 1-3
1.4.1 Normal Registration Process ............................................................................... 1-3
1.4.2 Replacement Module Registration ....................................................................... 1-4
1.5 Virtual LANs ............................................................................................ 1-5

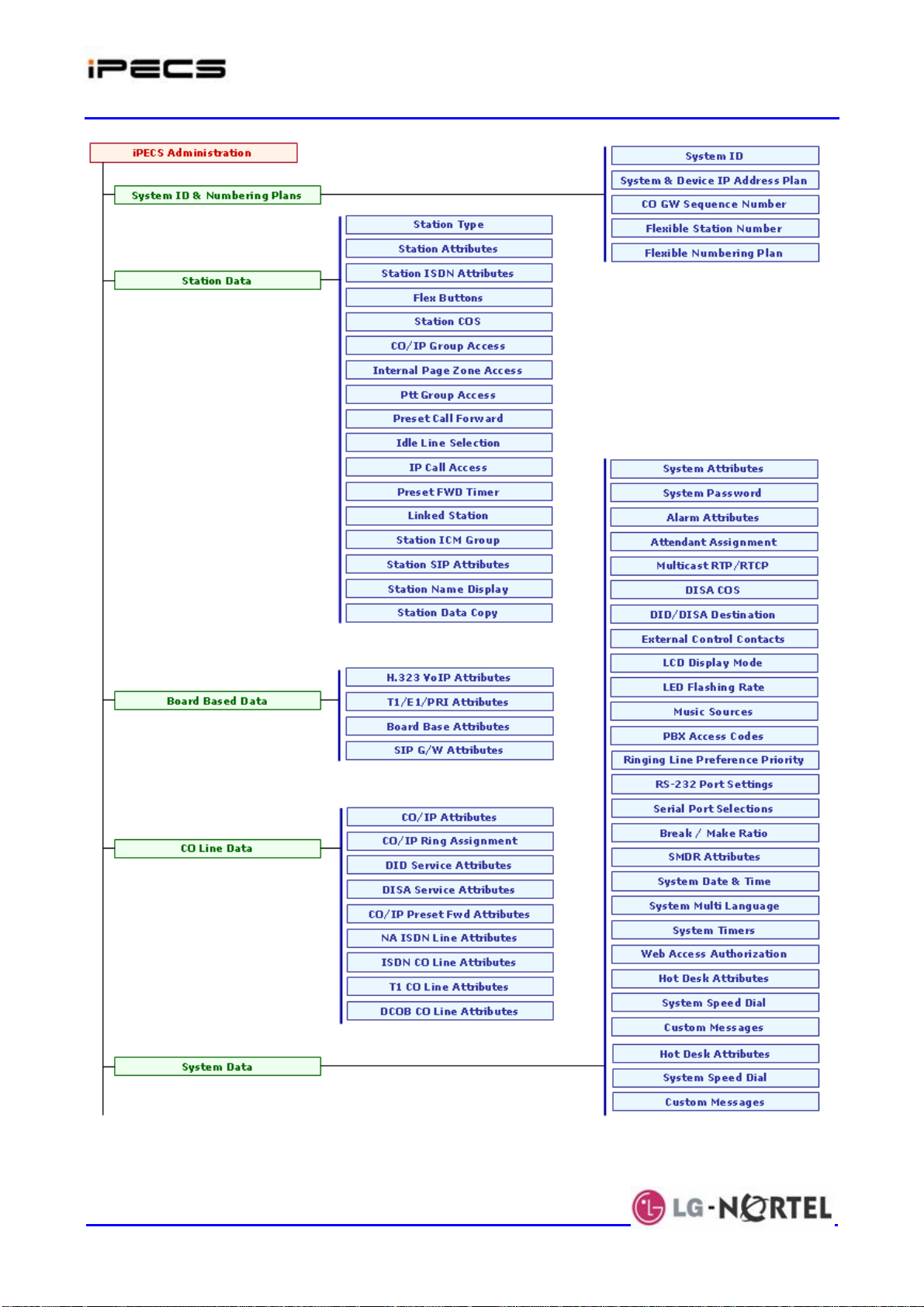

1.6 Program Menu Structure ......................................................................... 1-5
2. Station Admin Programming ............................................................ 2-1
2.1 General .................................................................................................... 2-1
2.1.1 LCD & Button Functions ...................................................................................... 2-1
2.1.2 Alphanumeric Data Entries .................................................................................. 2-1
2.1.3 Required Data Entries .......................................................................................... 2-2
2.2 Data Entry Mode...................................................................................... 2-2
2.3 PROCEDURES FOR DATA ENTRY .......................................................... 2-2
2.3.1 SYSTEM ID – PGM CODE 100- .......................................................................... 2-2
2.3.2 NUMBERING PLANS DATA – PGM CODES 102 to 109- ................................. 2-4
2.3.2.1 System IP Address Plan -PGM Code 102- ........................................................................2-4
2.3.2.2 Device IP Address Plan -PGM Code 103- .........................................................................2-6
2.3.2.3 CO Gateway Sequence Number -PGM Code 104- .........................................................2-10
2.3.2.4 Flexible Station Numbering Plan -PGM Code 105-..........................................................2-11
2.3.2.5 Flexible Numbering Plan part A to D -PGM Codes 106 to 109-.......................................2-12
2.3.3 STATION DATA – PGM CODES 110-125- ..................................................... 2-16
2.3.3.1 Station Type -PGM Code 110-.........................................................................................2-16
2.3.3.2 Station Attributes – I to III -PGM Codes 111-113-............................................................2-19
2.3.3.3 Station Attributes IV -PGM Code 114- .............................................................................2-24
2.3.3.4 Flexible button Assignment -PGM Code 115-..................................................................2-26
2.3.3.5 Station Class-of-Service -PGM Code 116-.......................................................................2-29
2.3.3.6 CO/IP Group Access -PGM Code 117-............................................................................2-31
2.3.3.7 Internal Page Zone Access -PGM Code 118-..................................................................2-31
2.3.3.8 PTT (Push-To-Talk) Group Access -PGM Code 119-......................................................2-32
2.3.3.9 Preset Call Forward -PGM Code 120- .............................................................................2-32
2.3.3.10 Idle Line Selection -PGM Code 121-................................................................................2-33
2.3.3.11 Station IP Attributes -PGM Code 122- .............................................................................2-34
2.3.3.12 Station Timers -PGM Code 123-......................................................................................2-34
2.3.3.13 Linked Station Table -PGM Code 124- ............................................................................2-35
2.3.3.14 ICM Tenancy Group -PGM Code 125-.............................................................................2-37

IPECS Release 5
Admin & Maintenance Issue 5.0
v
2.3.3.15 LSS Label Edit -PGM Code 129- .....................................................................................2-38
2.3.4 BOARD (GATEWAY) DATA – PGM CODES 130 to 132 -............................... 2-38
2.3.4.1 H323 VoIP Attributes -PGM CODE 130-..........................................................................2-38
2.3.4.2 T1/E1/PRI Attributes -PGM CODE 131-...........................................................................2-40
2.3.4.3 Board Base Attributes -PGM CODE 132- ........................................................................2-40
2.3.5 CO LINE DATA – PGM CODES 140 to 151 -................................................... 2-42
2.3.5.1 CO Service Type -PGM Code 140-..................................................................................2-42
2.3.5.2 CO/IP Attributes I ~ III -PGM Codes 141~143-................................................................2-42
2.3.5.3 CO/IP Ring Assignment -PGM Codes 144- .....................................................................2-48
2.3.5.4 DID Service Attributes -PGM Code 145-..........................................................................2-49
2.3.5.5 DISA Service Attributes -PGM Code 146-........................................................................2-50
2.3.5.6 CO Line Preset Forward Attributes -PGM Code 147-......................................................2-51
2.3.5.7 NA ISDN Line Attributes -PGM Code 150-.......................................................................2-52
2.3.5.8 ISDN CO Line Attributes -PGM Code 151-......................................................................2-53
2.3.5.9 T1 Line Timers -PGM Code 152- .....................................................................................2-55
2.3.5.10 DCOB CO Attribute -PGM Code 153-..............................................................................2-56
2.3.6 SYSTEM DATA – PGM CODES 160 to 182 - .................................................. 2-57
2.3.6.1 System Attributes I & II -PGM Codes 160 to 161-............................................................2-57
2.3.6.2 System Password -PGM Code 162- ................................................................................2-61
2.3.6.3 Alarm Attributes -PGM Code 163-....................................................................................2-62
2.3.6.4 Attendant Assignment -PGM Code 164-..........................................................................2-63
2.3.6.5 Multi-cast RTP/RTCP Ports -PGM Code 165- .................................................................2-63
2.3.6.6 DISA COS -PGM Code 166-............................................................................................2-68
2.3.6.7 DID/DISA Destination -PGM Code 167-...........................................................................2-69
2.3.6.8 External Control Contacts -PGM Code 168-....................................................................2-70
2.3.6.9 LCD Display Mode -PGM Code 169- ...............................................................................2-70
2.3.6.10 Button LED Flash Rate -PGM Code 170- ........................................................................2-72
2.3.6.11 Music Sources -PGM Code 171-......................................................................................2-74
2.3.6.12 PBX Access Codes -PGM Code 172-..............................................................................2-75
2.3.6.13 Ringing Line Preference Priority -PGM Code 173- ..........................................................2-75
2.3.6.14 RS-232 Port Settings -PGM Code 174- ...........................................................................2-76
2.3.6.15 Serial Port Function Selections -PGM Code 175-............................................................2-77
2.3.6.16 Break/Make Ratio -PGM Code 176-.................................................................................2-79
2.3.6.17 SMDR Attributes -PGM Code 177- ..................................................................................2-79
2.3.6.18 System Date, Time and Daylight Saving Time (DST) -PGM Code 178-..........................2-82
2.3.6.19 Multi Language –PGM Code 179-....................................................................................2-83
2.3.6.20 System Timers I to III -PGM Codes 180-182-..................................................................2-83
2.3.6.21 DCOB SYS Timers -PGM Code 186-...............................................................................2-87
2.3.6.22 NTP Attributes -PGM Code 195-......................................................................................2-88
2.3.7 STATION GROUP DATA – PGM CODES 190 & 191-..................................... 2-88
2.3.7.1 Station Group Assignment -PGM Code 190-...................................................................2-89
2.3.7.2 Station Group Attributes -PGM Code 191-.......................................................................2-90
2.3.8 ISDN LINE & ICLID ROUTING DATA – PGM CODES 200-205- ................. 2-101
2.3.8.1 ISDN Attributes -PGM Code 200- ..................................................................................2-101
2.3.8.2 CLIP/COLP Table -PGM Code 201- ..............................................................................2-101
2.3.8.3 MSN Table -PGM Code 202- .........................................................................................2-102
2.3.8.4 ICLID Route Table -PGM Code 203- .............................................................................2-103
2.3.8.5 ICLID Ring Assignment -PGM Code 204-......................................................................2-104
2.3.8.6 ISDN PPP Web Admin Attributes -PGM Code 205- ......................................................2-105
2.3.9 TABLES DATA – PGM CODES 220 to 235 -................................................. 2-106
2.3.9.1 LCR Assignment Tables -PGM Codes 220 to 223- .......................................................2-106
2.3.9.2 Toll Tables -PGM Code 224-..........................................................................................2-111
2.3.9.3 Emergency Code Table -PGM Code 226- .....................................................................2-112
2.3.9.4 Authorization Codes Table -PGM Code 227-.................................................................2-112
2.3.9.5 Customer Call Routing/VSF AA Table -PGM Code 228-...............................................2-113

IPECS Release 5
Admin & Maintenance Issue 5.0
vi
2.3.9.6 Executive/Secretary Table -PGM Code 229-.................................................................2-114
2.3.9.7 Flexible DID Conversion Table -PGM Code 231- ..........................................................2-115
2.3.9.8 System Speed Zone Table -PGM Code 232-.................................................................2-117
2.3.9.9 Auto Ring Mode -PGM Code 233- .................................................................................2-118
2.3.9.10 Voice Mail Dialing Table -PGM Code 234-.....................................................................2-119
2.3.9.11 Registration & Fractional Module Table –PGM Code 235-............................................2-120
2.3.9.12 Mobile Extension Table –PGM Code 236-.....................................................................2-121
2.3.9.13 Hot Desk Attributes –PGM Code 250- ...........................................................................2-122
2.3.10 NETWORKING DATA – PGM CODES 320 to 324-........................................ 2-123
2.3.10.1 Network Basic Attribute -PGM Code 320-......................................................................2-123
2.3.10.2 Network Supplementary Attribute -PGM Code 321- ......................................................2-124
2.3.10.3 Network CO LINE Attribute -PGM Code 322-................................................................2-125
2.3.10.4 NET Numbering Plan Table -PGM Code 324-...............................................................2-125
2.3.10.5 Network Feature Code Table -PGM Code 325-.............................................................2-127
2.3.11 TNET (Centralized Networking) – PGM CODES 330 – 336- ...................... 2-127
2.3.11.1 TNET Basic Attributes – PGM Code 330.......................................................................2-127
2.3.11.2 TNET CM Attributes – PGM Code 331 ..........................................................................2-128
2.3.11.3 TNET LM ATTRIBUTES – PGM Code 332....................................................................2-129
2.3.11.4 FoPSTN Attributes – PGM Code 333.............................................................................2-130
2.3.11.5 TNET LM External Contact Attributes – PGM Code 334...............................................2-131
2.3.11.6 TNET LM Music Attributes – PGM Code 335.................................................................2-131
2.3.11.7 TNET LM Alarm Attributes – PGM Code 336.................................................................2-132
2.3.12 RSGM & Remote Device Data – PGM CODES 430-435- .............................. 2-133
2.3.12.1 RSGM & Remote Device Table -PGM Code 430- .........................................................2-133
2.3.12.2 RSGM Multi-Cast RTP/RTCP Ports -PGM Code 431-...................................................2-134
2.3.12.3 RSGM External Control Contact -PGM Code 432-........................................................2-135
2.3.12.4 RSGM Alarm Attribute -PGM Code 433-........................................................................2-135
2.3.12.5 RSGM Music Assignment -PGM Code 434-..................................................................2-136
2.3.12.6 RSGM Service Attributes -PGM Code 435-...................................................................2-137
2.3.13 Zone Data – PGM CODES 436-441, 444 ........................................................ 2-138
2.3.13.1 Zone Holiday Assignment -PGM Code 444-..................................................................2-138
2.3.14 INITIALIZATION -PGM Code 450- ................................................................ 2-139
2.3.15 PRINT-OUT DATABASE -PGM Code 451- .................................................. 2-140
2.3.16 VIRTUAL TRACE DIP-SWITCH -PGM Code 452- ....................................... 2-141
2.3.17 VIRTUAL DIP-SWITCH -PGM Code 453-..................................................... 2-142
2.3.18 DECT ATTRIBUTES-PGM Code 491 ............................................................. 2-143
3. WEB SERVICE ................................................................................. 3-1
3.1 General .................................................................................................... 3-1
3.1.1 PC/Browser .......................................................................................................... 3-1
3.1.2 Environment for LAN connection ........................................................................ 3-1
3.1.3 Web Browser setting............................................................................................ 3-1
3.2 Web Home Page....................................................................................... 3-3
3.2.1 Browser Access ................................................................................................... 3-3
3.2.2 User's Guide ......................................................................................................... 3-4
3.2.3 Station Program.................................................................................................... 3-5
3.2.4 Web Admin & Maintenance.................................................................................. 3-5
3.3 WEB ADMIN Data Modification & Access............................................... 3-6

IPECS Release 5
Admin & Maintenance Issue 5.0
vii
3.3.1 Web Admin Data Modification ............................................................................. 3-6
3.3.2 Maintenance & Admin Password......................................................................... 3-6
3.3.3 Password Encryption ........................................................................................... 3-7
3.4 WEB ADMIN & MAINTENANCE OVERVIEW.......................................... 3-8
3.5 iPECS WEB ADMINISTRATION............................................................... 3-9
3.5.1 System ID & Numbering Plans .......................................................................... 3-10
3.5.1.1 System ID.........................................................................................................................3-11
3.5.1.2 System & Device IP Address Plan...................................................................................3-12
3.5.1.3 CO Gateway Sequence Number......................................................................................3-15
3.5.1.4 Flexible Station Numbering Plan......................................................................................3-17
3.5.1.5 Flexible Numbering Plan ..................................................................................................3-18
3.5.2 Station Data Program ......................................................................................... 3-21
3.5.2.1 Station Type .....................................................................................................................3-22
3.5.2.2 Station Attributes..............................................................................................................3-23
3.5.2.3 Station ISDN Attributes.....................................................................................................3-28
3.5.2.4 Flexible Buttons................................................................................................................3-30
3.5.2.5 Station COS......................................................................................................................3-31
3.5.2.6 CO/IP Group Access........................................................................................................3-33
3.5.2.7 Internal Page Zone Access ..............................................................................................3-34
3.5.2.8 PTT Group Access...........................................................................................................3-35
3.5.2.9 Preset Call Forward..........................................................................................................3-36
3.5.2.10 Idle Line Selection............................................................................................................3-37
3.5.2.11 Station IP Attributes..........................................................................................................3-38
3.5.2.12 Station Timers ..................................................................................................................3-39
3.5.2.13 Linked Station...................................................................................................................3-40
3.5.2.14 Station ICM Tenancy Group.............................................................................................3-42
3.5.2.15 Station SIP Attributes 2 ....................................................................................................3-43
3.5.2.16 Station Name Display.......................................................................................................3-45
3.5.2.17 Station Copy.....................................................................................................................3-46
3.5.3 Board (gateway Module) Data ........................................................................... 3-47
3.5.3.1 H323 VoIP Attributes........................................................................................................3-48
3.5.3.2 T1/PRI Attributes..............................................................................................................3-50
3.5.3.3 Board Base Attributes.......................................................................................................3-51
3.5.3.4 SIP Gateway Attributes ....................................................................................................3-53
3.5.4 CO Line Data....................................................................................................... 3-55
3.5.4.1 CO/IP Attributes................................................................................................................3-56
3.5.4.2 CO Ring Assignment........................................................................................................3-60
3.5.4.3 DID Service Attributes......................................................................................................3-61
3.5.4.4 DISA Service Attributes....................................................................................................3-63
3.5.4.5 CO/IP Preset Forward Attributes......................................................................................3-64
3.5.4.6 NA ISDN Line Attributes...................................................................................................3-65
3.5.4.7 ISDN CO Line Attributes...................................................................................................3-67
3.5.4.8 T1 CO Line Attributes.......................................................................................................3-71
3.5.4.9 DCOB CO Line Attributes.................................................................................................3-73
3.5.5 System Data........................................................................................................ 3-74
3.5.5.1 System Attributes .............................................................................................................3-75
3.5.5.2 System Password.............................................................................................................3-79
3.5.5.3 Alarm Attributes................................................................................................................3-80
3.5.5.4 Attendant Assignment ......................................................................................................3-81
3.5.5.5 Multi-cast RTP/RTCP.......................................................................................................3-82
3.5.5.6 DISA COS.........................................................................................................................3-87
3.5.5.7 DID/DISA Destination.......................................................................................................3-88

IPECS Release 5
Admin & Maintenance Issue 5.0
viii
3.5.5.8 External Control Contacts.................................................................................................3-89
3.5.5.9 LCD Display Mode............................................................................................................3-90
3.5.5.10 LED Flashing Rate ...........................................................................................................3-92
3.5.5.11 Music Sources..................................................................................................................3-95
3.5.5.12 PBX Access Codes ..........................................................................................................3-96
3.5.5.13 Ringing Line Preference Priority.......................................................................................3-97
3.5.5.14 RS-232 Port Settings........................................................................................................3-98
3.5.5.15 Serial Port Function Selections ......................................................................................3-100
3.5.5.16 Break/Make Ratio...........................................................................................................3-101
3.5.5.17 SMDR Attributes.............................................................................................................3-102
3.5.5.18 System Date & Time.......................................................................................................3-105
3.5.5.19 System Multi Language..................................................................................................3-107
3.5.5.20 System Timers................................................................................................................3-108
3.5.5.21 Web Access Authorization..............................................................................................3-113
3.5.5.22 Hot Desk Attributes.........................................................................................................3-114
3.5.5.23 System Speed Dial.........................................................................................................3-116
3.5.5.24 Custom Messages..........................................................................................................3-117
3.5.5.25 NTP Attributes................................................................................................................3-118
3.5.5.26 SNMP Attribute...............................................................................................................3-119
3.5.5.27 Cabinet Attributes...........................................................................................................3-121
3.5.6 Station Group Data ........................................................................................... 3-122
3.5.6.1 Station Group Overview .................................................................................................3-123
3.5.6.2 Station Group Assignment..............................................................................................3-124
3.5.6.3 Station Group Attributes.................................................................................................3-126
3.5.7 ISDN Line & ICLID Routing Data..................................................................... 3-142
3.5.7.1 ISDN Attributes...............................................................................................................3-143
3.5.7.2 CLIP/COLP Table...........................................................................................................3-144
3.5.7.3 MSN Table......................................................................................................................3-145
3.5.7.4 ICLID Route Table..........................................................................................................3-146
3.5.7.5 ICLID Ring Assignment Table........................................................................................3-147
3.5.7.6 ISDN PPP Web Admin Attributes...................................................................................3-148
3.5.8 Tables Data....................................................................................................... 3-149
3.5.8.1 LCR Control Attributes....................................................................................................3-150
3.5.8.2 LCR – LDT (Leading Digit Table)...................................................................................3-152
3.5.8.3 LCR – DMT (Digit Modification Table)............................................................................3-154
3.5.8.4 LCR Table Initialization...................................................................................................3-156
3.5.8.5 Toll Exception Table.......................................................................................................3-157
3.5.8.6 Emergency Code Table..................................................................................................3-159
3.5.8.7 Authorization Code Table...............................................................................................3-160
3.5.8.8 Customer Call Routing Table .........................................................................................3-161
3.5.8.9 Executive/Secretary Table..............................................................................................3-163
3.5.8.10 Flexible DID Conversion Table.......................................................................................3-164
3.5.8.11 System Speed Zone Table.............................................................................................3-166
3.5.8.12 Auto Ring Mode Table....................................................................................................3-167
3.5.8.13 Voice Mail Dialing Table.................................................................................................3-168
3.5.8.14 Registration Table & Fractional Module Table...............................................................3-170
3.5.8.15 Mobile Extension Table..................................................................................................3-171
3.5.9 Networking Data............................................................................................... 3-173
3.5.9.1 Network Basic Attributes ................................................................................................3-174
3.5.9.2 Network Supplementary Attributes.................................................................................3-175
3.5.9.3 Network CO Line Attributes............................................................................................3-176
3.5.9.4 Network Numbering Plan Table .....................................................................................3-177
3.5.9.5 Network Feature Code Table .........................................................................................3-179
3.5.10 Remote Device Data ......................................................................................... 3-180
3.5.10.1 Remote Device Address.................................................................................................3-181

IPECS Release 5
Admin & Maintenance Issue 5.0
ix
3.5.10.2 Remote Music Address ..................................................................................................3-182
3.5.10.3 Remote Ext Contact .......................................................................................................3-183
3.5.10.4 RSGM Alarm Attributes..................................................................................................3-184
3.5.11 TNET (Central Control Networking) Data ...................................................... 3-186
3.5.11.1 Tnet Basic Attributes(PGM 330).....................................................................................3-187
3.5.11.2 Tnet CM Attributes (PGM 331).......................................................................................3-188
3.5.11.3 Tnet LM Attributes (PGM 332)........................................................................................3-190
3.5.11.4 Tnet FoPSTN table (PGM 333)......................................................................................3-191
3.5.11.5 TNET LM EXT CONTACT (PGM 334)...........................................................................3-192
3.5.11.6 TNET LM MUSIC/ALARM ATTRIBUTES (PGM 335/336).............................................3-193
3.5.12 Zone Data.......................................................................................................... 3-194
3.5.12.1 Device Zone Number......................................................................................................3-195
3.5.12.2 Device Zone Attributes...................................................................................................3-196
3.5.12.3 Access & Page Relay.....................................................................................................3-198
3.5.12.4 Zone Attribute.................................................................................................................3-199
3.5.12.5 Zone RTP Relay Group..................................................................................................3-201
3.5.12.6 Inter Zone Attribute.........................................................................................................3-202
3.5.12.7 Zone Holiday Assignment...............................................................................................3-204
3.5.13 Device Login..................................................................................................... 3-205
3.5.13.1 Remote Phone & CO Gateway Registration..................................................................3-206
3.5.13.2 Station User Login..........................................................................................................3-207
3.5.14 Initialization ...................................................................................................... 3-209
3.5.14.1 Initialization Table...........................................................................................................3-210
3.5.15 DECT Data ........................................................................................................ 3-211
3.5.15.1 DECT Registration..........................................................................................................3-212
3.5.15.2 DECT ATTRIBUTES ......................................................................................................3-215
3.6 FILE UPLOAD & REMOTE UPGRADE................................................. 3-216
3.6.1 File Upload........................................................................................................ 3-217
3.6.2 Upgrade Process .............................................................................................. 3-218
3.6.3 Upgrade Process View..................................................................................... 3-220
3.6.4 VSF Prompt Upgrade View.............................................................................. 3-221
3.6.5 VSF System Greeting Up & Download View .................................................. 3-222
3.6.6 iPECS System Upgrade Process ..................................................................... 3-224
3.6.6.1 iPECS Software Full Upgrade Sequence.......................................................................3-224
3.6.6.2 MFIM Upgrade................................................................................................................3-227
3.6.6.3 Upgrade HTML Files ......................................................................................................3-227
3.6.6.4 Appliances Upgrade (gateway Module and iPECS Phone)...........................................3-227
3.6.6.5 Direct Appliances Upgrade.............................................................................................3-227
3.7 MAINTENANCE................................................................................... 3-229
3.7.1 Database ........................................................................................................... 3-230
3.7.1.1 Database Download.......................................................................................................3-231
3.7.1.2 Database Upload............................................................................................................3-233
3.7.2 SMDR ................................................................................................................ 3-234
3.8 STATION PROGRAM (User Portal) ..................................................... 3-235
3.8.1 Station Attributes ............................................................................................. 3-236
3.8.2 Call Forward ..................................................................................................... 3-238
3.8.2.1 Station Call Forward.......................................................................................................3-238
3.8.2.2 Preset Call Forward........................................................................................................3-238
3.8.3 Station ICR Scenario ........................................................................................ 3-239

IPECS Release 5
Admin & Maintenance Issue 5.0
x
3.8.4 Station Speed Dial ............................................................................................ 3-240
3.8.5 Pre-selected Message ..................................................................................... 3-241
3.8.6 Flex Buttons ..................................................................................................... 3-242
3.8.7 Internal SMS ..................................................................................................... 3-243
3.8.8 External SMS.................................................................................................... 3-244
3.8.9 Station List Management.................................................................................. 3-245
3.8.10 Conference Group ............................................................................................ 3-246
3.8.11 Station Logout .................................................................................................. 3-249
APPENDIX A ........................................................................................ A-1
APPENDIX B .........................................................................................B-1
APPENDIX C .........................................................................................C-1
APPENDIX D ........................................................................................ D-1

IPECS Release 5
Admin & Maintenance Issue 5.0
1-1
1. INTRODUCTION
1.1 MANUAL APPLICATION
This manual provides detailed information on the database management of the iPECS Series
systems. The iPECS Series is available with several versions of the call server configuration
including the 50 channel IPECS-50, the 100-channel MFIM100, the 300-channel MFIM300 and the
600-channel MFIM600. Several other variations exist between systems based on the model
employed as shown in Table 1.1-1 System Capacity Chart.
Table 1.1-1 System Capacity Chart
CAPACITY
DESCRIPTION iPECS-50 MFIM100 MFIM300 MFIM600
Main Cabinet n/a 10 slots 10 slots 10 slots
System Capacity 50 ports 100 ports 300 ports 600 ports
Stations*1 50
(Basic: 2 SLT) 70 300 600
PSTN circuits*1 max 42, basic
iPECS 50A
std 4 PSTN + VoIP
iPECS 50B
std. 4 BRI + VoIP
42
(Basic: 6 VOIP
channels)
200
(Basic: 6 VOIP
channels)
400
Max. RSGMs*2 25 35 150 300
Attendants 4 4 5 5
Serial Port (RS-
232C) 1 1 1 1
USB Host port 1 1 1 1
Alarm/Door bell
input 1 2 2 2
External Control
Relays 1 2 4 4
Music Source Inputs 1 2 2 2
Power Fail Circuit 1 4 4 + Ext. PFTU (6
optional) 4 + Ext. PFTU (6 optional)
External Page
zones 1 2 2 2
Internal Page Zones 10 10 35 35
System Speed Dial 800 (48 digits) 800 (48 digits) 3000 (48 digits) 6000 (48
digits)
System Speed Dial
Zones (Groups) 10 10 10 20
Station Speed Dial 20 (48 digits) 20 (48 digits) 100 (48 digits) 100 (48 digits)

IPECS Release 5
Admin & Maintenance Issue 5.0
1-2
CAPACITY
DESCRIPTION iPECS-50 MFIM100 MFIM300 MFIM600
Last Number Redial 10 (48 digits) 10 (48 digits) 10 (48 digits) 10 (48 digits)
Save Number
Redial 1 (48 digits) 1 (48 digits) 1 (48 digits) 1 (48 digits)
DSS Consoles/Station 3 3 9 9
SMDR buffer 5000 5000 10000 15000
CO Line Groups 20 20 72 72
Station & Hunt
Groups 40 40 48 48
Station & Hunt
Group Members 50 70 70 70
Executive/Secretary
pairs 10 10 36 36
Authorization Codes 500(50/450) 500(70/430) 1000(300/700) 2000(600/140
0)
VSF*3 280(245) minutes
(6 channels) 210(175)minutes (6 channels) 210(175) minutes (6 channels) n/a
VMIM 9 hours 9 hours 9 hours 9 hours x 6
MCIM 2 2 4 8
WTIM 16 16 32 32
VoIP channels*4 4/8 6 6 n/a
Redundancy No Yes
Yes Yes
Note 1 The station and CO Line maximums are not simultaneously; total ports cannot exceed 100 with MFIM100, 50 with IPECS-50,
300 with MFIM300 and 600 with the MFIM600.
Note 2 For maximum RSGM connection ports, calculation formula is ports = available system station ports)/2, there must be
sufficient VoIP channels to support packet relay for RSGM rtp packets.
Note 3 16 M byte is used for prompt (35 minutes)
Note 4 iPECS-50 can support 8 VoIP channels if G.711 is used or4 channels if complex codec (G.723.1/G.729) is used
1.2 GENERAL
iPECS can be programmed to meet each customer's individual needs. System programming may
be accomplished by entering the “PROGRAM MODE” at an assigned Admin Station or by pointing a
Web Browser at the system’s MFIM private/public IP address. Section 2 provides a description for
data entry using the Admin Station, and Section 3 provides instructions for entering data when
using a Web Browser. Note that some parameters are available through Web Admin and not the
Keyset Admin.
This section provides general information. An index to database entries, default value charts for
the Flexible Numbering Plan, Fixed Function dial-codes and the entire database are provided in
Appendix A through D, respectively. The index and charts are helpful references when entering
data into the system’s database.

IPECS Release 5
Admin & Maintenance Issue 5.0
1-3
1.3 INITIALIZATION
When power is applied to the MFIM or the MFIM Reset button is pressed, the system will initiate
the “Power-up” routine. During the Power-Up routine the system will check the Initialization switch
(4th position of the MFIM DIP-switch), refer to the iPECS Description and Installation Manual
section 4.4.2. If the switch is in the OFF position, the system will perform a simple Power-Up
routine; clear all scratch-pad memory, load run-time programs, establish communications with
each registered gateway Module and iPECS terminal, send RESTART commands and load
appropriate settings to the Modules and terminals. If a Module or terminal does not respond after
several attempts, the system places the device in an out-of-service mode but maintains the
database settings. Once the Power-up routine is complete, the system will conduct normal
operations.
If the Initialization switch is in the ON position, in place of the Power-Up routine, the system will
perform the full Initialization procedure. The initialization procedure will set the system database to
default values, refer to Appendix D. Further, during the full initialization procedure, the system will
establish communications with each gateway Module and iPECS terminal for registration. This
communication will use the default device IP address and using the MFIM MAC address for
system identification. The system will assign IP addresses and Sequence Numbers for each
gateway Module and iPECS terminal and use these values for subsequent communication and
logical assignments of numbering plans, respectively. In addition, the system sends commands to
modify all settings to the default values, including IP addresses but maintains the existing
Sequence Numbers. After successfully registering, should a device not respond to several
attempts by the system, the system places the device in an out-of-service mode but maintains the
database. Once initialization is complete, set the initialization switch to the OFF position to protect
the database. The system must be restarted to complete the initialization.
1.4 REGISTRATION
1.4.1 Normal Registration Process
Module & Terminal
When power is applied and an Ethernet link is established, an unregistered device will attempt to
discover and register with a local (on the same LAN) iPECS system. The Module or terminal will
send a registration request to the assigned iPECS system (MFIM) IP address. If no response is
received, the device will generate a Multi-cast discovery request for registration.
Remote iPECS Phone & Remote Services Module
A remote device, iPECS Phone or gateway Module, registers with the system using the MAC
address of the device. The MAC address must be assigned in the system database and the IP
address of the system must be assigned in the remote device. Using this address, the remote
device will attempt to register with the assigned iPECS system. When the system receives the
registration request, the MAC address is compared with the database to authenticate the remote
device. With a matching MAC, the system will accept the registration request and provide the
remote device with the appropriate settings. Note that the position of the MFIM Registration switch
does not affect remote registration.

IPECS Release 5
Admin & Maintenance Issue 5.0
1-4
iPECS system
When power is applied, an Ethernet link is established, and the Registration switch (MFIM DIP-
switch position 3) is in the ON position, the MFIM will send a Multi-cast request to unregistered
gateway Modules and iPECS terminals for registration.
When the system receives a valid registration or discovery request, and the Registration switch
(MFIM DIP-switch position 3) is in the ON position, the system will respond to the gateway Module
or terminal with a Registration command including the system IP and MAC address. During the
registration process, the Module or terminal will receive data from the system including a
Sequence Number, IP address, RTP characteristics, etc, as well as default settings appropriate to
the type of Module or terminal. Once registered, the Module or terminal will maintain the system IP
and MAC address in non-volatile memory and will not attempt further registrations.
If the Registration switch is in the OFF position, the system will not respond to normal registration
requests from a local device.
1.4.2 Replacement Module Registration
Under certain situations, it is necessary to force the registration of gateway modules and terminals
specifically when an MFIM, gateway Module or iPECS Terminal is replaced. When replacing an
MFIM, gateway Modules and iPECS terminals must be forced to register with the new system.
With Module or terminal replacement, the system must recognize the “replacement” status to
transfer the existing database values.
When replacing an MFIM, after following the instructions of section 4.4.2 in the iPECS Description
& Installation Manual, the local Web interface is used to access the system. The user may update
the system database using the database downloaded from the previous MFIM memory.
Using the Terminal mode Command Line interface or Web Admin, the user provides the new
MFIM with the IP and MAC address of the previous MFIM, and issues the Register command. The
new system will then send a Uni-cast Register command to each gateway Module and iPECS
terminal registered to the previous system. This Register command will include the previous
system IP address. These commands are repeated several times only. As communication is
established, the new MFIM will update the settings of the gateway Modules and iPECS terminals
appropriately. When the gateway Modules and terminals respond, they are registered to the new
system.
When replacing a gateway Module, use PROGRAM CODES 103 and 104 (in Web Admin “System &
Device IP Address Plan” and “CO Gateway Sequence Number”) to delete the existing MAC
information and assign the MAC information for the new module. Install the new gateway Module.
When replacing an iPECS terminal, using PROGRAM CODES 103 and 105 (Web Admin “System &
Device IP Address” and “Flexible Station Numbering Plan”), delete the MAC information for the
previous iPECS terminal and assign the MAC information for the new iPECS terminal. Install the
new terminal.

IPECS Release 5
Admin & Maintenance Issue 5.0
1-5
1.5 VIRTUAL LANS
iPECS devices (modules and terminals) support the IEEE 802.1p/Q standard for Virtual LAN
operation. The VLAN priority and ID (tag) are assigned in the Web Admin of each module and
terminal. For the MFIM, assign VLAN parameters in maintenance through the RS-232 port or a
TCP/IP connection with the following commands:
maint> vlanset pri [value] // priority from 0 to 7
maint> vlanset id [value] // vlan id value (0 to 4094)
maint> vlan start // start.
1.6 PROGRAM MENU STRUCTURE
Database Administration is accomplished by entering “PROGRAM CODES”from the dial pad of an
iPECS phone or selecting an item from the Navigation pane in iPECS Web Admin pages. Items in
the Navigation pane roughly correlate with the Program codes however; certain items can only be
assigned via the Web interface. Data items are organized as a group with a common affect, i.e.
station, system, numbering plan, etc. Items may be further grouped forming a multi-layered menu
structure as shown in Figure 1.6-1.

IPECS Release 5
Admin & Maintenance Issue 5.0
1-6

IPECS Release 5
Admin & Maintenance Issue 5.0
1-7

IPECS Release 5
Admin & Maintenance Issue 5.0
1-8
Figure 1.6-1 Admin Menu Structure

IPECS Release 5
Admin & Maintenance Issue 5.0
2-1
2. STATION ADMIN PROGRAMMING
2.1 GENERAL
2.1.1 LCD & Button Functions
While in the PROGRAM MODE, the Liquid Crystal Display (LCD) and Flex button LEDs of an Admin
Station are used to guide and indicate status of the feature. The dial-pad is most often used to
enter data after selecting a data item using the Flex buttons. In some cases, pressing a Flex
button will toggle the entry with the Flex button LED indicating the status (ON/OFF).
For PROGRAM CODES with multiple Flex button selections, the volume controls ([VOL UP]and [VOL
DOWN]buttons) may be used to select the next or previous item. The [SPEED]button is generally
employed as a delete button to erase existing entries however, where noted, it may be used to
confirm a range input. Pressing the [CONF]button returns to the 1st step of the data entry procedure
for the PROGRAM CODE without storing unsaved entries.
The [SAVE]button is used to store data after entry. If there are no conflicts in the entered data,
confirmation tone will be received and the data stored. If a conflict exists, error tone is provided
and newly entered data are not saved. Generally, corrected data may be entered and stored
without restarting the entry procedure from the 1st step.
2.1.2 Alphanumeric Data Entries
In some cases, an alphanumeric entry is required. Two (2) dial-pad digits represent each
character of an alphanumeric entry, as shown in Table 2.1.2-1 below. Use the Table to determine
the two digits that must be entered from the dial-pad for each character.
Table 2.1.2-1 ALPHANUMERIC DIAL-PAD ENTRIES
Q – 11
Z – 12
. – 13
1 – 10
A - 21
B - 22
C - 23
2 - 20
D - 31
E - 32
F - 33
3 - 30
G – 41
H - 42
I - 43
4 - 40
J - 51
K - 52
L - 53
5 - 50
M - 61
N - 62
O - 63
6 - 60
P - 71
R - 72
S - 73
Q - 7*
7 - 70
T - 81
U - 82
V - 83
8 - 80
W - 91
X - 92
Y - 93
Z - 9#
9 - 90
Blank - *1
: - *2
, - *3 0-00 #
