BLU-RAY DISC PLAYER
SERVICE MANUAL
MODEL: BD530
CAUTION
BEFORE SERVICING THE UNIT, READ THE “SAFETY PRECAUTIONS”
IN THIS MANUAL.
MODEL: BD530SERVICE MANUAL
P/NO : AFN75111904AUGUST, 2010
Website http://biz.lgservice.com
Internal Use Only

CONTENTS
SECTION 1 ........ SUMMARY
SECTION 2 ........ CABINET & MAIN CHASSIS
SECTION 3 ........ ELECTRICAL
SECTION 4 ........ MT8550L F/E LOADER PART
SECTION 5 ........ REPLACEMENT PARTS LIST
1-1

SECTION 1
SUMMARY
CONTENTS
PRODUCT SAFETY SERVICING GUIDELINES
FOR BLU-RAY DISC PLAYER PRODUCTS...................................................................................... 1-3
SERVICING PRECAUTIONS................................................................................................................... 1-4
• GENERAL SERVICING PRECAUTIONS
• INSULATION CHECKING PRODEDURE
• ELECTROSTATICALLY SENSITIVE (ES) DEVICES
FIRMWARE UPDATE GUIDE.................................................................................................................. 1-5

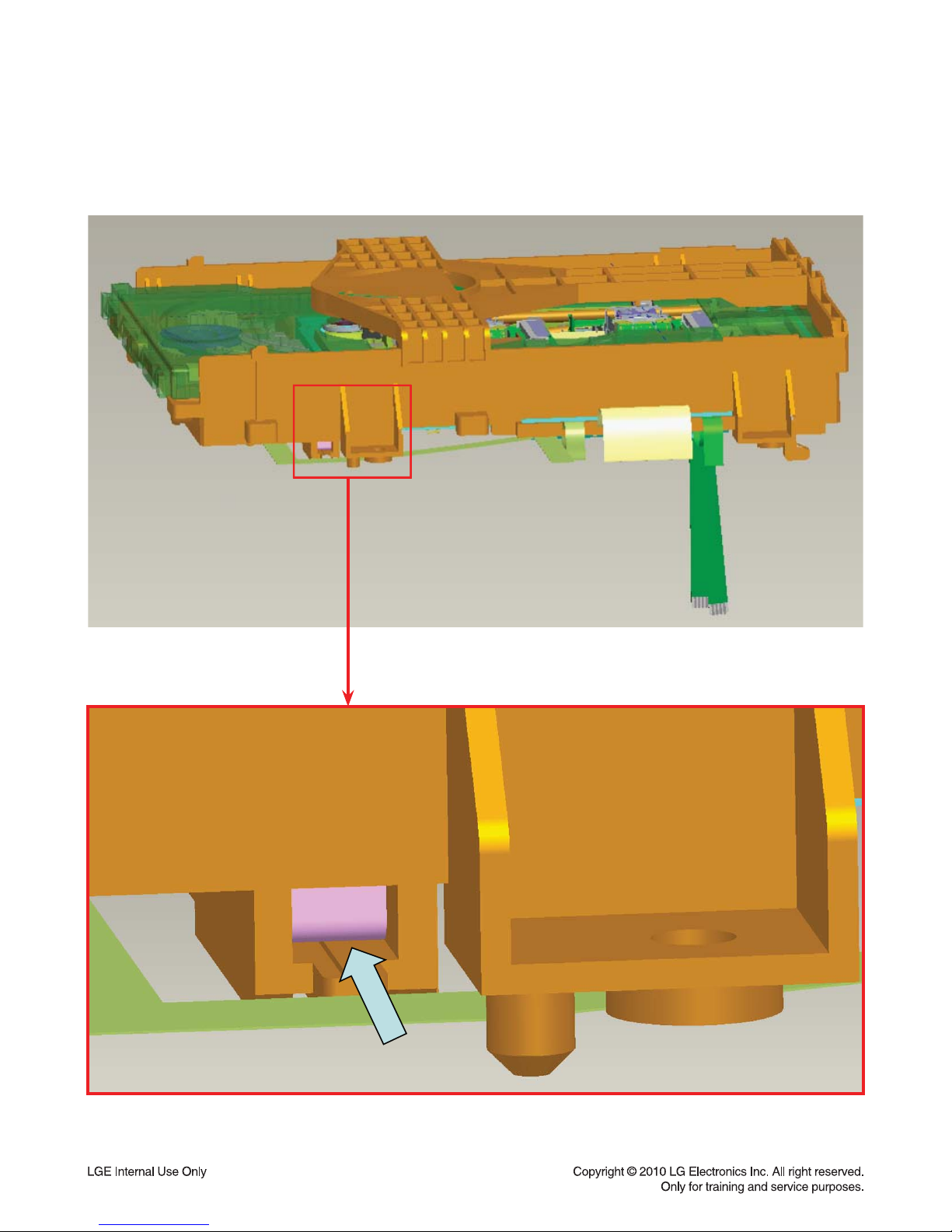

EMERGENCY TRAY OPEN METHOD................................................................................................. 1-8
SPECIFICATIONS ....................................................................................................................................... 1-9
1-2

IMPORTANT SAFETY NOTICE
This manual was prepared for use only by properly trained audio-video service
technicians.
When servicing this product, under no circumstances should the original design be
modified or altered without permission from LG Corporation. All components should
be replaced only with types identical to those in the original circuit and their physical
location, wiring and lead dress must conform to original layout upon completion of
repairs.
Special components are also used to prevent x-radiation, shock and fire hazard.
These components are indicated by the letter “x” included in their component desig-
nators and are required to maintain safe performance. No deviations are allowed
without prior approval by LG Corporation.
Circuit diagrams may occasionally differ from the actual circuit used. This way,
implementation of the latest safety and performance improvement changes into the
set is not delayed until the new service literature is printed.
CAUTION : Do not attempt to modify this product in any way. Never perform cus-
tomized installations without manufacturer’s approval. Unauthorized modifications
will not only void the warranty, but may lead to property damage or user injury.
Service work should be performed only after you are thoroughly familiar with these
safety checks and servicing guidelines.
GRAPHIC SYMBOLS
The exclamation point within an equilateral triangle is intended to alert
the service personnel to important safety information in the service
literature.
The lightning flash with arrowhead symbol within an equilateral trian-
gle is intended to alert the service personnel to the presence of non-
insulated “dangerous voltage” that may be of sufficient magnitude to
constitute a risk of electric shock.
The pictorial representation of a fuse and its rating within an equilat-
eral triangle is intended to convey to the service personnel the follow-
ing fuse replacement caution notice:
CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF
FIRE, REPLACE ALL FUSES WITH THE SAME TYPE AND
RATING AS MARKED NEAR EACH FUSE.
SERVICE INFORMATION
While servicing, use an isolation transformer for protection from AC line shock. After
the original service problem has been corrected, make a check of the following:
FIRE AND SHOCK HAZARD
1. Be sure that all components are positioned to avoid a possibility of adjacent
component shorts. This is especially important on items trans-ported to and from
the repair shop.
2. Verify that all protective devices such as insulators, barriers, covers, shields, strain
reliefs, power supply cords, and other hardware have been reinstalled per the
original design. Be sure that the safety purpose of the polarized line plug has not
been defeated.
3. Soldering must be inspected to discover possible cold solder joints, solder
splashes, or sharp solder points. Be certain to remove all loose foreign particles.
4. Check for physical evidence of damage or deterioration to parts and components,
for frayed leads or damaged insulation (including the AC cord), and replace if
necessary.
5. No lead or component should touch a high current device or a resistor rated at 1
watt or more. Lead tension around protruding metal surfaces must be avoided.

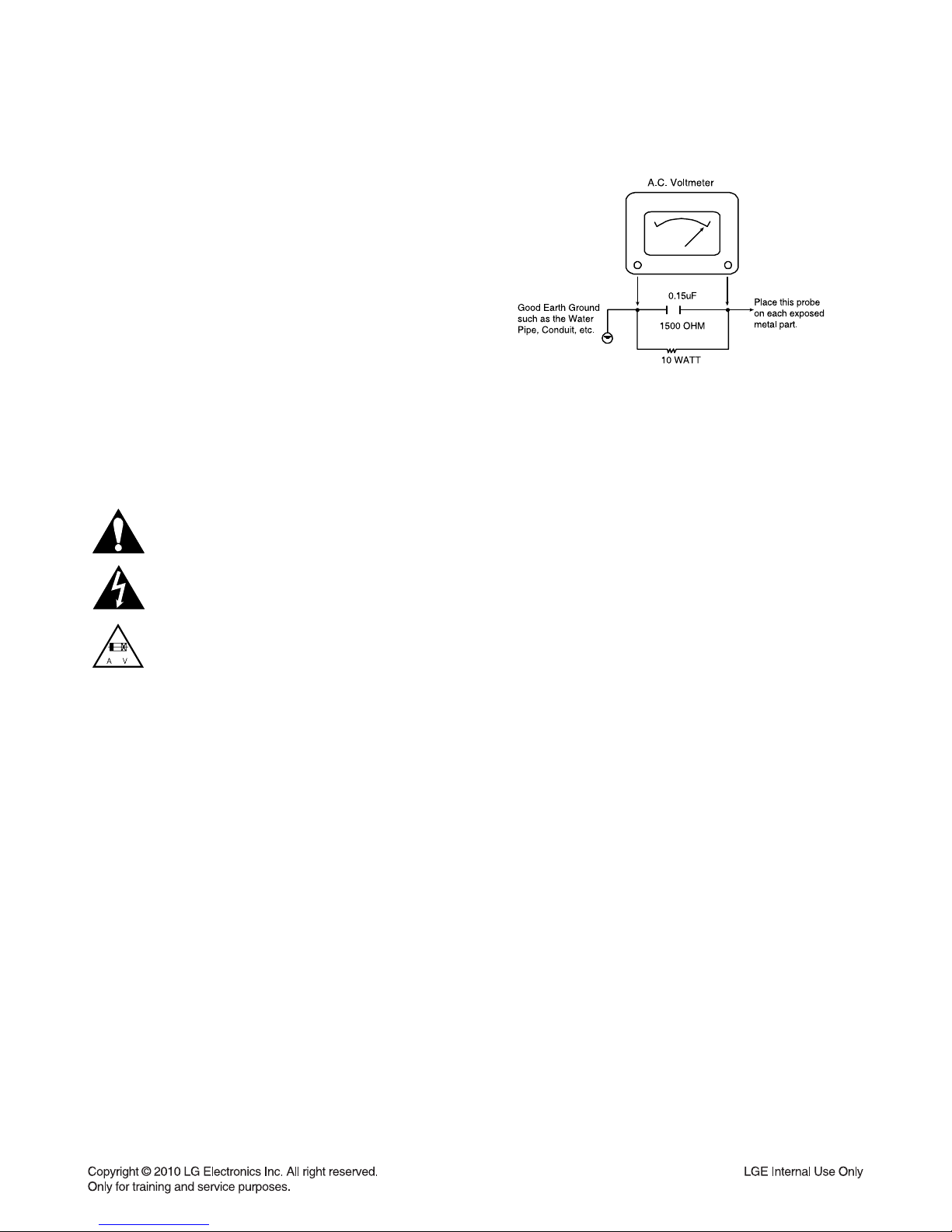

6. After reassembly of the set, always perform an AC leakage test on all exposed
metallic parts of the cabinet (the channel selector knobs, antenna terminals,
handle and screws) to be sure that set is safe to operate without danger of electri-
cal shock. DO NOT USE A LINE ISOLATION TRANSFORMER DURING THIS
TEST. Use an AC voltmeter having 5000 ohms per volt or more sensitivity in the
following manner: Connect a 1500 ohm, 10 watt resistor, paralleled by a .15 mfd
150V AC type capacitor between a known good earth ground water pipe, conduit,
etc.) and the exposed metallic parts, one at a time. Measure the AC voltage
across the combination of 1500 ohm resistor and .15 mfd capacitor. Reverse the
AC plug by using a non-polarized adaptor and repeat AC voltage measurements
for each exposed metallic part. Voltage measured must not exceed 0.75 volts
RMS. This corresponds to 0.5 milliamp AC. Any value exceeding this limit consti-
tutes a potential shock hazard and must be corrected immediately.
TIPS ON PROPER INSTALLATION
1. Never install any receiver in a closed-in recess, cubbyhole, or closely fitting shelf
space over, or close to, a heat duct, or in the path of heated air flow.
2. Avoid conditions of high humidity such as: outdoor patio installations where dew
is a factor, near steam radiators where steam leakage is a factor, etc.
3. Avoid placement where draperies may obstruct venting. The customer should
also avoid the use of decorative scarves or other coverings that might obstruct
ventilation.
4. Wall- and shelf-mounted installations using a commercial mounting kit must follow
the factory-approved mounting instructions. A product mounted to a shelf or
platform must retain its original feet (or the equivalent thickness in spacers) to
provide adequate air flow across the bottom. Bolts or screws used for fasteners
must not touch any parts or wiring. Perform leakage tests on customized installa-
tions.
5. Caution customers against mounting a product on a sloping shelf or in a tilted
position, unless the receiver is properly secured.
6. A product on a roll-about cart should be stable in its mounting to the cart.
Caution the customer on the hazards of trying to roll a cart with small casters
across thresholds or deep pile carpets.
7. Caution customers against using extension cords. Explain that a forest of exten-
sions, sprouting from a single outlet, can lead to disastrous consequences to
home and family.
1-3
PRODUCT SAFETY SERVICING GUIDELINES
FOR BLU-RAY DISC PLAYER PRODUCTS

CAUTION: Before servicing the BLU-RAY DISC PLAYER
covered by this service data and its supplements and addends,
read and follow the SAFETY PRECAUTIONS.
NOTE: if unforeseen circumstances create conflict between
the following servicing precautions and any of the safety pre-
cautions in this publications, always follow the safety precau-
tions.
Remember Safety First :
General Servicing Precautions
1. Always unplug the BLU-RAY DISC PLAYER AC power cord
from the AC power source before:
(1) Removing or reinstalling any component, circuit board,
module, or any other assembly.
(2) Disconnecting or reconnecting any internal electrical
plug or other electrical connection.
(3) Connecting a test substitute in parallel with an electro-
lytic capacitor.
Caution : A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Do not spray chemicals on or near this BLU-RAY DISC
PLAYER or any of its assemblies.
3. Unless specified otherwise in this service data, clean electri-
cal contacts by applying an appropriate contact cleaning
solution to the contacts with a pipe cleaner, cotton-tipped
swab, or comparable soft applicator.
Unless specified otherwise in this service data, lubrication of
contacts is not required.
4. Do not defeat any plug/socket B+ voltage interlocks with
whitch instruments covered by this service manual might be
equipped.
5. Do not apply AC power to this BLU-RAY DISC PLAYER and
/ or any of its electrical assemblies unless all solidstate
device heat sinks are correctly installed.
6. Always connect the test instrument ground lead to an appro-
priate ground before connecting the test instrument positive
lead. Always remove the test instrument ground lead last.
Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet and turn
the power on. Connect an insulation resistance meter (500V)
to the blades of the attachment plug. The insulation resistance
between each blade of the attachment plug and accessible
conductive parts (Note 1) should be more than 1Mohm.
Note 1 : Accessible Conductive Parts include Metal panels,
Input terminals, Earphone jacks,etc.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged
easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of
typical ES devices are integrated circuits and some field effect
transistors and semiconductor chip components.
The following techniques should be used to help reduce the
incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor component
or semiconductor-equipped assembly, drain off any electro-
static charge on your body by touching a known earth
ground. Alternatively, obtain and wear a commercially avail-
able discharging wrist strap device, which should be
removed for potential shock reasons prior to applying power
to the unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surf ace such
as aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static solder removal device. Some solder
removal devices not classified as “anti-static” can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
an electrical charge sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum
foil,or comparable conductive material).
7. Immediately before removing the protective material from
the leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the
device will be installed.
Caution: Be sure no power is applied to the chassis or cir-
cuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replace-
ment ES devices. (Normally harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity suf-
ficient to damage an ES device.)
1-4
SERVICING PRECAUTIONS

1-5
FIRMWARE UPDATE GUIDE
1. COPY AN UPDATE FILE TO A MEDIA (USB OR CD-ROM)
Update File Name: LG_BD_5200M50.ROM
1) An update file have to be copied onto the root of file system.
2) USB and CD-ROM are able to use firmware update.

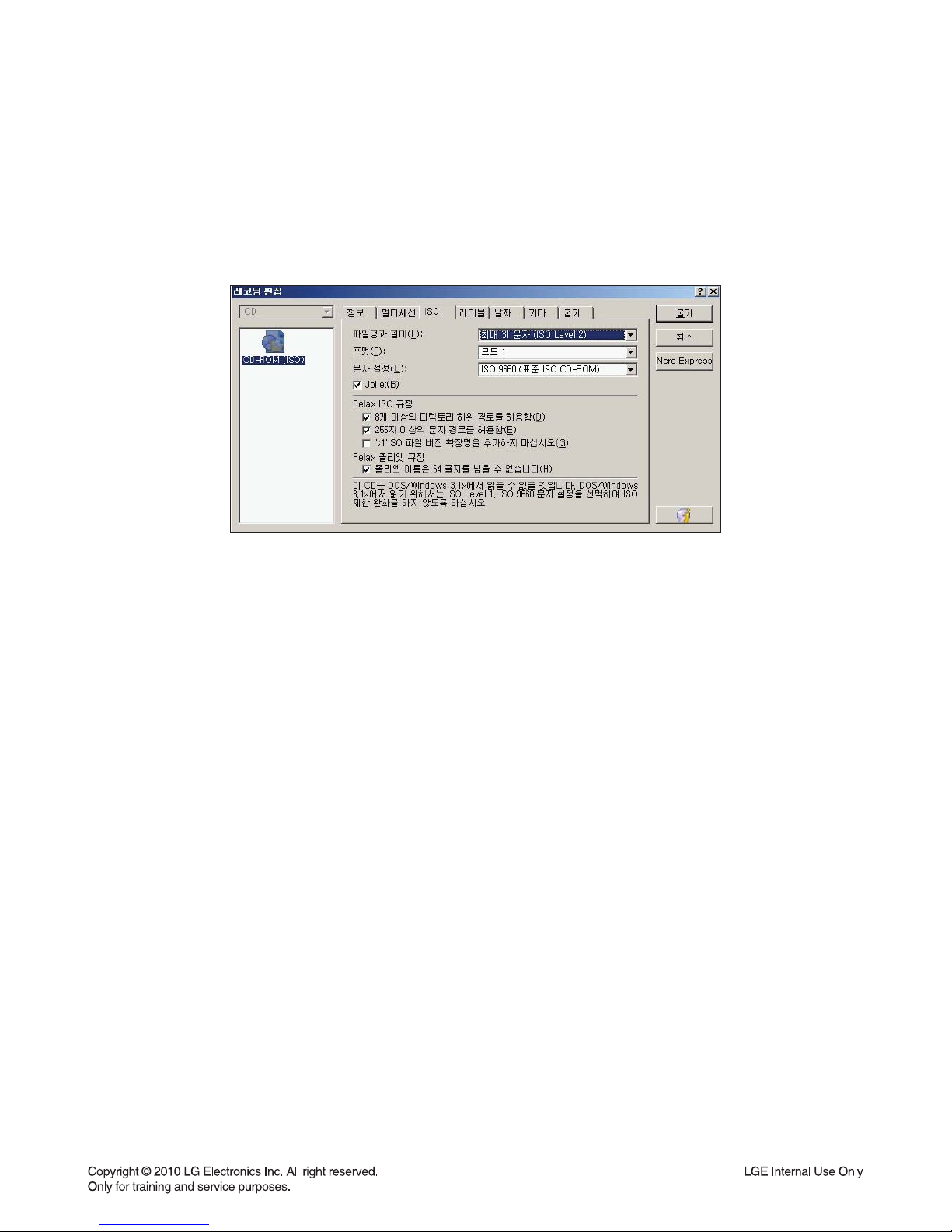

< Example: Nero Burning Rom >

1-6
FIRMWARE UPDATE GUIDE
2. UPDATE FIRMWARE
1) Insert USB or CD-ROM which has an update file.
2) OSD responds to the insertion event.
3) OSD is shown as below.

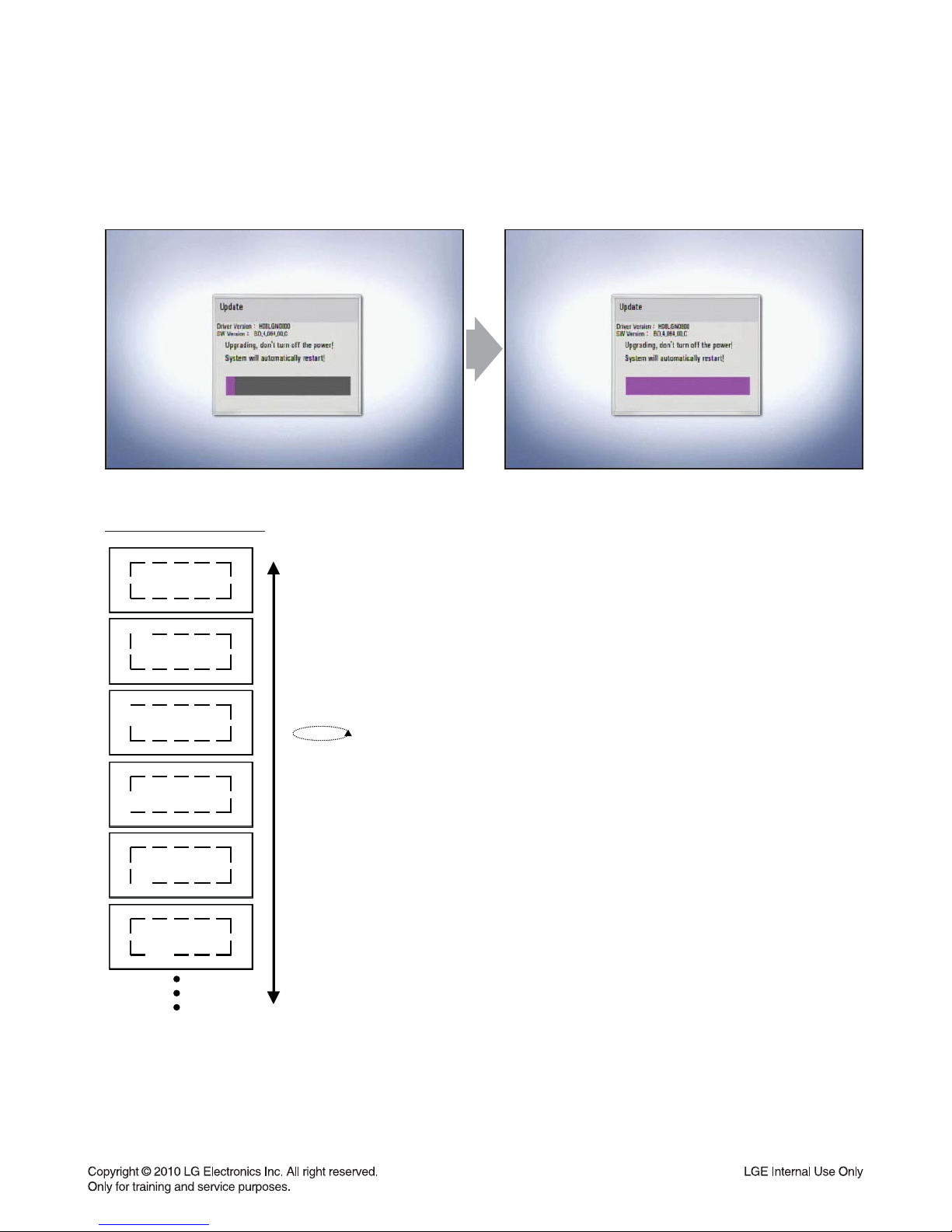

< Firmware Update OSD >
OSD contents: Front Panel contents:
UPDATE
%SJWFS7FSTJPO )-(/
487FSTJPO #%$
)FSFBOVQHSBEF GJMF IBTCFFO GPVOE
4UBSUVQHSBEF XJUIWFSTJPO #%
0, $BODFM
Upgrade

1-7
FIRMWARE UPDATE GUIDE
3. DURING UPDATING
1) Progressive bar is shown on the update time repeatedly.
2) Tray is opened.
Front Panel contents:
4. AFTER UPDATE COMPLETE
1) Power off / on automatically after update complete.
2) Tray will be closed.
Shift rolling
until finish

1-8
If you push in the direction of the arrow like figure, the tray can be opened manually.
EMERGENCY TRAY OPEN METHOD
Figure 1. Deck Mechanism BM10

• GENERAL
Power requirements: AC 120 V, 60 Hz
Power consumption: 14 W
Dimensions (W x H x D): 430 x 45 x 190 mm
Weight (approx.): 1.6 kg (net weight)
Operating temperature: 5 °C ~ 35 °C
Operating humidity: 5 % ~ 90 %
• OUTPUTS
VIDEO OUT: 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
COMPONENT VIDEO OUT: (Y) 1.0V (p-p), 75 Ω, negative sync, RCA jack x 1
(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2
HDMI OUT (video/audio): 19pin (HDMI standard, type A, version 1.3)
ANALOG AUDIO OUT: 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1
DIGITAL OUT (coaxial): 0.5 V (p-p), 75 Ω, RCA jack x 1
• SYSTEM
Laser: Semiconductor laser
Wavelength: 405 nm / 655nm / 790nm
Signal system: Standard NTSC color TV system
Frequency response: 20 Hz to 20 kHz
Signal-to-noise ratio: More than 90 dB (ANALOG OUT connectors only)
Harmonic distortion: Less than 0.02 %
Dynamic range: More than 95 dB
LAN port: Ethernet jack x 1, 10BASE-T / 100BASE-TX
Note : Design and specifications are subject to change prior notice.
1-9
SPECIFICATIONS

MEMO
1-10

SECTION 2
CABINET & MAIN CHASSIS
CONTENTS
EXPLODED VIEWS..................................................................................................................................... 2-2
1. CABINET AND MAIN FRAME SECTION ................................................................................................. 2-2
2. DECK MECHANISM SECTION, BM10A(LG06) ....................................................................................... 2-3
3. PACKING ACCESSORY SECTION ......................................................................................................... 2-4
2-1

D
C
B
A
D
C
BA
E
A44
A47
283
468 462
250
468
A46
465
261
260 320
261
470
A43A

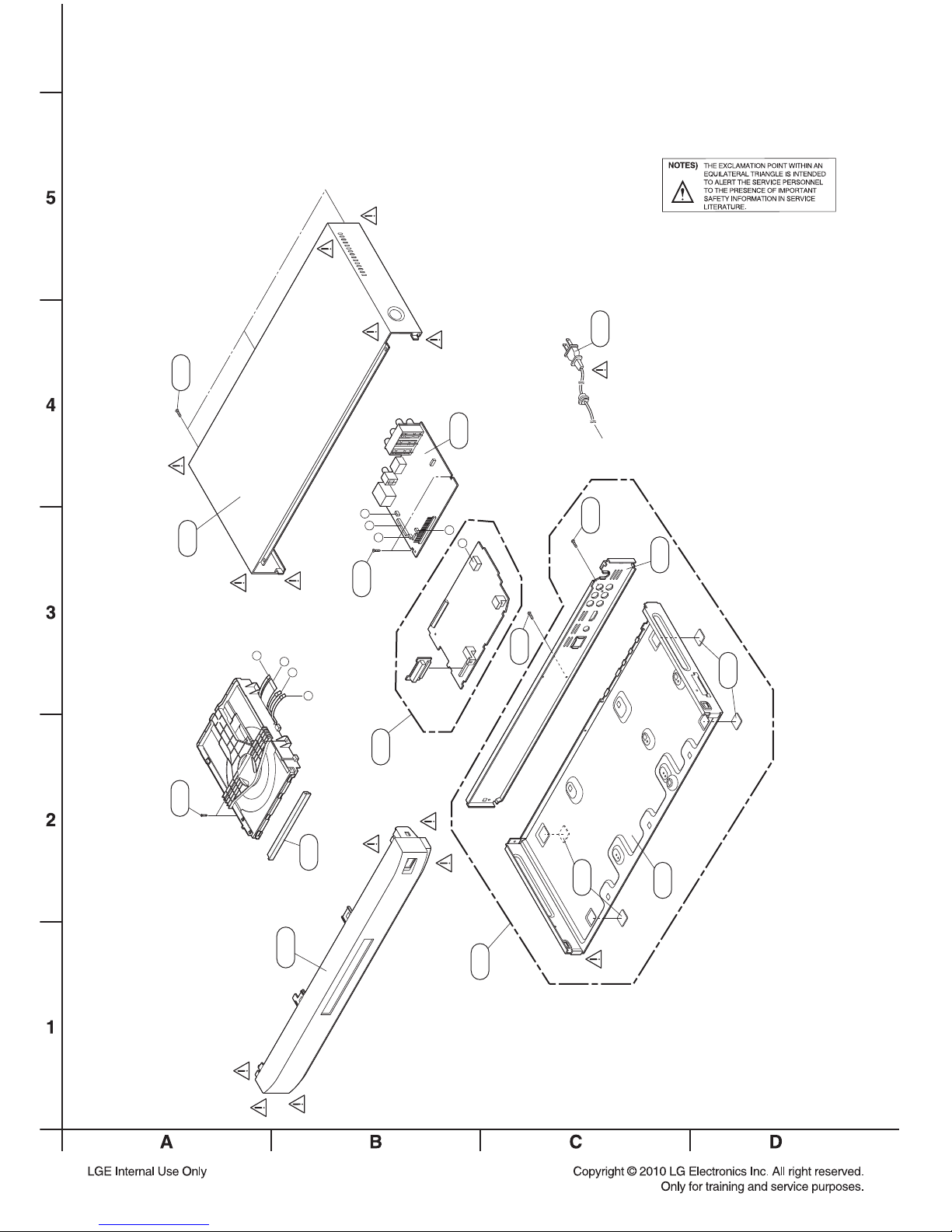

1. CABINET AND MAIN FRAME SECTION
2-2
EXPLODED VIEWS
300

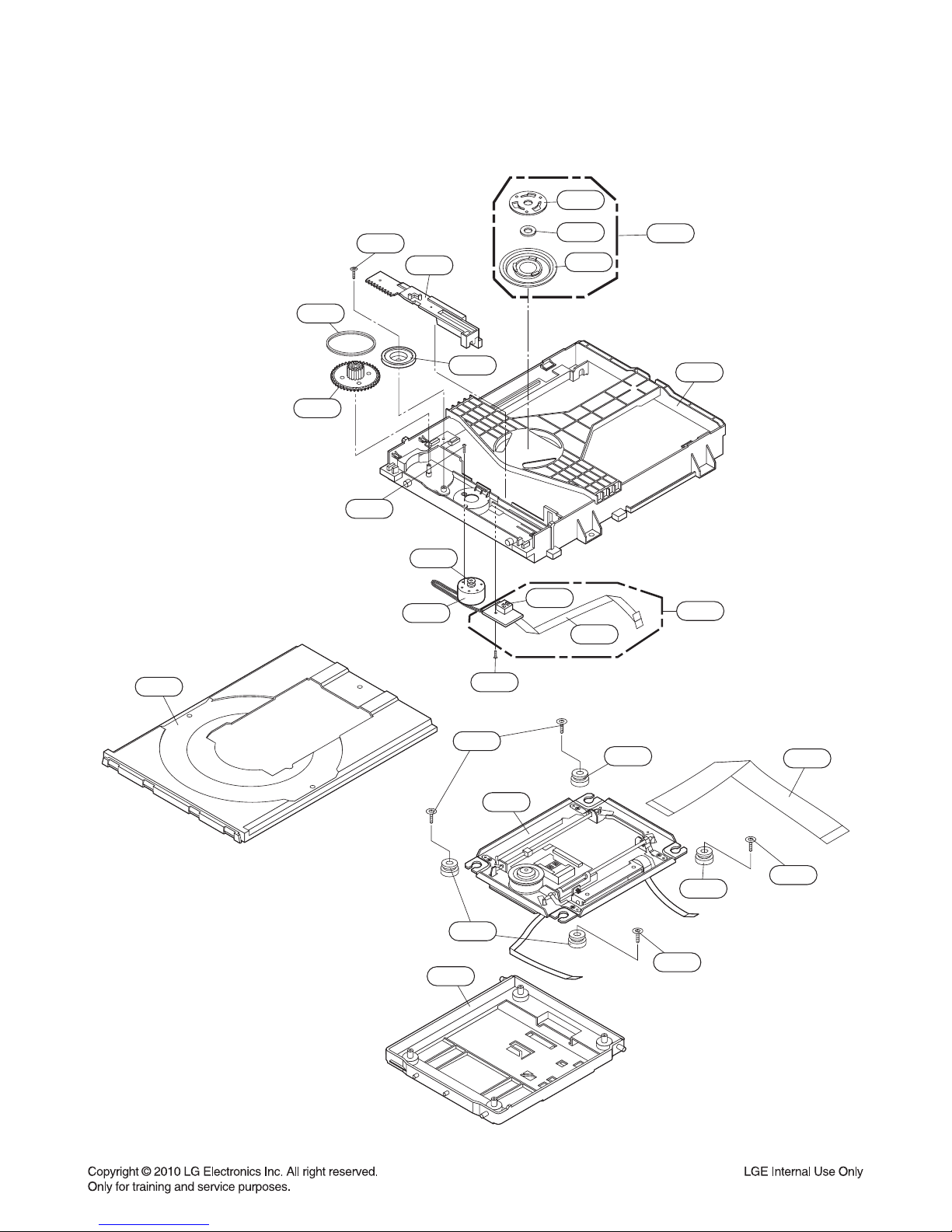

2. DECK MECHANISM SECTION, BM10A(LG06)
2-3
1019
1005
1004
1003
A001
1433
1012
1015
1013
1016 1002
1018
1431
1437
1049
1026
1025
1025 1030
1437
1437
1024
1020
1439
1043
1045
A005

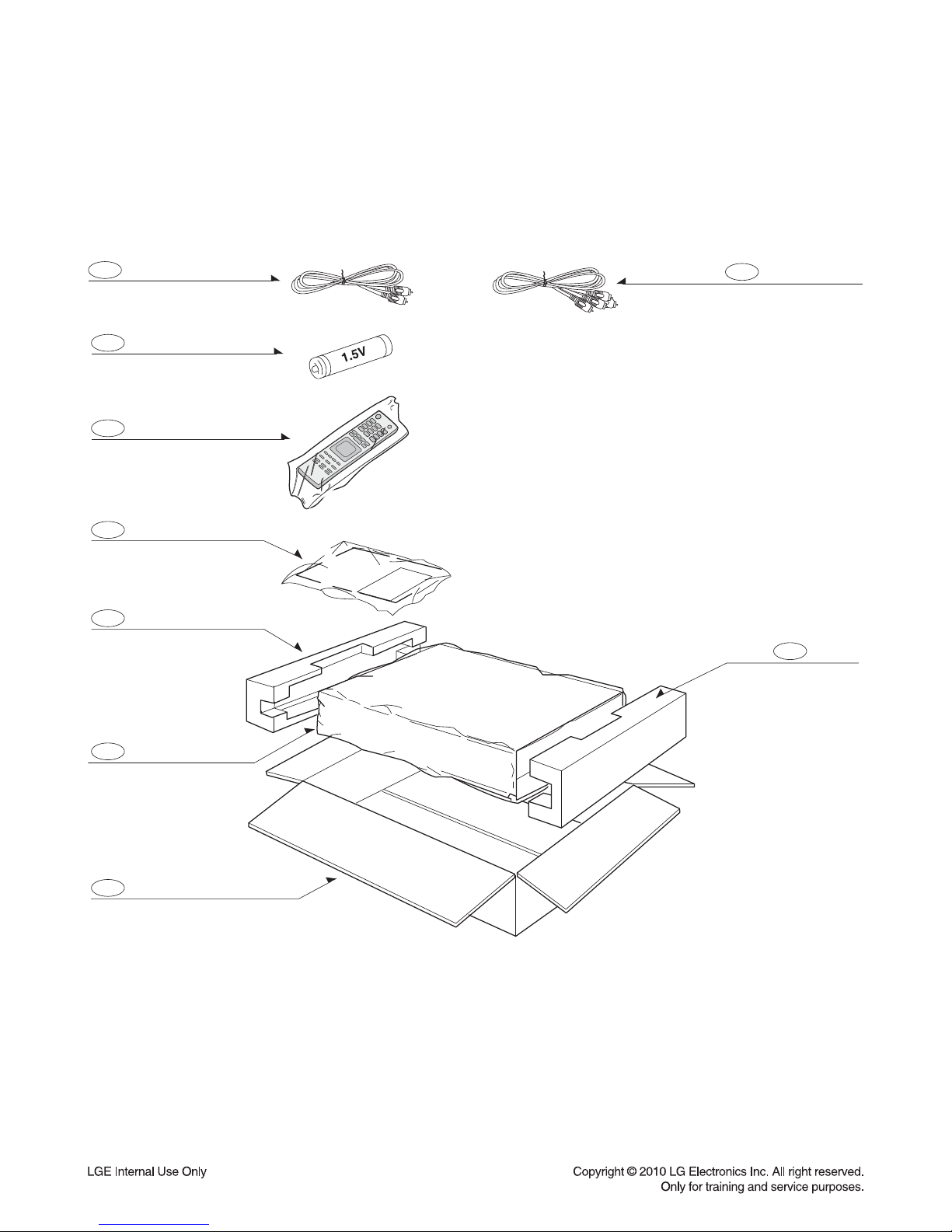

3. PACKING ACCESSORY SECTION
808 Battery
812 Plug Ass'y 2way
803 Packing
900 Remote Control
801 Instruction Ass'y
803 Packing
804 Bag
802 Box
2-4
811 Plug Ass’y 1way

SECTION 3
ELECTRICAL
CONTENTS
DIGITAL DISPLAY & MEDIA TRAINING MASTER......................................................................... 3-2
1. DISTORTED PICTURE........................................................................................................................... 3-2
2. NO PICTURE .......................................................................................................................................... 3-7
3. PICTURE COLOR................................................................................................................................. 3-12
4. NOISE/AUDIO PROBLEMS.................................................................................................................. 3-14
5. MISCELLANEOUS................................................................................................................................ 3-17
6. BLU-RAY PLAYER ............................................................................................................................... 3-26
7. YouTube................................................................................................................................................ 3-27
8. ACCUWEATHER .................................................................................................................................. 3-28
ONE POINT REPAIR INSTRUCTION ................................................................................................. 3-29
1. NO POWER PROBLEM ....................................................................................................................... 3-29
2. CLOCK DOESN’T DISPLAY................................................................................................................. 3-31
3. NO BOOTING WHEN YOU TURN THE UNIT ON, NO MESSAGE OR
“HELLO” ON FRONT PANEL............................................................................................................... 3-32
4. WIRED NETWORK CONNECTION ERROR ....................................................................................... 3-42
5. BAD HDMI VIDEO / AUDIO OUTPUT.................................................................................................. 3-43
ELECTRICAL TROUBLESHOOTING GUIDE.................................................................................. 3-44
1. POWER SUPPLY ON SMPS BOARD.................................................................................................. 3-44
2. POWER SUPPLY ON MAIN BOARD................................................................................................... 3-46
3. SYSTEM PART..................................................................................................................................... 3-48
4. NO CVBS VIDEO OUTPUT.................................................................................................................. 3-50
5. NO COMPONENT (YPbPr / RGB) ....................................................................................................... 3-51
6. NO COAXIAL AUDIO OUTPUT............................................................................................................ 3-52
7. NO ANALOG AUDIO L/R OUTPUT...................................................................................................... 3-53
8. NO HDMI OUTPUT............................................................................................................................... 3-54
WAVEFORMS............................................................................................................................................. 3-55
1. SYSTEM PART - 1 ............................................................................................................................... 3-55
2. SYSTEM PART - 2 (SYSTEM MEMORY)............................................................................................ 3-56
3. VIDEO PART (100% FULL COLOR BAR) ........................................................................................... 3-57
4. AUDIO PART (S/PDIF) ......................................................................................................................... 3-58
5. HDMI PART .......................................................................................................................................... 3-59
WIRING DIAGRAM.................................................................................................................................... 3-61
BLOCK DIAGRAMS ................................................................................................................................. 3-63
1. OVERALL BLOCK DIAGRAM .............................................................................................................. 3-63
2. SMPS BLOCK DIAGRAM..................................................................................................................... 3-64
3. POWER SIGNAL BLOCK DIAGRAM ................................................................................................... 3-65
4. SYSTEM BLOCK DIAGRAM ................................................................................................................ 3-66
5. INPUT / OUTPUT BLOCK DIAGRAM .................................................................................................. 3-67
6. TIMER BLOCK DIAGRAM.................................................................................................................... 3-68
CIRCUIT DIAGRAMS ...............................................................................................................................3-69
1. SMPS & TIMER CIRCUIT DIAGRAM................................................................................................... 3-69
2. MAIN POWER CIRCUIT DIAGRAM ..................................................................................................... 3-71
3. MAIN MPEG CIRCUIT DIAGRAM ........................................................................................................ 3-73
4. MAIN DDR & MEMORY CIRCUIT DIAGRAM ...................................................................................... 3-75
5. MAIN SERVO CIRCUIT DIAGRAM ...................................................................................................... 3-77
6. MAIN A/V OUTPUT CIRCUIT DIAGRAM............................................................................................. 3-79
CIRCUIT VOLTAGE CHART ................................................................................................................. 3-81
PRINTED CIRCUIT BOARD DIAGRAMS.......................................................................................... 3-83
1. MAIN P.C.BOARD ................................................................................................................................ 3-83
2. SMPS P.C.BOARD ............................................................................................................................... 3-85
3. TIMER P.C. BOARD ............................................................................................................................. 3-87
3-1

Objective: To provide clear and concise guidelines for customer service agents to handle calls on
box goods calls.
1. DISTORTED PICTURE
1-1. Lines on Picture
Distorted picture refers to the customer getting video, but there is a problem with the video.
What cables is
the customer using to
connect the BD?
NO
YES
Determine what cables the customer is using to connect
the BD to the TV and if connected properly. Refer to OM for
connections. Tighten any loose cables. Make sure the customer
is not connecting a BD to VCR or BD to DVD Recorder.
Copy protection can distort the picture on older DVD models.
Is the TV set
to the correct input?
NO
YES
Make sure the TV is on the correct input.
Turn TV off, then on to determine input.
Video when using composite, or component.
DVI when using DVI, and HDMI when using HDMI.
Do ghosting appear
when watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens needs to
be cleaned. Recommend the customer use a lens cleaner on the BD.
A lens cleaner is available at any local electronics retailer.
Do lines appear
when watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens needs to
be cleaned. Recommend the customer use a lens cleaner on the BD.
A lens cleaner is available at any local electronics retailer.
Do lines appear
when the BD is
connected to another TV?
NO
YES
Connect the BD to another TV and play a disc.
No lines during disc play back indicates a problem with the first TV.
Please refer to the owners manual for instructions on how to
connect the BD to a TV. If the BD has a problem on the
second TV, then see service chart for service information.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables. A bad cable can
also cause video problems. Test the cable with another device to
the TV to also determine if the TV is bad. If BD is problem,
please see service chart for service information.
3-2
DIGITAL DISPLAY & MEDIA TRAINING MASTER

What cables is the customer
using to connect the BD?
NO
YES
Determine what cables the customer is using to connect the BD to
the TV and if connected properly. Refer to OM for connections.
Tighten any loose cables. Make sure the customer is not connecting a
BD to VCR or BD to DVD Recorder. Copy protection can distort
the picture on older VCR models.
Is the TV set to
the correct input?
NO
YES
Make sure the TV is on the correct input. Turn TV off,
then on to determine input. Video when using composite,
or component. DVI when using DVI, and HDMI when using HDMI.
Do ghosting appear when
watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens
needs to be cleaned. Recommend the customer use a lens cleaner
on the BD. A lens cleaner is available at any local electronics retailer.
Do lines appear when
watching a TV program?
NO
YES
Ghosting appearing when watching a TV program indicates an
issue with the display. If the TV program is fine, then connect
the BD to another input on the display to determine
if the problem is following the BD.
Does ghosting
appear when the BD is
connected to another TV?
NO
YES
Connect the BD to another TV and play a disc.
No ghosting during disc play back indicates a problem with the first TV.
Please refer to the owners manual for instructions on how to
connect the BD to a TV. If the BD has a problem on the second TV,
then see service chart for service information.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables. A bad cable can
also cause video problems. Test the cable with another device to
the TV to also determine if the TV is bad. If BD is problem,
please see service chart for service information.
1-2. Ghost Picture
Distorted picture refers to the customer getting video, but there is a problem with the video.
3-3
DIGITAL DISPLAY & MEDIA TRAINING MASTER

What cables is the customer
using to connect the BD?
NO
YES
Determine what cables the customer is using to connect the BD to
the TV and if connected properly. Refer to OM for connections.
Tighten any loose cables. Make sure the customer is not connecting
a BD to VCR or BD to DVD Recorder. Copy protection can distort
the picture on older VCR models.
Is the TV set to
the correct input?
NO
YES
Make sure the TV is on the correct input. Turn TV off,
then on to determine input. Video when using composite,
or component. DVI when using DVI, and HDMI when using HDMI.
Does rolling appear when
watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens
needs to be cleaned. Recommend the customer use a lens cleaner
on the BD. A lens cleaner is available at any local electronics retailer.
Does rolling appear when
watching a TV program?
NO
YES
Rolling appearing when watching a TV program indicates
an issue with the display. If the TV program is fine, then connect
the BD to another input on the display to determine if the problem
is following the BD.
Does rolling appear
when the BD is connected to
another TV?
NO
YES
Connect the BD to another TV and play a disc. No lines during disc play
back indicates a problem with the first TV. Please refer to the owners
manual for instructions on how to connect the BD to a TV. If the BD has a
problem on the second TV, then see service chart for service information.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables. A bad cable can also
cause video problems. Test the cable with another device to the TV
to also determine if the TV is bad. If BD is problem,
please see service chart for service information.
1-3. Rolling Picture
Distorted picture refers to the customer getting video, but there is a problem with the video.
3-4
DIGITAL DISPLAY & MEDIA TRAINING MASTER

What cables is the customer
using to connect the BD?
NO
YES
Determine what cables the customer is using to connect the BD to
the TV and if connected properly. Refer to OM for connections.
Tighten any loose cables. Make sure the customer is not connecting a
BD to VCR or BD to DVD Recorder. Copy protection can distort
the picture on older VCR models.
Is the TV set to
the correct input?
NO
YES
Make sure the TV is on the correct input. Turn TV off, then on
to determine input. Video when using composite, or component.
DVI when using DVI, and HDMI when using HDMI.
Does shaking appear when
watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens
needs to be cleaned. Recommend the customer use a lens cleaner
on the BD. A lens cleaner is available at any local electronics retailer.
Does shaking appear when
watching a TV program?
NO
YES
Shaking appearing when watching a TV program indicates
n issue with the display. If the TV program is fine, then connect
the BD to another input on the display to determine if the problem
is following the BD.
Does shaking appear
when the BD is connected to
another TV?
NO
YES
Connect the BD to another TV and play a disc. No shaking during
disc play back indicates a problem with the first TV. Please refer to
the owners manual for instructions on how to connect the BD to a TV.
If the BD has a problem on the second TV,
then see service chart for service information.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables. A bad cable can
also cause video problems. Test the cable with another device to
the TV to also determine if the TV is bad. If BD is problem,
please see service chart for service information.
1-4. Shaky Picture
Distorted picture refers to the customer getting video, but there is a problem with the video.
3-5
DIGITAL DISPLAY & MEDIA TRAINING MASTER
