LG BP630 User manual

NETWORK 3D BLU-RAY DISC / DVD PLAYER
SERVICE MANUAL
MODEL: BP630
CAUTION
BEFORE SERVICING THE UNIT, READ THE “SAFETY PRECAUTIONS”
IN THIS MANUAL.
MODEL: BP630SERVICE MANUAL
P/NO : AFN75875764 APRIL, 2013
Website http://biz.lgservice.com
Internal Use Only

1-1
CONTENTS
SECTION 1 ........ SUMMARY
SECTION 2 ........ CABINET & MAIN CHASSIS
SECTION 3 ........ ELECTRICAL
SECTION 4 ........ MT8560C F/E LOADER PART
SECTION 5 ........ REPLACEMENT PARTS LIST

1-2
SECTION 1
SUMMARY
CONTENTS
PRODUCT SAFETY SERVICING GUIDELINES
FOR BLU-RAY DISC / DVD PLAYER PRODUCTS ..................................................................................... 1-3
SERVICING PRECAUTIONS .......................................................................................................................... 1-4
• GENERAL SERVICING PRECAUTIONS
• INSULATION CHECKING PRODEDURE
• ELECTROSTATICALLY SENSITIVE (ES) DEVICES
FIRMWARE UPDATE GUIDE......................................................................................................................... 1-5
ADVANCED FEATURES................................................................................................................................. 1-8
SPECIFICATIONS.......................................................................................................................................... 1-12

1-3
PRODUCT SAFETY SERVICING GUIDELINES
FOR BLU-RAY DISC / DVD PLAYER PRODUCTS
IMPORTANT SAFETY NOTICE
This manual was prepared for use only by properly trained audio-video service
technicians.
When servicing this product, under no circumstances should the original design be
modified or altered without permission from LG Corporation. All components should
be replaced only with types identical to those in the original circuit and their physical
location, wiring and lead dress must conform to original layout upon completion of
repairs.
Special components are also used to prevent x-radiation, shock and fire hazard.
These components are indicated by the letter “x” included in their component des-
ignators and are required to maintain safe performance. No deviations are allowed
without prior approval by LG Corporation.
Circuit diagrams may occasionally differ from the actual circuit used. This way, imple-
mentation of the latest safety and performance improvement changes into the set is
not delayed until the new service literature is printed.
CAUTION : Do not attempt to modify this product in any way. Never perform cus-
tomized installations without manufacturer’s approval. Unauthorized modifications
will not only void the warranty, but may lead to property damage or user injury.
Service work should be performed only after you are thoroughly familiar with these
safety checks and servicing guidelines.
GRAPHIC SYMBOLS
The exclamation point within an equilateral triangle is intended to alert
the service personnel to important safety information in the service
literature.
The lightning flash with arrowhead symbol within an equilateral
triangle is intended to alert the service personnel to the presence of
noninsulated “dangerous voltage” that may be of sufficient magnitude
to constitute a risk of electric shock.
The pictorial representation of a fuse and its rating within an equilat-
eral triangle is intended to convey to the service personnel the follow-
ing fuse replacement caution notice:
CAUTION : FOR CONTINUED PROTECTION AGAINST RISK
OF FIRE, REPLACE ALL FUSES WITH THE SAME TYPE AND
RATING AS MARKED NEAR EACH FUSE.
SERVICE INFORMATION
While servicing, use an isolation transformer for protection from AC line shock. After
the original service problem has been corrected, make a check of the following:
FIRE AND SHOCK HAZARD
1. Be sure that all components are positioned to avoid a possibility of adjacent com-
ponent shorts. This is especially important on items trans-ported to and from the
repair shop.
2. Verify that all protective devices such as insulators, barriers, covers, shields, strain
reliefs, power supply cords, and other hardware have been reinstalled per the
original design. Be sure that the safety purpose of the polarized line plug has not
been defeated.
3. Soldering must be inspected to discover possible cold solder joints, solder
splashes, or sharp solder points. Be certain to remove all loose foreign particles.
4. Check for physical evidence of damage or deterioration to parts and components,
for frayed leads or damaged insulation (including the AC cord), and replace if
necessary.
5. No lead or component should touch a high current device or a resistor rated at 1
watt or more. Lead tension around protruding metal surfaces must be avoided.
6. After reassembly of the set, always perform an AC leakage test on all exposed
metallic parts of the cabinet (the channel selector knobs, antenna terminals,
handle and screws) to be sure that set is safe to operate without danger of electri-
cal shock. DO NOT USE A LINE ISOLATION TRANSFORMER DURING THIS
TEST. Use an AC voltmeter having 5000 ohms per volt or more sensitivity in the

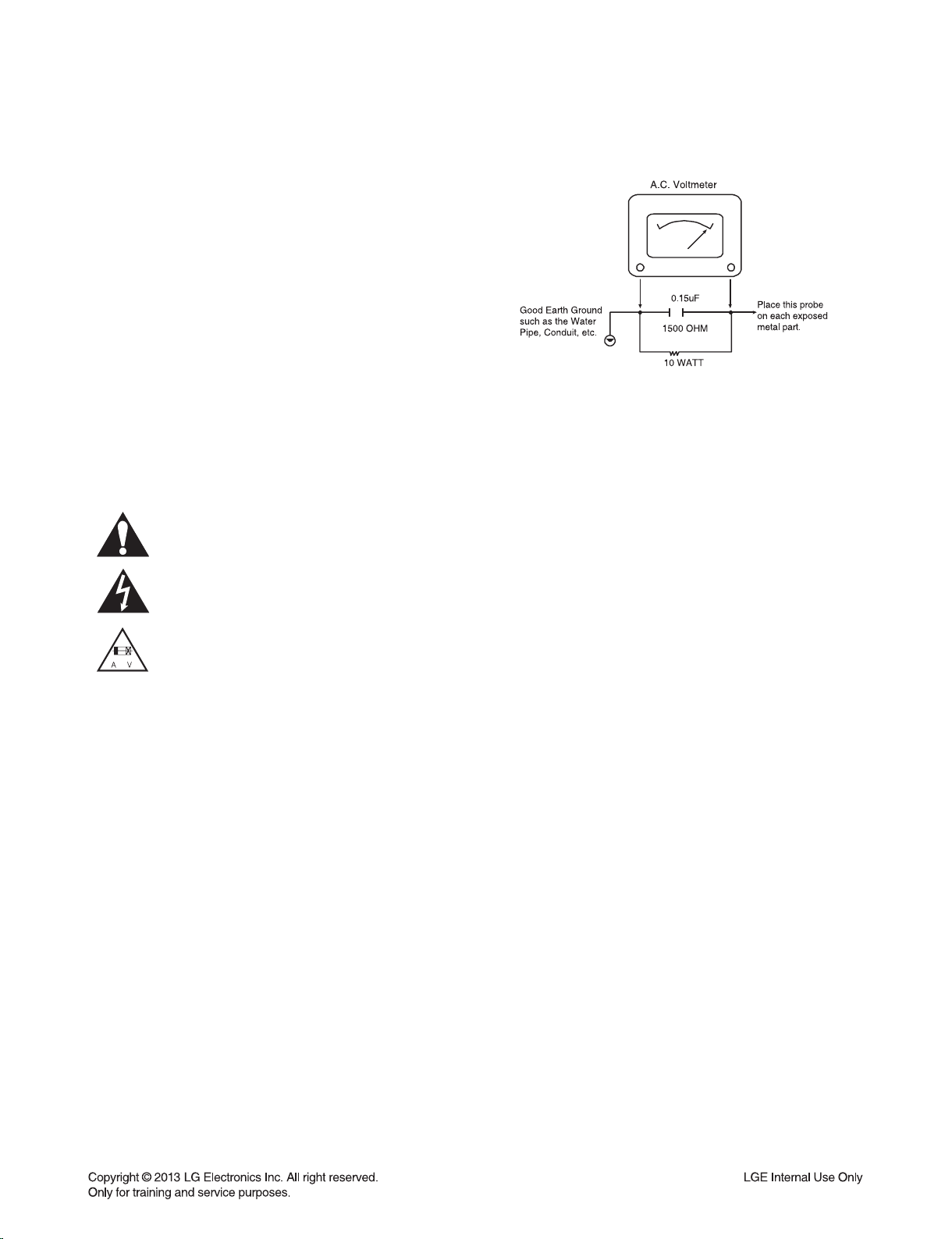

following manner: Connect a 1500 ohm, 10 watt resistor, paralleled by a .15 mfd
150V AC type capacitor between a known good earth ground water pipe, con-
duit, etc.) and the exposed metallic parts, one at a time. Measure the AC voltage
across the combination of 1500 ohm resistor and .15 mfd capacitor. Reverse the
AC plug by using a non-polarized adaptor and repeat AC voltage measurements
for each exposed metallic part. Voltage measured must not exceed 0.75 volts
RMS. This corresponds to 0.5 milliamp AC. Any value exceeding this limit consti-
tutes a potential shock hazard and must be corrected immediately.
TIPS ON PROPER INSTALLATION
1. Never install any receiver in a closed-in recess, cubbyhole, or closely fitting shelf
space over, or close to, a heat duct, or in the path of heated air flow.
2. Avoid conditions of high humidity such as: outdoor patio installations where dew
is a factor, near steam radiators where steam leakage is a factor, etc.
3. Avoid placement where draperies may obstruct venting. The customer should
also avoid the use of decorative scarves or other coverings that might obstruct
ventilation.
4. Wall- and shelf-mounted installations using a commercial mounting kit must follow
the factory-approved mounting instructions. A product mounted to a shelf or plat-
form must retain its original feet (or the equivalent thickness in spacers) to provide
adequate air flow across the bottom. Bolts or screws used for fasteners must not
touch any parts or wiring. Perform leakage tests on customized installations.
5. Caution customers against mounting a product on a sloping shelf or in a tilted
position, unless the receiver is properly secured.
6. A product on a roll-about cart should be stable in its mounting to the cart.
Caution the customer on the hazards of trying to roll a cart with small casters
across thresholds or deep pile carpets.
7. Caution customers against using extension cords. Explain that a forest of exten-
sions, sprouting from a single outlet, can lead to disastrous consequences to
home and family.

1-4
SERVICING PRECAUTIONS
CAUTION: Before servicing the BLU-RAY DISC / DVD PLAYER cov-
ered by this service data and its supplements and addends,
read and follow the SAFETY PRECAUTIONS.
NOTE: if unforeseen circumstances create conflict between
the following servicing precautions and any of the safety pre-
cautions in this publications, always follow the safety precau-
tions.
Remember Safety First :
General Servicing Precautions
1. Always unplug the
BLU-RAY DISC / DVD PLAYER AC power cord
from the AC power source before:
(1) Removing or reinstalling any component, circuit board,
module, or any other assembly.
(2) Disconnecting or reconnecting any internal electrical
plug or other electrical connection.
(3) Connecting a test substitute in parallel with an electro-
lytic capacitor.
Caution : A wrong part substitution or incorrect polar-
ity installation of electrolytic capacitors may result in an
explosion hazard.
2. Do not spray chemicals on or near this
BLU-RAY DISC / DVD
PLAYER
or any of its assemblies.
3. Unless specified otherwise in this service data, clean elec-
trical contacts by applying an appropriate contact cleaning
solution to the contacts with a pipe cleaner, cotton-tipped
swab, or comparable soft applicator.
Unless specified otherwise in this service data, lubrication of
contacts is not required.
4. Do not defeat any plug/socket B+ voltage interlocks with
whitch instruments covered by this service manual might be
equipped.
5. Do not apply AC power to this
BLU-RAY DISC / DVD PLAYER and /
or any of its electrical assemblies unless all solidstate device
heat sinks are correctly installed.
6. Always connect the test instrument ground lead to an appro-
priate ground before connecting the test instrument positive
lead. Always remove the test instrument ground lead last.
Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet and turn
the power on. Connect an insulation resistance meter (500V)
to the blades of the attachment plug. The insulation resistance
between each blade of the attachment plug and accessible
conductive parts (Note 1) should be more than 1Mohm.
Note 1 : Accessible Conductive Parts include Metal panels,
Input terminals, Earphone jacks,etc.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged
easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of
typical ES devices are integrated circuits and some field effect
transistors and semiconductor chip components.
The following techniques should be used to help reduce the
incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor compo-
nent or semiconductor-equipped assembly, drain off any
electrostatic charge on your body by touching a known
earth ground. Alternatively, obtain and wear a commercially
available discharging wrist strap device, which should be
removed for potential shock reasons prior to applying power
to the unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surf ace such
as aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static solder removal device. Some solder
removal devices not classified as “anti-static” can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
an electrical charge sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install
it. (Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum
foil,or comparable conductive material).
7. Immediately before removing the protective material from
the leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the
device will be installed.
Caution: Be sure no power is applied to the chassis or cir-
cuit, and observe all other safety precautions.
8.Minimize bodily motions when handling unpackaged
replacement ES devices. (Normally harmless motion such
as the brushing together of your clothes fabric or the lifting of
your foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)

1-5
FIRMWARE UPDATE GUIDE
1. COPY AN UPDATE FILE TO A MEDIA (USB OR CD-ROM)
Update File Name: LG_BD_8110M60.ROM
1) An update file have to be copied onto the root of file system.
2) USB and CD-ROM are able to use firmware update.
< Example: Nero Burning Rom >

1-6
FIRMWARE UPDATE GUIDE
2. UPDATE FIRMWARE
1) Insert USB or CD-ROM which has an update file.
2) OSD responds to the insertion event.

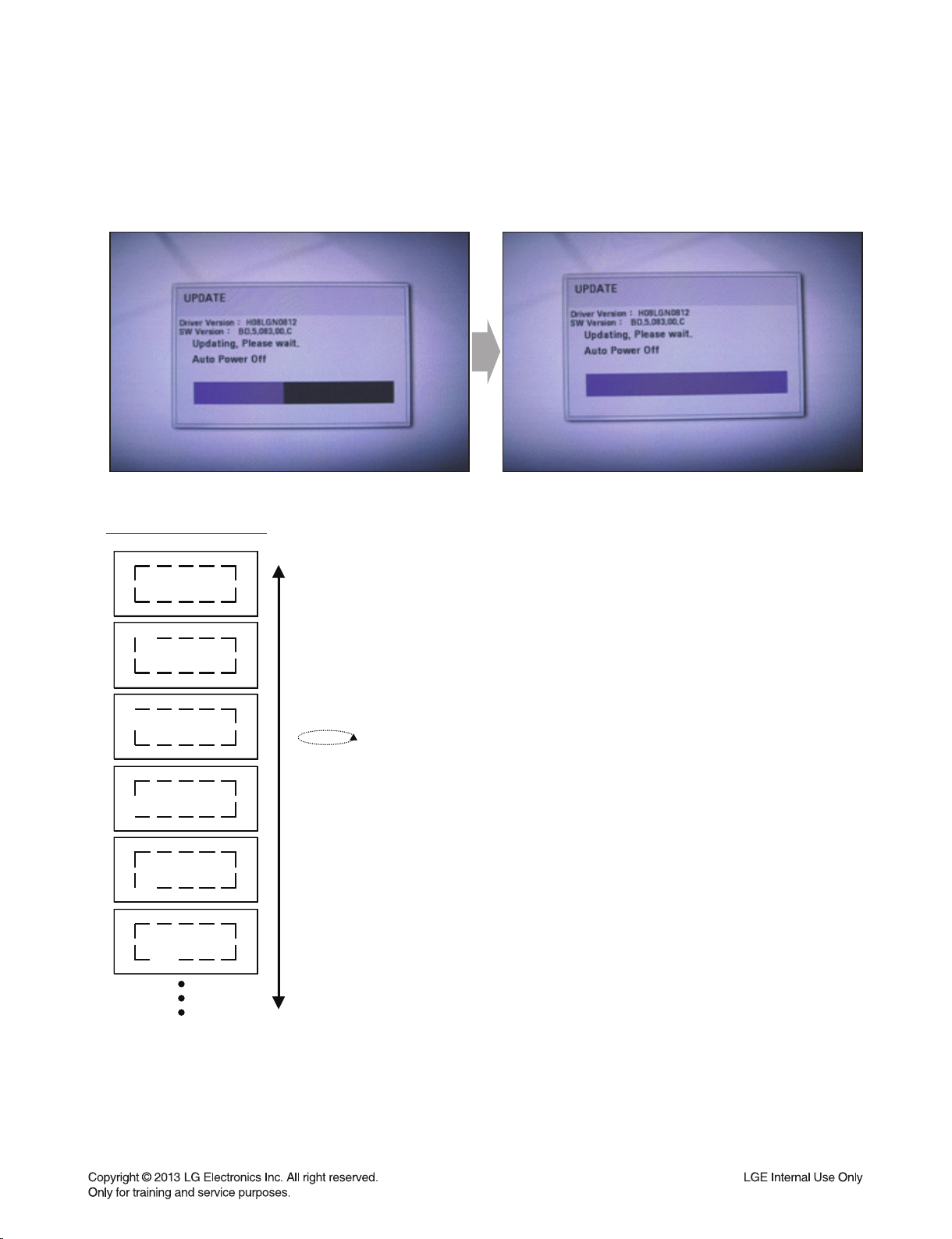

3) OSD is shown as below.
< Firmware Update OSD >
OSD contents: Front Panel contents:
|wkh{l
%SJWFS7FSTJPO )-(/
487FSTJPO #%$
"OFXVQEBUF XBTGPVOE
%PZPVXBOUUPVQEBUF
487FSTJPO #%$
0, $BODFM
Upgrade

1-7
FIRMWARE UPDATE GUIDE
3. DURING UPDATING
1) Progressive bar is shown on the update time repeatedly.
2) Tray is opened.
Front Panel contents:
4. AFTER UPDATE COMPLETE
1) Power off / on automatically after update complete.
2) Tray will be closed.
Shift rolling
until finish

1-8
To select a server from the device list, files or
folders must be shared by DLNA server from the
connected Wi-Fi Direct™ device.
6. Select [Movie], [Photo] or [Music] using W/S/
A/D, and press ENTER (b).
7. Select a le using W/S/A/D, and press
ENTER (b) to play the le.
yFor the purpose of the better transmission,
placing the player from the Wi-Fi Direct™
certied server as close as possible.
yThis unit can connect only 1 device at a
time. Multiple connection is not available.
yIf you try to connect wireless network while
a device is connected by Wi-Fi Direct™
function , Wi-Fi Direct™ connection will be
force disconnected.
yIf this player and a Wi-Fi Direct™ device
are connected to the different local area
network, Wi-Fi Direct™ connection may not
available.
yIf a Wi-Fi Direct™ certified device is not in
Wi-Fi direct standby mode, this product can
not find the device.
yWhen you connect a Wi-Fi Direct™
certified device to your player, PIN network
connection is not supported.
yThis product cannot connect to a Wi-Fi
direct™ device which is in Group Owner
mode.
, Note
Wi-Fi Direct™
Connecting to a Wi-Fi Direct™
certified device
yui
This player can play movie, music and photo les
located in a Wi-Fi Direct™ certied device. The Wi-Fi
Direct™ technology make the player to be directely
connected to a Wi-Fi Direct™ certied device
without connecting to a network device such as an
access point.
On Wi-Fi Direct™ certied device
1. Turn on the Wi-Fi Direct™ certied device and
run its Wi-Fi Direct function.
2. Run DLNA application on the device.
On your player

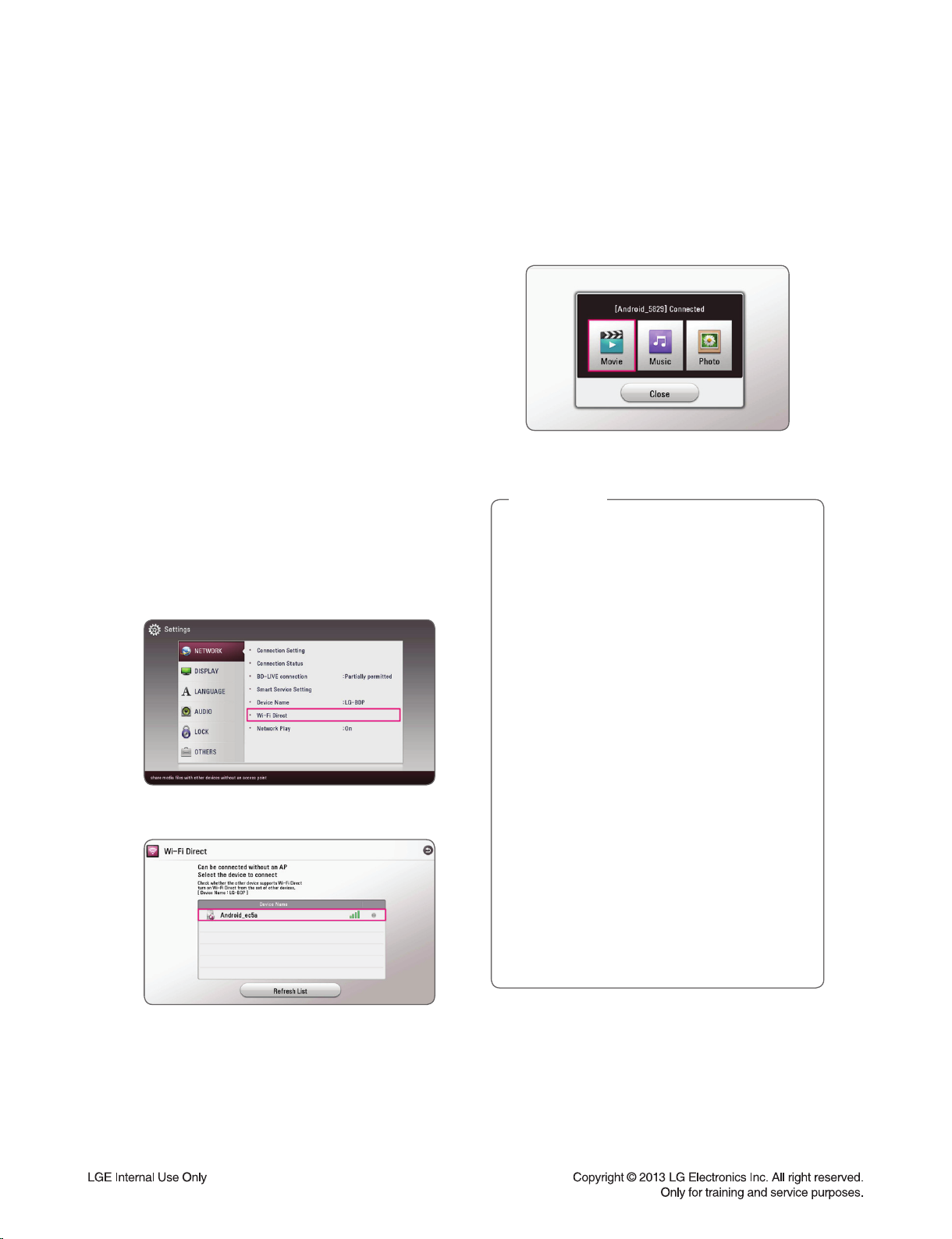

3. Select [NETWORK] option in the [Settings]
menu then press ENTER (b).
4. Select [Wi-Fi Direct] option, and press ENTER
(b).
5. Select a Wi-Fi Direct™ device on the list using
W/S, and press ENTER (b).
Wi-Fi Direct™ connection will be proceeded.
follow the procedure on the screen.
If you want to rescan available Wi-Fi Direct™
device, Select the [Refresh List] and press ENTER
(b).
ADVANCED FEATURES

1-9
Enjoying Miracast™
You can mirror Miracast certied device’s screen
and sound onto TV screen through your player
wirelessly.
On Miracast™ certied device
1. Turn on the Miracast certied device and run its
[Miracast] function.
On your player

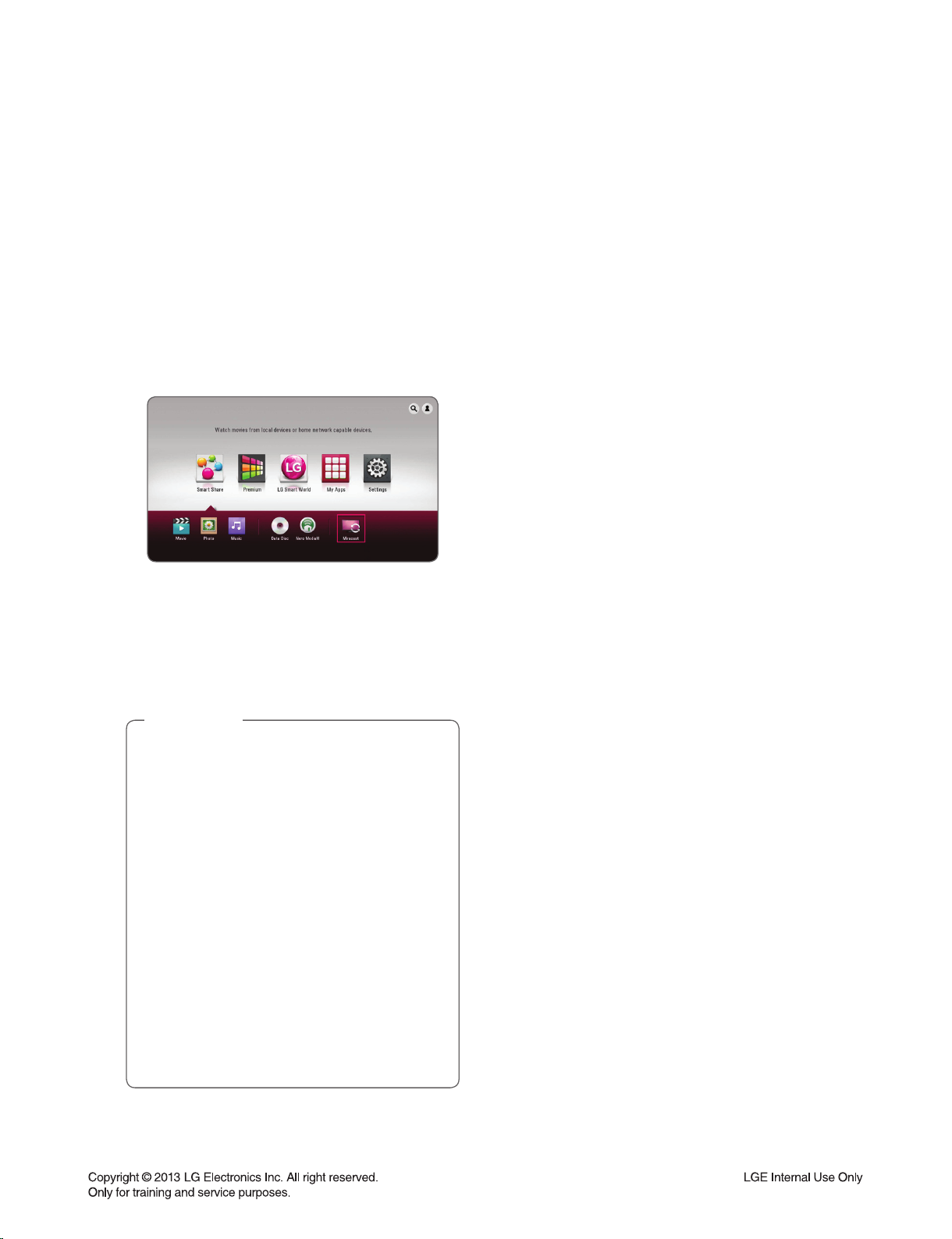

2. Press HOME (n).
3. Select [Miracast] and press ENTER (b).
4. Select a Miracast device on the list using W/S,
and press ENTER (b).
Miracast function will be proceeded
automatically.
If you want to rescan available Miracast device,
select [Refresh List] and press ENTER (b).
yFor the purpose of the better mirroring,
place Miracast certied device from the
player as close as possible.
yThis unit can connect only 1 device at a
time. Multiple connection is not available.
yWhile mirroring, Wireless network or Wi-Fi
Direct cannot be used simultaneously.
yIf a Miracast certified device is not in
[Miracast] standby mode, this player cannot
find the device.
yDepending on your wireless network
condition, mirroring may be unstable.
yWhile mirroring, the screen may be cut o
depending on your TV’s setting. In this case,
please adjust the display settings on your
TV.
, Note
Enjoying BD-Live™
e
BD-ROM supporting BD-Live that has a network
extension function allows you to enjoy more
functions such as downloading new movie trailers
by connecting this unit to the internet.
1. Check the network connection and settings
(page 16).
2. Insert an USB storage device to the USB port on
the front panel.
An USB storage device is needed to download
bonus content.
3. Press HOME (n), and set the [BD-LIVE
connection] option on the [Settings] menu
(page 22).
Depending on a disc, the BD-Live function may
not be operated if [BD-LIVE connection] option
is set to [Partially Permitted].
4. Insert a BD-ROM with BD-Live.
The operations may dier depending on the
disc. Refer to the manual supplied with the disc.

1-10
Do not extract the connected USB device
while content is being downloaded or a Blu-
ray disc is still in the disc tray. Doing so may
damage the connected USB device and BD-
Live features may not operate properly with
the damaged USB device anymore. If the
connected USB device seems damaged from
such an action, you can format the connected
USB device from the PC and reuse it with this
player.
> Caution
ySome BD-Live content may be restrictively
accessed in some territories by content
provider’s own decision.
yIt may take up to several minutes to load
and start enjoying BD-Live content.
yFor BD-Live, use the USB ash drive /
external HDD formatted in FAT32 only.
, Note
LG Tag On
LG Tag On allows you to install and open“LG AV
Remote” app to NFC-enabled phone.
1. Stick the supplied LG Tag On sticker on this
player.
We suggest you rst think carefully about
the sticker position, because it is dicult to
remove after sticking it once.
, Note
2. Tag the back of your NFC-enabled phone over
the LG Tag On sticker.
-If “LG AV Remote”app is not installed on your
NFC-enabled phone, the linked screen with
“LG AV Remote” app is displayed.
-If “LG AV Remote”app is installed on your
NFC-enabled phone, “LG AV Remote” app is
activiated.
yYou must activate the NFC feature of your
NFC-enabled phone for Android 4.0 or later.
yIf your NFC-enabled phone’s screen is
locked, it will not read the LG Tag On sticker.
yIf your smart phone case is plated with
chrome, NFC is unavailable. Depending on
your case’s material or thickness, NFC may
not be read well.
, Note
LG AV Remote
You can control this player with your iPhone
or Android phone via your home network. This
player and your phone must be connected to your
wireless network device such as access point. Visit
“Apple iTunes”or “Google Android Market (Google
Play Store)” for detailed information of “LG AV
Remote”.
Private Sound Mode
By downloading “LG AV Remote” application on
your smart phone or tablet, you can connect your
headsets, and enjoy the sound from your player on
your smart devices.
This feature transmits video signal to TV through
HDMI and Audio signal to smart phone or tablet
through Wi-Fi. For more detailed information,
please refer to the Help menu on “LG AV Remote”
application.

1-11
Viewing information from
Gracenote Media Database
The player can access the Gracenote Media
Database and load the music information so that
Track name, Artist Name, Genre and other text
information can be displayed on the list.
Audio CD
When you insert an Audio CD, the player starts
playback automatically and loads the music title
from the Gracenote Media Database.
If there is no music information from the database,
music titles will not appear on the screen.
Music file
Select a music le using W/S/A/D and press
INFO/MENU (m).
The player accesses to Gracenote Media Database
for the music information.
Blu-ray Disc/DVD/Movie file
1. While listening to a music from the movie being
played, press INFO/MENU (m).
2. Select a [Music ID] using A/D, and press
ENTER (b).
The player starts loading the music information
from the Gracenote Media Database.
yThe player must be connected to the
broadband internet for accessing the
Gracenote Media Database.
yIf the music information is not in the
Gracenote Media Database, message
appears on the screen.
yDepending on the cases, it will takes a few
minutes to load music information from the
Gracenote Media Database.
yInformation may be displayed in broken
letters, if the language you selected is not
available on the Gracenote Media Database.
yThis function is not available for on-line
content and content in DLNA servers.
yLG is a license of Gracenote technology and
is not responsible or liable for information
from the Gracenote Media Database.
yAudio CDs that users made for their only
private purposes cannot be supported in
this feature because they are not in the
Gracenote Media Database.
ySupported music le extensions :
mp3, wma, m4a, wav
, Note

1-12
SPECIFICATIONS
• GENERAL
Power requirements Refer to main label on the rear panel.
Power consumption 12 W
Dimensions (W x H x D) Approx. 430 mm x 43.5 mm X 208.5 mm
Net Weight (Approx.) 1.45 kg
Operating temperature 5 °C to 35 °C
Operating humidity 5 % to 90 %
• OUTPUTS
HDMI OUT (video/audio) 19 pin (Type A, HDMI™ Connector)
DIGITAL AUDIO OUT (OPTICAL) 3 V (p-p), Optical jack x 1
• SYSTEM
Laser Semiconductor laser
wavelength 405 nm / 650 nm
Signal system Standard PAL/NTSC colour TV system
LAN port Ethernet jack x 1, 10BASE-T / 100BASE-TX
Wireless LAN (internal antenna) Integrated IEEE 802.11n (5 GHz and 2.4 GHz bands) wireless
networking access, compatible with 802.11a/b/g Wi-Fi networks.
Bus Power Supply (USB) DC 5 V 500 mA
Note : Design and specifications are subject to change prior notice.

2-1
SECTION 2
CABINET & MAIN CHASSIS
CONTENTS
EXPLODED VIEWS ......................................................................................................................................... 2-2
1. CABINET AND MAIN FRAME SECTION ................................................................................................. 2-2
2. DECK MECHANISM SECTION ................................................................................................................ 2-3
3. PACKING ACCESSORY SECTION ......................................................................................................... 2-4

MAIN
BOARD
SMPS & TIMER
BOARD
A
B
C
D
E
A
B
C
E
462
265
462
462
264
300
468
468
261
260
261
A47
A46
A44
250
462
470
468
287
283
A43
284
WI-FI
MODULE
D
CABLE2
A51
BM18A
266
284A
CN901

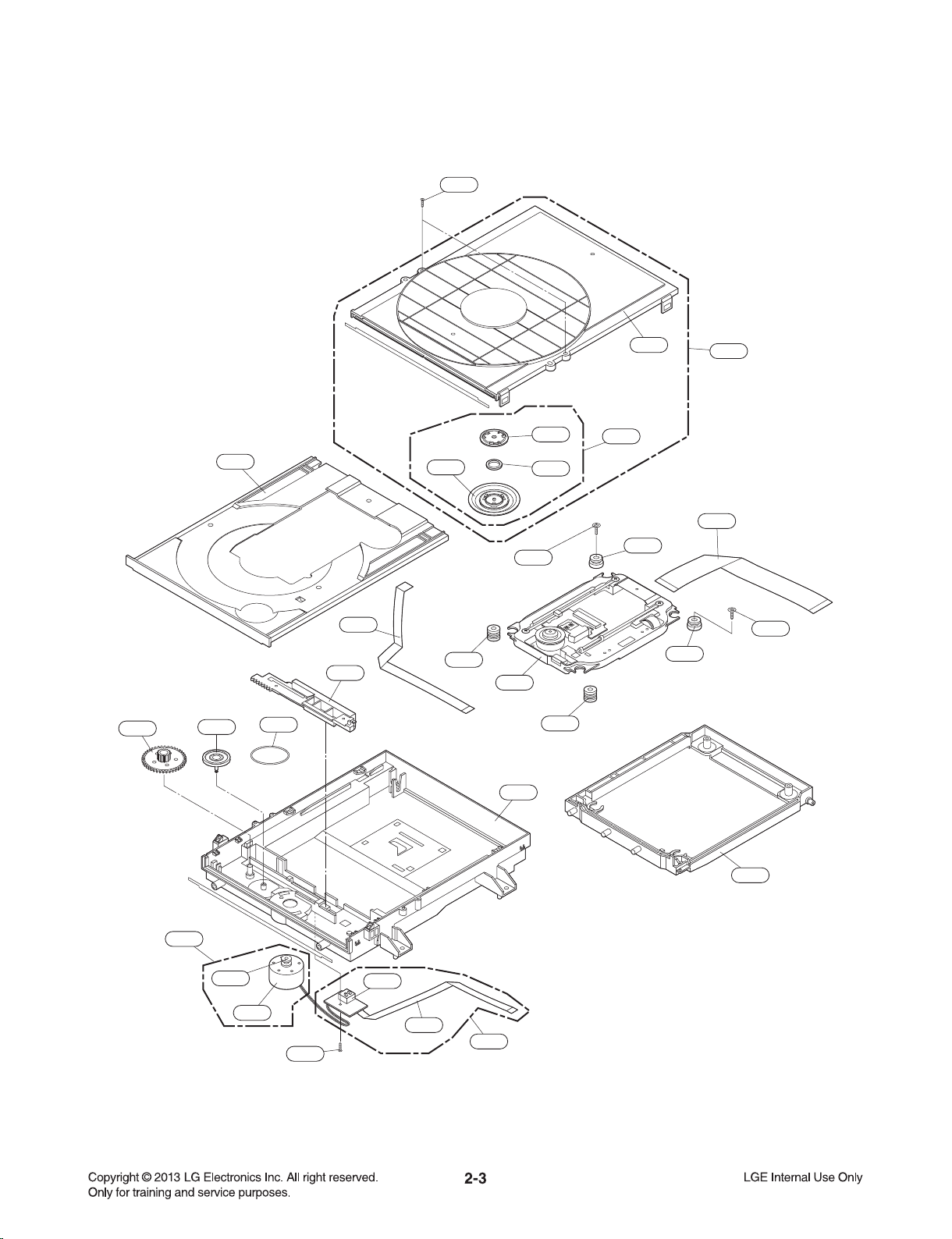

EXPLODED VIEWS
1. CABINET AND MAIN FRAME SECTION

1026
1439
A001
1002
1005 1001
1030
1016
1013 1015
1020
1003
1011
1012 1049
1437
1025
1025
1024
1024
1437
1035
A006
1004
1043
A005
1439
1045
1018
1019
2. DECK MECHANISM SECTION, BM18A(IM13)

803 Packing
803 Packing
804 Bag
802 Box
900 Remote Control
808 Battery
823 HDMI Cable
801 Instruction Ass’y
828 NFC Wireless
3. PACKING ACCESSORY SECTION
832 Disc

3-1
SECTION 3
ELECTRICAL
CONTENTS
DIGITAL DISPLAY & MEDIA TRAINING MASTER ..................................................................................... 3-2
1. DISTORTED PICTURE........................................................................................................................... 3-2
2. NO PICTURE .......................................................................................................................................... 3-7
3. PICTURE COLOR................................................................................................................................. 3-12
4. NOISE/AUDIO PROBLEMS.................................................................................................................. 3-14
5. MISCELLANEOUS................................................................................................................................ 3-17
6. BLU-RAY PLAYER ............................................................................................................................... 3-26
ONE POINT REPAIR GUIDE ........................................................................................................................ 3-27
1. NO POWER PROBLEM ....................................................................................................................... 3-27
2. CLOCK DOESN’T DISPLAY................................................................................................................. 3-29
3. NO BOOTING WHEN YOU TURN THE UNIT ON, NO MESSAGE OR
“HELLO” ON FRONT PANEL............................................................................................................... 3-30
4. WIRED NETWORK CONNECTION ERROR ....................................................................................... 3-39
5. WIRELESS NETWORK CONNECTION ERROR................................................................................. 3-40
6. BAD HDMI VIDEO / AUDIO OUTPUT.................................................................................................. 3-41
ELECTRICAL TROUBLESHOOTING GUIDE............................................................................................. 3-42
1. SMPS TROUBLESHOOTING FLOW ................................................................................................... 3-42
2. POWER SUPPLY ON SMPS BOARD.................................................................................................. 3-43
3. POWER SUPPLY ON MAIN BOARD................................................................................................... 3-45
4. SYSTEM PART..................................................................................................................................... 3-47
5. NO HDMI OUTPUT............................................................................................................................... 3-49
WAVEFORMS OF MAJOR CHECK POINT ................................................................................................ 3-50
1. SYSTEM PART - 1 ............................................................................................................................... 3-50
2. SYSTEM PART - 2 (SYSTEM MEMORY)............................................................................................ 3-51
3. HDMI PART .......................................................................................................................................... 3-52
WIRING DIAGRAMS...................................................................................................................................... 3-53
BLOCK DIAGRAMS ...................................................................................................................................... 3-54
1. SYSTEM BLOCK DIAGRAM ................................................................................................................ 3-54
2. SMPS BLOCK DIAGRAM..................................................................................................................... 3-55
CIRCUIT DIAGRAMS .................................................................................................................................... 3-57
1. SMPS & TIMER CIRCUIT DIAGRAM................................................................................................... 3-57
2. MAIN - DC-DC CIRCUIT DIAGRAM..................................................................................................... 3-59
3. MAIN - MPEG CIRCUIT DIAGRAM...................................................................................................... 3-61
4. MAIN - MEMORY & STRAP CIRCUIT DIAGRAM................................................................................ 3-63
5. MAIN - FRONT END CIRCUIT DIAGRAM ........................................................................................... 3-65
6. MAIN - A/V OUTPUT CIRCUIT DIAGRAM........................................................................................... 3-67
CIRCUIT VOLTAGE CHART ........................................................................................................................ 3-69
PRINTED CIRCUIT BOARD DIAGRAMS.................................................................................................... 3-71
1. MAIN P.C.BOARD ................................................................................................................................ 3-71
2. SMPS & TIMER P.C. BOARD .............................................................................................................. 3-73

3-2
DIGITAL DISPLAY & MEDIA TRAINING MASTER
Objective: To provide clear and concise guidelines for customer service agents to handle calls on
box goods calls.
1. DISTORTED PICTURE
1-1. Lines on Picture
Distorted picture refers to the customer getting video, but there is a problem with the video.
What cables is
the customer using to
connect the BD?
NO
YES
Determine what cables the customer is using to connect
the BD to the TV and if connected properly. Refer to OM for
connections. Tighten any loose cables. Make sure the customer
is not connecting a BD to VCR or BD to DVD Recorder.
Copy protection can distort the picture on older DVD models.
Is the TV set
to the correct input?
NO
YES
Make sure the TV is on the correct input.
Turn TV off, then on to determine input.
Video when using composite, or component.
DVI when using DVI, and HDMI when using HDMI.
Do ghosting appear
when watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens needs to
be cleaned. Recommend the customer use a lens cleaner on the BD.
A lens cleaner is available at any local electronics retailer.
Do lines appear
when watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens needs to
be cleaned. Recommend the customer use a lens cleaner on the BD.
A lens cleaner is available at any local electronics retailer.
Does ghosting appear
when the BD is connected to
another TV?
NO
YES
Connect the BD to another TV and play a disc.
No ghosting during disc play back indicates a problem with the first TV.
Please refer to the owners manual for instructions on how to connect
the BD to a TV. If the BD has a problem on the second TV,
then see service chart for service information.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables. A bad cable can
also cause video problems. Test the cable with another device to
the TV to also determine if the TV is bad. If BD is problem,
please see service chart for service information.

3-3
DIGITAL DISPLAY & MEDIA TRAINING MASTER
What cables is the customer
using to connect the BD?
NO
YES
Determine what cables the customer is using to connect the BD to
the TV and if connected properly. Refer to OM for connections.
Tighten any loose cables. Make sure the customer is not connecting a
BD to VCR or BD to DVD Recorder. Copy protection can distort
the picture on older VCR models.
Is the TV set to
the correct input?
NO
YES
Make sure the TV is on the correct input. Turn TV off,
then on to determine input. Video when using composite,
or component. DVI when using DVI, and HDMI when using HDMI.
Do ghosting appear when
watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens
needs to be cleaned. Recommend the customer use a lens cleaner
on the BD. A lens cleaner is available at any local electronics retailer.
Do lines appear when
watching a TV program?
NO
YES
Ghosting appearing when watching a TV program indicates an
issue with the display. If the TV program is fine, then connect
the BD to another input on the display to determine
if the problem is following the BD.
Does ghosting
appear when the BD is
connected to another TV?
NO
YES
Connect the BD to another TV and play a disc.
No ghosting during disc play back indicates a problem with the first TV.
Please refer to the owners manual for instructions on how to
connect the BD to a TV. If the BD has a problem on the second TV,
then see service chart for service information.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables. A bad cable can
also cause video problems. Test the cable with another device to
the TV to also determine if the TV is bad. If BD is problem,
please see service chart for service information.
1-2. Ghost Picture
Distorted picture refers to the customer getting video, but there is a problem with the video.
