LG DLEY1201 User manual

Life's Good
DR ER
Before beginning installation, read these instructions carefully_ This
will simplify installation and ensure that the dryer is instaDDed correctly
and safely_ Leave these instructions near the dryer after installation
for future references
DLEY1201 _ DLGY1202 _
II Ill
P/No. : 3828EL2001M

2 TABLE OF CONTENTS
TABLE OF CONTENTS
.3 IMPORTANT SAFETY INSTRUCTIONS
3
4
4
5
5
7
WHAT TO DO IF YOU SMELL GAS
BASIC SAFETY PRECAUTIONS
CALIFORNIA SAFE DRINKING WATER AND TOXIC
ENFORCEMENT ACT
GROUNDING INSTRUCTIONS
SAFETY INSTRUCTIONS FOR INSTALLATION

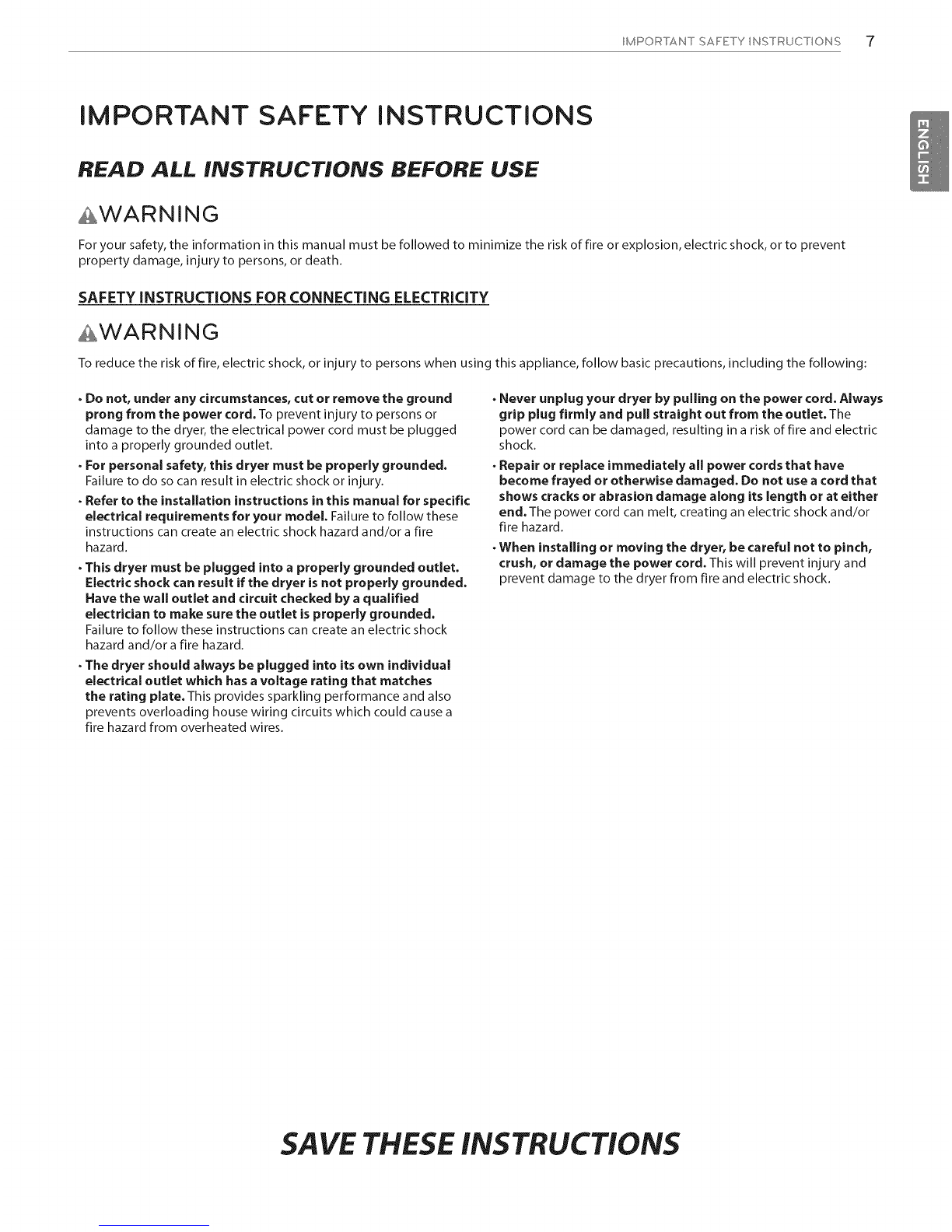

SAFETY INSTRUCTIONS FOR CONNECTING
ELECTRICITY
8 PRODUCT FEATURES
35
35
36
36
38
MAINTENANCE
Regular Cleaning
TROUBLESHOOTING
Before Calling for Service
SPECIFICATIONS
9 INTRODUCING YOUR DRYER
9 Parts
9 Accessories

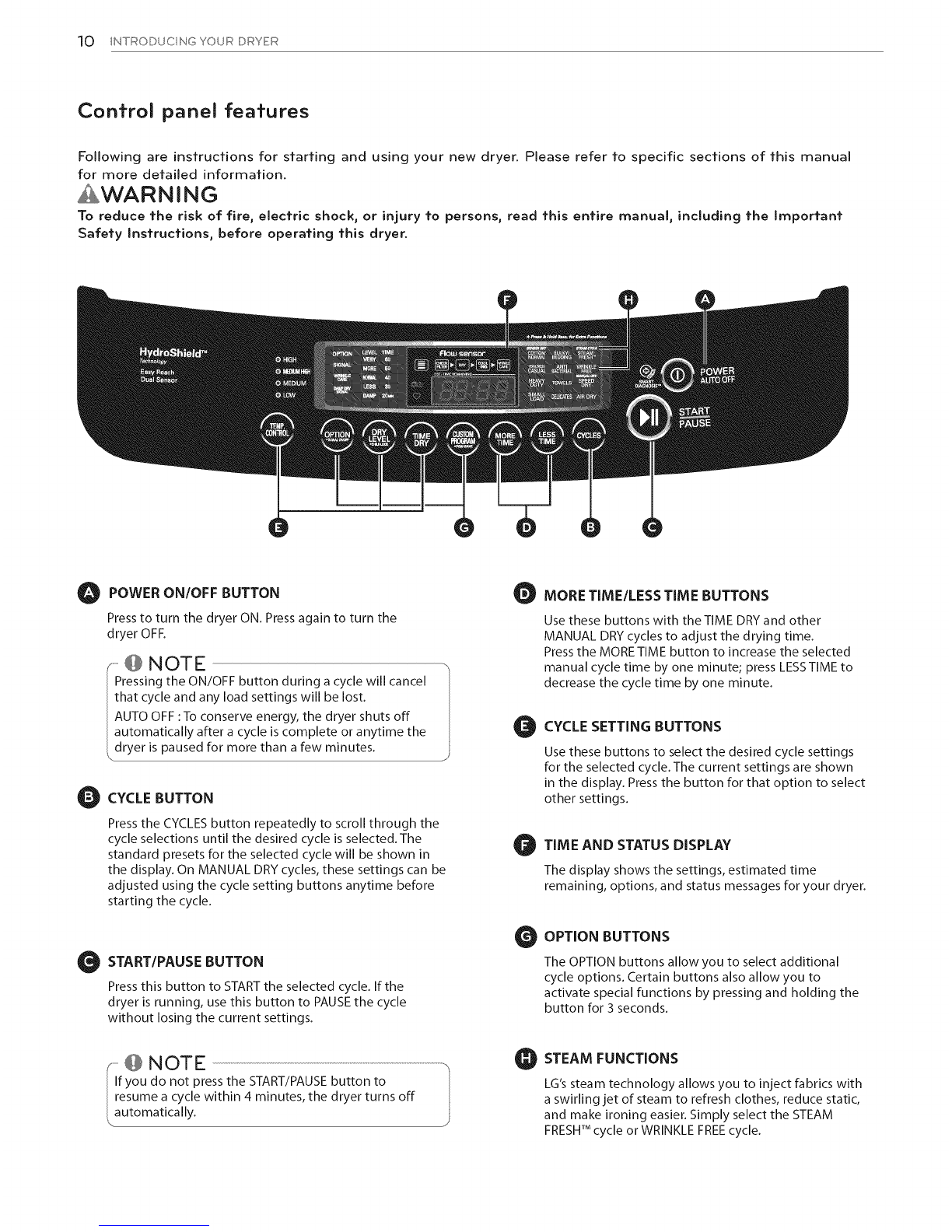

10 Control Panel Features

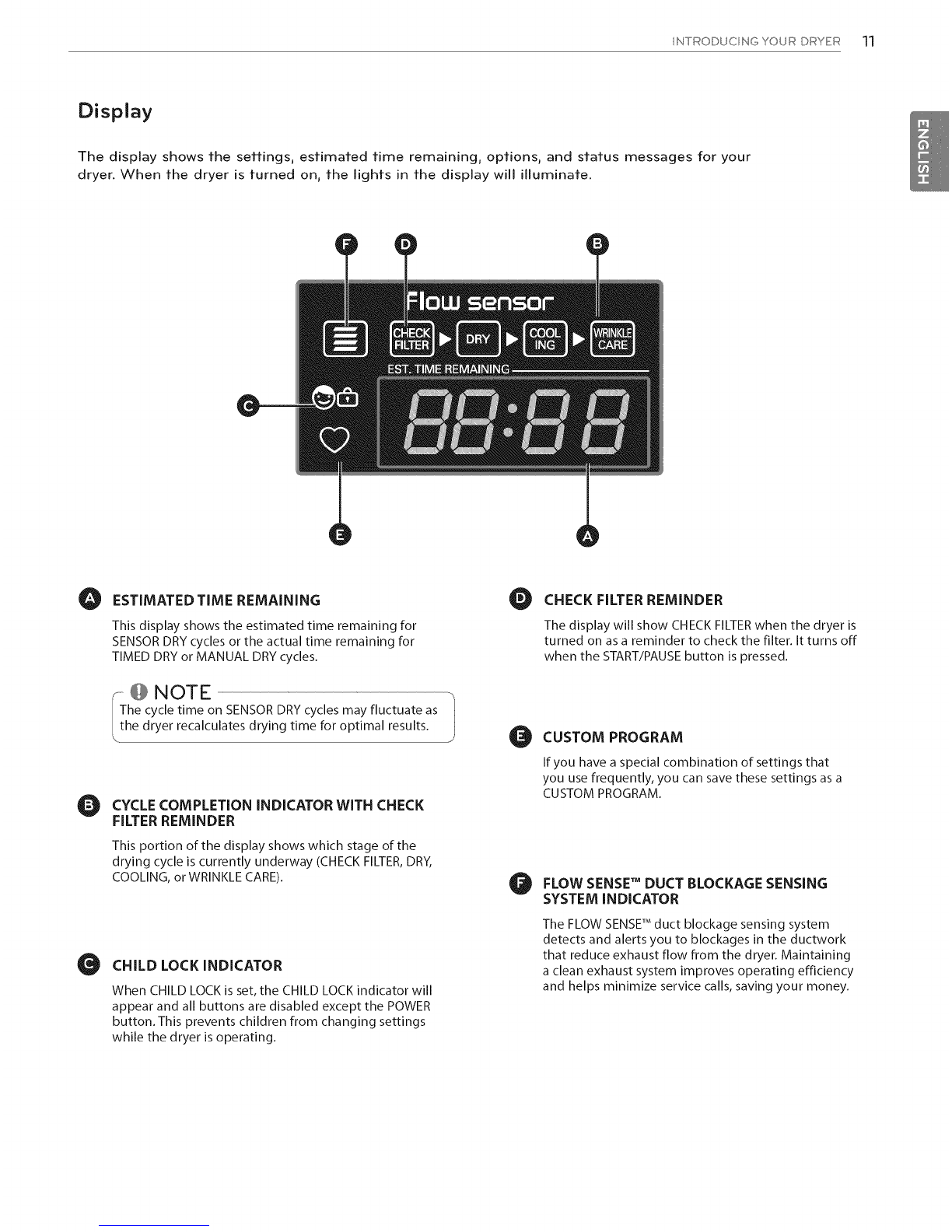

11 Display
12 INSTALLATION INSTRUCTIONS

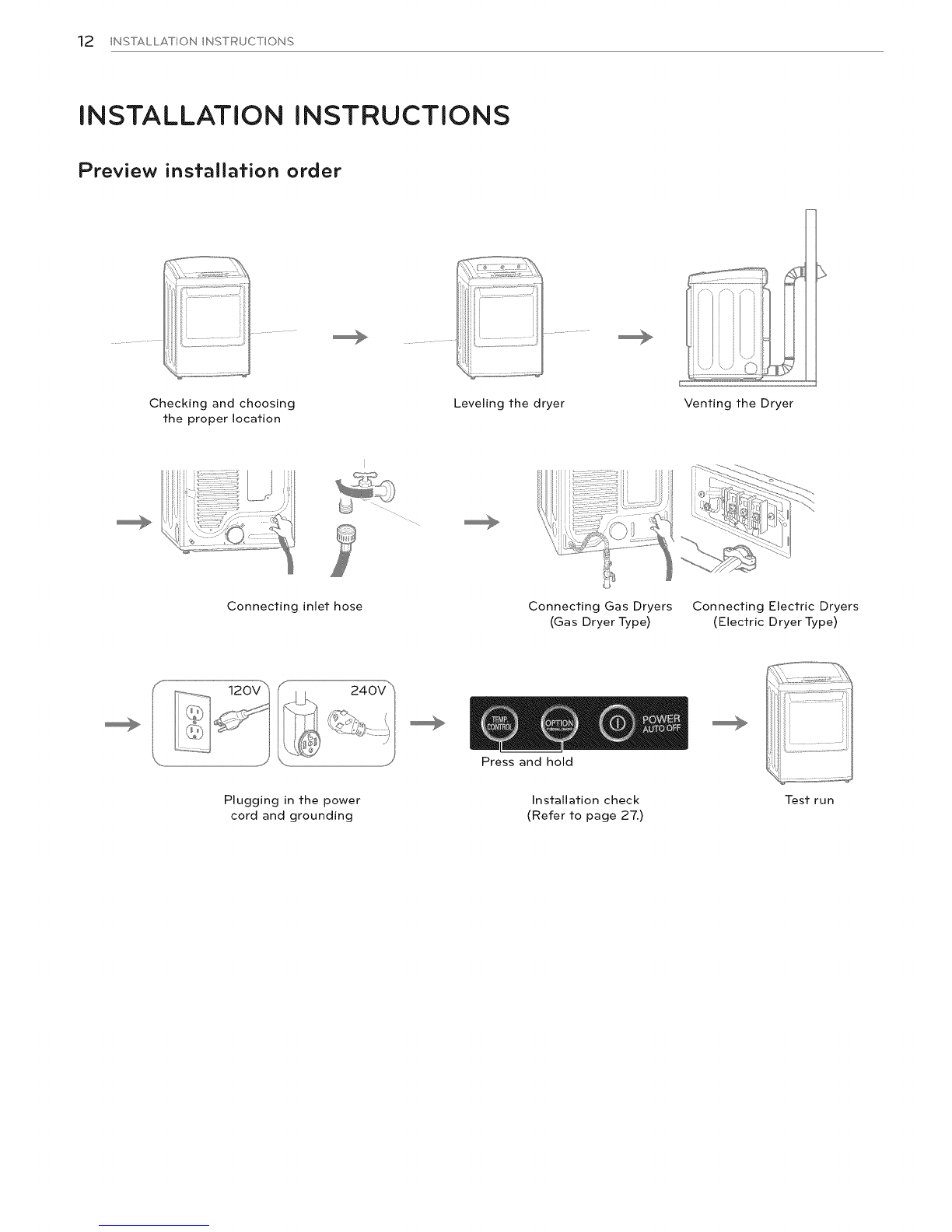

12 Preview Installation Order

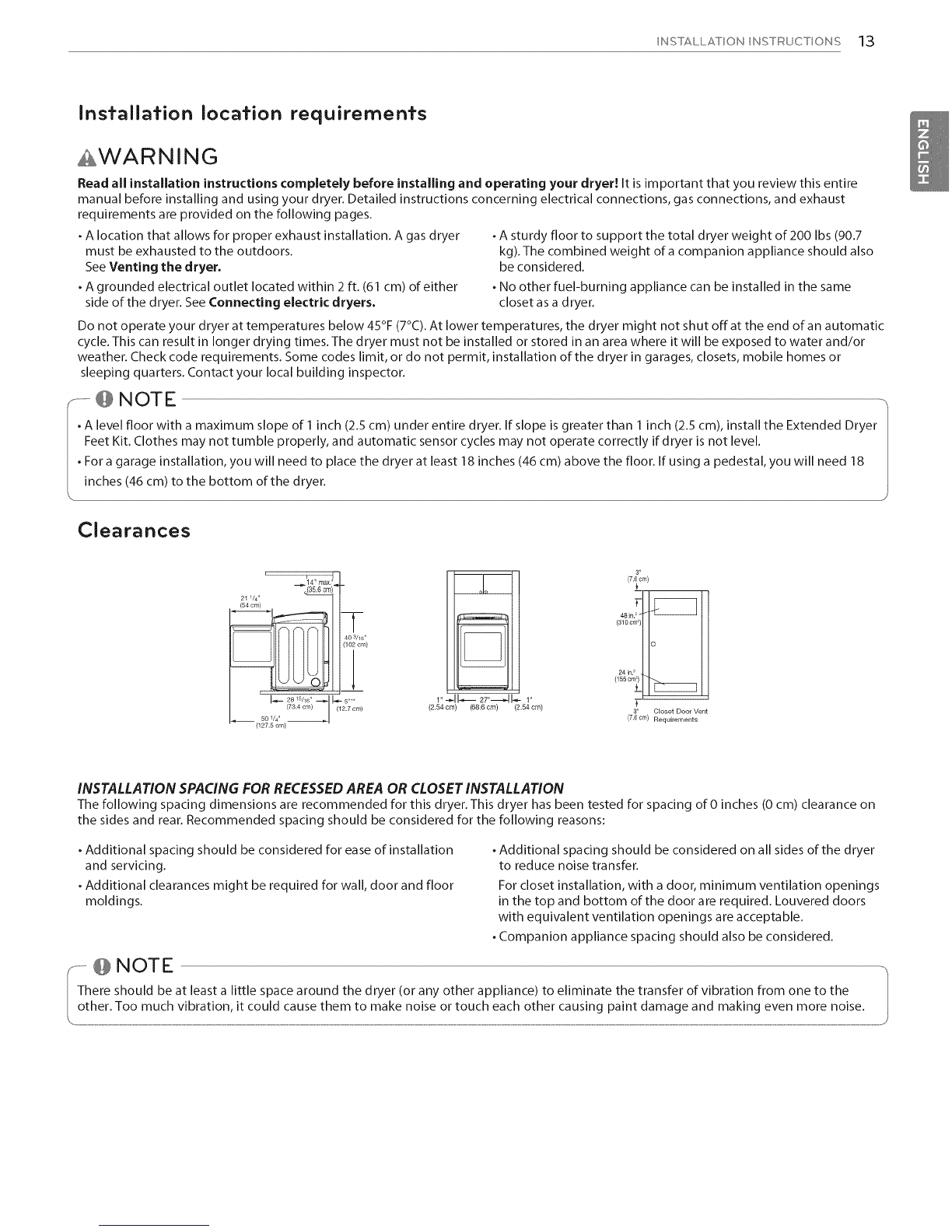

13 Installation Location Requirements
13 Clearances
14 Leveling the Dryer

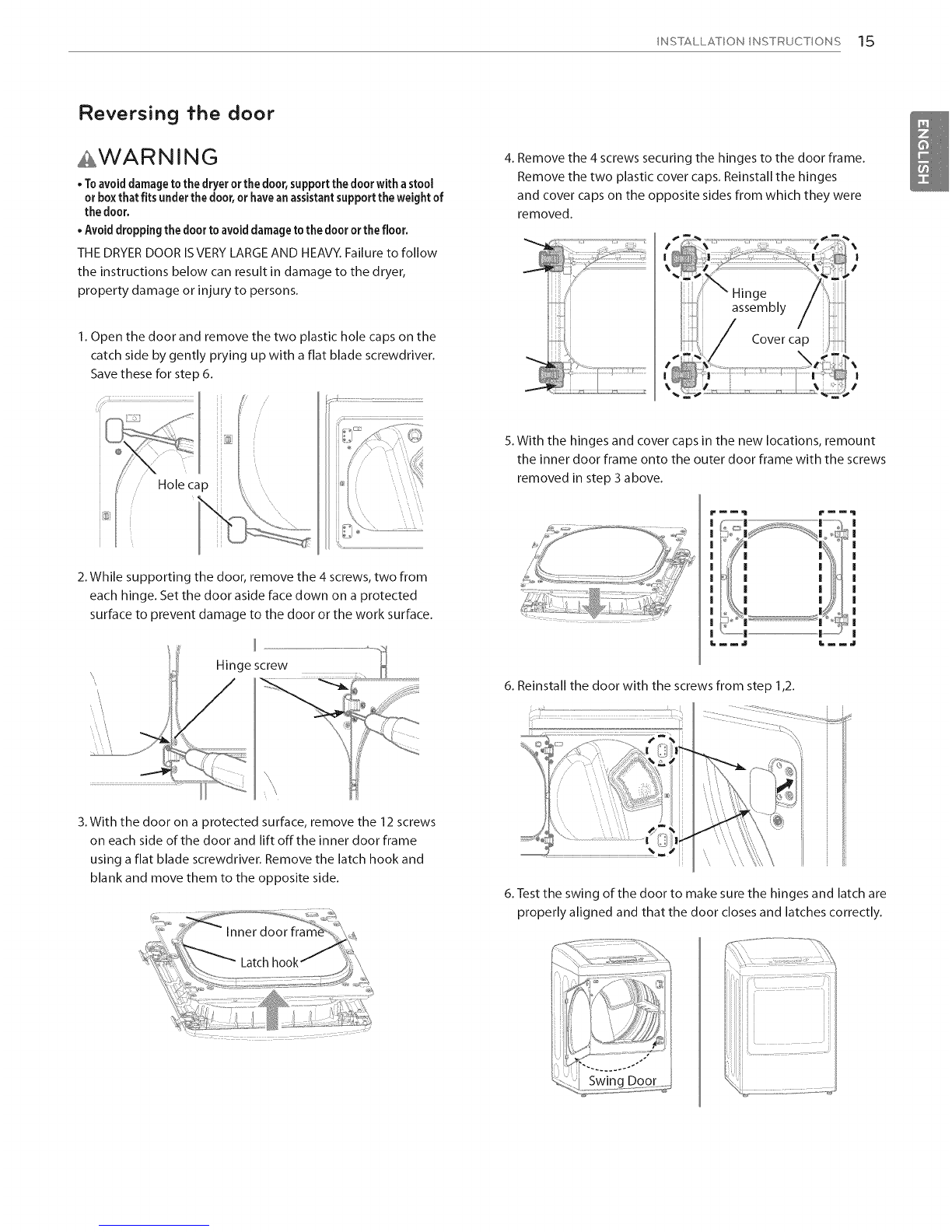

15 Reversing the door
16 Installing the Side Vent Kit
17 Venting the Dryer
19 Connecting inlet hose
20 Connecting Gas Dryers
22 Connecting Electric Dryers
27 Special Requirements for Manufactured or Mobile
Homes
27 Final Installation Check
28 Installation Test (Duct check)
30 HOW TO USE
30 Operating the Dryer
31 Cycle Guide
32 Sorting Load
32 Loading the Dryer
32 Check the Lint Filter before Every Load
33 Cycle Setting Buttons
34 Special Functions
34 Custom Program
34 Steam functions
39
4O
USING SMARTDIAGNOSIS TM
WARRANTY

IMPORTANT SAFETY INSTRUCTIONS 3
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
AWARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent
property damage, injury to persons, or death.
"Your Safety and the safety of others is very important.
We haveprovided many important safety messages inthis manual and on your appliance. Always read and obey all safety messages.
This isthe safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messageswill follow the safetyalert symbol and either the word DANGER,WARNING,or CAUTION.
These words mean:
ADANGER
You will be killed or seriously injured if you don't immediately follow instructions.
AWARNING
You can be killed or seriously injured if you don't follow instructions.
ACAUTION
You may be slightly injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is,tell you how to reduce the chance of injury, and tell you what can happen if
the instructions are not followed.
•Do not install aclothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct isinstalled, it must be of
aspecific type identified by the appliance manufacturer as suitable for usewith clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of
fire.
•Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this appliance or any other appliances.
• installation and service must be performed by a qualified installer, service agency, or the gassupplier.
• Install the clothes dryer according to the manufacturer's instructions and local codes.
•Save these instructions.
WHAT TO DO IF YOU SMELL GAS:
1.Do not try to light a match or cigarette, or turn on any gas or electrical appliance.
2. Do not touch any electrical switches. Do not use any phone in your building.
3. Clear the room, building, or area of all occupants.
4. Immediately call your gas supplier from a neighbor's phone. Follow the gassupplier's instructions carefully.
5. If you cannot reach your gas supplier, call the fire department.
AWARNING:This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive
harm. Washhands af_er handling.

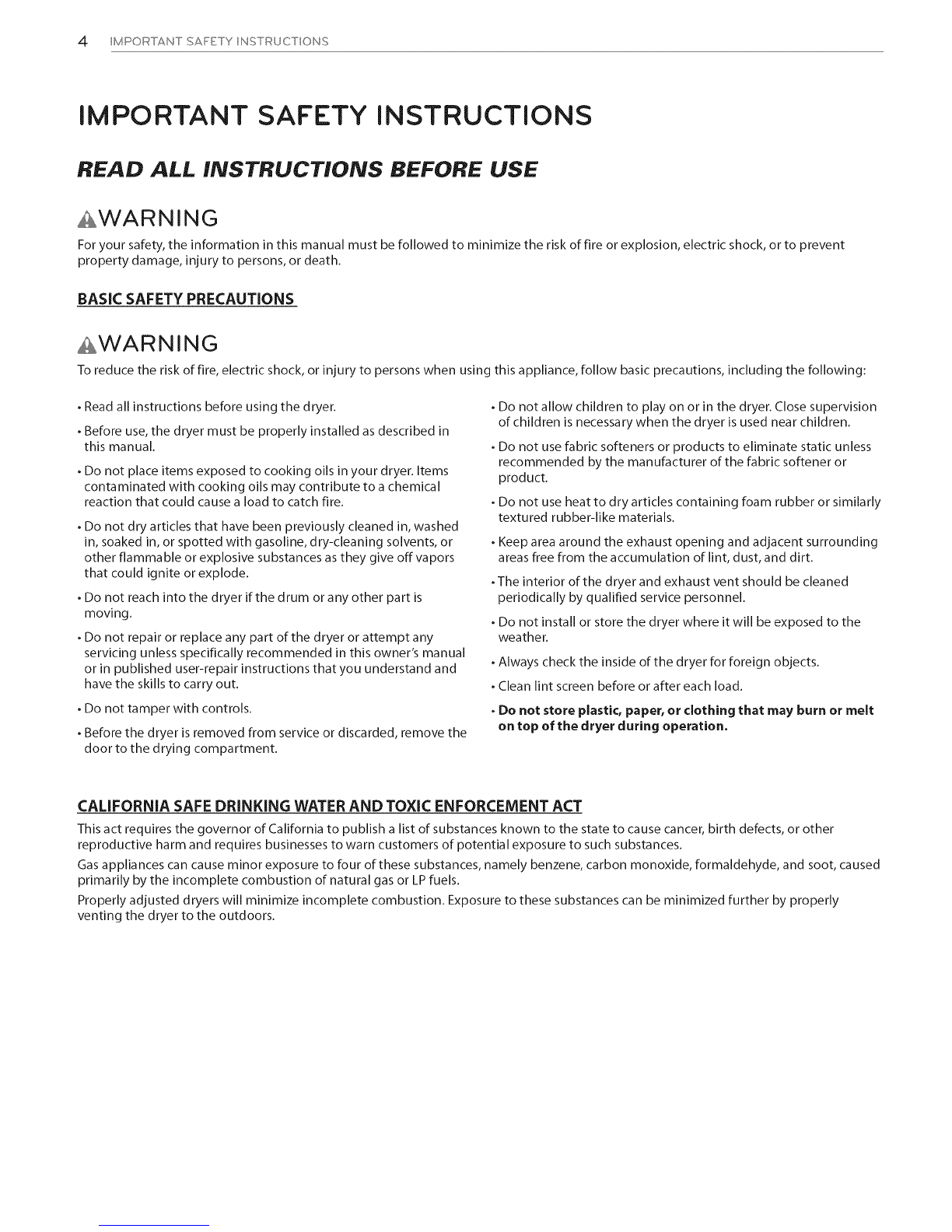

4IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
AWARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent
property damage, injury to persons, or death.
BASIC SAFETY PRECAUTIONS
AWARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:
. Read all instructions before using the dryer.
. Before use, the dryer must be properly installed as described in
this manual.
. Do not place items exposed to cooking oils in your dryer. Items
contaminated with cooking oils may contribute to a chemical
reaction that could cause a load to catch fire.
.Do not dry articles that have been previously cleaned in, washed
in, soaked in, or spotted with gasoline, dry-cleaning solvents, or
other flammable or explosive substances as they give off vapors
that could ignite or explode.
.Do not reach into the dryer if the drum or any other part is
moving.
. Do not repair or replace any part of the dryer or attempt any
servicing unless specifically recommended in this owner's manual
or in published user-repair instructions that you understand and
have the skills to carry out.
,Do not tamper with controls.
.Before the dryer is removed from service or discarded, remove the
door to the drying compartment.
,Do not allow children to play on or in the dryer. Close supervision
of children is necessary when the dryer is used near children.
, Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturer of the fabric softener or
product.
. Do not use heat to dry articles containing foam rubber or similarly
textured rubber-like materials.
.Keep area around the exhaust opening and adjacent surrounding
areas free from the accumulation of lint, dust, and dirt.
.The interior of the dryer and exhaust vent should be cleaned
periodically by qualified service personnel.
.Do not install or store the dryer where it will be exposed to the
weather.
.Always check the inside of the dryer for foreign objects.
. Clean lint screen before or after each load.
. Do not store plastic, paper, or clothing that may burn or melt
on top of the dryer during operation.
CALIFORNIA SAFE DRINKING WATER AND TOXIC ENFORCEMENT ACT
This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth defects, or other
reproductive harm and requires businesses to warn customers of potential exposure to such substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde, and soot, caused
primarily by the incomplete combustion of natural gas or LPfuels.
Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized further by properly
venting the dryer to the outdoors.

IMPORTANT SAFETY INSTRUCTIONS 5
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
AWARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent
property damage, injury to persons, or death.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction
or breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current. This
appliance must be equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
Do not modify the plug provided with the appliance. If it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
This appliance must be connected to a grounded metal, permanent
wiring system or an equipment-grounding conductor must be
run with the circuit conductors and connected to the equipment-
grounding terminal or lead on the appliance.
Electric shock can result if the dryer is not properly grounded.
AWARNING
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or
service person if you are in doubt that the appliance is properly grounded.
SAFETY INSTRUCTIONS FOR INSTALLATION
AWARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:
. Properly ground dryer to conform with all governing codes
and ordinances. Follow details in the installation instructions.
Electric shock can result if the dryer is not properly grounded.
. Before use, the dryer must be properly installed as described
in this manual. Electric shock can result if the dryer is not properly
grounded.
.Install and store the dryer where it will not be exposed to
temperatures below freezing or exposed to the weather.
. All repairs and servicing must be performed by an authorized
servicer unless specifically recommended in this owner's
manual. Use only authorized factory parts. Failure to follow this
warning can cause serious injury, fire, electric shock, or death.
. To reduce the risk of electric shock, do not install the dryer in
humid spaces. Failure to follow this warning can cause serious
injury, fire, electric shock, or death.
. Connect to a properly rated, protected, and sized power
circuit to avoid electrical overload. Improper power circuit can
melt, creating electric shock and/or fire hazard.
. Remove all packing items and dispose of all shipping
materials properly. Failureto do so can result in death, explosion,
fire, or burns.
. Place dryer at least 18 inches above the floor for agarage
installation. Failureto do socan result in death, explosion, fire, or
burns.
. Keep all packaging from children. Packaging material can be
dangerous for children. There isa riskof suffocation.
. Do not install near another source of heat suchas astove,
cooking oven. Failure to do socan causedeform, smoke and fire.
. Do not place candles, smoking materials, or other flammables
on top of the product. Dripping wax, smoke, or fire can result.
. Remove all protective vinyl film from the product. Failure to do
socan cause product damage, smoke or fire.

6 IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
AWARNING
For your safety,the information in this manual must be followed to minimize the riskof fire or explosion, electric shock, or to prevent
property damage, injury to persons, or death.
SAFETY INSTRUCTIONS FOR INSTALLATION
AWARNING
Toreduce the risk of injury to persons, follow all industry recommended safety procedures including the use of long sleeved gloves and
safety glasses.Failureto follow all of the safetywarnings in this manual could result in property damage, injury to persons, or death.
Exhaust/Ducting:
. Gas dryers MUST be exhausted to the outside. Failure to follow
these instructions can result in fire or death.
. The dryer exhaust system must be exhausted to the outside of
the dwelling. If the dryer isnot exhausted outdoors, some fine
lint and large amounts of moisture will be expelled into the
laundry area. An accumulation of lint in any area of the home can
create ahealth and fire hazard.
. Useonly rigid metal or flexible metal 4-inch diameter
ductwork inside the dryer cabinet or for exhausting to the
outside. Useof plastic or other combustible ductwork can
cause a fire. Punctured ductwork can cause afire if it collapses or
becomes otherwise restricted in useor during installation.
. Ductwork isnot provided with the dryer, and you should
obtain the necessary ductwork locally. The end cap should
have hinged dampers to prevent backdraft when the dryer is
not in use. Failureto follow these instructions can result in fire or
death.
. The exhaust duct must be 4 inches (10.2 cm) in diameter with
no obstructions. The exhaust duct should be kept as short as
possible. Make sure to clean any old ducts before installing
your new dryer. Failure to follow these instructions can result in
fire or death.
. Rigid or semi-rigid metal ducting is recommended for use
between the dryer and the wall. In special installations
when it is impossible to make aconnection with the above
recommendations, a UL-listed flexible metal transition duct
may be used between the dryer and wall connection only.
The useof this ducting will affect drying time. Failureto follow
these instructions can result in fire or death.
.DO NOT use sheet metal screwsor other fasteners which
extend into the duct that could catch lint and reduce the
efficiency of the exhaust system. Secureall joints with duct tape.
For complete details, follow the Installation Instructions. Failureto
follow these instructions can result in fire or death.

IMPORTANT SAFETY INSTRUCTIONS 7
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
AWARNING
Foryour safety,the information in this manual must be followed to minimize the riskof fire or ex
property damage, injury to persons, or death. 3losion, electric shock, or to prevent
SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY
AWARNING
To reduce the riskof fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:
. Do not, under any circumstances, cut or remove the ground
prong from the power cord. To prevent injury to persons or
damage to the dryer, the electrical power cord must be plugged
into a properly grounded outlet.
. For personal safety, this dryer must be properly grounded.
Failure to do so can result in electric shock or injury.
. Refer to the installation instructions in this manual for specific
electrical requirements for your model. Failure to follow these
instructions can create an electric shock hazard and/or a fire
hazard.
. This dryer must be plugged into a properly grounded outlet.
Electric shock can result if the dryer is not properly grounded.
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
Failure to follow these instructions can create an electric shock
hazard and/or a fire hazard.
. The dryer should always be plugged into its own individual
electrical outlet which has a voltage rating that matches
the rating plate. This provides sparkling performance and also
prevents overloading house wiring circuits which could cause a
fire hazard from overheated wires.
.Never unplug your dryer by pulling on the power cord. Always
grip plug firmly and pull straight out from the outlet. The
power cord can be damaged, resulting in a risk of fire and electric
shock.
. Repair or replace immediately all power cords that have
become frayed or otherwise damaged. Do not use a cord that
shows cracks or abrasion damage along its length or at either
end. The power cord can melt, creating an electric shock and/or
fire hazard.
. When installing or moving the dryer, be careful not to pinch,
crush, or damage the power cord. This will prevent injury and
prevent damage to the dryer from fire and electric shock.
SAVE THESE INSTRUCTIONS

8 PRODUCT FEATURES
PRODUCT FEATURES
An entire selection of user-friendly functions make operating the dryer easy.
The wide-opening door provides easy access for loading and unloading. The door hinge can be reversed to adjust for installation location.
LG's steam technology allows you to inject fabrics with a swirling jet of steam to refresh clothes, reduce static, and make ironing easier.
Simply select the STEAM FRESHTM cycle or WRINKLE FREEcycle.
The FLOW SENSETM duct blockage sensing system detects and alerts you to serious blockages in the ductwork that reduce exhaust flow
from the dryer. Clean exhaust systems increase efficiency and reduce drying times.
Should you experience any technical difficulty with your dryer, it has the capability of transmitting data via your telephone to the
Customer Information Center.The call center agent records the data transmitted from your machine and uses it to analyze the issue,
providing a fast and effective diagnosis (refer to page 39 ).
Protocol P154
Sanitization Performance of
Residential Clothes dryer

INTRODUCING YOUR DRYER
INTRODUCING YOUR DRYER
PARTS AND ACCESSORIES
Parts
Control panel
Leveling feet
Reversible
door
Lint filter
Terminal Power cord
access panel location
(Electric models) (Gas models)
location
(Gas models)
Water Inlet
Valve
Exhaust duct
outlet
Accessories
Included accessories
Y connector Hose
fOptional accessories
Drying rack
(sold separately)
Part No. 3750EL0001C
Side vent kit
(sold separately)
Kit No. 383EELg001B
@NOTE
•Contact LG Customer Serviceat 1-800-243-0000 (I-888-542-2623inCanada) ifany accessoriesare missing.
Foryour safetyand forextended product life,use onlyauthorizedcomponents. The manufacturer isnot responsibleforproduct
malfunctionor accidentscaused by the use of separatelypurchased unauthorized components or parts.
•The images in this owner's manual may be different from the actual components and accessories, and are subject to change by the

10 INTRODUCING YOUR DRYER
Control panel feaSures
Following are instructions for starting and using your new dryer. Please refer to specific sections of this manual
for more detailed information,
WARNING
To reduce the risk of fire, electric shock, or injury to persons, read this entire manual, including the Important
Safety Instructions, before operating this dryer.
OPOWERON/OFF BUTTON
Press to turn the dryer ON. Press again to turn the
dryer OFF.
@NOTE
Pressing the ON/OFF button during a cycle will cancel
that cycle and any load settings will be lost.
AUTO OFF :To conserve energy, the dryer shuts off
automatically after a cycle is complete or anytime the
dryer is paused for more than a few minutes.
OCYCLEBUTTON
Press the CYCLES button repeatedly to scroll through the
cycle selections until the desired cycle is selected. The
standard presets for the selected cycle will be shown in
the display. On MANUAL DRY cycles, these settings can be
adjusted using the cycle setting buttons anytime before
starting the cycle.
OSTART/PAUSE BUTTON
Pressthis button to STARTthe selected cycle. If the
dryer is running, usethis button to PAUSEthe cycle
without losing the current settings.
@ NOTE ..................................................................................................................................................................-,,
If you do not press the START/PAUSE button to
resume a cycle within 4 minutes, the dryer turns off
automatically.
O
O
O
MORE TIME/LESS TIME BUTTONS
Use these buttons with the TIME DRY and other
MANUAL DRY cycles to adjust the drying time.
Press the MORE TIME button to increase the selected
manual cycle time by one minute; press LESSTIME to
decrease the cycle time by one minute.
CYCLESETTING BUTTONS
Use these buttons to select the desired cycle settings
for the selected cycle. The current settings are shown
in the display. Press the button for that option to select
other settings.
TIME AND STATUSDISPLAY
The display shows the settings, estimated time
remaining, options, and status messages for your dryer.
OPTION BUTTONS
The OPTION buttons allow you to select additional
cycle options. Certain buttons also allow you to
activate special functions by pressing and holding the
button for 3 seconds.
OSTEAM FUNCTIONS
LG'ssteam technology allows you to inject fabrics with
a swirling jet of steam to refresh clothes, reduce static,
and make ironing easier. Simply select the STEAM
FRESHTM cycle or WRINKLEFREEcycle.

INTRODUCING YOUR DRYER 11
Display
The display shows the settings, estimated time remaining, options, and status messages for your
dryer, When the dryer is turned on, the lights in the display will illuminate,
OESTIMATED TIME REMAiNiNG O
This display shows the estimated time remaining for
SENSORDRYcycles or the actual time remaining for
TIMED DRYor MANUAL DRYcycles,
@NOTE
The cycle time on SENSOR DRY cycles may fluctuate as "!I
the dryer recalculates drying time for optimal results, j
OCYCLECOMPLETION iNDiCATORWiTH CHECK
FILTERREMINDER
O
This portion of the display shows which stage of the
drying cycle is currently underway (CHECKFILTER,DRY,
COOLING,or WRINKLECARE),
CHILD LOCK iNDiCATOR
When CHILD LOCK is set, the CHILD LOCK indicator will
appear and all buttons are disabled except the POWER
button. This prevents children from changing settings
while the dryer is operating.
0
CHECK FILTER REMINDER
The display will show CHECKFILTERwhen the dryer is
turned on asa reminder to check the filter. It turns off
when the START/PAUSEbutton ispressed.
CUSTOM PROGRAM
If you have a special combination of settings that
you use frequently, you can save these settings as a
CUSTOM PROGRAM.
OLOW SENSETM DUCT BLOCKAGE SENSING
SYSTEM INDICATOR
The FLOW SENSETM duct blockage sensing system
detects and alerts you to blockages in the ductwork
that reduce exhaust flow from the dryer. Maintaining
a clean exhaust system improves operating efficiency
and helps minimize service calls, saving your money.

12 INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
Preview insfallafion order
Checking and choosing
the proper location Leveling the dryer Venting the Dryer
Connecting inlet hose Connecting Gas Dryers Connecting Electric Dryers
(Gas Dryer Type) (Electric Dryer Type)
Press and hold
Test run
Plugging in the power Installation check
cord and grounding (Refer to page 27.)

INSTALLATIONINSTRUCTIONS13
Insfallafion Iocafion requiremenfs
AWARNING
Read all installation instructions completely before installing and operating your dryer! It is important that you review this entire
manual before installing and using your dryer. Detailed instructions concerning electrical connections, gas connections, and exhaust
requirements are provided on the following pages.
,A location that allows for proper exhaust installation. A gas dryer
must be exhausted to the outdoors.
See Venting the dryer.
.A grounded electrical outlet located within 2 ft. (61 cm) of either
side of the dryer. See Connecting electric dryers.
,A sturdy floor to support the total dryer weight of 200 Ibs (90.7
kg). The combined weight of a companion appliance should also
be considered.
,No other fuel-burning appliance can be installed in the same
closet as a dryer.
Do not operate your dryer at temperatures below 45°F (7°C). At lower temperatures, the dryer might not shut off at the end of an automatic
cycle. This can result in longer drying times. The dryer must not be installed or stored in an area where it will be exposed to water and/or
weather. Check code requirements. Some codes limit, or do not permit, installation of the dryer in garages, closets, mobile homes or
sleeping quarters. Contact your local building inspector.
I...@NOTE ....,,
, A level floor with a maximum slope of 1 inch (2.5 cm) under entire dryer. If slope is greater than 1 inch (2.5 cm), install the Extended Dryer
Feet Kit. Clothes may not tumble properly, and automatic sensor cycles may not operate correctly if dryer is not level.
•For a garage installation, you will need to place the dryer at least 18 inches (46 cm) above the floor. If using a pedestal, you will need 18
inches (46 cm) to the bottom of the dryer.
Clearances
r
21 1/4"
(54 cm)
I_ 2815/16"
(73.4 era)
__ 50 1/4" __
(127.5 era}
40 3/16"
(102 cm)
I_ 5.... _'_11_ 27"_1_ 1'
(12.7 cm) (2.54 cm) (68.6 cm) (2.54 cm)
(7.6 cm)
(310cm)
24 in.'
(155 cm I)
3" CJoset Door Vent
(7.6 cm) Requirements
INSTALLATION SPACING FOR RECESSED AREA OR CLOSET INSTALLATION
The following spacing dimensions are recommended for this dryer. This dryer has been tested for spacing of 0 inches (0 cm) clearance on
the sides and rear. Recommended spacing should be considered for the following reasons:
.Additional spacing should be considered for ease of installation
and servicing.
. Additional clearances might be required for wall, door and floor
moldings.
, Additional spacing should be considered on all sides of the dryer
to reduce noise transfer.
For closet installation, with a door, minimum ventilation openings
in the top and bottom of the door are required. Louvered doors
with equivalent ventilation openings are acceptable.
Companion appliance spacing should also be considered.
-@NOTE
There should be at least a little space around the dryer (or any other appliance) to eliminate the transfer of vibration from one to the
other. Too much vibration, it could cause them to make noise or touch each other causing paint damage and making even more noise.

14 INSTALLATION INSTRUCTIONS
Clearances (¢onf,)
RECOMMENDED INSTALLATION SPACING FOR CABINET INSTALLATION
.For cabinet installation with a door, minimum ventilation openings in the top of the cabinet are required.
*Required spacing
**For side or bottom venting,
2 inches (5.1 cm) spacing is allowed.
.__..._'*(17F.b>C.6cm!7"* (17.6cm)
1'211_ 27"_11-_ 1"
(2.54 cm) (68.6 cm) (2.54 cm)
Leveling fhe dryer
&WARNING
• To reduce the risk of injury to persons, adhere to all industry
recommended safety procedures including the use of
long sleeved gloves and safety glasses. Failure to follow this
warning can cause serious injury or death.
•The appliances are heavy. Two or more people are required
when installing the dryer. Failure to follow this warning can
cause serious injury or death.
To ensure that the dryer provides optimal drying performance,
it must be level.To minimize vibration, noise, and unwanted
movement, the floor must be a perfectly level, solid surface.
@NOTE ....................................................................................................................................................................................
Adjust the leveling feet only as far as necessary to level the
dryer. Extending the leveling feet more than necessary can
cause the dryer to vibrate.
, All four leveling feet must rest solidly on the floor. Gently push
on the top corners of the dryer to make sure that the dryer does
not rock from corner to corner.
If you are installing the dryer on the optional pedestal, you must
use the leveling feet on the pedestal to level the dryer.The dryer
leveling feet should be fully retracted.
2. Use an adjustable wrench to turn the leveling feet.Turn
clockwise to raise the dryer or counterclockwise to lower it.
Raise or lower the leveling feet until dryer is level from side to
side and front to back.
Make sure that all 4 leveling feet are in firm contact with the floor.
1. Position the dryer in the final location. Place a level across the
top of the dryer.
ii .....................
-Level
Leveling Feet

INSTALLATION INSTRUCTIONS ]5
Reversing the door
AWARNING
• Toavoiddamage to the dryer orthe door,supportthe doorwith astool
orboxthat fits underthe door,orhaveanassistant supportthe weight of
the door.
• Avoiddropping the doorto avoiddamage to the door or the floor.
THE DRYER DOOR ISVERY LARGE AND HEAVY. Failure to follow
the instructions below can result in damage to the dryer,
property damage or injury to persons.
1. Open the door and remove the two plastic hole caps on the
catch side by gently prying up with a flat blade screwdriver.
Save these for step 6.
4. Remove the 4 screws securing the hinges to the door frame.
Remove the two plastic cover caps. Reinstall the hinges
and cover caps on the opposite sides from which they were
removed.
Hole ca o
2. While supporting the door, remove the 4 screws, two from
each hinge. Set the door aside face down on a protected
surface to prevent damage to the door or the work surface.
5. With the hinges and cover caps in the new locations, remount
the inner door frame onto the outer door frame with the screws
removed in step 3 above.
mm== rm_ I
| | I
| | I
| | I
I
I
1
| I !
6. Reinstall the door with the screws from step 1,2.
I
%
3. With the door on a protected surface, remove the 12 screws
on each side of the door and lift off the inner door frame
using a flat blade screwdriver. Remove the latch hook and
blank and move them to the opposite side. 6.Test the swing of the door to make sure the hinges and latch are
properly aligned and that the door closes and latches correctly.
..........................: i]ii

16 INSTALLATION INSTRUCTIONS
Insfalling fhe side venf kif
AWARNING
• Use a heavy metal vent.
•Do not use plastic or thin foil duct.
•Clean old ducts before installing this dryer.
• To reduce the risk of injury to persons, adhere to all
industry recommended safety procedures including the
use of long sleeved gloves and safety glasses.
,Failure to follow all of the safety warnings in this manual could
result in property damage, injury to persons, or death.
Your new dryer is shipped to vent to the rear.
It can also be configured to vent to the bottom or side (right-side
venting is not available on gas models).
An adapter kit, part number 383EEL9001B, may be purchased
from your LG retailer.This kit contains the necessary duct
components to change the dryer vent location.
1. Remove the rear exhaust duct retaining screw. Pull out the
exhaust duct.
f
Retaining
Rear
Exhaust Duct
3_ Preassemble a 4 inches (10.2 cm) elbow to the next 4-inches
(10.2 cm) duct section, and secure all joints with duct tape. Be
sure that the male end of the elbow faces AWAY from the dryer.
Insert the elbow/duct assembly through the side opening and
press it onto the adapter duct. Secure in place with duct tape.
Be sure that the male end of the duct protrudes 11/2inches (3.8
cm) to connect the remaining ductwork.
Attach cover plate to the back of the dryer with included screw.
Plate
11/2"
(3.8 cm)
OPTION2: BOTTOM VENTING
2. Press the adapter duct onto the blower housing and secure to
the base of the dryer as shown.
Adapter .....
Duct
Bracket
OPTION 1: SIDE VENTING
2. Press the tabs on the knockout and carefully remove the
knockout for the desired vent opening (right-side venting is
not available on gas models). Press the adapter duct onto the
blower housing and secure to the base of the dryer as shown.
Adapter -,
dUCt
Bracket
3. Insert the 4 inches (10.2 cm) elbow through the rear opening
and press it onto the adapter duct. Be sure that the male end of
the elbow faces down through hole in the bottom of the dryer.
Secure in place with duct tape.
Attach the cover plate to the back of the dryer with included
screw.
Plate
Elbow

INSTALLATION INSTRUCTIONS 17
Venfing the dryer
AWARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:
. Do not crush or collapse ductwork. Failure to follow these .Rigid or semirigid metal ducting is recommended for use
instructions can result in fire or death.
. Do not allow ductworkto rest on or contact sharp objects.
Failure to follow these instructions can result in fire or death.
.If connecting to existing ductwork, make sure it is suitable
and clean before installing the dryer. Failure to follow these
instructions can result in fire or death.
.Venting must conform to local building codes. Failureto follow
these instructions can result in fire or death.
. Gas dryers MUST exhaust to the outdoors.
Failure to follow these instructions can result in fire or death
.Use only 4-inch (10.2 cm) rigid or flexible metal ductwork
inside the dryer cabinet and for venting outside. Failureto
follow these instructions can result in fire or death.
. To reduce the risk of fire, combustion, or accumulation of
combustible gases, DO NOTexhaust dryer air into an enclosed
and unventilated area, such asan attic, wall, ceiling, crawl
space, chimney, gasvent, or concealed spaceof a building.
Failureto follow these instructions can result in fire or death.
between the dryer and the wall. in special installations
when it is impossible to make aconnection with the above
recommendations, aUL=listed flexible metal transition duct
may be used between the dryer and wall connection only.
The useof this ducting will affect drying time. Failureto follow
these instructions can result in fire or death.
DO NOT use sheet metal screwsor other fasteners which
extend into the duct that could catch lint and reduce the
efficiency of the exhaust system. Secureall joints with duct
tape. Failure to follow these instructions can result in fire or death.
Tomaximize operating results, please observe the duct length
limitations noted in the chart next page. Failure to follow these
instructions can result in fire or death.
Ductwork isnot provided with the dryer. Youshould obtain
the necessary ductwork locally. The end cap should have
hinged dampers to prevent backdraft when the dryer isnot in
use. Failureto follow these instructions can result in fire or death.
The Total length of flexible metal duct shall not exceed 8ft.
(2.4 m)
. To reduce the risk of fire, DO NOT exhaust the dryer with
plastic or thin foil ducting.
Failureto follow these instructions can result in fire or death.
. The exhaust duct must be 4 inches (10.2 cm) in diameter with
no obstructions. The exhaust duct should be kept as short as
possible. Make sure to clean any old ducts before installing
your new dryer. Failure to follow these instructions can result in
fire or death.
In Canada, that only those foil-type flexible ducts, if any,
specifically identified for use with the appliance by the
manufacturer shall be used. In the United States, that only those
foil-type flexible ducts, if any, specifically identified for use with
the appliance by the manufacturer and that comply with the
Outline for Clothes DryerTransition Duct, Subject 2158A, shall be
used.

18 INSTALLATION INSTRUCTIONS

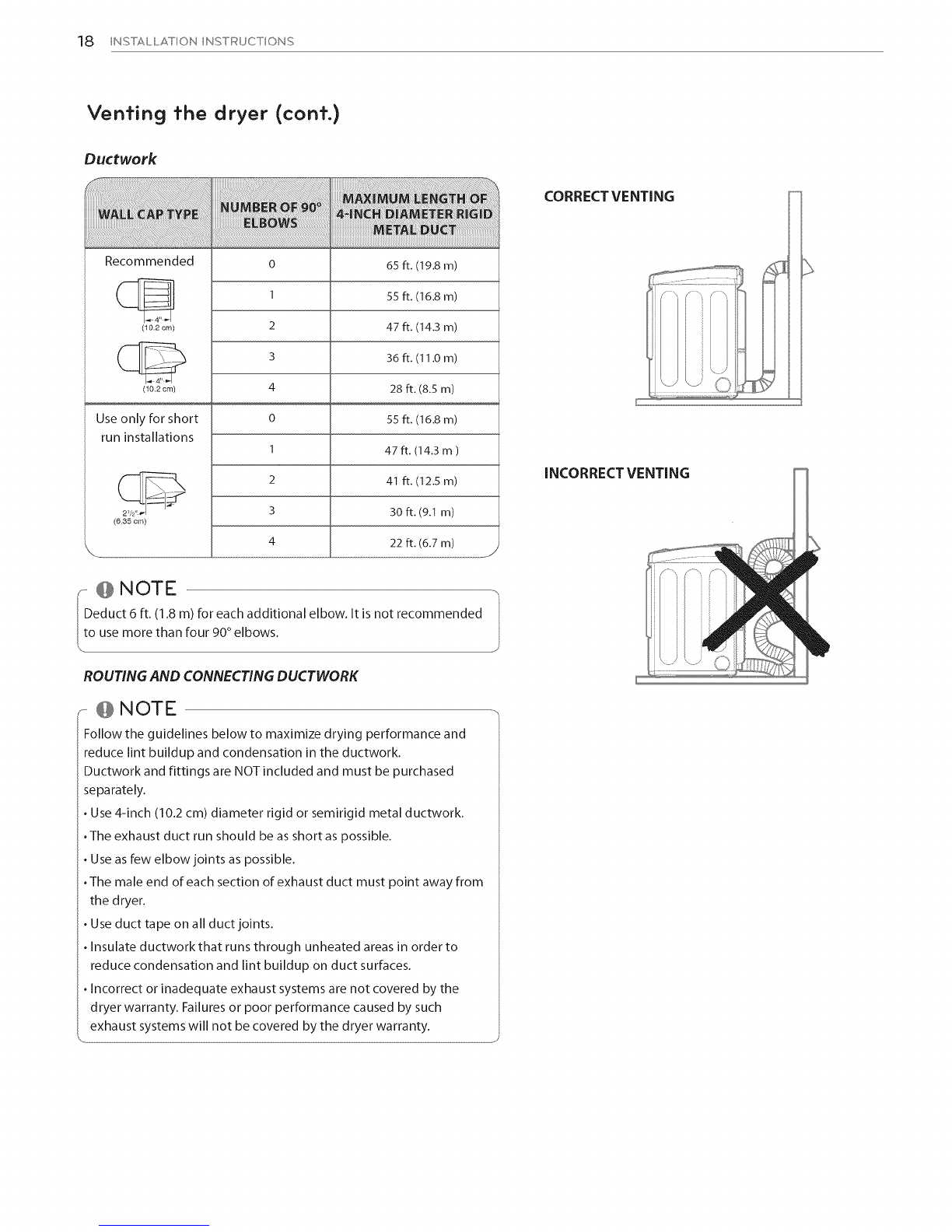

Venting the dryer (cont.)
Ductwork
Recommended
(10.2 cm)
(10.2 cm)
Use only for short
run installations
(6.35 cm)
0
I
2
3
4
0
I
2
3
4
65 ft. (19.8 m)
55 ft. (16.8 m)
47 ft. (14.3 m)
36 ft. (11.0 m)
28 ft. (8.5 m)
55 ft. (16.8 m)
47 ft. (14.3 m )
41 ft. (12.5 m)
30 ft. (9.1 m)
22 ft. (6.7 m) J
- @ NOTE -.,
Deduct 6 ft, (1,8 m)for each additional elbow, It is not recommended
to use more than four 90° elbows.
ROUTING AND CONNECTING DUCTWORK
- @ NOTE -,
Follow the guidelines below to maximize drying performance and
reduce lint buildup and condensation in the ductwork.
Ductwork and fittings are NOTincluded and must be purchased
separately.
• Use4-inch (10.2 cm) diameter rigid or semirigid metal ductwork.
•The exhaust duct run should be asshort as possible.
• Useasfew elbowjoints as possible.
•The male end of each section of exhaust duct must point away from
the dryer.
• Useduct tape on all duct joints.
• Insulate ductwork that runs through unheated areas in order to
reduce condensation and lint buildup on duct surfaces.
• Incorrect or inadequate exhaust systems arenot covered by the
dryer warranty. Failuresor poor performance caused by such
exhaust systemswill not be covered by the dryer warranty.
CORRECT VENTING
INCORRECT VENTING

INSTALLATION INSTRUCTIONS 19
Connecfing inlef hose
The dryer must be connected to the cold water tap using the new water supply hose. Do not use old hoses
-@NOTE
• Water supply pressure must be between 14.5 PSI and 116 PSI(100~800 kPa).
• Do not strip or cross-thread when connecting inlet hose to the valve.
• If the water supply pressure is more than 1000 kPa, a decompression device should be installed.
• Periodically check the condition of the hose and replace the hose if necessary.
• Replace inlet hoses after 5 years of use to reduce the risk of hose failure. [
__'Rec°rd hose inst Ilation or replacement__ dates on the oses for future refer .............................................. _i
1. Check rubber seal in the inlet hose.Two rubber seals are 3. Connect hose to dryer.
supplied with each inlet hose. They are used for preventing , Connect the water supply hose to the dryer inlet valve tightly by
water leaks. Make sure the connection to the cold water tap is hand and then tighten another 2/3 turn with plier.
tight. Make sure that there are no kinks in the hoses and that they are
not crushed.
Hose
connector
_ubber seal
2. Check the installation type.
I
_ Short ""
hose
WITH WASHER
I
WITHOUT WASHER
Connect all water supply hoses tightly by hand and then
tighten another 2/3 turn with plier.
WITH WASHER: When connecting the dryer to the same faucet
as a washer.
a. Shut off the cold water tap and remove the washer hose.
b. Connect the short hose to the Y-conncetor using one of the
hose washers.
c. Connect the other end of the short hose to the cold water
faucet.
d. Connect the long dryer hose to one side of theY-connector and
connect the washer hose to the other side.
WITHOUT WASHER: If the dryer does not share the cold water
tap with a washer.
a. Connect the straight end of the long hose to the cold water faucet.
@NOTE ........................................................................................................................................,
•Beforeconnecting the water lineto the dryer,flushseveral
gallonsofwater intoa drainor bucket.Thiswillhelp prevent
foreignparticlessuch as sand and scalefrom cloggong the
dryerinletvalve.
..... h! D °!hec° e! .................................................
4. Turn on cold water faucet.
5. Check for leaks at the Y-connector (if used) and all hoses.
@ NOTE ............................................................................................................................................................................................................................................................................................................................................................
Ifany leaks are found, shutoffthewaterfaucet, removethe /
,," hose and check the condition of the hose washer. /)

20 INSTALLATION INSTRUCTIONS
Connecfing gasdryers
AWARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:
. Gas supply requirements:
As shipped from the factory, this dryer is configured for use
with natural gas. It can be converted for use with LP (Liquefied
Propane) gas. Gas pressure must not exceed 13 inches of
water column.
. A qualified service or gas company technician must connect
the dryer to the gas service.
Failure to do so can result in fire, explosion, or death.
. Isolate the dryer from the gas supply system by closing its
individual manual shutoff valve during any pressure testing
of the gas supply. Failure to do so can result in fire, explosion, or
death.
. Supply line requirements:
Your laundry room must have arigid gas supply line to your
dryer. In the United States, an individual manual shutoff valve
MUST be installed within at least 6ft. (1.8 m) of the dryer, in
accordance with the National Fuel Gas Code ANSI Z223.1 or
Canadian gas installation code CSA B149.1. AI/s-inch NPT
pipe plug must be installed. Failure to do so can result in fire,
explosion, or death
.If using a rigid pipe, the rigid pipe should be 1/2- inch IPS.
If acceptable under local codes and ordinances and when
acceptable to your gas supplier, 3/s- inch approved tubing
may be used where lengths are less than 20 ft. (6.1 m). Larger
tubing should be used for lengths in excess of 20 ft. (6.1 m).
Failure to do so can result in fire, explosion, or death.
. Connect the dryer to the type of gas shown on the nameplate.
Failure to do so can result in fire, explosion, or death.
. To prevent contamination of the gas valve, purge the gas
supply of air and sediment before connecting the gas supply
to the dryer. Before tightening the connection between the
gas supply and the dryer, purge remaining air until the odor
of gas is detected. Failure to do so can result in fire, explosion, or
death.
. DO NOT use an open flame to inspect for gas leaks. Use a
noncorrosive leak-detection fluid. Failure to do so can result in
fire, explosion, or death.
. Use only a new AGA- or CSA-certified gas supply line with
flexible stainless steel connectors. Failure to do so can result in
fire, explosion, or death.
. Securely tighten all gas connections. Failure to do so can result
in fire, explosion, or death.
.DO NOT attempt any disassembly of the dryer; any
disassembly requires the attention and tools of an authorized
and qualified service person or company. Failure to do so can
result in fire, explosion, or death.
.Use a pipe-joint compound that is insoluble in Liquefied
Petroleum (LP) gas on all pipe threads. Failure to do so can
result in fire, explosion, or death.
Electrical requirements for gas models only
AWARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:
. Do not, under any circumstances, cut or remove the third
(ground) prong from the power cord. Failure to follow this
warning can result in fire, explosion, or death.
.For personal safety, thisdryer must be properly grounded.
Failure to follow this warning can result in fire, explosion, or death.
. The power cord of this dryer isequipped with a3-prong
(grounding) plug which mates with astandard 3-prong
(grounding) wall outlet to minimize the possibility of electric
shock hazard from this appliance. Failure to follow this warning
can result in fire, explosion, or death.
. This dryer must be plugged into a 60 Hz, 120 VAC, grounded
outlet protected by a 15-ampere fuse or circuit breaker. Failure
to follow this warning can result in fire, explosion, or death.
. Where astandard 2-prong wall outlet is encountered, it is your
personal responsibility and obligation to have it replaced with
aproperly grounded 3-prong wall outlet. Failure to follow this
warning can result in fire, explosion, or death.
