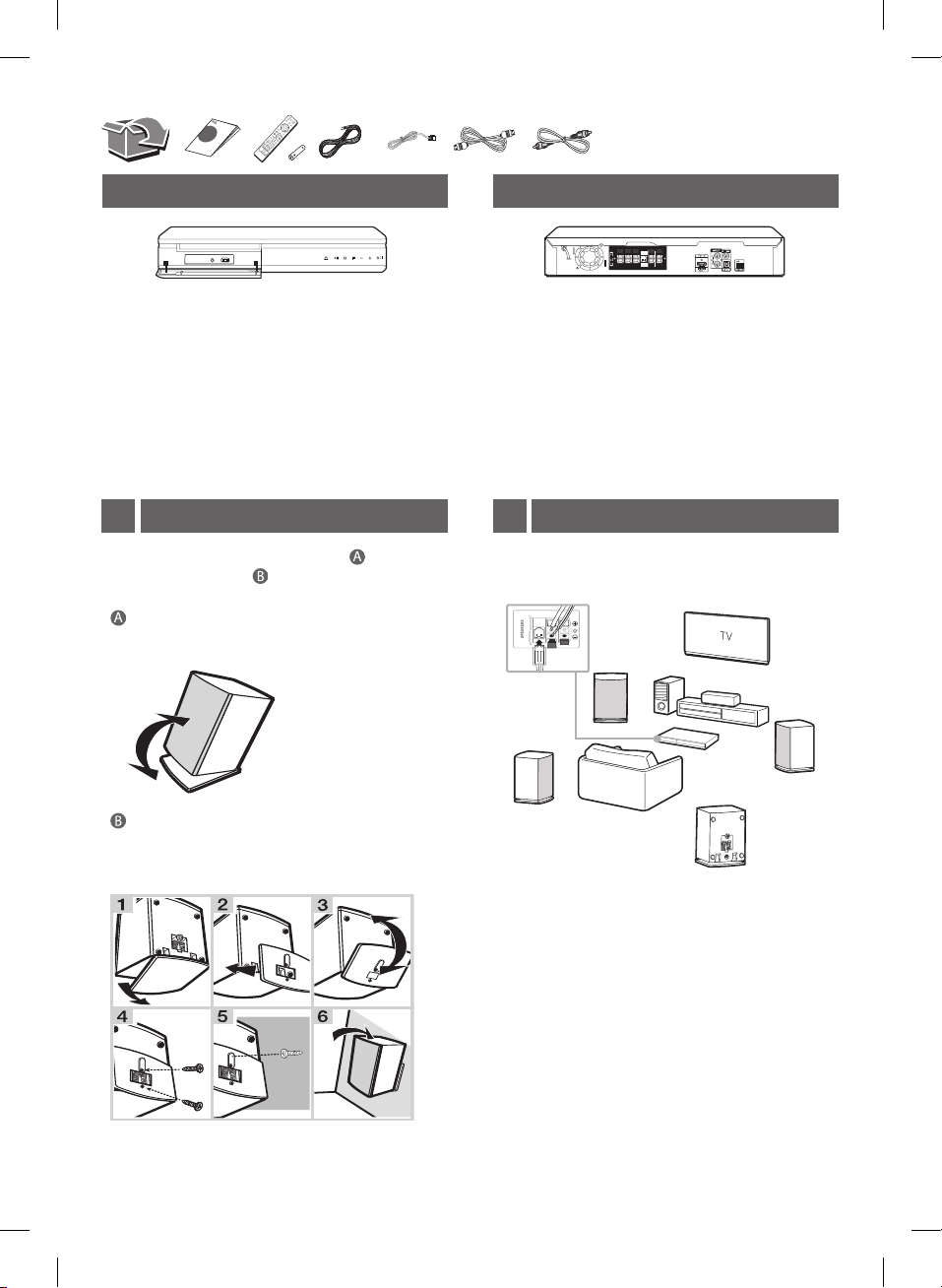

Front Panel Rear Panel
Speaker design and connection method may
be different according to models.
,
Speaker Connection2
Front
(Left)
Center
Subwoofer
Unit
Surround
(Left)
Front
(Right)
Surround
(Right)
PORT. IN·············· Connect to a Portable device.
USB Port ····················Connect a USB device.
R··························Disc Tray Open / Close
T·······················Starts / Pauses playback.
I·································Stops playback.
F············· Changes the input source or function.
- / +·······························Adjusts volume.
1/! ······························Power On / Off
SPEAKERS ··················· Connect to speakers.
HDMI OUT TO TV ··················· Connect to TV.
AUX (L/R) INPUT ······ Connect to analogue device.
VIDEO OUT ························ Connect to TV.
OPTICAL IN··············· Connect to digital device.
ANTENNA FM··········· Connect to radio antenna.
Speaker installation1
You can use the speaker in Stand type ( ) by adjusting
the angle or Wall type ( ) by mounting the speaker
to a wall.
Stand type
You can adjust angle of speaker.
Wall type (Mounting the speakers to a Wall)
When you want to mount the speaker to a wall, please
refer to below.
