LG LHD645 Specification sheet

SIMPLE MANUAL
DVD Home
Theater
System
To view the instructions of advanced features,
visit http://www.lg.com and then download Owner’s Manual.
Some of the content in this manual may differ from your unit.
MODEL
LHD645
*MFL68922435* www.lg.com
ENGLISH
LHD645-FC.DARELLC(UAE)_ENG_2435.indd 1 2015-10-07  9:35:10

You can use the speaker in Stand type ( ) by adjusting
the angle or Wall type ( ) by mounting the speaker
to a wall.
Stand type
You can adjust angle of speaker.
Wall type (Mounting the speakers to a Wall)
When you want to mount the speaker to a wall, please
refer to below.
Front Panel Rear Panel
MIC 1/2···················· Connect a microphone.
PORT. IN ············· Connect to a Portable device.
USB Port····················Connect a USB device.
R··························Disc Tray Open / Close
T·······················Starts / Pauses playback.
I·································Stops playback.
F············· Changes the input source or function.
- / +·······························Adjusts volume.
1/! ······························Power On / Off
SPEAKERS ··················· Connect to speakers.
HDMI OUT TO TV··················· Connect to TV.
AUX (L/R) INPUT······ Connect to analogue device.
VIDEO OUT ························ Connect to TV.
OPTICAL IN ·············· Connect to digital device.
ANTENNA FM ·········· Connect to radio antenna.
Speaker Assembling1 Speaker installation2
LHD645-FC.DARELLC(UAE)_ENG_2435.indd 2 2015-10-07  9:35:13

Front
(Left)
Center
Subwoofer
Unit
Surround
(Left)
Front
(Right)
Surround
(Right)
TV
TV Connection4
Home menu appears on the TV screen. Enjoy various
functions on the player.
Home Menu5
HDMI & Optical Connection
aConnect the Player to the TV using HDMI &
Optical cable.
bSet the input selector to HDMI on the TV.
cSet up [External Speaker (Optical)] on your TV
setting menu.
dFollow the instructions on the TV screen using
remote control.
For more information, download the online owner’s manual. http://www.lg.com
LG Sound Sync
(Wireless)
Speaker design and connection method may
be different according to models.
,
Speaker Connection3
LHD645-FC.DARELLC(UAE)_ENG_2435.indd 3 2015-10-07  9:35:14

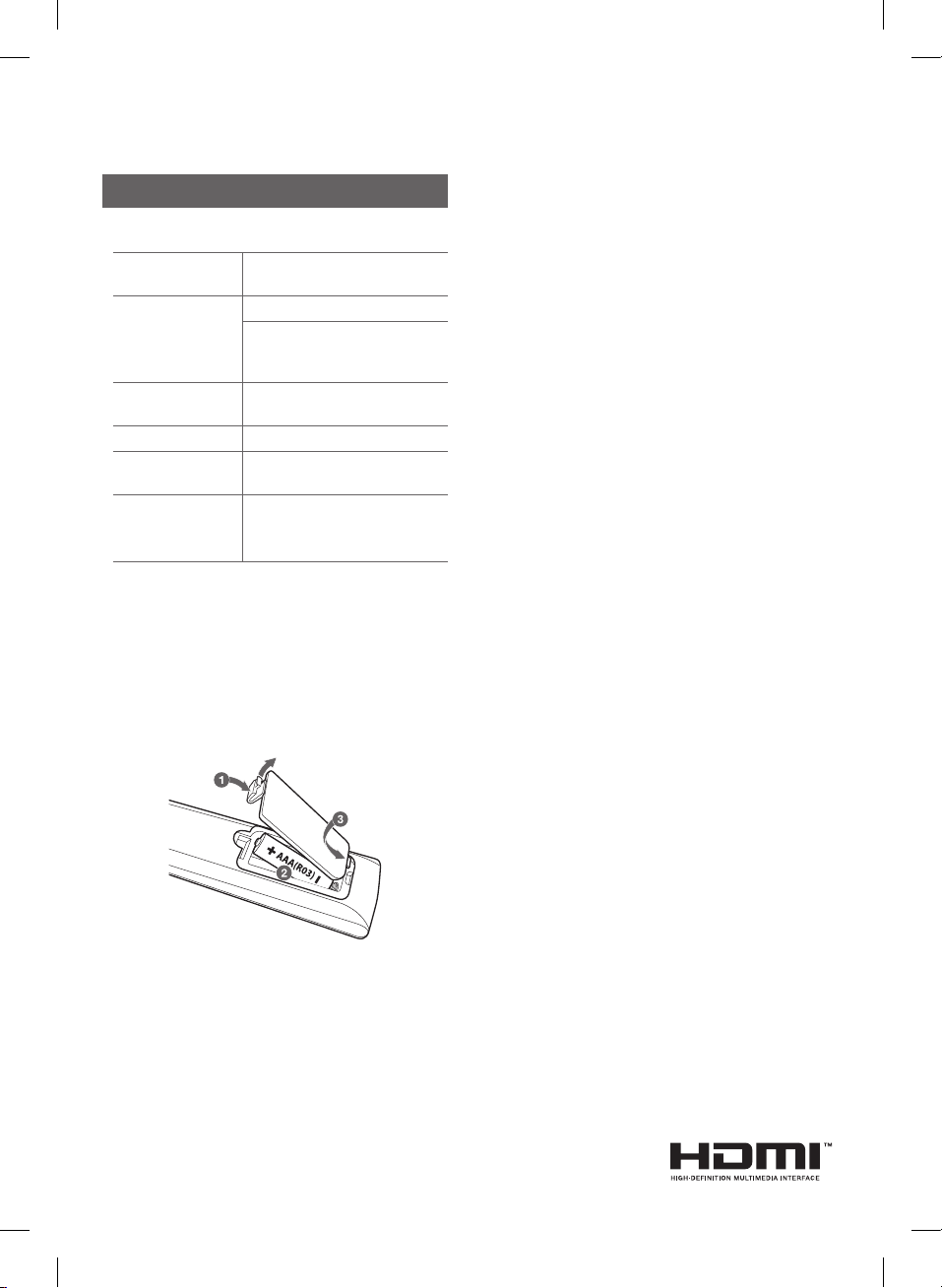

Specication
Power
requirements Refer to main label.
Power
consumption
Refer to main label.
Networked standby : 0.4 W
(If all network ports are
activated.)
Dimensions
(W x H x D)
Approx. 360 mm x 60.5 mm x
299 mm
Net Weight Approx. 2.69 kg
Bus Power Supply
(USB) 5 V 0 500 mA
Amplier
(Total RMS output
power)
1,000 W
Design and specications are subject to change without
notice.
How to disconnect the wireless network
connection or the wireless device
Turn off the unit by pressing the power button for more
than 5 seconds.
Replacement of battery
POWER: This unit operates on a mains supply of 200 -
240 V ~, 50 / 60 Hz.
Wiring: This unit is supplied with a BS 1363 approved
main plug. When replacing the fuse, always use of the
same rating approved to BS 1362. Never use this plug
with the fuse cover omitted. To obtain a replacement
fuse cover contact your dealer. If the type of plug
supplied is not suitable for the mains sockets in your
home, then the plug should be removed and a suitable
type tted. Please refer to the wiring instructions below:
Warning: A mains plug removed from the mains lead
of this unit must be destroyed. A mains plug with bared
wires is hazardous if inserted in a mains socket. Do not
connect either wire to the earth pin, marked with the
letter E or with the earth symbol 6or coloured green
or green and yellow. If any other plug is tted, use same
rating of fuse in the plug.
Important: The wires in this mains lead are coloured in
accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE: As the colours of the
wires in the mains lead of this unit may not correspond
with the coloured marking identifying the terminals in
your plug, proceed as follows: The wire which is coloured
blue must be connected to the terminal which is marked
with the letter N or coloured black. The wire which is
coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.
Additional Information
