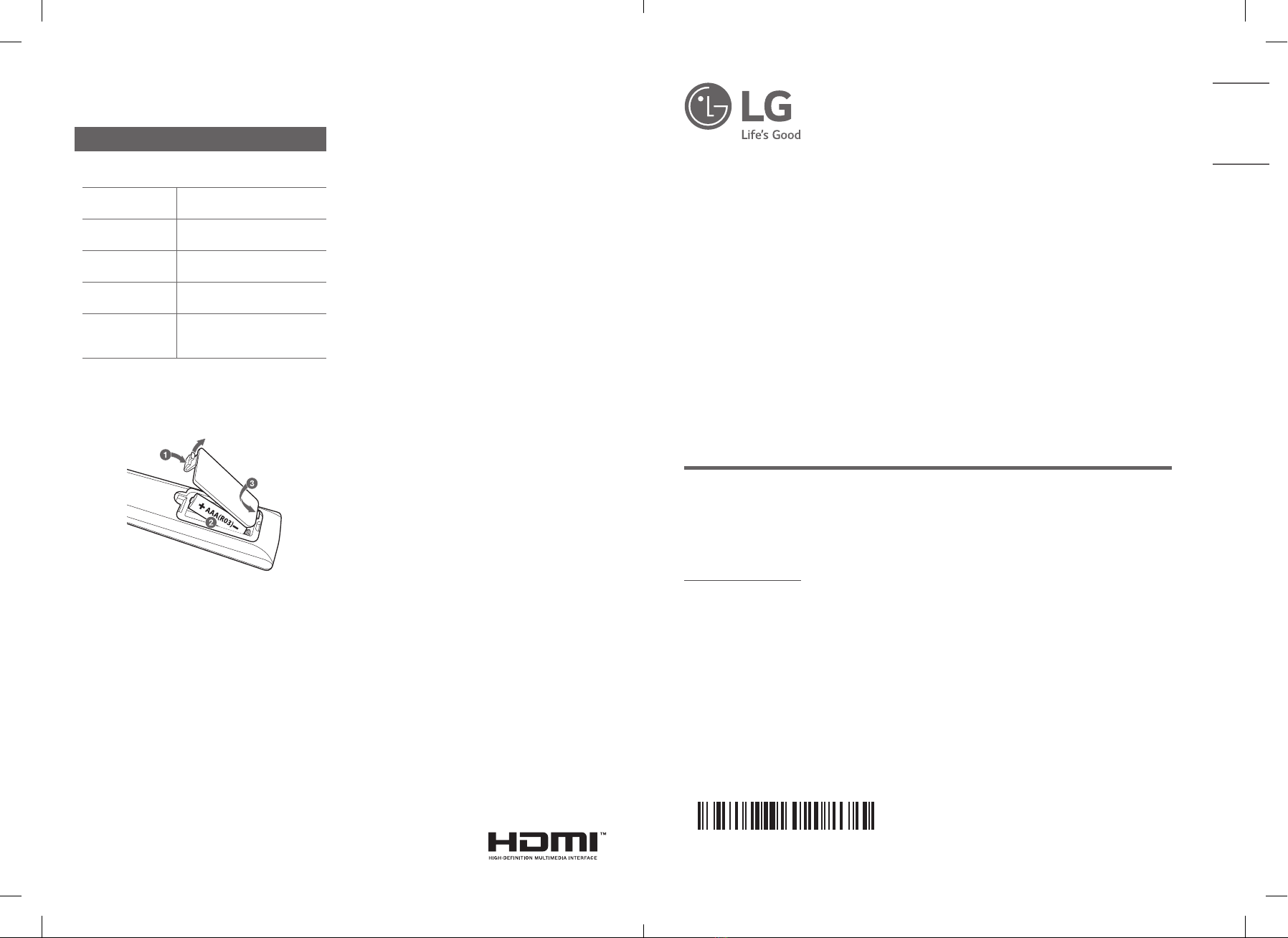

LG LHD647 Specification sheet

www.lg.com
Copyright © 2019 LG Electronics Inc. All Rights Reserved.
1906_Rev01
MFL71261803
SIMPLE MANUAL
DVD Home
Theater System
Please read this manual carefully before operating your set and retain it for
future reference.
To view the instructions of advanced features, visit
http://www.lg.com and then download Owner’s Manual.
Some of the content in this manual may differ from your unit.
MODEL
LHD647
ENGLISH
Specication
Power
requirements Refer to main label.
Power
consumption Refer to main label.
Dimensions
(W x H x D)
Approx. 360 mm x 58 mm
x 298.5 mm
Bus Power Supply
(USB) 5 V 0 500 mA
Amplier
(Total RMS output
power)
1,000 W RMS
Design and specications are subject to change without
notice.
Replacement of battery
POWER: This unit operates on a mains supply of
200 - 240 V ~ 50 - 60 Hz.
Wiring: This unit is supplied with a BS 1363 approved
main plug. When replacing the fuse, always use a fuse of
the same rating and approved to BS 1362. Never use this
plug with the fuse cover omitted. To obtain a replacement
fuse cover contact your dealer. If the type of plug supplied
is not suitable for the mains sockets in your home, then
the plug should be removed and a suitable type tted.
Please refer to the wiring instructions below:
Warning: A mains plug removed from the mains lead of
this unit must be destroyed. A mains plug with bared wires
is hazardous if inserted in a mains socket. Do not connect
either wire to the earth pin, marked with the letter E or
with the earth symbol 6or coloured green or green and
yellow. If any other plug is tted, use same rating of fuse in
the plug.
Important: The wires in this mains lead are coloured in
accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the colours of the
wires in the mains lead of this unit may not correspond
with the coloured marking identifying the terminals in your
plug, proceed as follows: The wire which is coloured blue
must be connected to the terminal which is marked with
the letter N or coloured black. The wire which is coloured
brown must be connected to the terminal which is marked
with the letter L or coloured red.
Additional Information
LHD647-FC.DKENHLK_SIM (Sheet)_MFL71261803.indd 1-2 2019-05-23  8:15:41

Front Panel Rear Panel
MIC 1/2···················· Connect a microphone.
PORT. IN ··············Connect to a Portable device.
USB Port····················Connect a USB device.
R··························Disc Tray Open / Close
T·······················Starts / Pauses playback.
I·································Stops playback.
F············· Changes the input source or function.
- / +·······························Adjusts volume.
1/! ······························Power On / Off
Home menu appears on the TV screen. Enjoy various
functions on the unit.
Home Menu
TV Connection4
HDMI & Optical Connection
a Connect the Unit to the TV using HDMI &
Optical cable.
b Set the input selector to HDMI on the TV.
c Set up [External Speaker (Optical)] on your
TV setting menu.
d Follow the instructions on the TV screen
using remote control.
For more information, download the online owner’s manual. http://www.lg.com
Speaker Assembling1Speaker Installation2
You can use the speaker in stand type ( ) by adjusting
the angle or wall type ( ) by mounting the speaker
to a wall.
Stand type
You can adjust angle of speaker.
Wall type (Mounting the speakers to a wall)
When you want to mount the speaker to a wall, please
refer to below.
Speaker design and connection method may
be different according to models.
,
Speaker Connection3
Front
(Left)
Center
Subwoofer
Unit
Surround
(Left)
Front
(Right)
Surround
(Right)
5
SPEAKERS ··················· Connect to speakers.
HDMI OUT TO TV··················· Connect to TV.
AUX (L/R) INPUT······ Connect to analogue device.
VIDEO OUT ························ Connect to TV.
OPTICAL IN ·············· Connect to digital device.
ANTENNA FM ·········· Connect to radio antenna.
