LG 32LD550 User manual

iiil kiill _i_
/LCD -I-V
Please read this
your set and retain it for future reference.
manual carefully before operating
LCD TV MODELS LED LCD TV MODELS
32LD550 47LD650 32LE5400 42LE5500 47LE8500
42LD550 55LD650 42LE5400 47LE5500 55LE8500
46LD550 47LE5400 55LE5500 42LX6500
52LD550 55LE5400 42LE7500 47LX6500
6QLD55Q 42LE5350 47LE750Q 55LX65QQ
47LE535Q 55LE75QQ
PLASMA TV MODELS
50PK750
60PK750
P/NO :SAC34134203 (IO07-REV08) www.Jg.com

MY MEDIA
ENTRY MODE
The My Media menu will open automatically when you insert a USB drive. My Media can also be
accessed by choosing My Media in the user menu.
After choosing the desired type of media, choose a device to open files from. The options are: USB
device, or DLNA.
-<
m
_> @Device Selection
Select MY MEDIA.
Select Movie List, Photo List
or Music List.
[] This TV can view JPG image files, HD DivX
files and play MP3 audio files.
Select the desired device.
Search other network device.
Return to the previous menu.
When removing the USB device
Select the USB Device menu before
removing the USB device.
Select USB Device.
Select Eject.
96

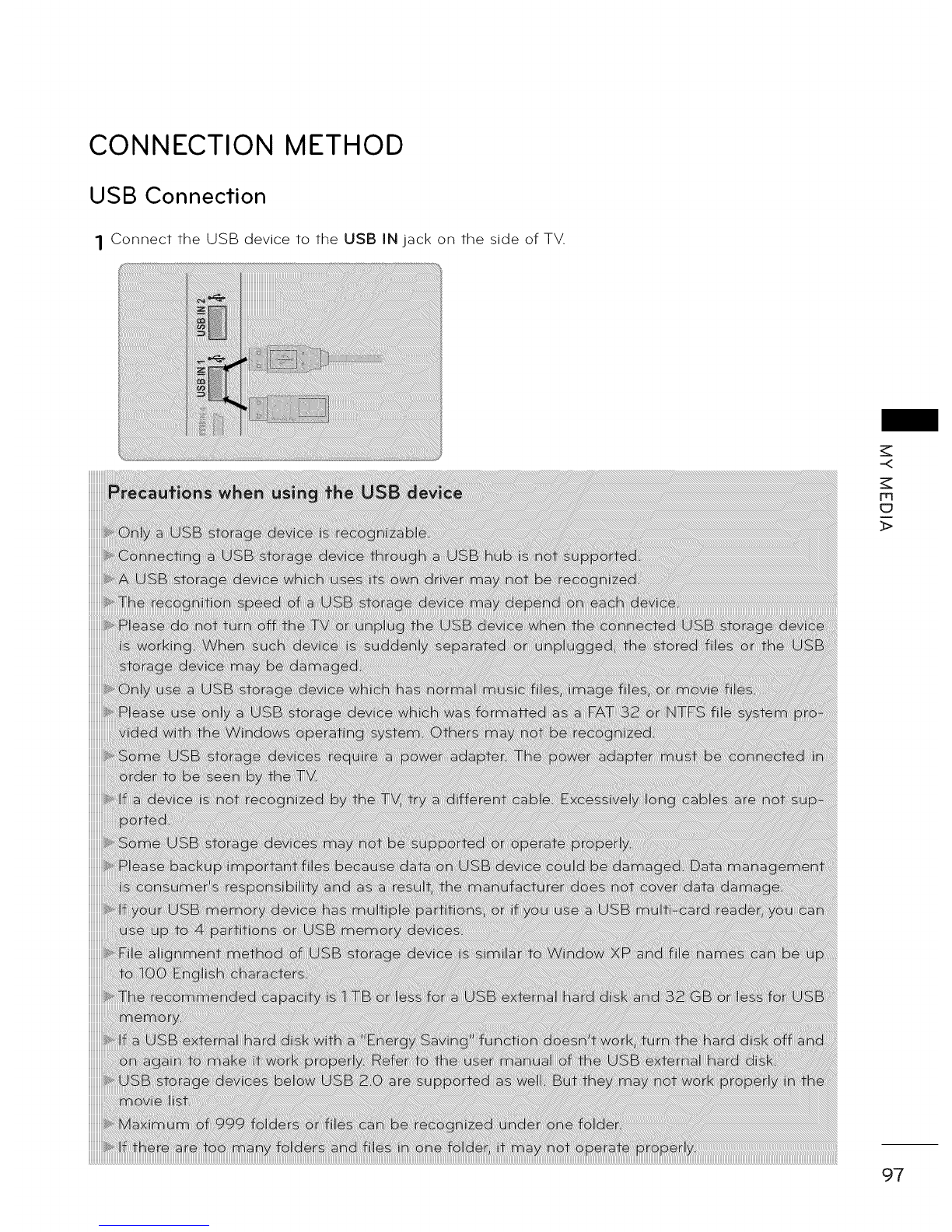

CONNECTION METHOD
USB Connection
1 Connect the USB device to the USB IN jack on the side of TV.
-<
m
_>
97

MY MEDIA
-<
m
DLNA
About DLNA
This TV can display and play many types of movie, photo and music files from your DLNA server and
has been certified by DLNA for photos.
The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics,
computing industry and mobile device companies. Digital Living provides consumers with easy sharing
of digital media through a wired or wireless network in the home.
The DLNA certification logo makes it easy to find products that comply with the DLNA Interoperability
Guidelines. This unit complies with DLNA Interoperability Guidelines vl.5. When a PC running DLNA
server software or other DLNA compatible device is connected to this TV, some setting changes of
software or other devices may be required. Please refer to the operating instructions for the software or
device for more information.
Please refer to pages 99 ~ 121 for additional information on supported file types and other instructions.
98

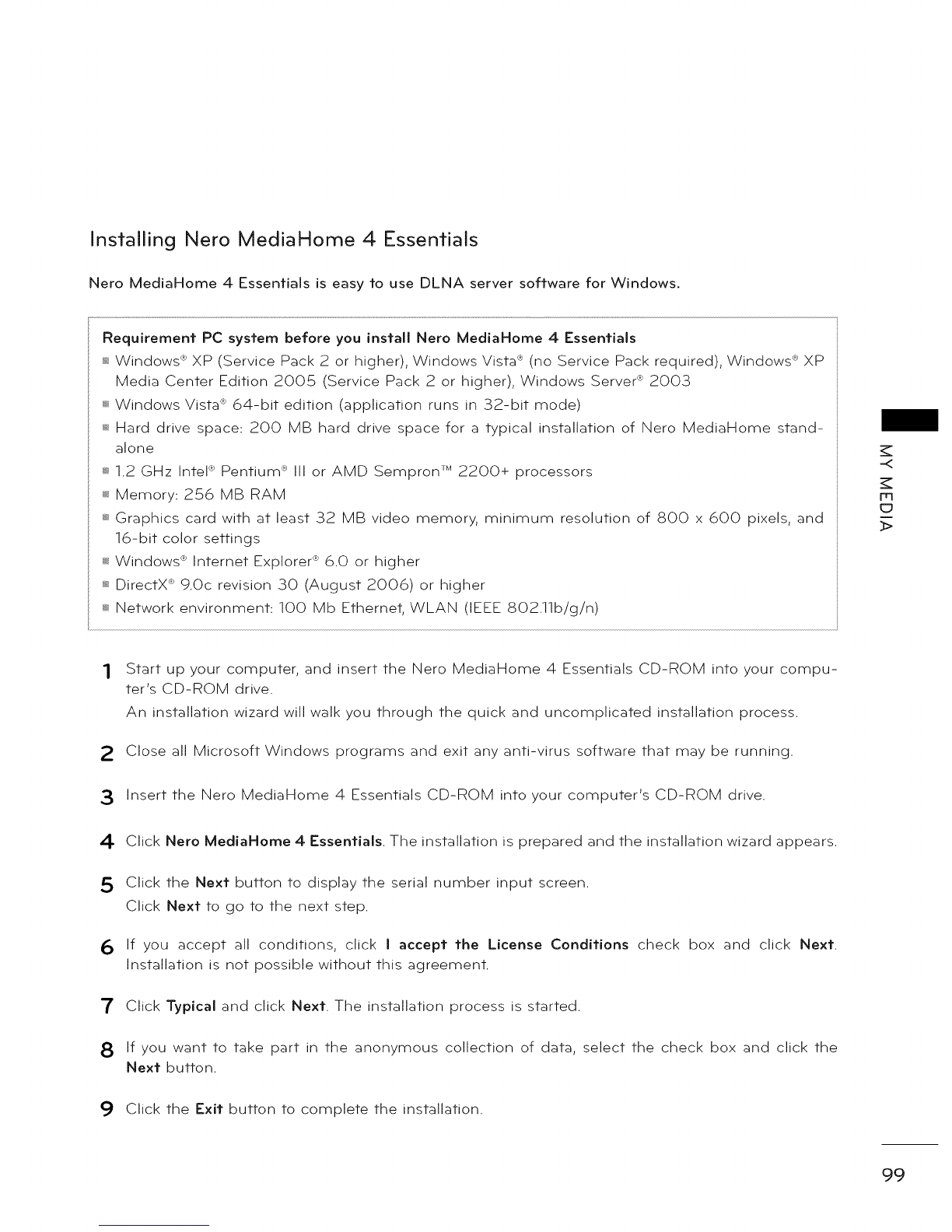

Installing Nero MediaHome 4 Essentials
Nero MediaHome 4 Essentials is easy to use DLNA server software for Windows.
Requirement PC system before you install Nero MediaHome 4 Essentials
_ Windows ® XP (Service Pack 2 or higher), Windows Vista ® (no Service Pack required), Windows ®XP
Media Center Edition 2005 (Service Pack 2 or higher), Windows Server ® 2003
_ Windows Vista ® 64-bit edition (application runs in 32-bit mode)
_ Hard drive space: 200 MB hard drive space for a typical installation of Nero MediaHome stand-
alone
_ 1.2 GHz Intel ® Pentium ® III or AMD Sempron TM 2200+ processors
_ Memory: 256 MB RAM
_ Graphics card with at least 32 MB video memory, minimum resolution of 800 x 600 pixels, and
16-bit color settings
_ Windows ® Internet Explorer ® 6.0 or higher
_ DirectX ® 9.0c revision 30 (August 2006) or higher
_ Network environment: 100 Mb Ethernet, WLAN (IEEE 802.11b/g/n)
-<
rrl
_>
1 Start up your computer, and insert the Nero MediaHome 4 Essentials CD-ROM into your compu-
ter's CD-ROM drive.
An installation wizard will walk you through the quick and uncomplicated installation process.
2 Close all Microsoft Windows programs and exit any anti-virus software that may be running.
3 Insert the Nero MediaHome 4 Essentials CD-ROM into your computer's CD-ROM drive.
4 Click Nero MediaHome 4 Essentials. The installation is prepared and the installation wizard appears.
5 Click the Next button to display the serial number input screen.
Click Next to go to the next step.
6 If you accept all conditions, click I accept the License Conditions check box and click Next.
Installation is not possible without this agreement.
7 Click Typical and click Next. The installation process is started.
8 If you want to take part in the anonymous collection of data, select the check box and click the
Next button.
9 Click the Exit button to complete the installation.
99

MY MEDIA
Sharing files and folders
After installing Nero MediaHome, you must add folders you wish to share.
1 Double-click the Nero MediaHome 4 Essentials icon on the desktop.
2 Click Network icon on the left and define your network name in the Network name field. The
Network name you enter will be recognized by your TV.
3 Click Shares icon on the left.
-<
m
(D
_>
4 Click Local Folders tab on the Shared screen.
5 Click Add icon to open the Browse Folder window.
6 Select the folder containing the files you want to share. The selected folder is added to the list of
shared folders.
7 Click Start Server icon to start the server.
IO0

Playing back shared contents
You can display and play movie, photo and music content stored on your computer or other DLNA
media servers.
1 Start the server on your computer or other device that connected on your home network.
Select MY MEDIA.
Select Movie List, Photo List or Music List.
Select the DLNA.
Depending on the media server, this TV may need to get the permission from
the server.
If you want to re-scan available media server, press blue color button.
-<
rrl
_>
101

MY MEDIA
MOVIE LIST
It displays all of the video files it recognizes.
The On-Screen Display on your model may be slightly different.
-<
m
_>
Supported movie file
Resolution: under 1920 pixel (width) x 1080 pixel (height)
Frame Rate: under 30 frame/sec (1920x1080), under 60 frame/sec (1280x720)
_ Max bitrate of playable video file: 20 Mbps (Mega bit per second)
_ Bit rate of audio format: within 32 kbps to 320 kbps (MP3)
_ Supported external subtitle format: _.smi/_.srt/_.sub(MicroDVD,Subviewerl.0/2.0)/tass/_.ssa/_.
txt(TM Player)/t psb(PowerDivX)
_ Supported Internal subtitle format: only XSUB (It is the subtitle format used in DivX6 files)
102

Supported Video Formats
Only streams compliant
to SMPTE 421M VC-1
standard are supported.
Global motion compen-
sation or quarterpel
motion estimation does
not supported. Streams
using this syntax are not
supported.
Global motion compen-
sation or quarterpel
motion estimation does
not supported. Streams
using this syntax are not
supported.
ii iii i...........................................................................................................................................................................................................................................................................................MainPro,lleLevel41 Mosto,the con
Video H.264 /AVC High Profile@ Level 4.1 tent available is encod-
ed by the open source
(e,g, 720p60, lObOi60, 1080p30) x264 codec.
...............................'A'AC'..........................................................................................................................................................................................................................
Audio AACLCandHEAAC
Dolby Digital
Main Profile@ Level 41
H.264 /AVC High Profile(_ Level 4.1
(e,g. 720p60, 1080i60, 1080p30)
MPEG-2 Main Profile(_High Level(e.g. 720p60, 1080i60)
Video Simple Profile@Medium Level
(e.g. CIF, ©VGA)
VC-1 Main Profile@High Level Only streams compliant
(e.g. 1080p30) to SMPTE 421M VC-1
standard are supported.
Advanced Profile(_ Level3
.................................................................................................. (e.g. 720p60, 1080i60, 1080p30)
MPEG-1 Layer I, II
MPEG-1 Layer III (MP3)
Audio Dolby Digital
AAC AAC-LC and HE-AAC
....................................................Video .............................M"P'E'G'-"2"M'P'E'G'_I................................................................................................................................................................................................................................................... Main Profile_High Level (e.g. 720p60, 1080i60)
......................DoiL;iD;g;_[.......................
Audio MPEG-1 Layer I, II
DVD-LPCM
•............................................................................................................................................................................................................................................................................................
Video MPEG-1 Main Profile_High Level (e.g. 720p60, 1080i60) Only streams compliant
configured properly for
Audio ................."M'PE'G"-'i'"Lay'e_"ii";'l .................. TS, PS or ES
.-<
m
103

MY MEDIA
Screen Components
-<
m
}>
Select MY MEDIA. Select Movie List,
Moves to upper level folder
@ Current page/Total pages
@ Corresponding buttons on the
remote control
@ Contents under the folder
focused on@
@ Current page/total pages of
contents
Abnormal files are
displayed using this
graphic.
Non-supported files
are displayed using
this graphic.
Change to a different input.
Move to Photo List or Music List.
Change Numbers: Changes the number or thumbnails displayed at a time.
Return to TV viewing.
104

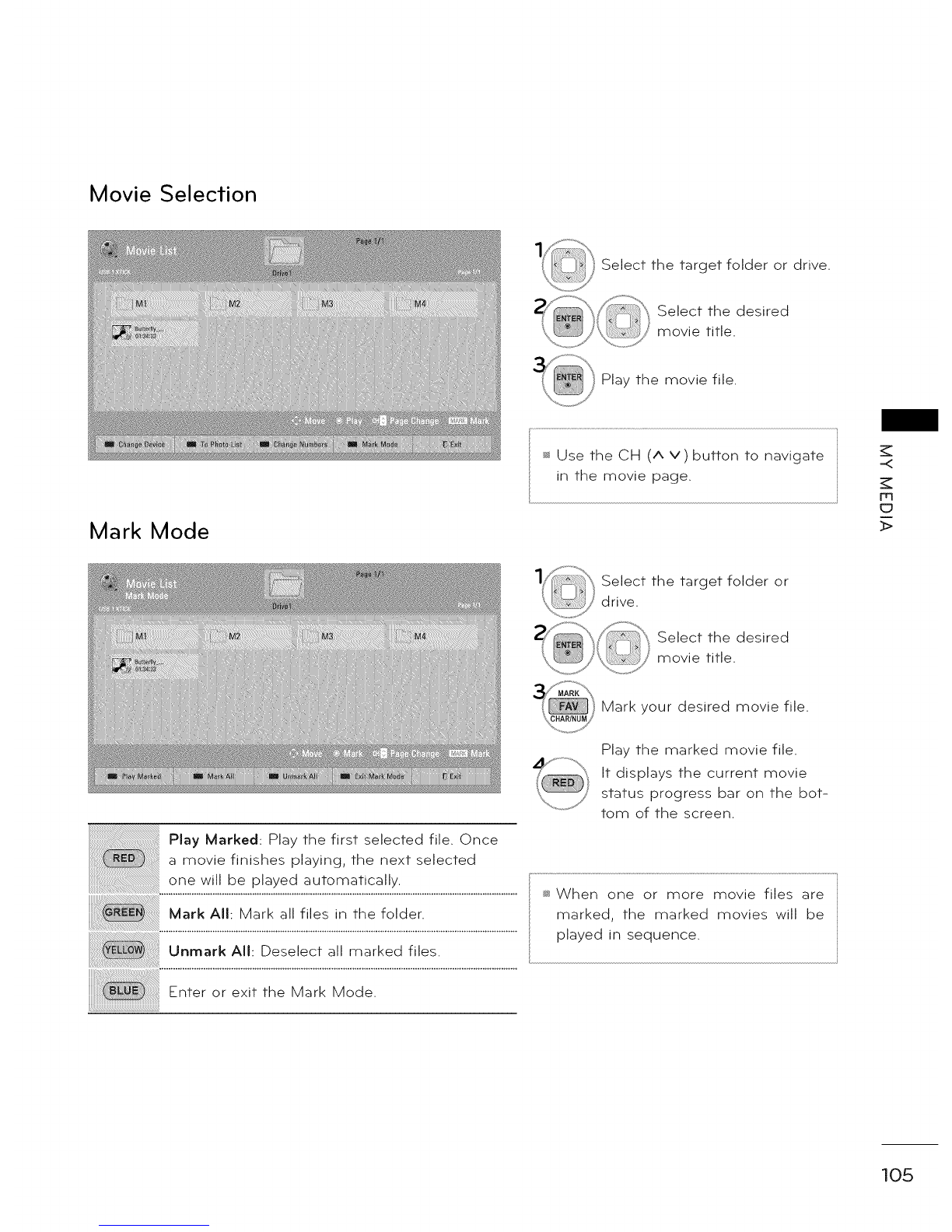

Movie Selection
Select the target folder or drive.
Select the desired
movie title.
Play the movie file.
Mark Mode
_ Use the CH (A V) button to navigate
in the movie page. -<
m
_D
_>
Select the target folder or
drive.
Select the desired
movie title.
Mark your desired movie file.
Play Marked: Play the first selected file. Once
a movie finishes playing, the next selected
one will be played automatically.
Mark All: Mark all files in the folder.
Unmark All: Deselect all marked files.
Enter or exit the Mark Mode.
Play the marked movie file.
It displays the current movie
status progress bar on the bot-
tom of the screen.
_ When one or more movie files are
marked, the marked movies will be
played in sequence.
105

MY MEDIA
Playing the Movie
For 42/47/55LX6500
...<
m
}>
Show the Option menu.
Select the desired menu option.
Using the remote control
Return to the previous menu.
Select the required speed: x2, x4, x8, x16, x32 (backward/forward).
Pauses the media player.
If no buttons are pressed on the remote control for 10 minutes after pausing, the
TV returns to the playback state.
Displays slow motion.
Move to a specific frame forward or backward while playing a video. A cursor indi-
cating the position can be viewed on the screen. It may not work properly for
some movie files.
Return to normal playback.
Press the ENERGY SAVING button repeatedly to increase the brightness of your
screen (Refer to p. 132).
Press the AV MODE button repeatedly to select the desired source (Refer to p. 88).
106

Set Video Play Menu Options
Select Picture Size, Audio Language,
Subtitle Language, or Repeat.
Make appropriate adjustments.
Code Page
English, Spanish, French
English, Korean
m Picture Size: Selects your desired
picture format for videos.
Full Mode: Files are played in full
screen mode regardless of the aspect
ratio of video.
Original Mode: Files are played
according to the aspect ratio of
video.
_ Audio Language: Changes the
Language Group of the audio for
video files. Files with a single audio
track cannot be selected.
_ Subtitle Language: The subtitles can
be turned on or off.
Language: Activated for SMI subtitles
and can select the language within
the subtitle.
_ Code Page: Subtitle font selection.
When set to default, contents are
displayed in the language set in
"Option Language - Menu
Language."
_ Sync: When the video is not synchro-
nized with the captions, it can be
adjusted by 0.5 second.
_;;Position: Move the location of the
subtitles.
_ Size: Changes the subtitle font size.
_ Repeat: Turn on/off repeat function
of movie playback. When turned on,
the file within the folder will be played
back repeatedly. When turned off, if
the next file name is similar to the
previous file, it can be played sequen-
tially.
=<
rrl
_D
>
107

MY MEDIA
* Image shown may differ from your TV.
Set Video Menu Options
For LED LCD TV/LCD TV For Plasma TV
-<
m
_>
Picture Mode
" Contrast 100 _ _
i Diiamii c0nirai t
i,,ii,ihaniir
T[uMotiorl
*Tint 0
"c0i0r TemP! 0
Make appropriate adjustments.
Then, select Previous.
Reset picture settings to default.
Set Audio Menu Options Set 3D video Menu Options
(For 42/47/55LX6500)
Make appropriate adjustments.
Then, select Previous.
For more information, see the 3D
Imaging section in the Owner's
Manual.
108

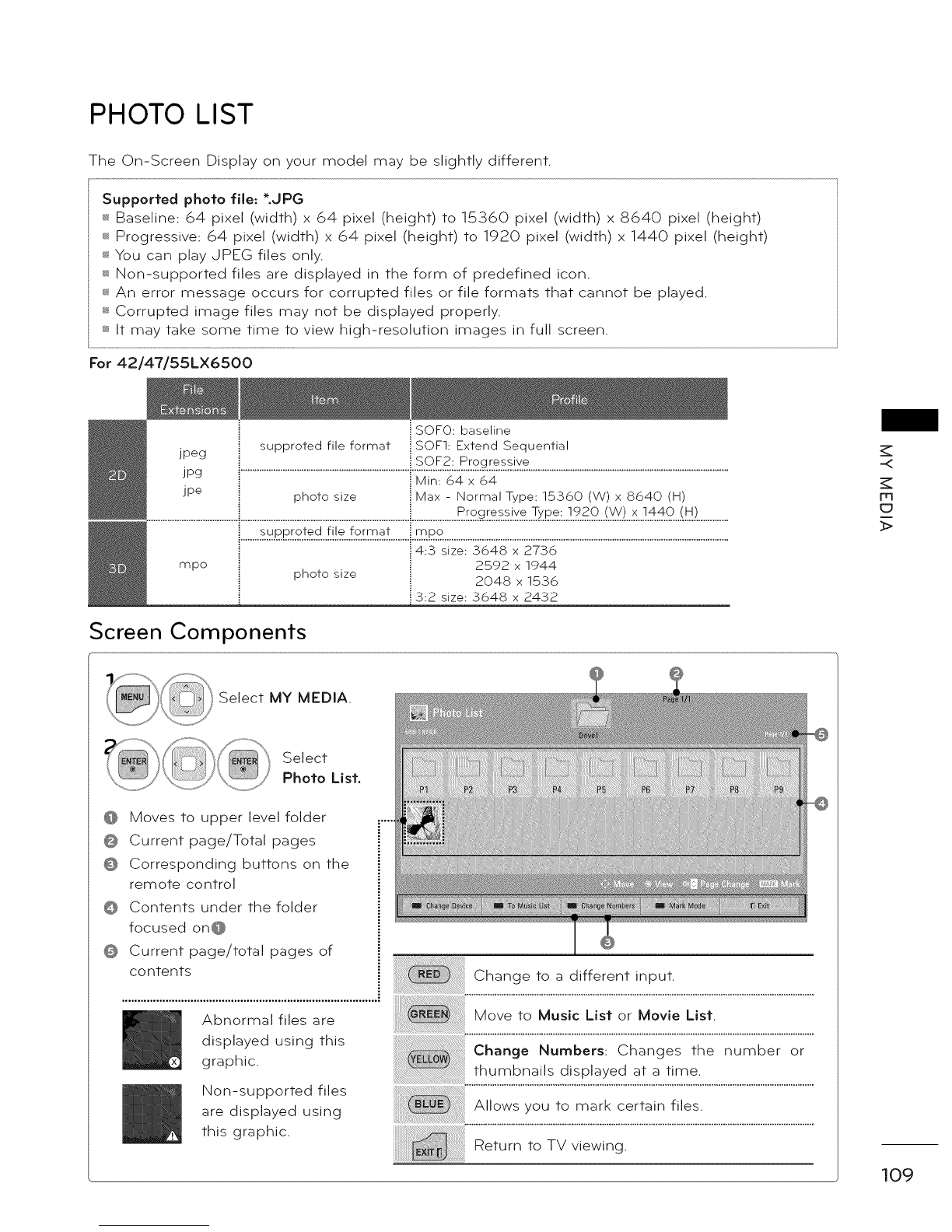

PHOTO LIST
The On-Screen Display on your model may be slightly different.
Supported photo file: *JPG
_ Baseline: 64 pixel (width) x 64 pixel (height) to 15360 pixel (width) x 8640 pixel (height)
Progressive: 64 pixel (width) x 64 pixel (height) to 1920 pixel (width) x 1440 pixel (height)
_ You can play JPEG files only.
Non-supported files are displayed in the form of predefined icon.
_ An error message occurs for corrupted files or file formats that cannot be played.
Corrupted image files may not be displayed properly.
It may take some time to view high-resolution images in full screen.
For 42/47/55LX6500
SOFO: baseline
jpeg supproted file format ! SOFI: Extend Sequential
............................................................................S..O,..F.,.2..!...P:.°._.:t._._.!_......................................................................................
JPg Min: 64 x 64
jpe photo size Max - Normal Type: 15360 (W) x 8640 (H)
.....................................................................................................................................Progressive .Ty pe:.ol?..20 !..W!. x 1440 !oH!.............
supproted file format _mpo
_4:3 size: 3648 x 2736
i
mpo photo size i 2592 x 1944
2048 x 1536
i3:2 size: 3648 x 2432
Screen Components
-<
rrl
_>
Select MY MEDIA.
Select
Photo List.
Moves to upper level folder
Current page/Total pages
Corresponding buttons on the
remote control
Contents under the folder
focused on@i
Current page/total pages of
contents
Abnormal files are
displayed using this
graphic.
Non-supported files
are displayed using
this graphic.
Change to a different input.
Change Numbers: Changes the number or
thumbnails displayed at a time.
Allows you to mark certain files.
Return to TV viewing.
109

MY MEDIA
Photo Selection
-<
m
_>
Select the target folder or drive.
Select the desired pho-
tos.
Photo file is displayed.
_ Use the CH (A v) button to navigate
in the photo page.
Mark Mode
Select the target folder or drive.
Select the desired
photo files.
Mark your desired photo files.
View the marked photo files.
View Marked: Display the selected photo.
Mark All: Mark all photos on the screen.
Unmark All: Deselect all marked photos.
Enter or exit the Mark Mode.
_When one or more photos are
marked, you can view individual pho-
tos or a slide show of the marked
photos. If no photos are marked, you
can view all photos individually or all
photos in the folder in a slide show.
110

Full Screen Menu
More operations are available in full screen mode.
!-<
m
(D
_>
The aspect ratio of a photo may change the size
of the photo displayed on the screen in full size.
Select the target folder or drive.
Select the desired photos.
_ Use the CH (^ v) button to navigate
in the photo page.
The selected photo is displayed in full
size.
111

MY MEDIA
-.<
m
Select the Slideshow,
BGM, t4 (Rotate), _ /+_+, e_A2J
(Energy Saving), Option, or Hide.
Use <> button to select the previ-
ous or next photo.
_. Slideshow: Selected photos are displayed during the slide show. If no photo is selected, all photos
in the current folder are displayed during slide show.
_ Set the time interval of the slide show in Option-Set Photo View. menu (Refer to p. 113).
_ You can adjust Option by using the Q.MENU button on the remote control.
_. BGM (Background Music): Listen to music while viewing photos in full size.
_ Set the BGM device and album in Option-Set Photo View. menu (Refer to p. 113).
_ You can adjust Option by using the Q.MENU button on the remote control.
_. t4 (Rotate): Rotate photos.
_ Rotates the photo 90 o 180 o 270 o 360 o clockwise.
_ Photos cannot be rotated if its width is greater than the available supported resolution height.
_. [£_ /+@+: View the photo in full mode or original mode.
_. _ (Energy Saving): Increase the brightness of your screen by using ENERGY SAVING button.
_, Option: Set values for Slide Speed and BGM (Refer to p.113).
_sYou cannot change BGM while BGM is playing.
_sYou can only select the MP3 folder saved on the device that currently displays the photo.
_ Hide: Hide the menu on the full-sized screen.
To see the menu again on the full-sized screen, press ENTER button to display.
D','_,Exit: Move to the previous menu screen.
112

Using the Photo List Function
For 42/47/55LX6500 ...<
1,1-,1
Show the Option menu.
Select the desired menu option.
Set Photo View Menu Options
si,disiiii
Select Slide Speed or BGM.
Make appropriate adjustments.
113

MY MEDIA
* Image shown may differ from your TV.
Set Video Menu Options
For LED LCD TV/LCD TV For Plasma TV
-<
m
_>
Picture Mode
' Backlight 70 _
- Contrast t00 _ _ Ib
* Brightness 50 _ _
•Color 60 4 I_
- Dynamic Contrast
" Edge Enhancer
- Noise Reduction
TruMotion
m Picture Reset
, Br ghtness 50 4 _ ...................
Make appropriate adjustments.
Then, select Previous.
Reset picture settings to default.
Set Audio Menu Options Set 3D video Menu Options
(For 42/47/55LX6500)
A,i0vO,i !
ciiiiVO,ii
Ba_anoe o_
Make appropriate adjustments.
Then, select Previous.
For more information, see the 3D
Imaging section in the Owner's
Manual.
114
