A-2 TABLE OF CONTENTS
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-8 Tyding cables
A-10 Assembling the AV cover
A-10MAKING CONNECTIONS
A-10 Antenna Connection
A-12 Satellite dish Connection
A-13 HDMI Connection
A-18 - ARC (Audio Return Channel)
A-19 DVI to HDMI Connection
A-21 Component Connection
A-23 Composite Connection
A-24 MHL Connection
A-27 Audio Connection
A-27 - Digital optical audio Connection
A-29 Headphone Connection
A-31 USB Connection
A-34 CI module Connection
A-36 Euro Scart Connection
LANGUAGE LIST
English
Deutsch
Français
Italiano
Español
Português
Nederlands
 ǼȜȜȘȞȚțȐ
 6ORYHQãþLQD
B-1 SPECIFICATIONS
COMMON
COMMON
LANGUAGE

A-3
SETTING UP THE TV
SETTING UP THE TV
Image shown may differ from your TV.
Attaching the stand
1
2
Stand Base
Stand Body (R)
Stand Body (L)
M4 x L20
4EA
UB85**-ZA, UB95**-ZA
1
2
yBe sure to check the Stand Body (L), (R), when
installing on the stand base.
NOTE
1 Attach the stand to the TV using the upper mounting
hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
3
M4 x L20
4EA

A-4 SETTING UP THE TV
1 Attach the stand to the TV using the upper mounting
hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
1
2
3
4
M4 x L20
4EA
UB85**-ZD, UB95**-ZB
yBe sure to check the Stand Body (L), (R), when
installing on the stand base.
NOTE
1
Stand Body (L)
Stand Body (R)
Stand Base
2
4EA
M4 x L10

A-5
SETTING UP THE TV
Stand Base
1
65/79/84UB98**
2
(Only 65/79UB98**)
3
1
2
Wrench
1
1
2
Wrench
4EA
M6 x L52
14EA
(Insulation
Holder)
(Only 84UB98**)
4EA
M6 x L47
(Only 65UB98**)
M6 x L52
(Only 79UB98**)

A-6 SETTING UP THE TV

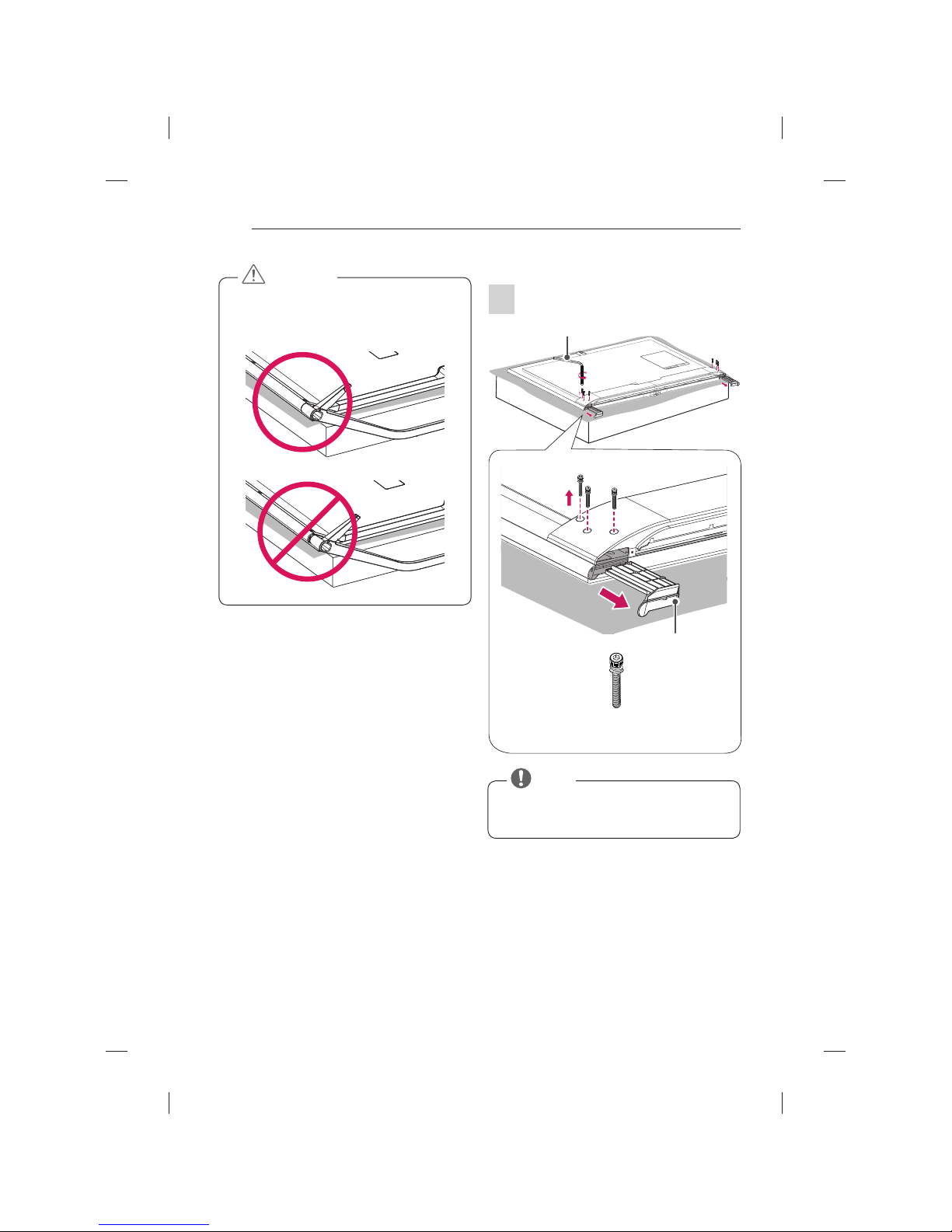

yMake sure that the screws are inserted correctly
and fastened securely. (If they are not fastened
securely enough, the TV may tilt forward after
being installed.)
CAUTION
1
98UB98**
1
2
1
2
M6 x L47
6EA
Mold
Wrench
yThe stand screws are already attached at the
back of the TV. Please use these attached screw
to assemble the TV and stand. (Only 98UB98**)
NOTE

A-7
SETTING UP THE TV
1
UC97**
2
1
2
Stand Body (L)
Stand Body (R)
Stand Base
M4 x L10
4EA
1 Attach the stand to the TV using the upper mounting
hole on the back of the TV.
2 Attach the stand to the TV using the lower connection
on the back of the TV.
2
3
Stand Base

A-8 SETTING UP THE TV
3
M4 x L20
4EA
Tidying cables
Image shown may differ from your TV.
1 Gather and bind the cables with the Cable Holder
and the Cable Management.
2 Fix the Cable Management firmly to the TV.
(Only UB85**-ZA, UB95**-ZA)
Cable Holder
Cable management
(Only UB85**-ZD, UB95**-ZB)
Cable Holder
Cable management
Cable Holder
yWhen attaching the stand to the TV set, place
the screen facing down on a cushioned table or
flat surface to protect the screen from scratches.
(Only UB85**, UB95**, UB98**)
When attaching the stand to the TV set, do not
remove the protective packaging and place the
screen facing down on a table or flat surface.
(Only UC97**)
yMake sure that the screws are inserted correctly
and fastened securely. (If they are not fastened
securely enough, the TV may tilt forward after
being installed.)
Do not use too much force and over tighten the
screws; otherwise screw may be damaged and
not tighten correctly.
CAUTION
yRemove the stand before installing the TV on a
wall mount by performing the stand attachment in
reverse.
yRemove the protective film from the stand base
and then attach the stand body to the stand
base. (Only UC97**)
NOTE

A-9
SETTING UP THE TV
(Only 65/79/84UB98**)
Cable Holder
1 Gather and bind the cables with the Cable Holder.
(Only UC97**)
Cable Holder
Cable management
(Only 98UB98**)
yDo not move the TV by holding the cable holders,
as the cable holders may break, and injuries and
damage to the TV may occur.
CAUTION
Cable Holder
Cable management
Cable
management

A-10 SETTING UP THE TV / MAKING CONNECTIONS
MAKING CONNECTIONS
This section on MAKING CONNECTIONS mainly uses
diagrams for the UB85** models.
Antenna Connection
Wall Antenna Socket
IN
ANTENNA / CABLE
(*Not Provided)
English
Connect the TV to a wall antenna socket with an RF
FDEOH
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal
amplifier properly to improve the image quality.
yIf the image quality is poor with an antenna
connected, try to realign the antenna in the
correct direction.
yAn antenna cable and converter are not supplied.
ySupported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
NOTE

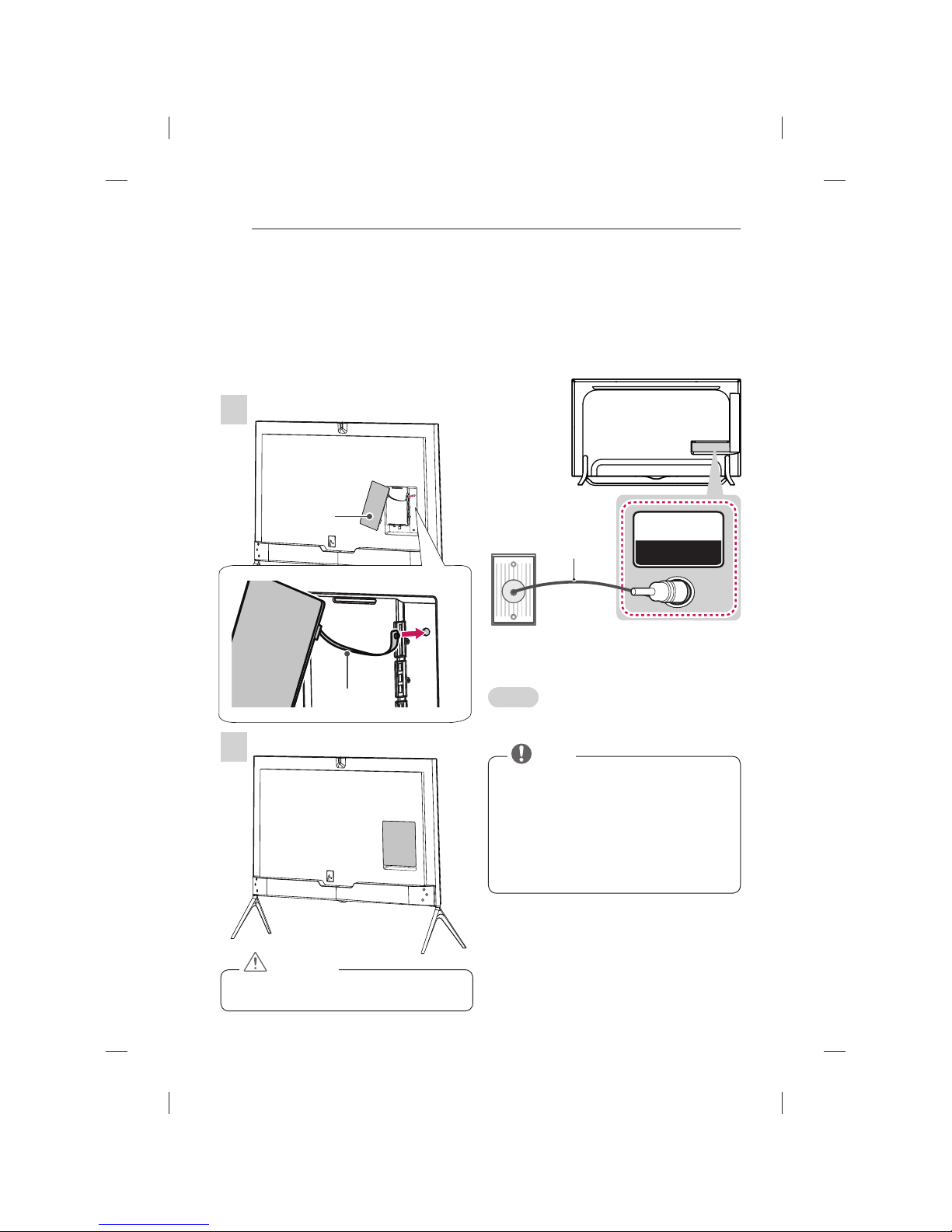

Assembling the AV cover
(Only 98UB98**)
1 Insert the cover holder attached to the AV port cover
into the hole of the main body of the product as
illustrated.
2 Attach the port cover onto the AV port part. (The
cover remains attached through the use of a
magnet.)
yIf you do not attach the cover holder, the cover
may fall off and cause injury.
CAUTION
AV Port Cover
Cover Holder
2
1
