Samsung LA32E420 Guide

E-MANUAL
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model _____________ Serial No. _____________

Contents
Channel Setting
 
 
 
1
2
17
Basic Features
 
 
 
 
 
 
25
26
35
47
48
58
Preference Features
 
 
 
 
 
 
 
 
 
 
 
 
 
59
77
81
88
92
93
95
96
100
102
104
107
117
Advanced Features
 
 
 
 
 
 
 
125
136
137
143
146
157
162
Other Information
 
 
 
 
168
172
174
191


❑Using the INFO button (Now & Next guide)
The display identifies the current channel and the status of certain audio-video
settings.
The Now & Next guide shows daily TV programme information for each channel
according to the broadcasting time.
NWhen you press the a(Information) button, you can see the details of the
programme.
Scroll , to view information for a desired programme while watching the
current channel.
Scroll , to view information for other channels. If you want to move to the
currently selected channel, press the ENTEREbutton.
Channel Setting
English

 

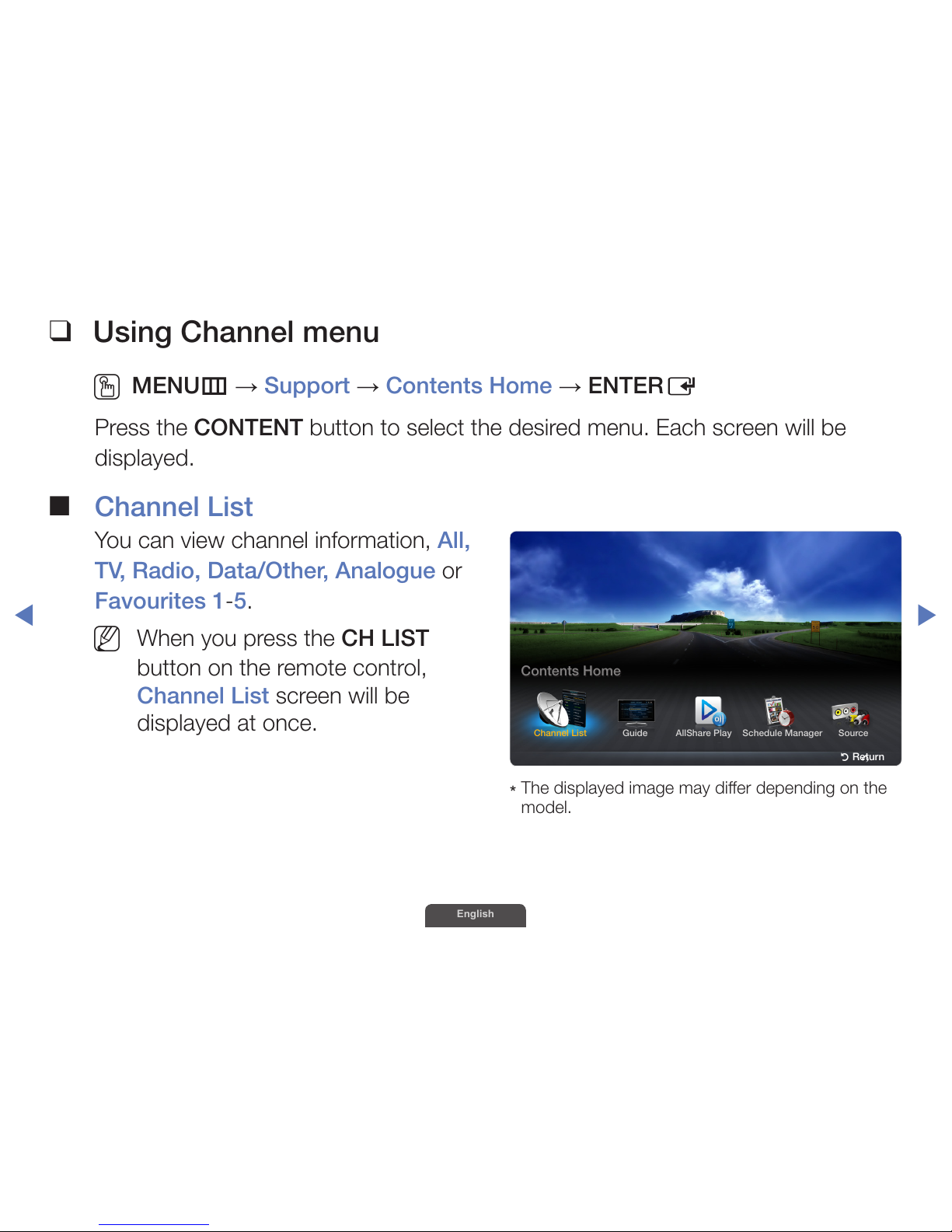

❑Using Channel menu
OMENUmSupport Contents Home ENTERE
Press the CONTENT button to select the desired menu. Each screen will be
displayed.
■Channel List
You can view channel information, All,
TV, Radio, Data/Other, Analogue or
Favourites 1-5.
NWhen you press the CH LIST
button on the remote control,
Channel List screen will be
displayed at once. Channel List Guide AllShare Play Schedule Manager Source
Contents Home
RReturn
*The displayed image may differ depending on the
model.
English

 
All: Shows all currently available channels.
TV: Shows all currently available TV channels.
Radio: Shows all currently available radio channels.
Data/Other: Shows all currently available MHP or other channels.
Analogue: Shows all currently available analogue channels.
Favourites 1-5: Shows all favourite channels.
NIf you want to view favourite channels you added, press the CH LIST
button and use L(Ch. Mode) button to move Favourites 1-5.
English

 
NUsing the control buttons with the Channel List.
T(Tools): Displays the option menu.
L(Ch. Mode / Channel): Move to the All, TV, Radio, Data/Other,
Analogue or Favourites 1-5.
NWhen you select the Programme View in T(Tools) menu, you can
move to other channels using L(Channel) button.
E(Watch / Information): Watches the channel you selected. / Displays
details of the selected programme.
k(Page): Move to next or previous page.
English

 
How to use Schedule Viewing in Channel List
(digital channels only)
When you set the Schedule Viewing in Channel List, you can only set the
programme in Programme View.
1. Press the CH LIST button, then select a desired digital channel.
2. Press TOOLS button, and then select the Programme View. The programme list
for that channel appears.
3. Press the / buttons to select the desired programme, then press the
ENTERE(Information) or INFO button.
4. Select Schedule Viewing, then press the ENTEREbutton when done.
NIf you want to cancel Schedule Viewing, follow steps 1 through 3. Select Cancel
schedule.
English

 
Using Option Menu t
Set each channel using the Channel List menu options (Programme View, Edit
Favourites, Lock/Unlock, Edit Channel Name, Edit Channel Number, Delete,
Information, Sort, Edit Mode).
Option menu items may differ depending on the channel status.
1. Select a channel and press the TOOLS button.
2. Select a function and change its settings.
English

 
Programme View: Displays the programme when digital channel is selected.
Edit Favourites: Set channels you watch frequently as favourites. Add or
delete the selected channel in Favourites 1-5.
1. Select the Edit Favourites, then press the ENTEREbutton.
2. Press the ENTEREbutton to select Favourites 1-5, then press the OK
button.
NOne favourite channel can be added in several of favourites among
Favourites 1-5.
English

 
Lock/Unlock: Lock a channel so that the channel cannot be selected and
viewed.
NThis function is available only when the Channel Lock is set to On.
NThe PIN input screen appears. Enter your 4-digit PIN. Change the PIN
using the Change PIN option.
Edit Channel Name (analogue channels only): Assign your own channel
name.
English

 
Edit Channel Number: Edit the number by pressing the number buttons
desired.
NSome area may not be able to support Edit Channel Name and Edit
Channel Number function.
Delete: You can delete a channel to display the channels you want.
Information: Displays details of the selected programme.
Sort: Changes the list ordered by channel number or channel name.
English

 
Edit Mode: You can select desired channels and edit it.
Using Option Menu t
Set each channel using the menu options (Edit Favourites, Lock/Unlock,
Delete, Deselect, Select All).
1. Press the TOOLS button in Channel List screen, then select the Edit
Mode. A check box appears to the left of the channel.
2. Press the  buttons to select the desired channel, then press the
ENTEREbutton. The (c) mark indicates the channel you’ve selected.
NYou can select more than one channel.
NPress the ENTEREagain to deselect the channel.
3. Press the TOOLS button, then select a function and change its settings.
English

 
Edit Favourites: Set the selected channels you watch frequently as
favourites.
NThe Edit Favourites screen has five groups (Favourites 1,
Favourites 2, etc.). You can add a favourite channel to any one of
the groups. Press the  buttons to select a group.
Lock/Unlock: Lock a channel so that the channel cannot be selected
and viewed.
NThis function is available only when the Channel Lock is set to On.
NThe PIN input screen appears. Enter your 4-digit PIN. Change the
PIN using the Change PIN option.
Delete: You can delete a channel to display the channels you want.
Deselect: Deselect the selected channels.
Select All: Select all the channels in the channel list.
English

 
■Guide
The EPG (Electronic Programme
Guide) information is provided
by broadcasters. Using
programme schedules provided
by broadcasters, you can
specify programmes you want
to watch in advance so that the
channel automatically changes
to the selected programme
channel at the specified time.
Programme entries may appear
blank or out of date depending
on a channel status.
- In Australia and New Zealand,
if Digital Text is set to Enable,
the EPG (Electronic Programme Guide) will work.
Die Musik-Show
DTV Air 825 NDR FERNSEHEN
19:15 - 20:40
Dani is devastated when scot makes clear his views ...
825 NDR FERNSEHEN
18:30 Sat 1 May
Channel View - All
Today
821 Kanal 5
822 M6
823 MDR FERNSEHEN
824 Mediashopping
825 NDR FERNSEHEN
826 NT1
20:00 21:0020:30 21:30
No Information
No Information
No Information
Musik fur Sie MD... Ein Schloss am ...
No Information
aSche. Mgr b-24 Hours {+24 Hours }Ch. Mode `Information kPage ESchedule
1 2 3 4 5 6 7
Guide
Die Musik-Show Die NDR Quizshow Sportclub live
*The displayed image may differ depending on the model.
English

 
1aRed (Sche. Mgr): Moves to the reserved programmes in Sche. Mgr.
2bGreen (-24 Hours): Viewing the list of programmes to be broadcasted before
24 hours.
3{Yellow (+24 Hours): Viewing the list of programmes to be broadcasted after 24
hours.
4}Blue (Ch. Mode): Select the type of channels you want to display on the
Channel List window. (All, TV, Radio, Data/Other, Favourites 1-5)
English

 
5`(Information): Displays details of the selected programme.
6k(Page): Move to previous or next page.
7E(Watch / Schedule)
When selecting the current programme, you can watch the selected
programme.
When selecting the future programme, you can reserve to watch the selected
programme. To cancel the schedule, press the ENTEREbutton again and
select Cancel schedule.
English

 
■Schedule Manager
You can set a desired channel to be displayed automatically at the intended time.
In addition, you can view, modify or delete a channel you have reserved to watch.
Set the current time first to use this function.
Using Option Menu t
Set each channel using the menu options (Cancel schedule, Edit Schedule,
Schedule manually, View Guide).
1. Press the TOOLS button to select the Schedule manually.
NYou can press the a(Schedule manually) directly on the Schedule
Manager screen.
2. Press the ///or number buttons to set the Antenna, Channel,
Repeat, Date, Start Time.
Antenna: Select the desired broadcasting signal.
Channel: Select the desired channel.
English

 
Repeat: Select Once, Manual, Sat~Sun, Mon~Fri or Everyday to set at
your convenience. If you select Manual, you can set the day you want.
NThe (c) mark indicates the day you’ve selected.
Date: You can set the desired date.
NIt is available when you select Once in Repeat.
Start Time: You can set the start time you want.
NIf you want to edit or cancel the schedule, select the reserved schedule on
the Reserved Programmes. Press the TOOLS button, then select the Edit
Schedule or Cancel schedule.
NIf you select the View Guide, you can see the Guide screen.
English

 
❑Retuning Channels
■Country (Australia / New Zealand / Singapore)
(depending on the country)
OMENUmChannel Country ENTERE
Select your country so that the TV can correctly auto-tune the broadcasting
channels.
NThe PIN input screen appears. Enter your 4 digit PIN number. The default PIN
number is “0-0-0-0.”
English

 
■Auto Tuning
(depending on the country)
OMENUmChannel Auto Tuning ENTERE
Scans for a channel automatically and stores in the TV.
NAutomatically allocated programme numbers may not correspond to actual
or desired programme numbers. If a channel is locked, the PIN input window
appears.
Digital & Analogue / Digital / Analogue: Select the channel source to
memorise.
English
