LICENSES
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby “and the
double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that
plays DivX video. Visit divx.com for more information and software tools to
convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete
your registration.
DivX Certified® to play DivX® video up to HD 1080p, including premium
content.
DivX®, DivX Certified® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380;
6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the
Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0
Channel is a trademark of DTS, Inc. Product includes software.
©DTS, Inc. All Rights Reserved.

ENGLISH
4INSTALLATION PROCEDURE
INSTALLATION PROCEDURE
1Open the package and make sure all the accessories are included.
2Attach the stand to the TV.
3Connect an external device to the TV.
yImage shown may differ from your TV.
yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
yThe available menus and options may differ from the input source or product model that you are
using.
yNew features may be added to this TV in the future.
NOTE

ENGLISH
5
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and accessories.
yThe accessories supplied with your product may vary depending on the model.
yProduct specifications or contents in this manual may be changed without prior notice due to
upgrade of product functions.
NOTE
yDo not use any pirated items to ensure the safety and product life span.
yAny damages or injuries by using pirated items are not covered by the warranty.
CAUTION

ENGLISH
6ASSEMBLING AND PREPARING
Magic Remote Control.
Batteries (AA)
Power Cord
CD (Owner's Manual)/Cards
AC-DC Adapter
Stand Base
Screws 2 EA
Component video cable
3D Glasses(Normal type 2 EA)
- The number of 3D glasses may differ depending on
model or country.
- Image shown may differ from your TV.
Cable holder
MHL passive cable
or
Screw Cover
(Depending on country)
Isolator
or
ㄮᗺ
ⰶᲳ
ⱞⳮ ➎Ẳ㞢
/Q.MENU
S
YRO
EDFN VPDUW
/Q.MENU
Composite audio/video cable
Remote control
Batteries (AAA)

ENGLISH
7
ASSEMBLING AND PREPARING
Separate purchase
Dual play glasses
AG-F2**DP, AG-F3**DP
yThe illustrations in this manual may differ from the actual product and accessories.
ySeparate purchase items can be changed or modified for quality improvement without any
notification.
yContact your dealer to buying these items.
yThe model name or design may be changed depending on the upgrade of product
functions,manufacturer’s circumstances or policies.
NOTE
Magic Remote Control
AN-MR400
S
YRO
EDFN VPDUW
/Q.MENU

ENGLISH
8ASSEMBLING AND PREPARING
yAntenna Isolator Installation Guide
-Use this to install TV in a place where there is a voltage difference between TV Set and GND
of antenna signal.
»If there is a voltage difference between TV Set and GND of antenna signal, the antenna
contact might be heated and excessive heat might cause an accident.
-You can improve the safety when watching TV by efficiently removing power voltage from TV
antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the
wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation.
-Before starting, be sure that the TV antenna is connected.
Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.
“Equipment connected to the protective earthing of the building installation through the mains
connection or through other equipment with a connection to protective earthing - and to a
cable distribution system using coaxial cable, may in some circumstances create a fire hazard.
Connection to a cable distribution system has therefore to be provided through a device providing
electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)”
When applying the RF Isolator, a slight loss of signal sensitivity can occur.
NOTE
ANTENNA/
CABLE IN
Cable / Antenna
Wall
Isolator
1. Connect to TV.
2. Connect to Set-Top box.
or

ENGLISH
9
ASSEMBLING AND PREPARING
Parts and buttons
yAll of the buttons are touch sensitive and can be operated through simple touch with your finger.
NOTE
Touch button Description
Scrolls through the saved programmes.
Adjusts the volume level.
OK Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menus, or saves your input and exits the menus.
INPUT Changes the input source.
/ITurns the power on or off.
(19 V )
COMPONENT IN
AUDIO IN(PC)
HP
AV2 IN / AUDIO L R
HDMI IN
5 V 5 V0.5 A 1.0 A
13/18 V
700 mA Max
LND IN
Remote Control Sensor
Standby Light
yLighting On:Turned off
yLighting Off: Turned on
Connection panel (See p.17)
Touch buttons on the
bottom of the TV

ENGLISH
10 ASSEMBLING AND PREPARING
yWhen holding the TV, the screen should face
away from you to prevent the screen from
scratches.
yWhen transporting the TV, do not expose the
TV to jolts or excessive vibration.
yWhen transporting the TV, keep the TV
upright, never turn the TV on its side, or tilt
towards the left or right.
Lifting and moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for save transportation regardless of
its type and size.
yAvoid touching the screen at all times, as
this may result in damage to the screen or
some of the pixels used to create images.
CAUTION
yIt is recommended to move the TV in the
box or packing material that the TV originally
came in.
yBefore moving or lifting the TV, disconnect
the power cord and all cables.
yHold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.

ENGLISH
11
ASSEMBLING AND PREPARING
1Place the TV with the screen side down on a
flat and cushioned surface.
2Check the orientation (front and rear) of the
stand base and mount the stand base to the
stand hinge as shown in the figure.
3Fix two screws into the back of the stand base
and close the screw cover.
yTighten the screws firmly to prevent the TV
from tilting forward. Do not over tighten.
CAUTION
Setting up the TV
Attaching the Stand
CAUTION
yLay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
yWhen attaching the stand to the TV,
place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
Screw Cover

ENGLISH
12 ASSEMBLING AND PREPARING
Mounting on a table
1Lift and tilt the TV into its upright position on a
table.
Leave a 10 cm (minimum) space from the wall
for proper ventilation.
2Connect the AC-DC Adapter and Power Cord
to a wall outlet.
yDo not place the TV near or on sources of heat,
as this may result in fire or other damage.
CAUTION
10 cm
10 cm
10 cm
10 cm

ENGLISH
13
ASSEMBLING AND PREPARING
yDisconnect the power cord first, and then
move or install the TV. Otherwise electric
shock may occur.
CAUTION
yAfter attachment, if the cable holder is
pulled with excessive force, it may fall off.
CAUTION
yWhen you adjust the angle, do not hold the buttom of the TV frame as shown on the following
illustration, as may injure your fingers.
WARNING
yTilt from +20 to -5 degrees up or down to
adjust the angle of the TV to suit your view.
NOTE
Front Rear
Tidying cables
1Attach the cable holder to the edge of stand
body securely.
2Gather and bind the cables with the supplied
cable holder.
-5 20
:
-5 20
:
-5 20
:
-5 20
:
Cable holder

ENGLISH
14 ASSEMBLING AND PREPARING

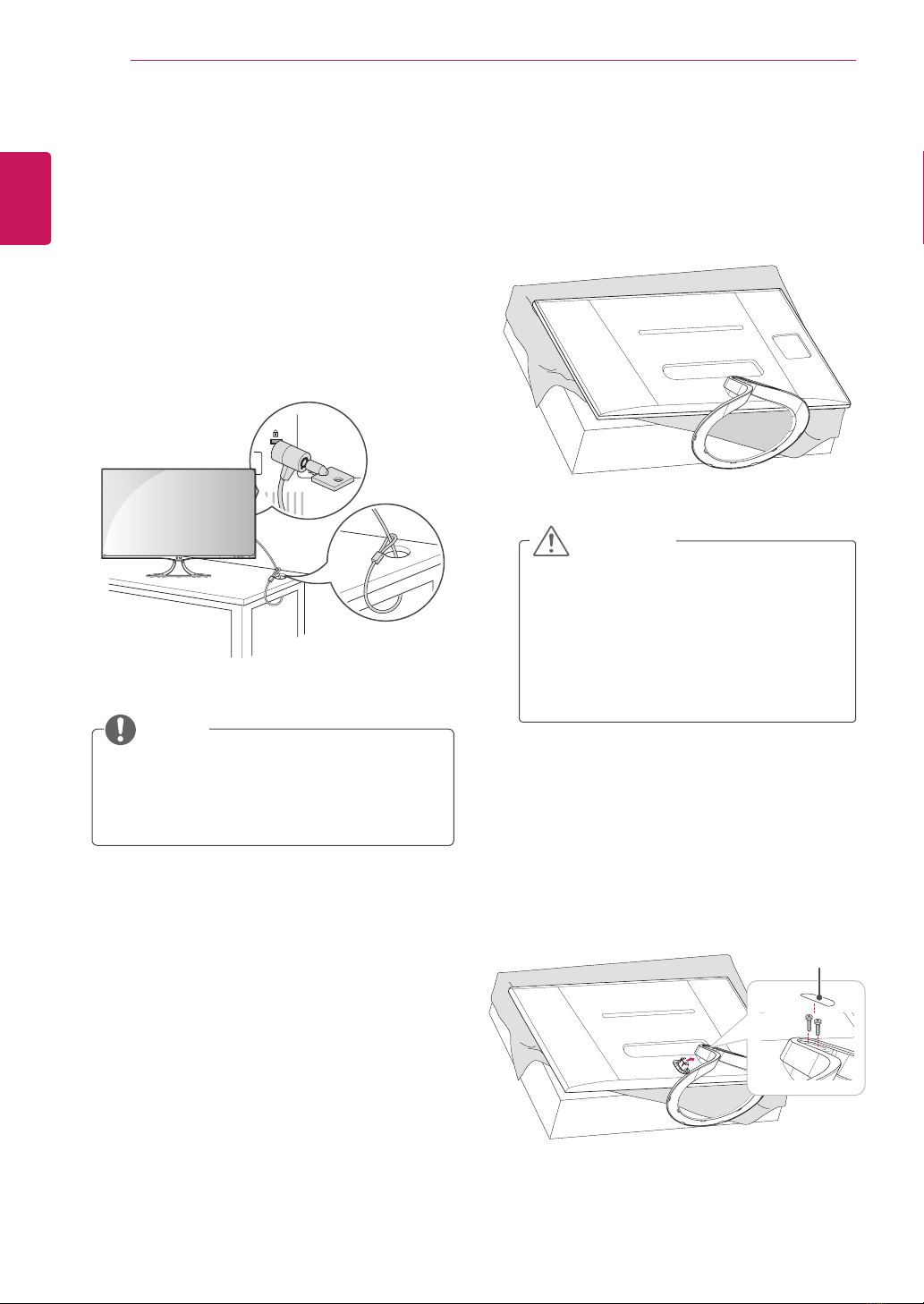

Using the Kensington security system
The Kensington security system connector is
located at the back of the TV. For more information
of installation and using, refer to the manual
supplied with the Kensington security system or
visit
http://www.kensington.com .
Connect the Kensington security system cable
between the TV and a table.
yThe Kensington security system is optional.
You can obtain additional accessories from
most electronics stores.
NOTE
Detaching the Stand
1Place the TV with the screen side down on a
flat and cushioned surface.
2Open the screw cover on the back of the stand
base and use a screwdriver to remove the two
screws.
Detach the stand base from the stand hinge as
shown in the figure.
yLay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
yWhen detaching the stand to the TV,
place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
CAUTION
Screw Cover

ENGLISH
15
WATCHING TV
Turning the TV on for the first time
When you access the TV for the first time, the initial setting screen appears. Select a language and
customize the basic settings.
1Connect the power cord to a power outlet.
2Press on the TV or power button on the remote control to turn the TV on.
The Standby Light is turned off.
3The initial setting screen appears if you access the TV for the first time.
yIf you do not operate the TV within 40 seconds when the setting menu screen appears, the setting
menus will disappear.
NOTE
WATCHING TV
4Follow the on-screen instructions to customize your TV according to your preferences.
yFor those countries without confirmed DTV broadcasting standards, some DTV features might not
work, depending on the DTV broadcasting environment.
yWhen France is selected for Country, the initial password is not ‘0’, ‘0’, ‘0’, ‘0’ but ‘1’, ‘2’, ‘3’, ‘4’.
yTo display images in the best quality for your home environment, select Home Use mode.
yStore Demo mode is suitable for the retail environment.
yIf you select Store Demo mode, the previously customized settings will switch to the default
settings of Store Demo mode in 5 minutes.
NOTE

ENGLISH
16 WATCHING TV
yYou can also access Factory Reset by accessing OPTION in the main menus.
NOTE
5When the basic settings are complete, press OK .
6To turn the TV off, press on the TV.
The Standby Light is turned on.
yIf you do not complete the initial setting, it will appear whenever you access the TV.
NOTE
yDisconnect the power cord from the power outlet when you do not use the TV for a long period of
time.
CAUTION

ENGLISH
17
MAKING CONNECTIONS
Connect various external devices to the TV and switch input modes to select an external device. For more
information about an external device’s connection, refer to the manual supplied with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC,
camcorders or cameras, gaming devices, and other external devices.
yIf you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the
manual supplied with the connected device.
yThe external device connection may differ from the model.
yConnect external devices to the TV regardless of the order of the TV port.
MAKING CONNECTIONS
Connecting an antenna
Connect an antenna, cable or cable box to watch TV referring to the following. The illustrations may differ
from the actual accessories and an RF cable is optional.
Connect the TV to a wall antenna socket with an RF cable (75 Ω).
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal
amplifier properly to improve the image
quality.
yIf the image quality is poor with an antenna
connected, aim the antenna to the proper
direction.
yVisit
http://AntennaWeb.org for more
information about the antenna and cable
connection.
NOTE
yMake sure not to bend the copper wire of
the RF cable.
yComplete all connections instructions
between devices, and then connect the
power cord to the power outlet to prevent
damages to your TV.
CAUTION
Copper wire
Wall Antenna Socket
Outdoor Antenna
yVHF Antenna
yUHF Antenna
(Not Provided)
NOTE

ENGLISH
18 MAKING CONNECTIONS
13/18 V
700 mA Max
LND IN
Satellite connection
Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω).
(Not Provided)

ENGLISH
19
MAKING CONNECTIONS
HDMI IN
COMPONENT I
N
A
UDI
O
IN
(
P
C)
HP
A
V2 IN
/
AUDI
O
L
R
(19 V )
5 V
5
V
0.5 A
1.0 A
13/18 V
700
mA Ma
x
LND I
N
Connecting to a HD receiver, DVD, VCR player or Gaming device
Connect a HD receiver, DVD, VCR player or Gaming device to the TV and select an appropriate input mode.
HDMI connection
HDMI is the best way to connect a device.
Transmits the digital video and audio signals from an external device to the TV. Connect the external device
and the TV with the HDMI cable as shown on the following illustration.
yChoose any HDMI input port to connect.
yIt does not matter which port you use.
DVD / Blu-Ray / HD Cable Box / HD STB /
Gaming device
yUse a High Speed HDMI™ Cable.
yHigh Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
ySupported DTV Audio: MPEG, Dolby Digital.
ySupported HDMI Audio format: DTS, Dolby Digital, PCM (Up to 192 kHz, 32 kHz / 44.1 kHz / 48 kHz /
88 kHz / 96 kHz / 176 kHz / 192 kHz.)
NOTE
(Not Provided)

ENGLISH
20 MAKING CONNECTIONS
HDMI IN
CO
MP
O
NENT I
N
AUDIO IN(PC)
HP
A
V2 IN
/
A
U
DI
O
L
R
(19 V )
5 V
5
V
0.5 A
1.0 A
13/18 V
7
00 mA Ma
x
L
ND I
N
HDMI to DVI connection
Transmits the digital video signal from an external device to the TV. Connect the external device and the TV
with the HDMI to DVI cable as shown in the following illustration. To transmit an audio signal, connect an
optional audio cable.
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
yIf you do not use an optional external speaker, connect the external device to the TV with the optional
audio cable.
NOTE
(Not Provided)
