LG LA79 User manual

Drawn Approved
Signature Kim K.S JongOk.Kim
MMM/DD/YYYY Apr/10/2013 Apr/10/2013
47LA860V-ZA LG MFL67728112
FP 47LA860V-ZA (1310-REV02)
:LGEAK :LGEKR :LGERS
:LGEAZ :LGEMA :LGESY
:LGEEG :LGEMX :LGETH
:LGEIL :LGEND :LGEVN
:LGEIN :LGERA :LGEWR
EKLDA00161
[LD34N / LA965] Manual drawing update
Checked
Apr/10/2013
Kim S.I
:Part number
1. Model Description
Printing Specification
Printed in Mexico
Printed in Poland
Printed in Kazakhstan
Printed in Brazil
:4. Bindery
:5. Language
:6. Number of pages
:Model name
:2nd, 3rd Suffix
:Brand name
:Product name
:1. Trim size (Format)
2. Printing colors
:• Cover
:• Inside
Printed in Korea
:• Inside
(Revision number)
2. Printing Specification
Rev. Number
MMM/DD/YYYY
ENG/FRE/ARA (3)
182 mm x 257 mm (B5)
1 Color (Black)
1 Color (Black)
Coated, Snow white paper 150 g/㎡
Uncoated, wood-free paper 60 g/㎡
Perfect binding
132
3. Origin Notification
4. Changes
Printed in Mexico
Printed in Egypt
Printed in India
Printed in Indonesia
3. Stock (Paper)
:• Cover
Added the models of LA97, LA965, LA98, LM96
EKLD800829
Sungho Jo
Aug/14/2013
Sungho Jo
Oct/03/2013
Signature
Change Contents
ECO Number
N
O
T
E
“This part contains Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level,
Details should be followed Eco-SCM management standard[LG(56)-A-2524].
Especially, Part should be followed and controlled the following specification.
(1) Eco-hazardous substances test report should be submitted when Part certification test and First Mass Production.
(2) Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.
Printed in Russia
Printed in China
Printed in China
Printed in Thailand
Printed in Vietnam
Printed in Poland
1
10
9
8
7
6
5
4
3
2

Front
Cover
P/No. A-2 A-3 …A-23 Blank
Front Back
(ENG) Cover
2…30 Blank
Front Back
(FRE) Cover
2…30 Blank
Back Front
Cover (ARA)
Blank 30 …2
Back
Cover
B-1 B-2 …B-8 Blank Blank Blank (Eng)
:Total pages
132 pages
:Part number
MFL67728112
Pagination sheet

www.lg.com
P/NO : MFL67728112 (1310-REV02)
Printed in Korea
OWNER’S MANUAL
LED TV
Please read this manual carefully before operating
your set and retain it for future reference.
* LG LED TV applies LCD screen with LED backlights.
LA79**
LA86**
LA96**
LA97**
LA98**
LM96**

A-2 TABLE OF CONTENTS
COMMON
LANGUAGE
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-6 Tidying cables
A-8 MAKING CONNECTIONS
A-8 Antenna connection
A-9 Satellite connection
A-9 HDMI connection
A-11 - ARC (Audio Return Channel)
A-11 Headphone Connection

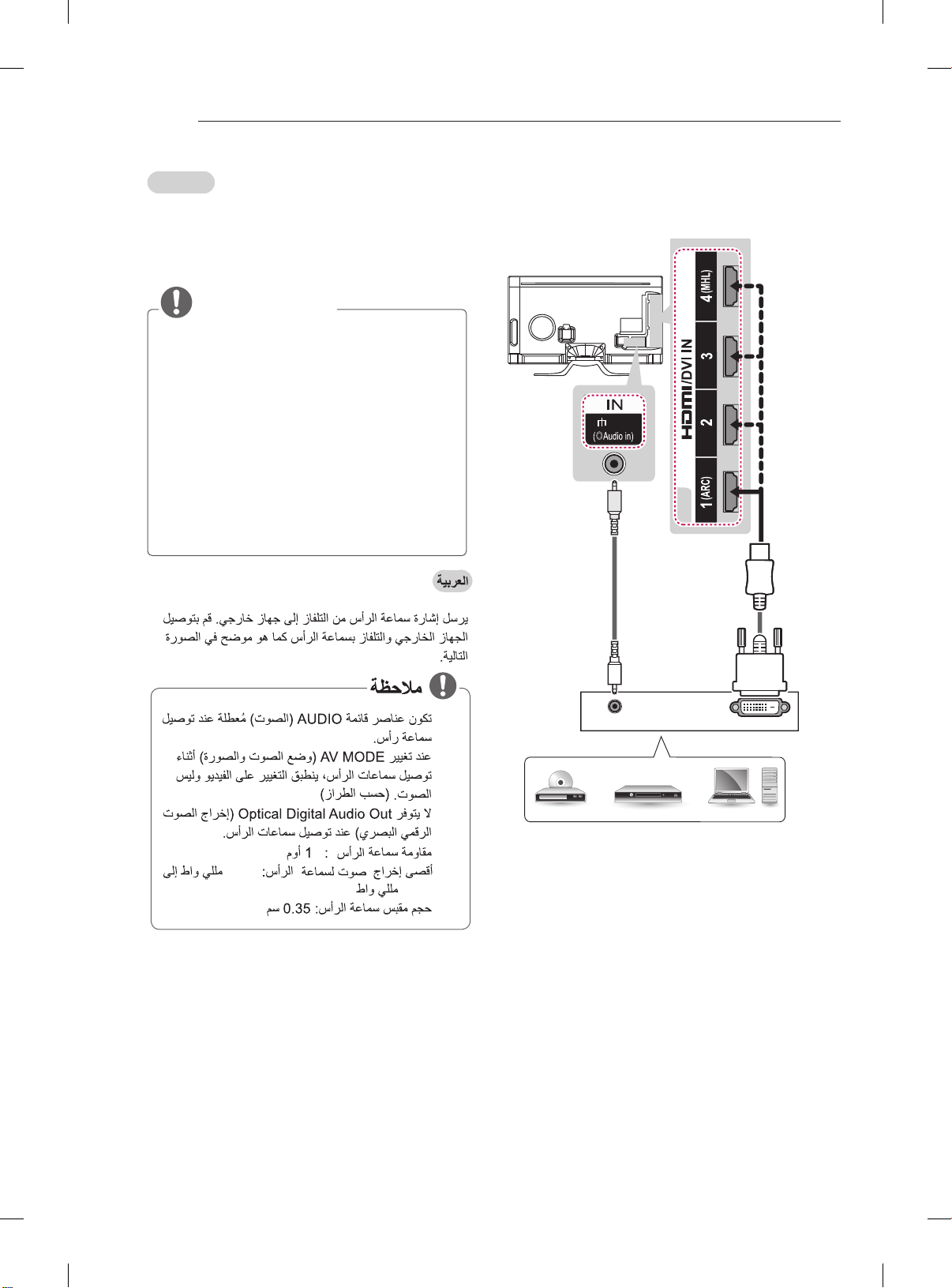

A-12 DVI to HDMI connection
A-14 Component connection
A-15 Composite connection
A-16 MHL connection
A-17 Audio connection
A-17 - Digital optical audio connection
A-18 USB connection
A-19 CI module connection
A-20 Euro Scart connection
LANGUAGE LIST
English
Français
B-1 SPECIFICATIONS COMMON

A-3
SETTING UP THE TV
LA860*, LA960*
Setting up the TV
Image shown may differ from your TV.
Attaching the stand
1
2
3
Stand Base
M4 x 16
4EA
(LA860*)
LA79**
1
2
3
M4 x 14
4EA
Stand Base
Stand Body
Front
M4 x 14
4EA
M4 x 20
4EA
(LA960*)

A-4 SETTING UP THE TV
3
2
1
Stand Base
M4 x 16
4 EA
LA868* LA965*
1
2
3
M4 x 14
4 EA
NOTE
yBe sure to attach the upper mounting hole
first, and then attach the lower connection
second.
Stand Base Stand Base
①
②
① Attach the stand to the TV using the upper
mounting hole on the back of the TV.
② Attach the stand to the TV using the lower
connection on the back of the TV.

A-5
SETTING UP THE TV
Stand Base
Front
1
1
LA97** LA98**, LM96**
2
2
3
3
M4 x 14
4 EA
NOTE
yThe stand screws are already attached
at the back of the TV. Please use these
attached screw to assemble the TV and
stand. (Only 65LA97**)
Front
6 EA
M5 x 16
Front
Stand base
Stand body

A-6 SETTING UP THE TV
Tidying cables
(Only LA79**)
1 Gather and bind the cables with the Cable
Management.
2 Fix the Cable Management rmly to the TV.
Cable Holder
Cable Management
(Only LA860*, LA960*)
1 Gather and bind the cables with the Cable
Holder and the Cable Management.
2 Fix the Cable Management rmly to the TV.
⨲㘶ᖂ2
㏪ⱞ⋾#Ɐᴏ
Cable Holder
Cable Management
CAUTION
yWhen attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect the
screen from scratches.
yMake sure that the screws are inserted
correctly and fastened securely. (If they are
not fastened securely enough, the TV may
tilt forward after being installed.)
Do not use too much force and over tighten
the screws; otherwise screw may be
damaged and not tighten correctly.
NOTE
yRemove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
4 EA
M4 x 20
4
Cable Management
Cable Holder
(Only LA98**, LM96**)
1 Gather and bind the cables with the Cable
Holder and the Cable Management.
2 Fix the Cable Management rmly to the TV.

A-7
MAKING CONNECTION
CAUTION
yDo not move the TV by holding the cable
holders, as the cable holders may break,
and injuries and damage to the TV may
occur.

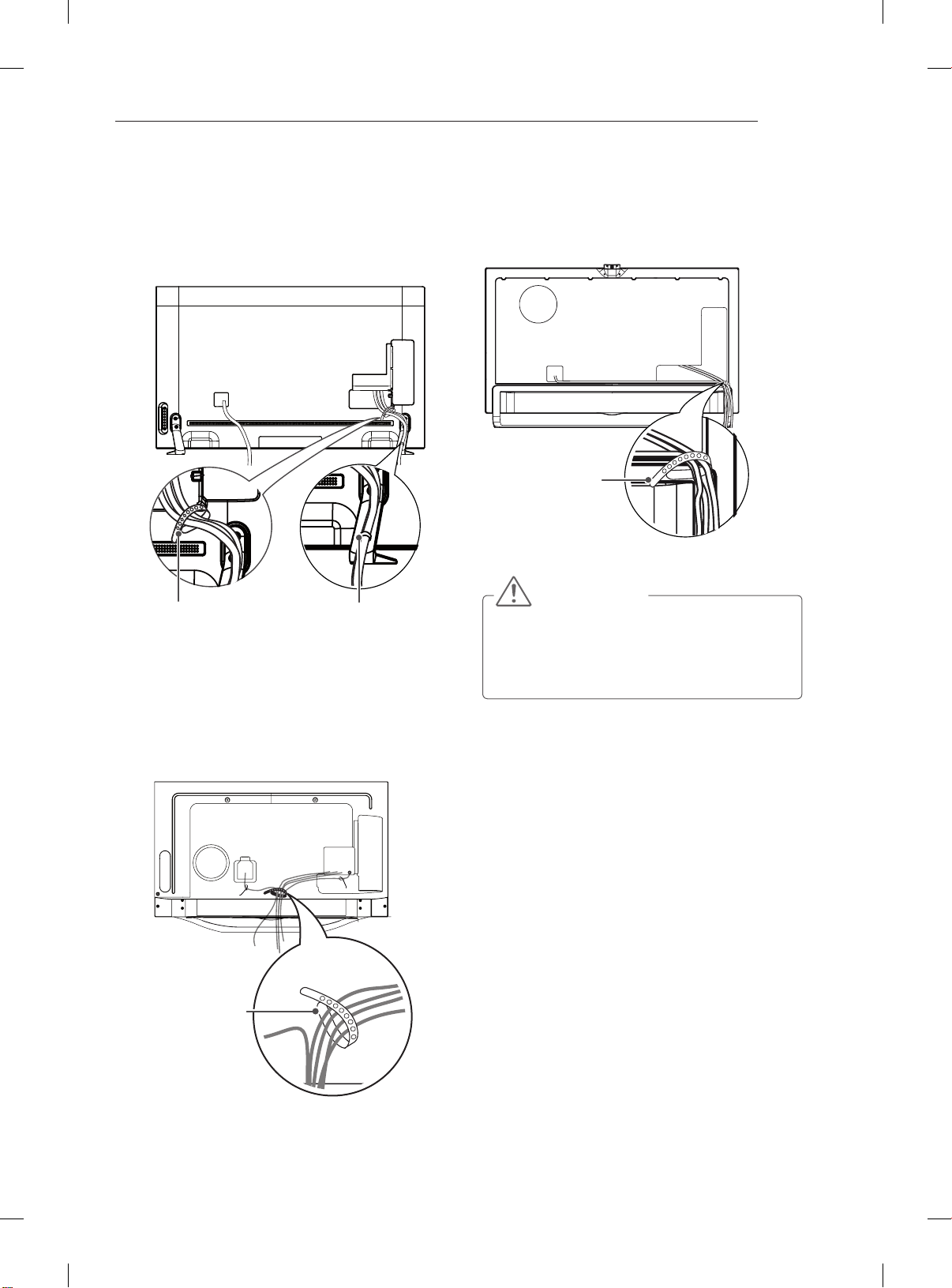

Cable Holder
1 Gather and bind the cables with the cable
holder on the back of the TV.
(Only LA868*)
(Only LA97**)
1 Gather and bind the cables with the cable
holder on the back of the TV.
Cable Holder
(Only LA965*)
1 Gather and bind the cables with the cable
holder on the back of the TV.
2 Fix the Cable Management rmly to the TV.
Cable Management
Cable Holder

A-8 MAKING CONNECTION
MAKING
CONNECTIONS
Antenna connection
This section on MAKING CONNECTIONS mainly
uses diagrams for the LA79** models.
English
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
NOTE
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal
amplifier properly to improve the image
quality.
yIf the image quality is poor with an antenna
connected, try to realign the antenna in the
correct direction.
yAn antenna cable and converter are not
supplied.
ySupported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
yDisplay of Ultra HD(3840 x 2160 pixels) content
compatible; additional device capable of
processing Ultra HD source content (in 2D or
3D) may be required and will be sold separately.
(Only LA965*, LA97**, LA98**, LM96**)
Français
Connectez la TV à une prise d’antenne murale
avec un câble RF (75 Ω).
REMARQUE
yUtilisez un séparateur de signaux pour
utiliser plus de deux téléviseurs.
ySi la qualité d’image est mauvaise, installez
correctement un amplificateur de signaux
pour l’améliorer.
ySi vous utilisez une antenne et que la
qualité d’image est mauvaise, essayez de
réaligner l’antenne dans la bonne direction.
yLe câble et le convertisseur d’antenne ne
sont pas fournis.
yTechnologies audio TNT prises en charge :
MPEG, Dolby Digital, Dolby Digital Plus,
HE-AAC
yAffichage compatible Ultra HD
(3840 x 2160 pixels) ; Un service
supplémentaire pour le traitement des
contenus source Ultra HD (en 2D ou 3D)
peut être requis (vendu séparément).
(Uniquement LA965*, LA97**, LA98**, LM96**)
IN
ANTENNA/
CABLE
