2TABLE OF CONTENTS
WARNING
yIf you ignore the warning message, you
may be seriously injured or there is a
possibility of accident or death.
CAUTION
yIf you ignore the caution message, you
may be slightly injured or the product may
be damaged.
NOTE
yThe note helps you understand and use
the product safely. Please read the note
carefully before using the product.
TABLE OF CONTENTS
3 LICENSES
3 OPEN SOURCE SOFTWARE
NOTICE
4 INSTALLATION PROCEDURE
4 ASSEMBLING AND PREPARING
4 Unpacking
7 Separate purchase
8 Parts and Button
9 - Using the Joystick button
10 Lifting and Moving the TV
11 Setting up the TV
11 - Attaching the Stand
11 Mounting on a table
13 Mounting on a wall
14 Tidying cables
15 MAKING CONNECTIONS
15 Antenna Connection
16 HDMI Connection
17 DVI to HDMI connection
17 Audio Connection
17 - Digital Optical Audio Connection
18 Speaker Output Setup
18 Network Setup
18 - Wired network Connection
19 Component connection
20 RGB-PC connection
20 Headphone Connection
21 USB Connection
22 REMOTE CONTROL
23 MAINTENANCE
23 Cleaning your TV
23 - Screen, frame, cabinet and stand
23 - Power cord
24 TROUBLESHOOTING
25 SPECIFICATIONS
28 IR CODES
29 EXTERNAL CONTROL DEVICE
SETUP
29 RS-232C Setup
29 Type of Connector: D-Sub 9-Pin Male
29 RS-232C Configurations
30 Communication Parameters
30 Command Reference List
31 Transmission / Receiving Protocol
ENGENGLISH
3
LICENSES / OPEN SOURCE SOFTWARE NOTICE
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
ABOUT DIVX VIDEO: DivX®is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified®device that
has passed rigorous testing to verify that it plays DivX video. Visit divx.com
for more information and software tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified®device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete
your registration.
“DivX Certified®to play DivX®video up to HD 1080p, including premium
content.”
“DivX®, DivX Certified®and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274”
For DTS patents, see http://patents.dts.com. Manufactured under license
from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol
together are registered trademarks, and DTS 2.0+Digital Out is a trademark
of DTS, Inc. © DTS, Inc. All Rights Reserved.
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in
this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices
are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of media, shipping and handling) upon email request to
product.
ENG
ENGLISH
4INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
NOTE
yImage shown may differ from your TV.
yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
yThe available menus and options may differ from the input source or product model that you are
using.
yNew features may be added to this TV in the future.
yThe TV can be placed in standby mode in order to reduce the power consumption. And the
TV should be turned off if it will not be watched for some time, as this will reduce energy
consumption.
yThe energy consumed during use can be significantly reduced if the level of brightness of the
picture is reduced, and this will reduce the overall running cost.
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
4 Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.
ASSEMBLING AND PREPARING
Unpacking

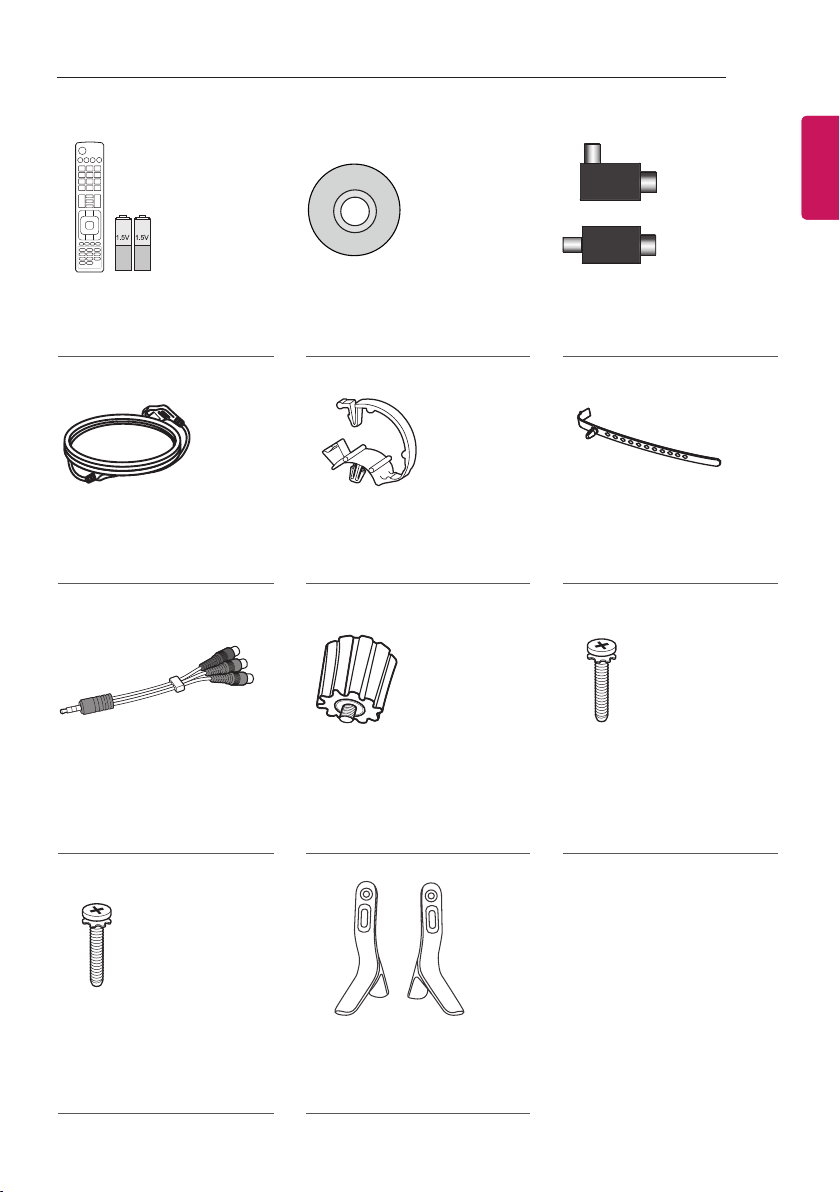

Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
CAUTION
yDo not use any unapproved items to ensure the safety and product life span.
yAny damages or injuries by using unapproved items are not covered by the manufacturer’s warranty.
ySome models have a thin film attached on to the screen and this must not be removed.
NOTE
yThe items supplied with your product may vary depending on the model.
yProduct specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm
thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB
memory stick does not fit into your TV’s USB port.
A
B
A
B
*A
<
=
10 mm
*B
<
=
18 mm
ENGENGLISH
5
ASSEMBLING AND PREPARING
FREEZE
RATIO
L/RSELECT
ENTER
BACK EXIT
Q.MENU
INFO
MENU
CHVOL
P
A
G
E
FAV
3D
MUTE
1 2 3
4 5 6
7 8
0
9
MARK
LIST
FLASHBK
ENERGY
SAVING
TV
AVMODE
INPUT
or
Remote control, Batteries
(AAA)
(See p. 22)
Owner’s manual Isolator
(Depending on model)
(See p. 6)
ENG
ENGLISH
Power cord
(Depending on model)
Cable Managements
2EA
(See p. 14)
Cable Holder
(Depending on model)
(See p. 14)
ENG
ENGLISH
ENG
ENGLISH
Component Gender Cable
(Depending on model)
(See p. 19)
Wall Mount Spacers
2EA
(Only 42LY75**)
(See p. 14)
Stand Screws
4EA, M4 x L20
(Only 32LY75**)
(See p. 11)
ENG
ENGLISH
ENG
ENGLISH
Stand Screws
4EA, M4 x L14
(Only 42/47/55LY75**)
(See p. 11)
Stand Bases
(See p. 11)
ENG
ENGLISH
6ASSEMBLING AND PREPARING
NOTE
yAntenna Isolator Installation Guide
- Use this to install TV in a place where there is a voltage difference between TV Set and GND
of antenna signal.
»If there is a voltage difference between TV Set and GND of antenna signal, the antenna
contact might be heated and excessive heat might cause an accident.
- You can improve the safety when watching TV by efficiently removing power voltage from TV
antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the
wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation.
- Before starting, be sure that the TV antenna is connected.
ANTENNA/
CABLE IN
Cable / Antenna
Wall
Isolator
1 Connect to TV.
2 Connect to Set-Top box.
or
Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.
“Equipment connected to the protective earthing of the building installation through the mains
connection or through other equipment with a connection to protective earthing - and to a
cable distribution system using coaxial cable, may in some circumstances create a re hazard.
Connection to a cable distribution system has therefore to be provided through a device providing
electrical isolation below a certain frequency range
(galvanic isolator, see EN 60728-11)”
When applying the RF Isolator, a slight loss of signal sensitivity can occur.
ENGENGLISH
7
ASSEMBLING AND PREPARING
Separate purchase
Separate purchase items can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items.
These devices only work with certain models.
The model name or design may be changed depending on the upgrade of product functions,
manufacturer’s circumstances or policies.
LG Audio Device AN-MR300
Magic remote
ENG
ENGLISH
8ASSEMBLING AND PREPARING

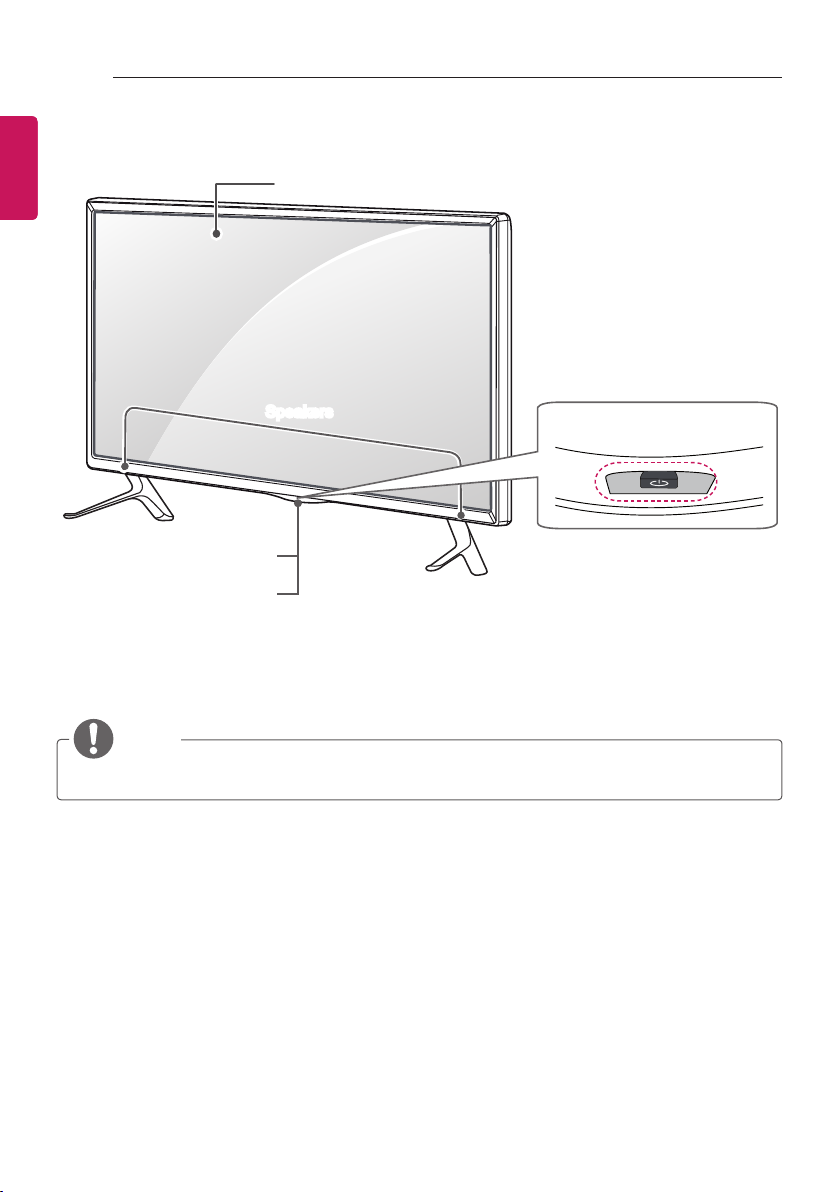

Parts and Button
Screen
Speakers
Joystick Button2
Remote control and
Intelligent1sensors
Power Indicator
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding
environment.
2 Joystick Button - This button is located below the TV screen.
NOTE
yYou can set the power indicator light to on or off by selecting OPTION in the main menus.
ENGENGLISH
9
ASSEMBLING AND PREPARING

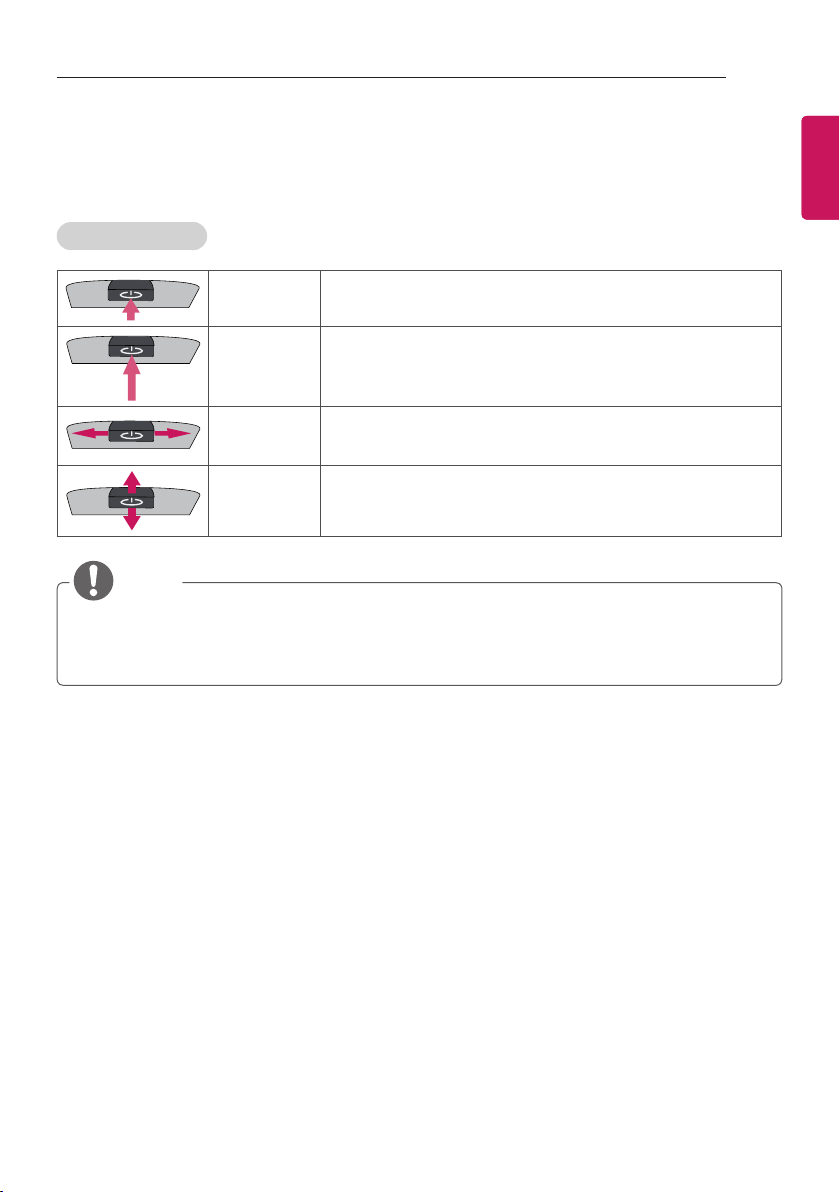

Using the Joystick button
You can simply operate the TV functions by pressing to turn On/Off or sliding your finger over joystick
button moving up, down, left or right.
Basic Functions
Power On When the TV is turned off, place your finger on the joystick
button and press it once and release it.
Power Off When the TV is turned on, place your finger on the joystick
button and press it once for a few seconds and release it.
Volume
Control
If you place your finger over the joystick button and move it left
or right, you can adjust the volume level you want.
Programmes
Control
If you place your finger over the joystick button and move it up
or down, you can scrolls through the saved programmes you
want.
NOTE
yWhen your finger is over the joystick button and you are sliding finger forward/back, left or right,
be careful not to press down to hard on joystick. If you press down hard on joystick button first
then the adjustment of volume level and programme scroll action will not operate.
ENG
ENGLISH
10 ASSEMBLING AND PREPARING
Lifting and Moving the TV
Please note the following advice to prevent the TV from
being scratched or damaged and for safe transportation
regardless of its type and size.
CAUTION
yAvoid touching the screen at all times, as
this may result in damage to the screen.
yIt is recommended to move the TV in
the box or packing material that the TV
originally came in.
yBefore moving or lifting the TV, disconnect
the power cord and all cables.
yWhen holding the TV, the screen should
face away from you to avoid damage.
yHold the top and bottom of the TV
frame firmly. Make sure not to hold the
transparent part, speaker, or speaker grill
area.
yWhen transporting a large TV, there should
be at least 2 people.
yWhen transporting the TV by hand, hold the
TV as shown in the following illustration.
yWhen transporting the TV, do not expose
the TV to jolts or excessive vibration.
yWhen transporting the TV, keep the TV
upright, never turn the TV on its side or tilt
towards the left or right.
yDo not apply excessive pressure to cause
flexing /bending of frame chassis as it may
damage screen.
CAUTION
yWhen handling the TV, be careful not to
damage the protruding joystick button.
ENGENGLISH
11
ASSEMBLING AND PREPARING
Setting up the TV
Image shown may differ from your TV.

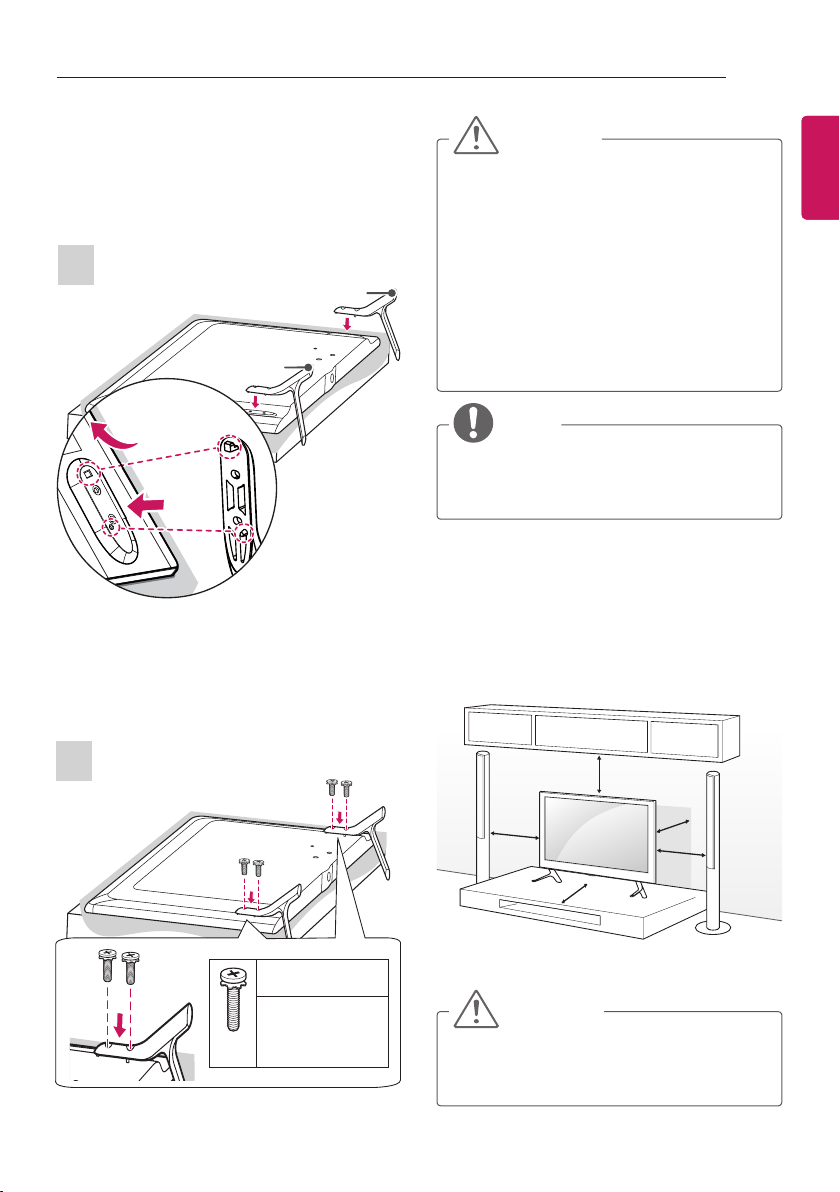

Attaching the Stand
1
2
4EA
M4 x L14
M4 x L20
(Only 32LY75**)
B stand base
1
2
A stand base
CAUTION
yWhen attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
yMake sure that the screws are fastened
completely. (If they are not fastened
securely enough, the TV may tilt forward
after being installed.)
Do not use too much force and over
tighten the screws; otherwise screw may
be damaged and not tighten correctly.
NOTE
yRemove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
Mounting on a table
1 Lift and tilt the TV into its upright position on
a table.
- Leave a 10 cm (minimum) space from
the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
10 cm
2 Connect the power cord to a wall outlet.
CAUTION
yDo not place the TV near or on sources
of heat, as this may result in fire or other
damage.
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
ENG
ENGLISH
12 ASSEMBLING AND PREPARING

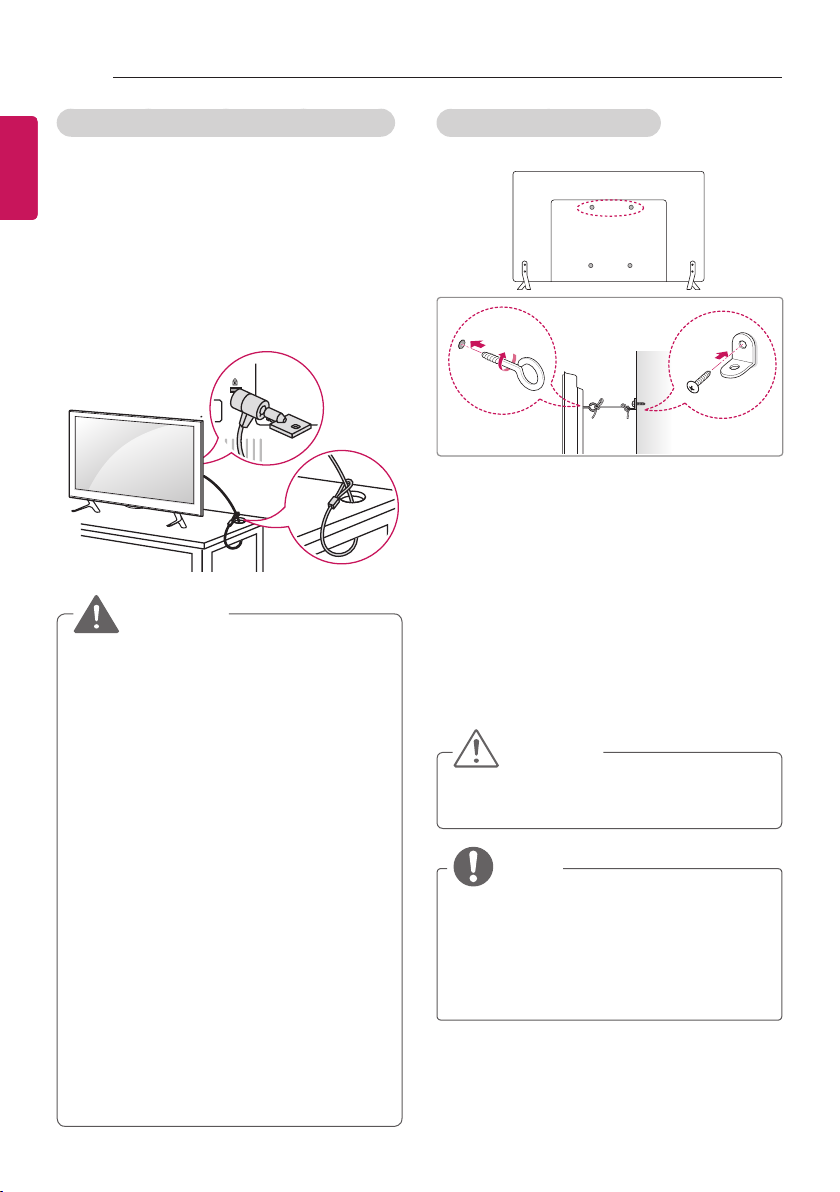

Using the Kensington security system
(This feature is not available for all models.)
yImage shown may differ from your TV.
The Kensington security system connector
is located at the rear of the TV. For more
information of installation and using, refer to the
manual provided with the Kensington security
system or visit http://www.kensington.com.
Connect the Kensington security system cable
between the TV and a table.
WARNING
yIf a television is not positioned in a
sufficiently stable location, it can be
potentially hazardous due to falling. Many
injuries, particularly to children, can be
avoided by taking simple precautions such
as:
»Using cabinets or stands
recommended by the manufacturer of
the television.
»Only using furniture that can safely
support the television.
»Ensuring the television is not
overhanging the edge of the
supporting furniture.
»Not placing the television on tall
furniture (for example, cupboards or
bookcases) without anchoring both
the furniture and the television to a
suitable support.
»Not standing the televisions on cloth
or other materials placed between the
television and supporting furniture.
»Educating children about the dangers
of climbing on furniture to reach the
television or its controls.
Securing the TV to a wall
(This feature is not available for all models.)
1 Insert and tighten the eye-bolts, or TV
brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-
bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and
the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets
tightly with a sturdy rope.
Make sure to keep the rope horizontal with
the at surface.
CAUTION
yMake sure that children do not climb on or
hang on the TV.
NOTE
yUse a platform or cabinet that is strong
and large enough to support the TV
securely.
yBrackets, bolts and ropes are not
provided. You can obtain additional
accessories from your local dealer.
ENGENGLISH
13
ASSEMBLING AND PREPARING

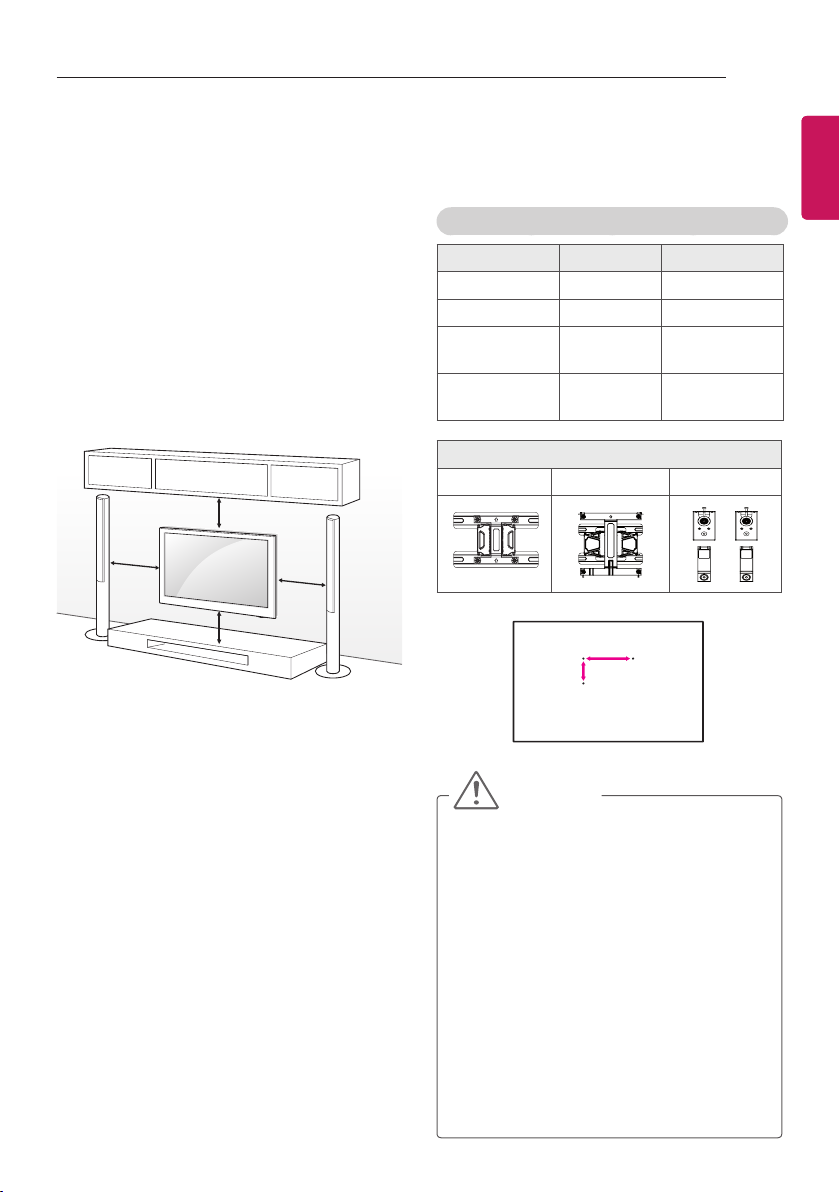

Mounting on a wall
Attach an optional wall mount bracket at the rear
of the TV carefully and install the wall mount
bracket on a solid wall perpendicular to the
floor. When you attach the TV to other building
materials, please contact qualified personnel.
LG recommends that wall mounting be
performed by a qualified professional installer.
We recommend the use of LG’s wall mount
bracket.
When you do not use LG’s wall mount bracket,
please use a wall mount bracket where the
device is adequately secured to the wall with
enough space to allow connectivity to external
devices.
10 cm
10 cm
10 cm
10 cm
Make sure to use screws and wall mount
bracket that meet the VESA standard. Standard
dimensions for the wall mount kits are described
in the following table.
Separate purchase (Wall Mounting Bracket)
Model 32LY75** 42/47/55LY75**
VESA (A x B) 200 x 200 400 x 400
Standard screw M6 M6
Number of
screws 4 4
Wall mount
bracket
LSW240B
MSW240
LSW440B
MSW240
Wall mount bracket
LSW240B LSW440B MSW240
A
B
CAUTION
yDisconnect the power first, and then move
or install the TV. Otherwise electric shock
may occur.
yIf you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorised LG wall mount and
contact the local dealer or qualified
personnel.
yDo not over tighten the screws as this may
cause damage to the TV and void your
warranty.
yUse the screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the
manufacturer’s warranty.
ENG
ENGLISH
14 ASSEMBLING AND PREPARING
NOTE
yUse the screws that are listed on the
VESA standard screw specifications.
yThe wall mount kit includes an installation
manual and necessary parts.
yThe wall mount bracket is not provided.
You can obtain additional accessories
from your local dealer.
yThe length of screws may differ depending
on the wall mount. Make sure to use the
proper length.
yFor more information, refer to the manual
supplied with the wall mount.
yWhen attaching a wall mounting bracket
to the TV, insert the wall mount spacers
into the TV wall mount holes to adjust the
vertical angle of the TV. (Only 42LY75**)
Wall Mount Spacer

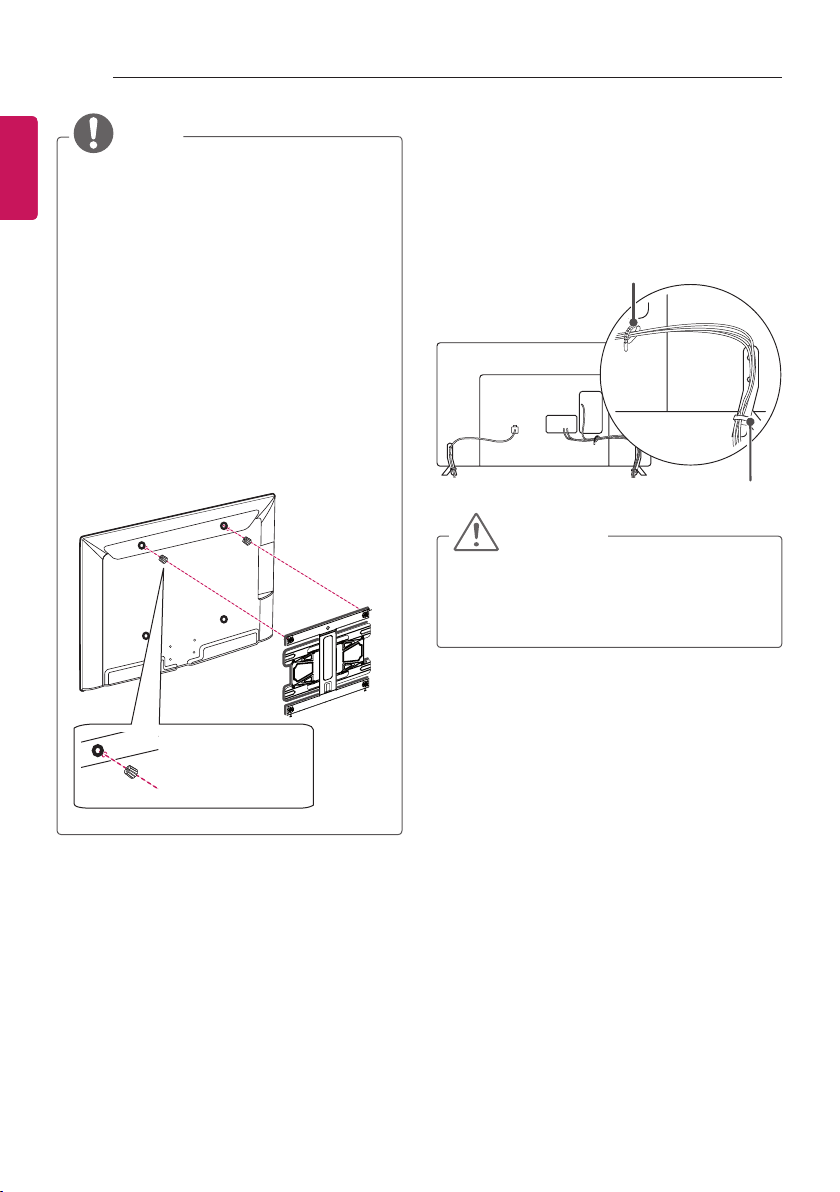

Tidying cables
Image shown may differ from your TV.
1 Gather and bind the cables with the cable
holder.
2 Fix the Cable Management rmly to the TV.
Cable Holder
Cable Management
CAUTION
yDo not move the TV by holding the cable
holder, as the cable holder may break,
and injuries and damage to the TV may
occur.
ENGENGLISH
15
MAKING CONNECTIONS
MAKING CONNECTIONS
This section on MAKING CONNECTIONS
mainly uses diagrams for the 42LY75** models.
Connect various external devices to the TV and
switch input modes to select an external device.
For more information on external device’s
connection, refer to the manual provided with
each device.
Available external devices are: HD receivers,
DVD players, VCRs, audio systems, USB
storage devices, PC, gaming devices, and other
external devices.
NOTE
yThe external device connection may differ
from the model.
yConnect external devices to the TV
regardless of the order of the TV port.
yIf you record a TV program on a DVD
recorder or VCR, make sure to connect
the TV signal input cable to the TV
through a DVD recorder or VCR. For
more information on recording, refer to
the manual provided with the connected
device.
yRefer to the external equipment’s manual
for operating instructions.
yIf you connect a gaming device to the TV,
use the cable supplied with the gaming
device.
yIn PC mode, there may be noise
associated with the resolution, vertical
pattern, contrast or brightness. If noise is
present, change the PC output to another
resolution, change the refresh rate to
another rate or adjust the brightness and
contrast on the PICTURE menu until the
picture is clear.
yIn PC mode, some resolution settings
may not work properly depending on the
graphics card.
yUSB storage device is recognizable.
Antenna Connection
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
ANTENNA/
CABLE IN
(*Not Provided)
NOTE
yUse a signal splitter to use more than 2
TVs.
yIf the image quality is poor, install a signal
amplifier properly to improve the image
quality.
yIf the image quality is poor with an
antenna connected, try to realign the
antenna in the correct direction.
yAn antenna cable and converter are not
supplied.
ySupported DTV Audio: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC
ENG
ENGLISH
16 MAKING CONNECTIONS
HDMI Connection
Transmits the digital video and audio signals
from your PC to the TV. Connect the PC and the
TV with the HDMI cable as shown. Choose any
HDMI input port to connect. It does not matter
which port you use.
HDMI
DVD / Blu-Ray / HD Cable Box / HD STB / PC
(*Not Provided)
NOTE
yIt is recommended to use the TV with
the HDMI connection for the best image
quality.
yUse the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function.
yHigh Speed HDMI™ Cables are tested
to carry an HD signal up to 1080p and
higher.
ySupported HDMI Audio format : Dolby
Digital, PCM (Up to 192 kHz, 32 kHz/44.1
kHz/48 kHz/88 kHz/96 kHz/176 kHz/192
kHz
)
» DTS not supported.
ARC (Audio Return Channel)
yAn external audio device that supports
SIMPLINK and ARC must be connected
using HDMI IN 2 (ARC) port.
yWhen connected with a high-speed
HDMI cable, the external audio device
that supports ARC outputs optical SPDIF
without additional optical audio cable
and supports the SIMPLINK function.
ENGENGLISH
17
MAKING CONNECTIONS

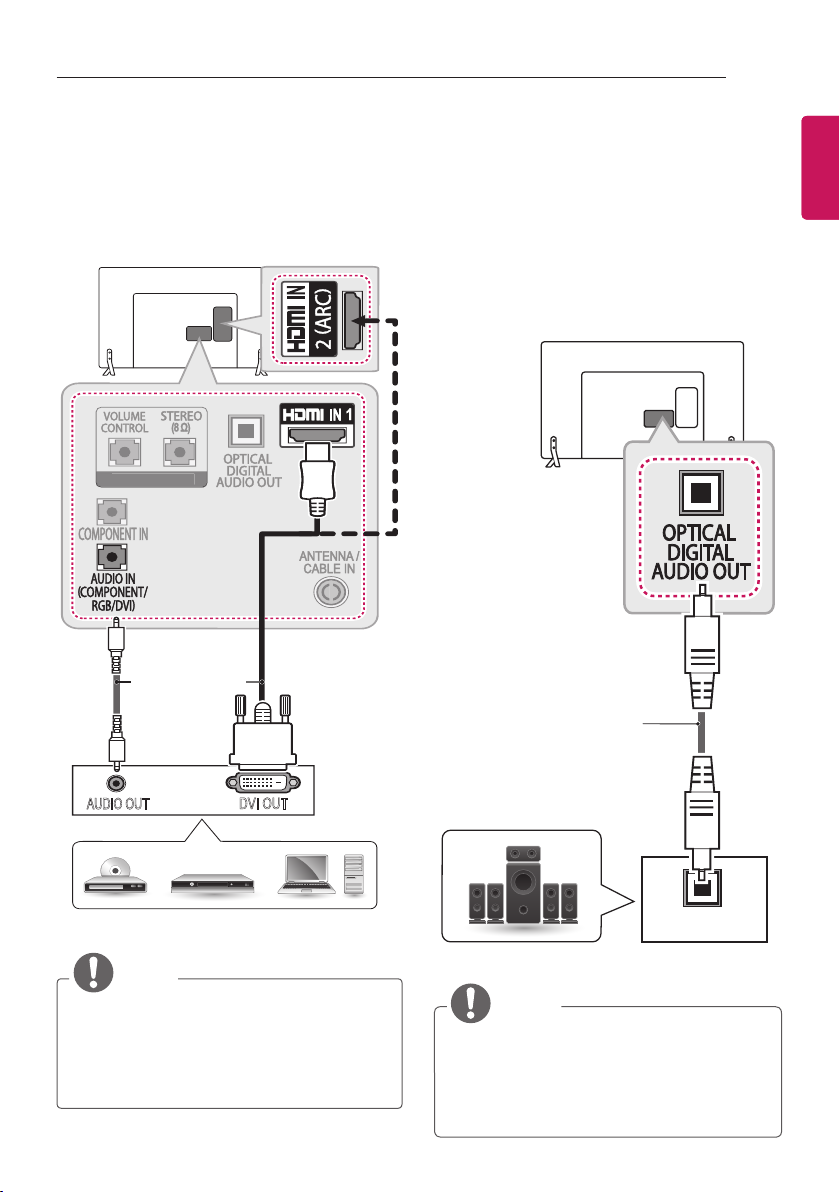

DVI to HDMI Connection
Transmits the digital video signal from an
external device to the TV. Connect the external
device and the TV with the DVI-HDMI cable as
shown. To transmit an audio signal, connect an
audio cable.
DVD / Blu-Ray / HD Cable Box / HD STB / PC
DVI OUT
AUDIO OUT
S
PEAKER
OUT
(*Not Provided)
NOTE
yDepending on the graphics card, DOS mode
may not work if a HDMI to DVI Cable is in
use.
yWhen using the HDMI/DVI cable, only
Single link is supported.
Audio Connection
You may use an optional external audio system
instead of the built-in speaker.
Digital Optical Audio Connection
Transmits a digital audio signal from the TV to an
external device. Connect the external device and
the TV with the optical audio cable as shown.
OPTICAL
AUDIO IN
(*Not Provided)
Digital Audio System
NOTE
yDo not look into the optical output port.
Looking at the laser beam may damage
your vision.
yAudio with ACP (Audio Copy Protection)
function may block digital audio output.
ENG
ENGLISH
18 MAKING CONNECTIONS
Speaker Output Setup
Connect the external speaker to the SPEAKER
OUT jack on the TV.
SPEAKER OUT
UP
DOWN
Control port for Speaker out
GND
RIGHT
LEFT
GND
(*Not Provided)
Method of Volume control port
Cable
Spec.
VOLUME
CONTROL
STEREO
SPEAKER
OUT
(8 )
GND / Up / Down
Each Up/ Down
pin is pulled to
3.3V with CPU
GPIO.
CPU detects
transition from
3.3V to GND
level for volume
control.
Network Setup
Wired network Connection
yImage shown may differ from your TV.
This TV can be connected to a Pro:Centric
server via the LAN port. After making the physi-
cal connection, the TV needs to be set up for
network communication. Connect the LAN port
of the Modem or Router from Pro:Centric server
to the LAN port on the TV.
2
AUX LAN
LAN
1
Pro:CentricServer
Broadband Modem
Broadband Modem
Pro:CentricServer
Router
1Connect the LAN port of the Modem or
Router to the LAN port on the TV.
2Connect the LAN port of the PC to the
AUX LAN port on the TV.
CAUTION
yDo not connect a modular phone cable to
the LAN port.
ySince there are various connection methods,
please follow the specifications of your
telecommunication carrier or internet service
provider.
ENGENGLISH
19
MAKING CONNECTIONS
NOTE
yIf cables are not installed correctly, it could
cause this image to display in black and
white or with distorted colours.

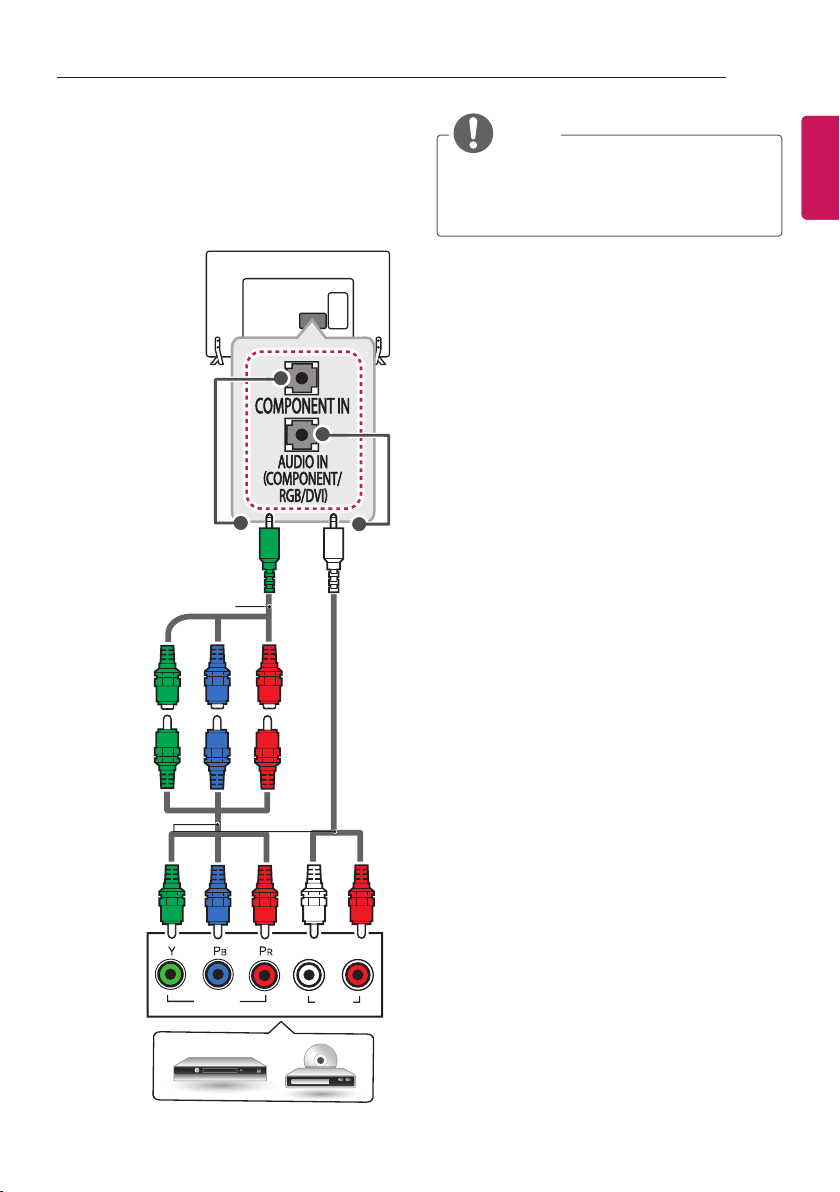

Component Connection
Transmits the analogue video and audio signals
from an external device to the TV. Connect the
external device and the TV with the component
cable as shown.
AUDIO
L R
VIDEO
(Depending on model)
DVD / Blu-Ray / HD Cable Box
(*Not Provided)
RED
BLUE
GREEN
WHITE
RED RED
BLUE BLUE
GREEN GREEN
RED
GREEN
ENG
ENGLISH
20 MAKING CONNECTIONS
RGB-PC Connection
Transmits the video signal from PC to the TV. To
transmit an audio signal, connect an audio cable.
(*Not Provided)
PC
Headphone Connection
Transmits the headphone signal from the TV to
an external device. Connect the external device
and the TV with the headphone as shown.
H/P OUT
(*Not Provided)
Headphone
NOTE
yAUDIO menu items are disabled when
connecting a headphone.
yWhen changing AV MODE with a
headphone connected, the change is
applied to video but not to audio.
yOptical Digital Audio Out is not available
when connecting a headphone.
yHeadphone impedance: 16 Ω
yMax audio output of headphone: 9 mW to
15 mW
yHeadphone jack size: 0.35 cm
Other manuals for LY75 Series
2
Other LG LED TV manuals
