LG LMHM2237 series User manual

OWNER’S MANUAL
MICROWAVE OVEN
LMHM2237**
PLEASE READ THIS OWNER’S MANUAL THOROUGHLY BEFORE
OPERATING AND KEEP IT HANDY FOR REFERENCE AT ALL TIMES.
www.lg.com
MFL56516419

- 2 -
Please record the model number and serial
number of this unit for future reference. We
also suggest you record the details of your
contact with LG (LG Electronics U.S.A., Inc.)
concerning this unit.
Staple your receipt here as proof of purchase.
Model No:
Serial No:
Dealer:
Dealer Phone No:
Customer Relations
LG Electronics U.S.A., Inc.
Service Division Bldg. #3
201 James Record Rd.
Huntsville, AL 35824-0126
Thank you for purchasing an LG microwave oven.
(a) Do not attempt to operate this oven with
the door open. Open door operation
can result in harmful exposure to
microwave energy. It is important
not to defeat or tamper with the
safety interlocks.
(b) Do not place any object between the
oven front face and the door or allow soil
or cleaner residue to accumulate on
sealing surfaces.
(c) Do not operate the oven if it is
damaged. It is particularly important
that the oven door:
(1) closes properly,
(2) is not damaged or bent,
(3) has hinges and latches that are not
broken or loosened,
(4) has undamaged door seals and
sealing surfaces.
(d) The oven should not be adjusted or
repaired by anyone except properly
qualified service personnel.
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY

- 3 -
TABLE OF CONTENTS
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY .................................................................. 2
IMPORTANT SAFETY INSTRUCTIONS ............. 4~5
SPECIFICATIONS.................................................... 6
Location of Model Number.................................... 6
Oven Specifi
cations .............................................. 6
Electrical Rating .................................................... 6
Electrical Requirements ........................................ 6
Grounding Instructions .......................................... 6
FEATURES ........................................................... 7-9
Microwave Oven Features .................................... 7
Oven Control Panel........................................... 8~9
USING YOUR MICROWAVE OVEN ................. 10-20
Learn About Your Microwave Oven..................... 10
Audible Signals ................................................... 10
Interrupting Cooking............................................ 10
Slide out Ventilation............................................. 10
Glass touch Controller......................................... 10
Clock ................................................................... 10
Child Lock ........................................................... 10
Light Hi/Low/Off....................................................11
Energy Saving......................................................11
Turntable On/Off...................................................11
Vent On/Off ..........................................................11
Vent 4 Speed........................................................11
Add 30 Sec...........................................................11
Microwave Power Levels .................................... 12
Multi -Stage Cooking........................................... 12
+ / - ..................................................................... 12
Cooking Guide for Lower Power Levels.............. 13
Sensor Operating Instructions............................. 14
Sensor Cooking Guide........................................ 14
Sensor Popcorn .................................................. 14
Sensor Reheat .................................................... 15
Sensor Cook ....................................................... 15
Cooking Guide for Sensor Reheat ...................... 15
Cooking Guide for Sensor Cook ......................... 16
Timer ................................................................... 17
Soften.................................................................. 17
Melt ..................................................................... 17
Kids Meal ............................................................ 17
Soften Table ........................................................ 18
Melt Table............................................................ 18
Defrost ............................................................... 19
Defrost Table ....................................................... 19
Quick Defrost ...................................................... 19
Time Defrost........................................................ 20
Defrosting Tips .................................................... 20
Metal Rack .......................................................... 20
COOKING TIPS ............................................... 21~25
Getting the Best Cooking Results ....................... 21
Fish & Shellfish ................................................... 21
Fish and Shellfish Cooking Table ........................ 21
Appetizers / Sauces / Soups............................... 22
Meat .................................................................... 22
Meat Cooking Table ............................................ 23
Poultry................................................................. 24
Poultry Cooking Table ......................................... 24
Pasta and Rice.................................................... 25
Pasta Cooking Table ........................................... 25
Rice Cooking Table ............................................. 25
MAINTENANCE ............................................... 26~27
Care and Cleaning .............................................. 26
Metal Rack .......................................................... 26
Cleaning the Grease Filters ................................ 26
Charcoal Filter Replacement............................... 26
Cooktop/Night Light Replacement ...................... 27
Oven Light Replacement..................................... 27
COOKING UTENSILS............................................ 28
Microwave Utensil Guide .................................... 28
FAQS...................................................................... 29
TROUBLESHOOTING .......................................... 30
LIMITED WARRANTY-USA................................... 31
Slide-out Hood..................................................... 20
Custom Set ......................................................... 12
Custom Cook....................................................... 12
Cooking Guide for Sensor Popcorn .................... 16

- 4 -
WARNING - To reduce the risk of
burns, electric shock, fire, injury to persons,
or exposure to excessive microwave energy.
• Read all the instructions before using your oven
• Do not allow children to use this oven without
close supervision.
•Do not use corrosive chemicals or vapors, such as
sulfide and chloride, in this appliance. This type of
oven is specifically designed to heat, cook, or dry
food. It is not designed for industrial or laboratory use.
•Do not store this appliance outdoors. Do not use
this product near water - for example, near a kitchen
sink, in a wet basement, near a swimming pool, or in
a similar location.
• Do not use the oven cavity for storage purposes.
Do not leave paper products, cooking utensils, or
food in the oven cavity when not in use.
• Clean the ventilating hood frequently. Do not allow
grease to accumulate on the hood or the filters.
•Use care when cleaning the vent hood filters.
Corrosive cleaning agents such as lye-based oven
cleaners may damage the filters.
•Do not tamper with the built-in safety switches
on the oven door. The oven has several built-in
safety switches to make sure the power is off when
the door is open.
•Suitable for use above both gas and electric cooking
equipment up to 36 inches wide.
• Do not use this oven for commercial purposes
It is designed for household use only.
• When cleaning the door and the surfaces that
touch the door, use only mild, non-abrasive
soaps or detergents and a sponge or soft cloth.
• If your oven is dropped or damaged have it
thoroughly checked by a qualified service technician
before using it again.
• To avoid a fire hazard
- Do not severely overcook food. Severely
overcooked foods can start a fire in the oven.
Watch the oven carefully, especially if you have
paper, plastic, or other combustibles in the oven.
- Do not store combustible items (bread,
cookies, etc.) in the oven, because if lightning
strikes the power lines it may cause the oven to
turn on.
- Do not use wire twist-ties in the oven. Be sure
to inspect purchased items for wire twist-ties and
remove them before placing the item in the oven.
• If a fire should start in the oven:
- Keep the oven door closed.
- Turn the oven off.
- Disconnect the power cord or shut off the
power at the fuse or circuit breaker panel.
• To avoid electric shock
- This appliance must be grounded. Connect it
only to a properly grounded outlet. See the
electrical GROUNDING INSTRUCTIONS on
page 6.
- Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly or if it has been damaged or dropped.
- Do not immerse the electrical cord or plug in
water.
- Keep the cord away from heated surfaces.
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
The safety instructions below will tell you how to use your oven and avoid harm to yourself
or damage to your oven.
•Read and follow the specific
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE
ENERGY
found on page 2.
•Turn the fan on to disperse steam or smoke under
the hood. Keep the area under the hood properly
ventilated at all times. Turn off cooking equipment if
you see flames or a fire occurs.
WARNING
Hazards or unsafe practices
that may result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices
that may result in minor
personal injury or property
damage.
NOTE: Turn the microwave’s vent fan on
whenever you use the oven range cooktop
below it.The fan captures smoke, steam, and
odors and also prevents the heat from the
cooktop from damaging microwave components.
If the microwave is cooking, the vent fan turns on
automatically if the sensors detect too much heat
from the cooktop. This is normal, and is designed
to prevent microwave component damage.

- 5 -
•To avoid improperly cooking some foods.
-Do not heat any types of baby bottles or baby
food. Uneven heating may occur and possibly
cause personal injury.
- Do not heat small-necked containers, such as
syrup bottles.
- Do not deep-fat fry in your microwave oven.
- Do not attempt home canning in your
microwave oven.
- Do not heat the following items in the
microwave oven: whole eggs in the shell, water
with oil or fat, sealed containers, or closed glass
jars. These items may explode.
•Do not cover or block any openings in the oven.
•Use your oven only for the operations described in
this manual.
•Do not run the oven empty, without food in it.
•Do not let the cord hang over the edge of the table or
counter.
•Preserve the oven floor:
- Do not heat the oven floor excessively.
- Do not allow the gray film on special microwave-
cooking packages to touch the oven floor. Put the
package on a microwavable dish.
- Do not cook anything directly on the oven floor or
turntable. Use a microwavable dish.
- Keep a browning dish at least 3/16 inch above floor.
Carefully read and follow the instructions for the
browning dish. If you use a browning dish
incorrectly, you could damage the oven floor.
•Install or locate this appliance only in accordance
with the provided installation instructions.
•This appliance should be serviced only by qualified
service personnel. Contact the nearest authorized
service facility for examination, repair, or adjustment.
•Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without
appearing to be boiling. Visible bubbling or boiling
when the container is removed from the microwave
oven is not always present.
THIS COULD RESULT IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A SPOON OR
OTHER UTENSIL IS INSERTED INTO THE LIQUID.
- Do not overheat the liquid.
- Stir the liquid both before and halfway through
heating it.
- Do not use straight-sided containers with narrow
necks.
- After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
- Use extreme care when inserting a spoon or other
utensil into the container.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTEREFERENCE
STATEMENT (U.S.A. ONLY)
•Reorient the receiving antenna of the radio or
television.
•Relocate the Microwave Oven with respect to the
receiver.
•Move the microwave oven away from the receiver.
•Plug the microwave oven into a different outlet so
that the microwave oven and the receiver are on
different branch circuits.
The manufacturer is not responsible for any radio or
TV interference caused by unauthorized
modification to this microwave oven. It is the
responsibility of the user to correct such interference.
WARNING:
This equipment generates and uses ISM frequency
energy and if not installed and used properly, that is
in strict accordance with the manufacturer's
instructions, may cause interference to radio and
television reception. It has been type tested and
found to comply with limits for ISM Equipment
pursuant to part 18 of FCC Rules, which are designed
to provide reasonable protection against such
interference in a residential installation. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following:
WARNING:This product contains chemicals known to the State of California
to cause cancer. Wash hands after handling.
To reduce the risk of injury to persons;

- 6 -
LOCATION OF MODEL
NUMBER
To request service information or replacement parts,
the service center will require the complete model
number of your microwave oven. The number is on the
inside of the door frame as shown in the illustration
below.
OVEN SPECIFICATIONS
Output Power
Outer Dimensions
Cavity Volume
Net Weight
1,000W (IEC 60705 Standard)
29 14/16" X 17 13/18" X 15 12/16"
2.2 Cu.ft
75.4 lbs.
ELECTRICAL RATING
* Electrical Rating of the Oven:120V AC 60Hz
*14 Amps / 1600 Watts ( MWO + Cooktop Lamp
+ Ventilation Fan)
ELECTRICAL
REQUIREMENTS
The oven is designed to operate on a Standard
120V/60Hz household outlet. Be sure the circuit is at
least 15A or 20A and the microwave oven is the only
appliance on the circuit. It is not designed for 50Hz
or any circuit other than a 120V/60Hz circuit.
GROUNDING
INSTRUCTIONS
This appliance must be grounded. If an electrical
short circuit occurs, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current. The cord for this appliance has a
grounding wire with a grounding plug. Put the plug into
an outlet that is properly installed and grounded.
WARNING - ehtesuuoyfI
grounding plug improperly, you risk electric shock.
Ask a qualified electrician if you do not understand the
grounding instructions or if you do not know whether
the appliance is properly grounded.
Because this appliance fits under the cabinet, it has a
short power-supply cord. See the separate Installation
Instructions for directions on properly placing the cord.
Keep the electrical power cord dry and do not pinch or
crush it in any way.
If it is necessary to use an extension cord, use only a
3-wire extension cord that has a 3-blade grounding
plug, and a 3-slot receptacle that will accept the plug
on the appliance. The marked rating of the extension
cord should be equal to or greater than the electrical
rating of the appliance.
For a permanently connected appliance:
This appliance must be connected to a grounded,
metallic, permanent wiring system, or an equipment
grounding conductor should be run with the circuit
conductors and connected to the equipment grounding
terminal or lead on the appliance.
Ensure proper ground
exists before use
SPECIFICATIONS
MODEL NUMBER LABEL

- 7 -

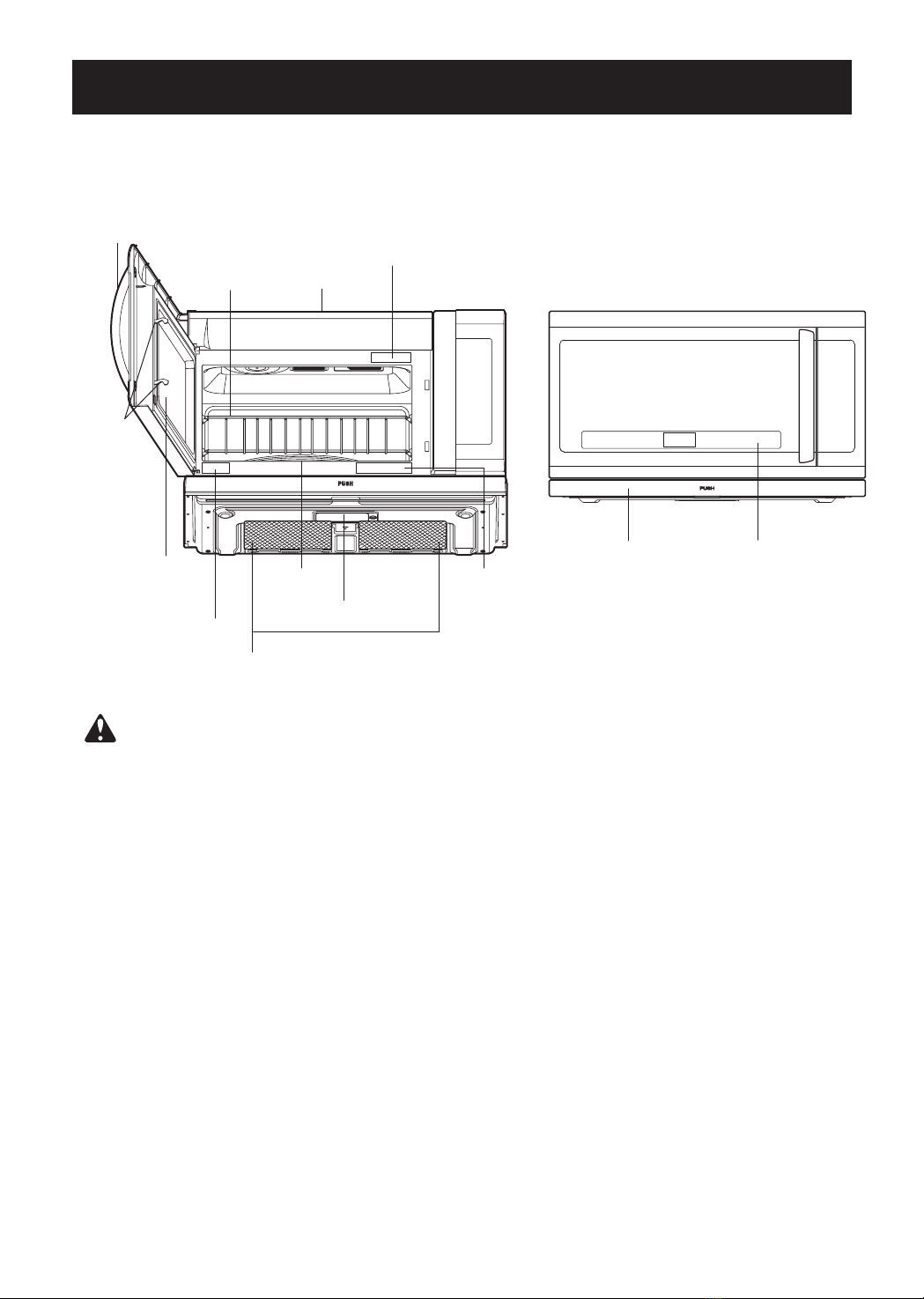

MICROWAVE OVEN FEATURES
WARNING:
FEATURES
Do not operate the oven when empty or without the glass tray. It is best to leave a glass of water in the oven
when not in use. The water will safely absorb all microwave energy, if the oven is accidentally started.
Your microwave oven is designed to make your cooking experience as enjoyable and productive as
possible. To get you up and running quickly, the following is a list of the oven’s basic features:
1. Metal Shielded Window. The shield prevents
microwaves from escaping. It is designed as a
screen to allow you to view food as it cooks.
2.
3. Charcoal Filter (behind Vent Grille)
4. Vent Grille
Model and Serial Number Plate, Cooking
Guide & Service call Label
5. Glass Tray. The glass tray moves food as it
cooks for more even cooking.
It must be in the oven during operation for best
cooking results.
10. Slide-Out Hood. Push the Slide-out hood to move
the slide-out hood to the Front or Rear.
This will allow you to remove the steam and other
vapors more effectively from surface cooking.
6. Cooktop/Countertop Light
7. Control Panel. Touch the buttons on this panel
to perform all functions.
8. Metal Rack. Use for extra space when
cooking in more than one container at the
same time. Remove cooking rack when you
are not using it.
9. Grease Filter
Cooktop/Countertop Light
Grease Filter
Slide-Out Hood
Glass Tray
Window with
Metal Shield
Door Safety
Lock System
Door Handle
Metal Rack Vent Grille
Control Panel
Serivce call
Model and Serial
Number Plate
Cooking Guide

- 8 -
3. If the controller or your hands are wet it may not sense your touch.
4. Remove gloves prior to touching the controller.
Your microwave oven control panel lets you select the desired cooking function quickly and easily. All you have
to do is touch the necessary Command pad. The following is a list of all the Command and Number pads located
on the control panel. For more information on these features, see the USING YOUR MICROWAVE OVEN section.
OVEN CONTROL PANEL
USING GLASS TOUCH CONTROLLER
1. Touch the middle of letter or number to activate.
2. If you touch the button with a fingernail or fingertip, the controller may not sense it is being touched.
21 22 23 24 25
18 19 201716
12 3 4 5 6 7 8 9
10 11 1413 1512
FEATURES

- 9 -
FEATURES
1. Display. The Display includes a clock and
indicators to tell you time of day, cooking time
settings and cooking functions selected.
2. Reheat. Reheat has preset Power Levels for 6
categories including a casserole, dinner plate, and
soup/sauce. The oven’s sensor will tell the oven
how long to cook depending on the amount of
humidity it detects from the food.
3. Cook. Cook has preset Power Levels for 13
categories including frozen lasagna, casseroles,
and rice. The oven’s sensor will tell the oven how
long to cook depending on the amount of humidity it
detects from the food.
4. Popcorn. Touch this button when popping popcorn
in your microwave oven. The oven’s sensor will
tell the oven how long to cook depending on the
amount of humidity it detects from the popcorn.
5. Defrost. Touch this button to defrost frozen food.
6. Soften. Touch this button to soften butter, ice
cream, cream cheese, frozen juice.
7. Melt. Touch this button to melt butter or margarine,
chocolate, cheese, and marshmallows.
8. Custom Cook. Touch this button to make oven
remember Cook time and Power level.
9. Power Level. Touch this button to select a cooking
power level.
10. Kids Meal. Select type of dish to reheat Mac &
Cheese, Hot dog or Chicken nuggets.
11. Clock. Touch this button to enter the time of day.
12. Timer. Touch this button to start the kitchen timer.
13. Cook Time. Touch this button to set a cooking
time.
14. Custom Set. Touch this pad to change the oven’s
default setting for sound, clock, display speed, and
defrost weight.
15. Turntable On/Off. Touch this button to turn on/off
the turntable. This option is not available in sensor
cook, defrost, soften and melt modes.
16. Number. Touch number buttons to enter cooking
time, power level, quantities or weights.
17. +, -. Touch this button to add or subtract ten
seconds of cooking time each time you touch it.
18. Add 30Sec. Touch this button to add 30 seconds
of cooking time each time you touch it.
19. START/Enter. Touch this button to start a
function. If you open the door after the oven
begins to cook, touch START/Enter again.
20. Light High/Low/Off. Touch this button to turn the
cooktop/countertop light on high/low or off.
21. Energy Saving. Touch this button to save energy.
22. STOP/Clear. Touch this button to stop the oven
or clear all entries.
23. Vent On/Off. Touch button to turn the vent on slow
or off.
24. Vent 4 Speed. Touch button to change vent
speed.
25. Vent Auto Timeset. Touch this button to set
ventilation time. (1, 3, 5, 10, and 30 minutes.)

- 10 -
LEARN ABOUT YOUR
MICROWAVE OVEN
This section discusses the concepts behind
GLASS TOUCH CONTROLLER
- Touch the middle of letter or number to activate.
- If you touch the button with a fingernail or fingertip,
the controller may not sense it is being touched.
- If the controller or your hands are wet it may not sense
your touch.
- Remove gloves prior to touching the controller.
- Use the child lock feature when cleaning the controller
to avoid unintended activation.
microwave
cooking and introduces you to the basics you need to
know to operate your microwave oven. Please read this
information before using your oven.
To avoid risk of personal injury or property
damage, do not run the oven empty.
To avoid risk of personal injury or property
damage, do not use stoneware, large sheets of
aluminum foil, metal utensils, or metal trimmed
utensils in the oven. Keep aluminum foil at
least 1 inch from the oven wall, metal rack and
other pieces of foil. Example: To set the clock for 8:00 am
CLOCK
When the oven is first plugged in or after a power failure,
the display will show "PLEASE SET TIME OF DAY".
If a time of day is not set, " : " will show on the display
with beep.
2. Enter the time by using the
number buttons.
1. Touch Clock.
Example: To set the childlock.
1. Touch and hold STOP/Clear
until you hear 2 beeps and
"LOCKED" appears
(approximately 4 seconds).
1. Touch and hold STOP/Clear
until "LOCKED" disappears
(approximately 4 seconds).
Example: To cancelthechildlock.
CHILD LOCK
Use this safety feature to lock the control panel when
you are cleaning the oven, or so that children cannot
use the oven unsupervised.
USING YOUR MICROWAVE OVEN
CAUTION
AUDIBLE SIGNALS
•A beep will sound each time you touch a button.
4 beeps signals the end of a cooking cycle.
You can stop the oven during a cycle by opening
the door. The oven stops heating and the fan stops,
but the light stays on.
To restart cooking, closethe door and touch
START/Enter.
If you do not want to continue cooking, open
the door and touch STOP/Clear.
INTERRUPTING COOKING
Push bottom of unit to extend hood and back side
down , Extended hood is more powerful to gather
smoke and steam from cooktop.
SLIDE OUT VENTILATION
Audible signals are available to guide you
when setting and using your oven:
•
•
3. Touch START/Enter
(or Clock)
4. Enter 1to set "am"
5. Touch START/Enter.
8 0 0
1
