Please read this manual carefully before operating your set and retain it
for future reference.
OWNER’S MANUAL

A-2 TABLE OF CONTENTS
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-4 Assembling the AV Cover
A-4 Attaching the Video Call Camera
A-5 Tidying cables
A-7 MAKING CONNECTIONS
A-7 Antenna Connection
A-8 Satellite dish Connection
A-9 HDMI Connection
A-10 - ARC (Audio Return Channel)
A-11 DVI to HDMI Connection
A-12 MHL Connection
A-14 Component Connection
A-15 Composite Connection
A-16 Headphone Connection
A-17 Audio Connection
A-17 - Digital optical audio connection
A-18 - Canvas speaker connection
A-19 USB Connection
A-20 CI module Connection
A-21 Euro Scart Connection
LANGUAGE LIST
English
Русский
Қазақша
Українська
B-1 SPECIFICATIONS
COMMON
COMMON
LANGUAGE

A-3
SETTING UP THE TV
SETTING UP THE TV
Image shown may differ from your TV.
Attaching the stand
(Only EA88**-ZA)
CAUTION
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect the
screen from scratches.
Make sure that the screws are inserted
correctly and fastened securely. (If they are
not fastened securely enough, the TV may
tilt forward after being installed.)
Do not use too much force and over tighten
the screws; otherwise screw may be
damaged and not tighten correctly.
NOTE
Remove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
1
2
Stand Base
Front
3
9EA
M4 x L20
4
4EA
M4 x L10
Stand Cover

A-4 SETTING UP THE TV
Attaching the Video Call
Camera
1 Unfold the stand and put it on the top center of
the TV set.
Video call camera
2 Bend the stand of the Video call camera. Attach
the stand of the Video call camera to the back
of the display with a Velcro Tape.
Video call camera
TV
Velcro
Tape
3 Insert the Video call camera’s cable into the
Stand-cable holder. Please open the USB
Camera Cover for Video call camera’s cable
connection.The camera shall be connected to
the CAM terminal as shown.
(Image shown may differ from your TV.)
Stand-cable
holder USB
Camera Cover
Assembling the AV Cover
(Only EA98**)
1 Assemble the AV Cover as shown.
AV Cover
(Only EA88**-ZA)
1 Attach the Velcro Tapes as shown.
Velcro
Tape
2 Assemble the AV Cover as shown.
AV
Cover

A-5
SETTING UP THE TV
Tidying cables
(Only EA98**)
1 Fix the Cable Management with Cable
Management Screw and arrange the cables.
M4 x L20
1 EA
Cable
Management
2 Wrap the arranged cables with the Cable Band,
then pull the zip down.
Cable Band
CAUTION
Do not move the TV by holding the Cable
Management and Cable Band, as the Cable
Management and Cable Band may break,
and injuries and damage to the TV may
occur.
NOTE
For the best quality video and audio outputs,
install the camera on the top-center of your
TV.
Set up with the television switched off.
When using external speakers, allow
sufficient space between the microphones
and the speakers.
The TV must be connected to a network for
Skype to work.
Make sure to connect the Video call camera
cable to the CAM port with the USB trident
logo on the cable facing the front.

A-6 SETTING UP THE TV

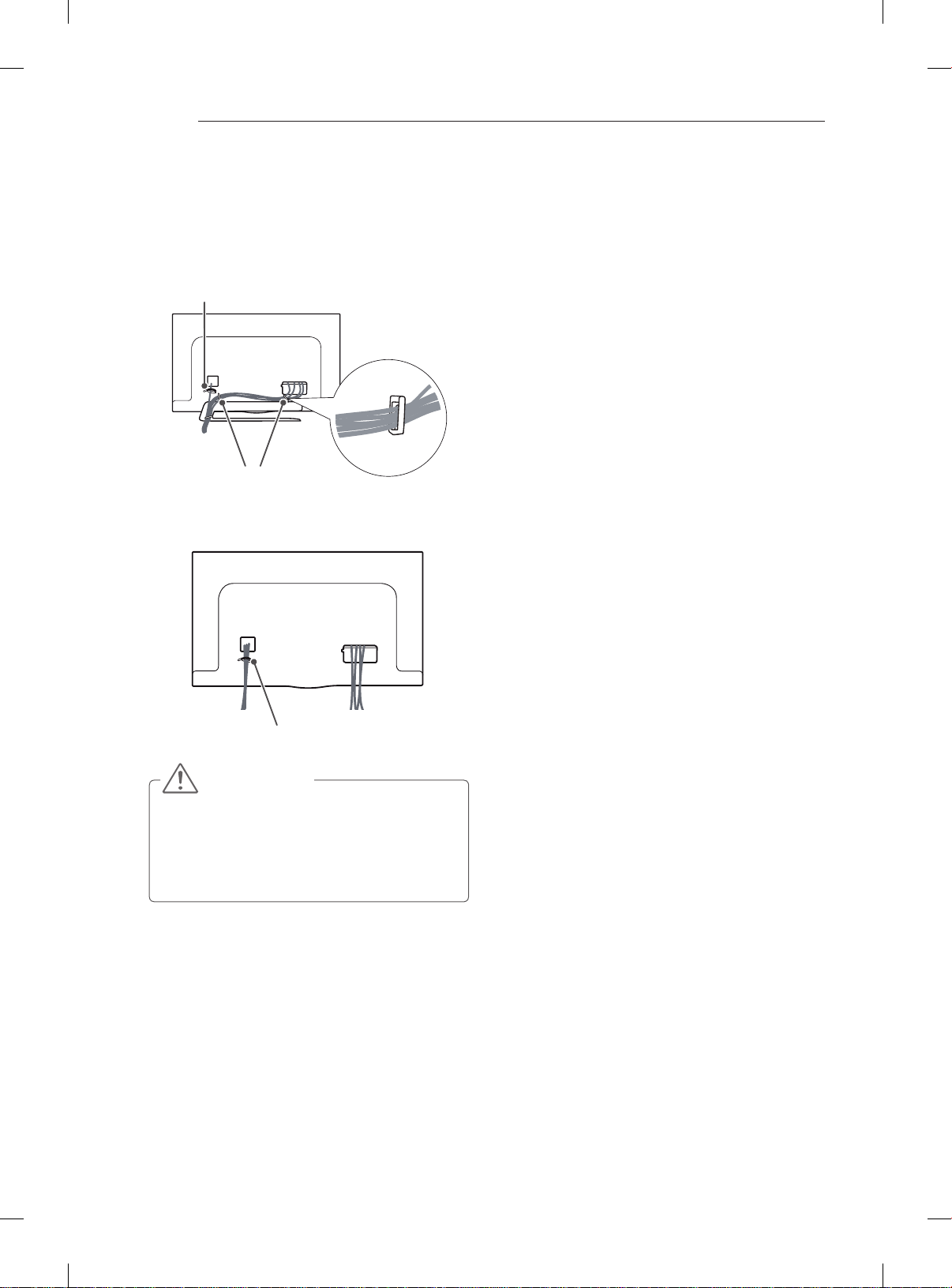

(Only EA88**-ZA)
** Stand Type **
1 Use Cable Holder to neatly secure and position
cables together.
Cable Holder
Power Cable Hoder
** Wall Mount Type **
Power Cable Hoder
CAUTION
Do not move the TV by holding the Cable
Holder and Power Cable Holder, as the
Cable Holder and Power Cable Holder may
break, and injuries and damage to the TV
may occur.

A-7
MAKING CONNECTIONS
MAKING
CONNECTIONS
This section on MAKING CONNECTIONS mainly
uses diagrams for the 55EA98** models.

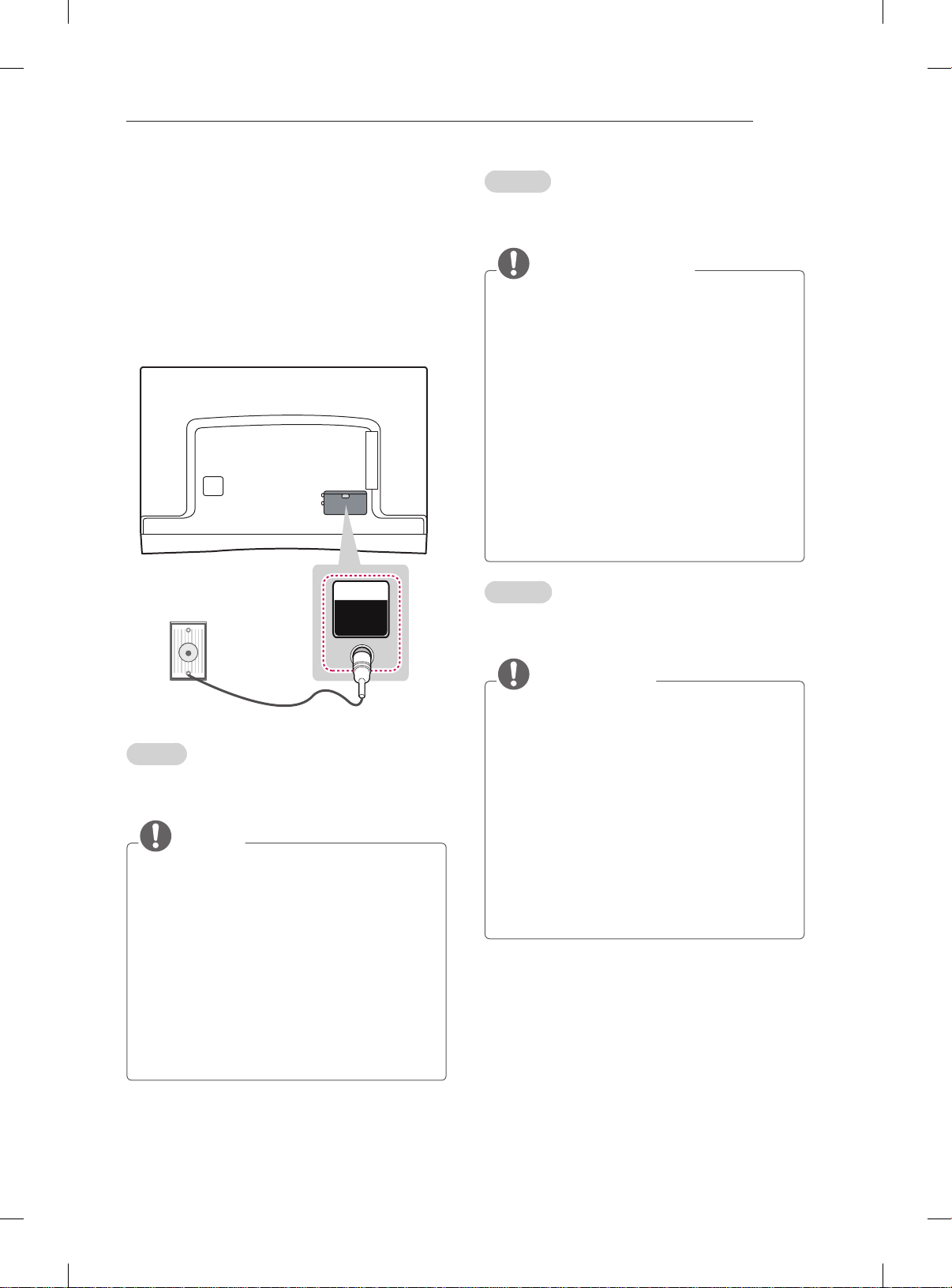

Antenna Connection
Wall Antenna
Socket
IN
ANTENNA/
CABLE
English
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
NOTE
Use a signal splitter to use more than 2 TVs.
If the image quality is poor, install a signal
amplifier properly to improve the image
quality.
If the image quality is poor with an antenna
connected, try to realign the antenna in the
correct direction.
An antenna cable and converter are not
supplied.
Supported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
Русский
Подключите телевизор к настенной антенной
розетке с помощью телевизионного кабеля (75 Ω).
ПРИМЕЧАНИЕ
Для подключения нескольких телевизоров
используйте антенный разветвитель.
При плохом качестве изображения
правильно установите усилитель сигнала,
чтобы обеспечить изображение более
высокого качества.
Если после подключения антенны
качество изображение плохое, направьте
антенну в правильном направлении.
Антенный кабель и преобразователь в
комплект поставки не входят.
Поддерживаемый формат DTV Audio:
MPEG, Dolby Digital, Dolby Digital Plus,
HE-AAC
Қазақша
RF кабелі (75 Ω) арқылы теледидарды
қабырғадағы антенна ұясына жалғаңыз.
ЕСКЕРТПЕ
2-ден көп ТД пайдалану үшін сигнал
сплиттерін пайдаланыңыз.
Егер бейне сапасы нашар болса,
бейне сапасын жақсарту үшін сигнал
күшейткішін тиісті түрде орнатыңыз.
Егер антенна қосылған күйде бейне
сапасы нашар болса, антеннаның
бағытын түзетіңіз.
Антенна кабелі және конвертер
қамтамасыз етілмеген.
Қолдау көрсетілетін DTV аудио: MPEG,
Dolby Digital, Dolby Digital Plus, HE-AAC

A-8 MAKING CONNECTIONS
Українська
За допомогою кабелю для передачі
радіочастотного сигналу під’єднайте телевізор
до настінного гнізда для антени (75 Ω).
ПРИМІТКА
Для під’єднання двох і більше телевізорів
використовуйте розгалужувач сигналу.
Якщо зображення низької якості, для
його покращення встановіть підсилювач
сигналу.
Якщо під’єднано антену і якість
зображення погана, спрямуйте її в
сторону з належним прийомом сигналу.
Кабель антени і перетворювач сигналу не
додаються.
Підтримуваний аудіоформат цифрового
телебачення: MPEG, Dolby Digital, Dolby
Digital Plus, HE-AAC

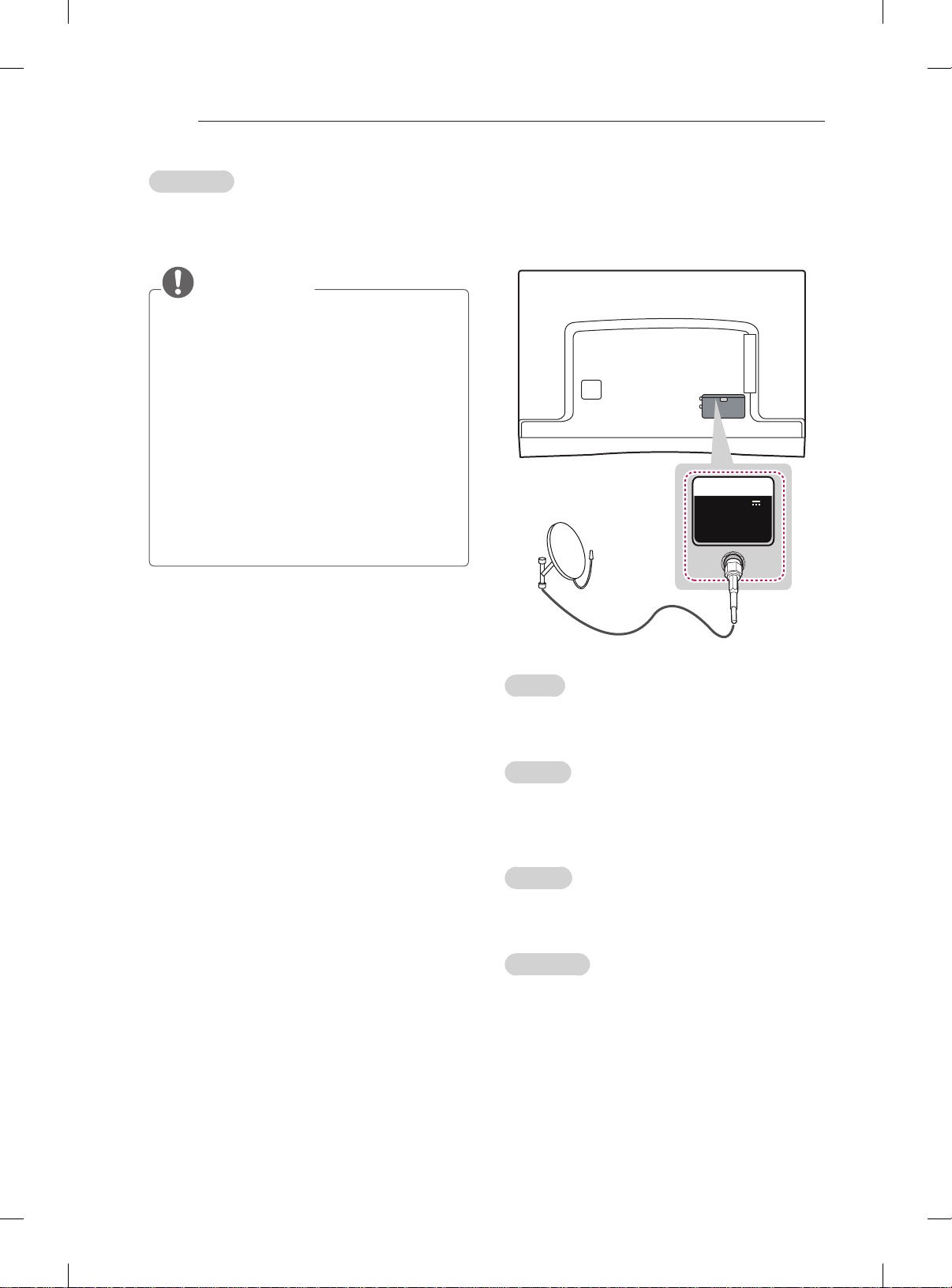

Satellite dish Connection
(Only satellite models)
IN
13 / 18 V
700mA Max
LNB IN
Satellite
Satellite
Dish
English
Connect the TV to a satellite dish to a satellite
socket with a satellite RF cable (75 Ω).
Русский
Подключите телевизионный кабель,
подсоединенный к телевизору, к спутниковой
антенной розетке (75 Ω).
Қазақша
Теледидарды жерсеріктің ұяшығына жерсерік
RF кабелімен (75 Ω) жалғаңыз.
Українська
Під’єднайте телевізор до гнізда супутникової
антени за допомогою кабелю для передачі
супутникового радіочастотного сигналу (75 Ω).
