LG 55WS960H Series User manual

OLED TV
55WS960H*
65WS960H*
• www.lg.com/id-manual

Podrobnější informace si můžete stáhnout z našich
webových stránek po zadáním kompletního čísla modelu.
Можете да свалите по-под
р
обна ин
ф
о
р
мация на
нашия уебсайт като въведете целия номер на модела
.
A teljes modellszám megadásával letölthet részletesebb
információkat a weboldalunkról.
Vous pouvez télécharger des informations plus détaillées sur
notre site Web en saisissant la référence complète du modèle.
Genauer Informationen können Sie von unserer Webseite
herunterladen, indem Sie die vollständige Modellnummer
eingeben.
Μπορείτε να κατεβάσετε πιο αναλυτικές πληροφορίες από τη
διαδικτυακή τοποθεσία μας συμπληρώνοντας τον πλήρη
αριθμό μοντέλου.
Bardziej szczegółowe informacje można pobrać z naszej
strony internetowej po wprowadzeniu pełnego numer
modelu.
È possibile scaricare informazioni più dettagliate sul sito Web
inserendo il numero completo del modello.
Puteți să descărcați informații mai detaliate de pe site-ul
nostru web, introducând numărul complet al modelului.
Pode transferir informações mais detalhadas no nosso site ao
introduzir o número completo do modelo.
Detaljnije informacije možete da preuzmete na našem
veb-sajtu unosom celog broja modela.
Možete preuzeti detaljnije informacije na našoj web stranici
tako da unesete cijeli broj modela.
Bolj podrobne informacije lahko prenesete z našega
spletnega mesta, tako da vnesete celotno številko modela.
Puede descargar información más detallada desde nuestro
sitio web introduciendo el número de modelo completo.

Podrobnější informace si můžete stáhnout z našich
webových stránek po zadáním kompletního čísla modelu.
Можете да свалите по-под
р
обна ин
ф
о
р
мация на
нашия уебсайт като въведете целия номер на модела
.
A teljes modellszám megadásával letölthet részletesebb
információkat a weboldalunkról.
Vous pouvez télécharger des informations plus détaillées sur
notre site Web en saisissant la référence complète du modèle.
Genauer Informationen können Sie von unserer Webseite
herunterladen, indem Sie die vollständige Modellnummer
eingeben.
Μπορείτε να κατεβάσετε πιο αναλυτικές πληροφορίες από τη
διαδικτυακή τοποθεσία μας συμπληρώνοντας τον πλήρη
αριθμό μοντέλου.
Bardziej szczegółowe informacje można pobrać z naszej
strony internetowej po wprowadzeniu pełnego numer
modelu.
È possibile scaricare informazioni più dettagliate sul sito Web
inserendo il numero completo del modello.
Puteți să descărcați informații mai detaliate de pe site-ul
nostru web, introducând numărul complet al modelului.
Pode transferir informações mais detalhadas no nosso site ao
introduzir o número completo do modelo.
Detaljnije informacije možete da preuzmete na našem
veb-sajtu unosom celog broja modela.
Možete preuzeti detaljnije informacije na našoj web stranici
tako da unesete cijeli broj modela.
Bolj podrobne informacije lahko prenesete z našega
spletnega mesta, tako da vnesete celotno številko modela.
Puede descargar información más detallada desde nuestro
sitio web introduciendo el número de modelo completo.

• 55WS960H*
1 32

• 65WS960H*
1 3
2

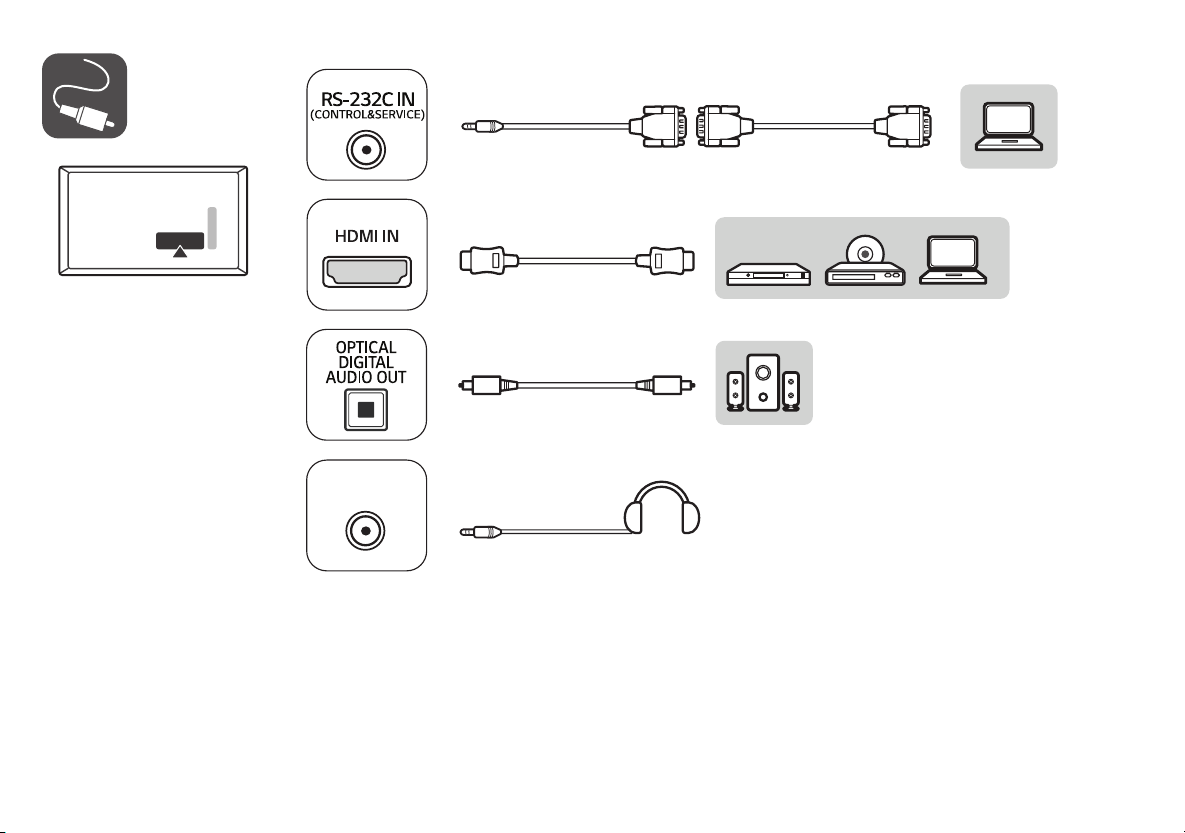

PCMCIA CARD SLOT
Satellite IN
HDMI IN/ARC
H/P OUT

PCMCIA CARD SLOT
Satellite IN
HDMI IN/ARC
H/P OUT

PCMCIA CARD SLOT
Satellite IN
HDMI IN/ARC
H/P OUT

123

Kg
AB C D E F G H
55WS960H0ZD
55WS960H2ZD
1225 706 23.1 452 96 13 21.8 1.0
65WS960H0ZD
65WS960H2ZD
1446 830 19.9 452 96 13 29.0 1.0
90°
90°
A
B
C
D
E
F
HG

*MFL71716902*
(2111-REV01)

OWNER’S MANUAL
Safety and Reference
OLED TV
www.lg.com
Copyright © 2020 LG Electronics Inc. All Rights Reserved.
Please read this manual carefully before operating your set and retain it
for future reference.
*MFL71716802*
(2111-REV02)

2
ENGLISH_Index
Warning! Safety Instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the presence of
uninsulated“dangerous voltage”within the product’s
enclosure that may be of sufficient magnitude to constitute a risk
of electric shock to persons.
This symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO
NOT EXPOSETHIS PRODUCT TO RAIN OR MOISTURE.
•TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER ITEMS
WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALLTIMES.
•Do not place the TV and/or remote control in the following
environments:
- Keep the product away from direct sunlight.
- An area with high humidity such as a bathroom.
- Near any heat source such as stoves and other devices that produce
heat.
- Near kitchen counters or humidifiers where they can easily be
exposed to steam or oil.
- An area exposed to rain or wind.
- Do not expose to dripping or splashing and do not place objects
filled with liquids, such as vases, cups, etc. on or over the apparatus
(e.g., on shelves above the unit).
- Near flammable objects such as gasoline or candles, or expose the
TV to direct air conditioning.
- Do not install in excessively dusty places.
Otherwise, this may result in fire, electric shock, combustion/
explosion, malfunction or product deformation.
•Ventilation
- Install yourTV where there is proper ventilation. Do not install in a
confined space such as a bookcase.
- Do not install the product on a carpet or cushion.
- Do not block or cover the product with cloth or other materials
while unit is plugged in.
•Take care not to touch the ventilation openings.When watching the
TV for a long period, the ventilation openings may become hot.
•Protect the power cord from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and the point where the
cord exits the device.
•Do not move theTV whilst the Power cord is plugged in.
•Do not use a damaged or loosely fitting power cord.
•Be sure to grasp the plug when unplugging the power cord. Do not
pull on the power cord to unplug the TV.
•Do not connect too many devices to the same AC power outlet as this
could result in fire or electric shock.
•Disconnecting the Device from the Main Power
- The power plug is the disconnecting device. In case of an
emergency, the power plug must remain readily accessible.
•Do not let your children climb or cling onto the TV. Otherwise, the TV
may fall over, which may cause serious injury.
•Outdoor Antenna Grounding (Can differ by country):
- If an outdoor antenna is installed, follow the precautions below.
An outdoor antenna system should not be located in the vicinity
of overhead power lines or other electric light or power circuits, or
where it can come in contact with such power lines or circuits as
death or serious injury can occur.

3
ENGLISH_Index
•Grounding (Except for devices which are not grounded.)
- TV with a three-prong grounded AC plug must be connected to a
three-prong grounded AC outlet. Ensure that you connect the earth
ground wire to prevent possible electric shock.
•Never touch this apparatus or antenna during a lightning storm.You
may be electrocuted.
•Make sure the power cord is connected securely to the TV and wall
socket if not secured damage to the Plug and socket may occur and in
extreme cases a fire may break out.
•Do not insert metallic or inflammable objects into the product. If a
foreign object is dropped into the product, unplug the power cord
and contact the customer service.
•Do not touch the end of the power cord while it is plugged in. You
may be electrocuted.
•If any of the following occur, unplug the product immediately
and contact your local customer service.
- The product has been damaged.
- If water or another substance enters the product (like an AC
adapter, power cord, orTV).
- If you smell smoke or other odors coming from the TV.
- When lightning storms or when unused for long periods of time.
Even if theTV is turned off by the remote control or power button, AC
power source is still connected to the unit if it is not unplugged.
•Do not use high voltage electrical equipment near the TV (e.g., a bug
zapper). This may result in product malfunction.
•Do not attempt to modify this product in any way without written
authorisation from LG Electronics. Accidental fire or electric shock
can occur. Contact your local customer service for service or repair.
Unauthorised modification could void the user’s authority to operate
this product.
•Use only an authorised attachments / accessories approved by
LG Electronics. Otherwise, this may result in fire, electric shock,
malfunction, or product damage.
•Never disassemble the AC adapter or power cord. This may result in
fire or electric shock.
•Handle the adapter carefully to avoid dropping or striking it. An
impact could damage the adapter.
•To reduce the risk of fire or electrical shock, do not touch theTV with
wet hands. If the power cord prongs are wet or covered with dust, dry
the power plug completely or wipe dust off.
•Batteries
- Store the accessories (battery, etc.) in a safe location out of the
reach of children.
- Do not short circuit, disassemble, or allow the batteries to
overheat. Do not dispose of batteries in a fire. Batteries should not
be exposed to excessive heat.
•Moving
- When moving, make sure the product is turned off, unplugged, and
all cables have been removed. It may take 2 or more people to carry
largerTVs. Do not press or put stress on the front panel of theTV.
Otherwise, this may result in product damage, fire hazard or injury.
•Keep the packing anti-moisture material or vinyl packing out of the
reach of children.
•Do not allow an impact shock, any objects to fall into the product,
and do not drop anything onto the screen.
•Do not press strongly upon the panel with a hand or a sharp
object such as a nail, pencil, or pen, or make a scratch on it. It may
causedamage to screen.
•Cleaning
- When cleaning, unplug the power cord and wipe gently with a
soft/dry cloth. Do not spray water or other liquids directly on the
TV. Do not clean your TV with chemicals including glass cleaner, any
type of air freshener, insecticide, lubricants, wax (car, industrial),
abrasive, thinner, benzene, alcohol etc., which can damage the
product and/or its panel. Otherwise, this may result in electric
shock or product damage.

4
ENGLISH_Index
Preparing
•If the TV is turned on for the first time after it was shipped from the
factory, initialisation of theTV may take a few minutes.
•Image shown may differ from your TV.
•Your TV’s OSD (On Screen Display) may differ slightly from that shown
in this manual.
•The available menus and options may differ from the input source or
product model that you are using.
•New features may be added to this TV in the future.
•The device must be easily accessed to a location outlet near the
access. Some devices are not made by turning on / off button, turning
off the device and unplugging the power cord.
•The items supplied with your product may vary depending on the
model.
•Product specifications or contents of this manual may be changed
without prior notice due to upgrade of product functions.
•For an optimal connection, HDMI cables and USB devices should have
bezels less than 8mm thick, 18mm width and 8mm a wire diameter.
Use an extension cable that supports or higher if the USB
cable or USB memory stick does not fit into your TV’s USB port.
A
B
C
A
B* A
<
=
8mm
* B
<
=
18mm
* C
<
=
8mm
•Use a certified cable with the HDMI logo attached.
•If you do not use a certified HDMI cable, the screen may not display or
a connection error may occur.
•Recommended HDMI CableTypes
- Ultra High Speed HDMI®/™ Cable (3 m or less)
Separate Purchase
Separate purchase items can be changed or modified for quality
improvement without any notification. Contact your dealer to buy these
items.These devices only work with certain models.
The model name or design may be changed depending on the upgrade
of product functions, manufacturer’s circumstances or policies.
Magic Remote Control
(Depending on model)
AN-MR18HA
Check whether yourTV model supports Bluetooth in the Wireless
Module Specification to verify whether it can be used with the Magic
Remote.
Stand
Stand Model
AM-ST20AA 55WS960H*
AM-ST20AB 65WS960H*

5
ENGLISH_Index
Wall Mounting Bracket
Make sure to use screws and wall mount bracket that meet the VESA
standard. Standard dimensions for the wall mount kits are described in
the following table.
A
B
Model 55WS96*
65WS96*
VESA (A x B) (mm) 300 x 300
Standard screw M6
Number of screws 4
Wall mount bracket OLW480B
Lifting and moving the TV
Please note the following advice to prevent theTV from being scratched
or damaged and for safe transportation regardless of its type and size.
•It is recommended to move the TV in the box or packing material that
the TV originally came in.
•Before moving or lifting theTV, disconnect the power cord and all
cables.
•When holding theTV, the screen should face away from you to avoid
damage.
•Hold the side and bottom of theTV frame firmly. Make sure not to
hold the transparent part, speaker, or speaker grill area.
•When transporting a large TV, there should be at least 2 people.
•When transporting the TV by hand, hold theTV as shown in the
following illustration.
•When transporting the TV, do not expose theTV to jolts or excessive
vibration.
•When transporting the TV, keep the TV upright, never turn the TV on
its side or tilt towards the left or right.
•Do not apply excessive pressure to cause flexing / bending of frame
chassis as it may damage the screen.
•When handling theTV, be careful not to damage the protruding
buttons.
•Avoid touching the screen at all times, as this may result in
damage to the screen.
•When attaching the stand to theTV set, place the screen
facing down on a cushioned table or flat surface to protect
the screen from scratches.

6
ENGLISH_Index
Mounting on a Table
(Depending on model)
1 Lift and tilt the TV into its upright position on a table.
• Leave a 10cm (minimum) space from the wall for proper
ventilation.
10cm
10cm
10cm
10cm
10cm
(Depending on model)
2 Connect the power cord to a wall outlet.
•Do not apply foreign substances (oils, lubricants, etc.) to the
screw parts when assembling the product. (Doing so may
damage the product.)
•If you install theTV on a stand, you need to take actions
to prevent the product from overturning. Otherwise, the
product may fall over, which may cause injury.
•Do not use any unapproved items to ensure the safety and
product life span.
•Any damage or injuries caused by using unapproved items
are not covered by the manufacturer’s warranty.
•Make sure that the screws are inserted correctly and fastened
securely. (If they are not fastened securely enough, the TV
may tilt forward after being installed.) Do not use too much
force and over tighten the screws; otherwise screw may be
damaged and not tighten correctly.
•When installing on a cabinet or a shelf using a stand, make
sure its width is greater than that of the TV.
Securing the TV to a Wall
(Depending on model)
1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back
of the TV.
• If there are bolts inserted at the eye-bolts position, remove the
bolts first.
2 Mount the wall brackets with the bolts to the wall. Match the
location of the wall bracket and the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.
Make sure to keep the rope horizontal with the flat surface.
•Use a platform or cabinet that is strong and large enough to support
the TV securely.
•Brackets, bolts and ropes are not provided. You can obtain additional
accessories from your local dealer.

7
ENGLISH_Index
Mounting to the Wall
Attach an optional wall mount bracket at the rear of theTV carefully
and install the wall mount bracket on a solid wall perpendicular to
the floor. When you attach theTV to other building materials, please
contact qualified personnel. LG recommends that wall mounting be
performed by a qualified professional installer. We recommend the use
of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with
cables connected.When you do not use LG’s wall mount bracket, please
use a wall mount bracket where the device is adequately secured to the
wall with enough space to allow connectivity to external devices. It is
advised to connect all the cables before installing fixed wall mounts.
10cm
10cm
10cm
10cm
10cm
•Remove the stand before installing the TV on a wall mount
by performing the stand attachment in reverse.
•For more information of screws and wall mount bracket,
refer to the Separate purchase.
•If you intend to mount the product to a wall, attachVESA
standard mounting interface (optional parts) to the back
of the product.When you install the set to use the wall
mounting bracket (optional parts), fix it carefully so as not
to drop.
•When mounting aTV on the wall, make sure not to install
the TV by hanging the power and signal cables on the back
of the TV.
•Do not install this product on a wall if it could be exposed
to oil or oil mist.This may damage the product and cause
it to fall.
•When installing the Full Contact Wall Mount, the TV may
not be contacted firmly against the wall due to some wall
conditions.
Precautions for Safety
(Except for OLW480B)
•Professional installers should read this manual carefully to ensure
proper installation.
•Professional installers should forward this manual to customers after
installation and encourage them to read and store it in a convenient
place for future reference.
After reading the installation manual, keep it in a convenient place
for future reference.
•Ask a professional installer appointed by the store for
installation of the product.
Installation by someone other than a professional installer
is extremely dangerous and may result in personal injury.
•Do not install the product in an unstable site that cannot
withstand its weight.
If the installation site lacks sufficient rigidity, the product
may fall and cause personal injury.
•Contact a professional installer appointed by the store prior
to moving or replacing the product after installation.
Installation is a technical task and safety issues may arise
if an individual attempts to install or move the product
personally.
•Do not hang on the product or subject it to severe impact
after installation.
Doing so may cause the product to fall and cause personal
injury.
•When installing the product on a wall, do not hang the
power line or signal cables from the back of theTV.
This can damage the cords, resulting in a fire, electrical
shock or malfunction of the product.
•Be sure to wear work gloves when installing the product.
- Installing with unprotected hands may result in injury.

8
ENGLISH_Index
•Install the product according to the instructions in the
installation manual.
Failure to install the product according to the instructions
in the installation manual can result in serious personal
injury or product damage.
•Be sure to have at least two people when installing the
product or adjusting the product’s height.
Attempting to perform installation or adjustments
personally may result in personal injury or damage to the
product.
•Make sure a wall is available prior to proceeding with
installation. Make use of the anchors and screws provided
with the product.
Use of any unauthorised anchors or screws may not
support the product's weight, which poses safety risks.
•When drilling in the wall for installation, be sure to use
drill bits and drills of the specified diameter. Follow the
instructions for the hole depth.
Drilling and installing the product in ways other than
specified in the installation manual may result in an
unstable installation and potential safety issues.
•Do not wipe the product with a wet towel or use any
heating equipment or humidifier under the place where
the product is installed.
Liquid water or vapor may enter the product and excessive
heat may cause fire, electric shock, or malfunction.
•Do not install the product near a fire sprinkler or detector,
a place where vibration or shock may occur or near a high-
voltage wire or power source.
•Unplug the product’s power cord from the wall outlet
before installing.
Installing the product while the power cord is plugged in
may result in electric shock or fire.
•Do not install the product with bare hands. Be sure to wear
work gloves.
Attempting installation without work gloves may cause
personal injury.
•Connect the product with the supplied cable. Use of an
unauthorised cable may result in damage by friction with
the wall. Make sure to use the supplied cable gender. (This
may vary by model.)
Before Installation
(Except for OLW480B)
•Do not use the product for any purpose other than installing theTV
on a wall.
•Avoid product damage and safety accidents caused by careless
installing or use of improper or unauthorised wall mount.
•Follow the instructions in the installation manual for a convenient
installation of the wall mount.
•Immediately discontinue installation and contact the service centre if
you cannot fully understand the installation process.
Use a professional installer if any installation issues remain after the
inquiry.
•Installation of this product on a concrete wall or wood stud is
recommended. Installation of this product on other surfaces
(Dry wall, plywood, bricks, etc.) is not recommended. Improper
installation may result in the product falling.
•Install the product only on a vertical wall.
Do not install on a tilted wall that exceeds building standards or on
the heavily titled wall or ceiling.
LG is not responsible for problems caused by improper installation of
the product, e.g., heavily tilted walls and ceilings.
•Check the enclosed accessories before installation.We are not
responsible for any lost or damaged accessories after the inner
packaging is opened.
•When an infant or small child swallows the enclosed accessories,
various safety accidents such as choking may occur. Keep the enclosed
accessories out of the reach of infants and children.
•When tightening screws, tighten until fully snug.
Avoid using excessive force when tightening the screws. Doing
so may damage the wall and product or reduce the rigidity or
performance of the product.
•Avoid installing aTV that exceeds the specified tensile load, and do
not allow any external force to be applied to the product.
•Avoid accidents by using work tools with care during installation.
Tools for Installation
•“+”shaped screwdriver (manual or electric) / level / drill / Ø8mm
drill bit for concrete or Ø4mm drill bit for steel
