OWNER’S MANUAL
Please read this manual carefully before operating your set and retain
it for future reference.
*MFL68823618*
P/NO : MFL68823618 (1507-REV00)
Printed in Korea
EG91** EG92**
EG96** EF95**

A-2 TABLE OF CONTENTS
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-10 Tidying cables
A-10 MAKING CONNECTIONS
A-10 Antenna connection
A-11 Satellite dish connection
A-12 HDMI connection
A-14 - ARC (Audio return channel)
A-14 DVI to HDMI connection
A-16 Component connection
A-17 Composite connection
A-18 Headphone connection
A-19 Audio connection
A-19 - Digital optical audio connection
A-20 USB connection
A-21 CI module connection
A-22 Euro scart connection
LANGUAGE LIST
ENGLISH
FRANÇAIS
B-1 SPECIFICATIONS
B-3 REGULATORY
COMMON
COMMON
LANGUAGE

A-3
SETTING UP THE TV
SETTING UP THE TV
Image shown may dier from your TV.
Attaching the stand
55EG91**
1
1
1
Stand cover
Protective package
1 When assembling the stand, lay the front screen Protec-
tive package included in the product box on a table or
product box and then place the TV screen face down on
the Protective package.
Do not lift your TV without the stand. The protrud-
ing Joystick Button may be damaged.
CAUTION
2
Stand assy
3
M4 x L20
4 EA
4
Stand cover
Insert the protruding parts of the Stand cover into
the holes.
CAUTION

A-4 SETTING UP THE TV
55EG92**, 55EG96**
1
1
1
Stand cover
Protective package
1 When assembling the stand, lay the front screen Protec-
tive package included in the product box on a table or
product box and then place the TV screen face down on
the Protective package.
Do not lift your TV without the stand. The protrud-
ing Joystick Button may be damaged.
CAUTION
2
Stand assy
3
M4 x L20
5 EA
5
Cover holder
Stand
cover
Insert the Cover holder of the Stand cover into the
holes until it clicks. Press the Stand cover gently so
that the non-woven fabric inside is attached tightly.
CAUTION

A-5
SETTING UP THE TV
65EG96**
1
Stand cover
1
1
Protective package
1 When assembling the stand, lay the front screen Protec-
tive package included in the product box on a table or
product box and then place the TV screen face down on
the Protective package.
Do not lift your TV without the stand. The protrud-
ing Joystick Button may be damaged.
CAUTION
2
Stand assy
4
Stand cover
Insert the protruding parts of the Stand cover into
the holes.
CAUTION
5
Cover holder
Stand
cover
Insert the Cover holder of the Stand cover into the
holes until it clicks. Press the Stand cover gently so
that the non-woven fabric inside is attached tightly.
CAUTION

A-6 SETTING UP THE TV
5
Cover holder
Stand
cover
Insert the Cover holder of the Stand cover into the
holes until it clicks. Press the Stand cover gently so
that the non-woven fabric inside is attached tightly.
CAUTION
3
M4 x L20
8 EA
4
Stand cover
Insert the protruding parts of the Stand cover into
the holes.
CAUTION

A-7
SETTING UP THE TV

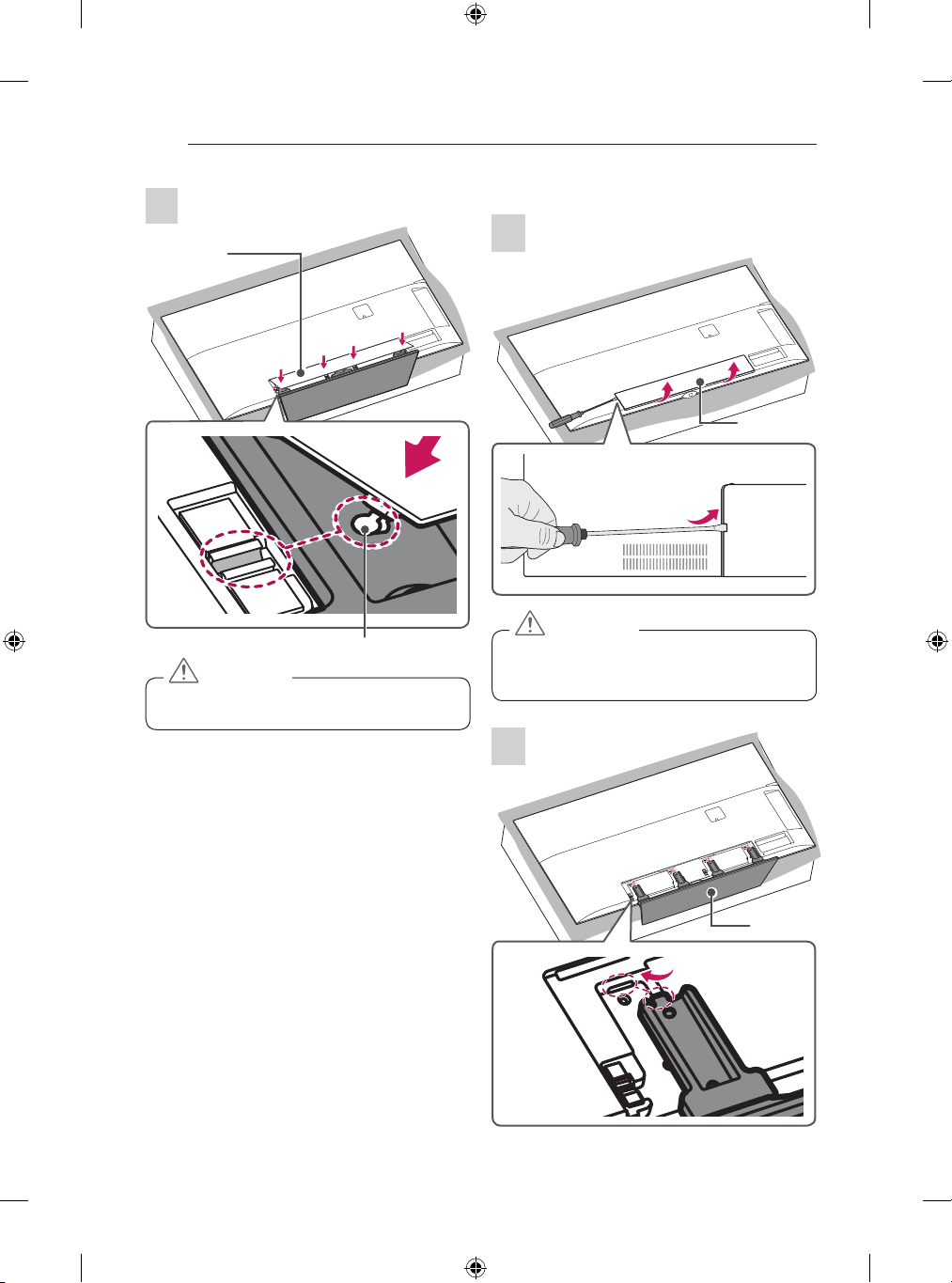

55EF95**
1
Stand cover
Do not lift your TV without the stand. The protrud-
ing Joystick Button may be damaged.
Use a flat tool to remove the Stand cover.
CAUTION
2
Stand assy
3
M4 x L14
5 EA
4
Stand cover
Insert the protruding parts of the Stand cover into
the holes.
CAUTION

A-8 SETTING UP THE TV
5
Cover holder
Stand
cover
Insert the Cover holder of the Stand cover into the
holes until it clicks.
CAUTION
65EF95**
1
Stand cover
Do not lift your TV without the stand. The protrud-
ing Joystick Button may be damaged.
Use a flat tool to remove the Stand cover.
CAUTION
2
Stand assy

A-9
SETTING UP THE TV
3
M4 x L14
8 EA
4
Stand cover
Insert the protruding parts of the Stand cover into
the holes.
CAUTION
5
Cover holder
Stand
cover
Insert the Cover holder of the Stand cover into the
holes until it clicks.
CAUTION
Remove the stand before installing the TV on a
wall mount by performing the stand attachment in
reverse.
NOTE
When attaching the stand to the TV set, place the
screen facing down on a cushioned table or flat
surface to protect the screen from scratches.
Make sure that the screws are inserted correctly
and fastened securely. (If they are not fastened
securely enough, the TV may tilt forward after being
installed.)
Do not use too much force and over tighten the
screws; otherwise screw may be damaged and not
tighten correctly.
CAUTION

A-10
SETTING UP THE TV / MAKING CONNECTIONS
MAKING CONNECTIONS
This section on MAKING CONNECTIONS mainly uses
diagrams for the EG9609 models.
Antenna connection
Wall
antenna
socket
(*Not
provided)
English
Connect the TV to a wall antenna socket with an RF cable
(75 Ω).
The external device connection may differ from the
model.
Use a signal splitter to use more than 2 TVs.
If the image quality is poor, install a signal amplifier
properly to improve the image quality.
If the image quality is poor with an antenna
connected, try to realign the antenna in the correct
direction.
An antenna cable and converter are Not provided.
Supported DTV Audio: MPEG, Dolby Digital, Dolby
Digital Plus, HE-AAC
For a location that is not supported with ULTRA
HD broadcasting, this TV cannot receive ULTRA HD
broadcasts directly. (Depending on model)
NOTE
Tidying cables
Image shown may dier from your TV.
Gather and bind the cables with the cable holder.
Cable holder
Do not move the TV by holding the cable holder,
as the cable holder may break, and injuries and
damage to the TV may occur.
CAUTION

A-11
MAKING CONNECTIONS
Satellite dish connection
(Only satellite models)
(*Not provided)
Satellite
Dish
English
Connect the TV to a satellite dish to a satellite socket with a
satellite RF cable (75 Ω).
Français
Connectez la TV à une parabole satellite ou à une prise
satellite à l’aide d’un câble satellite RF (75 Ω).







ULTRA HD
ULTRA HD
Français
Connectez la TV à une prise d’antenne murale avec un
câble RF (75 Ω).
Le raccordement du périphérique externe peut
différer du modèle.
Utilisez un séparateur de signaux pour utiliser plus
de deux téléviseurs.
Si la qualité d’image est mauvaise, installez
correctement un amplificateur de signaux pour
l’améliorer.
Si vous utilisez une antenne et que la qualité d’image
est mauvaise, essayez de réaligner l’antenne dans la
bonne direction.
Le câble et le convertisseur d’antenne ne sont pas
fournis.
Technologies audio TNT prises en charge : MPEG,
Dolby Digital, Dolby Digital Plus, HE-AAC
Si l'emplacement ne prend pas en charge la
diffusion ULTRA HD, ce téléviseur ne peut pas
recevoir de diffusion ULTRA HD directement. (selon
le modèle)
REMARQUE

A-12 MAKING CONNECTIONS
HDMI connection
(Only EG91**)
HDMI
(*Not
Provided)
DVD / Blu-Ray / PC /
HD Cable Box / HD STB
(Only EG92**, EG96**, EF95**)
HDMI
(*Not
provided)
DVD / Blu-Ray / PC /
HD Cable Box / HD STB
English
Transmits the digital video and audio signals from an
external device to the TV. Connect the external device and
the TV with the HDMI cable as shown.
(Only EG92**, EG96**, EF95**)
➡➡➡Picture ➡HDMI ULTRA HD Deep
Colour :
On - Support 4K @ 50/60 Hz (4:4:4, 4:2:2, 4:2:0)
O - Support 4K @ 50/60 Hz (4:2:0)
If the device connected to Input Port also supports ULTRA
HD Deep Colour, your picture may be clearer.
However, if the device doesn’t support it, it may not work
properly.
In that case, connect the device to a dierent HDMI port or
change the TV’s HDMI ULTRA HD Deep Colour setting to
O. (This feature is available on certain models which are
supported ULTRA HD Deep Colour only. )

A-13
MAKING CONNECTIONS
The external device connection may differ from the
model.
It is recommended to use the TV with the HDMI
connection for the best image quality.
Use the latest High Speed HDMI™ Cable with CEC
(Customer Electronics Control) function.
High Speed HDMI™ Cables are tested to carry an
HD signal up to 1080p and higher.
Supported HDMI Audio format : Dolby Digital
(32Khz, 44.1Khz, 48Khz), DTS(44.1Khz, 48Khz), PCM
(32Khz, 44.1Khz, 48Khz, 96Khz, 192Khz)
NOTE
Français
Permet de transmettre les signaux vidéo et audio numé-
riques d’un périphérique externe vers la TV. Connectez le
périphérique externe et la TV avec le câble HDMI comme
indiqué sur l’illustration suivante.
(Uniquement EG92**, EG96**, EF95**)
➡➡ ➡Image ➡HDMI ULTRA HD Deep
Colour :
Activé - Prend en charge la 4K à50/60Hz (4:4:4, 4:2:2,
4:2:0)
Désactivé - Prend en charge la 4K à50/60Hz (4:2:0)
Si le périphérique connecté au port Entrée prend égale-
ment en charge ULTRA HD Deep Colour, votre image
pourra être plus précise.
Toutefois, si le périphérique ne prend pas en charge ce
paramètre, il se peut qu'il ne fonctionne pas correctement.
Dans ce cas, connectez le périphérique à un autre
portHDMI ou Désactivéz le paramètre HDMI ULTRA HD
Deep Colour du téléviseur.
(Cette fonction est disponible sur certains modèles prenant
en charge le paramètre ULTRA HD Deep Colour unique-
ment.)
Le raccordement du périphérique externe peut
différer du modèle.
Pour obtenir une meilleure qualité d’image, il est
recommandé d’utiliser la TV avec une connexion
HDMI.
Utilisez le tout nouveau câble haut débit HDMI™
avec la fonction CEC (contrôles électroniques client).
Les câbles HDMI™ haut débit sont testés pour
transporter un signal HD de 1080p ou supérieur.
Formats audio HDMI pris en charge: Dolby
Digital(32Khz, 44.1Khz, 48Khz), DTS(44.1Khz, 48Khz),
PCM(32Khz, 44.1Khz, 48Khz, 96Khz, 192Khz)
REMARQUE





( )


On
O
( )
( )
( )O

A-14 MAKING CONNECTIONS
ARC (Audio return channel)
English
An external audio device that supports SIMPLINK and
ARC must be connected using HDMI/DVI IN 3 (ARC) or
HDMI(4K @ 60 Hz)/DVI IN 2 (ARC) port.
When connected with a high-speed HDMI cable, the
external audio device that supports ARC outputs
optical SPDIF without additional optical audio cable
and supports the SIMPLINK function.
Français
Un périphérique audio externe qui prend en charge les
technologies SIMPLINK et ARC doit être connecté au
port HDMI/DVI IN 3 (ARC) ou HDMI(4K @ 60 Hz)/DVI
IN 2 (ARC).
Si vous reliez un câble HDMI haut débit, le périphérique
audio externe qui prend en charge les sorties ARC,
prend également en charge la sortie optique SPDIF
sans câble audio optique supplémentaire, ainsi que la
fonction SIMPLINK.

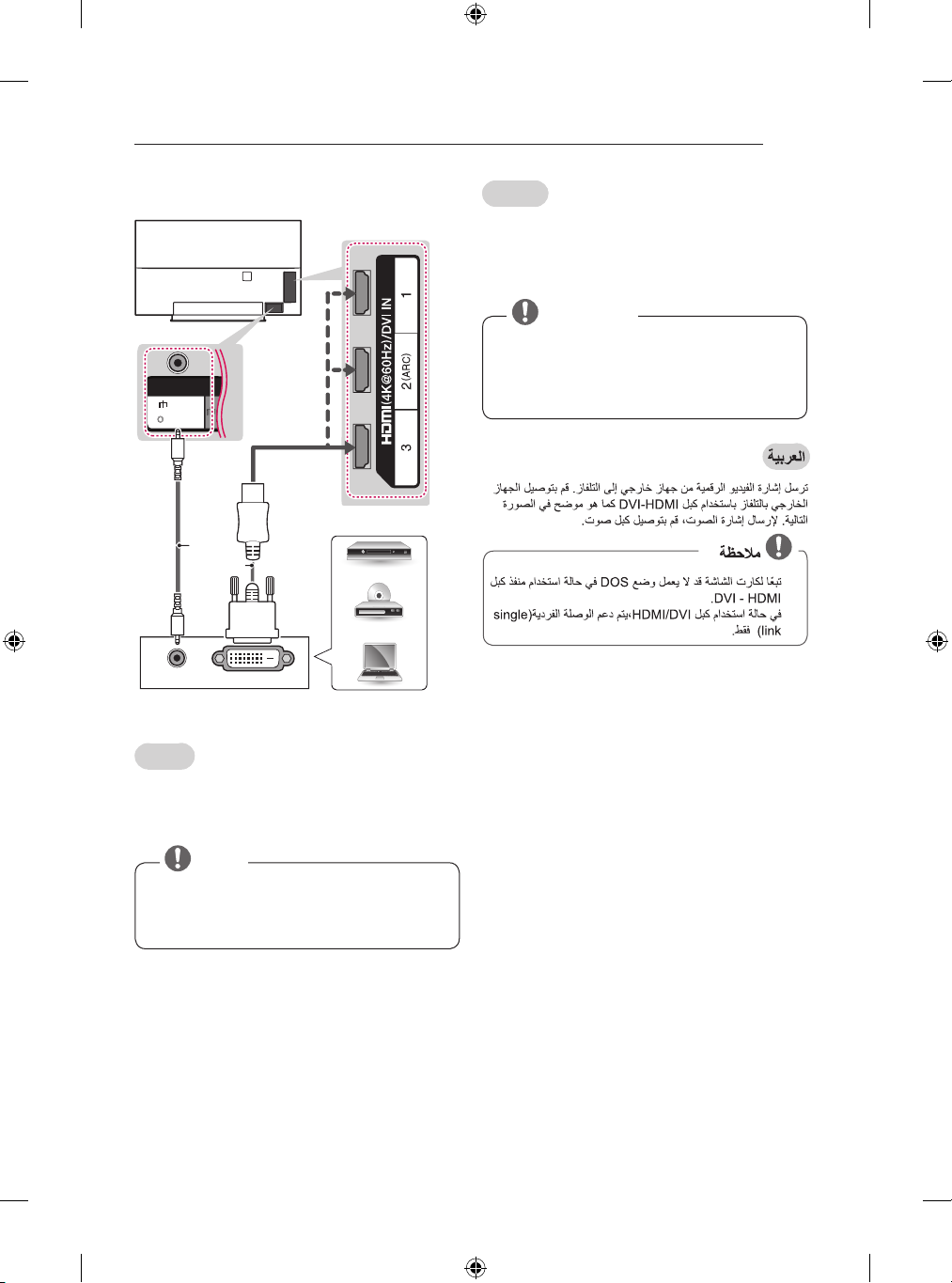

DVI to HDMI connection
(Only EG91**)
AUDIO OUT DVI OUT
IN
AV2
( Audio in)
(*Not
Provided)
DVD / Blu-Ray / PC /
HD Cable Box / HD STB


.HDMI(4K @ 60 Hz)/DVI IN 2 (ARC)
HDMI/DVI IN 3 (ARC)

A-15
MAKING CONNECTIONS
(Only EG92**, EG96**, EF95**)
AUDIO OUT DVI OUT
IN
AV2
( Audio in)
(*Not
provided)
DVD / Blu-Ray / PC /
HD Cable Box / HD STB
English
Transmits the digital video signal from an external device
to the TV. Connect the external device and the TV with the
DVI-HDMI cable as shown. To transmit an audio signal, con-
nect an audio cable.
Depending on the graphics card, DOS mode may
not work if a DVI-HDMI cable is in use.
When using the DVI-HDMI cable , Single link is only
supported.
NOTE


Français
Permet de transmettre les signaux vidéo d’un périphérique
externe vers la TV. Connectez le périphérique externe et la
TV avec le câble DVI-HDMI comme indiqué sur l’illustration
suivante. Pour émettre un signal audio, raccordez un câble
audio.
Selon la carte graphique, le mode DOS peut ne pas
fonctionner si vous utilisez un câble pour établir la
connexion DVI-HDMI.
Lors de l’utilisation du câble DVI-HDMI, seule une
liaison unique peut être prise en charge.
REMARQUE

A-16 MAKING CONNECTIONS

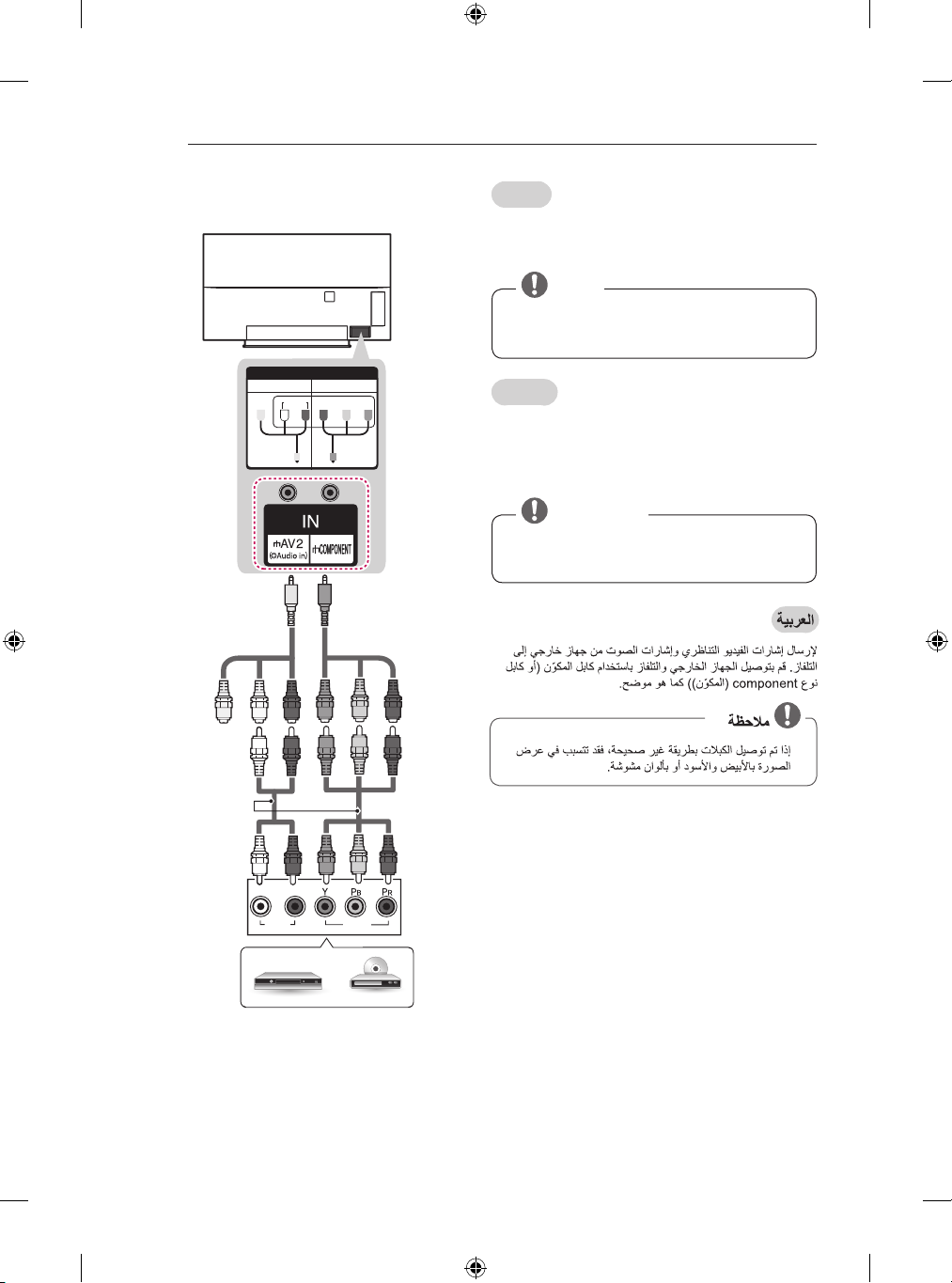

Component connection
IN
COMPONENT
YPB AUDIO
AV2
PR VIDEO
VIDEO
AUDIO
LR
GREEN GREEN BLUE BLUE RED RED
RED RED
WHITE WHITE WHITE
YELLOW
YELLOW
(Use the composite
gender cable provided.)
GREEN
(Use the component
gender cable provided.)
DVD / Blu-Ray / HD Cable Box
(*Not provided)
RED
BLUE
GREEN
RED
English
Transmits analogue video and audio signals from an exter-
nal device to the TV. Connect the external device and the
TV with a component gender cable as shown.
If cables are not installed correctly, it could cause
this image to display in black and white or with
distorted colours.
NOTE
Français
Permet de transmettre les signaux audio et vidéo
analogiques d’un périphérique externe vers la TV. Con-
nectez le périphérique externe et le téléviseur avec un
câble composant (ou un câble mâle composant) comme
indiqué.
Si les câbles sont mal installés, l’image peut s’afficher
en noir et blanc ou avec des couleurs de mauvaise
qualité.
REMARQUE

A-17
MAKING CONNECTIONS
Composite connection
VIDEO
MONO
( )
AUDIO
LR
IN
COMPONENT
YP B AUDIO
AV2
P R VIDEO
RED RED RED WHITE WHITE WHITE YELLOW YELLOW YELLOW
YELLOW
(Use the composite gender
cable provided.)
(*Not provided)
DVD / Blu-Ray /
HD Cable Box / VCR
English
Transmits analog video and audio signals from an external
device to the TV. Connect the external device and the TV
with the composite cable as shown.
Français
Permet de transmettre les signaux audio et vidéo
analogiques d’un périphérique externe vers la TV. Con-
nectez le périphérique externe et le téléviseur avec le câble
composite comme indiqué.

A-18 MAKING CONNECTIONS
Headphone connection
(Only EG96**, EF95**)
(*Not provided)
English
Transmits the headphone signal from the TV to an external
device. Connect the external device and the TV with the
headphone as shown.
AUDIO menu items are disabled when connecting a
headphone.
Optical Digital Audio Out is not available when
connecting a headphone.
Headphone impedance: 16 Ω
Max audio output of headphone: 0.627 mW to 1.334
mW
Headphone jack size: 0.35 cm
NOTE
Français
Transmet le signal du casque de la TV au périphérique
externe. Connectez le périphérique externe et la TV avec le
casque comme indiqué sur l’illustration suivante.
Les éléments du menu SON sont désactivés lorsque
vous branchez un casque.
La sortie audio numérique optique n’est pas
disponible lorsque vous branchez un casque.
Impédance du casque : 16 Ω
Sortie audio max. du casque : 0,627 mW à 1,334 mW
Taille de la prise casque : 0,35 cm
REMARQUE





1.334 0.627
Headphone

A-19
MAKING CONNECTIONS
Audio connection
OPTICAL AUDIO IN
(*Not provided)
Digital Audio System
English
You may use an external audio system instead of the built-
in speaker.
Digital optical audio connection
Transmits a digital audio signal from the TV to an external
device. Connect the external device and the TV with the
optical audio cable as shown.
Do not look into the optical output port. Looking at
the laser beam may damage your vision.
Audio with ACP (Audio Copy Protection) function
may block digital audio output.
CAUTION
Français
Vous pouvez utiliser un système audio externe en option à
la place d’un haut-parleur intégré.
Connexion audio optique numérique
Permet de transmettre un signal audio numérique de la TV
au périphérique externe. Connectez le périphérique ex-
terne et la TV avec le câble audio optique comme indiqué
sur l’illustration suivante.
Ne regardez pas dans le port de sortie optique. Le
rayon laser risquerait de vous abîmer la vue.
La fonction Audio avec ACP (protection copie audio)
peut bloquer la sortie audio numérique.
ATTENTION



A-20 MAKING CONNECTIONS

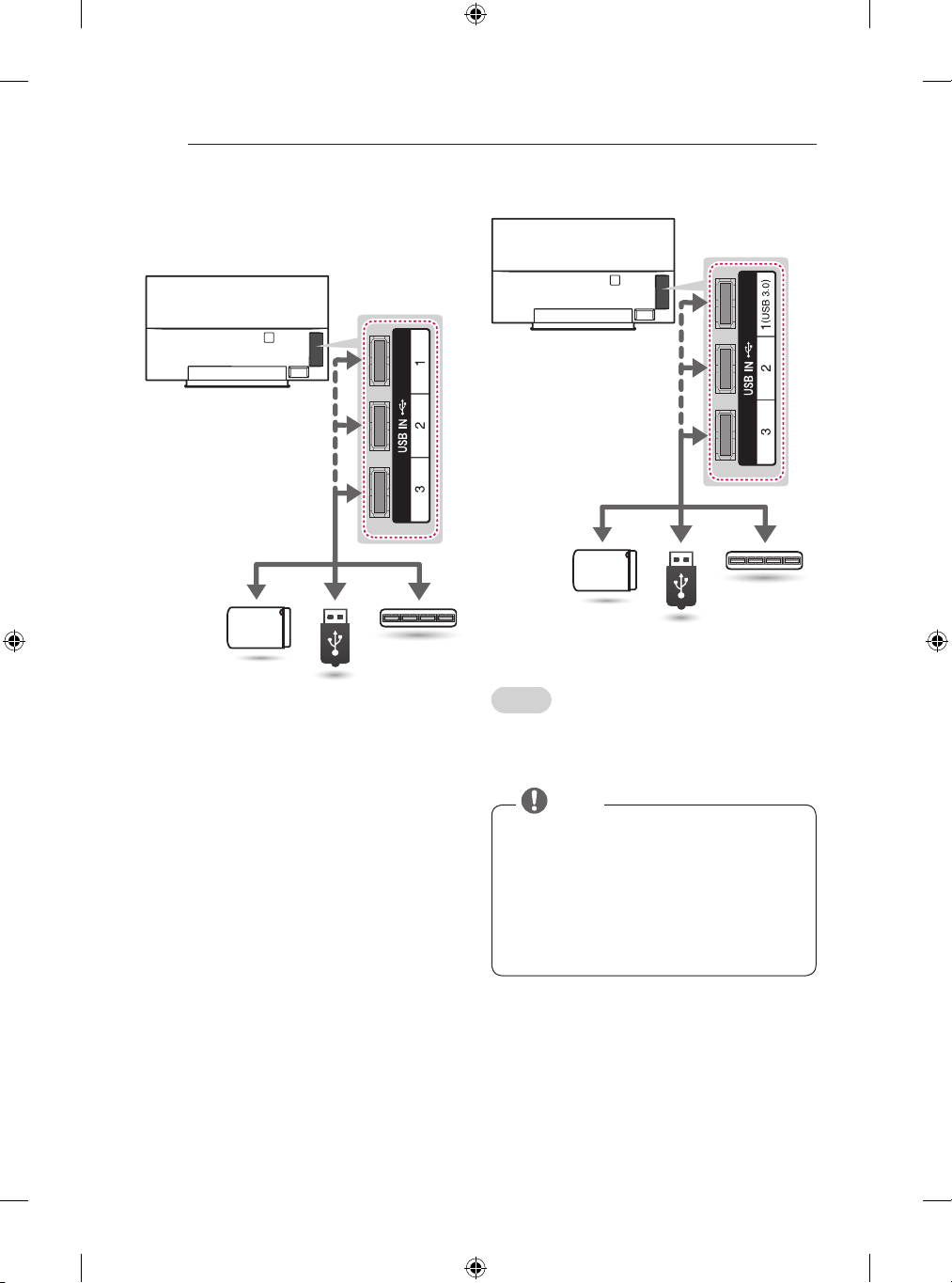

USB connection
(Only EG91**)
HDD
(*Not provided)
USB
HUB
(*Not provided)
(*Not provided)
(Only EG92**, EG96**, EF95**)
HDD
(*Not provided)
USB
HUB
(*Not provided)
(*Not provided)
English
Connect a USB storage device such as a USB ash memory,
external hard drive or a USB memory card reader to the TV
and access the Smart Share menu to use various multime-
dia les.
Some USB Hubs may not work. If a USB device
connected through a USB Hub is not detected,
connect it to the USB IN port on the TV directly.
Connect the external power source if your USB is
needed.
Connecting via USB 3.0 : Some USB device may
not work if it does not meet USB 3.0 standard. In
case, connect it to USB IN 2 or USB IN 3 port. (Only
EG92**, EG96**, EF95**)
NOTE
